Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Deore, Dura-Ace -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trek butted chromoly
Suspension Fork
Chromoly Touring w/lowrider mounts
Drivetrain
Rear Derailleur
Shimano Deore LX
Front Derailleur
Shimano Deore LX
Shift Levers
Shimano Dura-Ace, bar end control, 9 speed
Cassette
Shimano HG50 11-32, 9 speed
Crank
Shimano Trekking M543, 48/36/26
Pedals
Shimano M520, clipless
Wheels
Rims
Shimano Deore LX hubs; Bontrager Camino 36-hole rims
Tires
Bontrager Race Lite Hard-Case, 700x32c
Brakes
Brakes
Avid SD-5 brakes w/Tektro RL340 levers
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race VR, 31.8mm
Headset
1-1/8" threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Select City
Seatpost
Bontrager Alloy, infinite tilt adjustment, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

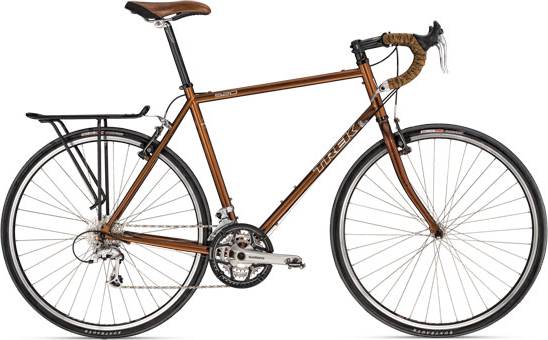

520 belongs to the Trek 520 model. Trek launched 39 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Touring bikes
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, this doesn’t mean that if you spend less money on a Touring bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
As for the wheels, Trek 520 2011, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek 520 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
