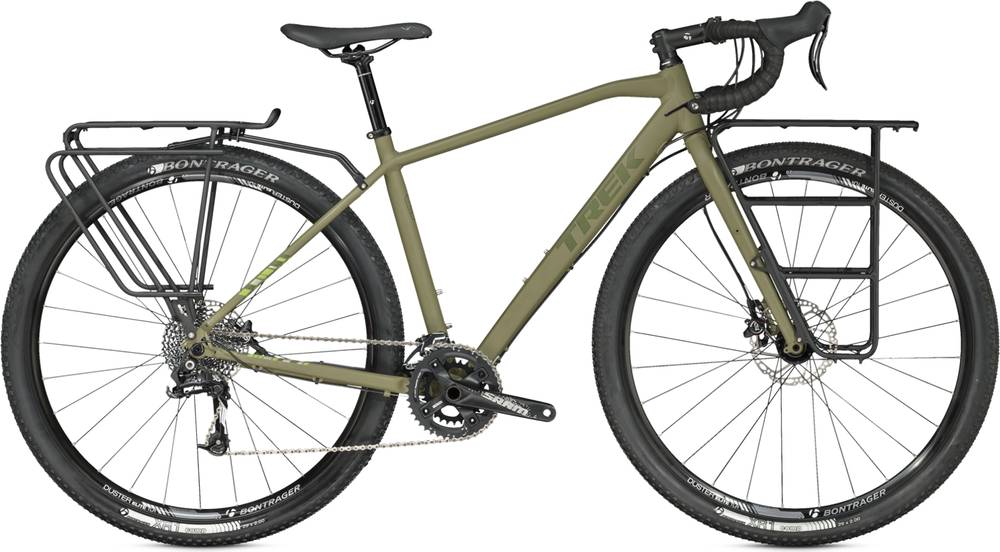

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset X7, X5 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha Aluminum, DuoTrap S compatible, rack and fender mounts
Suspension Fork
Alloy Adventure, disc
Drivetrain
Rear Derailleur
SRAM X7, Type 2
Front Derailleur
SRAM X5
Shift Levers
SRAM 500 TT, bar end control, 10 speed
Cassette
SRAM PG-1030, 11-36, 10 speed
Crank
SRAM S1000 10-speed, 42/28T
Wheels
Rims
Bontrager Duster Elite Tubeless Ready, 15mm front hub, 142x12 rear
Tires
Bontrager XR1, 29x2.0
Brakes
Brakes
TRP HYLEX, hydraulic road disc brake, 160mm rotor
Cockpit
Stem
Bontrager Blendr Elite, w/computer & light mounts, 31.8mm, 7 degree
Handlebar
Bontrager Race, VR-C, 31.8mm
Headset
VP, semi-cartridge bearings, sealed
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
920 Disc is part of the Trek 920 model. Trek released 14 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Touring bikes average price
According to our calculations, the average cost of a Touring bike that is reliable is 1007$. However, this doesn’t mean that if you spend less money on a Touring bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
920 Disc components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the 920 Disc bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek 920 Disc is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, you can easily find one that suits you.
