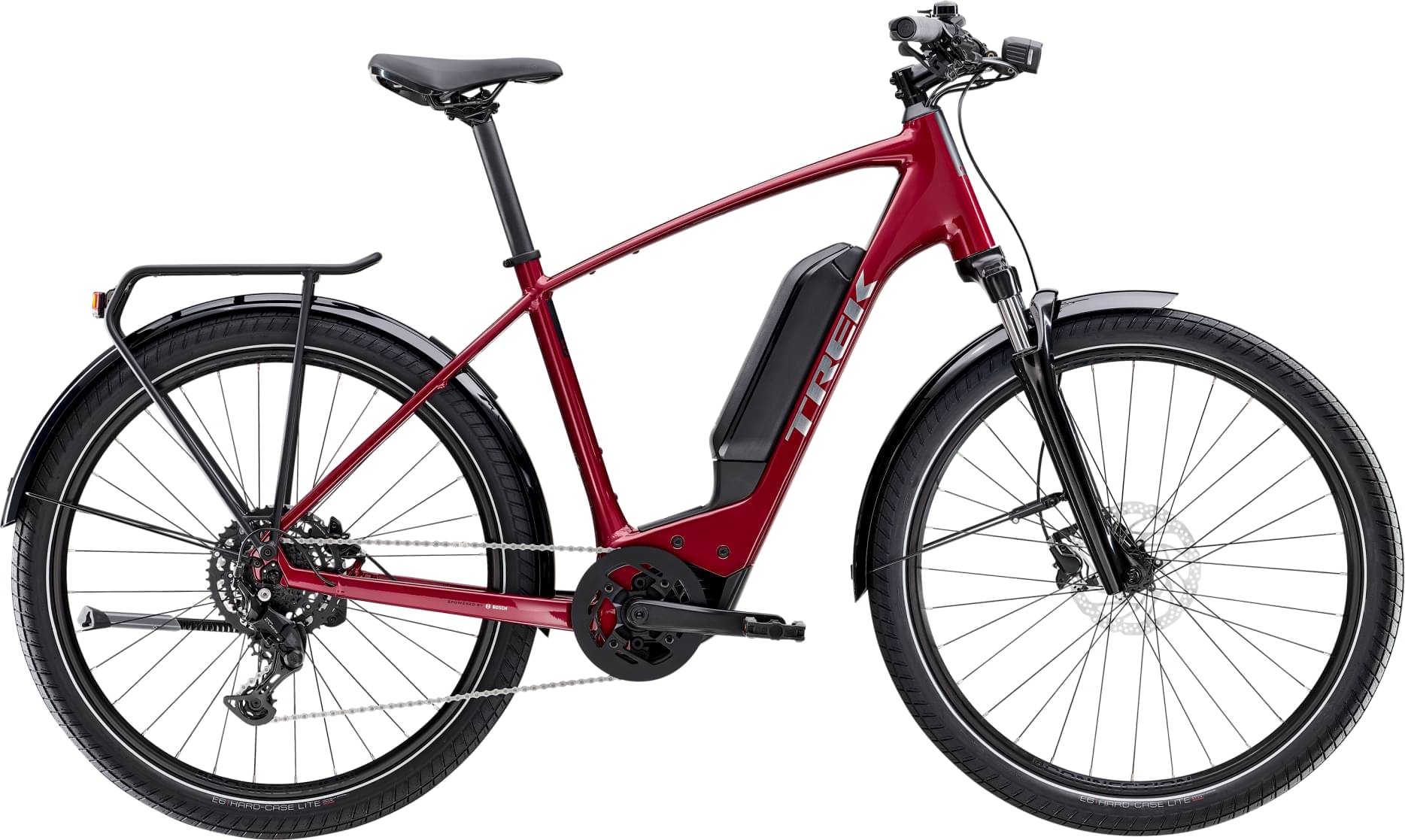

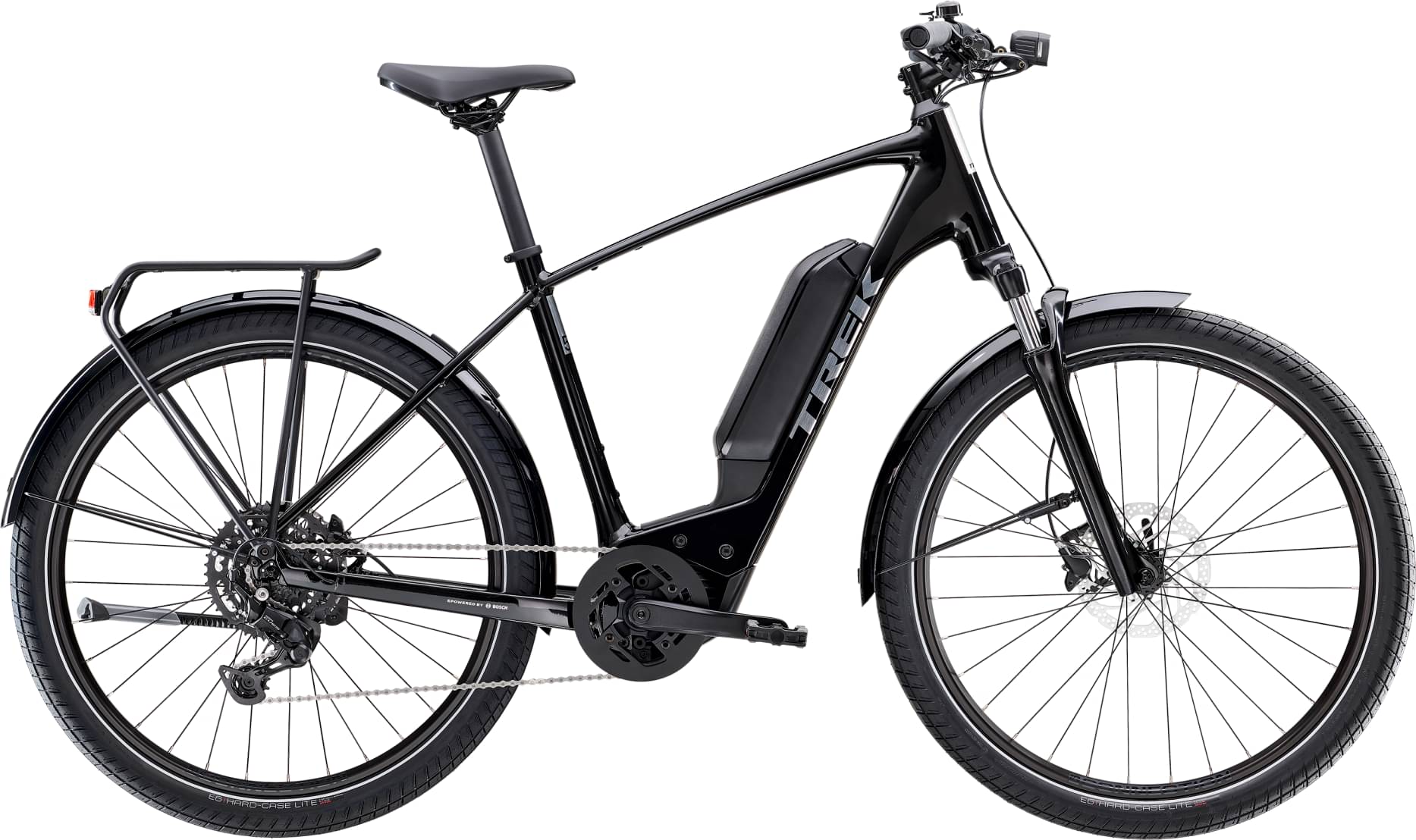

Trek Allant+ 5 2025
2025 E-bike
Estimate price |
3,722$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NVX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
165cm - 176cm
55cm
174cm - 187cm
60cm
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel
Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano U4000, 9-speed
Cassette
Shimano LINKGLIDE LG300, 11-46, 9-speed
Crank
Size: M, ProWheel alloy, 170 mm length; Size: L, XL, ProWheel alloy, 175 mm length
Chain
Shimano LG500, 9/10/11-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Shimano Tourney HB-QC300, centerlock
Rear Hub
Shimano FH-QC300-HM, 32-hole, CentreLock, 8-/9-/10-/11-speed, 135x5 mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length; Size: XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Size: M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: L, XL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Motor & Battery
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Charger
Bosch standard 2A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.617 mm | 1.668 mm | 1.705 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 652 mm | 662 mm | 681 mm |
| Rake | 52 mm | 49 mm | 51 mm |
| Trail | 86 mm | 83 mm | 79 mm |
| Stack | 621 mm | 652 mm | 687 mm |
| Reach | 384 mm | 391 mm | 403 mm |
| Top Tube Length | 574 mm | 590 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1120 mm | 1130 mm | 1150 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 787 mm | 827 mm | 868 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
