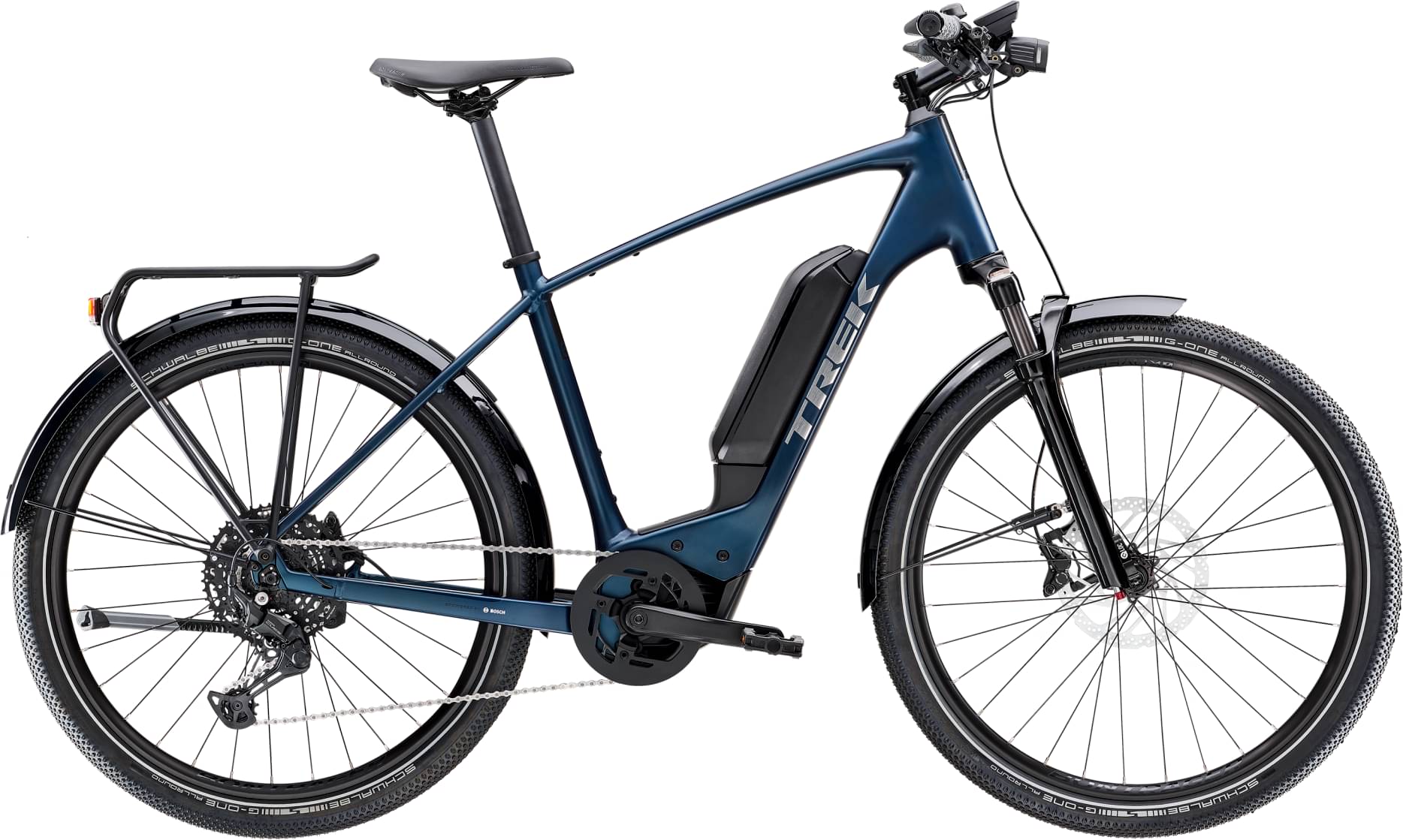

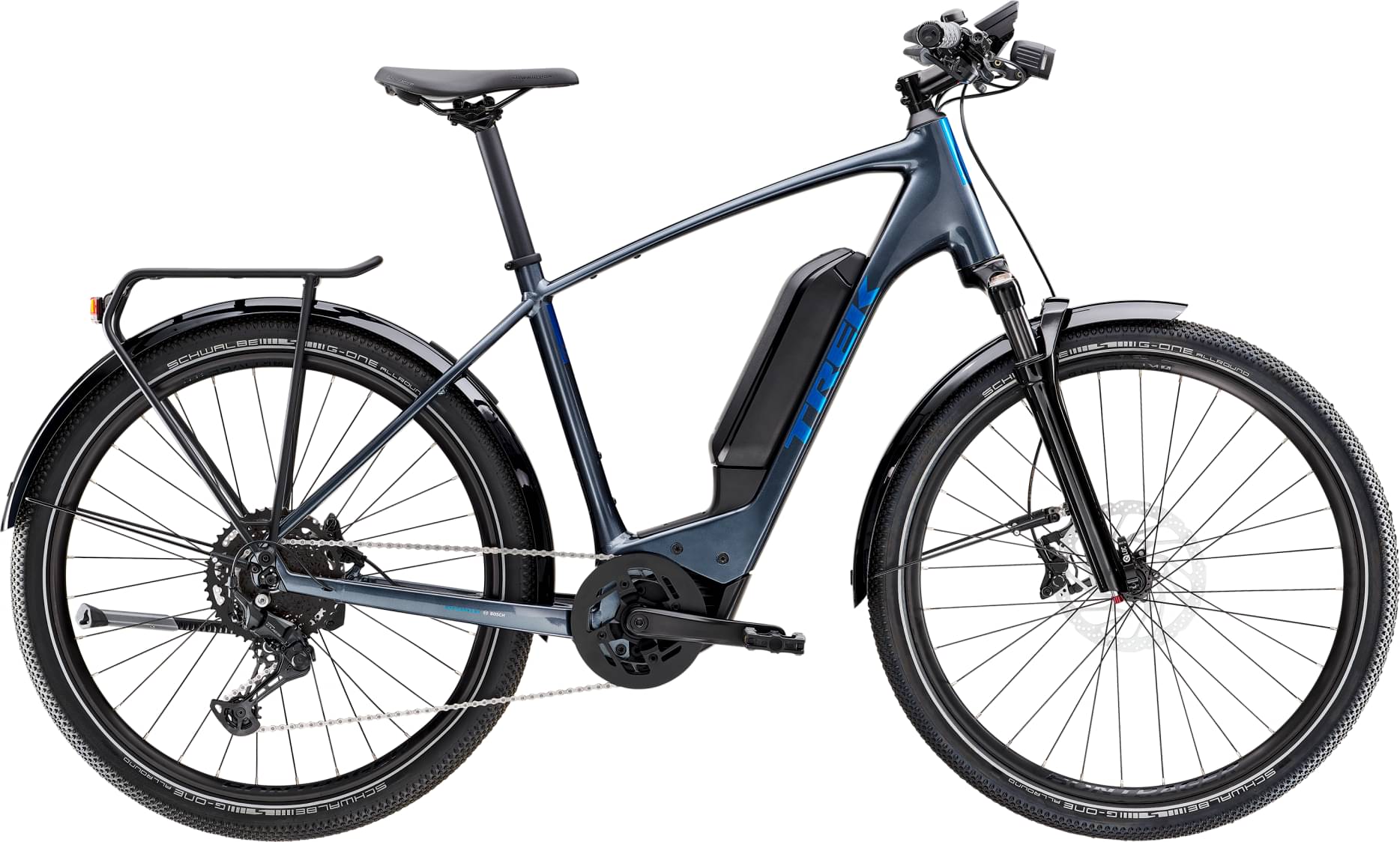

Trek Allant+ 6 2025
2025 E-bike
Estimate price |
4,303$
Weight | 23.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
165cm - 176cm
55cm
174cm - 187cm
60cm
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 w/optical gear display, 10-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Crank
Size: M, ProWheel alloy, 170 mm length; Size: L, XL, ProWheel alloy, 175 mm length
Chain
Shimano LG500, 9/10/11-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle
Rear Hub
Formula CL-52 alloy, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584
Brakes
Brakes
Size: M, L, XL, Shimano MT401 / MT420 hydraulic disc, 180 mm rotor; Size: M, L, XL, Shimano MT401/MT420 hydraulic disc
Cockpit
Stem
Size: M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length; Size: XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Bontrager XR Endurance Elite
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Size: M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: L, XL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Motor & Battery
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.617 mm | 1.668 mm | 1.705 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 652 mm | 662 mm | 681 mm |
| Rake | 52 mm | 49 mm | 51 mm |
| Trail | 86 mm | 83 mm | 79 mm |
| Stack | 621 mm | 652 mm | 687 mm |
| Reach | 384 mm | 391 mm | 403 mm |
| Top Tube Length | 574 mm | 590 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1120 mm | 1130 mm | 1150 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 787 mm | 827 mm | 868 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
