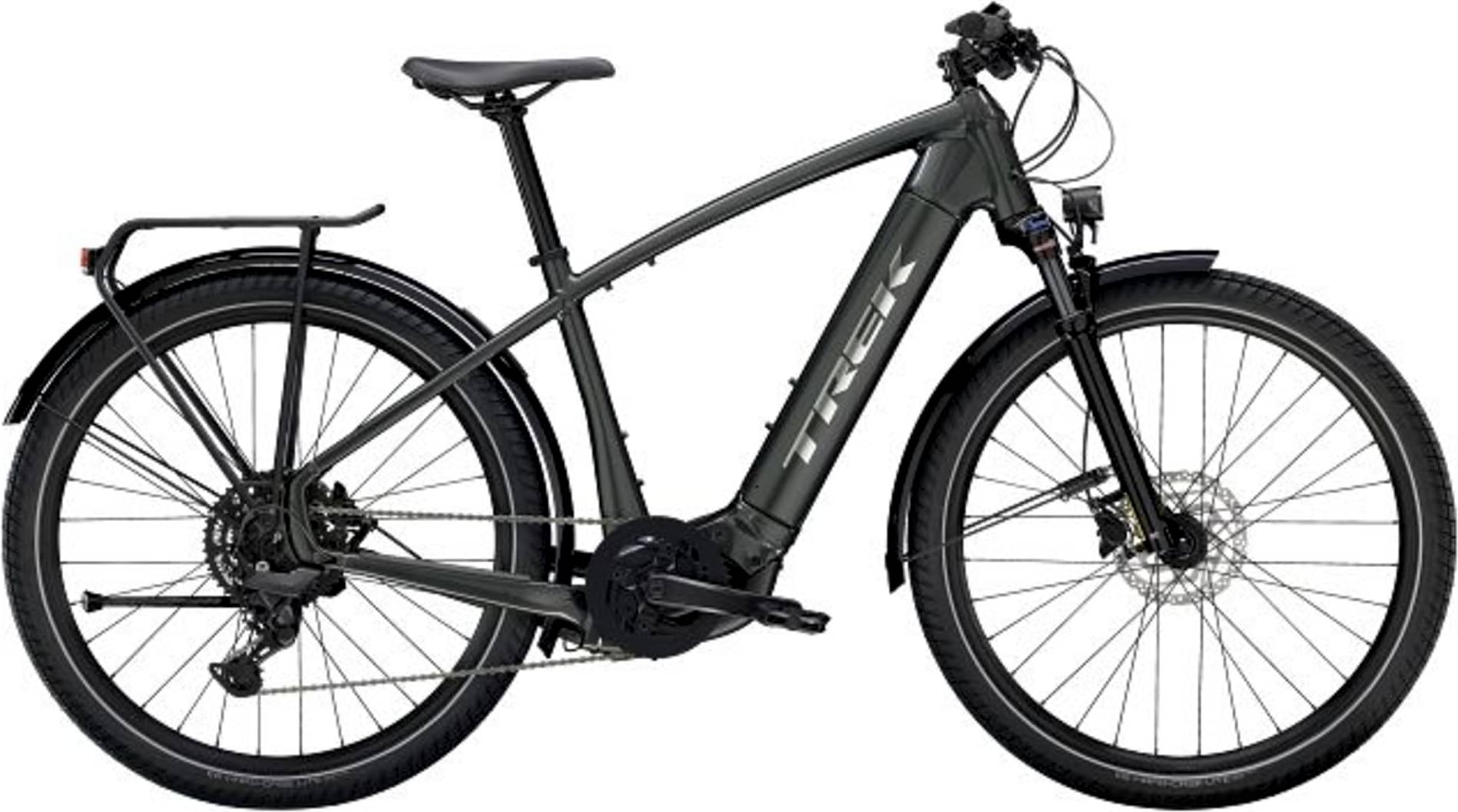

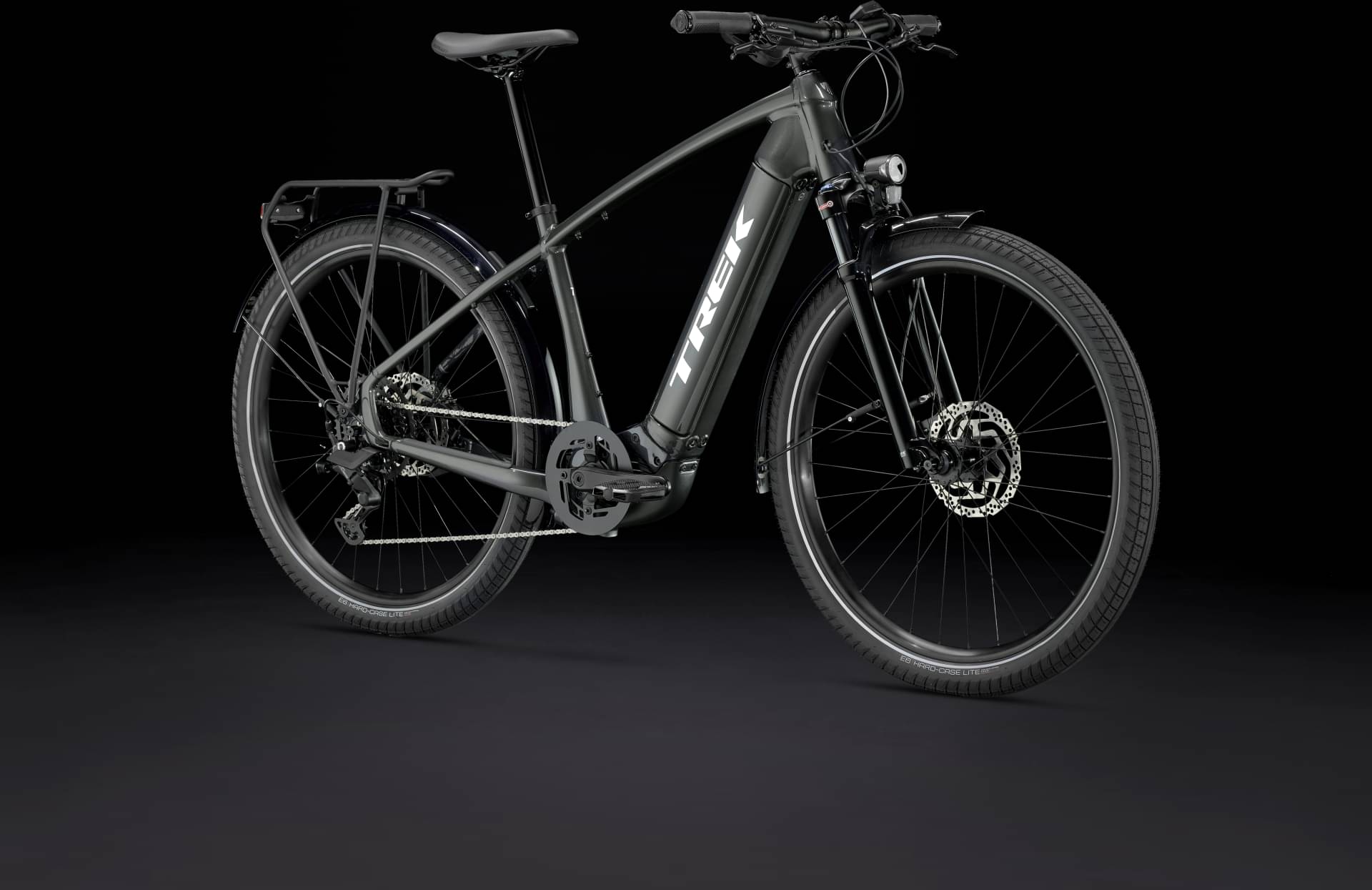

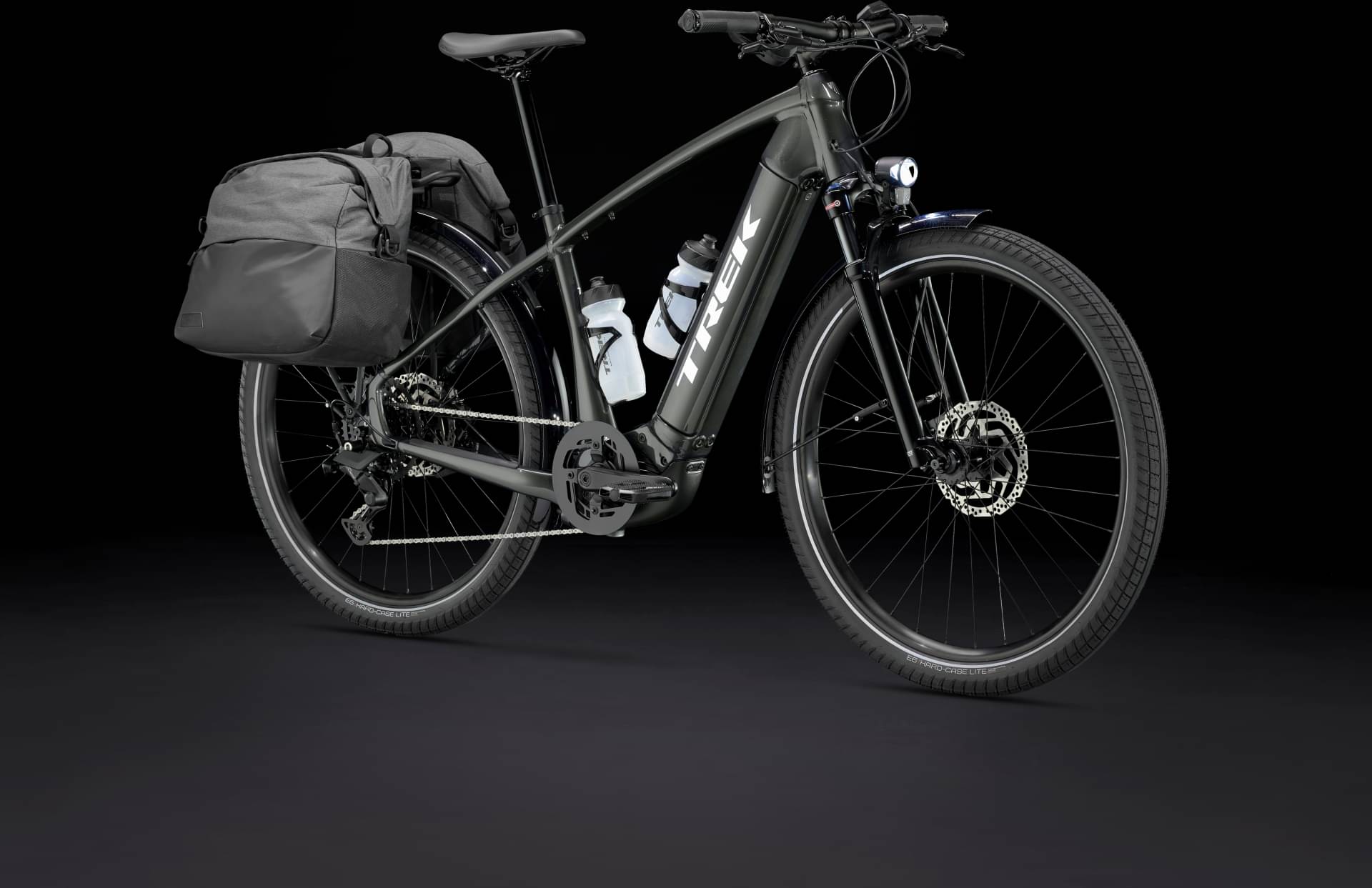

Trek Allant+ 7 Gen 2 2025
2025 E-bike
Estimate price |
4,652$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 500Wh, smart system -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed e-bike frame, Removable Integrated Battery, Motor Armor, internal cable routing, post-mount disc
Suspension Fork
SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63mm travel

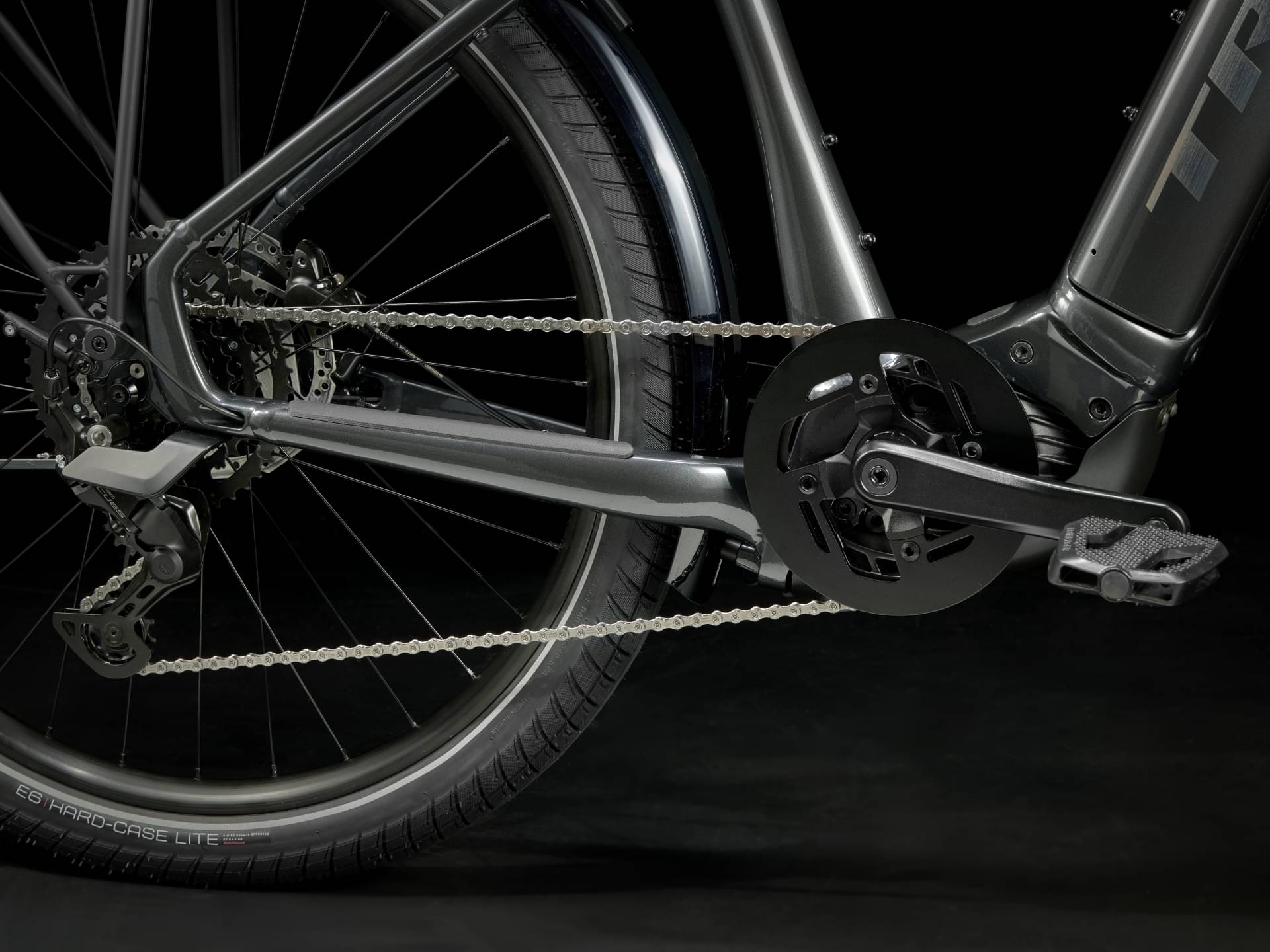

Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano U4000, 9 speed
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed
Crank
Size: M, ProWheel alloy, 170mm length; Size: L, XL, ProWheel alloy, 175mm length
Chain
Shimano LG500, 9/10/11 speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4''
Brakes
Brakes

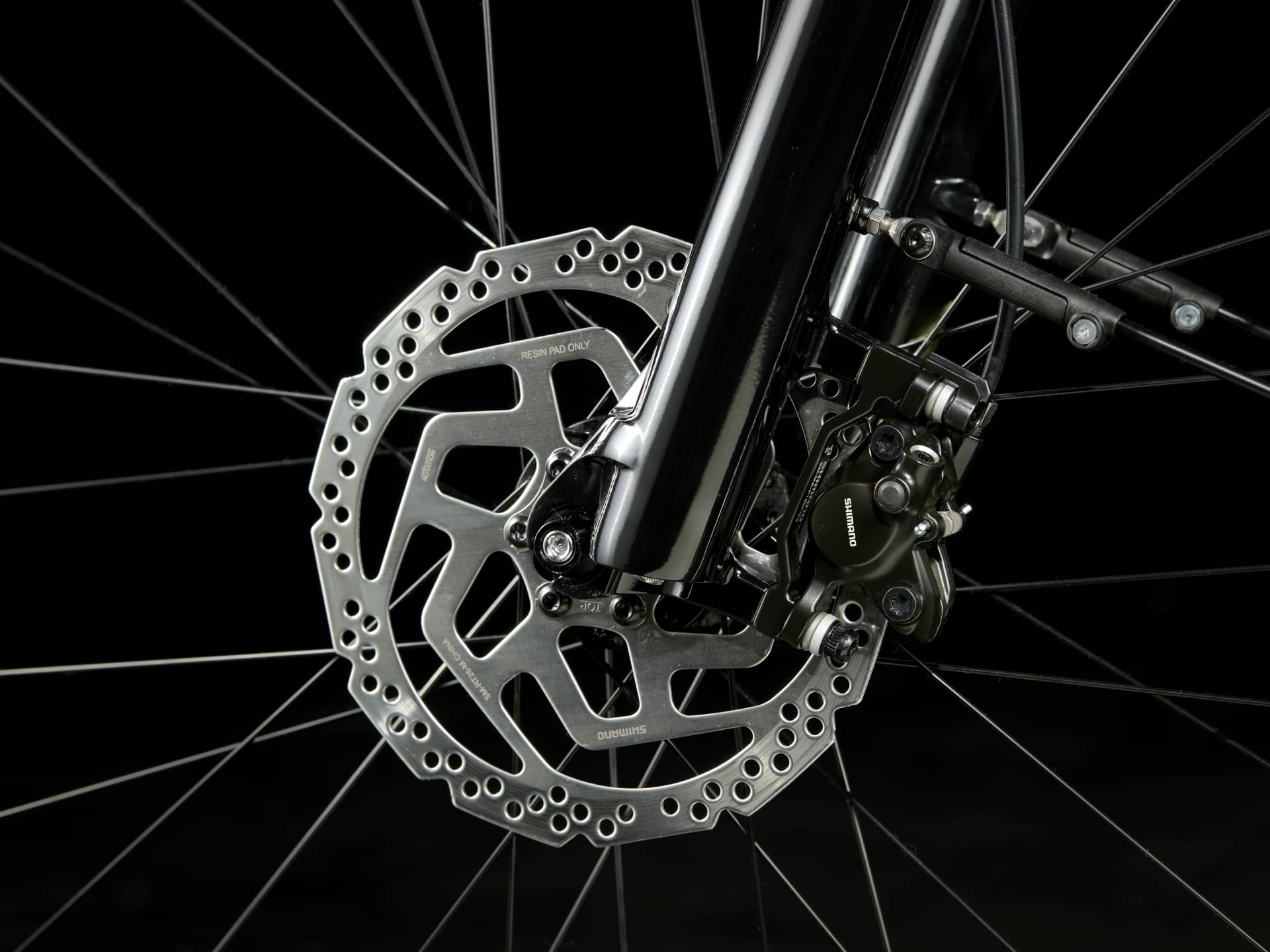

Shimano MT200 hydraulic disc
Cockpit
Stem
Size: M, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length
Handlebar

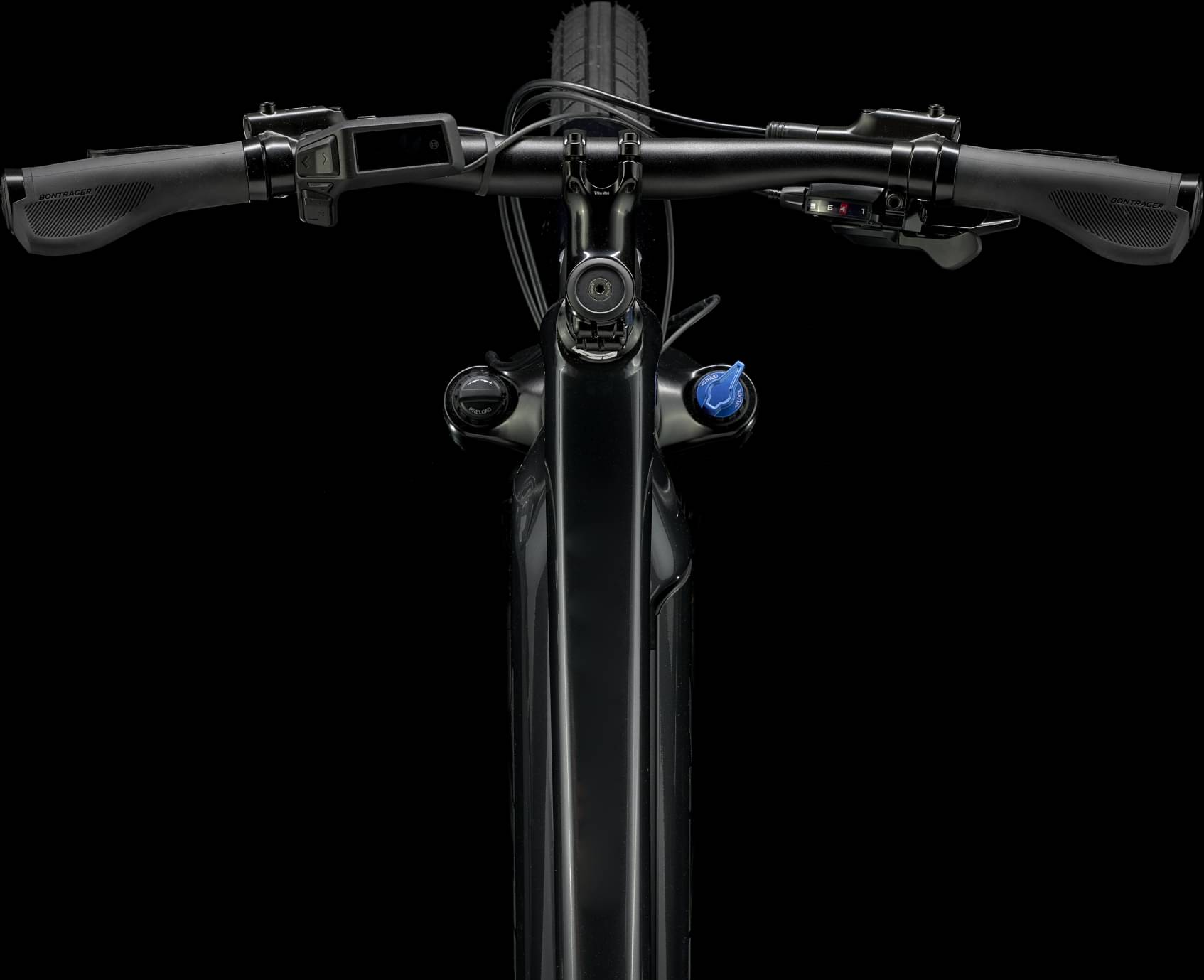

Size: M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, XL, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips

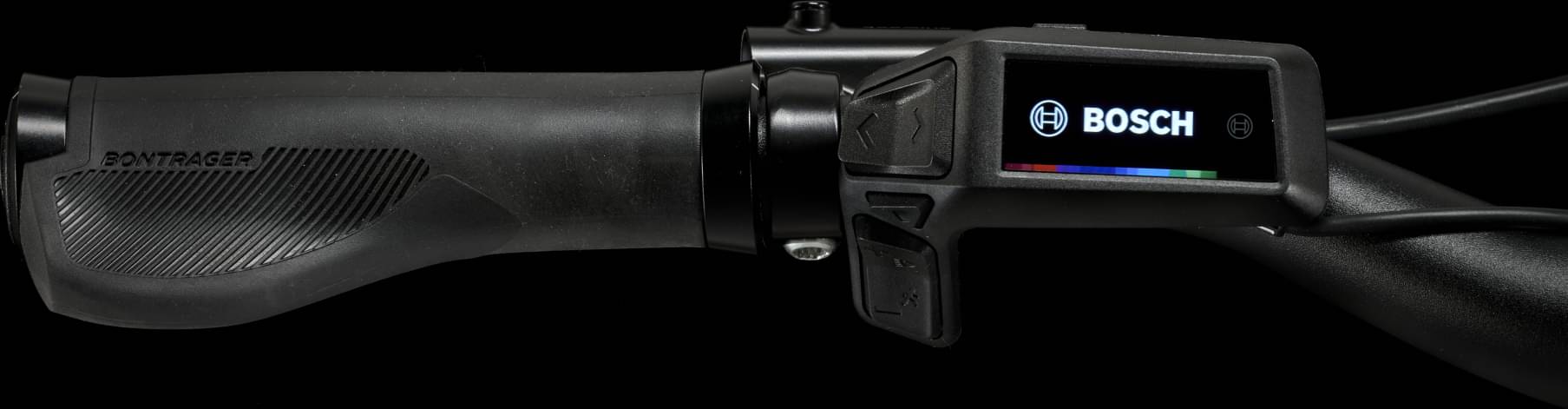

Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery
Motor

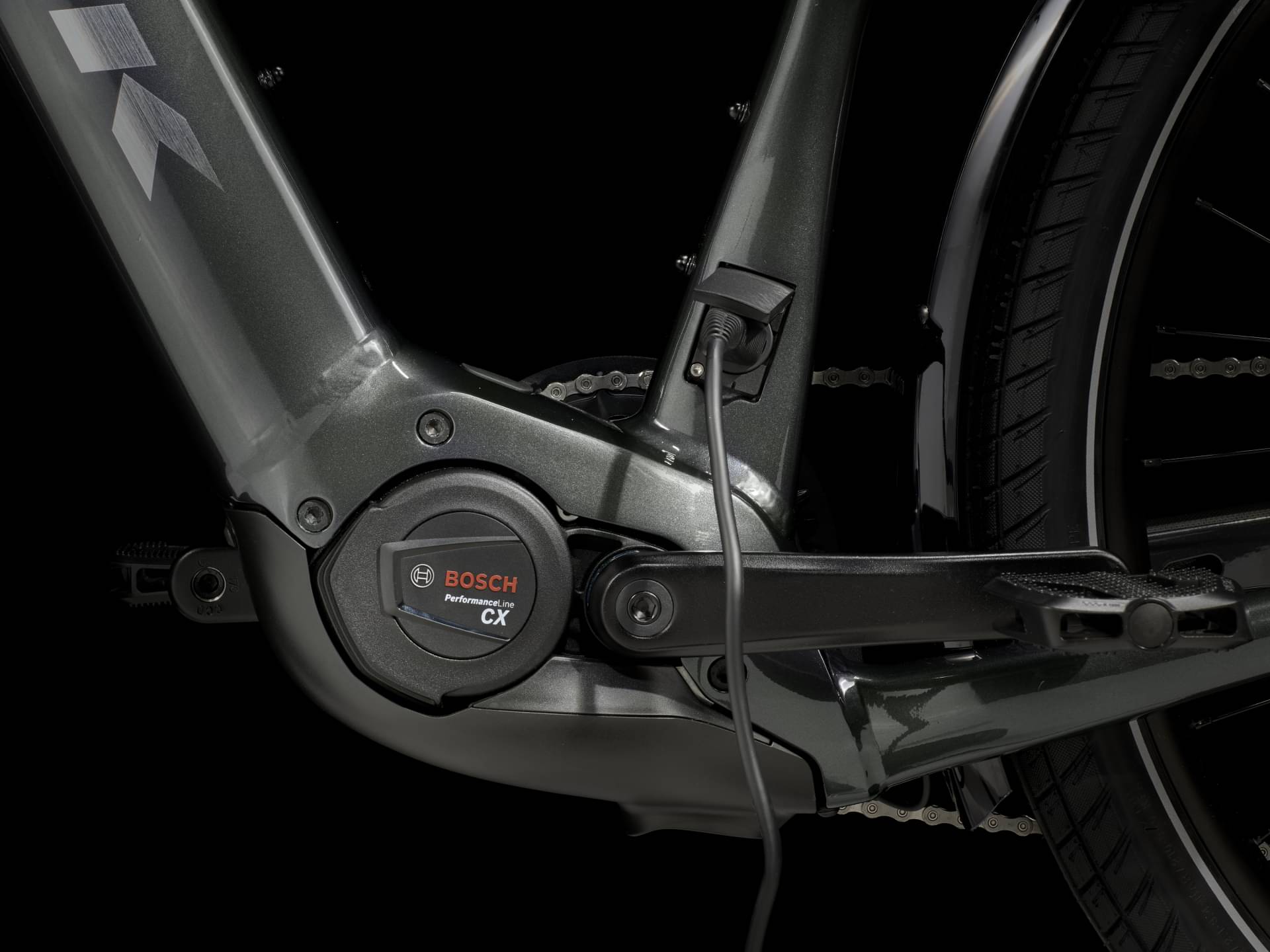

Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Battery

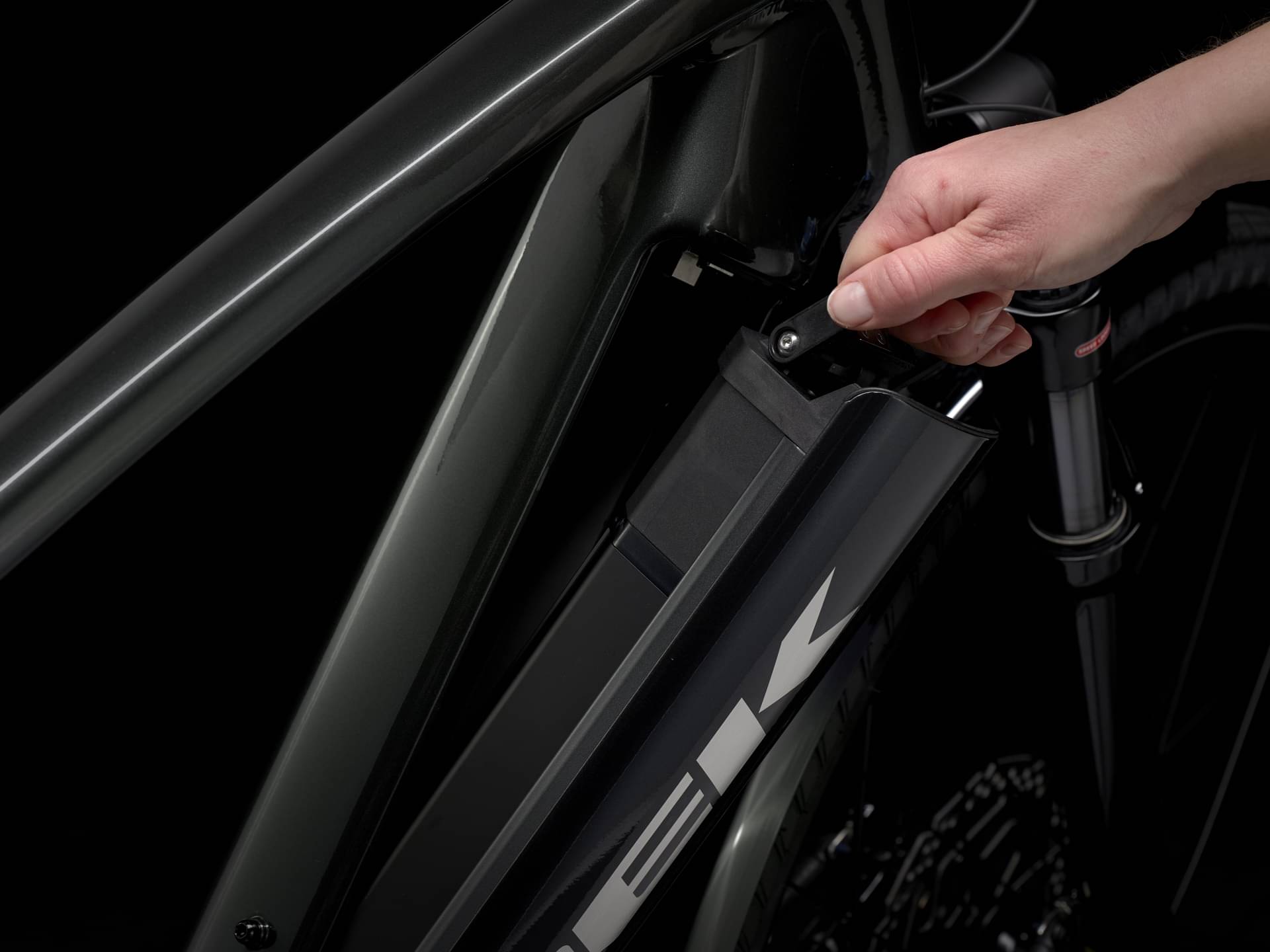

Bosch PowerTube 500Wh, smart system
Charger
Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.598 mm | 1.67 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 665 mm | 669 mm | 683 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 86 mm | 81 mm | 79 mm |
| Stack | 623 mm | 652 mm | 688 mm |
| Reach | 405 mm | 408 mm | 412 mm |
| Top Tube Length | 595 mm | 607 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 446 mm | 491 mm | 534 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1146 mm | 1150 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 795 mm | 837 mm | 879 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
