Trek Allant+ 7 Lowstep Gen 2 2025
2025 E-bike
Estimate price |
4,652$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -

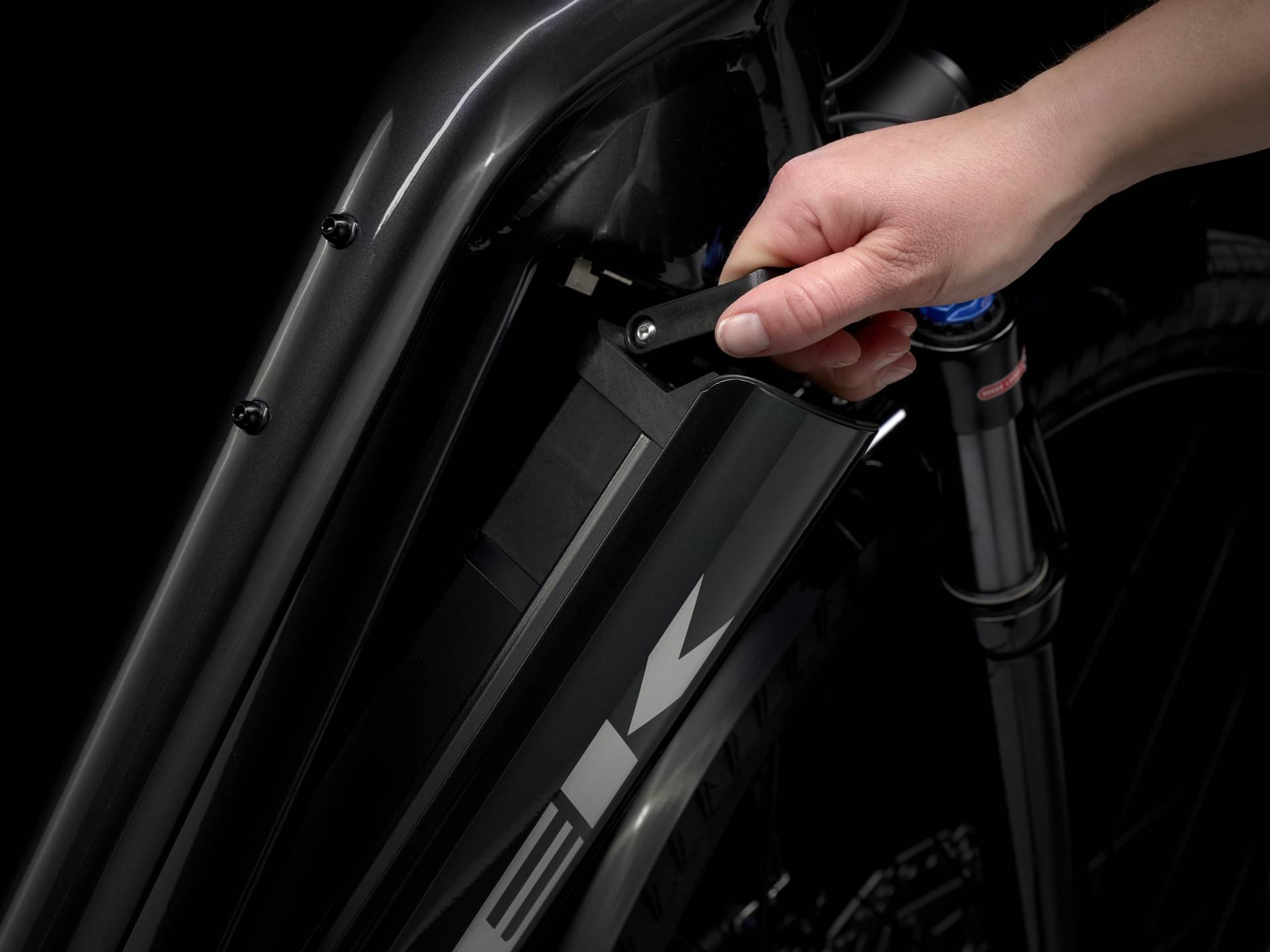

Battery Bosch PowerTube 500Wh, smart system -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed e-bike frame, Removable Integrated Battery, Motor Armor, internal cable routing, post-mount disc
Suspension Fork
SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63mm travel
Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano U4000, 9 speed
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed
Crank
Size: S, M, ProWheel alloy, 170mm length; Size: L, ProWheel alloy, 175mm length
Chain
Shimano LG500, 9/10/11 speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4''
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery
Motor

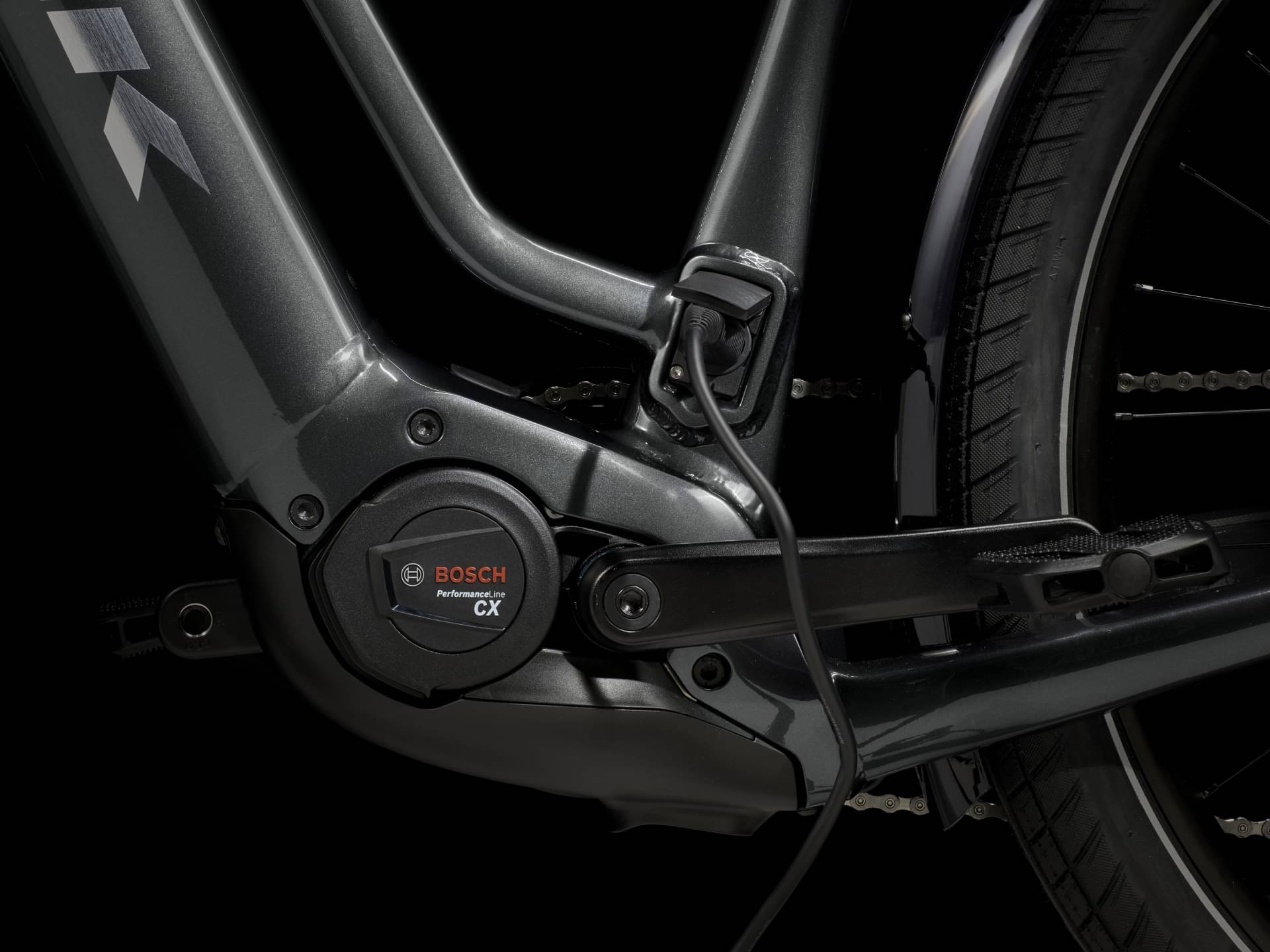

Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Battery
Bosch PowerTube 500Wh, smart system
Charger
Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.578 mm | 1.644 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 295 mm |
| Front Center | 657 mm | 660 mm | 667 mm |
| Rake | 44 mm | 41 mm | 41 mm |
| Trail | 90 mm | 86 mm | 81 mm |
| Stack | 606 mm | 631 mm | 661 mm |
| Reach | 398 mm | 400 mm | 402 mm |
| Top Tube Length | 583 mm | 593 mm | 604 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1138 mm | 1141 mm | 1148 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 476 mm | 478 mm | 477 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
