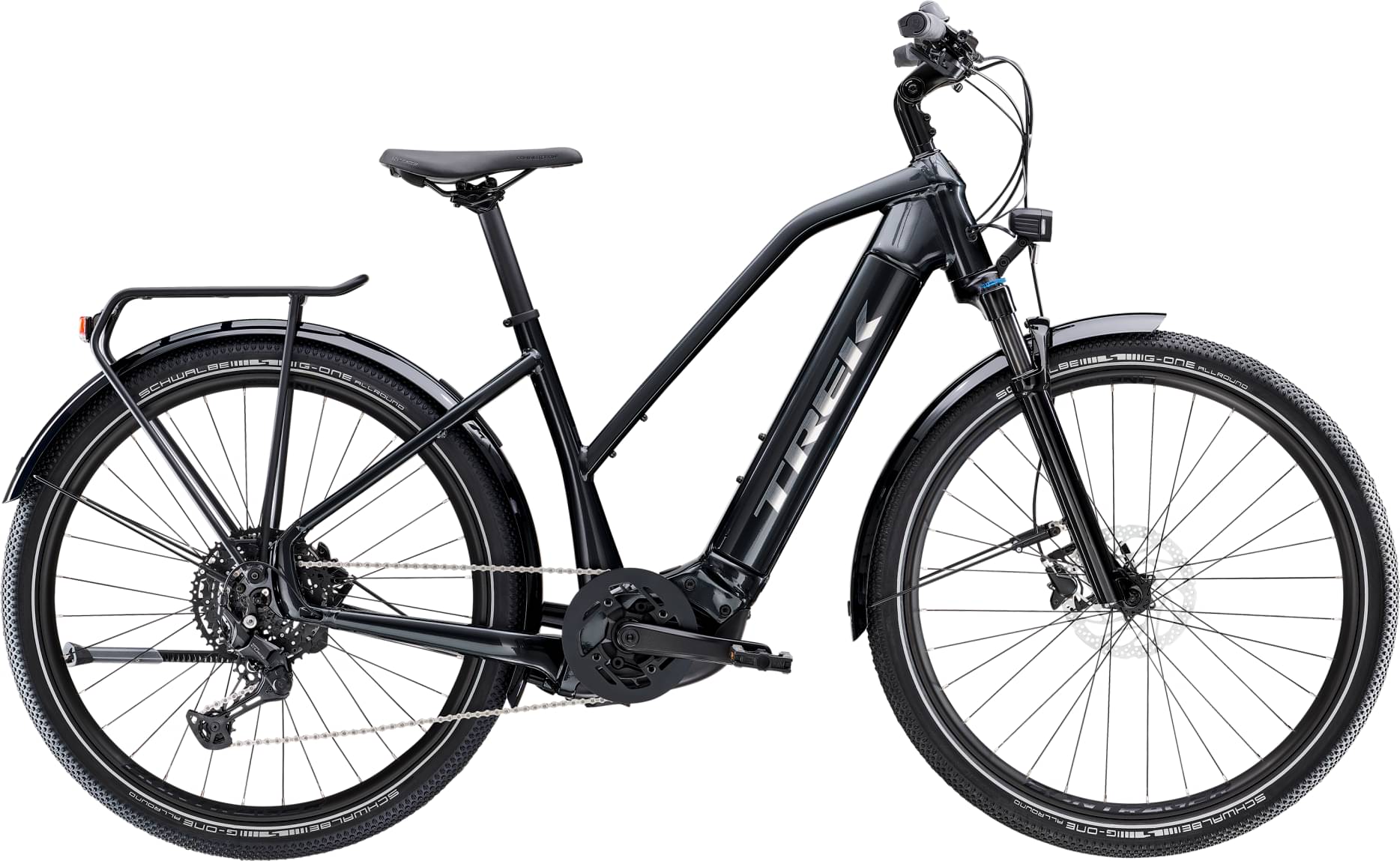

Trek Allant+ 7 Stagger Gen 2 2025
2025 E-bike
Estimate price |
4,652$
Weight | 19.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 625Wh, smart system -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed e-bike frame, Removable Integrated Battery, Motor Armor, internal cable routing, post-mount disc
Suspension Fork
SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 w/optical gear display, 10-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Crank
Size: S, M, ProWheel alloy, 170 mm length; Size: L, ProWheel alloy, 175 mm length
Chain
Shimano LG500, 9/10/11-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Shimano Tourney HB-QC300, centerlock
Rear Hub
Shimano FH-QC300-HM, 32-hole, CentreLock, 8-/9-/10-/11-speed, 135x5 mm QR
Rims
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tires
Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Size: S, M, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: L, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Motor & Battery
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Battery
Bosch PowerTube 625Wh, smart system
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.485 mm | 1.533 mm | 1.6 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 673 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 82 mm |
| Stack | 597 mm | 621 mm | 653 mm |
| Reach | 402 mm | 405 mm | 408 mm |
| Top Tube Length | 584 mm | 595 mm | 608 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 446 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1139 mm | 1142 mm | 1154 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 706 mm | 710 mm | 756 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
