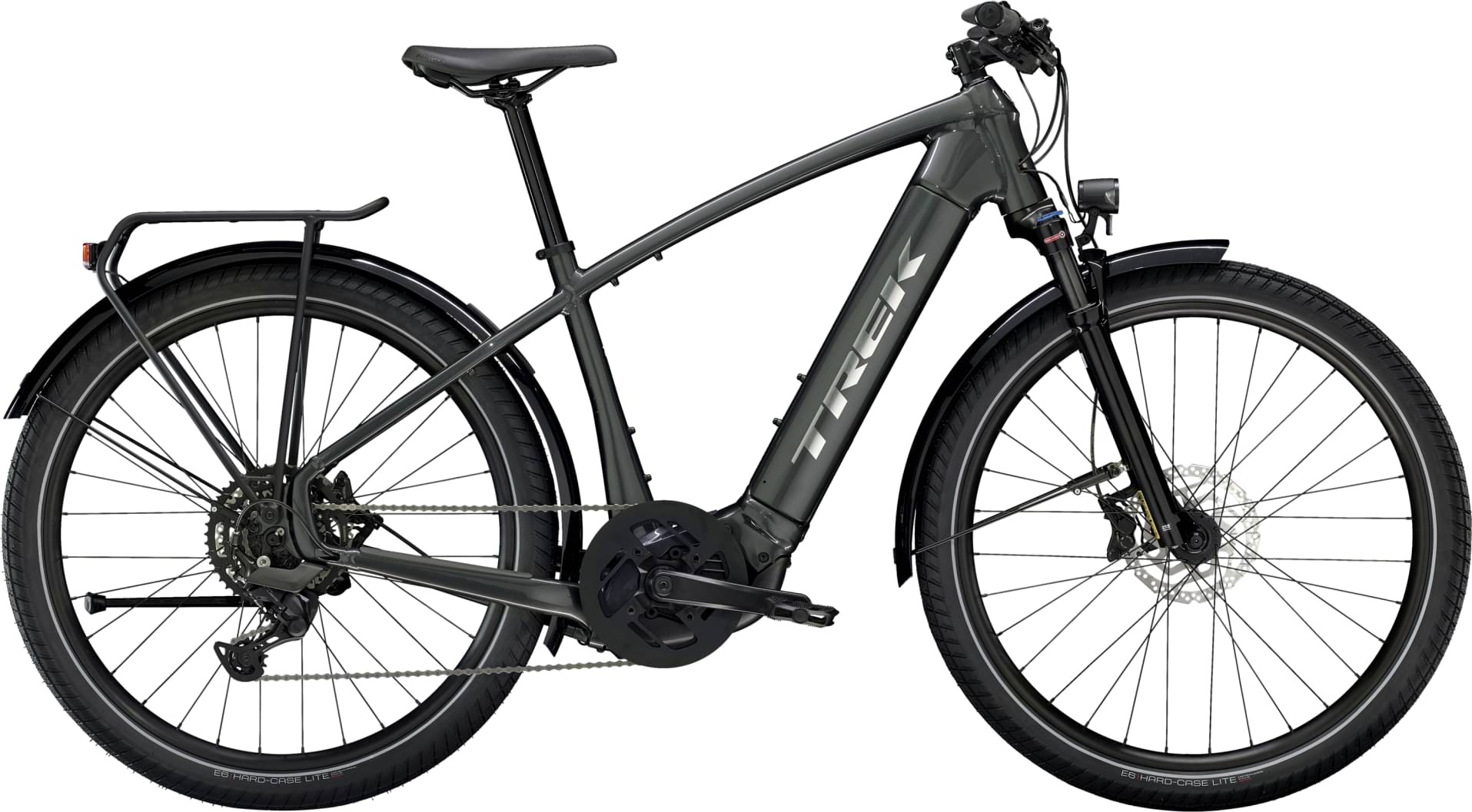

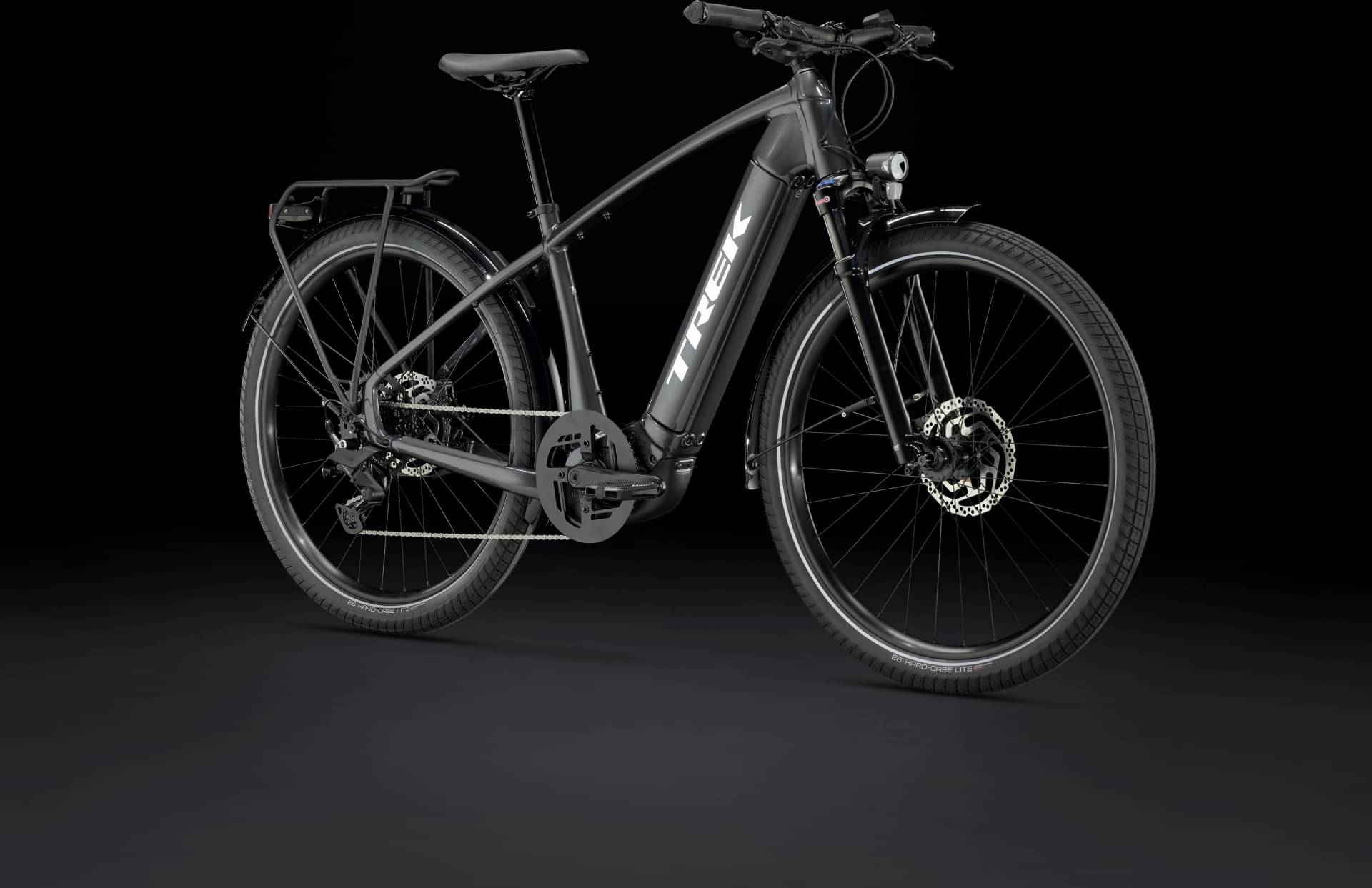

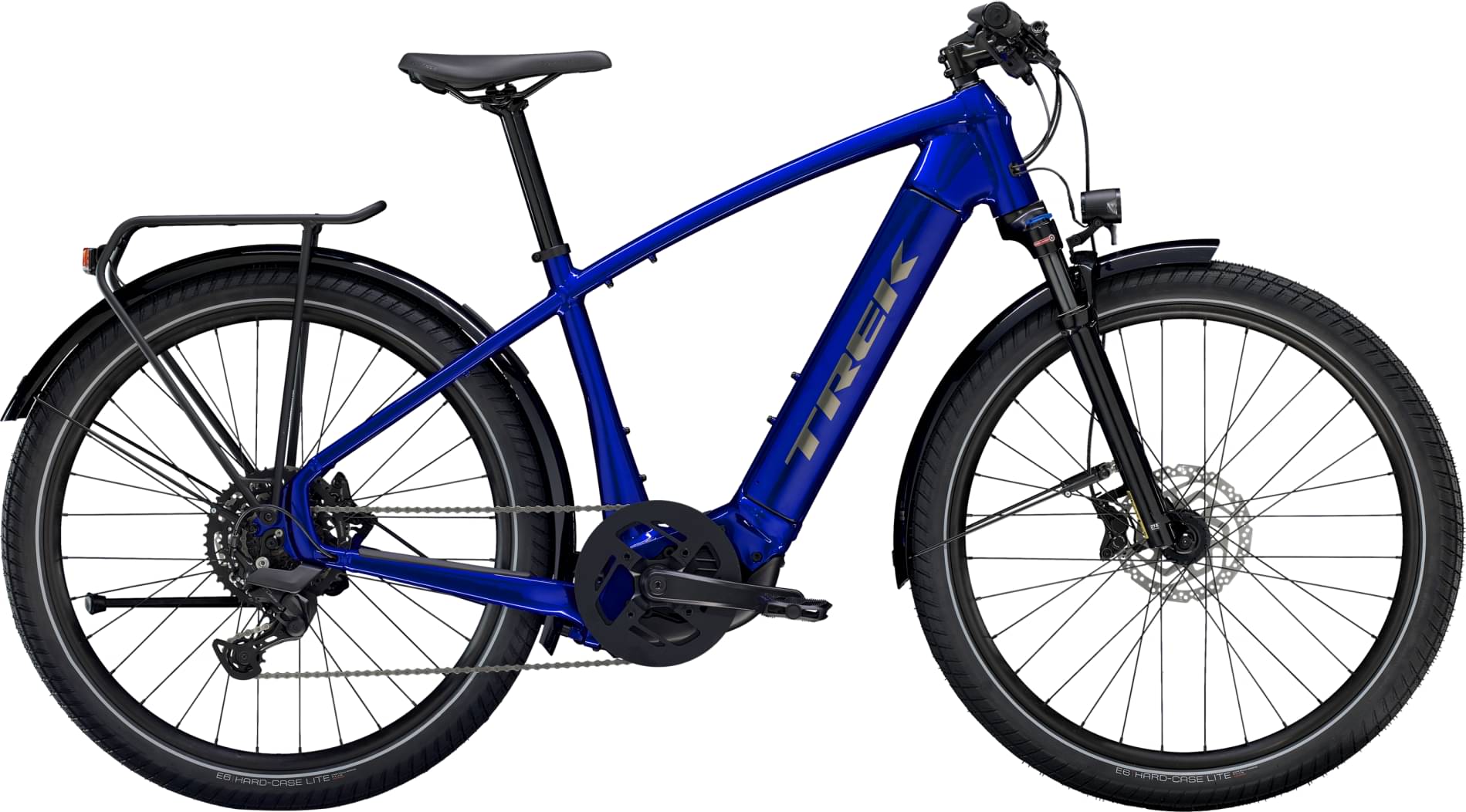

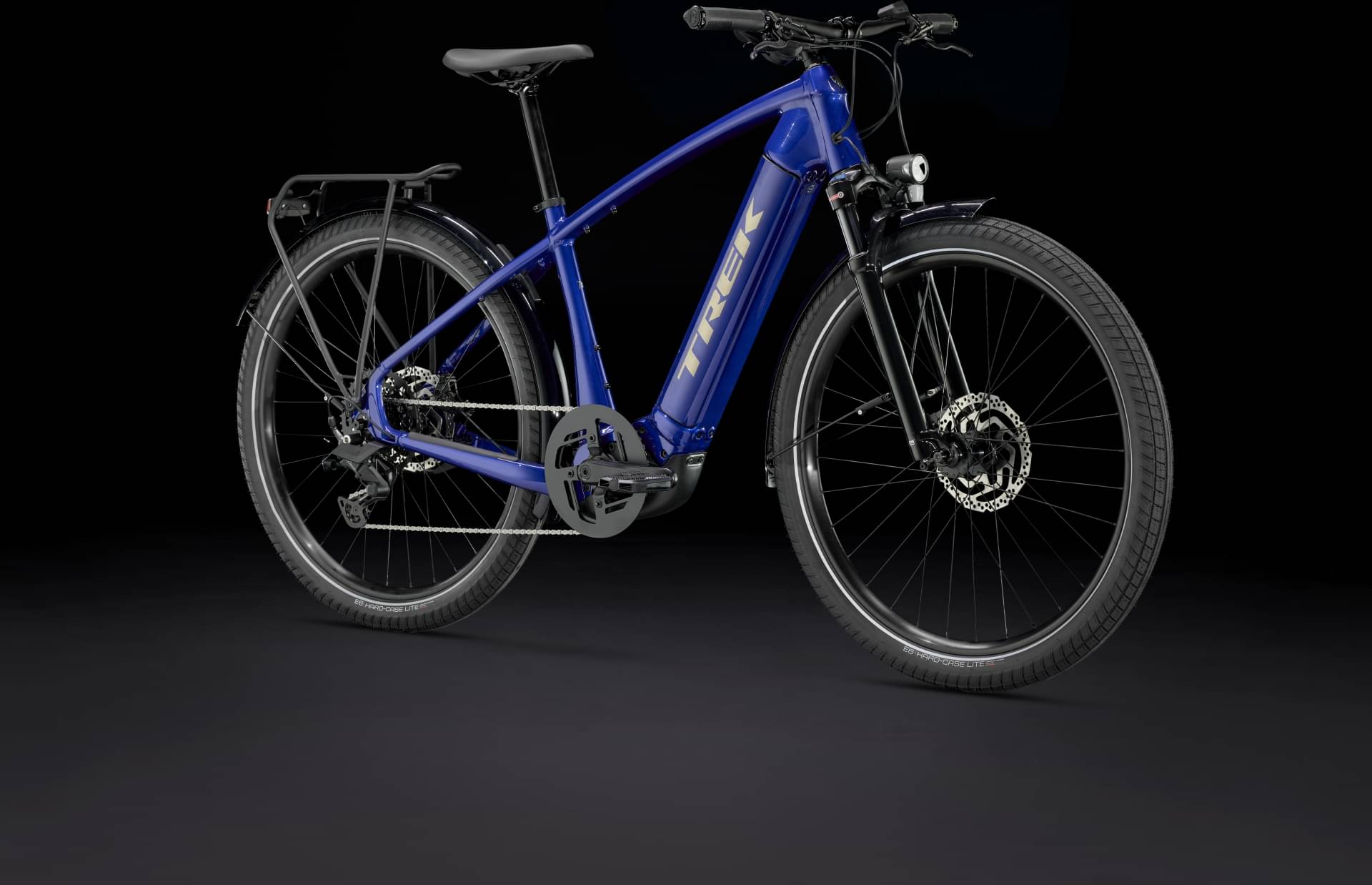

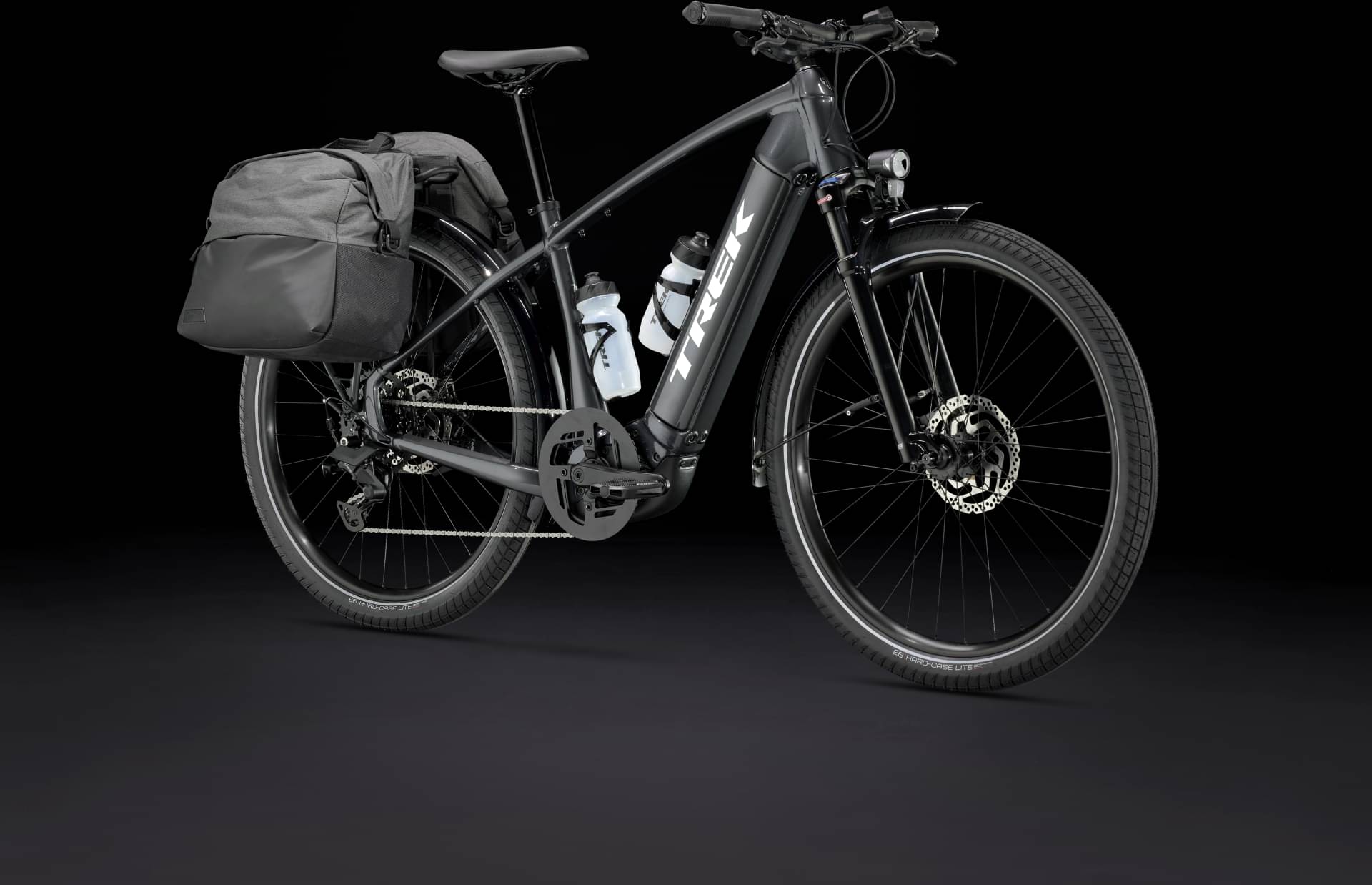

Trek Allant+ 7S Gen 2 2025
2025 E-bike
Estimate price |
3,499$
Weight | 25.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube 500Wh, smart system -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

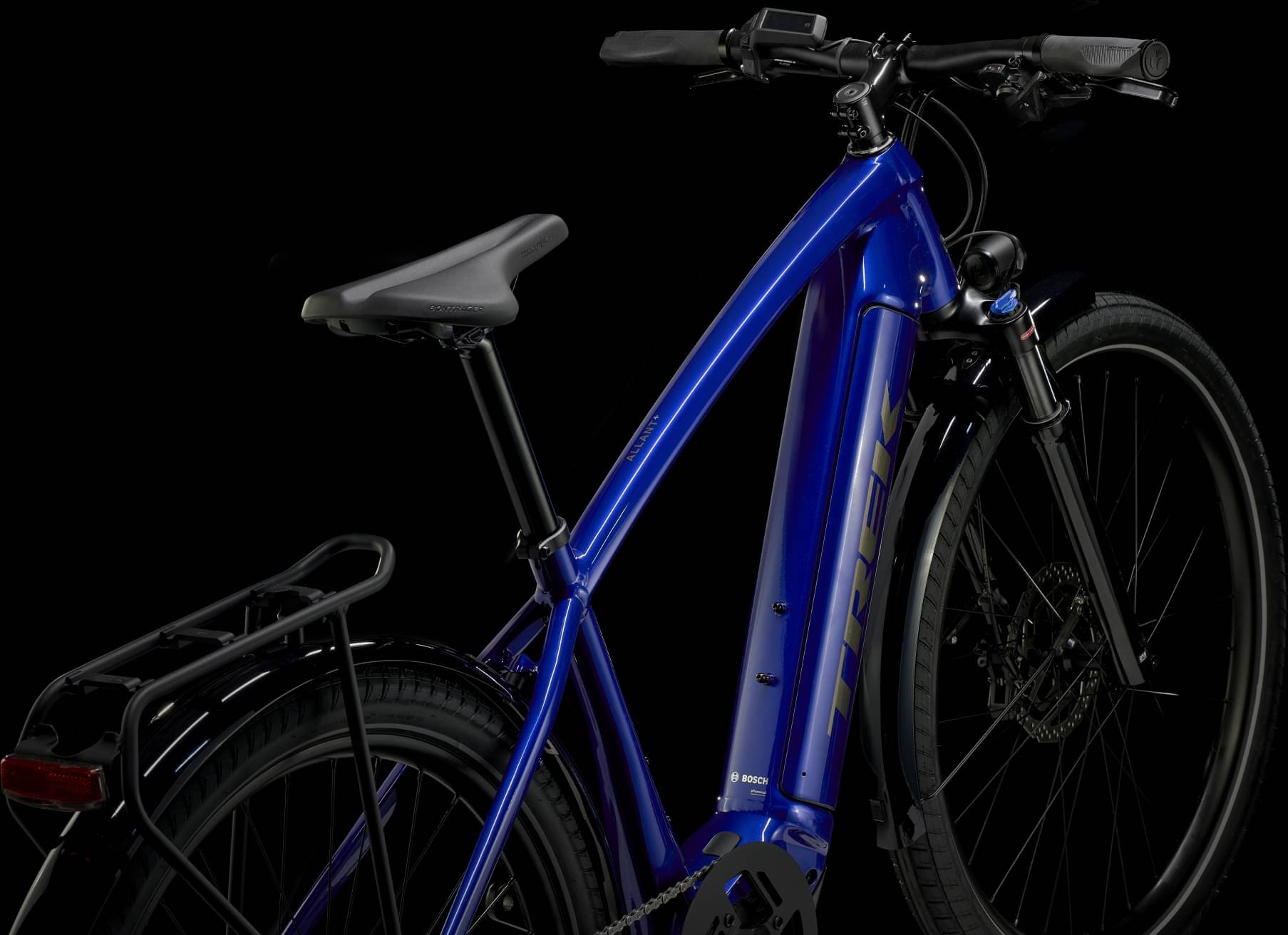

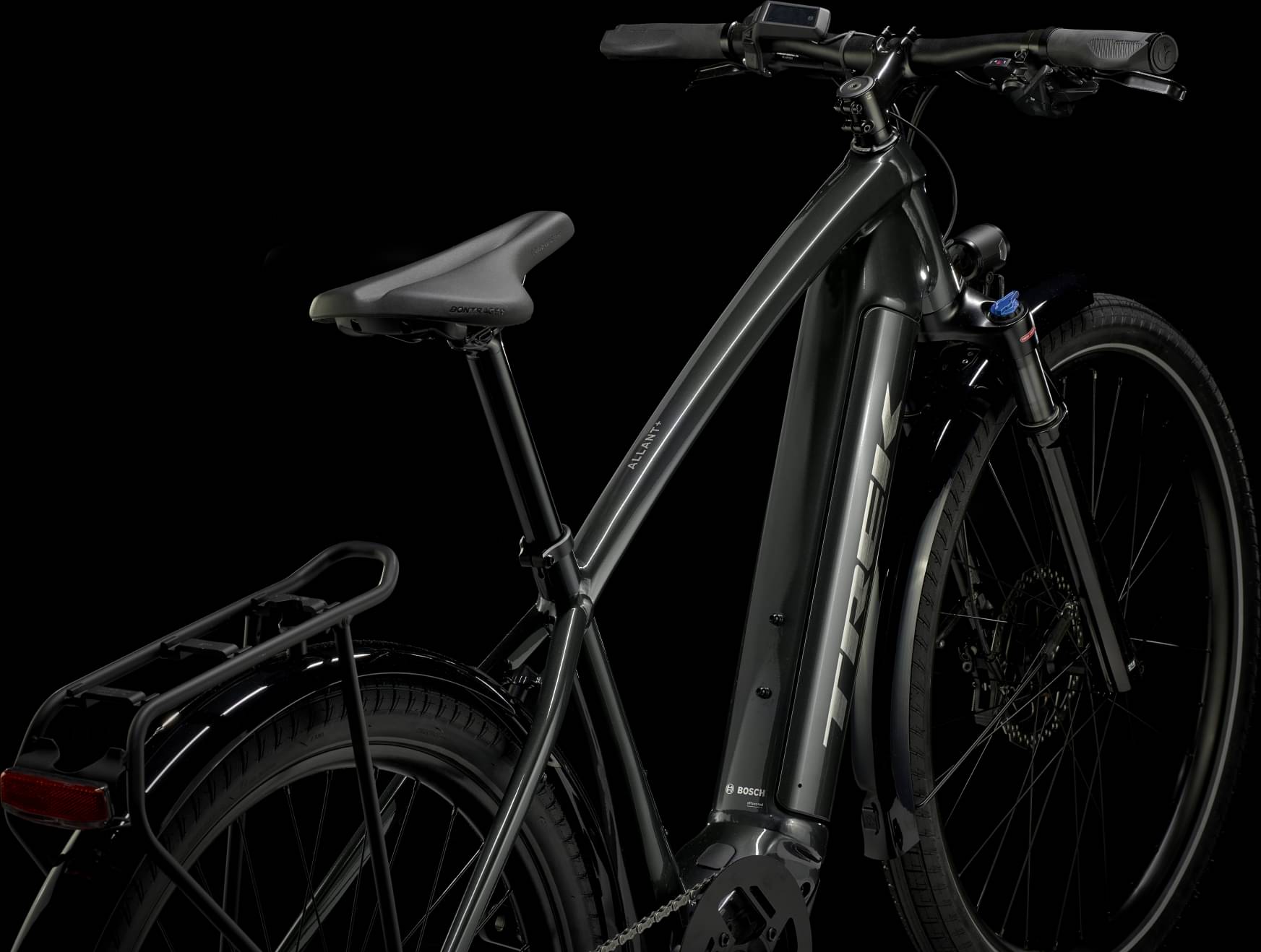

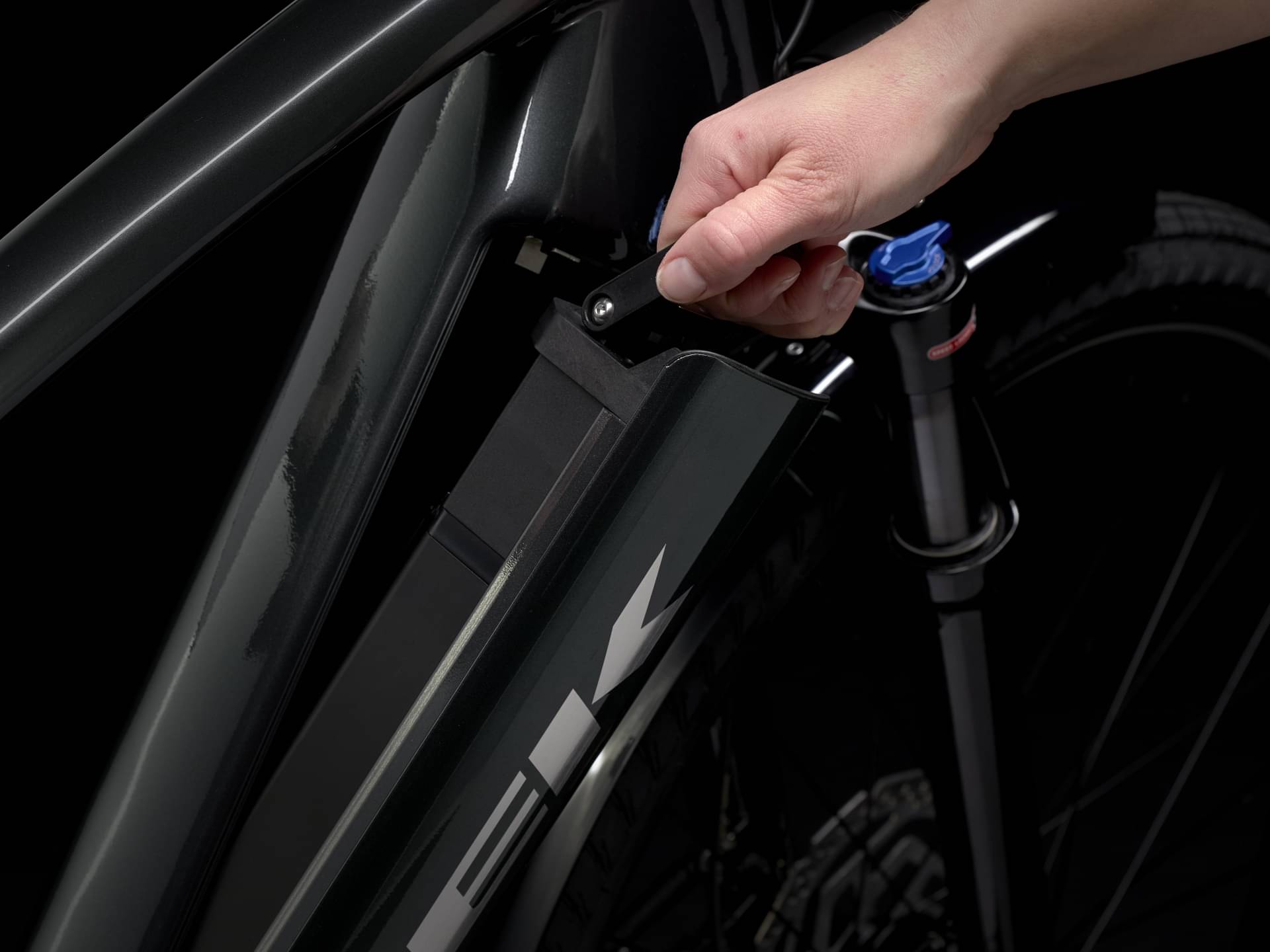

High-performance hydroformed e-bike frame, Removable Integrated Battery, Motor Armor, internal cable routing, post-mount disc
Suspension Fork

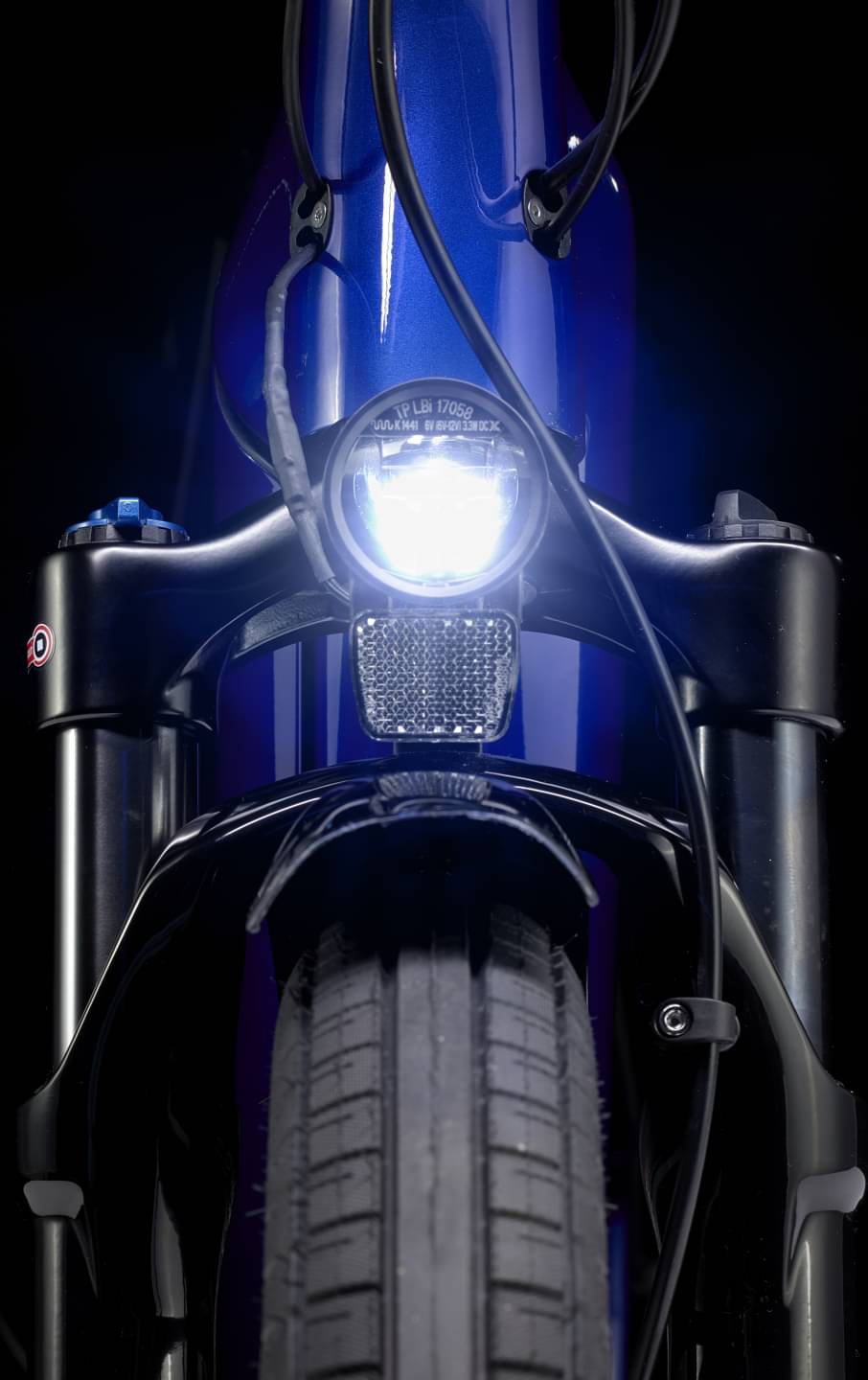

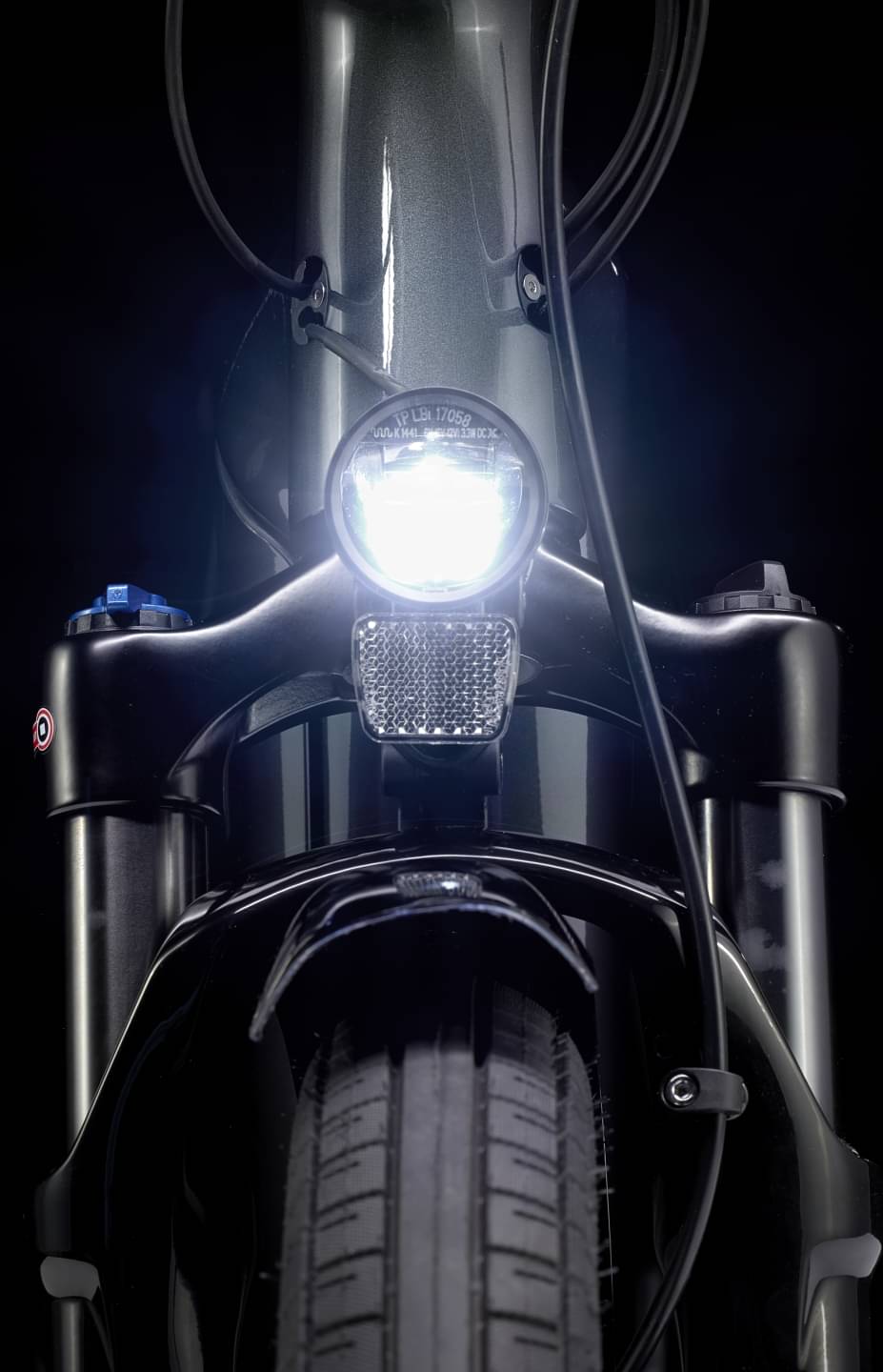

SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63mm travel

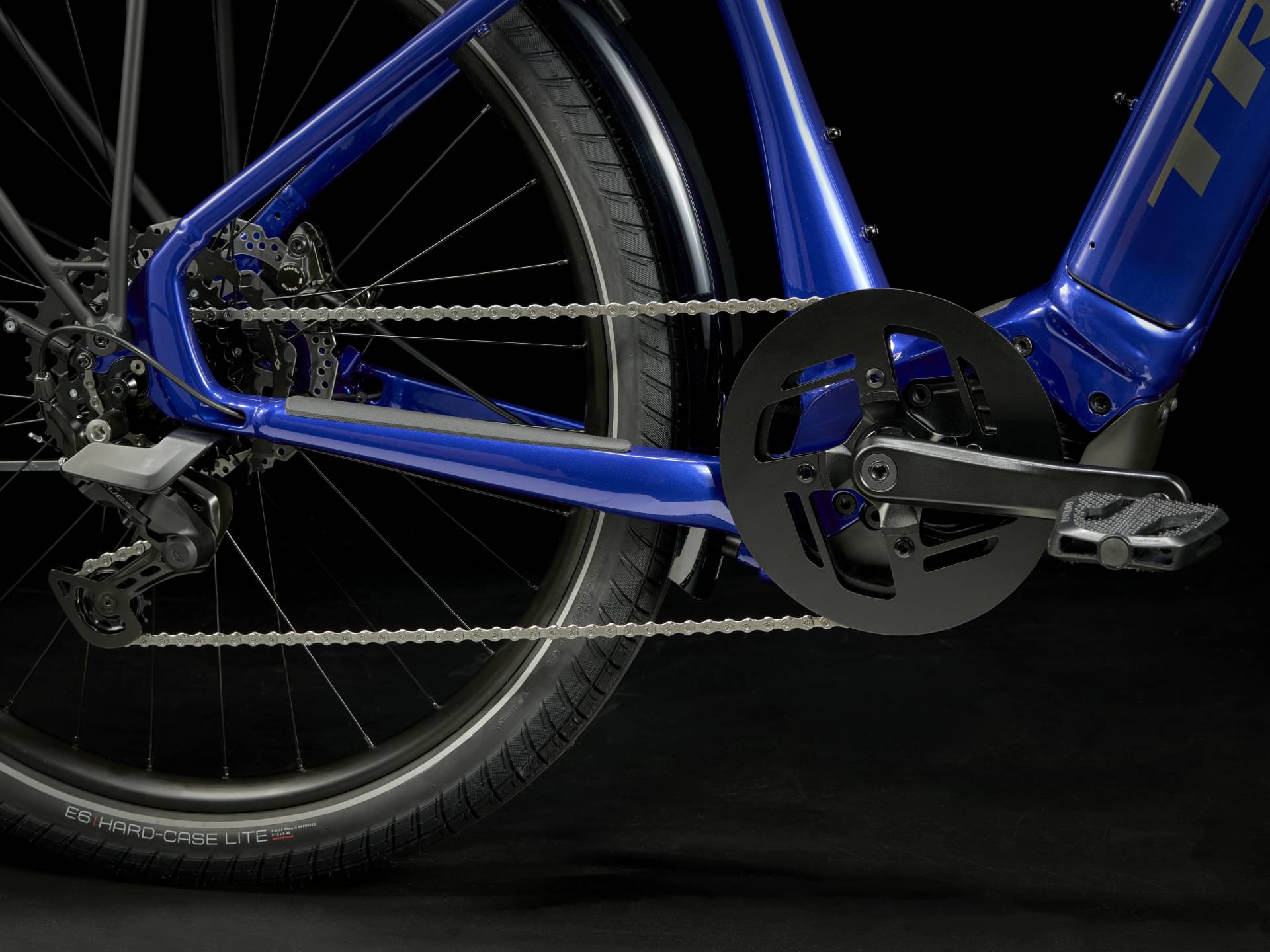

Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano U4000, 9 speed
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed
Crank
Size: M, ProWheel alloy, 170mm length; Size: L, XL, ProWheel alloy, 175mm length
Chain
Shimano LG500, 9/10/11 speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4''
Brakes
Brakes

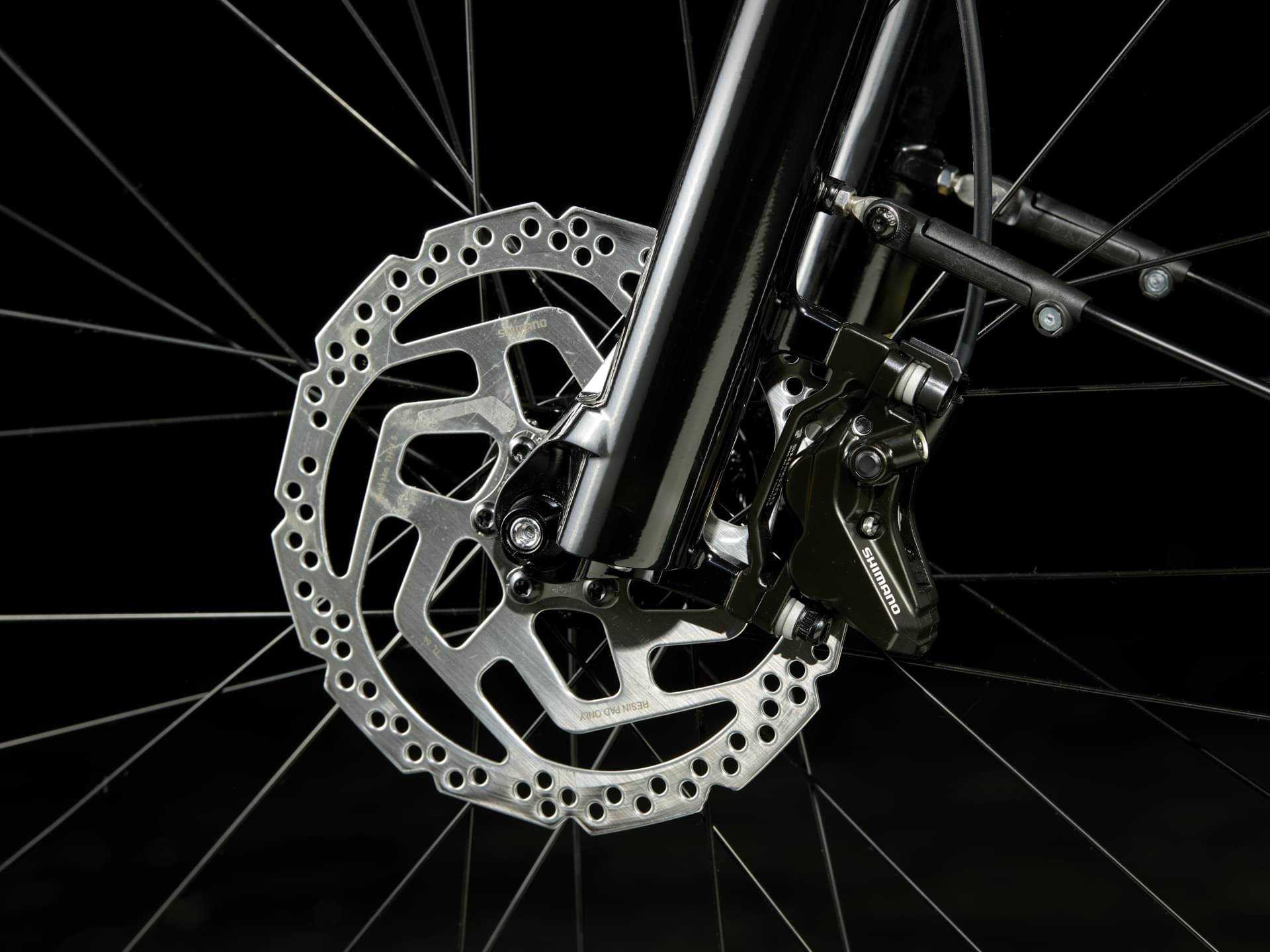

Shimano MT401 / MT420 hydraulic disc, 180mm rotor

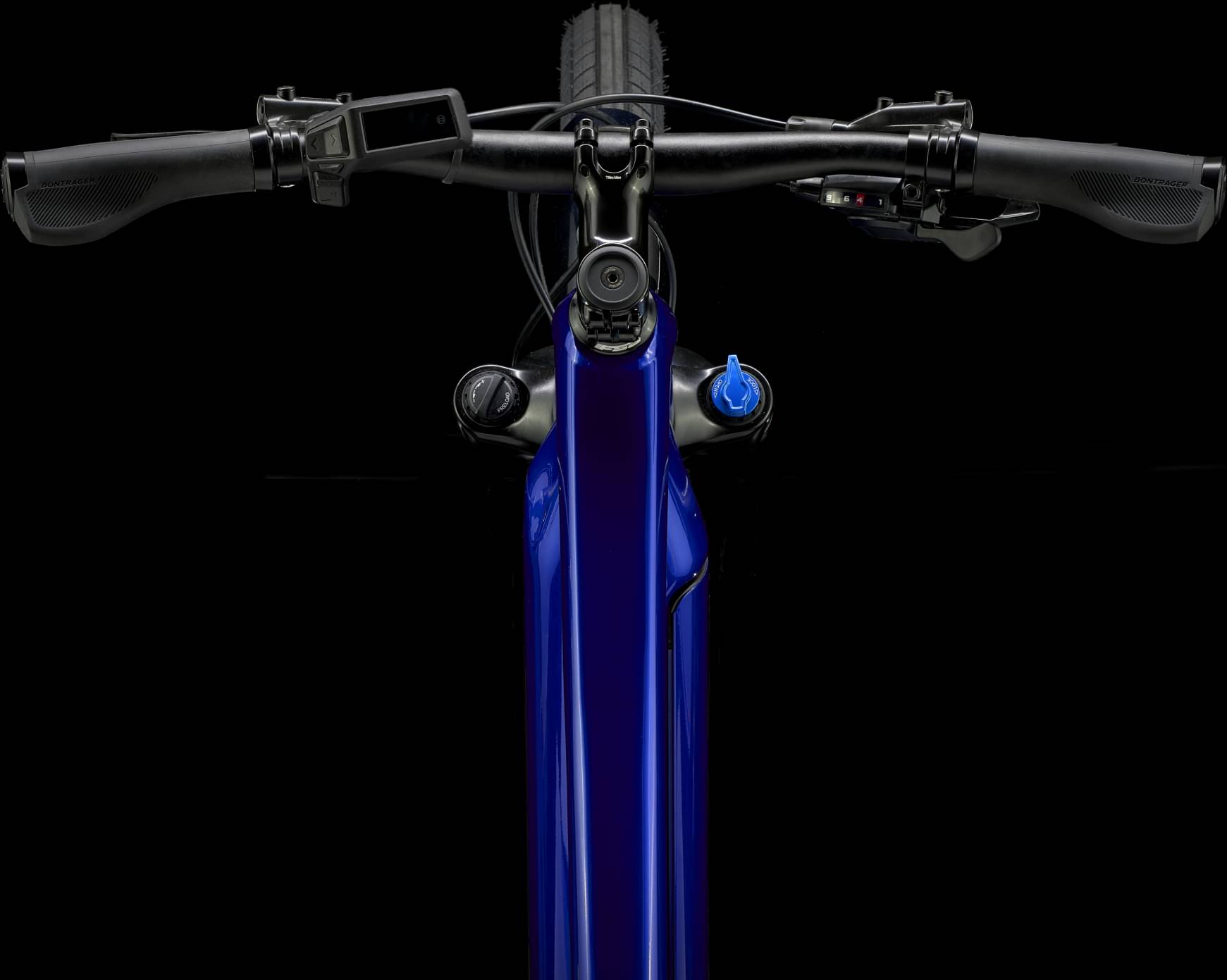

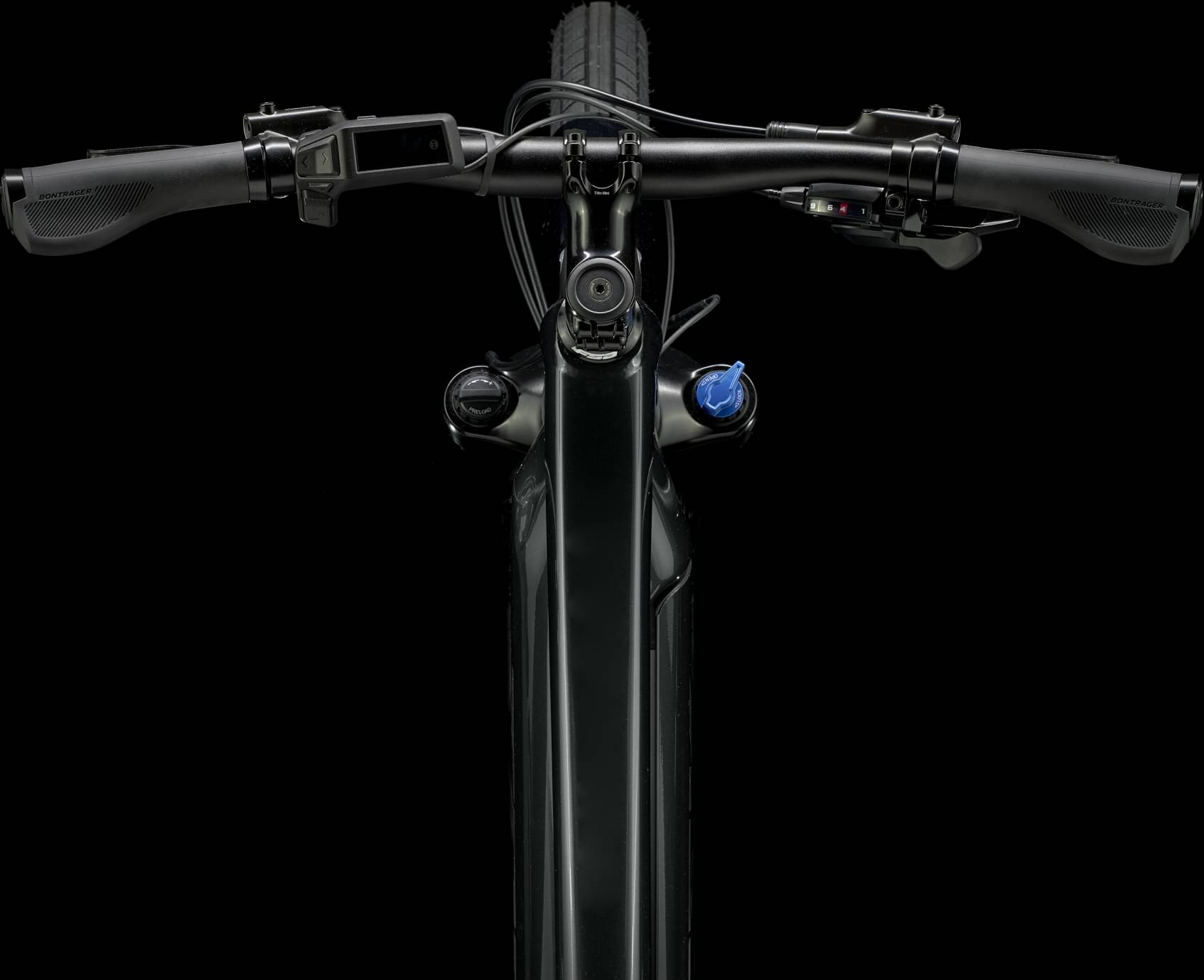

Cockpit
Stem
Size: M, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length
Handlebar
Size: M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, XL, Bontrager alloy, 31.8mm, 15mm rise, 660mm width

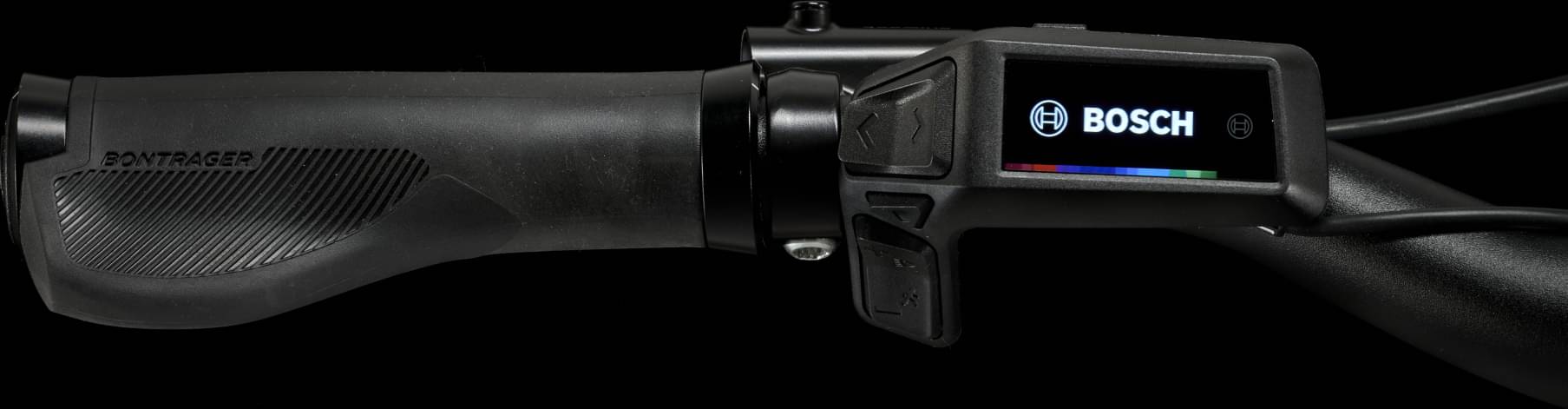

Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery

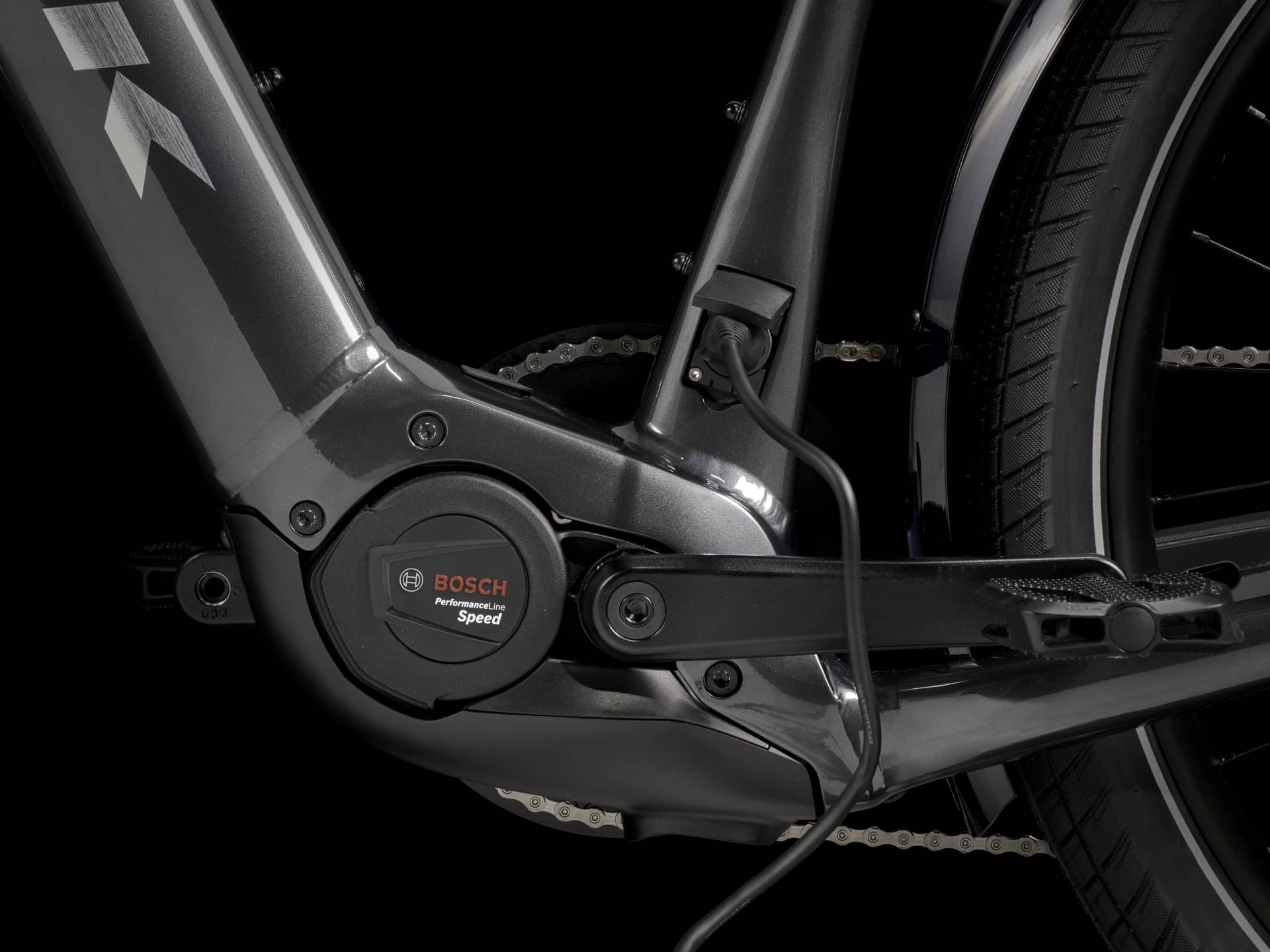

Motor

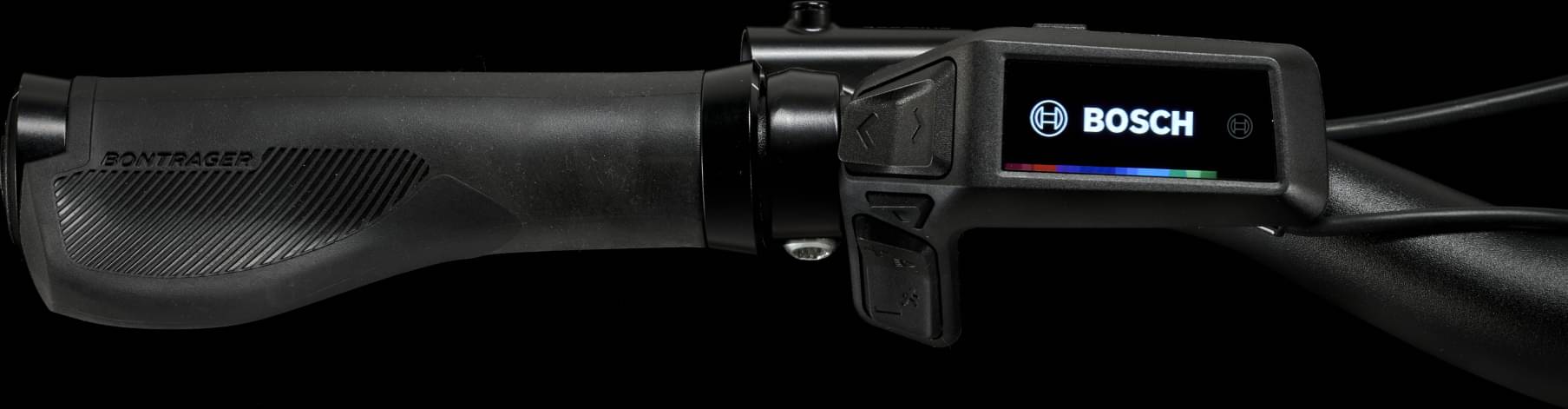

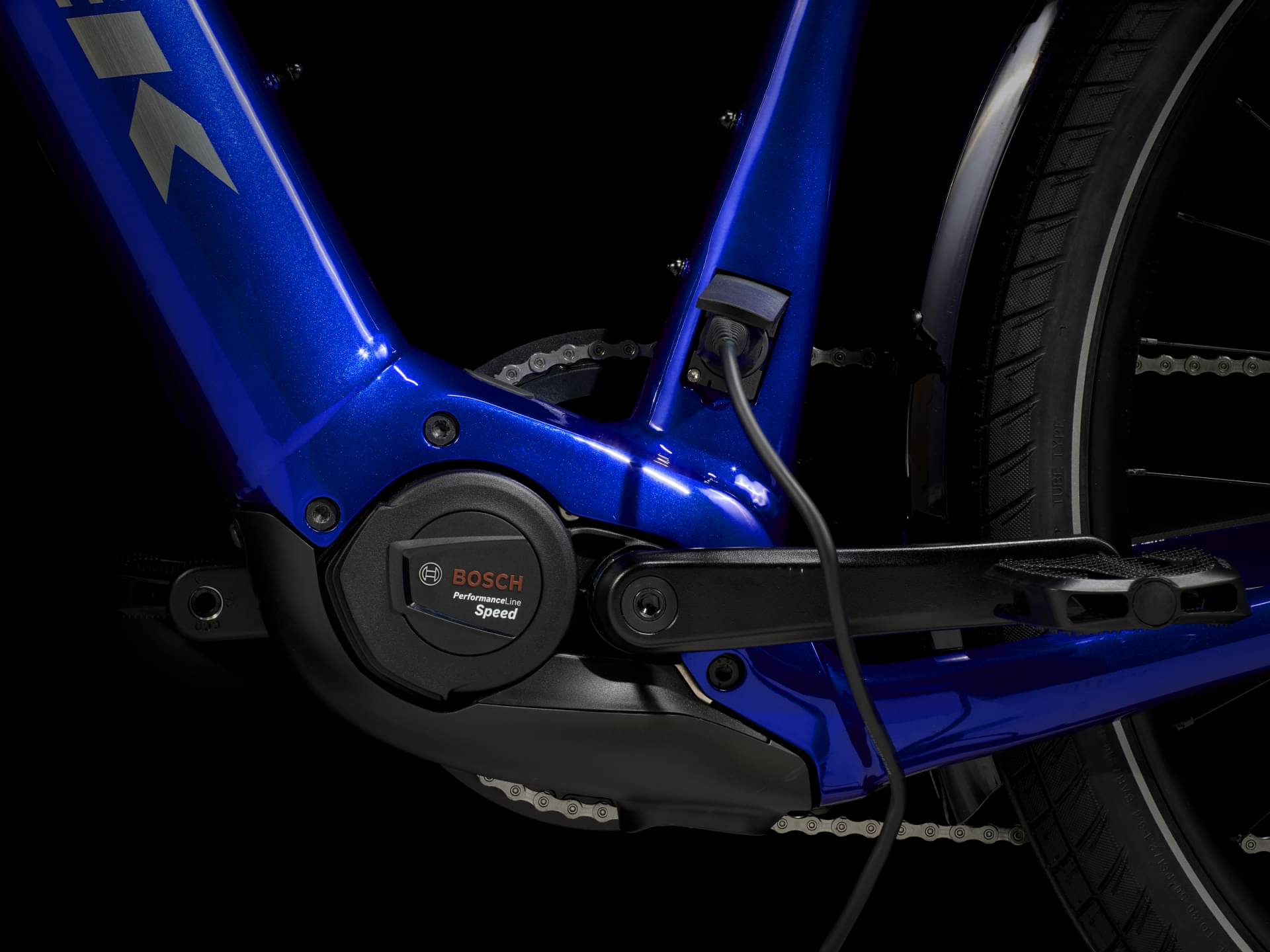

Bosch Performance Line Speed, smart system, 28mph/45kph

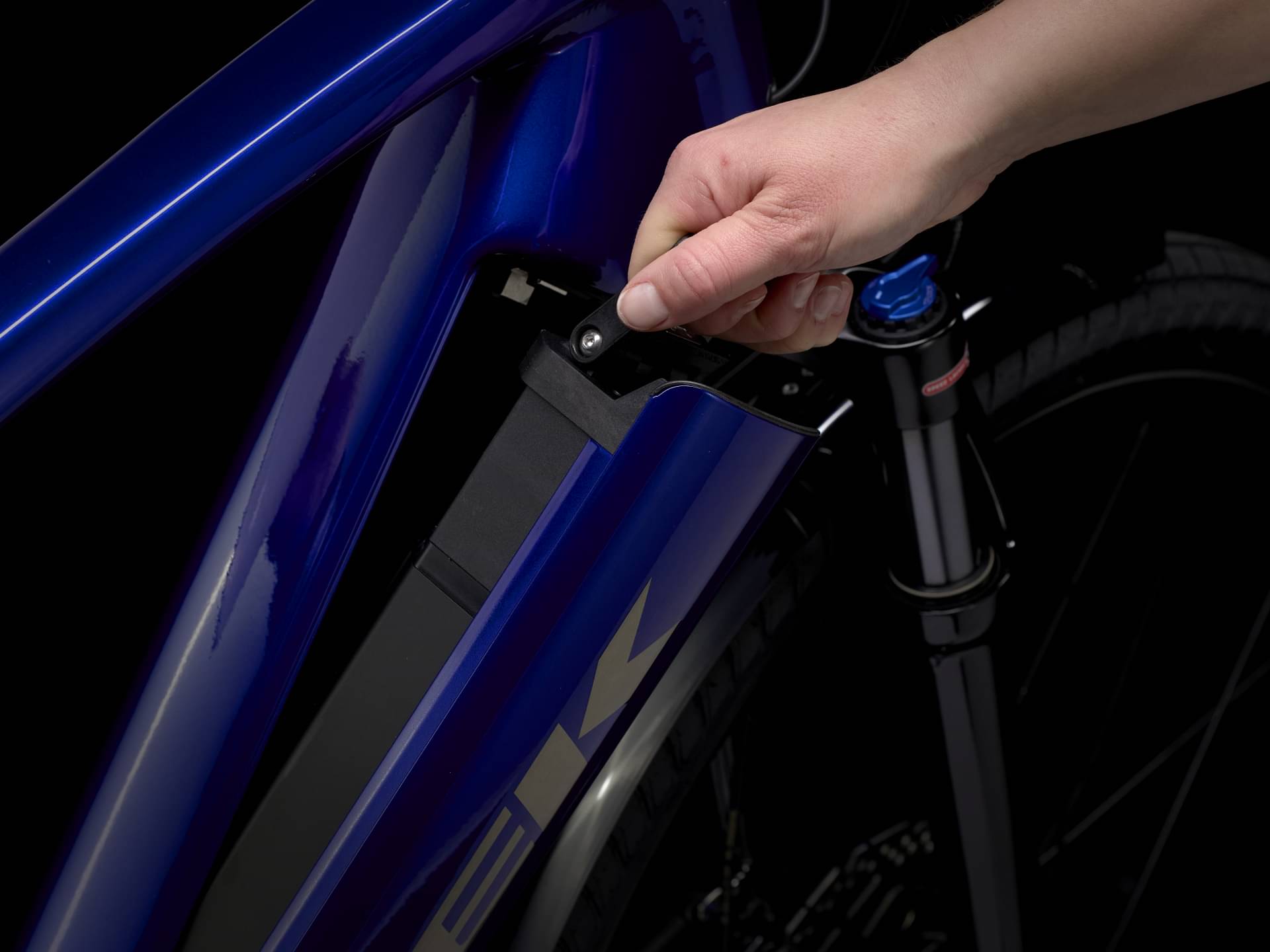

Battery
Bosch PowerTube 500Wh, smart system
Charger
Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.598 mm | 1.67 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 665 mm | 669 mm | 683 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 86 mm | 81 mm | 79 mm |
| Stack | 623 mm | 652 mm | 688 mm |
| Reach | 405 mm | 408 mm | 412 mm |
| Top Tube Length | 595 mm | 607 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 446 mm | 491 mm | 534 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1146 mm | 1150 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 795 mm | 837 mm | 879 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
