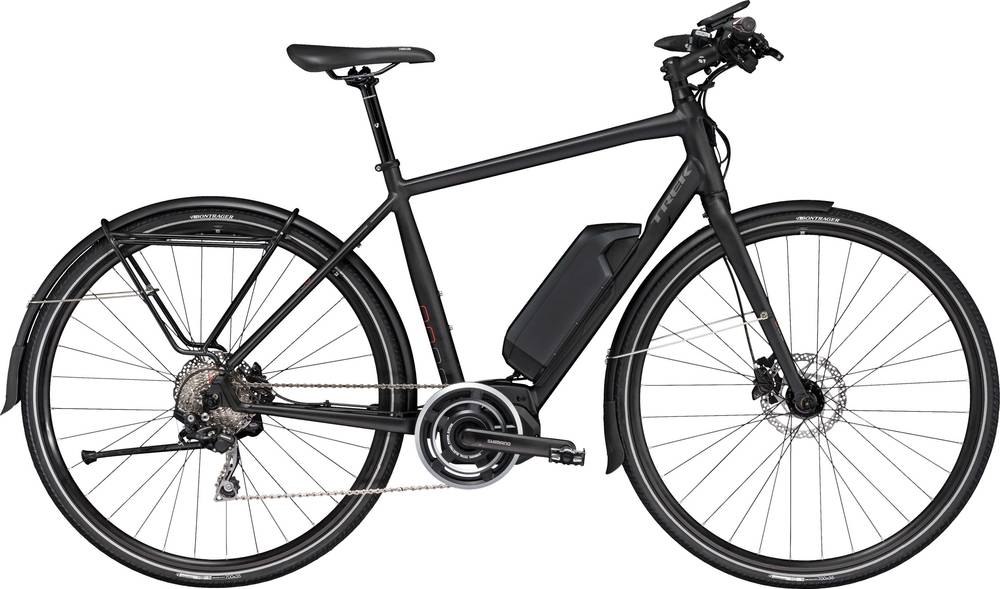

Trek Conduit+ 2017
2017 E-bike
Estimate price |
2,999$
Weight | 20.28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano -
Battery SHIMANO STEPS downtube -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, custom designed for SHIMANO STEPS system, with Lync on-board lighting system, internal cable routing
Suspension Fork
FX Alloy Disc w/tapered wall thickness, straight blades
Drivetrain
Rear Derailleur
Shimano Deore, Shadow Plus
Shift Levers
Shimano Deore, 10 speed
Cassette
Shimano Tiagra, 11-34, 10 speed
Crank
SHIMANO STEPS
Bottom Bracket
SHIMANO STEPS drive motor unit
Pedals
Alloy track-style
Wheels
Front Hub
Formula DC20 alloy
Rear Hub
Formula DC22 alloy
Rims
Bontrager Tubeless Ready
Tires
Bontrager H2 Hard-Case Ultimate, reflective sidewall, 700x35c
Brakes
Brakes
Shimano M315 hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager alloy, 25.4mm, 15mm rise
Grips
Bontrager Satellite Elite, lock-on, ergonomic
Headset
VP Slimstak, sealed semi-cartridge bearings
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Motor & Battery
Motor
SHIMANO STEPS downtube
Battery
SHIMANO STEPS downtube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17.5" | 20" | 22.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.5 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Stack | 558 mm | 572 mm | 595 mm | 618 mm |
| Reach | 389 mm | 382 mm | 386 mm | 390 mm |
| Top Tube Length | 545 mm | 546 mm | 562 mm | 579 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 381 mm | 444 mm | 508 mm | 571 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 132 mm | 147 mm | 167 mm | 187 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Standover Height | 707 mm | 747 mm | 789 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Conduit+ is part of the Trek E Conduit model. 2 e-bikes variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for General Urban e-bikes
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2017, its price was 2999$. Doing a quick comparison, we notice that Conduit+ price is 42.95% more expensive than the average cost of a General Urban e-bike.
Average weight for General Urban e-bikes
General Urban e-bikes weigh an average of 24.08 kg (53.09 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, Conduit+ has a weight of 20.28 kg (44.71 lbs). In short, the average General Urban e-bike weight is 18.74% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Conduit+ are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
