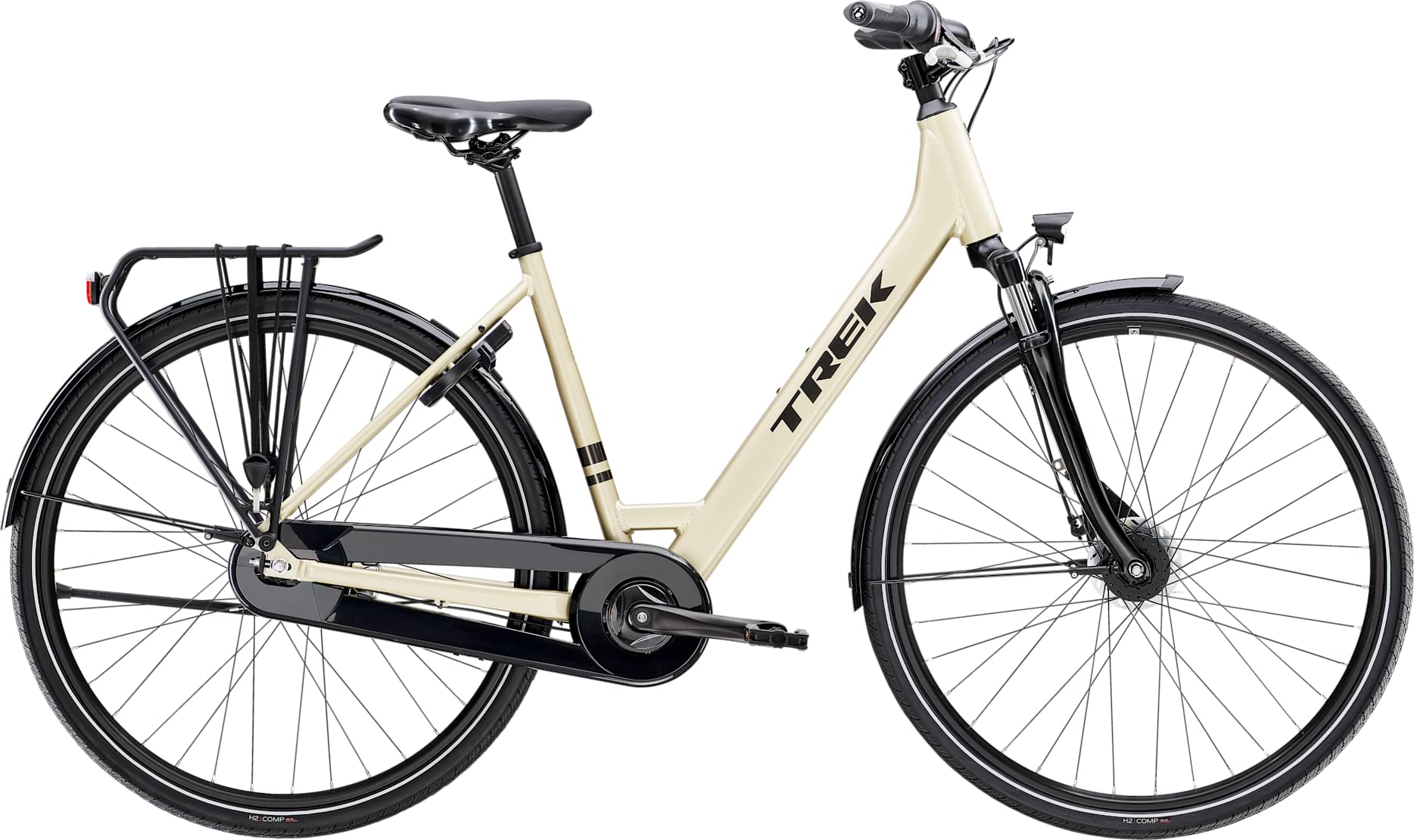

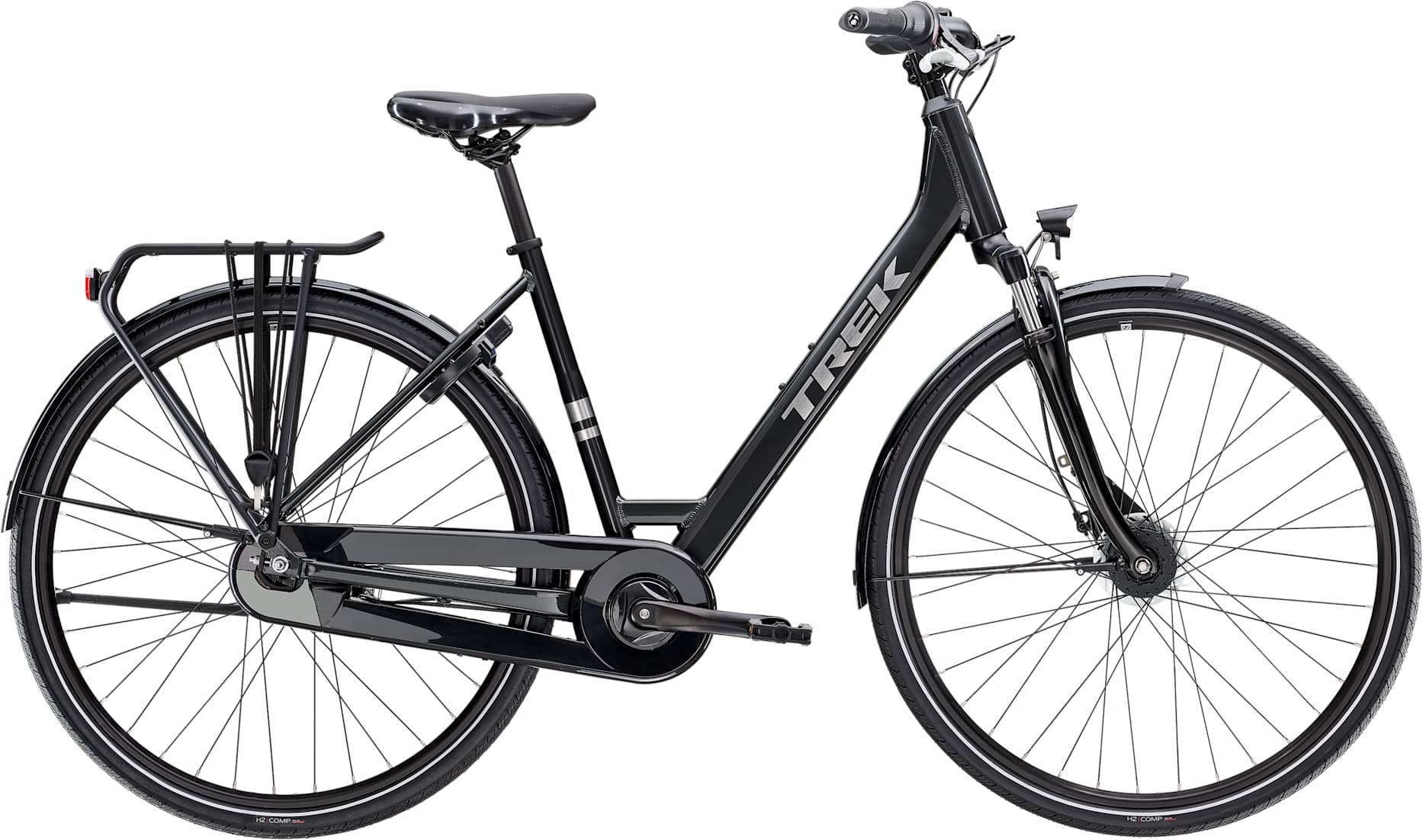

Trek District 1 Lowstep 2025
2025 Urban
Estimate price |
1,084$
Weight | 17.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, internal cable routing, flat mount disc, rack & fender mounts, Internal Gear Hub Compatible
Suspension Fork
SR Suntour SF14, 50mm travel
Drivetrain
Shift Levers
Shimano Nexus Revo, 7-speed
Cassette
18T
Crank
Prowheel PR-115, 38T steel ring, 170 mm length
Bottom Bracket
VP BC73C, 68 mm, threaded
Chain
KMC S1
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Shimano Nexus Dynamo hub 3.0 Watt
Rear Hub
Shimano Nexus C3001, roller brake, 7-speed
Rims
Bontrager Connection, double-wall, 36-hole, 20 mm width, Presta valve
Spokes
14 g stainless steel, black
Tires
Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm
Brakes
Brakes
Size: S, M, L, Shimano Nexus C3000 roller brake; Size: S, M, L, Shimano Nexus roller brake
Brake Levers
Tektro adjustable-reach aluminium
Cockpit
Stem
Bontrager Approved alloy, 25.4 mm clamp, 15-degree rise, 60 mm
Handlebar
Alloy, 25.4 mm clamp, 20 mm rise, 630 mm width
Grips
Bontrager Satellite Plus
Seat
Saddle
Selle Royal Nuvola
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.668 mm | 1.673 mm | 1.666 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm |
| Front Center | 633 mm | 642 mm | 647 mm |
| Rake | 45 mm | 45 mm | 40 mm |
| Trail | 81 mm | 81 mm | 81 mm |
| Stack | 634 mm | 644 mm | 653 mm |
| Reach | 380 mm | 385 mm | 392 mm |
| Top Tube Length | 568 mm | 594 mm | 604 mm |
| Seat Tube Angle | 73.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1096 mm | 1105 mm | 1110 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 654 mm | 682 mm | 694 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
