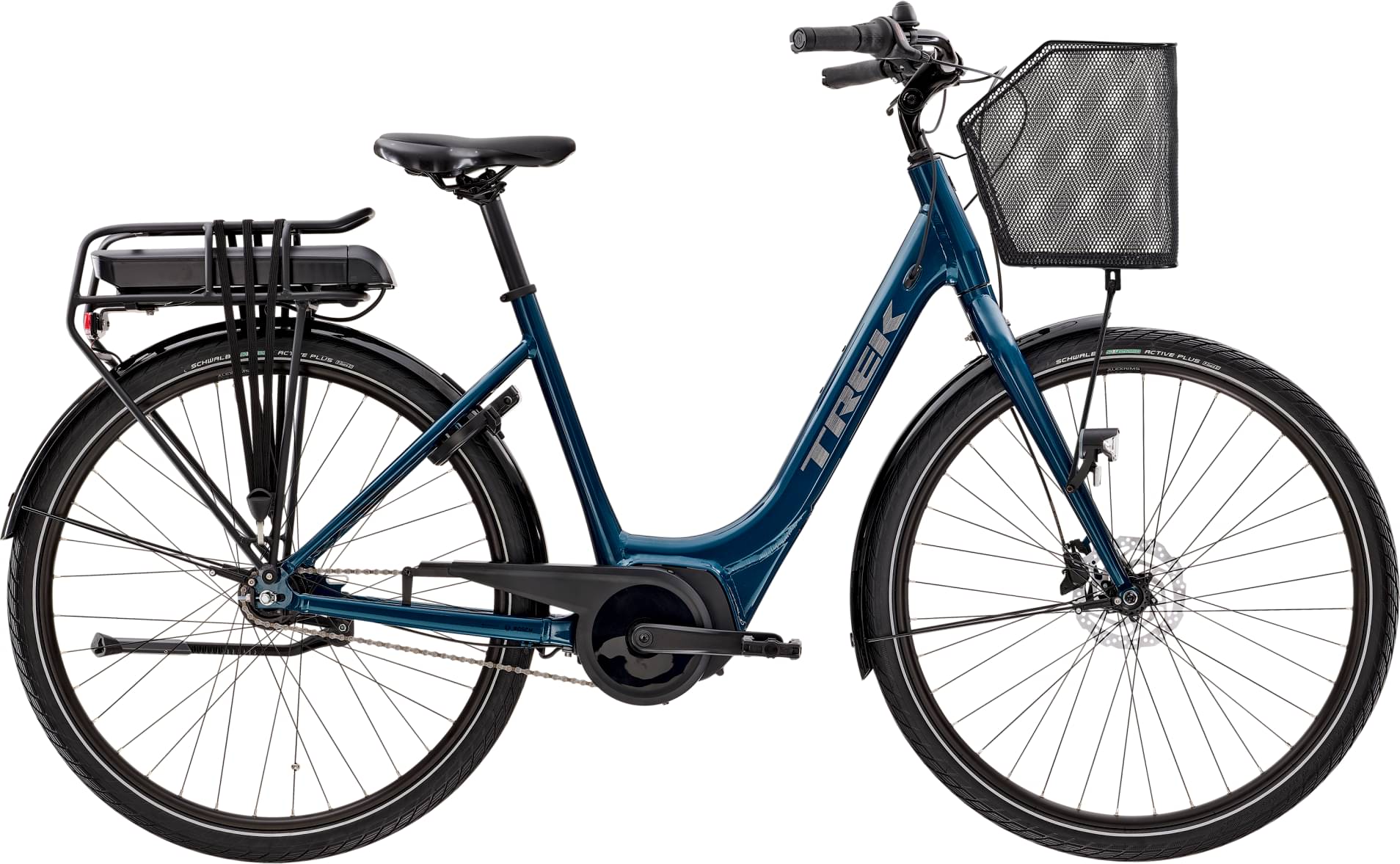

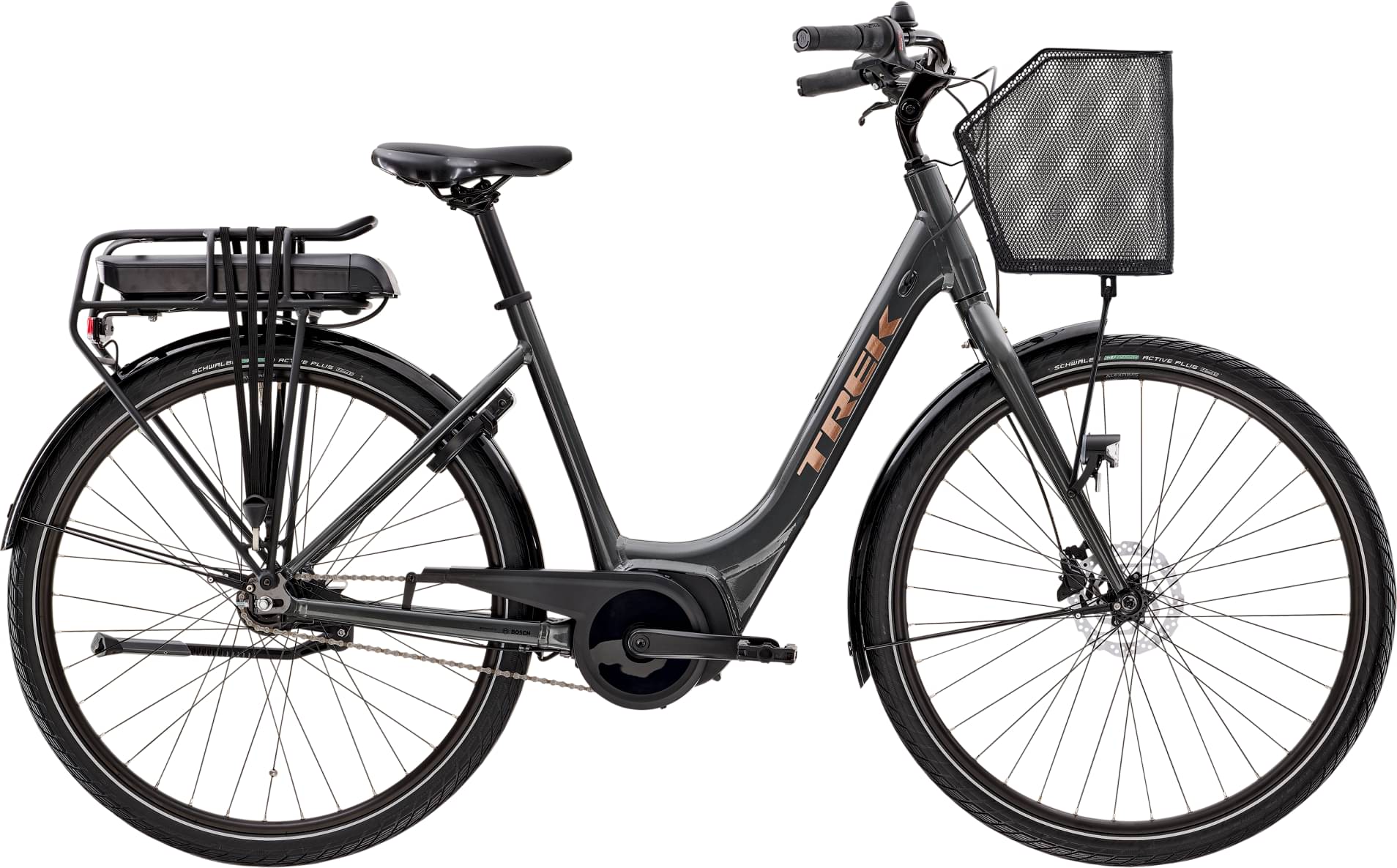

Trek District+ 1C Lowstep 2023
2023 E-bike
Estimate price |
2,844$
Weight | 22.85 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch Active Line, 250 watt, 40 Nm, 25 km/h (15.5 mph), 32 km/h for New Zealand -
Drivetrain Internally Geared Hub -
Brakes Coaster
Sizing
Recommended size guide.
SM
155cm - 165cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminium, internal cable routing, belt compatibility, post-mount disc
Drivetrain
Shift Levers
Shimano Nexus Revo, 7-speed
Cassette
18T
Crank
ProWheel alloy, 170 mm length
Chain
Shimano HG40, 6/7/8-speed
Pedals
Size: S, M, L, VP-857; Size: S, M, L, slip-proof pedals with reflectors
Wheels
Front Hub
Alloy, CenterLock disc, 100 mm thru axle
Rear Hub
Shimano Nexus C3001, coaster brake, 7-speed
Rims
Alex Rims DP23, alloy, 36-hole, Presta valve
Spokes
14 g stainless steel, black
Tires
Schwalbe Energizer Active Plus, Puncture Guard, Twin Skin (50-622)
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Size: S, M, L, Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width; Size: S, M, L, Aluminium comfort
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Selle Royal Nuvola
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Motor & Battery
Motor
Bosch Active Line, 250 watt, 40 Nm, 25 km/h (15.5 mph), 32 km/h for New Zealand
Battery
Bosch Active Line, 250 watt, 40 Nm, 25 km/h (15.5 mph), 32 km/h for New Zealand
Charger
Bosch compact 2A, 100–240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Stack Reach Ratio | 1.638 mm |
| Bottom Bracket Height | 286 mm |
| Front Center | 646 mm |
| Rake | 45 mm |
| Trail | 95 mm |
| Stack | 616 mm |
| Reach | 376 mm |
| Top Tube Length | 588 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 440 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 160 mm |
| Chainstay Length | 502 mm |
| Wheelbase | 1141 mm |
| Bottom Bracket Drop | 62 mm |
| Standover Height | 440 mm |
| Wheels | 700 |
| Rider Min Height | 155 cm |
| Rider Max Height | 165 cm |
