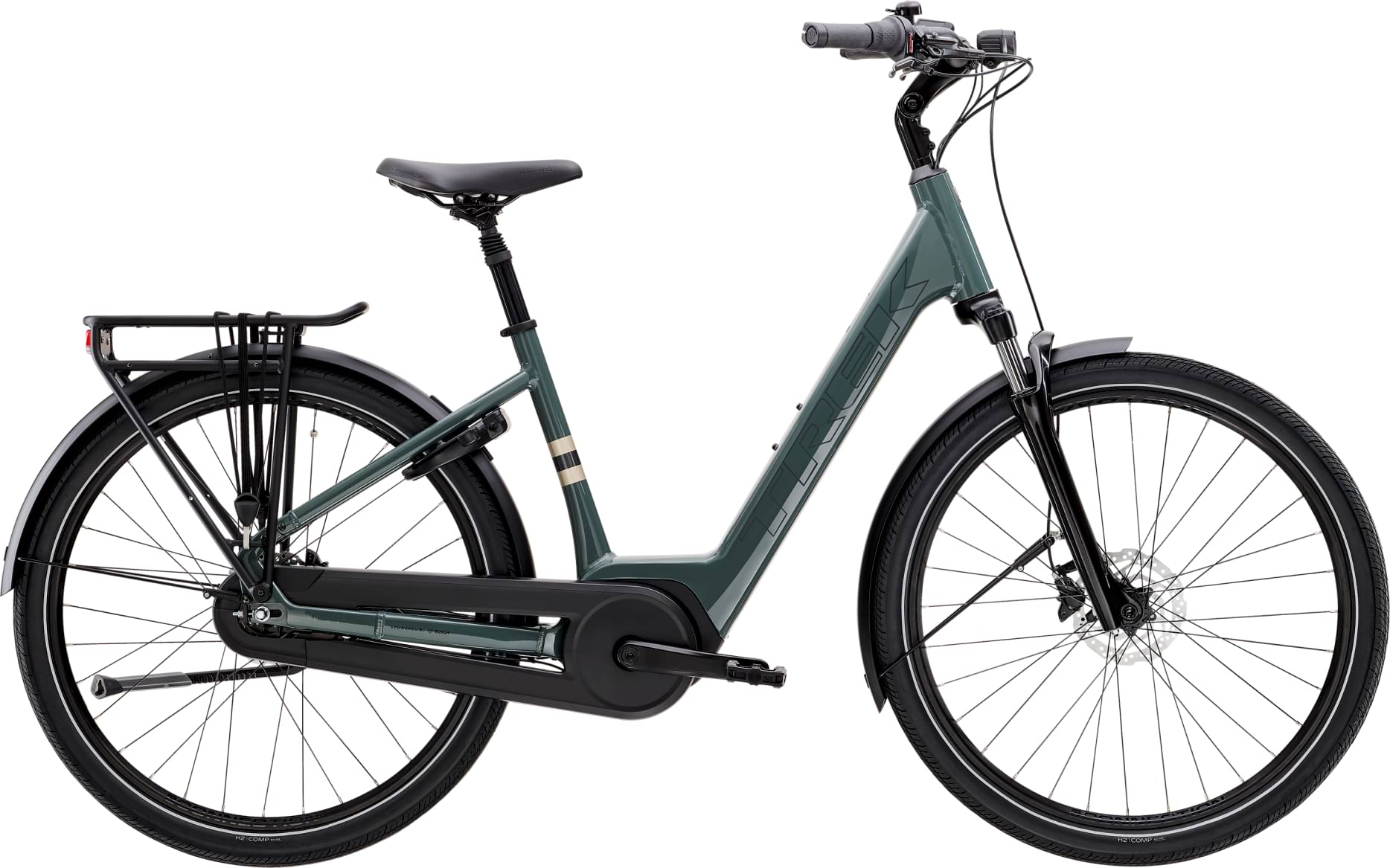

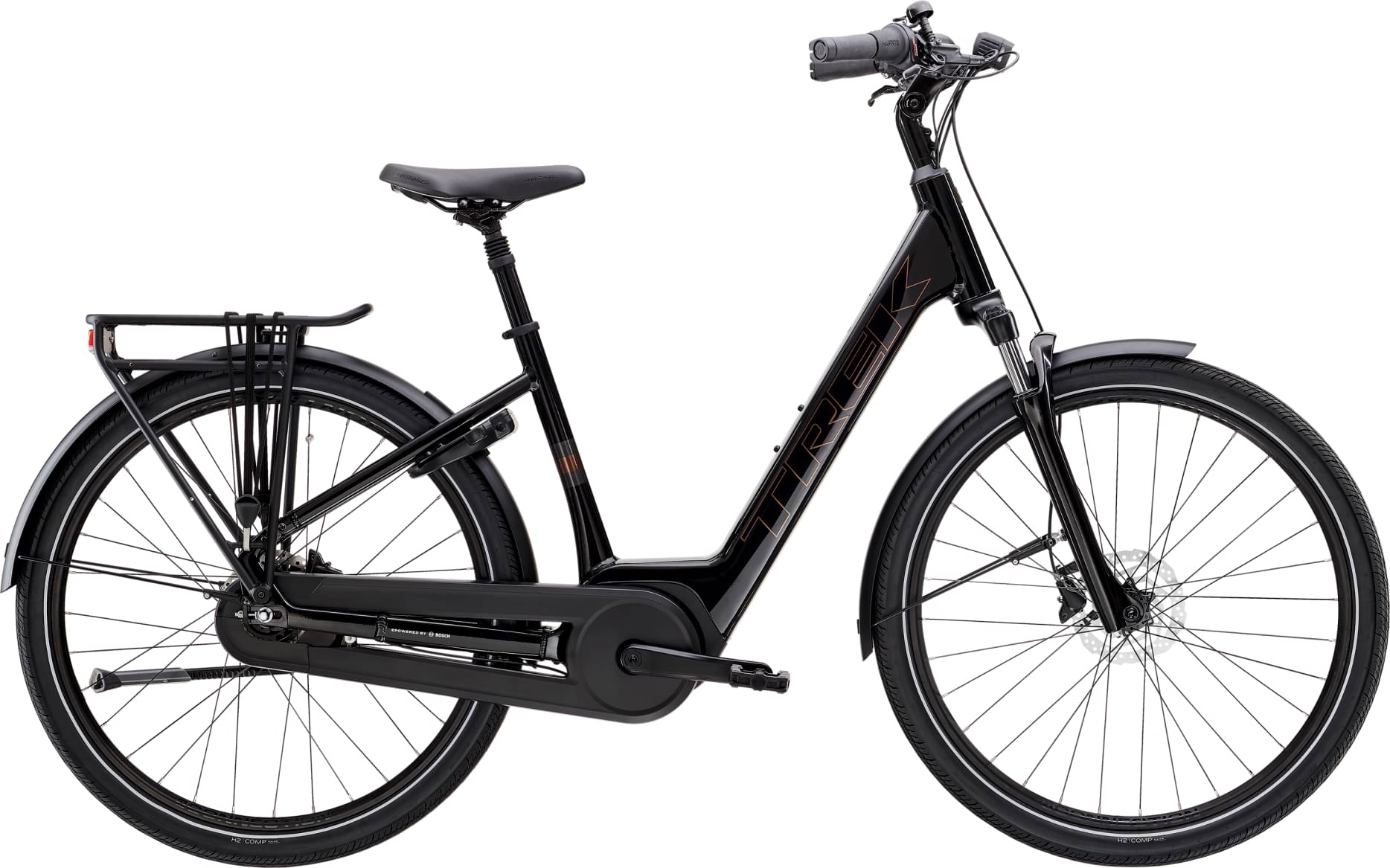

Trek District+ 2 Lowstep 2025
2025 E-bike
Estimate price |
3,489$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour NVX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch CompactTube 400 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminium, Bosch Compact PowerTube and belt drive, internal cable routing, post-mount disc
Suspension Fork
SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel
Drivetrain
Shift Levers
Shimano Nexus Revo, 7-speed
Cassette
18T
Crank
ProWheel alloy, 170 mm length
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG40, 6/7/8-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Alloy, CenterLock disc, 100 mm thru axle
Rear Hub
Shimano Nexus C3001, CenterLock, 7-speed
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes
14 g stainless steel, black
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 27.5x2.00"
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Bontrager Boulevard
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Active Line Plus, 50 Nm
Battery
Bosch CompactTube 400 Wh
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.598 mm | 1.65 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 637 mm | 668 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 85 mm | 84 mm | 78 mm |
| Stack | 618 mm | 639 mm | 693 mm |
| Reach | 370 mm | 400 mm | 420 mm |
| Top Tube Length | 571 mm | 620 mm | 672 mm |
| Seat Tube Angle | 72 ° | 71 ° | 70 ° |
| Seat Tube Length | 380 mm | 470 mm | 560 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 170 mm | 225 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1117 mm | 1149 mm | 1183 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 410 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
