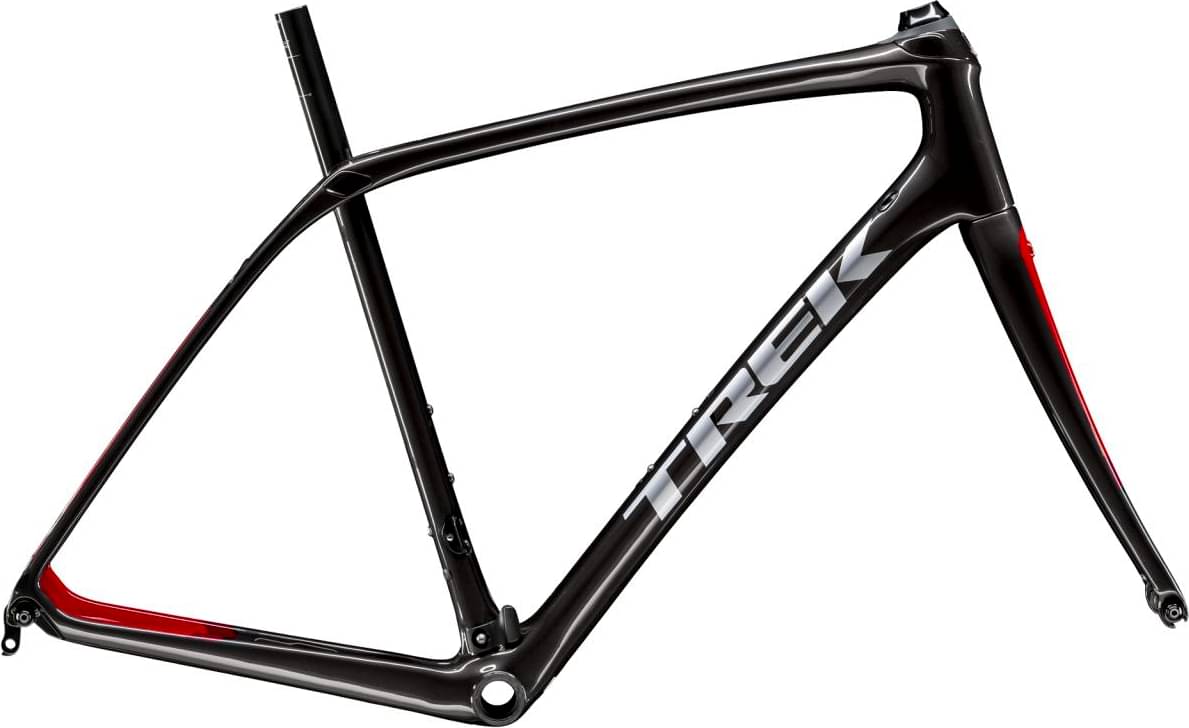

Trek Domane SL Gen 2 Rim Frameset 2025

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Endurance
Frame Carbon
Groupset Shimano
Suspension Rigid

Sizing

Recommended size guide.

50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

500 Series OCLV Carbon, front and rear IsoSpeed, tapered head tube, internal cable routing, Ride Tuned seat mast, 3S chain keeper, direct-mount rim brakes, DuoTrap S compatible, mudguard mounts, 130x5 mm QR

Suspension Fork

Domane SL carbon, tapered carbon steerer, mudguard mounts, direct-mount rim brake, 5x100 mm QR

Drivetrain

Front Derailleur

Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)

Wheels

Tires

28 c Bontrager tyres (with at least 4 mm of clearance to frame)

Fit data

Geometry

Numbers for sizing and ride feel.

Size	50cm	52cm	54cm	56cm	58cm	60cm	62cm
Stack Reach Ratio	1.484 mm	1.512 mm	1.537 mm	1.568 mm	1.608 mm	1.65 mm	1.699 mm
Bottom Bracket Height	256 mm	256 mm	256 mm	258 mm	258 mm	261 mm	261 mm
Front Center	589 mm	596 mm	603 mm	600 mm	609 mm	618 mm	628 mm
Rake	53 mm	54 mm	53 mm	48 mm	49 mm	48 mm	48 mm
Trail	60 mm	59 mm	59 mm	61 mm	60 mm	59 mm	59 mm
Stack	546 mm	561 mm	575 mm	591 mm	611 mm	632 mm	656 mm
Reach	368 mm	371 mm	374 mm	377 mm	380 mm	383 mm	386 mm
Top Tube Length	519 mm	530 mm	542 mm	554 mm	567 mm	579 mm	593 mm
Seat Tube Angle	74.6 °	74.2 °	73.7 °	73.3 °	73 °	72.8 °	72.5 °
Seat Tube Length	450 mm	475 mm	500 mm	525 mm	548 mm	567 mm	586 mm
Head Tube Angle	71.1 °	71.3 °	71.3 °	71.9 °	72 °	72.1 °	72.1 °
Head Tube Length	130 mm	145 mm	160 mm	175 mm	195 mm	220 mm	245 mm
Chainstay Length	420 mm	420 mm	420 mm	420 mm	425 mm	425 mm	425 mm
Wheelbase	996 mm	1003 mm	1010 mm	1008 mm	1022 mm	1032 mm	1042 mm
Bottom Bracket Drop	80 mm	80 mm	80 mm	78 mm	78 mm	75 mm	75 mm
Standover Height	716 mm	735 mm	754 mm	776 mm	796 mm	817 mm	835 mm
Wheels	700	700	700	700	700	700	700
Rider Min Height	158 cm	162 cm	167 cm	173 cm	179 cm	184 cm	189 cm
Rider Max Height	164 cm	169 cm	175 cm	181 cm	186 cm	191 cm	195 cm
