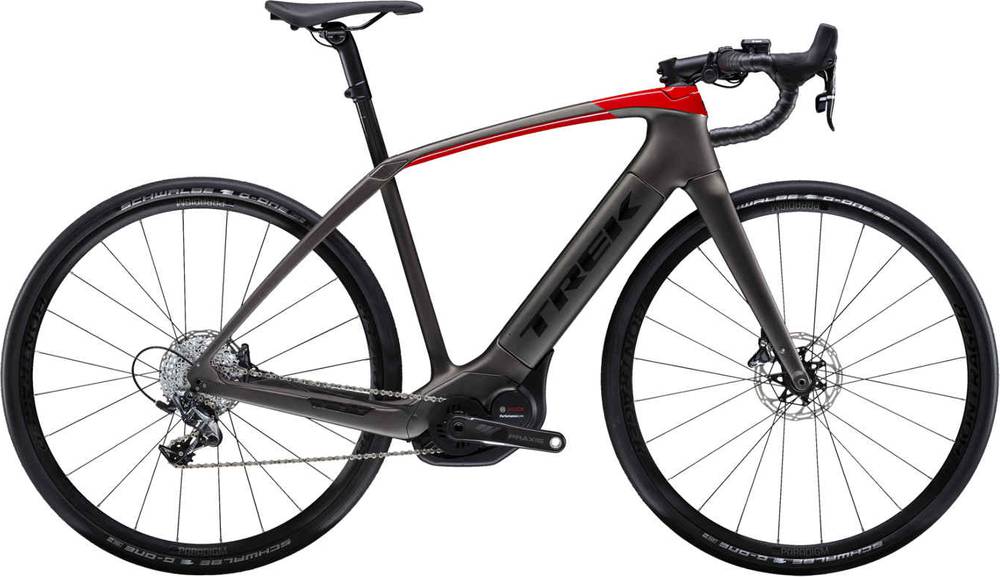

Trek Domane+ 2019
2019 E-bike
Estimate price |
6,999$
Weight | 17.19 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force 1, Praxis -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon. Rear IsoSpeed, Tapered head tube, internal battery, flat mount disc brakes, 12mm thru-axle, internal cable routing, Ride Tuned seatmast, hidden fender mounts
Suspension Fork
Domane+ carbon steer and crown, flat mount disc brakes, 12mm thru-axles
Drivetrain
Rear Derailleur
SRAM Force 1, medium cage
Shift Levers
SRAM Force 1, 11 speed
Cassette
SRAM PG-1170, 11-36, 11 speed
Crank
Praxis, Carbon E-Bike
Bottom Bracket
Steel chainring, 20T, with guard
Chain
SRAM PC-1170
Pedals
Not included
Wheels
Rims
Bontrager Paradigm Disc Tubeless Ready, 12mm thru-axle
Tires
Schwalbe G-One Speed, aramid bead, TL Easy, 700c35c
Brakes
Brakes
SRAM Force flat mount hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Elite IsoZone VR-CF, 31.8mm
Grips
Bontrager tape
Headset
Integrated, stainless cartridge bearings, sealed, 1-3/8? top, 1.5? bottom
Seat
Saddle
Bontrager Arvada Comp, steel rails
Seatpost
Bontrager Ride Tuned alloy seatmast Cap, 10mm offset
Motor & Battery
Motor
Bosch Performance Speed, 350 watt, 63Nm, 28 mph
Battery
Bosch PowerTube 500wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.56 mm | 1.59 mm | 1.64 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 587 mm | 595 mm | 605 mm | 614 mm | 623 mm |
| Rake | 53 mm | 53 mm | 52 mm | 53 mm | 53 mm |
| Trail | 58 mm | 58 mm | 59 mm | 59 mm | 58 mm |
| Stack | 565 mm | 579 mm | 598 mm | 617 mm | 640 mm |
| Reach | 378 mm | 381 mm | 384 mm | 387 mm | 390 mm |
| Top Tube Length | 536 mm | 548 mm | 561 mm | 574 mm | 586 mm |
| Seat Tube Angle | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.1 ° |
| Seat Tube Length | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm |
| Head Tube Angle | 72.1 ° | 72.1 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 126 mm | 141 mm | 161 mm | 181 mm | 205 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1037 mm | 1045 mm | 1055 mm | 1064 mm | 1073 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Standover Height | 759 mm | 777 mm | 798 mm | 818 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 167 cm | 172 cm | 178 cm | 184 cm |
| Rider Max Height | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Domane+ is a Trek E Domane model. 42 e-bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance e-bikes
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2019 and its price was 6999$. Comparing this to the average Endurance e-bike price, we see that the price is 84.18% higher.
Average weight for Endurance e-bikes
If we make a quick analysis of the average weight of an Endurance e-bike, we get 13.52 kg (29.81 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 17.19 kg (37.9 lbs), Trek e-bike is much heavier than average. To sum up, it’s 27.14% heavier than the average weight of Endurance e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Domane+ components
Fork material
Domane+ has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Domane+ e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Domane+ has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Trek Domane+ e-bike has 5 sizes, in the range of 162 cm – 191 cm (5.31 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
