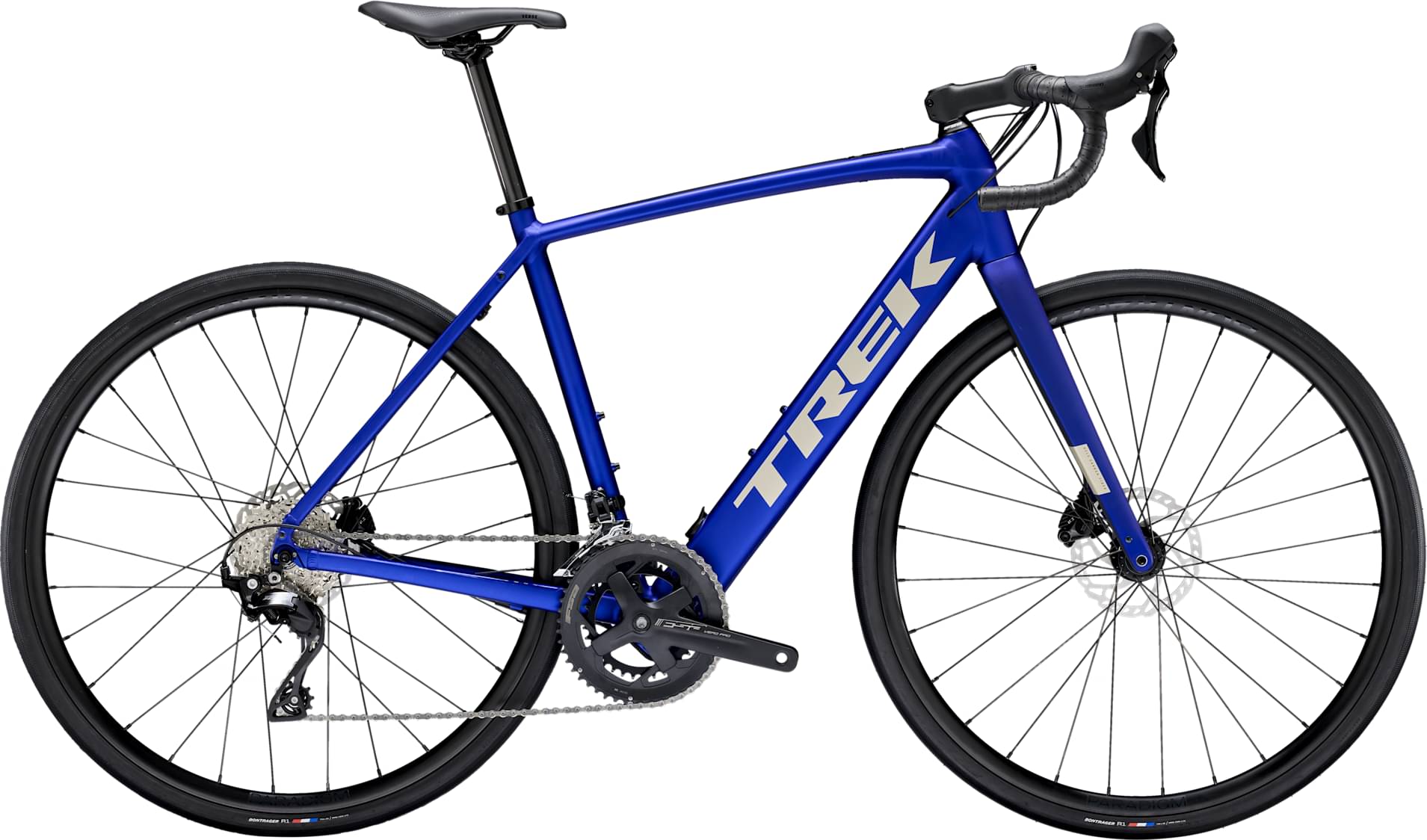

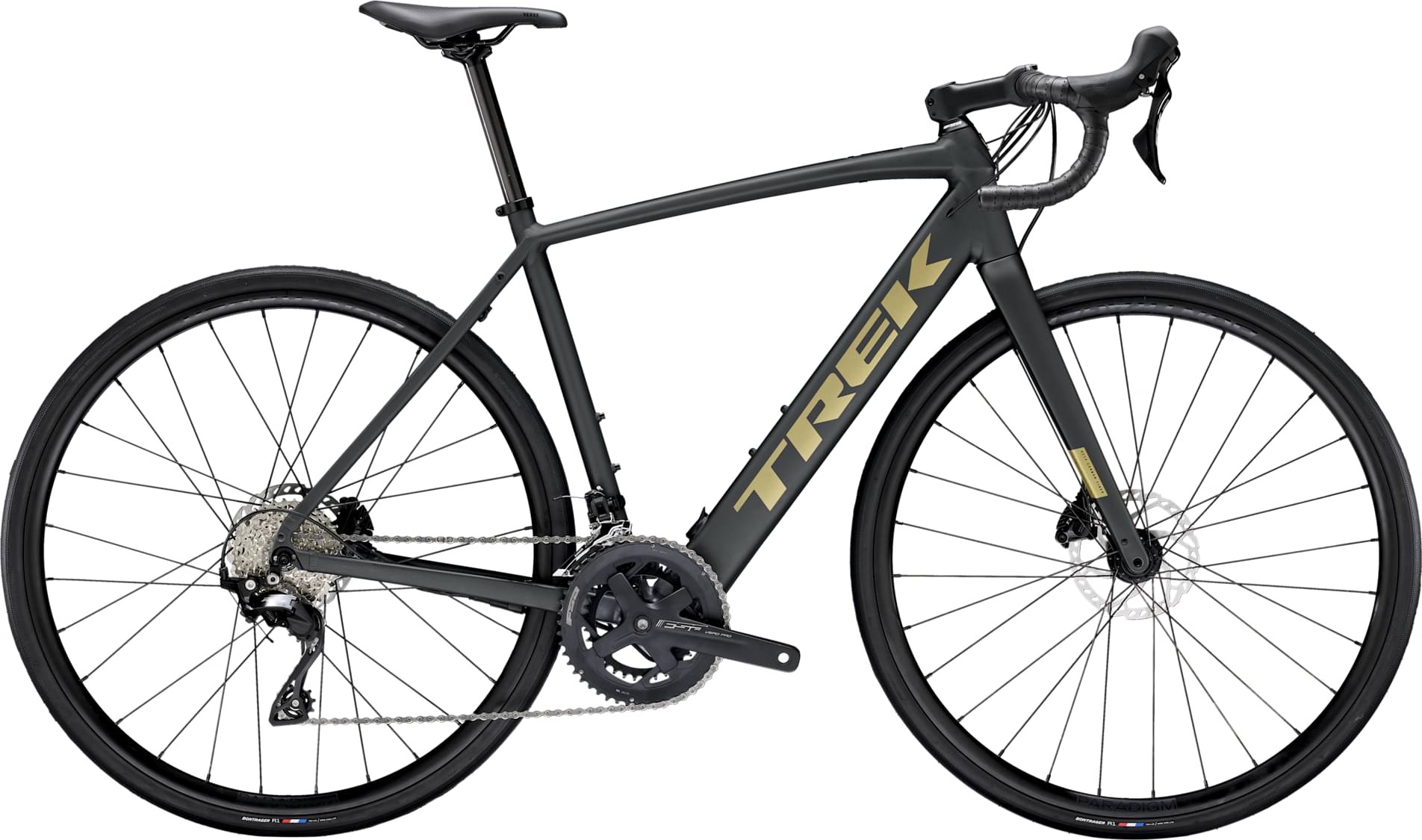

Trek Domane+ AL 5 2025
2025 E-bike
Estimate price |
3,838$
Weight | 14.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset 105 -
Suspension Rigid -
Battery 250 Wh, integrated in down tube -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
156cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

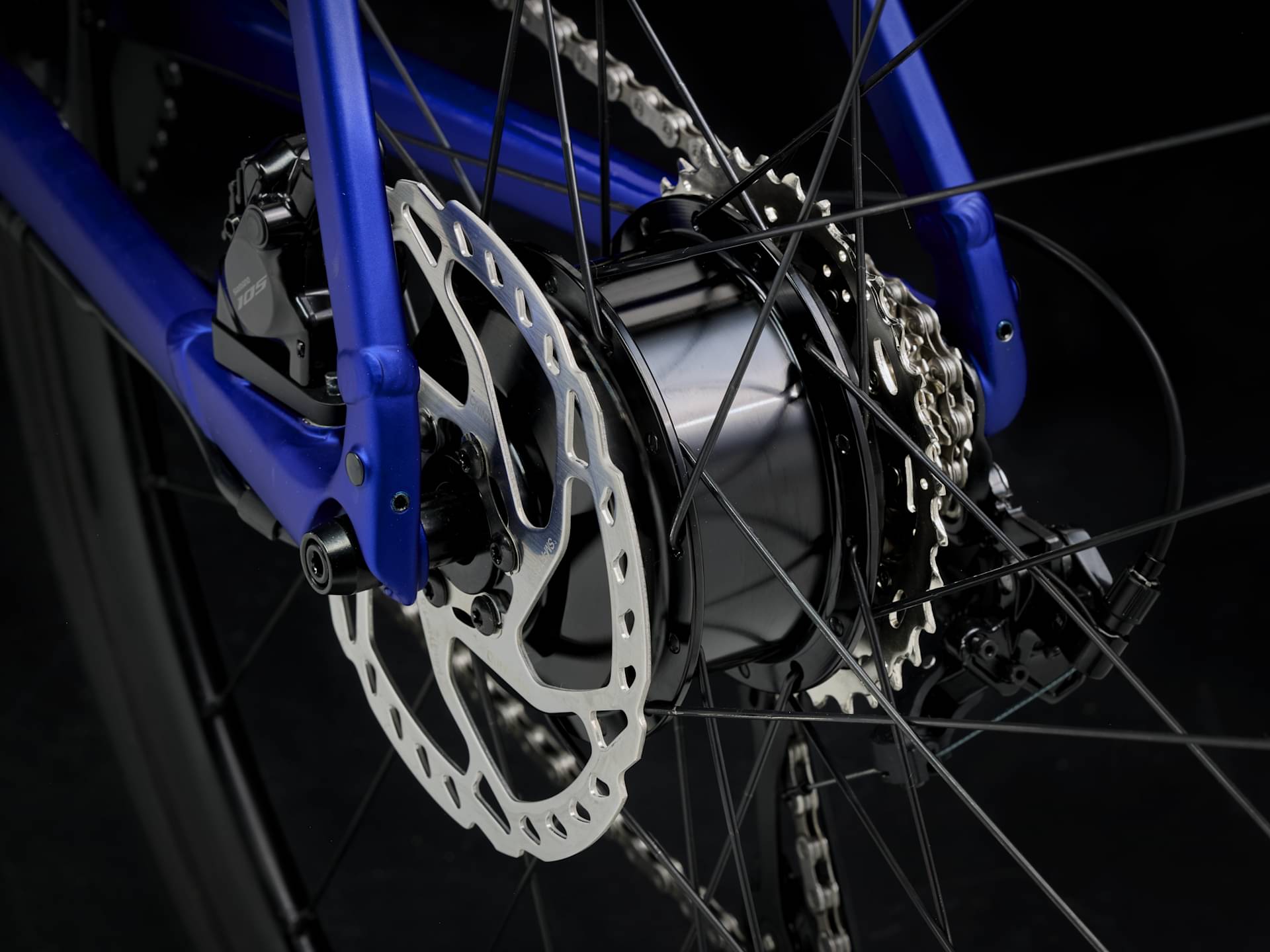

100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
Suspension Fork
Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

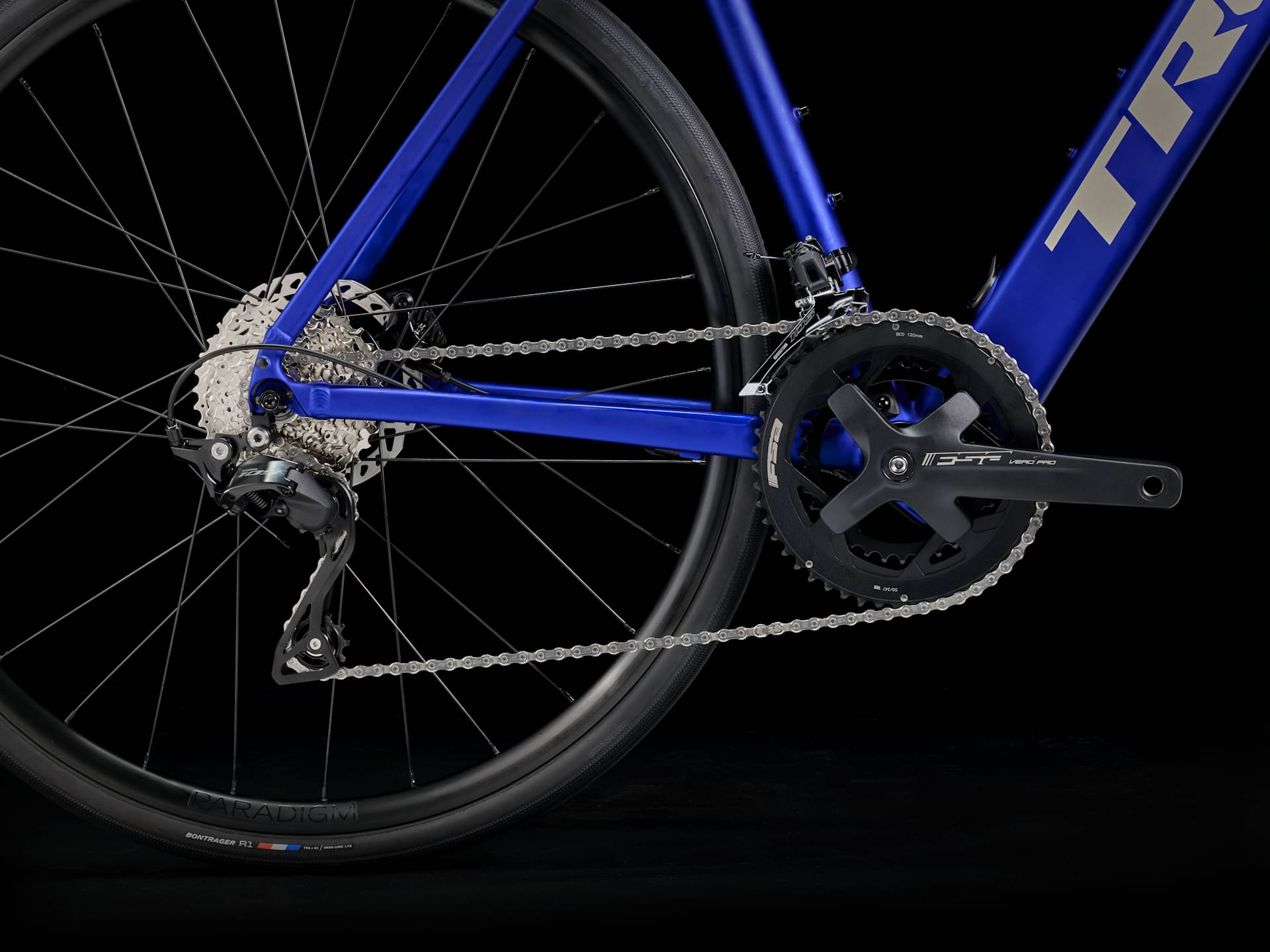

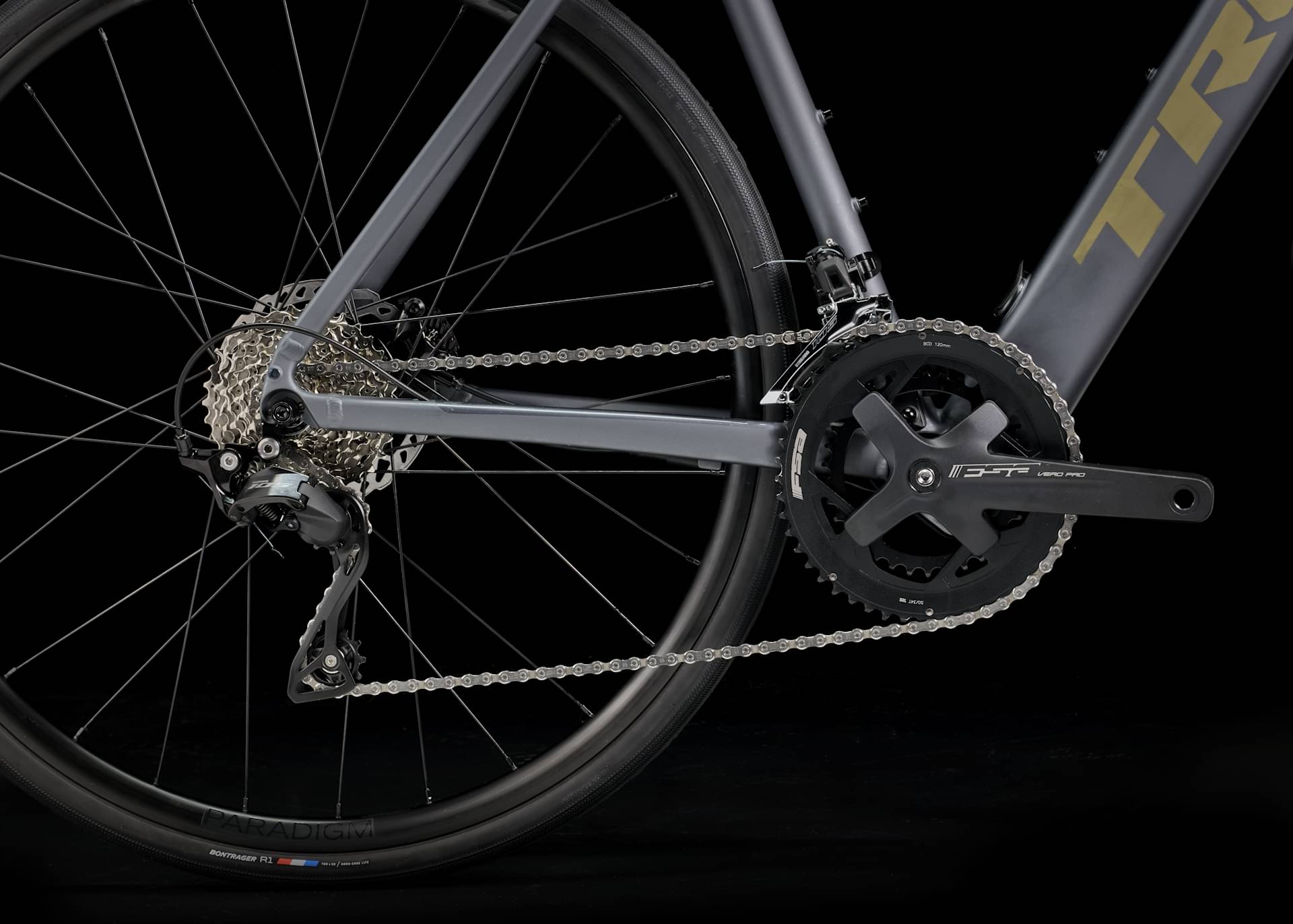

Drivetrain
Rear Derailleur
Shimano 105 R7100, 36T max cog
Front Derailleur
Shimano 105 R7100, 31.8 mm clamp, down swing
Shift Levers
Shimano 105 R7120, 12-speed
Cassette
Shimano 105 7101, 11-34, 12-speed
Crank
Size: 49, FSA Vero Pro, 50/34, 165 mm length; Size: 52, FSA Vero Pro, 50/34, 170 mm length; Size: 54, 56, FSA Vero Pro, 50/34, 172.5 mm length; Size: 58, 61, FSA Vero Pro, 50/34, 175 mm length
Bottom Bracket
Torque sensor, threaded, 110 mm spindle
Chain
Shimano SLX M7100, 12-speed
Wheels
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm

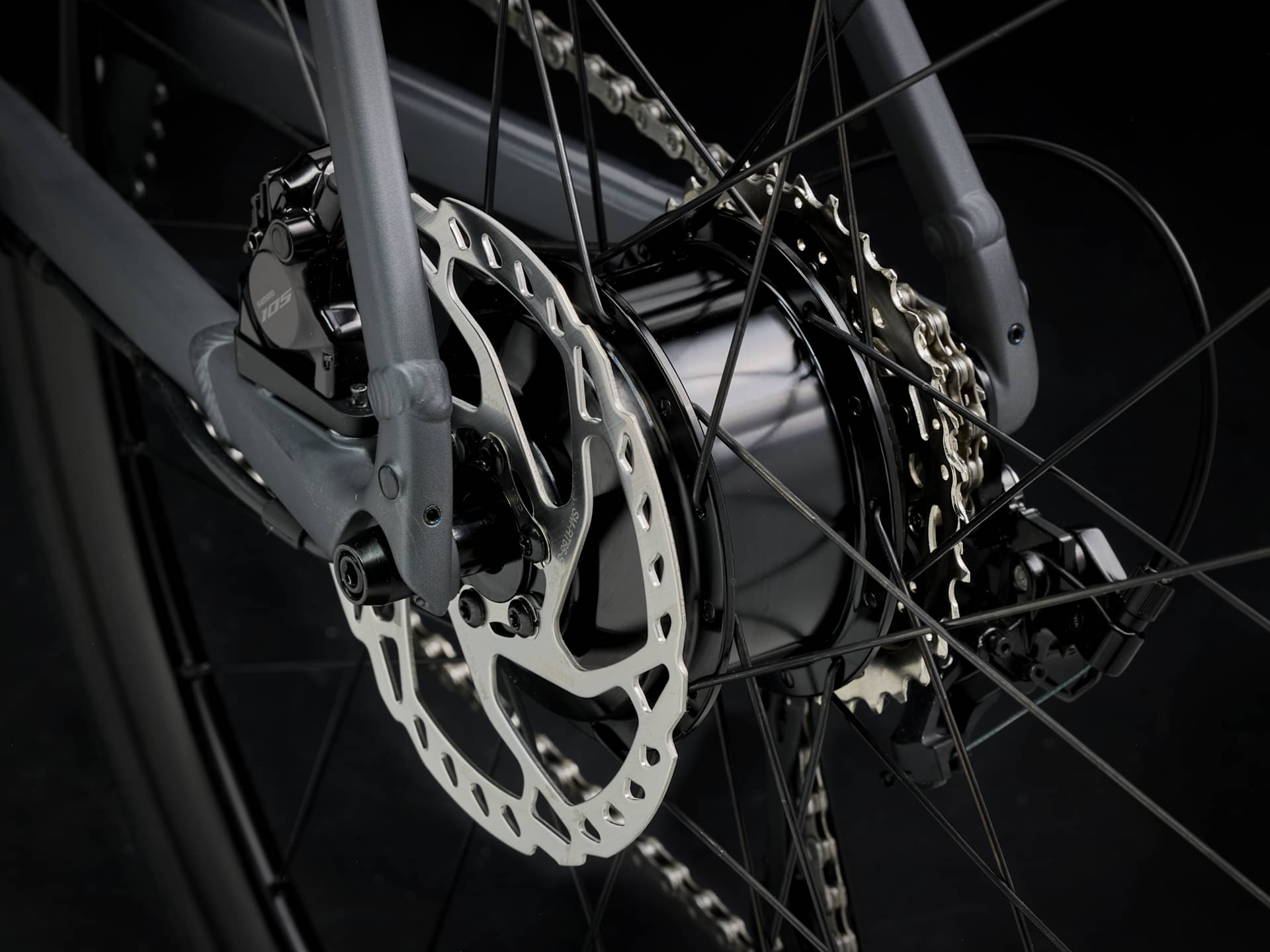

Brakes
Brakes
Shimano RT66, 6-bolt, 160 mm

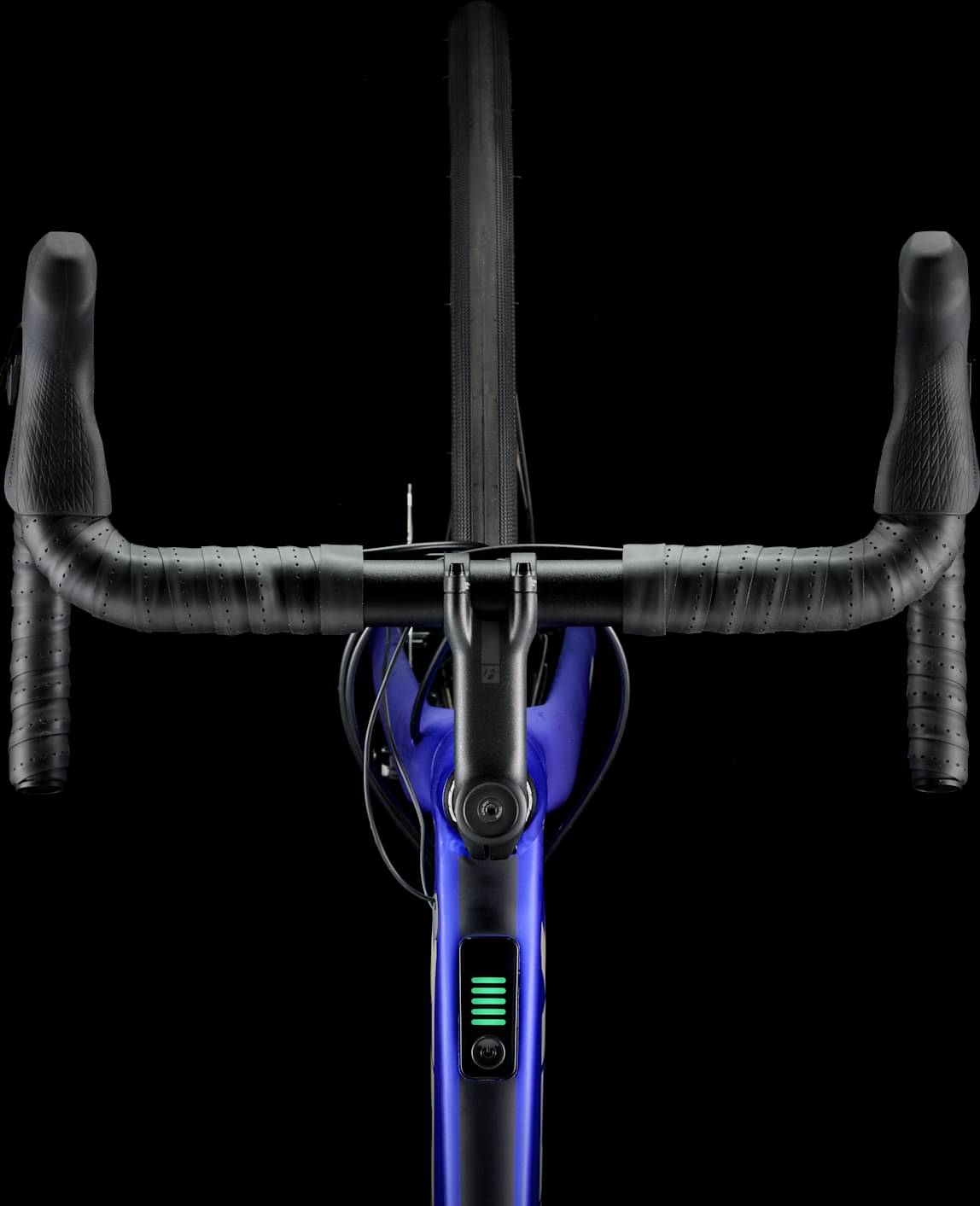

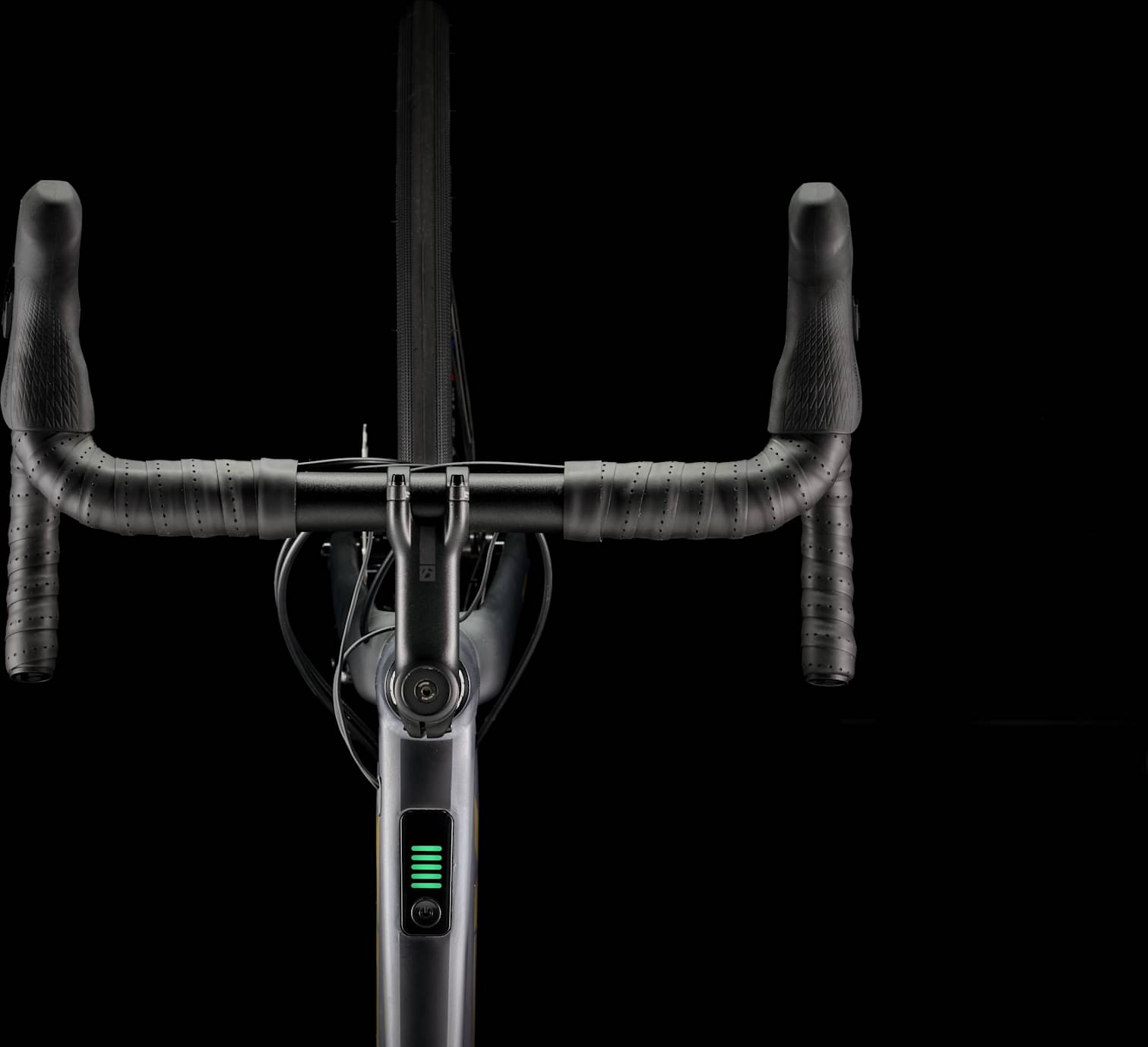

Cockpit
Handlebar
Size: 49, Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width; Size: 54, 56, Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width; Size: 58, 61, Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
Seat
Saddle
Size: 49, 52, Verse Short Comp, steel rails, 155 mm width; Size: 54, 56, 58, 61, Verse Short Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Motor & Battery
Battery
250 Wh, integrated in down tube
Charger
2A, 42V output, 100V–240V AC input
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.512 mm | 1.537 mm | 1.568 mm | 1.608 mm | 1.678 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 590 mm | 596 mm | 604 mm | 600 mm | 609 mm | 625 mm |
| Rake | 53 mm | 54 mm | 54 mm | 48 mm | 48 mm | 49 mm |
| Trail | 67 mm | 64 mm | 64 mm | 65 mm | 65 mm | 64 mm |
| Stack | 540 mm | 561 mm | 575 mm | 591 mm | 611 mm | 646 mm |
| Reach | 368 mm | 371 mm | 374 mm | 377 mm | 380 mm | 385 mm |
| Top Tube Length | 517 mm | 530 mm | 542 mm | 554 mm | 567 mm | 586 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm |
| Head Tube Angle | 70.8 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 180 mm | 220 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1007 mm | 1013 mm | 1021 mm | 1018 mm | 1027 mm | 1043 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm |
| Standover Height | 727 mm | 753 mm | 772 mm | 794 mm | 809 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
