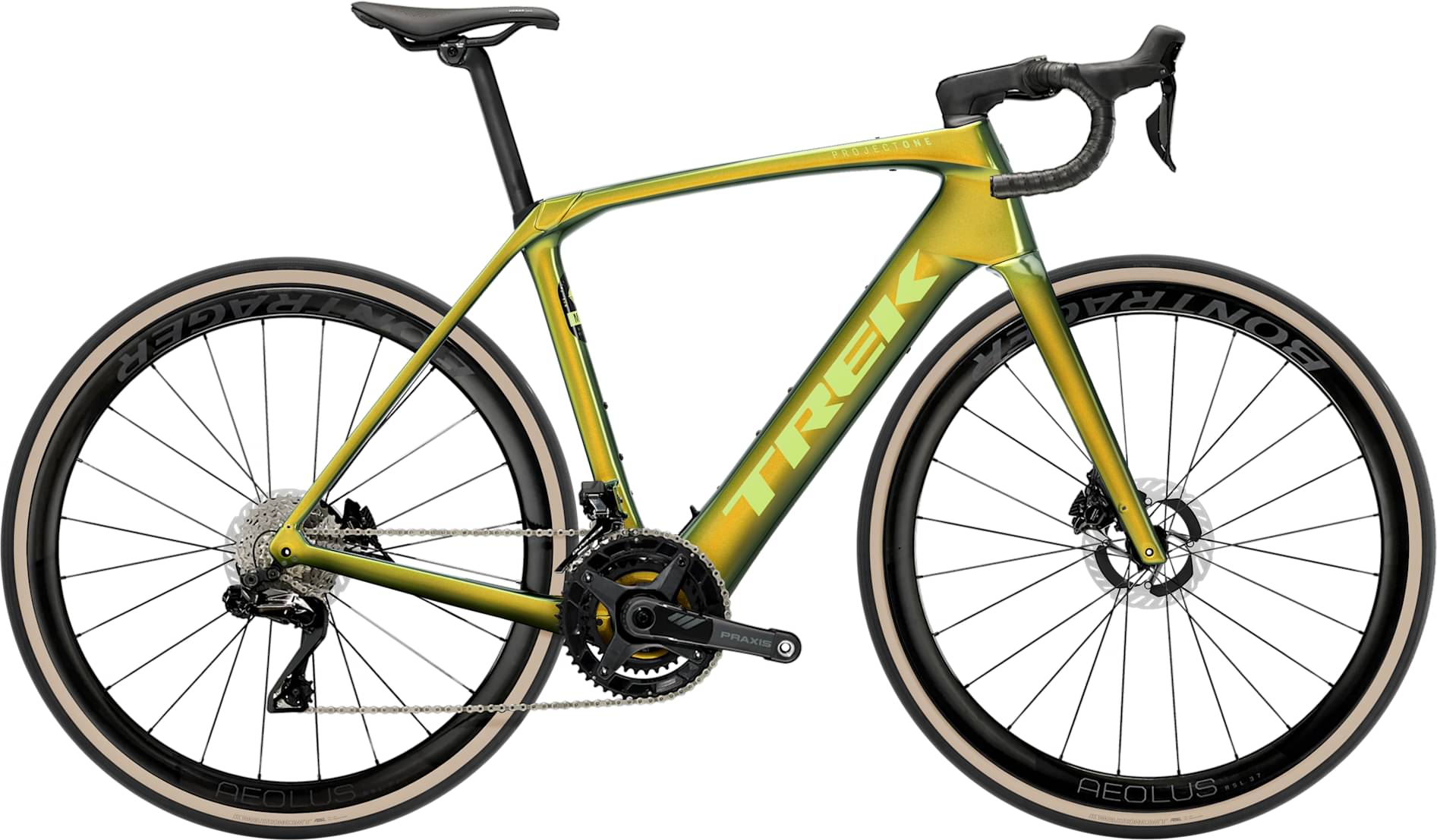

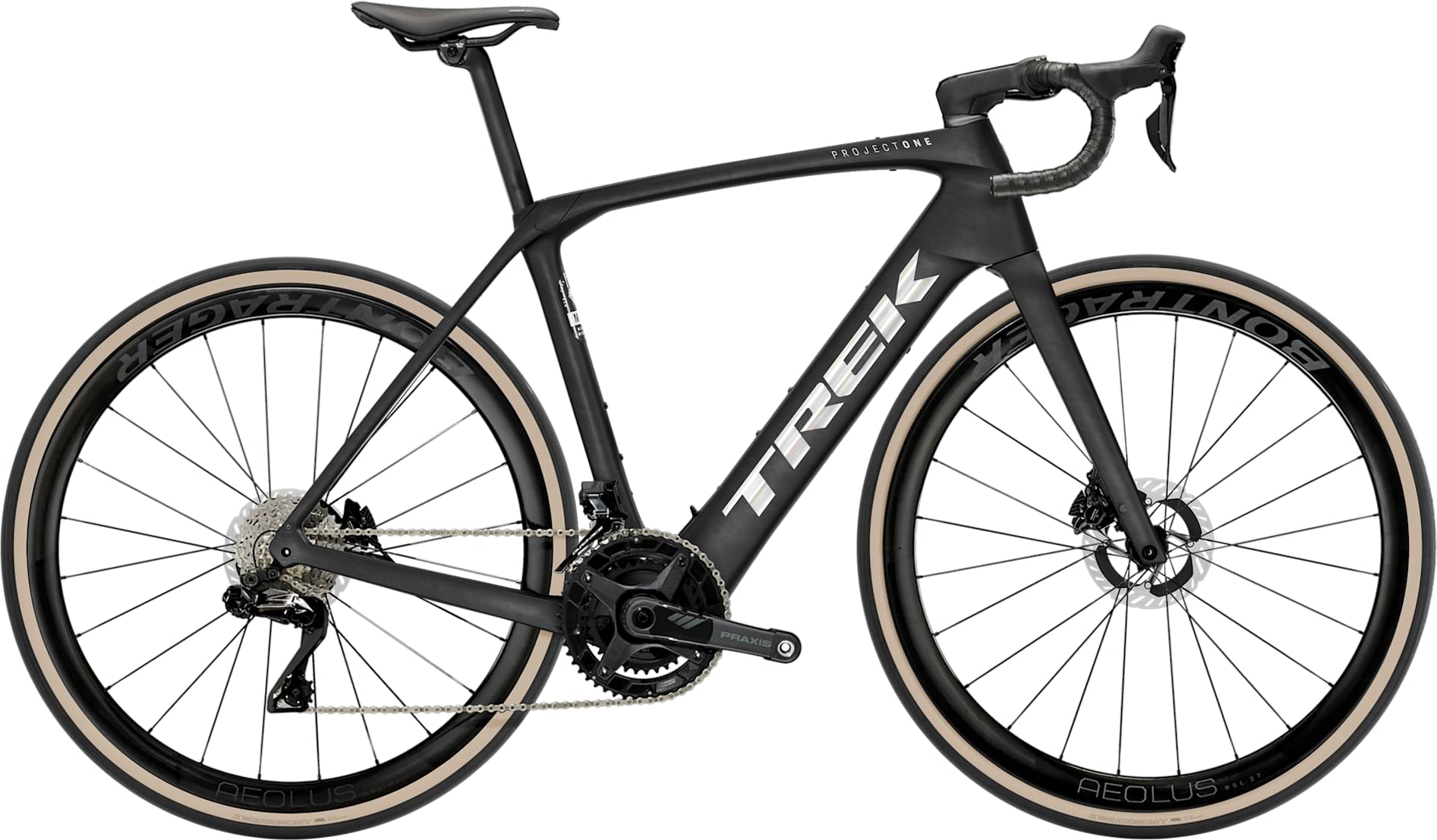

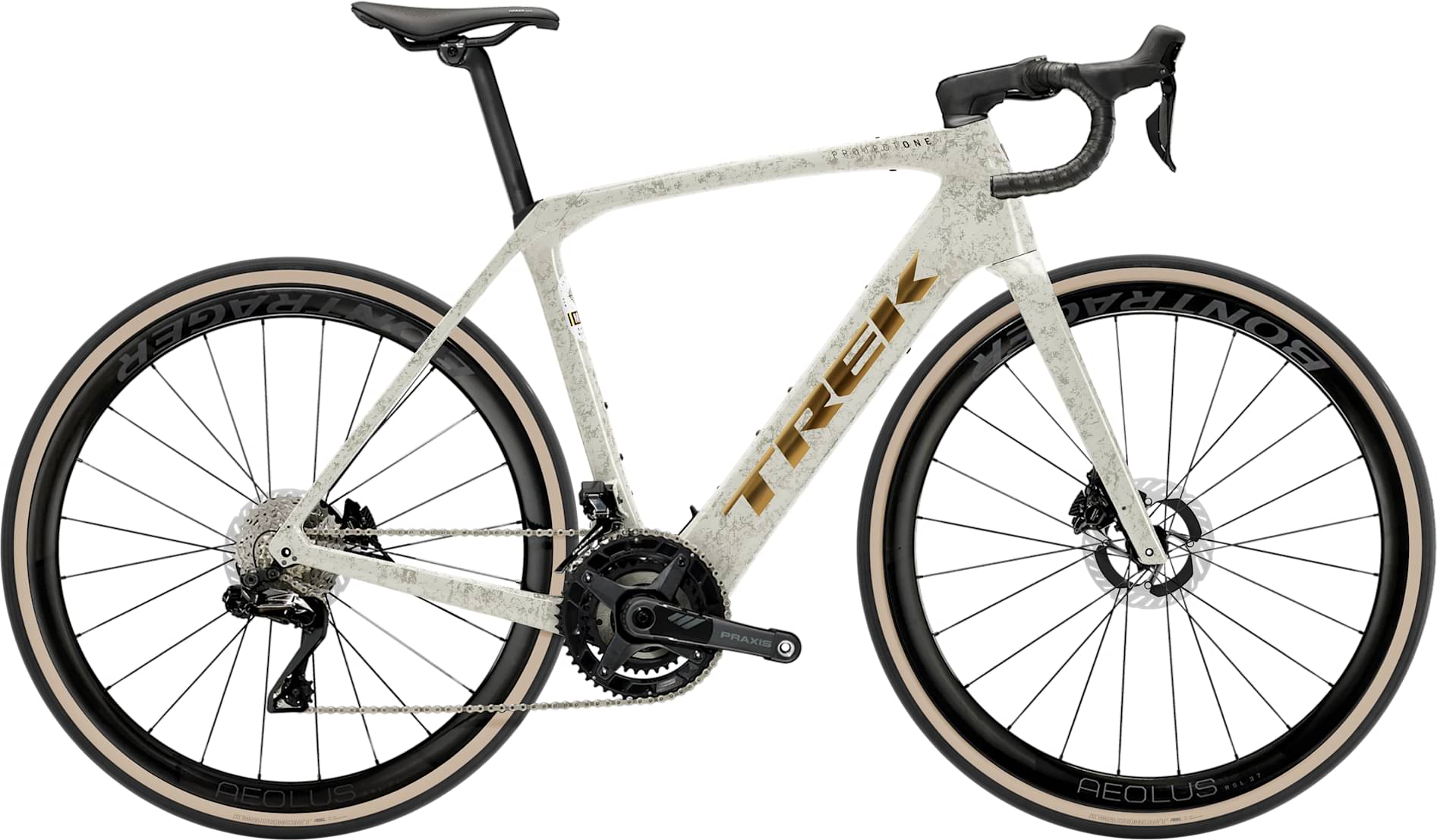

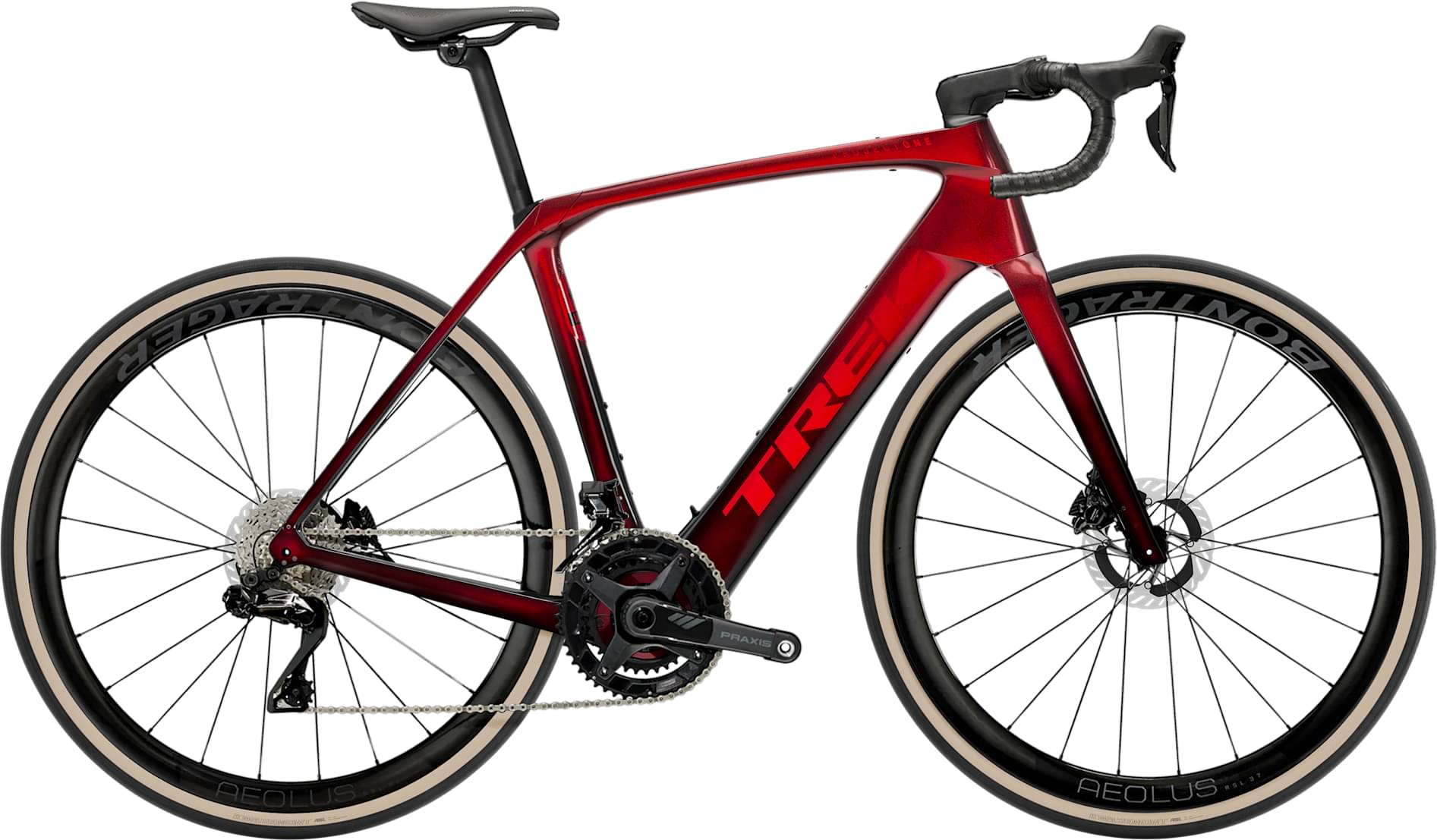

Trek Domane+ SLR 9 2026
2026 E-bike
Estimate price |
14,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Motor TQ 300W 60Nm hub-drive -
Battery TQ 360Wh -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Dura-Ace Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
Suspension Fork
Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Dura-Ace R9250 Di2, 34T max cog
Front Derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Shift Levers
Shimano Dura-Ace R9270 Di2, 12 speed
Cassette
Shimano Dura-Ace R9200, 11-34, 12 speed
Crank
Size: 50, 52, Praxis Carbon, 165mm length; Size: 54, 56, Praxis Carbon, 170mm length; Size: 58, 60, 62, Praxis Carbon, 172.5mm length
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Wheels
Rims
Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Tires
Bontrager Kwaremont RSL, tubeless ready, folding bead, dual compound, 320 tpi, 700x32mm
Brakes
Brakes
Shimano Dura-Ace hydraulic disc, flat mount
Cockpit
Stem
Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length
Handlebar
Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm
Seat
Saddle
Verse Short Pro, carbon rails, 145mm width
Seatpost
Size: 50, 52, 54, 56, KVF aero carbon seatpost, 20mm offset, 280mm length; Size: 58, 60, 62, KVF aero carbon seatpost, 20mm offset, 320mm length
Motor & Battery
Motor
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery
TQ 360Wh
Charger
TQ 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.484 mm | 1.512 mm | 1.537 mm | 1.568 mm | 1.608 mm | 1.65 mm | 1.699 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 590 mm | 596 mm | 604 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 54 mm | 54 mm | 54 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 63 mm | 62 mm | 62 mm | 63 mm | 63 mm | 62 mm | 62 mm |
| Stack | 546 mm | 561 mm | 575 mm | 591 mm | 611 mm | 632 mm | 656 mm |
| Reach | 368 mm | 371 mm | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm |
| Top Tube Length | 519 mm | 530 mm | 542 mm | 554 mm | 567 mm | 579 mm | 593 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1007 mm | 1013 mm | 1021 mm | 1018 mm | 1027 mm | 1037 mm | 1047 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 728 mm | 747 mm | 766 mm | 788 mm | 808 mm | 829 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
