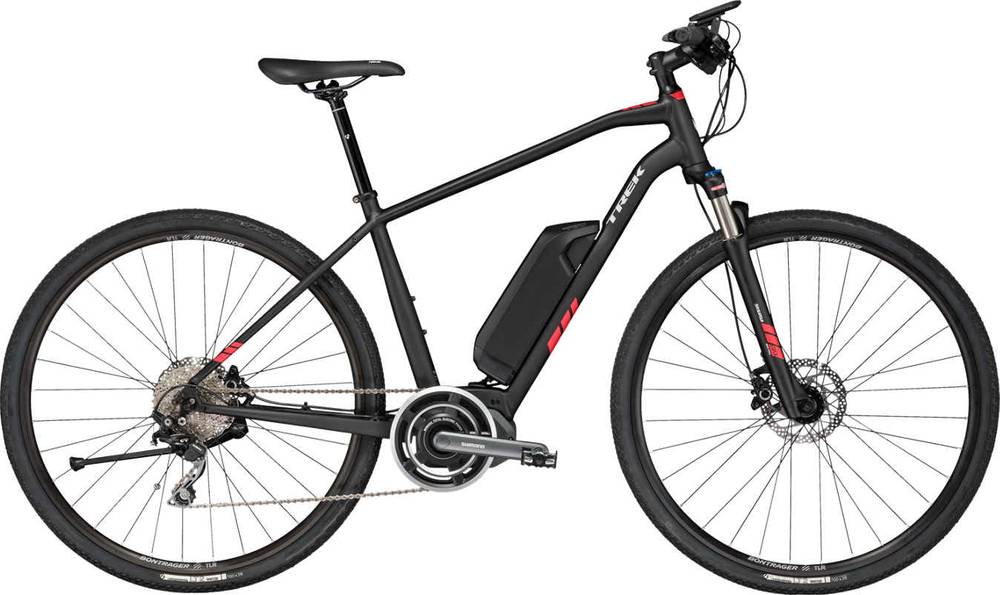

Trek Dual Sport+ 2018
2018 E-bike
Estimate price |
2,799$
Weight | 19.53 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NRX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 50Nm hub-drive -
Battery Shimano STEPS, 418wH, frame mount -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, custom designed for Shimano STEPS system, internal cable routing
Suspension Fork
SR Suntour NRX, ATB rated, coil spring, preload, hydraulic lockout, 63mm travel
Drivetrain
Rear Derailleur
Shimano Deore, Shadow Plus
Shift Levers
Shimano Deore, 10 speed
Cassette
Shimano HG50, 11-36, 10 speed
Crank
Shimano STEPS, 44T w/chainguard
Bottom Bracket
Shimano STEPS, 250 watt, 20mph
Chain
KMC X10e
Pedals
Wellgo track-style alloy
Wheels
Front Hub
Formula DC20 alloy
Rear Hub
Formula DC22 alloy
Rims
Bontrager Tubeless Ready disc, 32h
Tires
Bontrager LT2, Hard-Case Lite, 700x38c
Brakes
Brakes
Shimano M315 hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager Satellite Elite, lock-on, ergonomic
Headset
1-1/8? threadless, sealed cartridge bearings
Seat
Saddle
Bontrager H1
Seatpost
Bontrager, 2-bolt head, 27.2mm, 8mm offset
Motor & Battery
Motor
Shimano STEPS, 250 watt, 50Nm, 20 mph
Battery
Shimano STEPS, 418wH, frame mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17.5" | 20" | 22.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.48 mm | 1.49 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 648 mm | 653 mm | 663 mm | 667 mm |
| Rake | 40 mm | 45 mm | 46 mm | 45 mm |
| Trail | 78 mm | 74 mm | 74 mm | 71 mm |
| Stack | 591 mm | 603 mm | 612 mm | 624 mm |
| Reach | 402 mm | 408 mm | 414 mm | 420 mm |
| Top Tube Length | 568 mm | 583 mm | 598 mm | 613 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 393 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 114 mm | 124 mm | 134 mm | 144 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1098 mm | 1103 mm | 1113 mm | 1117 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 712 mm | 742 mm | 765 mm | 797 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
Dual Sport+ completes the Trek E Dual Sport model. 7 e-bikes variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 2799$. Comparing this to the average Hybrid e-bike price, we see that the price is 12.86% more expensive.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Dual Sport+ it’s weighing 19.53 kg (43.06 lbs). At this weight, is much lighter than average. In short, the average Hybrid e-bike weight is 21.81% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Trek Dual Sport+ 2018 e-bike is equipped with the SunTour NRX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Dual Sport+ 2018 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Dual Sport+ has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
