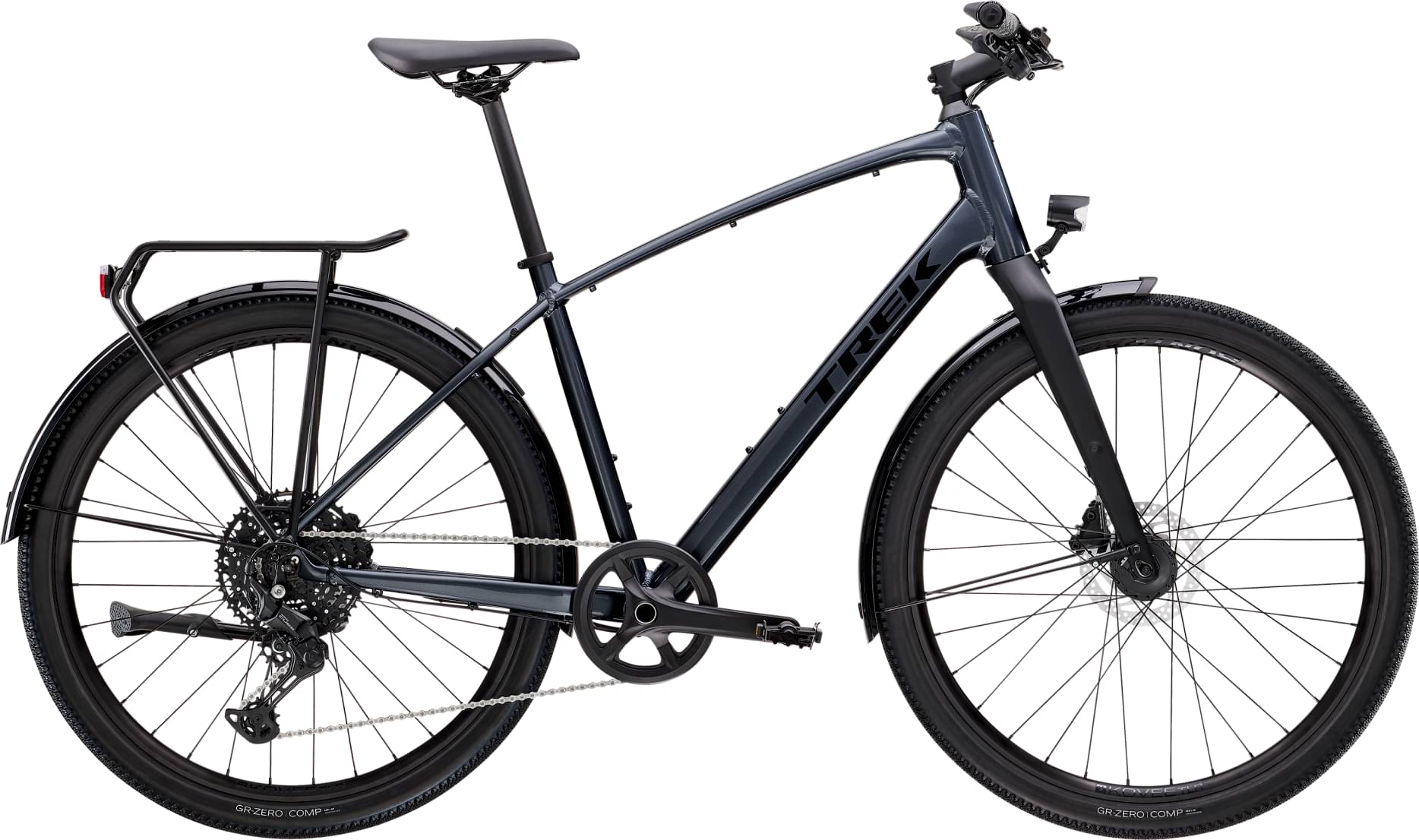

Trek Dual Sport 3 Equipped Gen 5 2025
2025 Urban
Estimate price |
1,395$
Weight | 14.24 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Suspension Fork
Dual Sport carbon, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 w/optical gear display, 10-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Crank
Size: M, Prowheel alloy, 40T narrow-wide ring, 170 mm length; Size: L, XL, Prowheel alloy, 40T narrow-wide ring, 175 mm length
Chain
Shimano LG500
Pedals
Wellgo nylon body, alloy cage
Wheels
Front Hub
Dynamo, 6V 3.0 W, 100x5 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Bontrager GR0 Comp, wire bead, reflective strip, 60 tpi, 650x50 mm
Brakes
Brakes
Shimano hydraulic disc, MT201 lever, UR300 calliper
Cockpit
Stem
Size: M, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: M, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Elite
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.553 mm | 1.596 mm | 1.626 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 623 mm | 632 mm | 639 mm |
| Rake | 40 mm | 39 mm | 38 mm |
| Trail | 83 mm | 80 mm | 74 mm |
| Stack | 598 mm | 624 mm | 652 mm |
| Reach | 385 mm | 391 mm | 401 mm |
| Top Tube Length | 565 mm | 585 mm | 615 mm |
| Seat Tube Angle | 73.3 ° | 72.8 ° | 71.8 ° |
| Seat Tube Length | 420 mm | 465 mm | 520 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.8 ° |
| Head Tube Length | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1063 mm | 1072 mm | 1079 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 761 mm | 800 mm | 843 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
