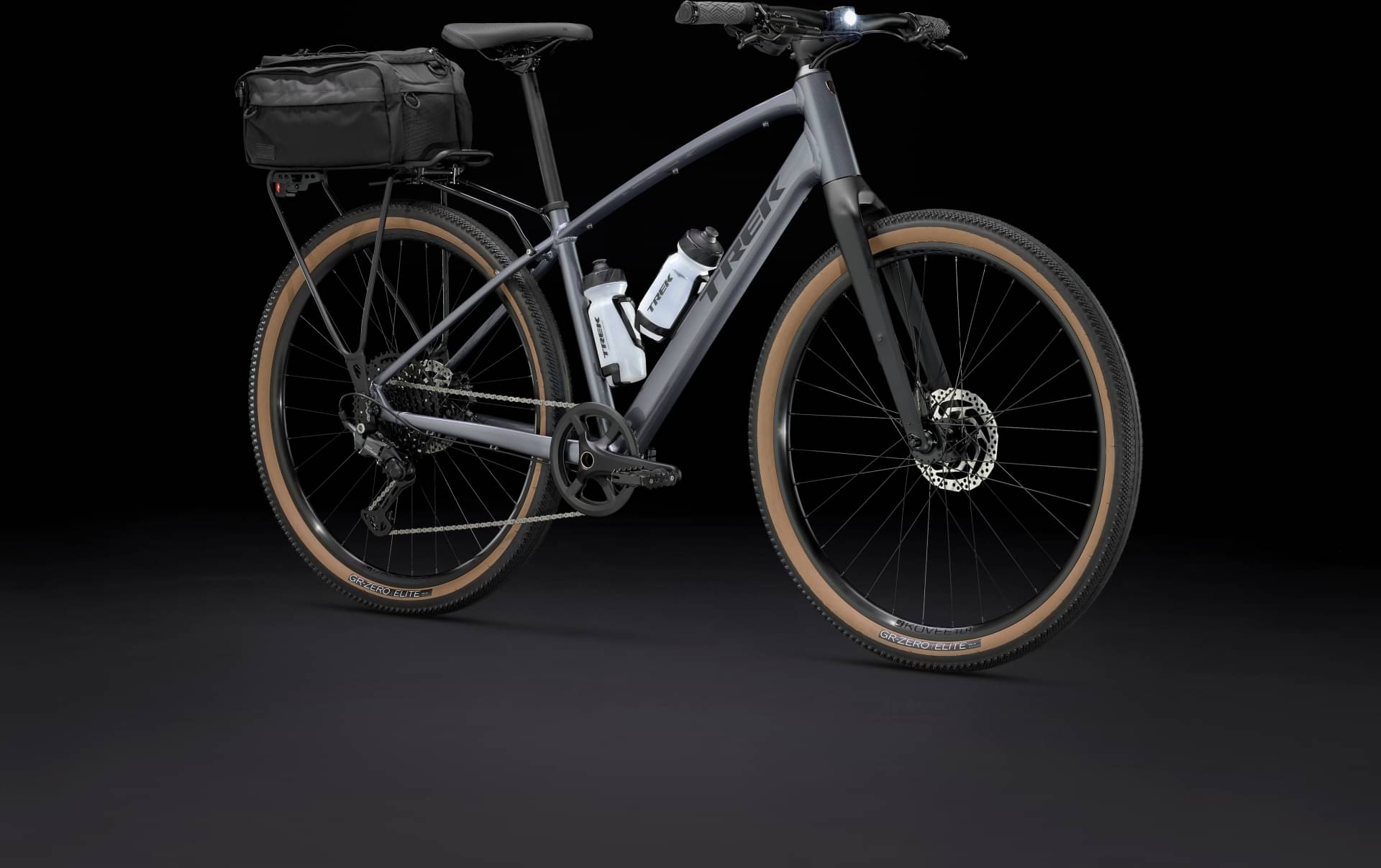

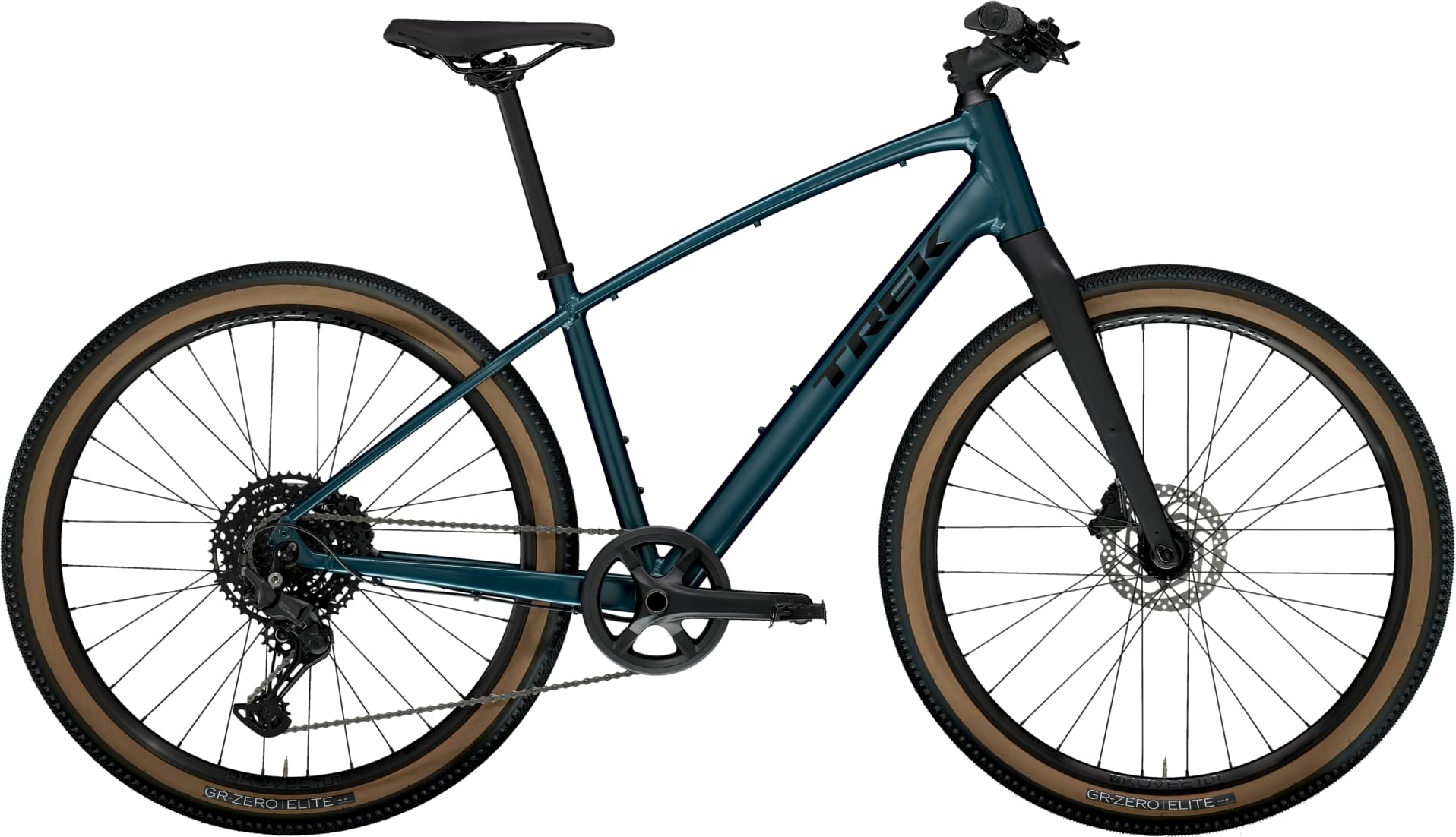

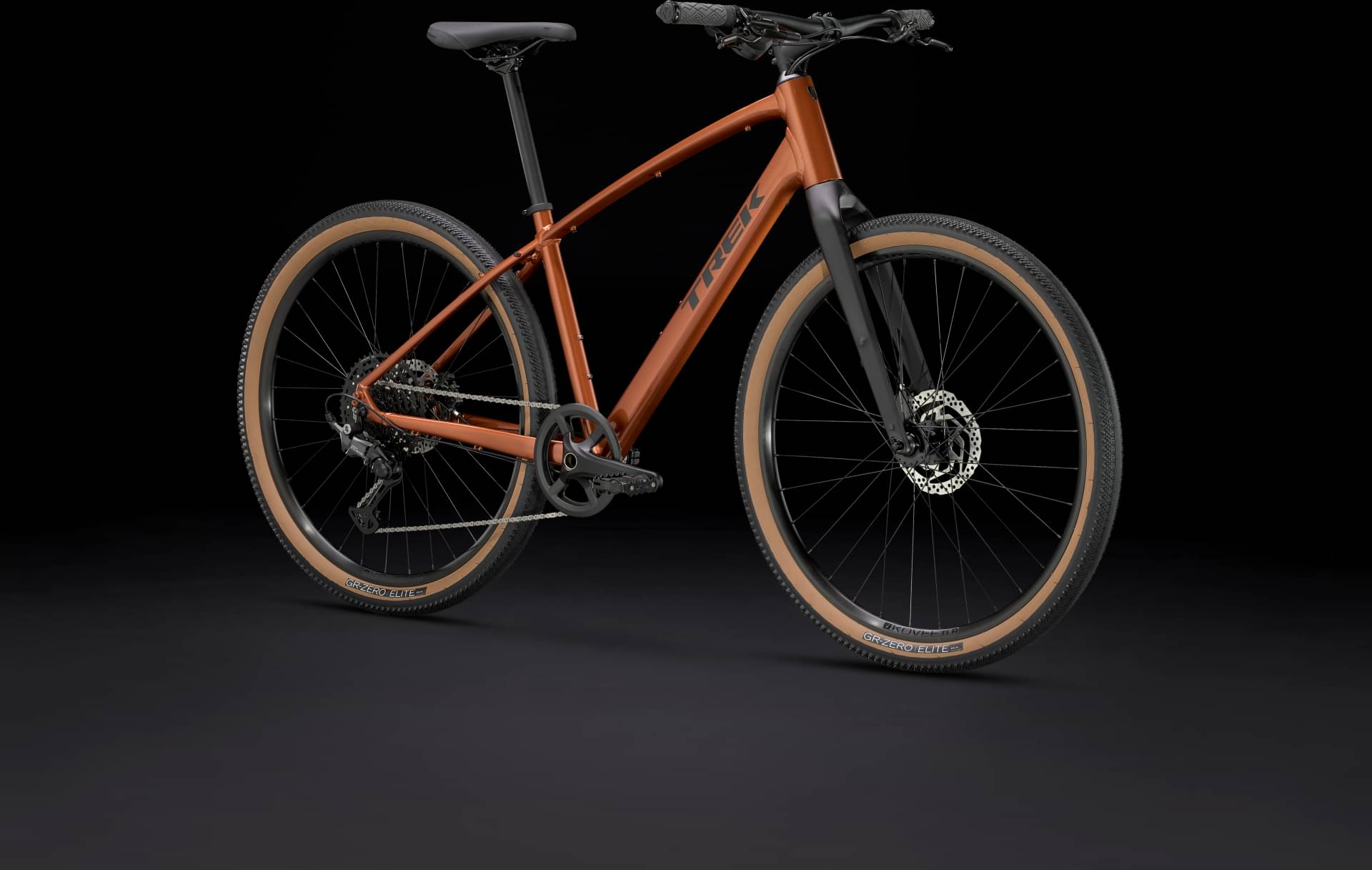

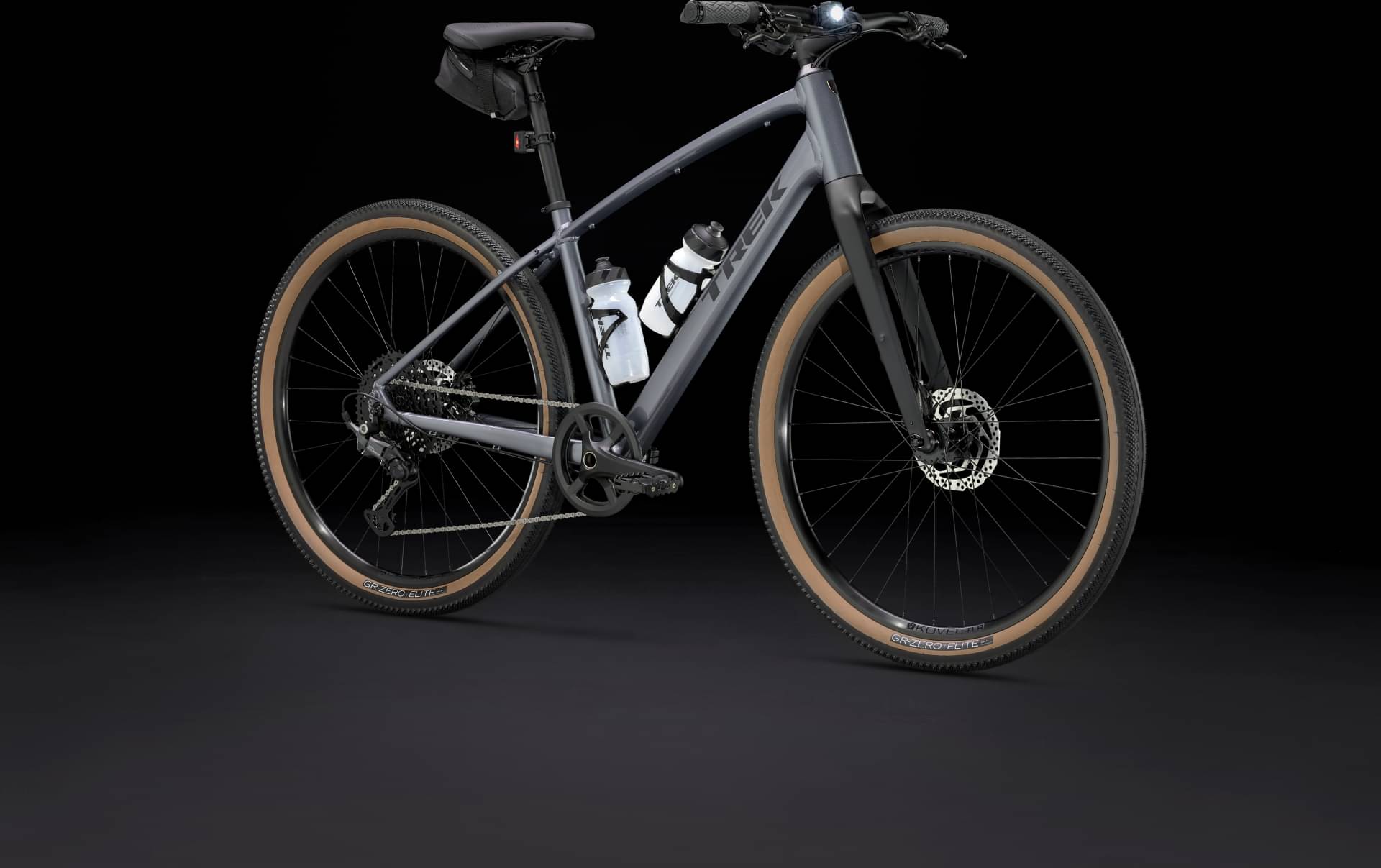

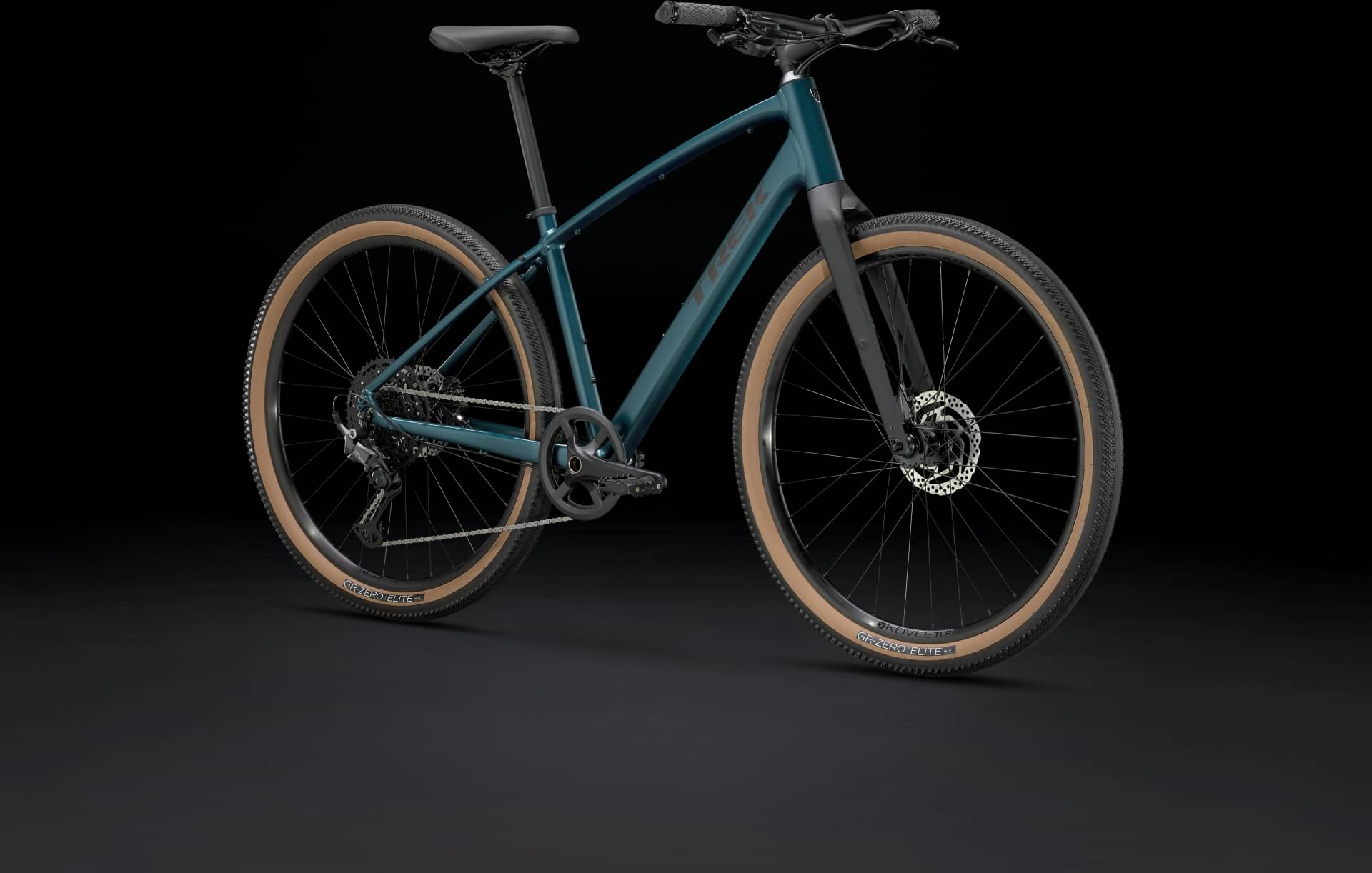

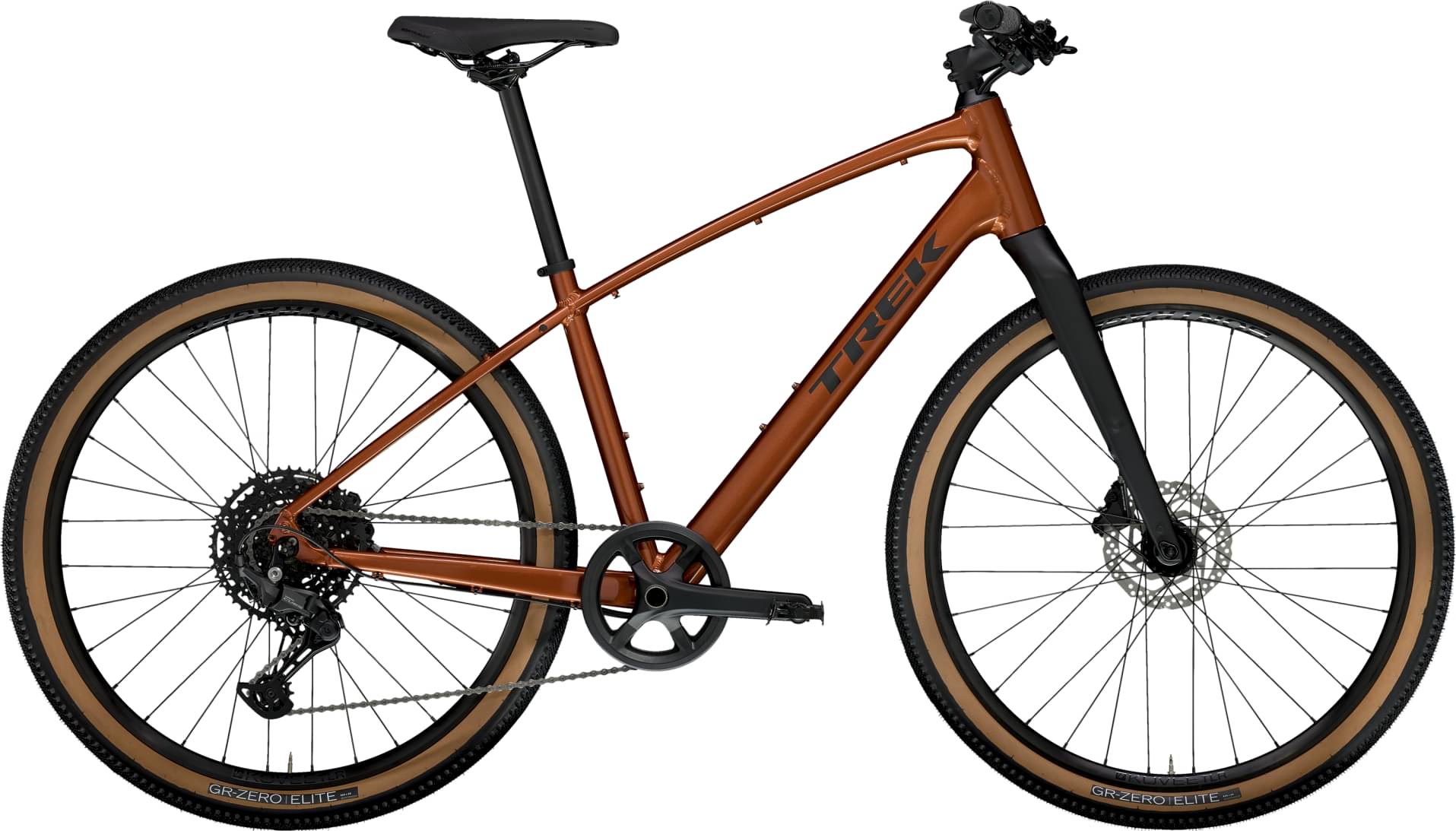

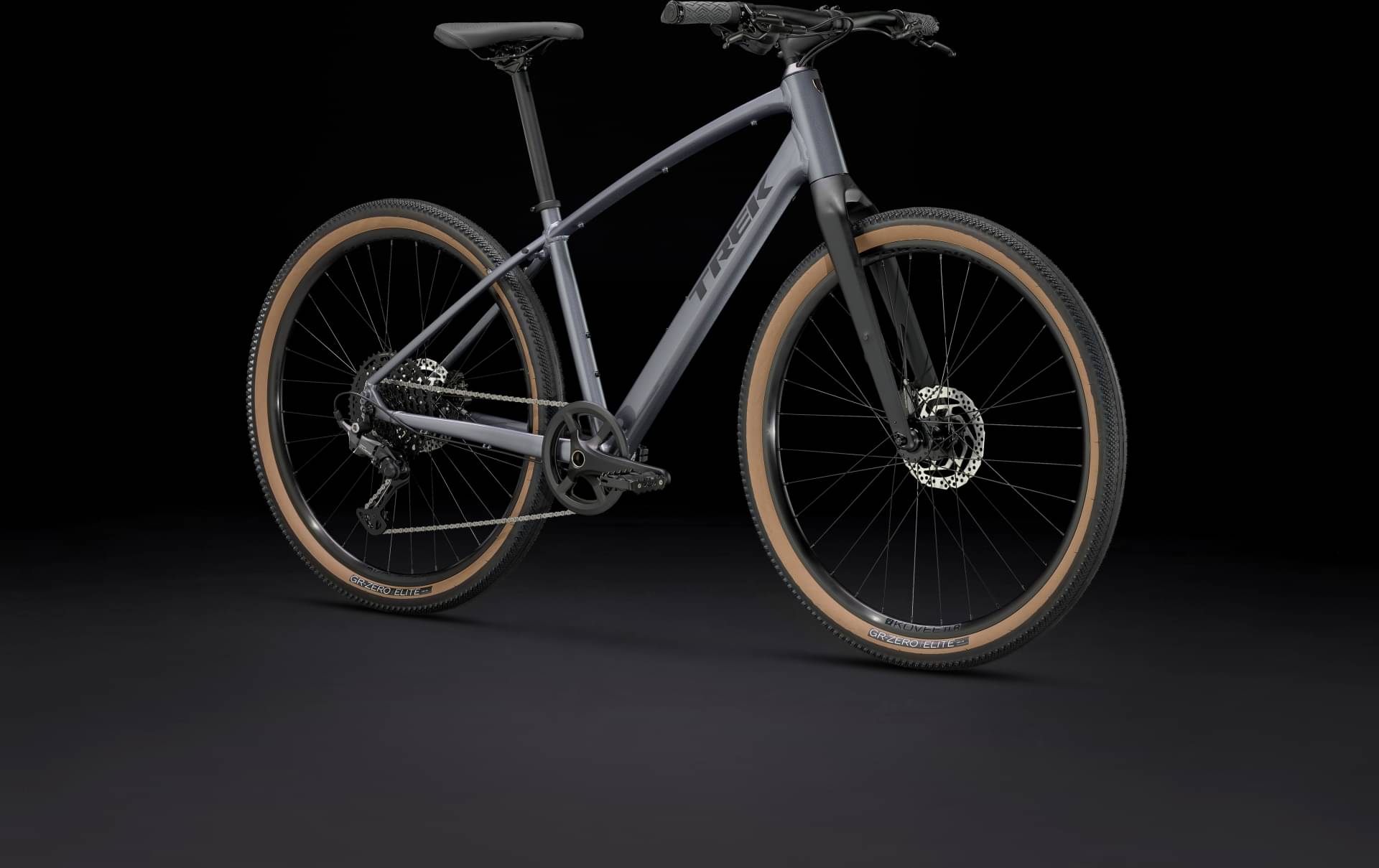

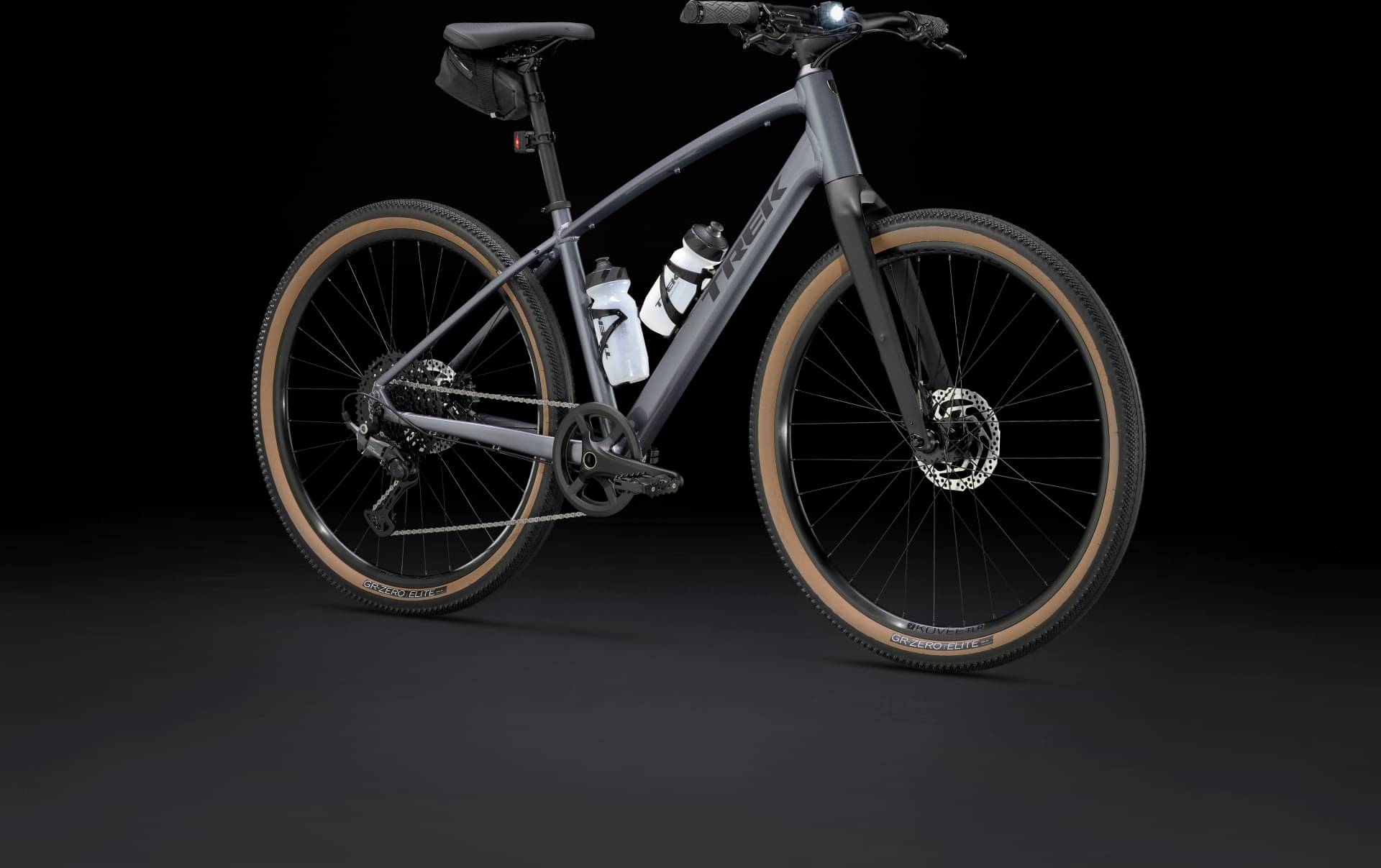

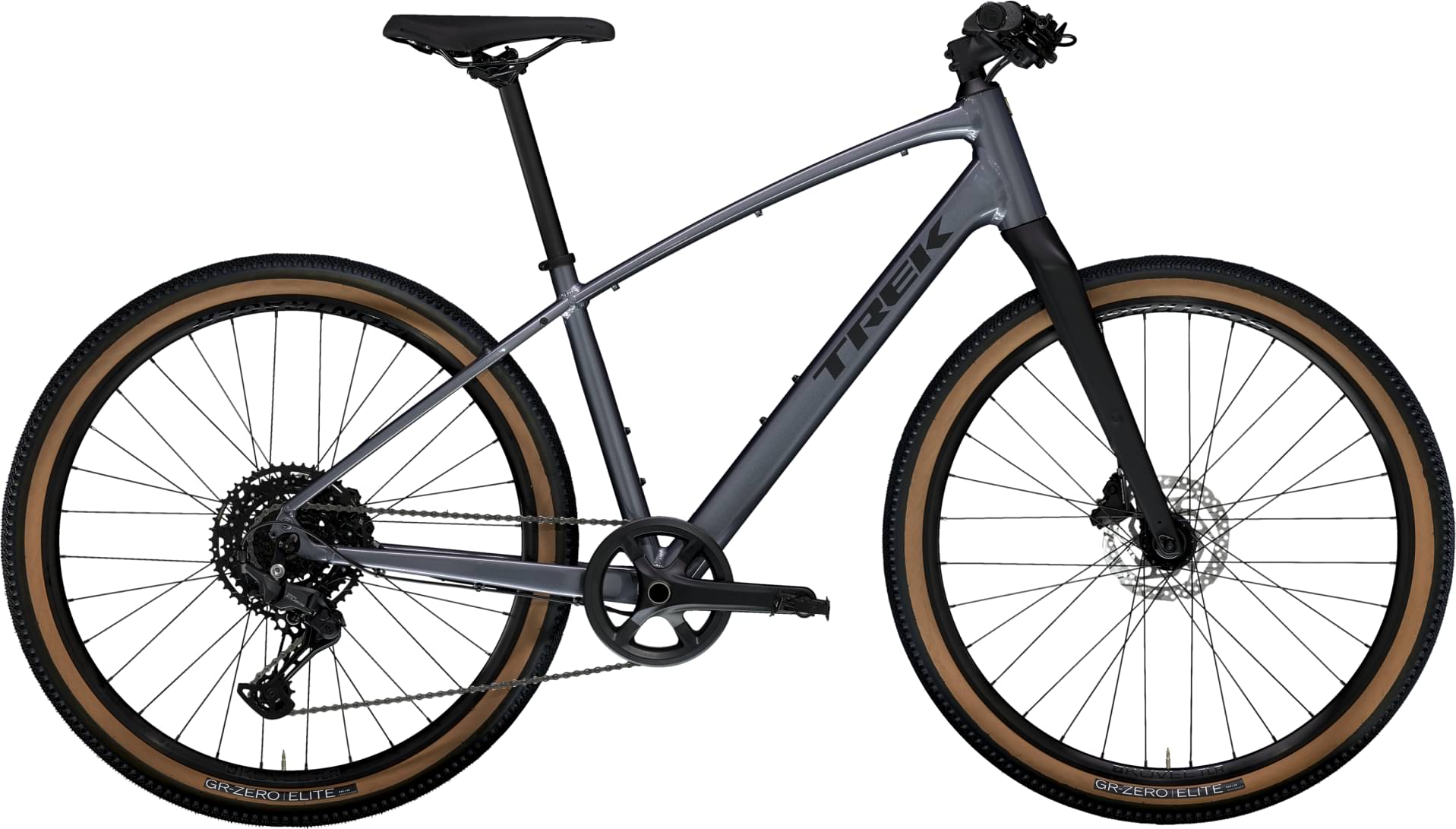

Trek Dual Sport 3 Gen 5 2025
2025 Urban
Estimate price |
1,220$
Weight | 12.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

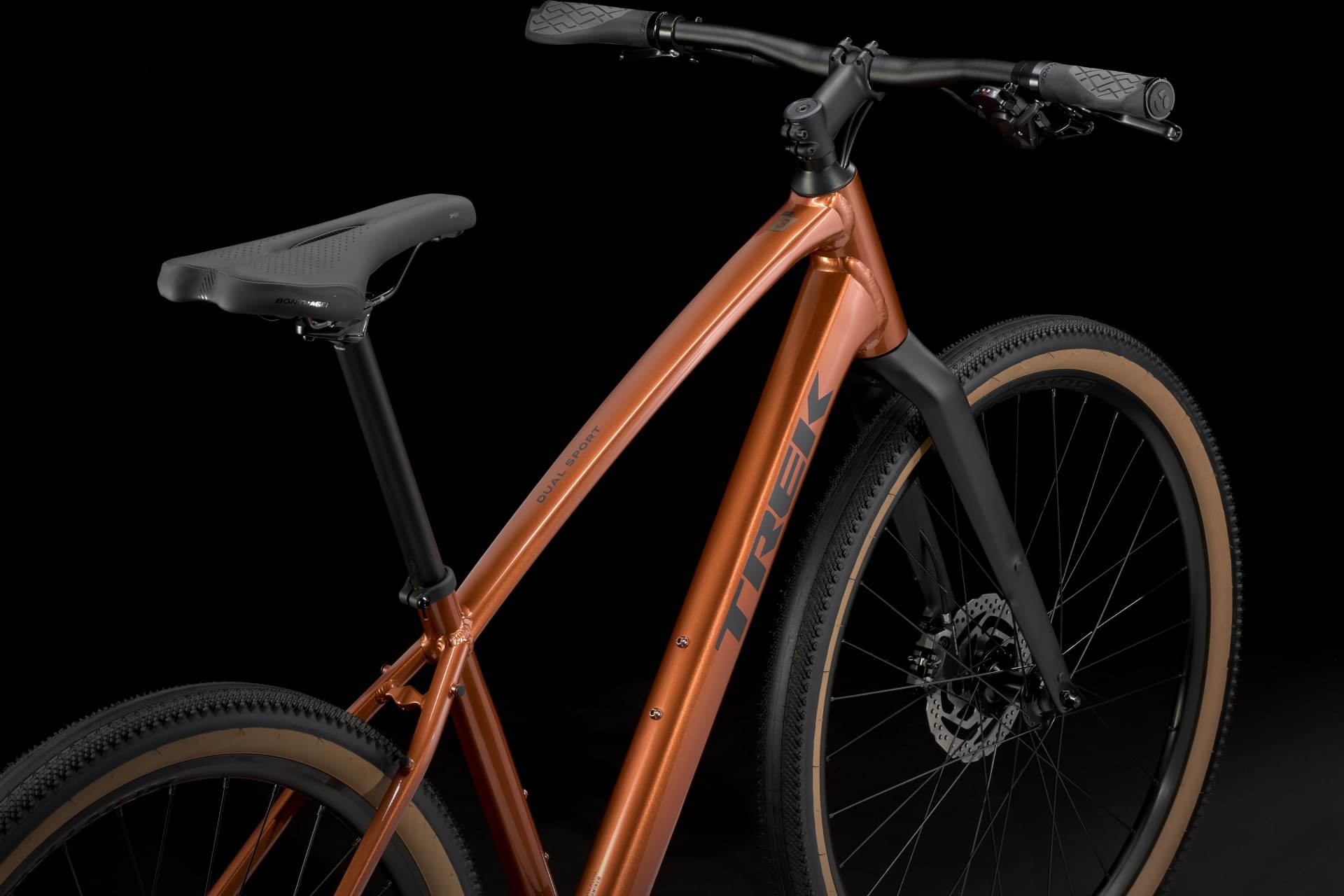

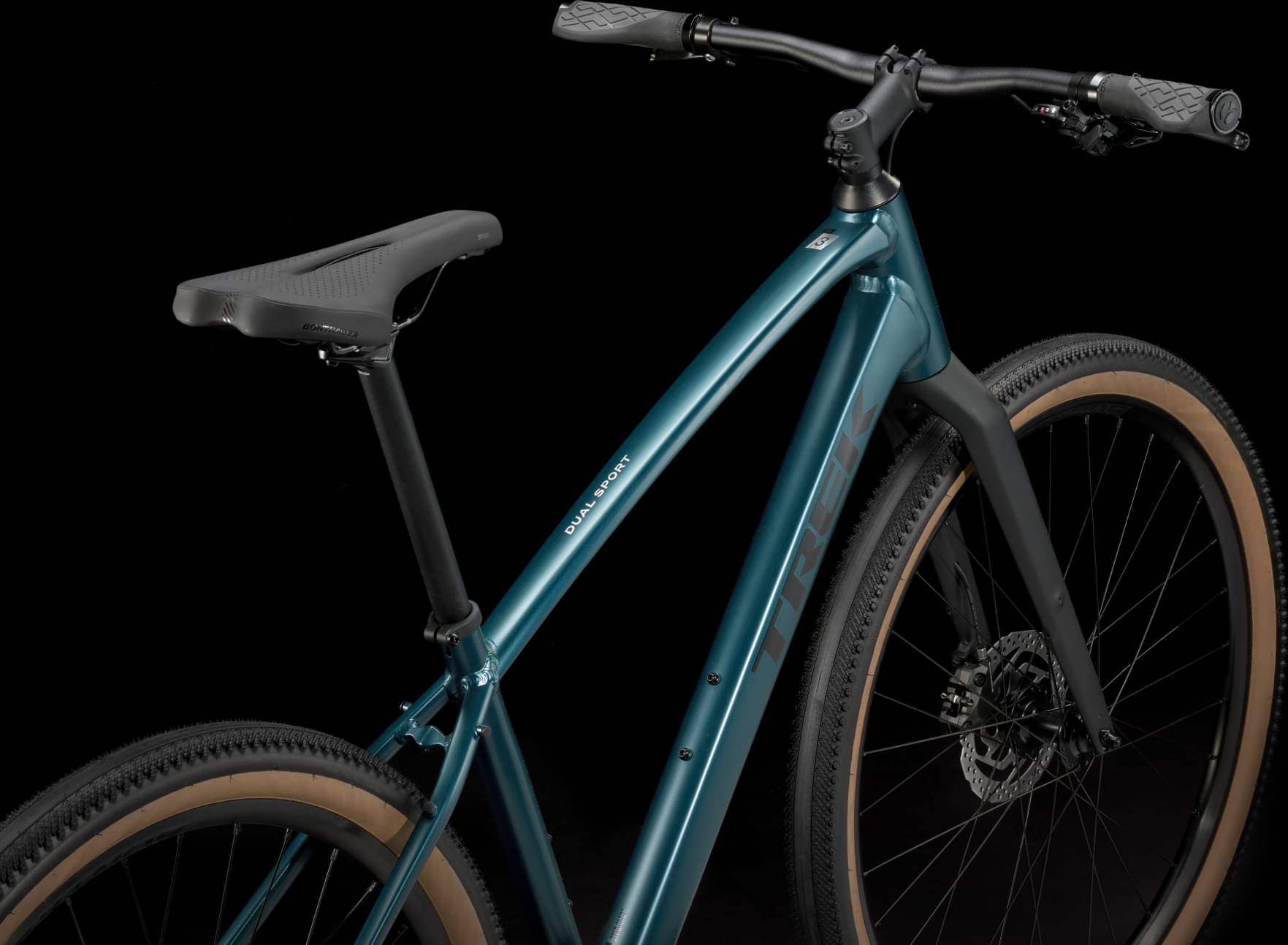

Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR

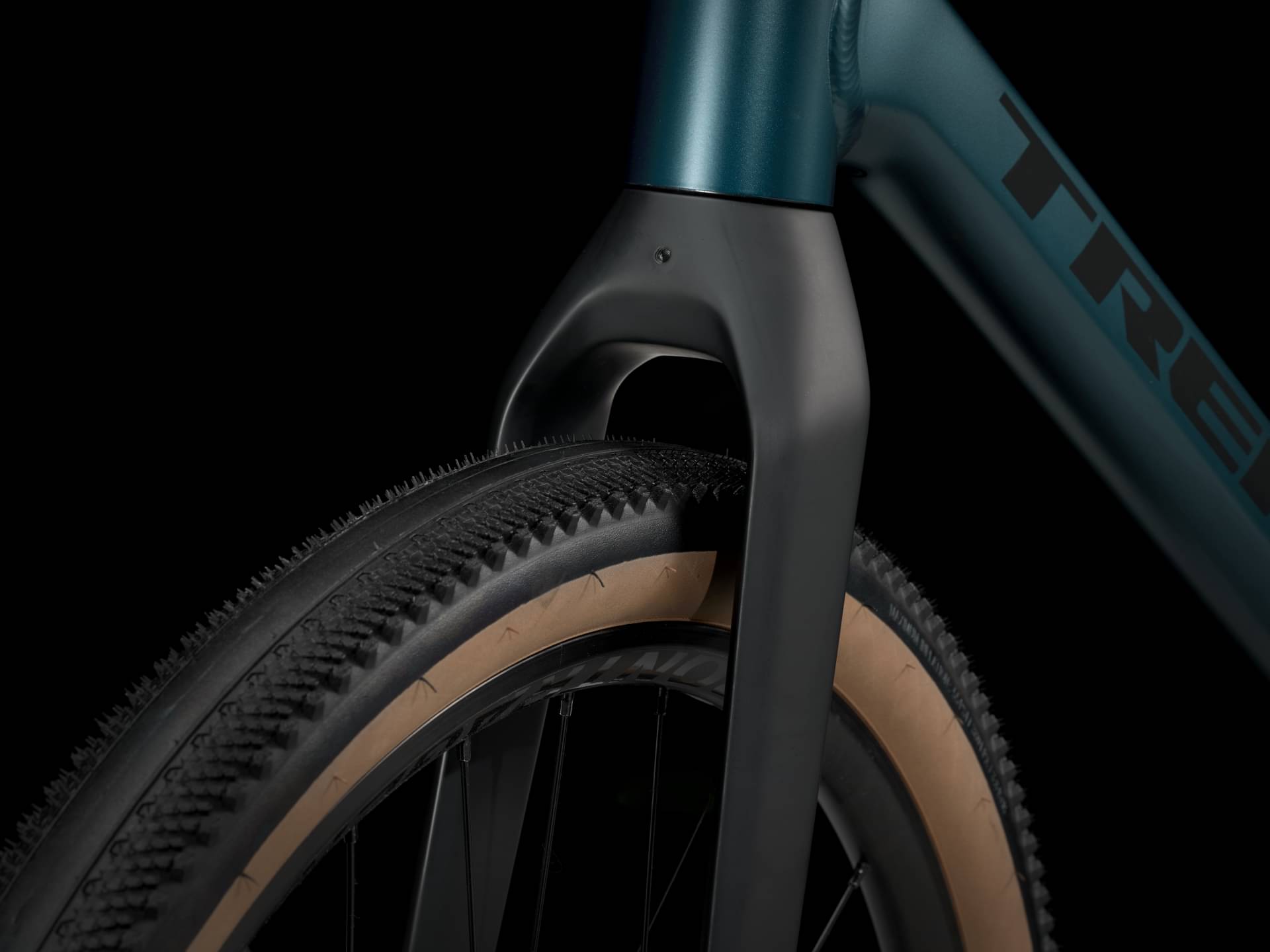

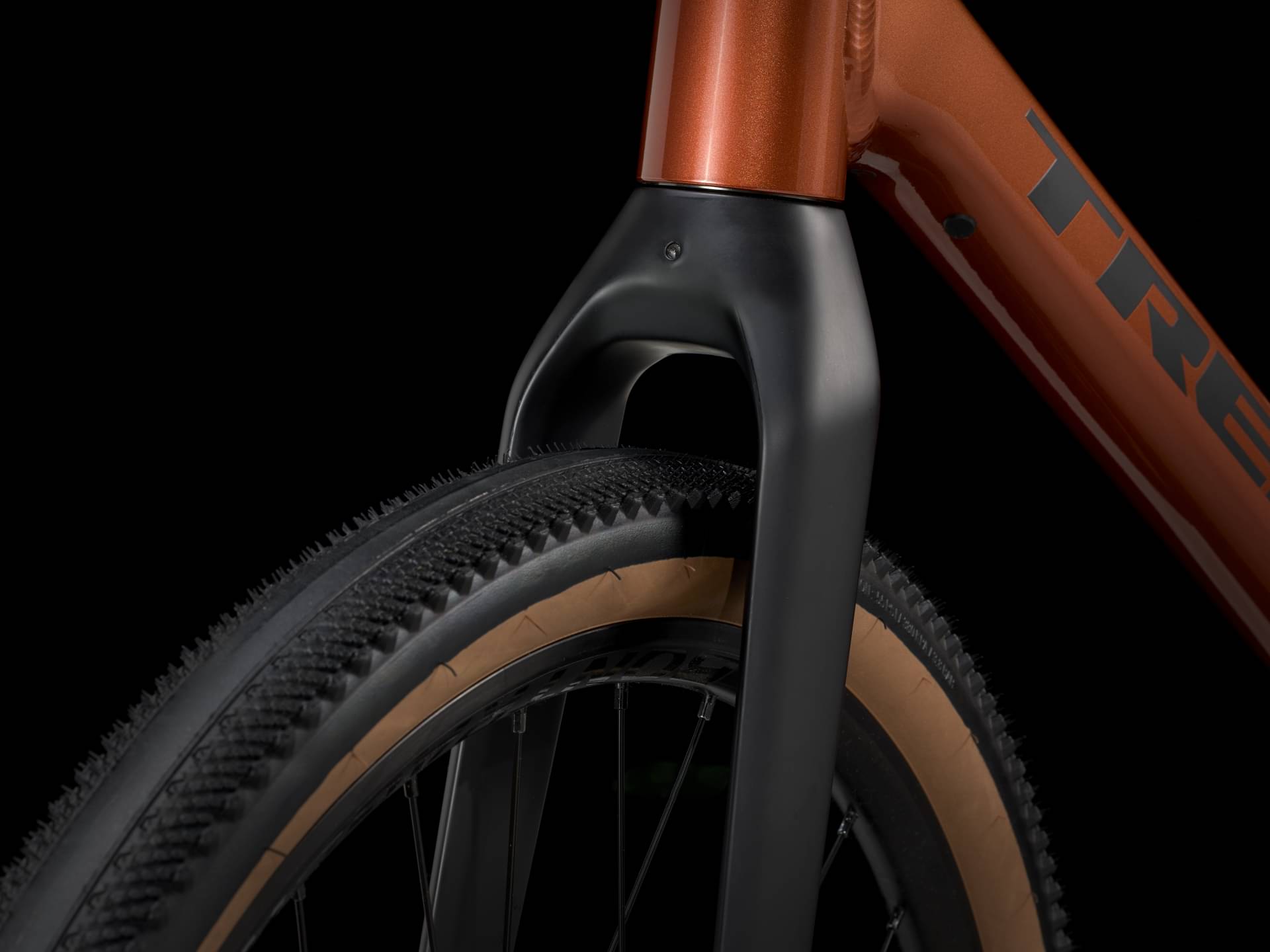

Suspension Fork

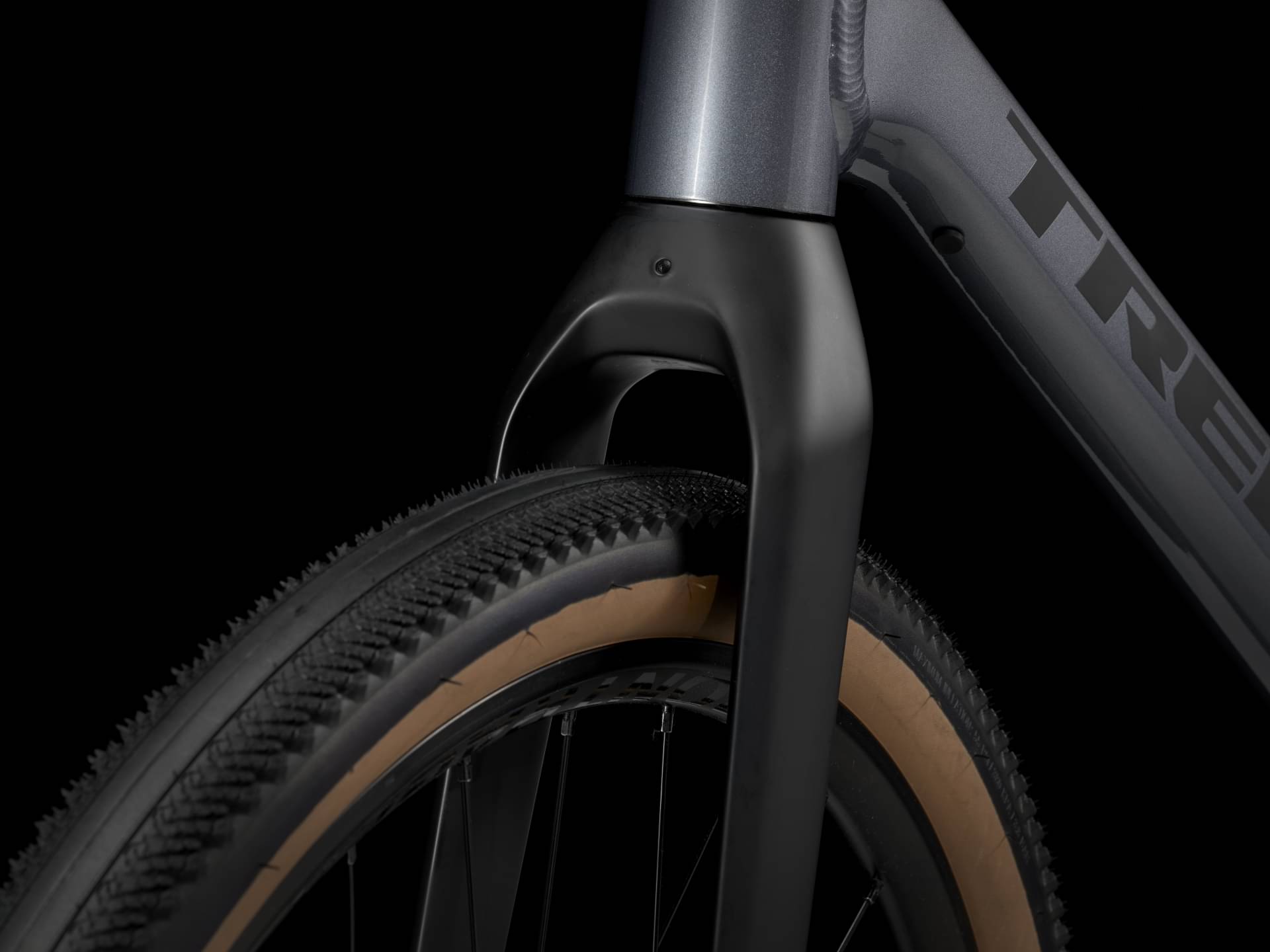

Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR

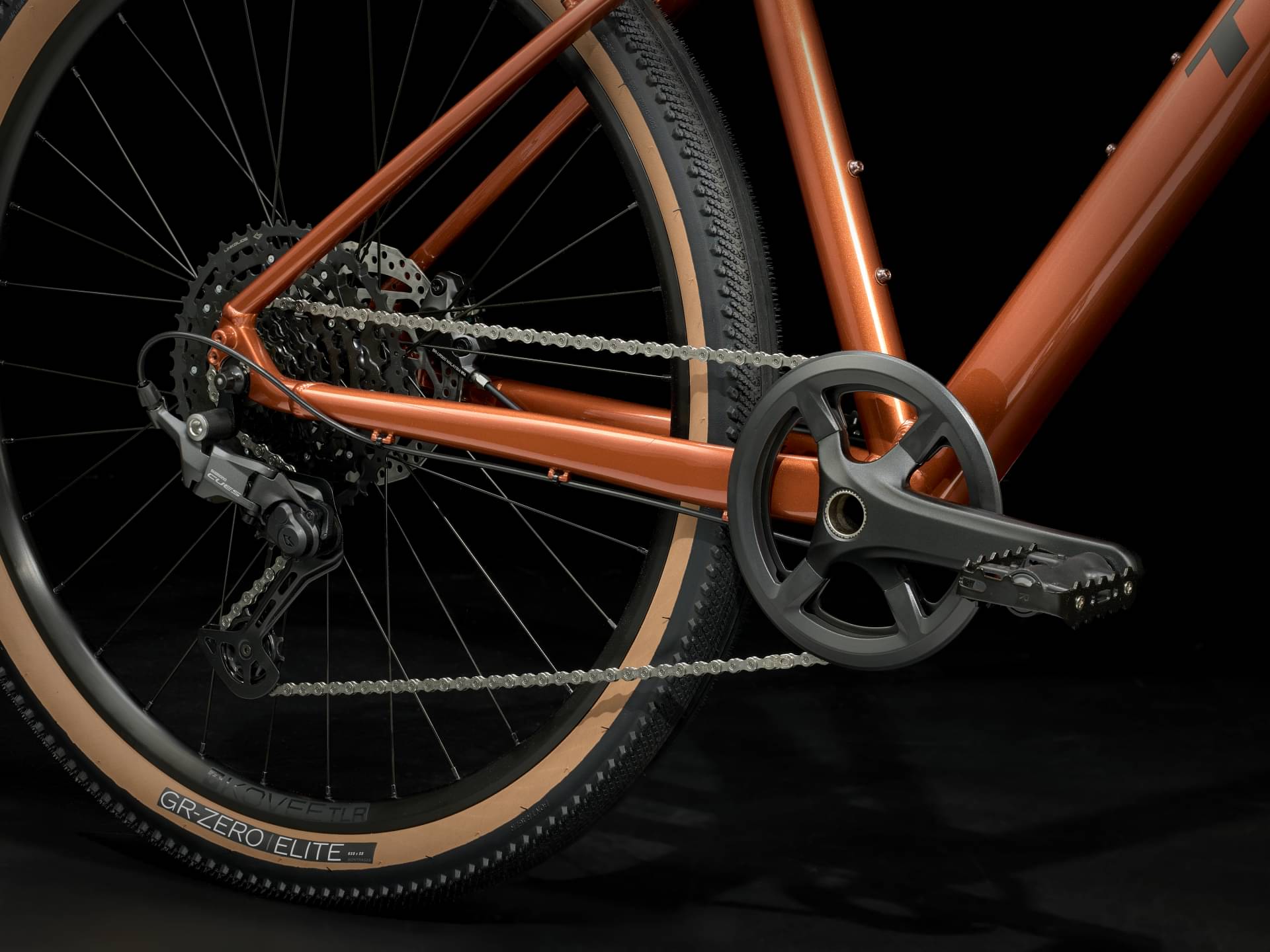

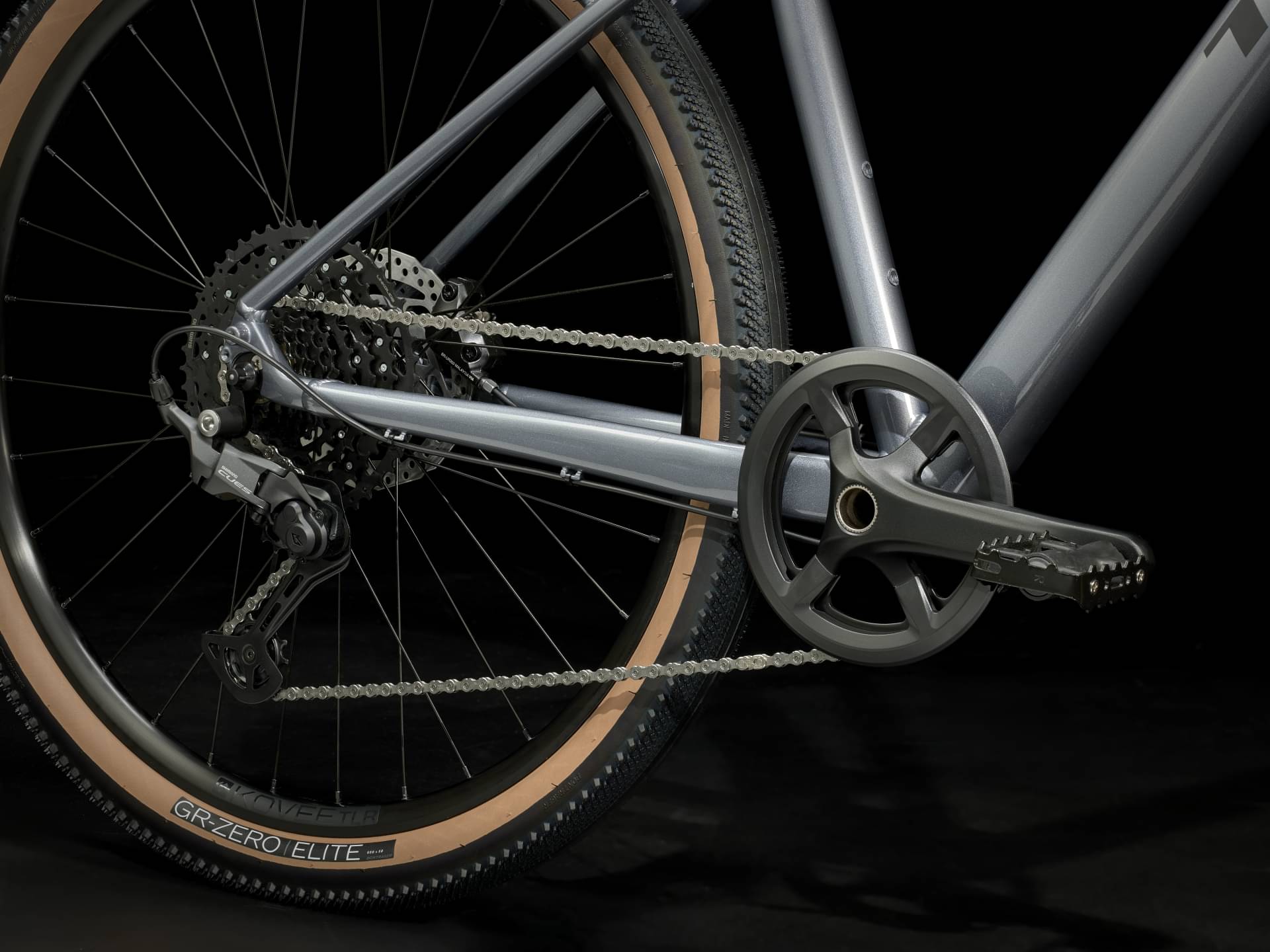

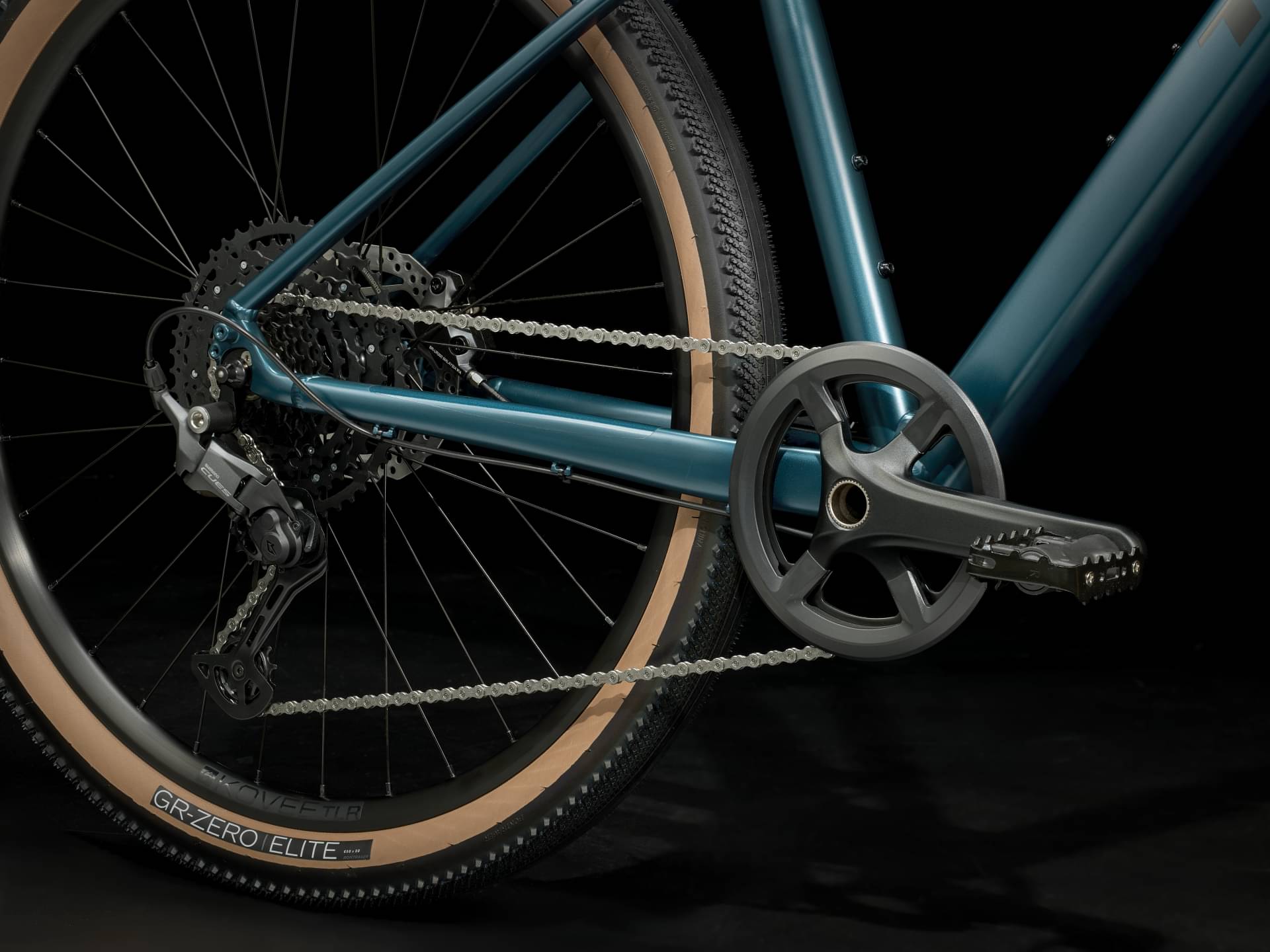

Drivetrain
Rear Derailleur
Shimano CUES U6000 GS

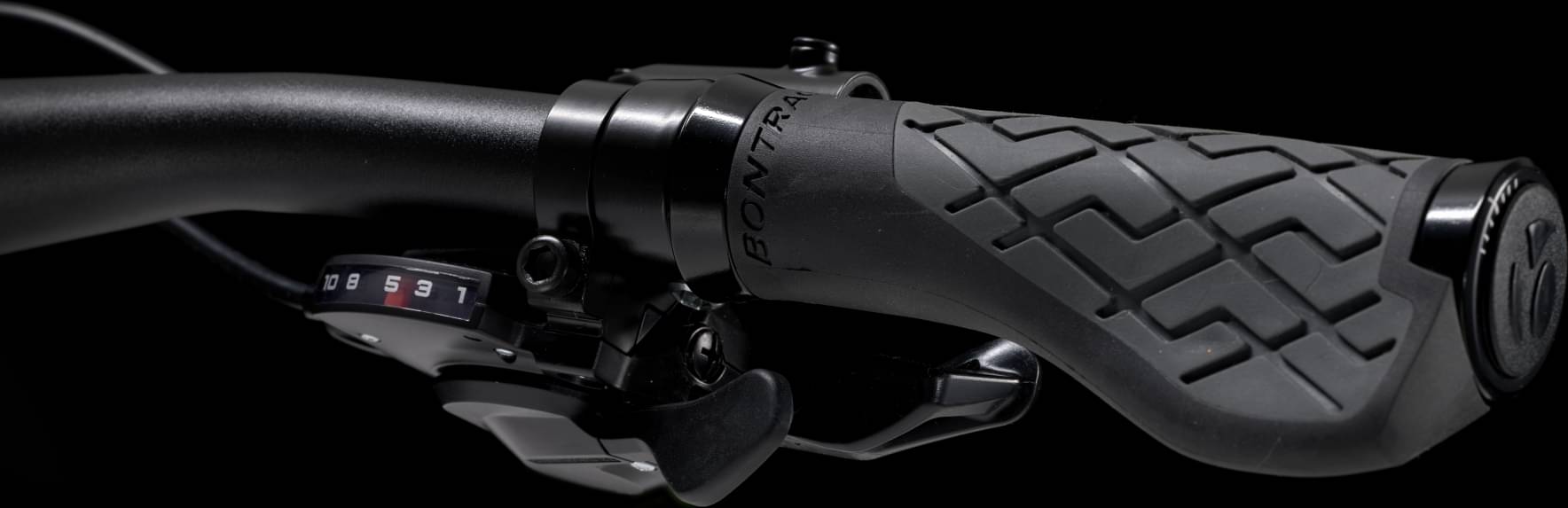

Shift Levers
Shimano CUES U6000 w/optical gear display, 10 speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Crank
Size: S, M, Prowheel alloy, 40T narrow-wide ring, 170mm length; Size: L, XL, Prowheel alloy, 40T narrow-wide ring, 175mm length
Chain
Shimano LG500, 9/10/11 speed
Pedals
Wellgo nylon body, alloy cage
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
Tires
Bontrager GR0 Elite, wire bead, puncture protection, 60 tpi, 650x50mm
Brakes
Brakes

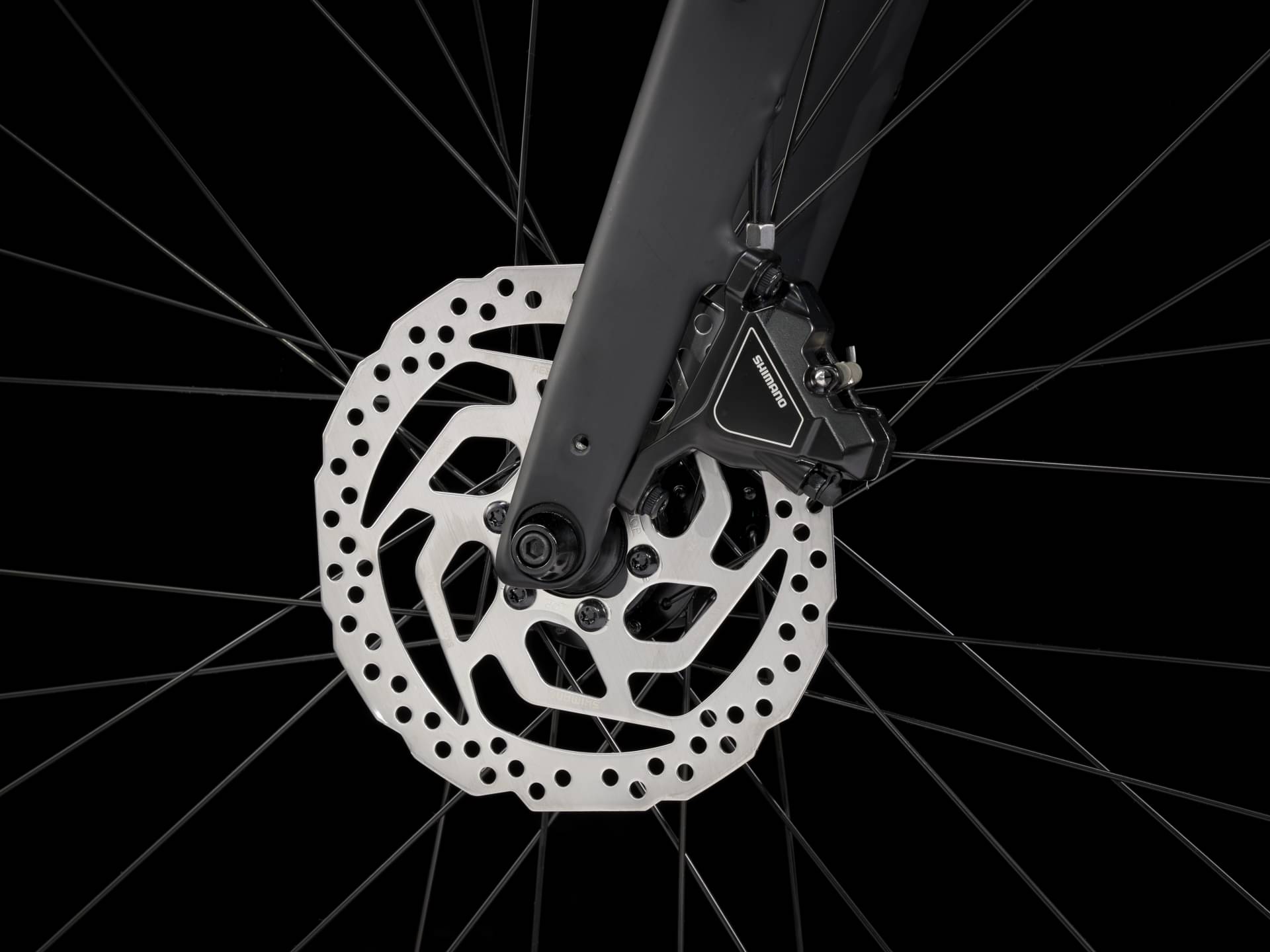

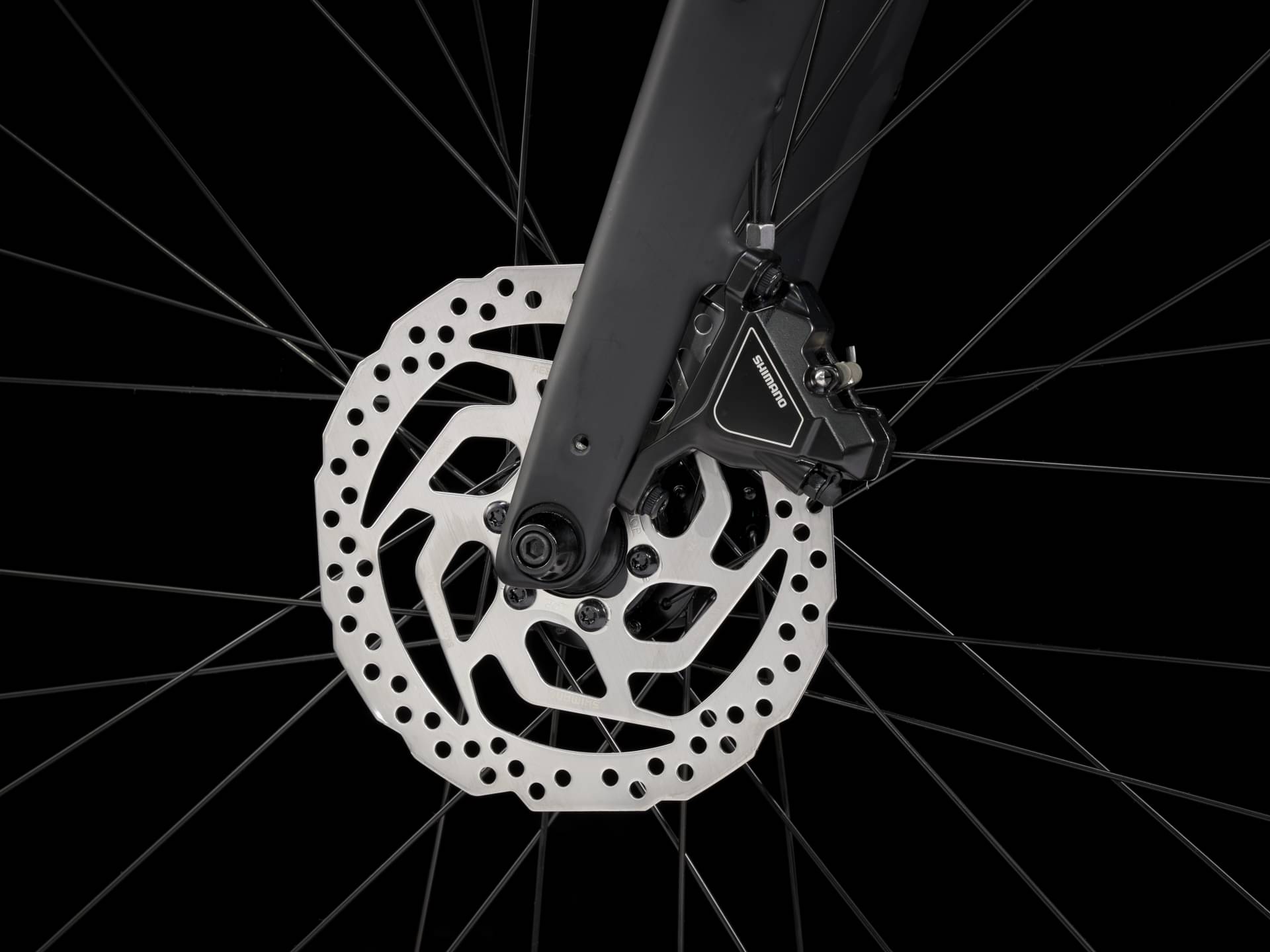

Shimano hydraulic disc, MT201 lever, UR300 caliper

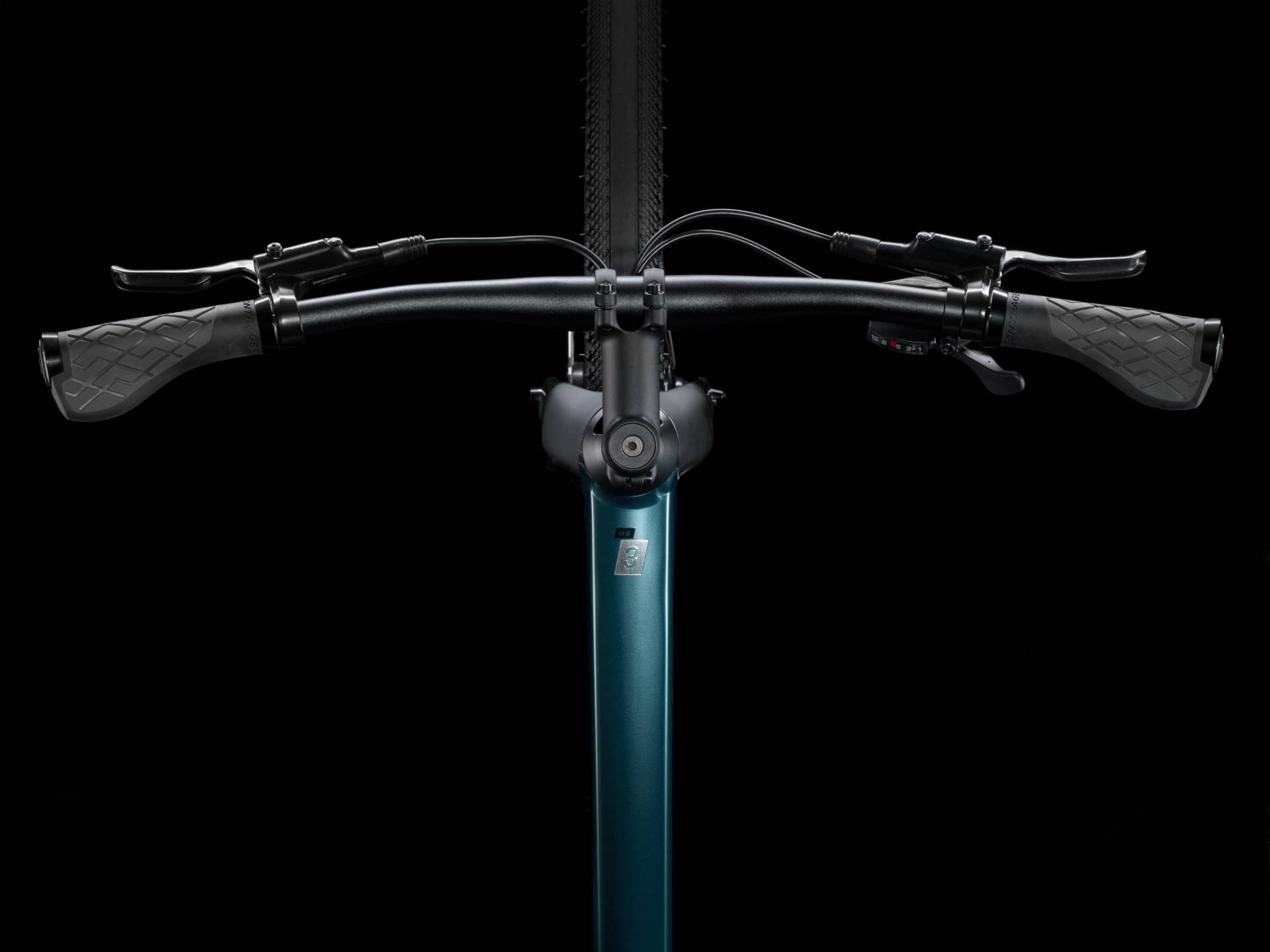

Cockpit

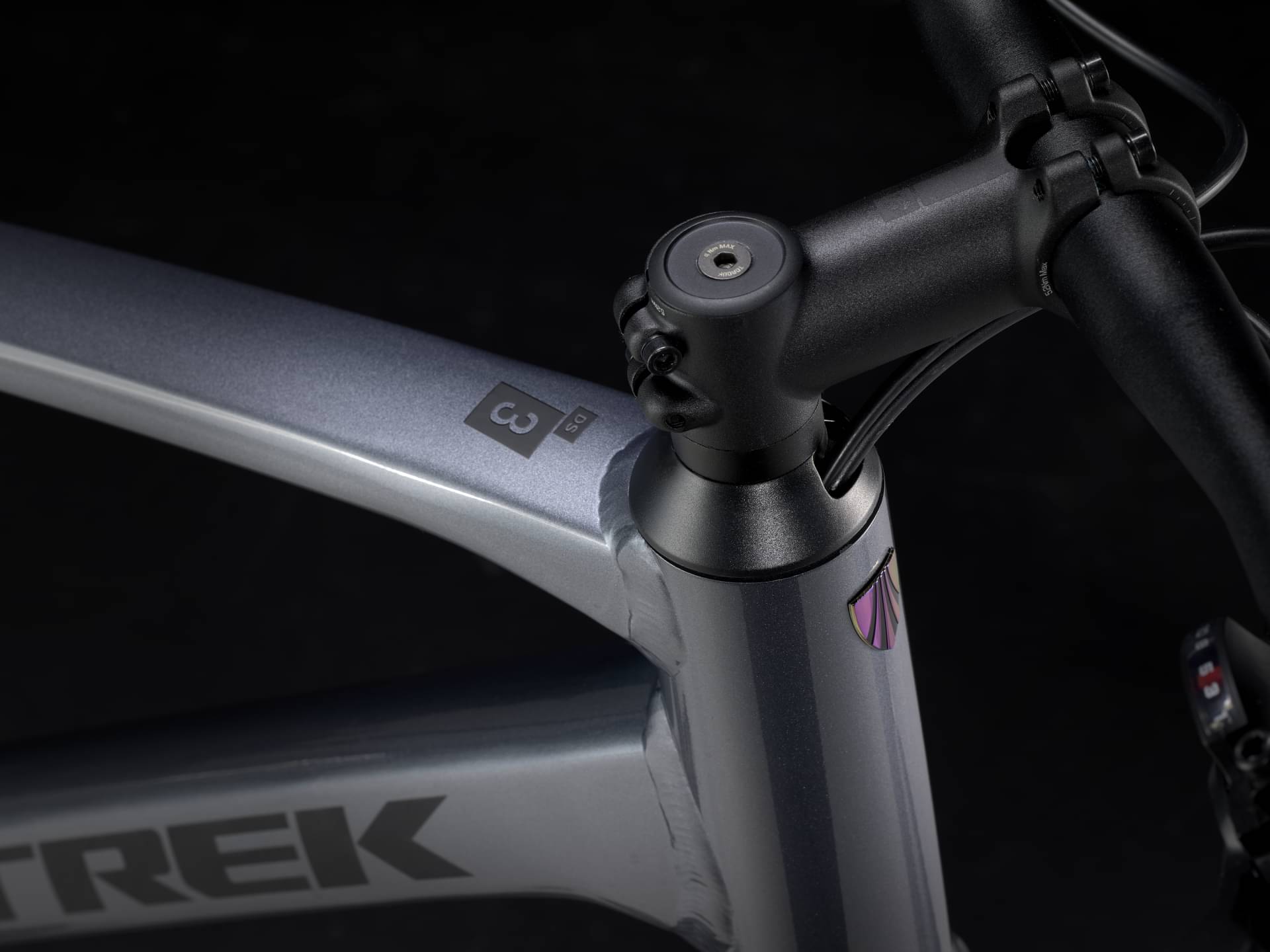

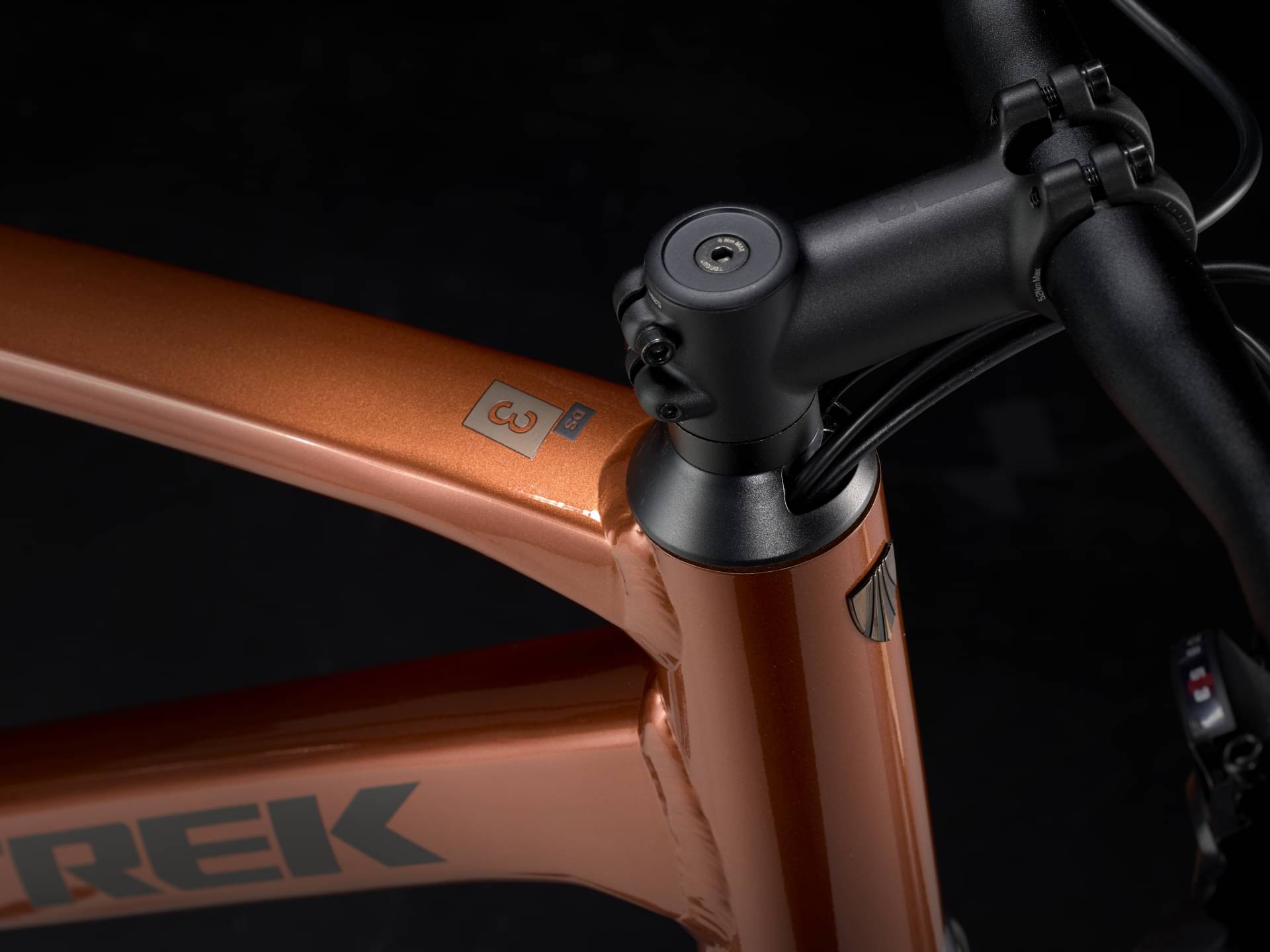

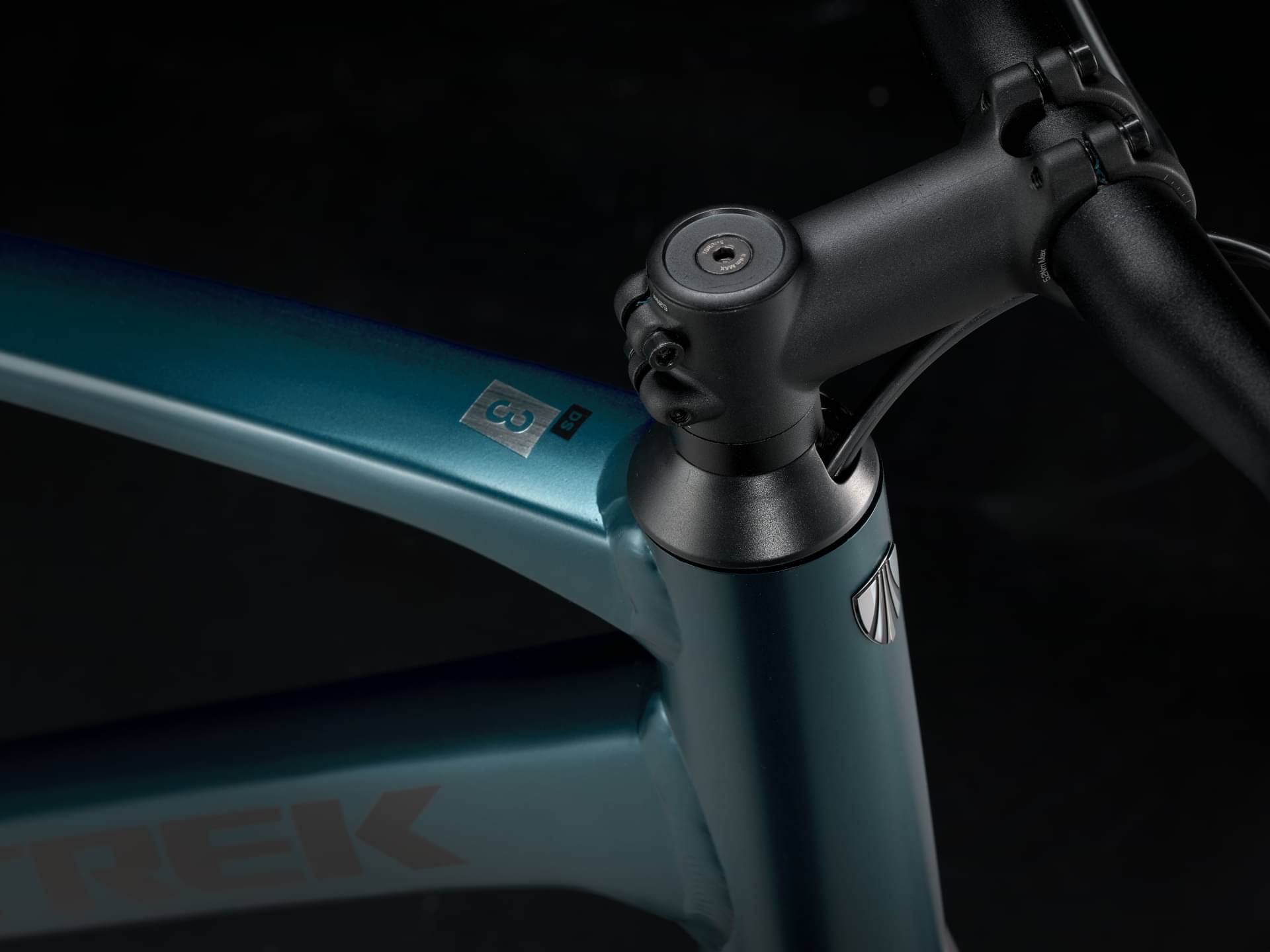

Stem
Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: M, L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

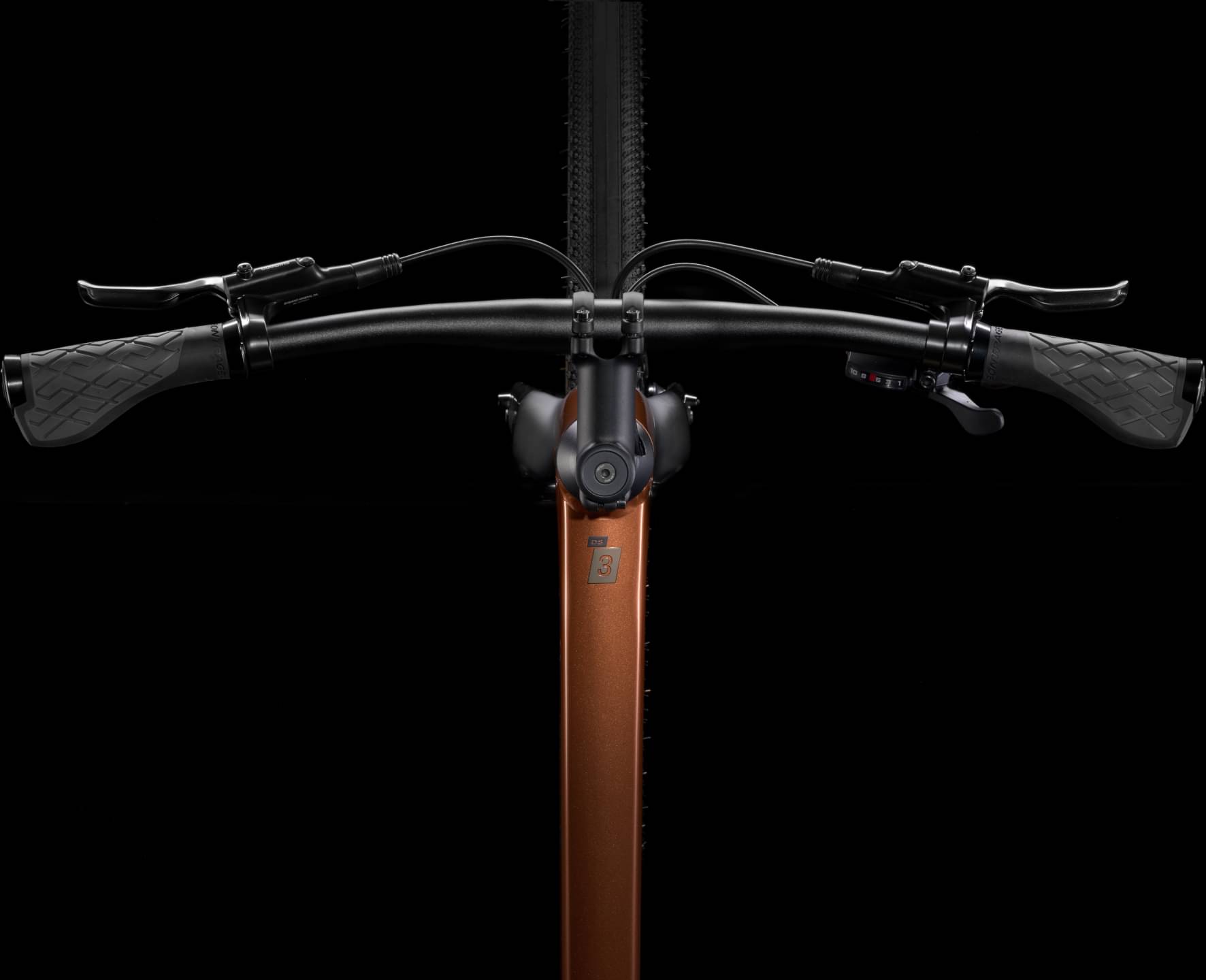

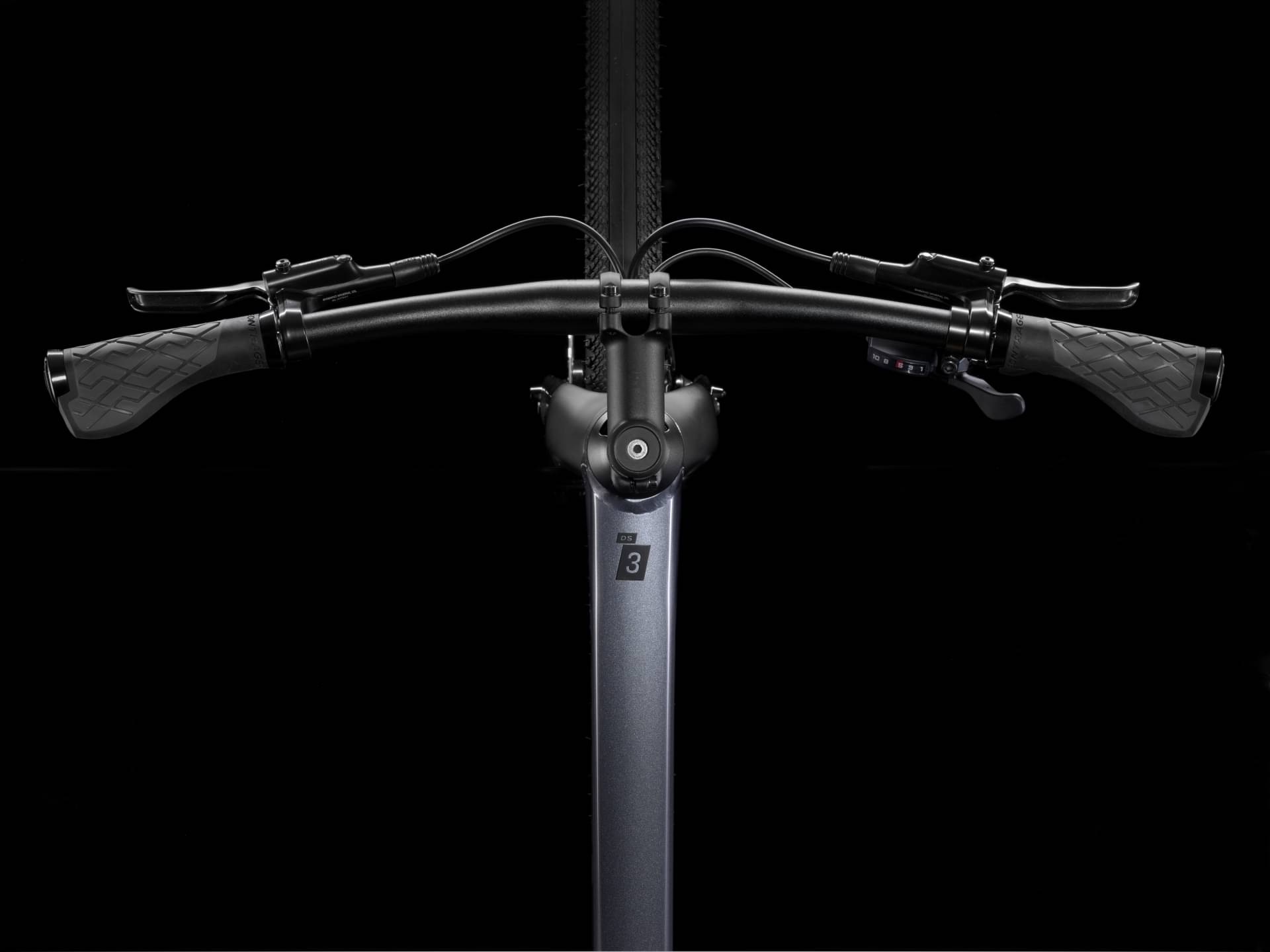

Handlebar
Size: S, Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width; Size: M, L, Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width; Size: XL, Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 690mm width
Grips
Bontrager XR Endurance Elite
Seat

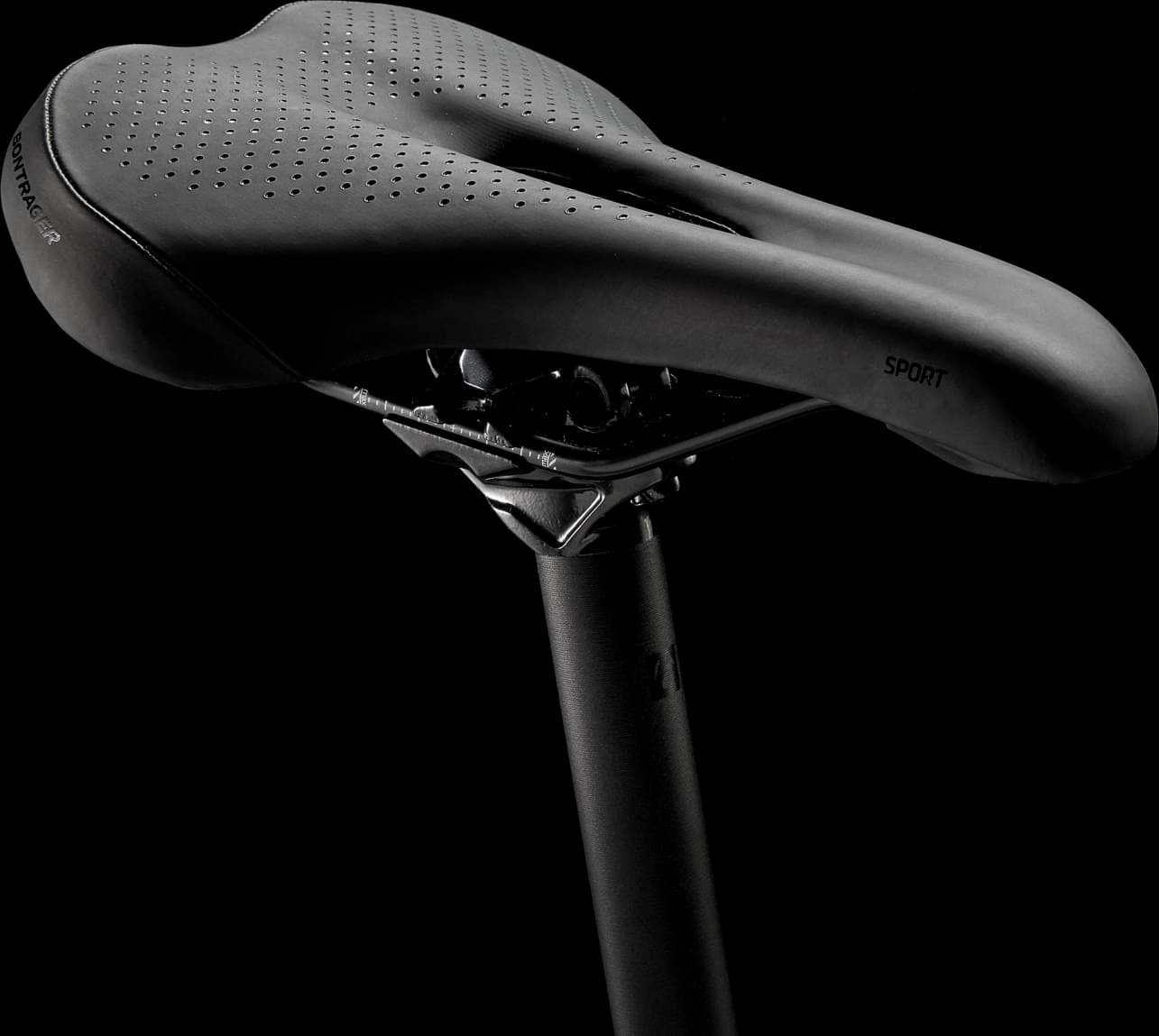

Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.516 mm | 1.553 mm | 1.596 mm | 1.626 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 612 mm | 623 mm | 632 mm | 639 mm |
| Rake | 40 mm | 40 mm | 39 mm | 38 mm |
| Trail | 87 mm | 83 mm | 80 mm | 74 mm |
| Stack | 573 mm | 598 mm | 624 mm | 652 mm |
| Reach | 378 mm | 385 mm | 391 mm | 401 mm |
| Top Tube Length | 545 mm | 565 mm | 585 mm | 615 mm |
| Seat Tube Angle | 73.8 ° | 73.3 ° | 72.8 ° | 71.8 ° |
| Seat Tube Length | 375 mm | 420 mm | 465 mm | 520 mm |
| Head Tube Angle | 69.8 ° | 70.3 ° | 70.8 ° | 71.8 ° |
| Head Tube Length | 140 mm | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1052 mm | 1063 mm | 1072 mm | 1079 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 723 mm | 761 mm | 800 mm | 843 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
