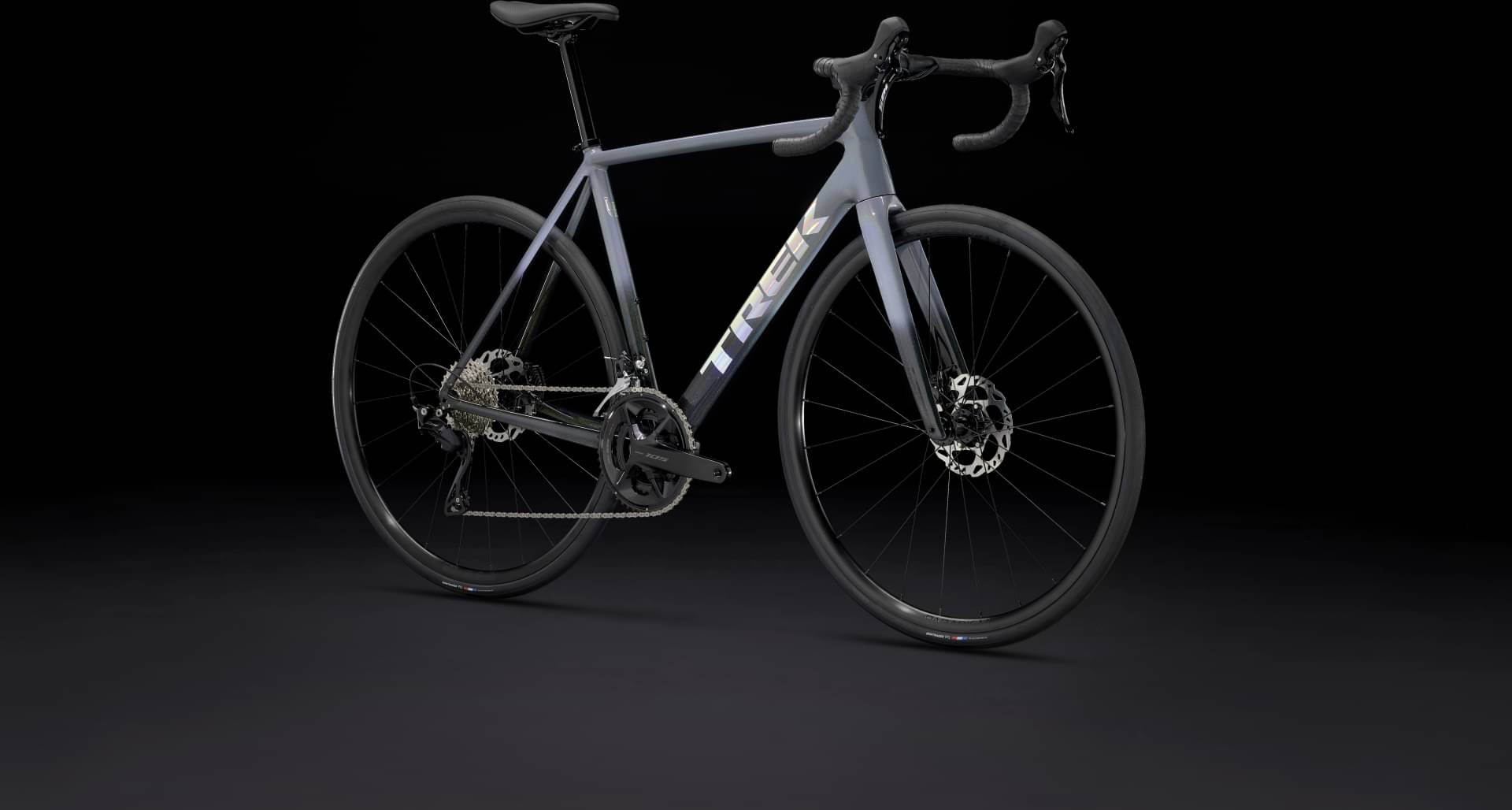

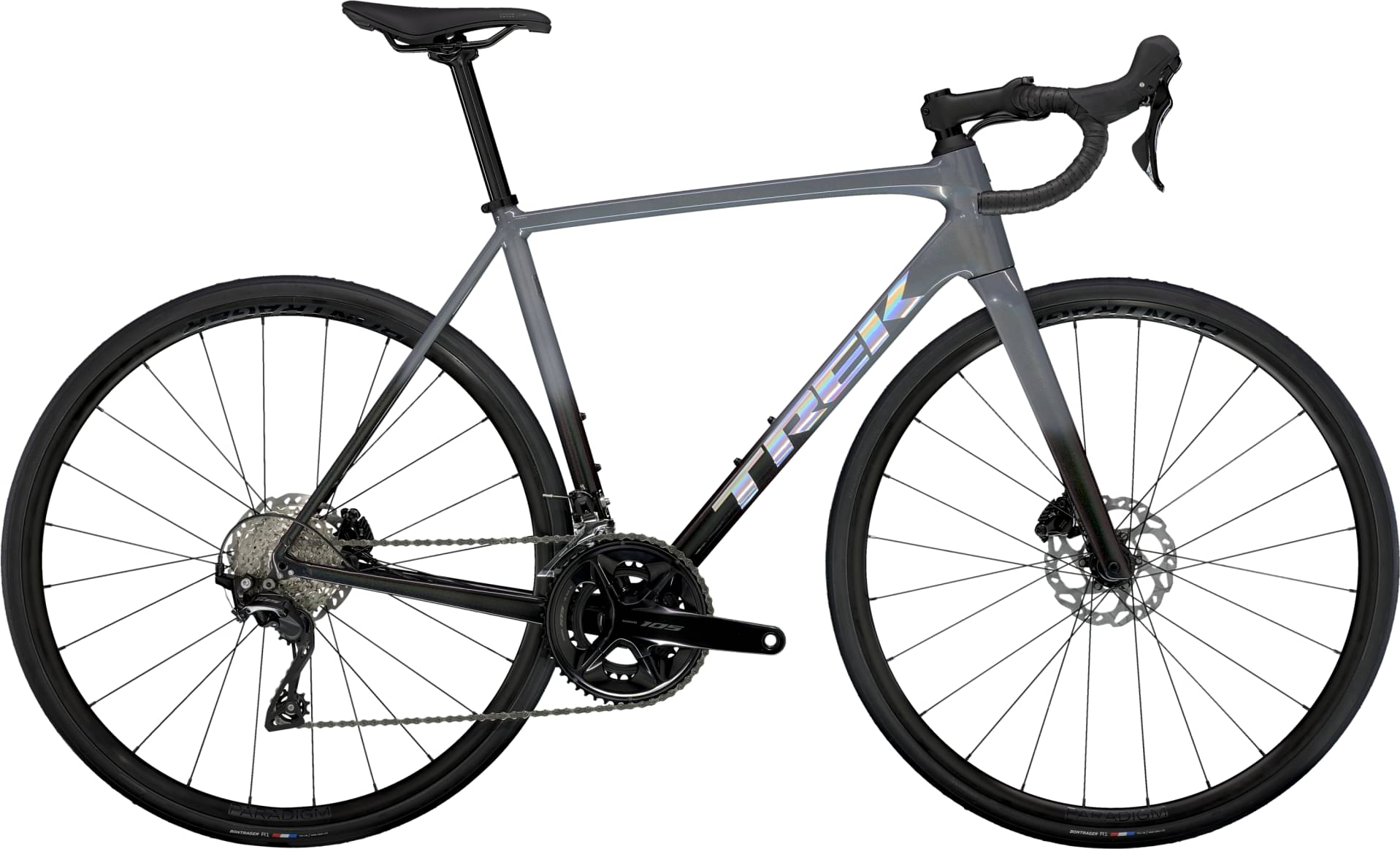

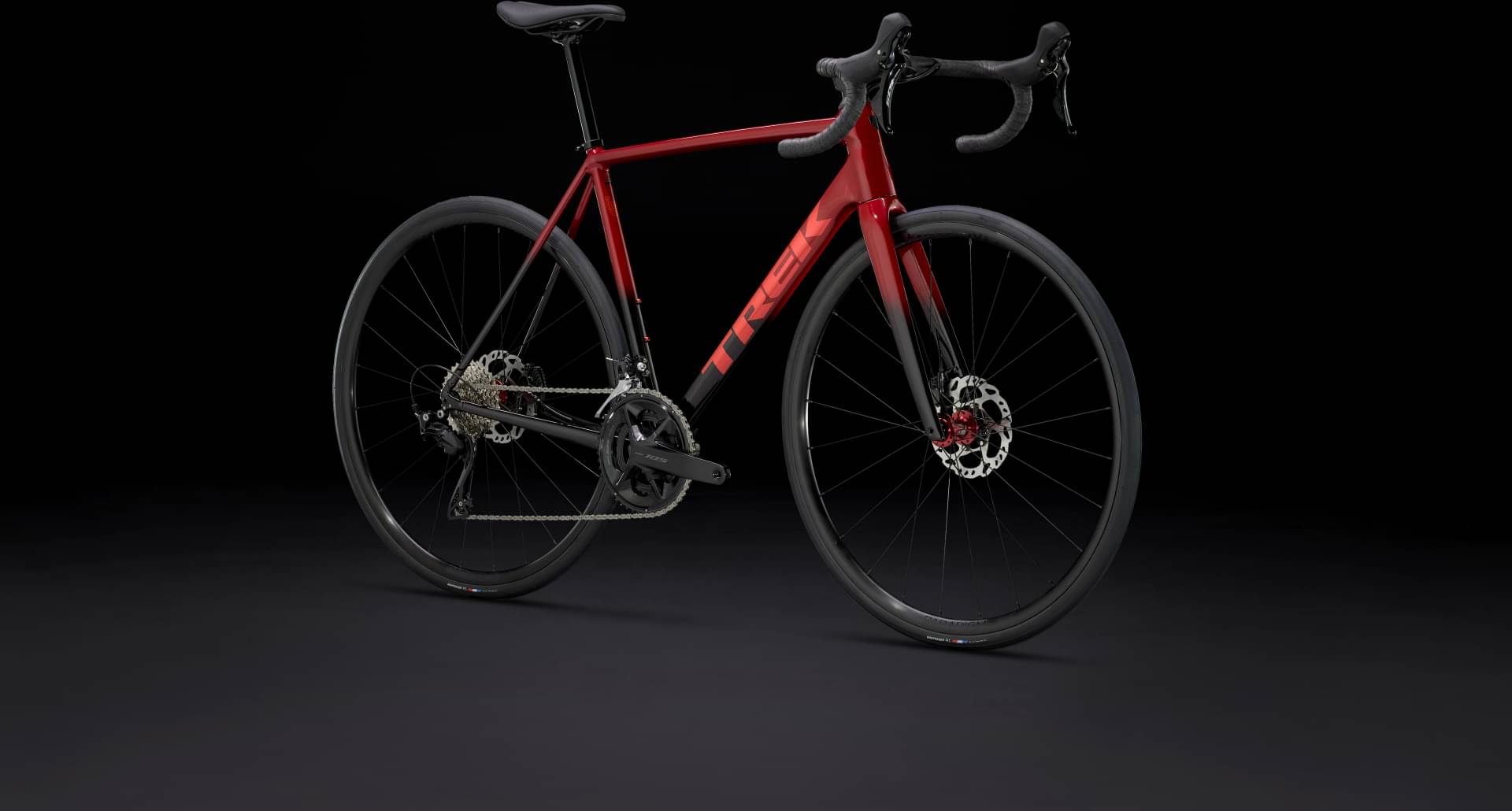

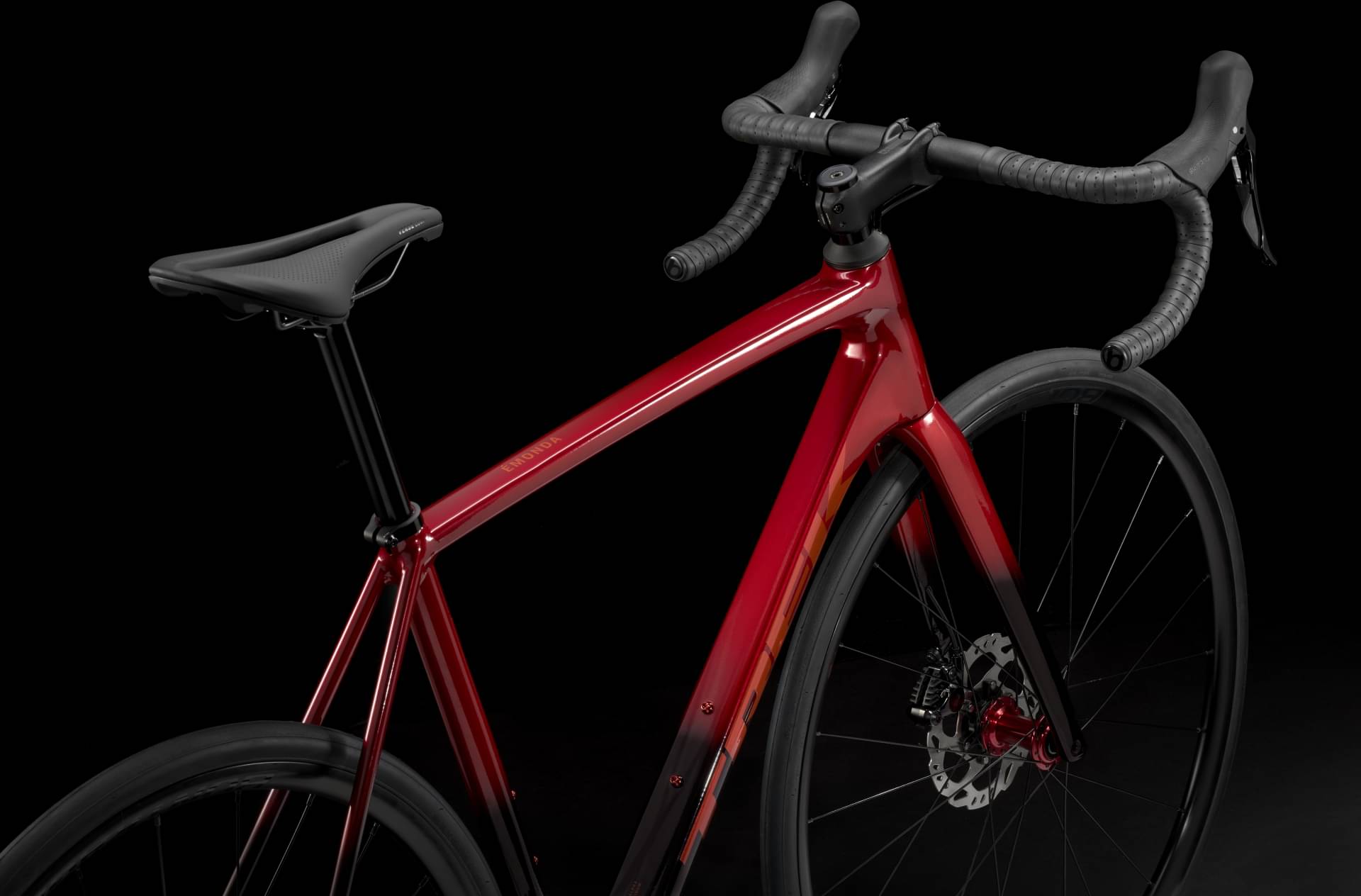

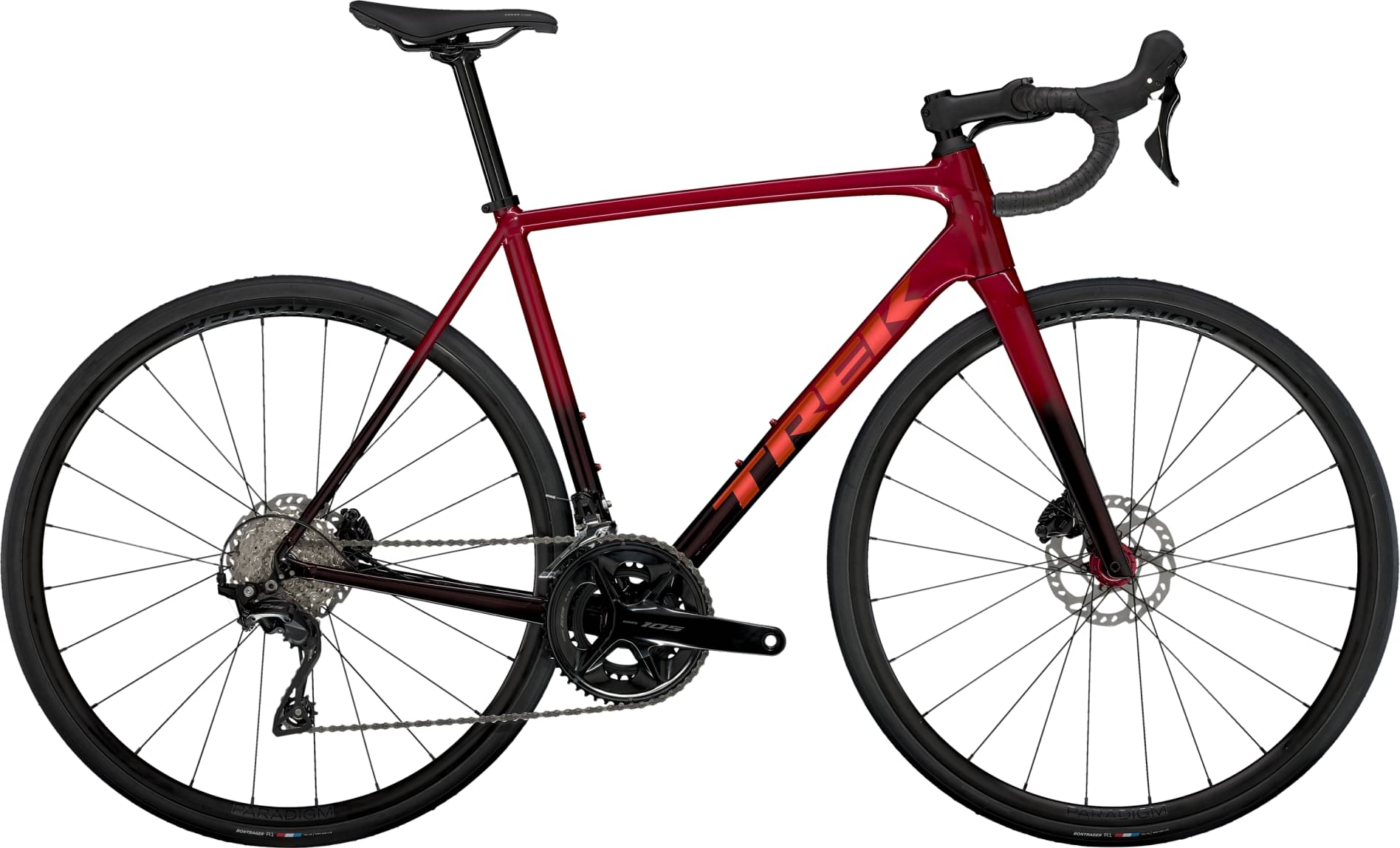

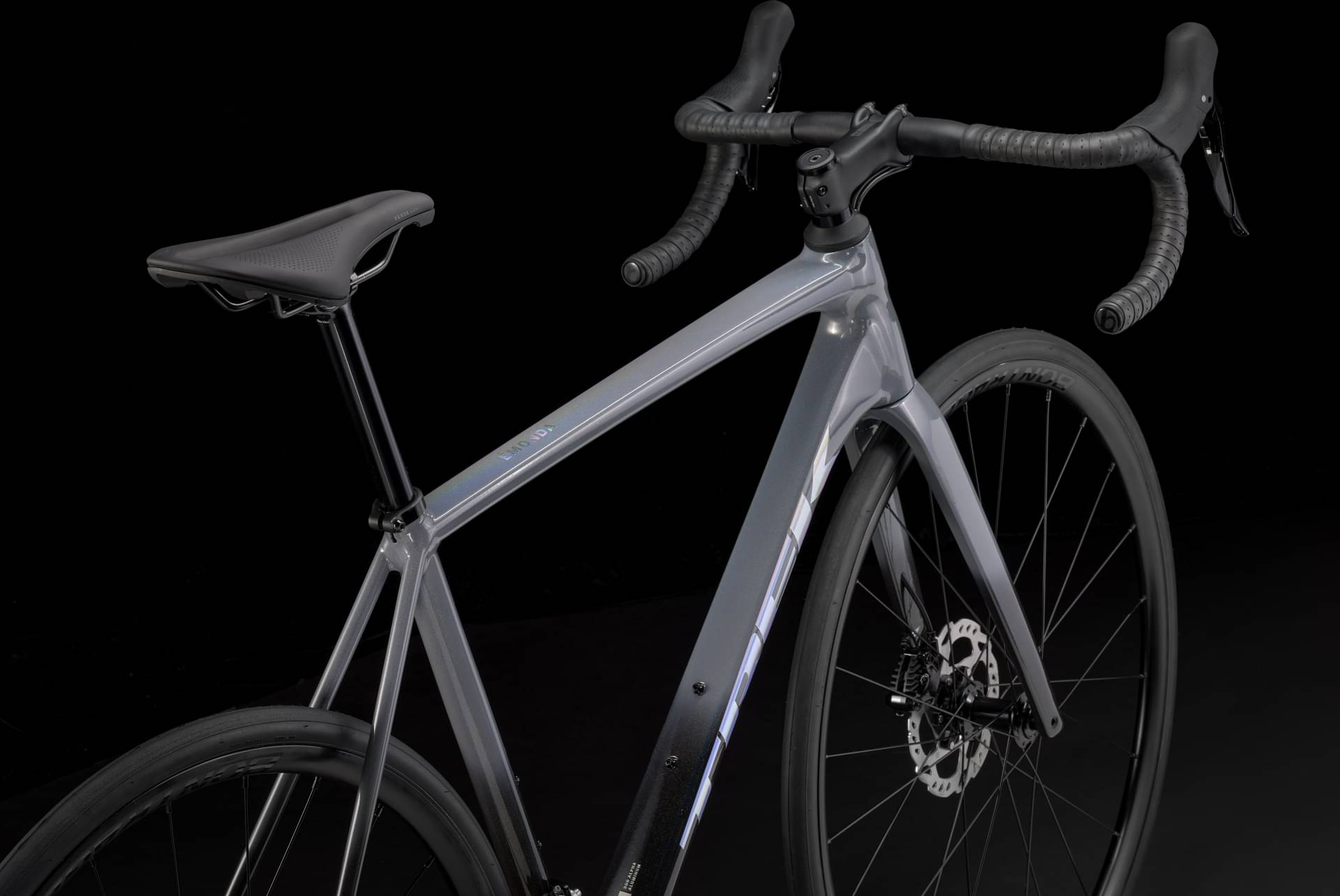

Trek Émonda ALR 5 2025
2025 Road
Estimate price |
2,675$
Weight | 9.17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

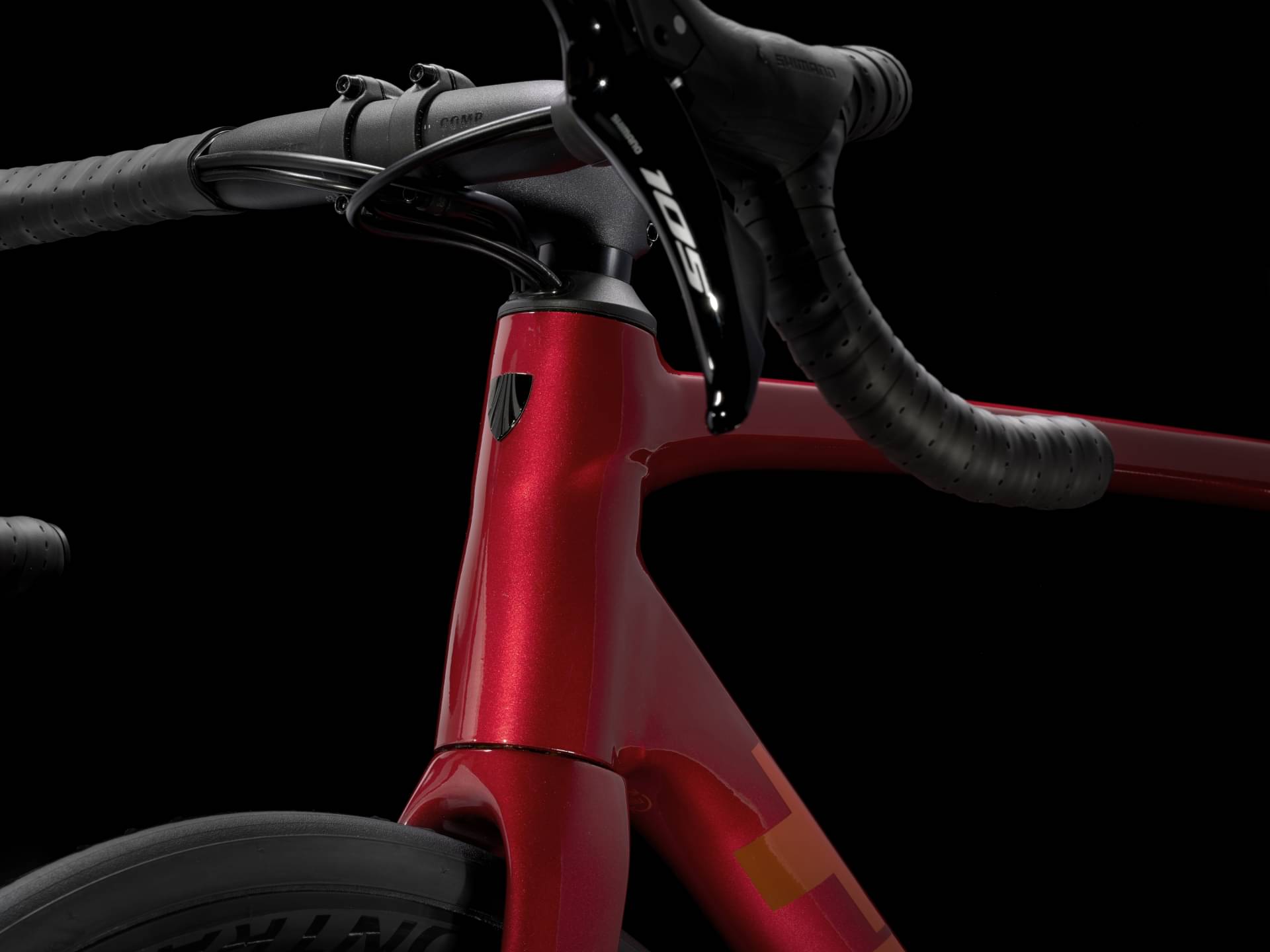

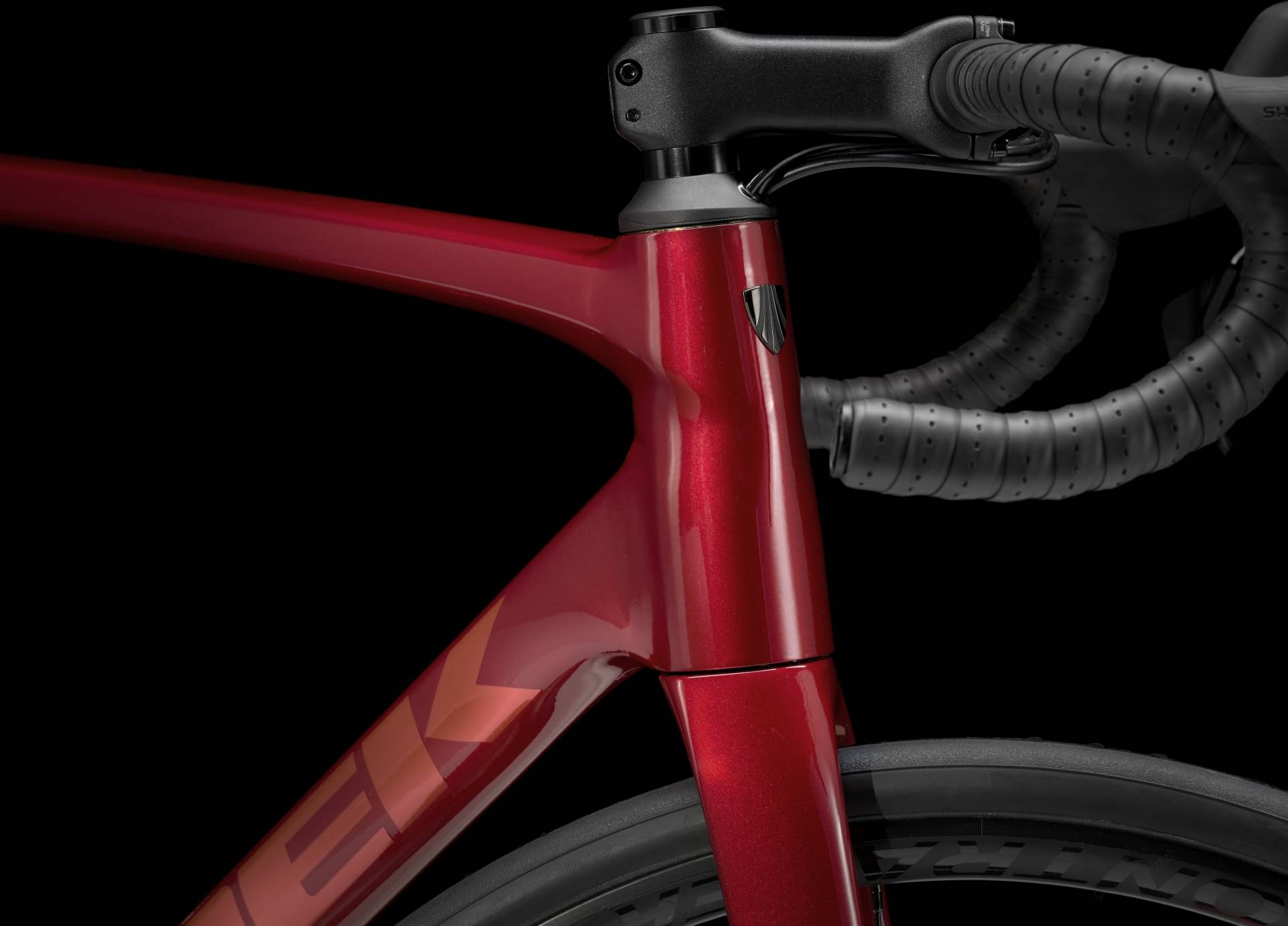

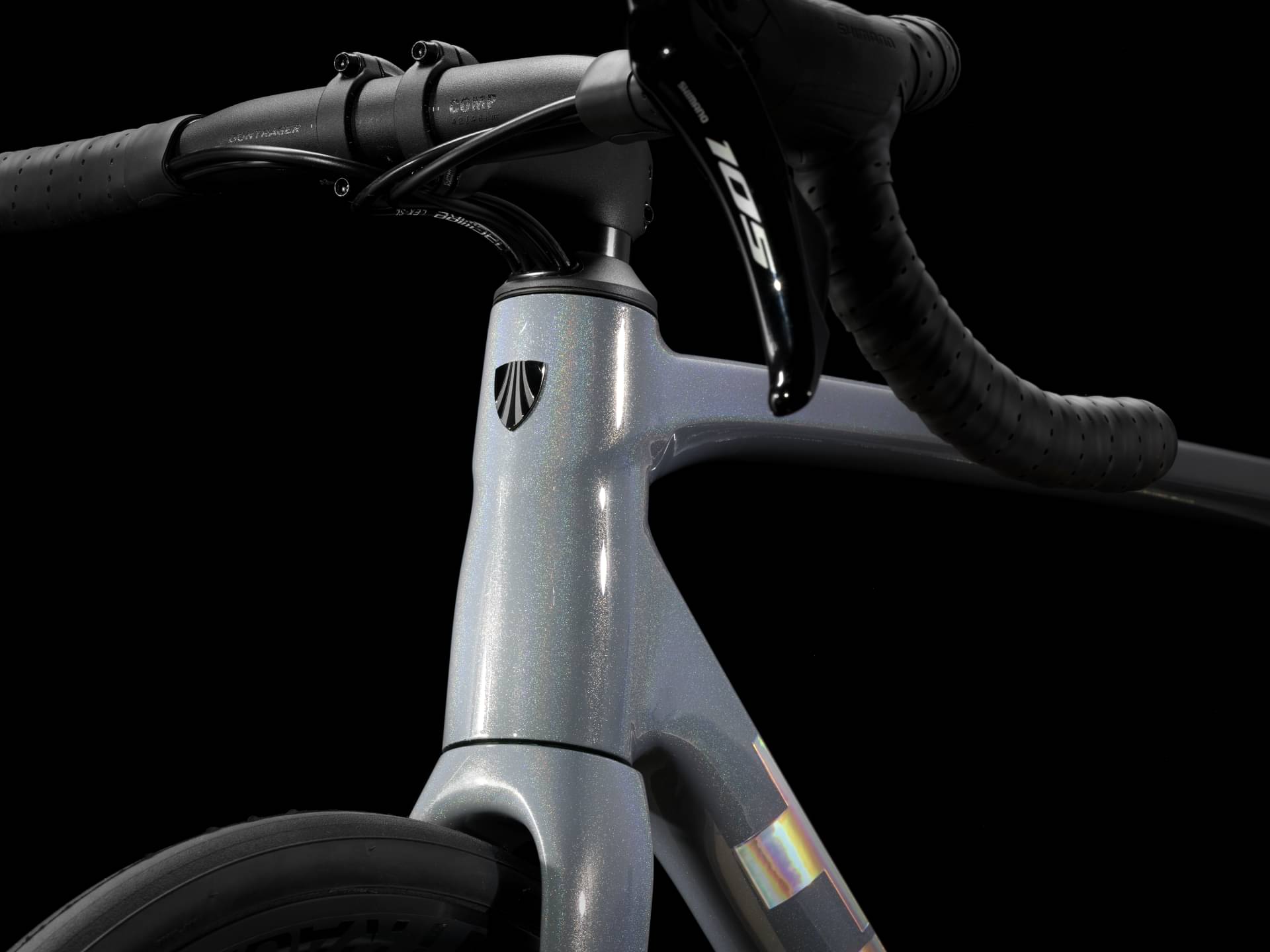

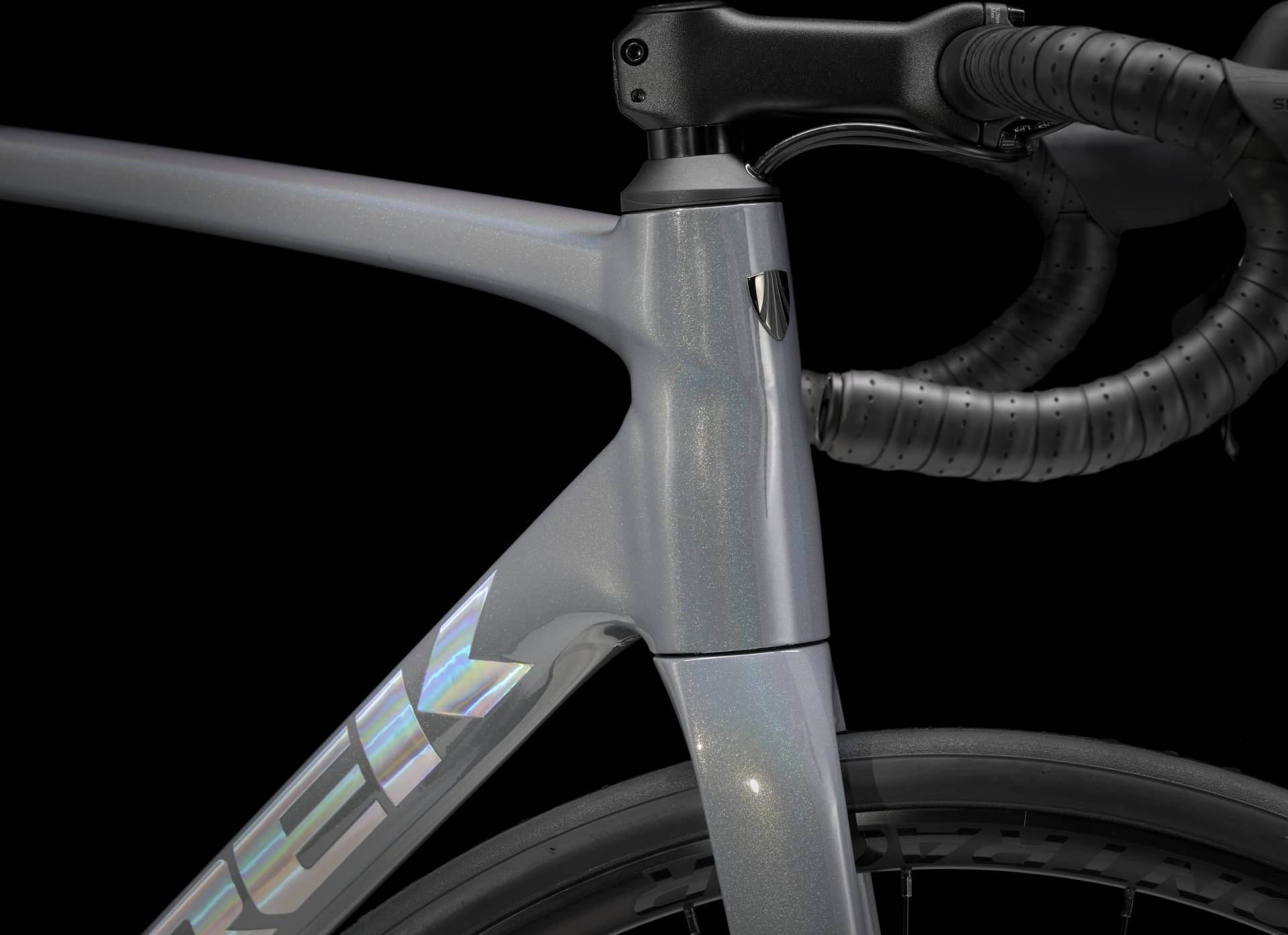

Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
Suspension Fork
Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle

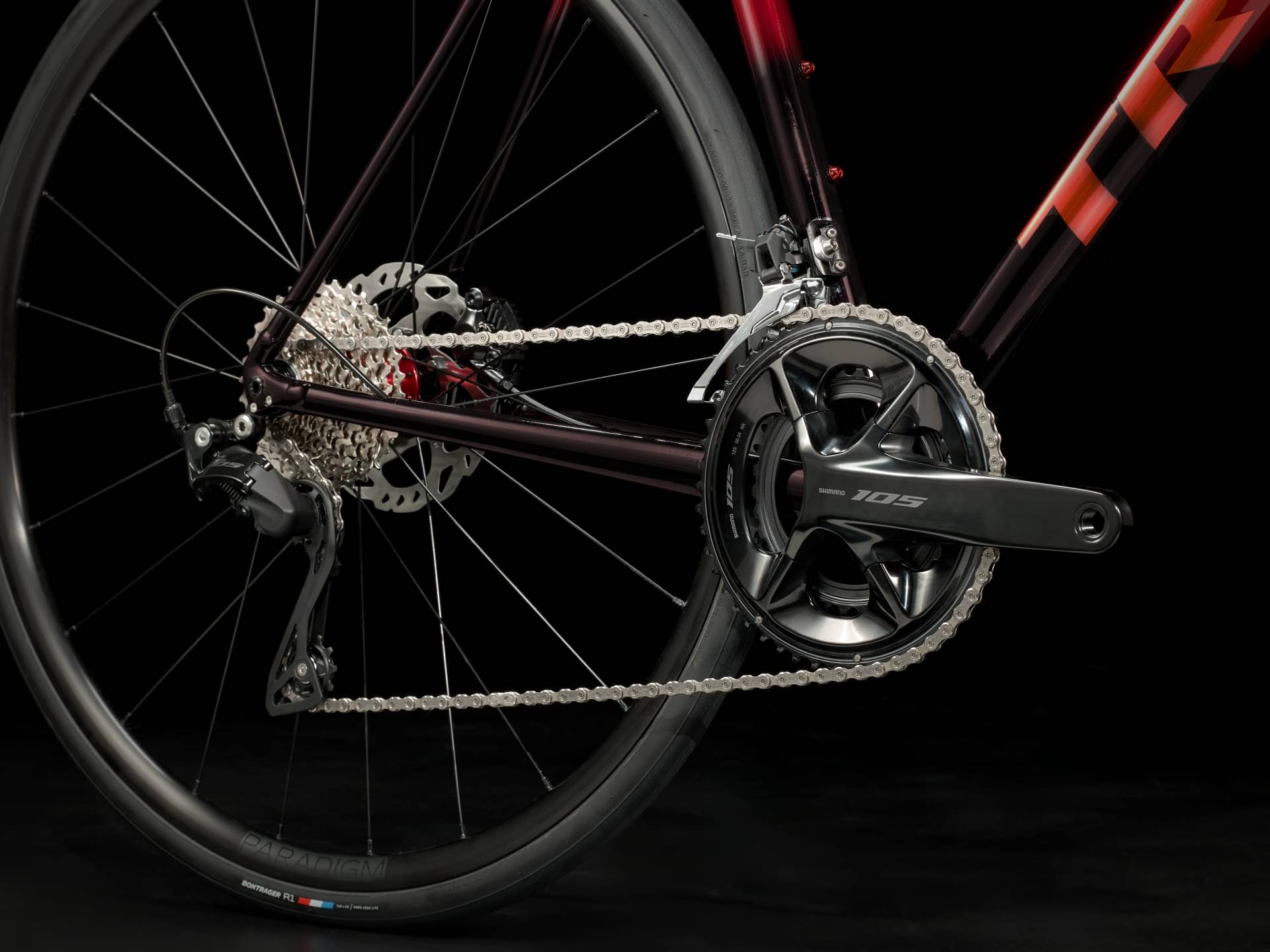

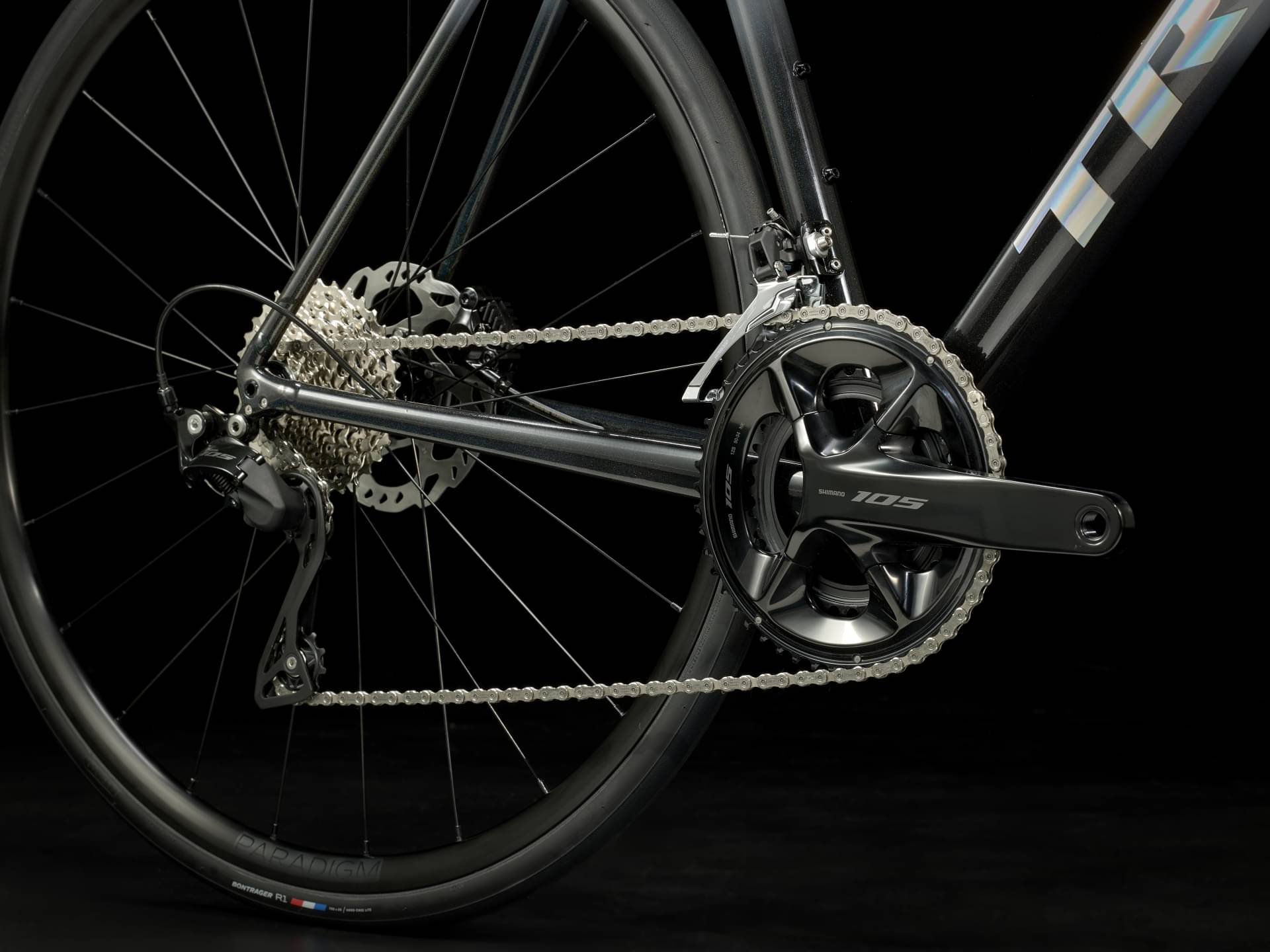

Drivetrain
Rear Derailleur
Shimano 105 R7100, 36T max cog
Front Derailleur
Shimano 105 R7100, braze-on, down swing
Shift Levers
Shimano 105 R7120, 12 speed
Cassette
Shimano 105 7101, 11-34, 12 speed
Crank
Size: 47, Shimano 105 R7100, 50/34, 165mm length; Size: 50, 52, Shimano 105 R7100, 50/34, 170mm length; Size: 54, 56, 58, Shimano 105 R7100, 50/34, 172.5mm length; Size: 60, 62, Shimano 105 R7100, 50/34, 175mm length
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano SLX M7100, 12 speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
14 g stainless steel, black
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Brakes

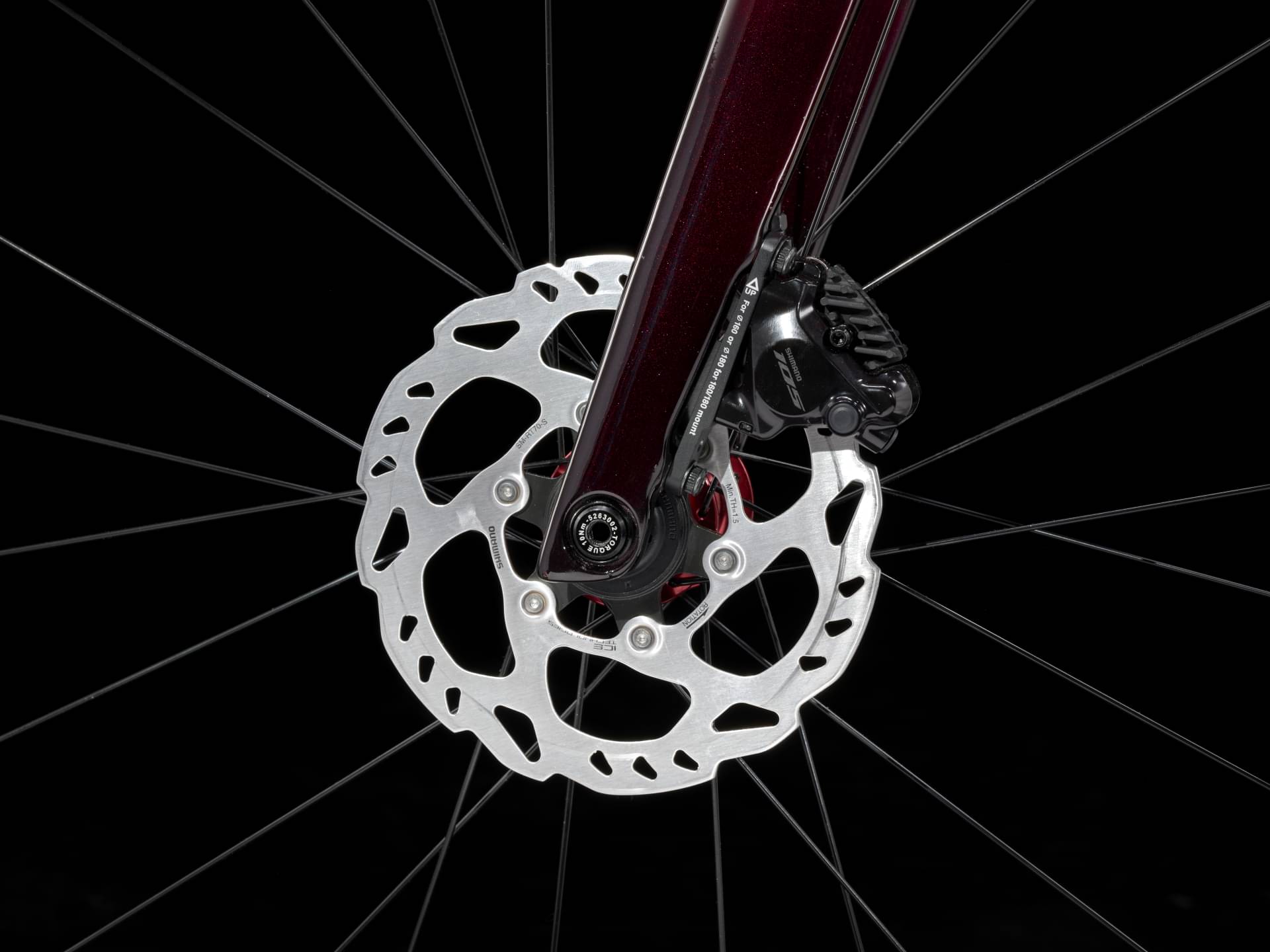

Brakes

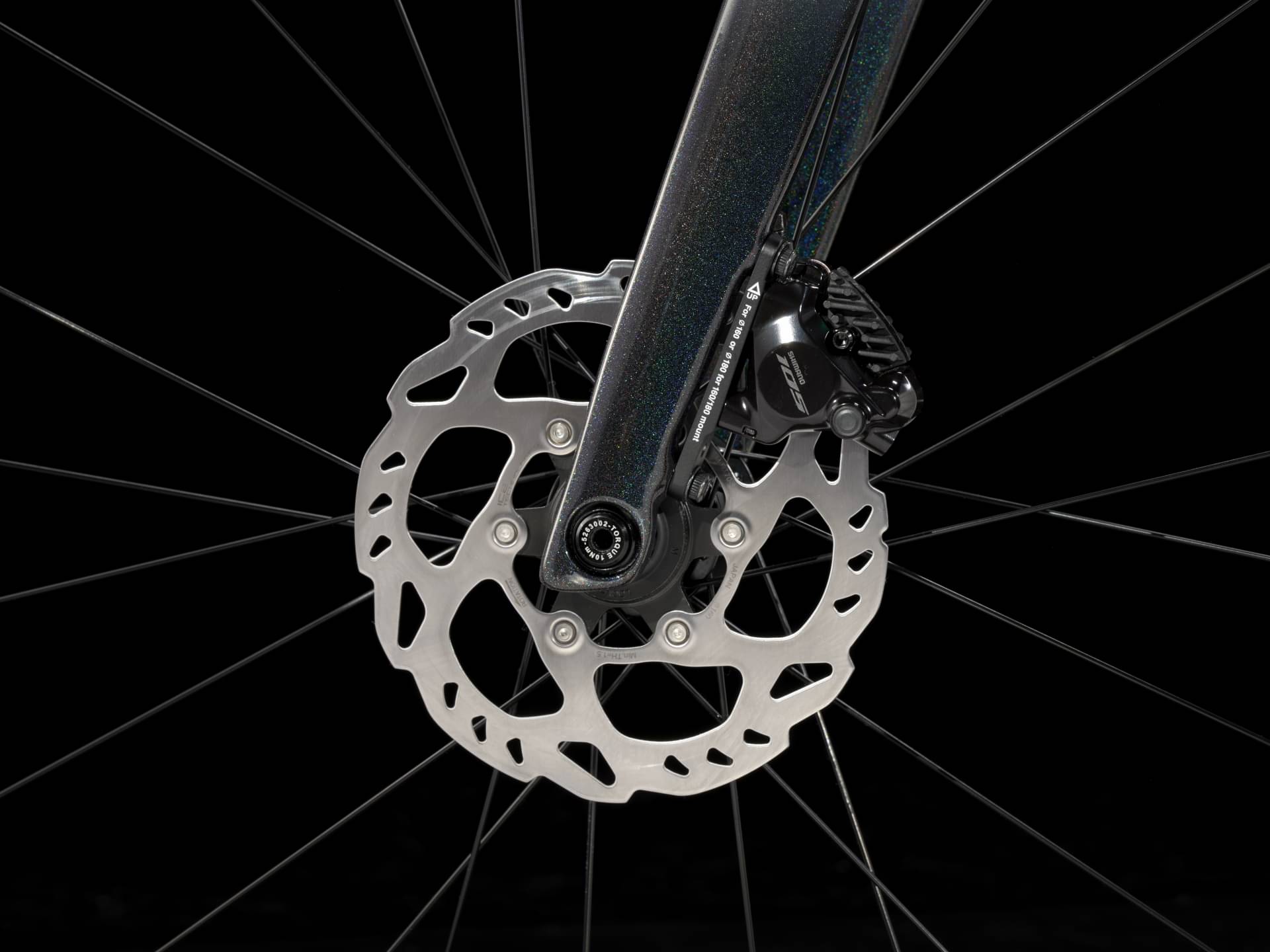

Shimano 105 hydraulic disc, flat mount
Cockpit

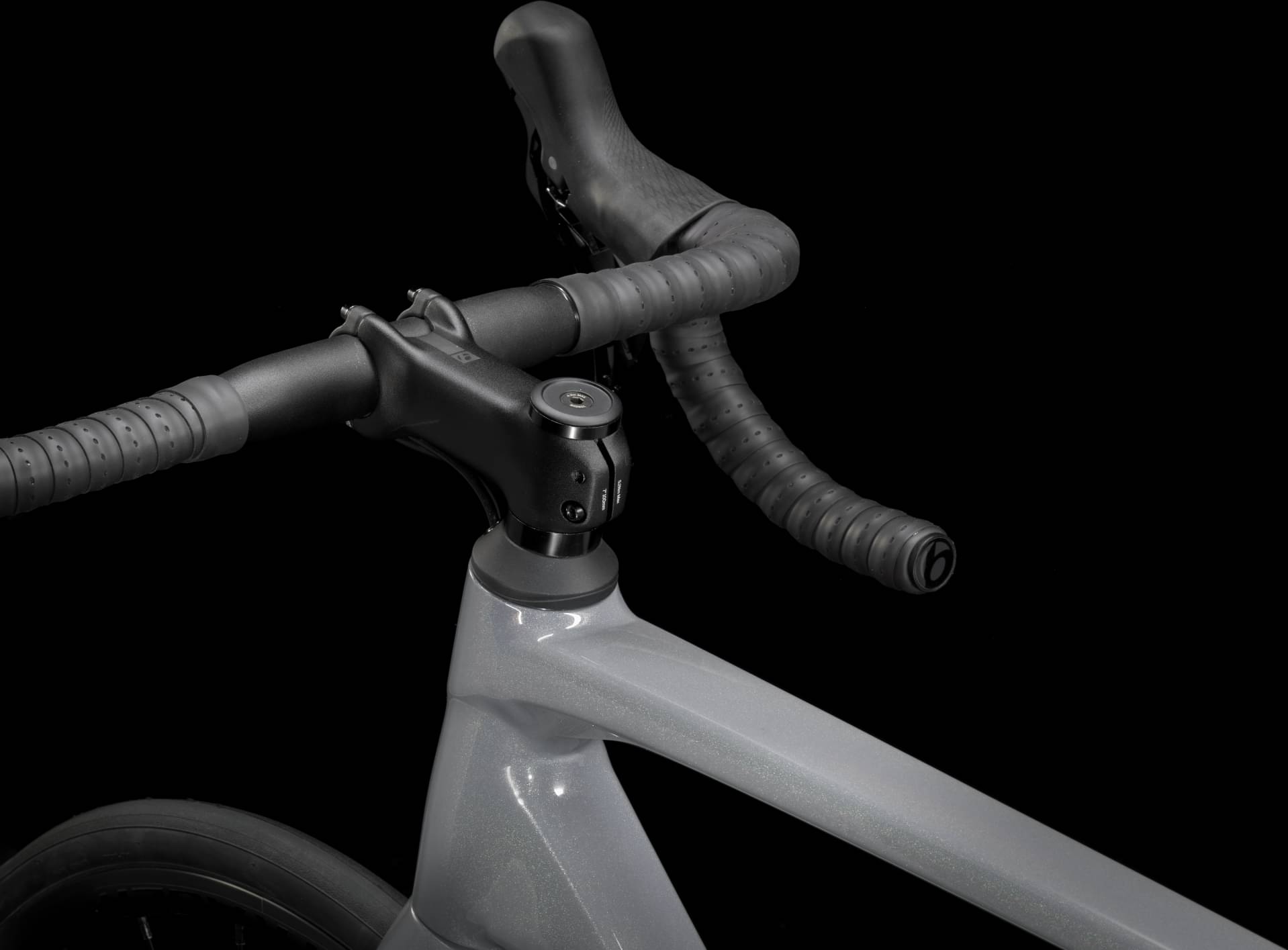

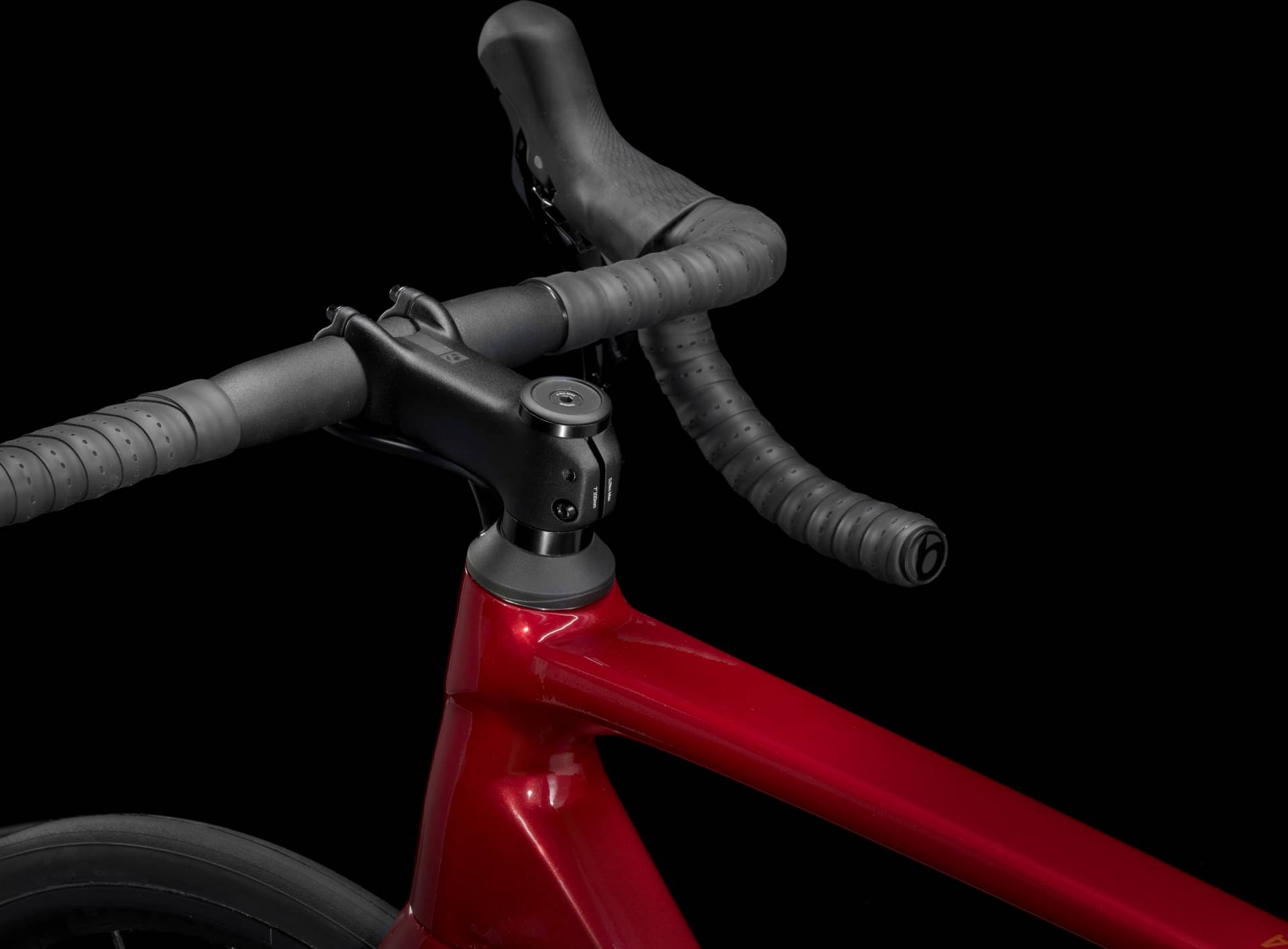

Stem
Size: 47, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 50, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

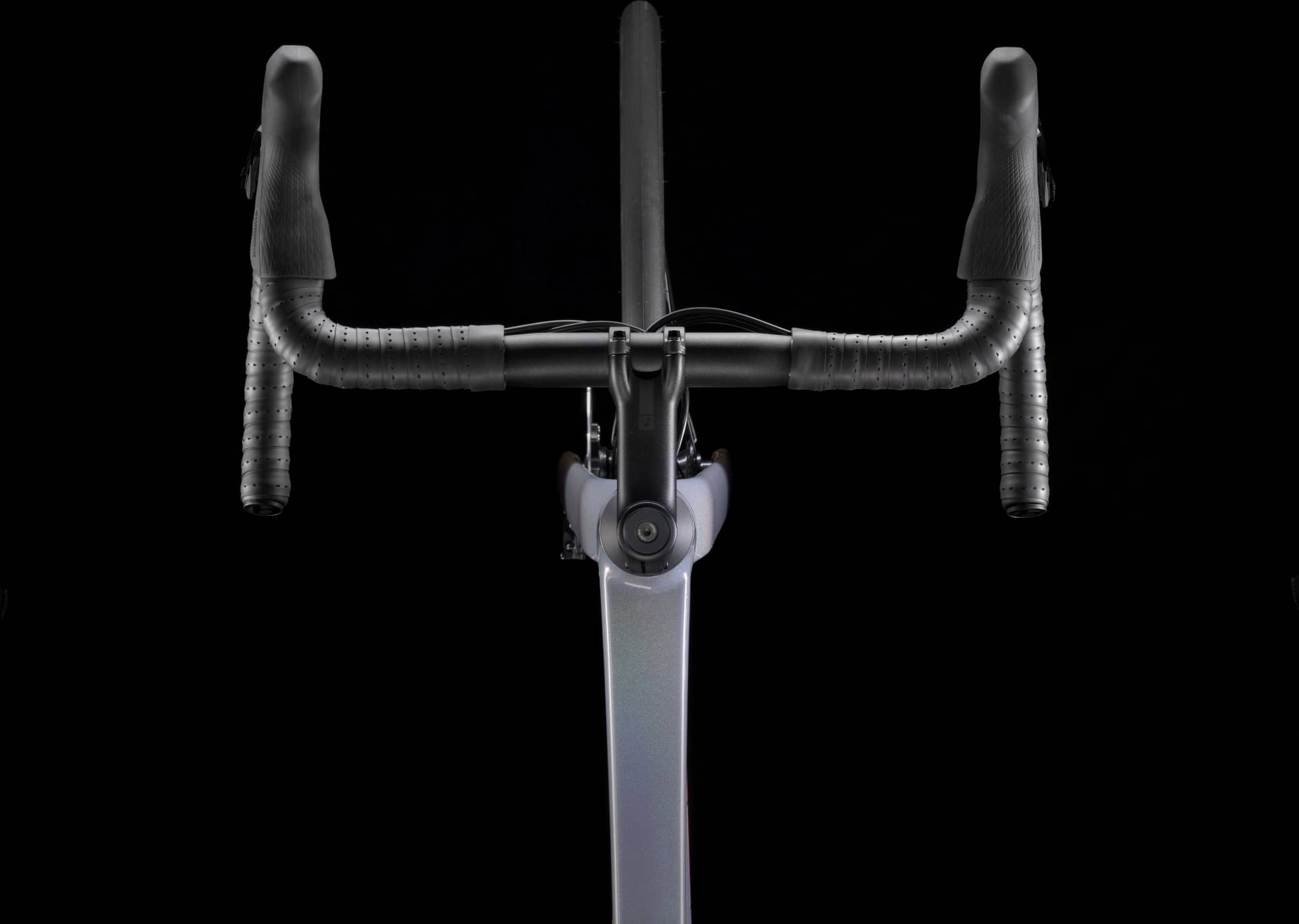

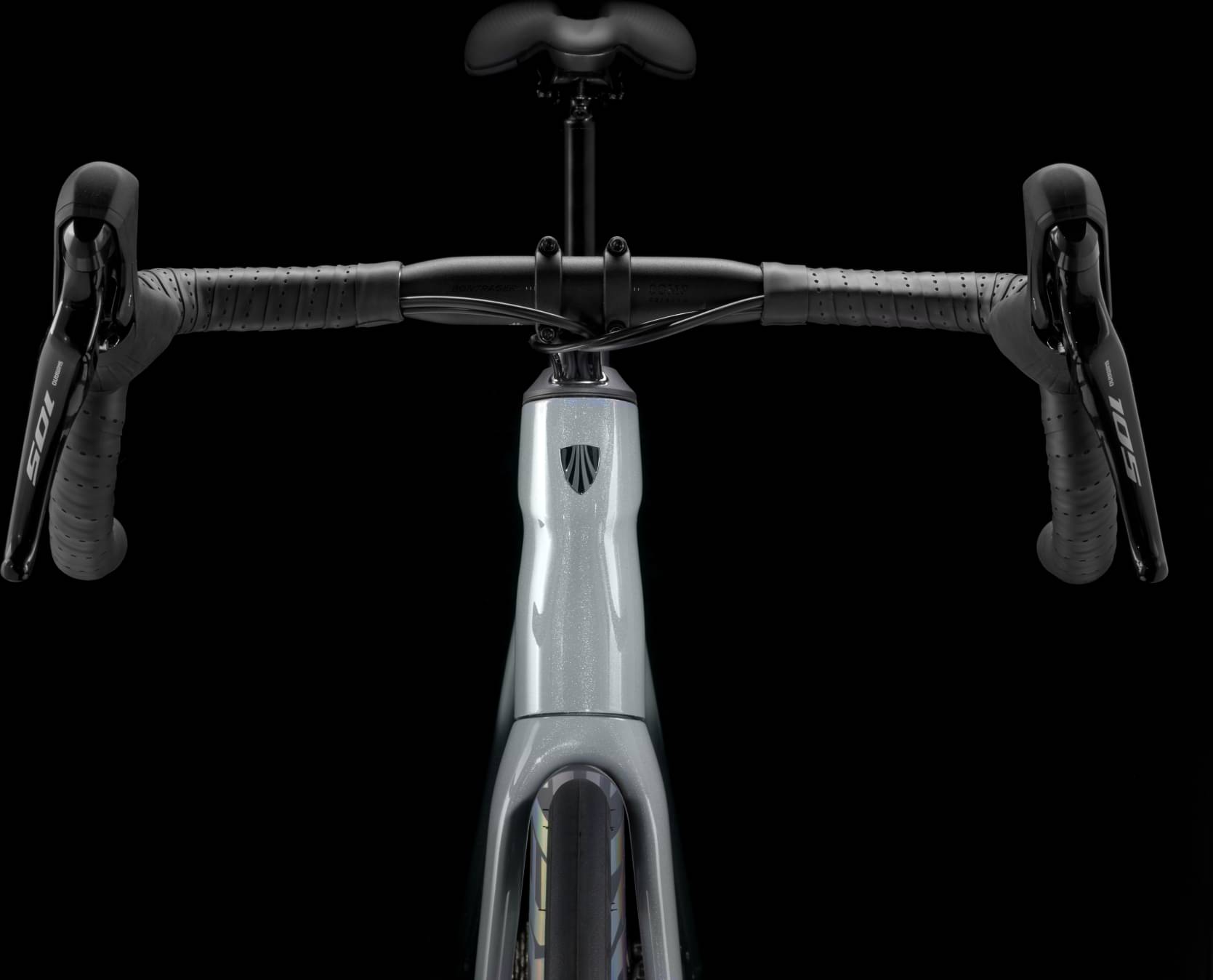

Handlebar

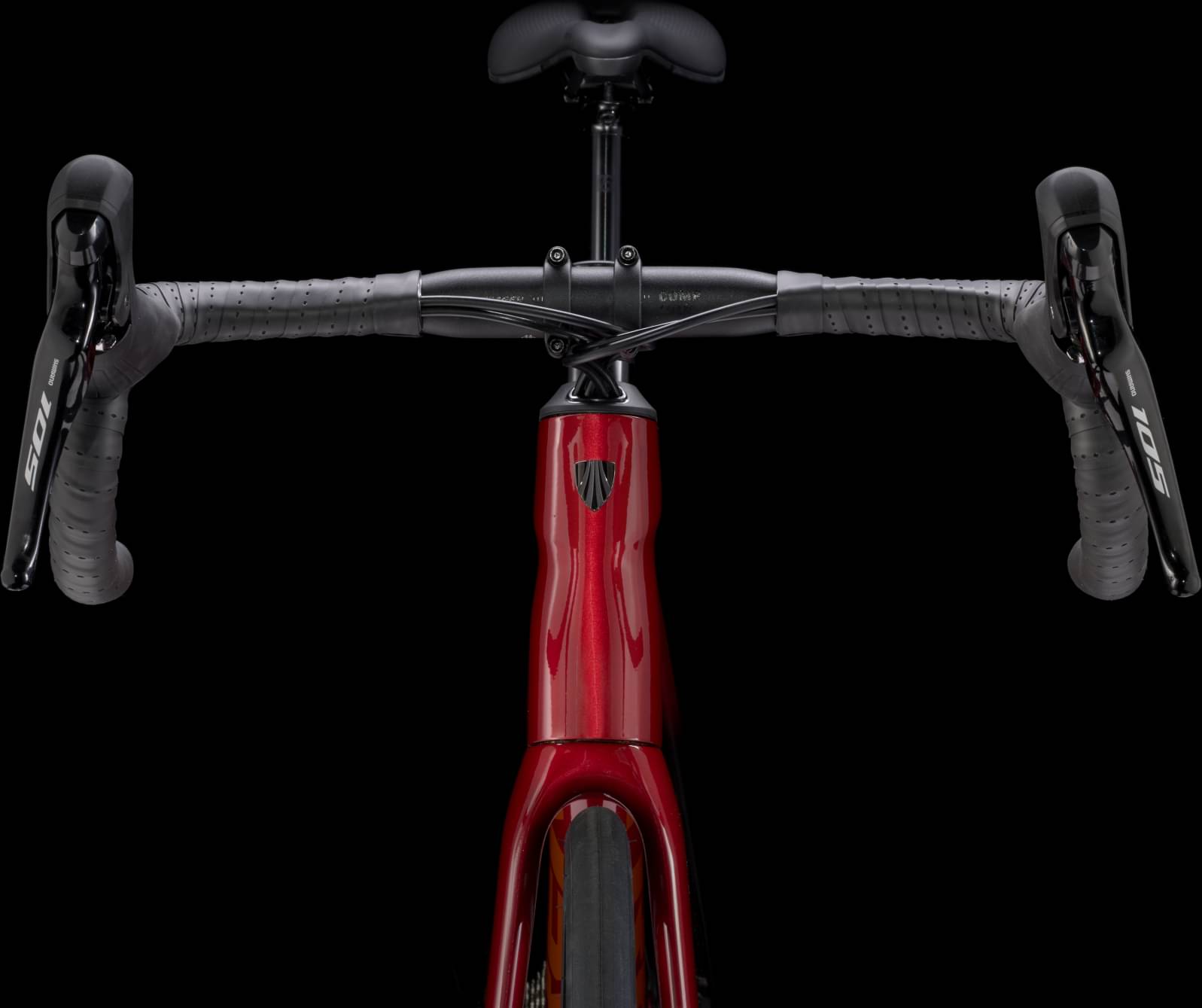

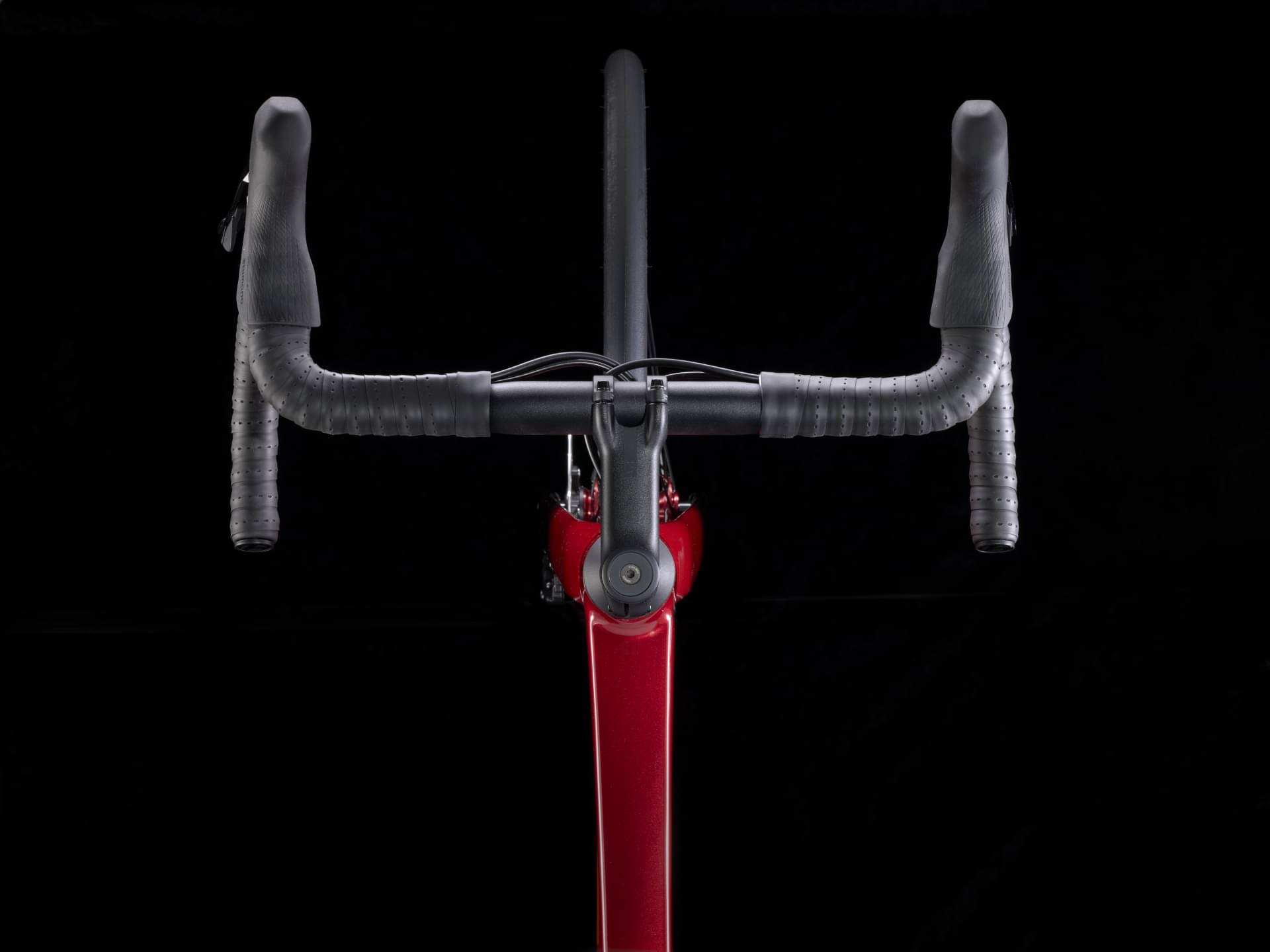

Size: 47, 50, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: 54, 56, 58, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width; Size: 60, 62, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
Seat
Saddle
Size: 47, 50, 52, Verse Short Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Verse Short Comp, steel rails, 145mm width
Seatpost
Size: 47, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 50, 52, 54, 56, 58, 60, 62, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.378 mm | 1.392 mm | 1.402 mm | 1.44 mm | 1.467 mm | 1.506 mm | 1.538 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 573 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 52 mm | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 68 mm | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 507 mm | 521 mm | 533 mm | 541 mm | 563 mm | 581 mm | 601 mm | 620 mm |
| Reach | 373 mm | 378 mm | 383 mm | 386 mm | 391 mm | 396 mm | 399 mm | 403 mm |
| Top Tube Length | 512 mm | 521 mm | 534 mm | 543 mm | 559 mm | 574 mm | 586 mm | 598 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 411 mm | 411 mm | 412 mm |
| Wheelbase | 972 mm | 974 mm | 977 mm | 981 mm | 983 mm | 992 mm | 1001 mm | 1010 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 692 mm | 711 mm | 732 mm | 744 mm | 768 mm | 793 mm | 811 mm | 829 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
