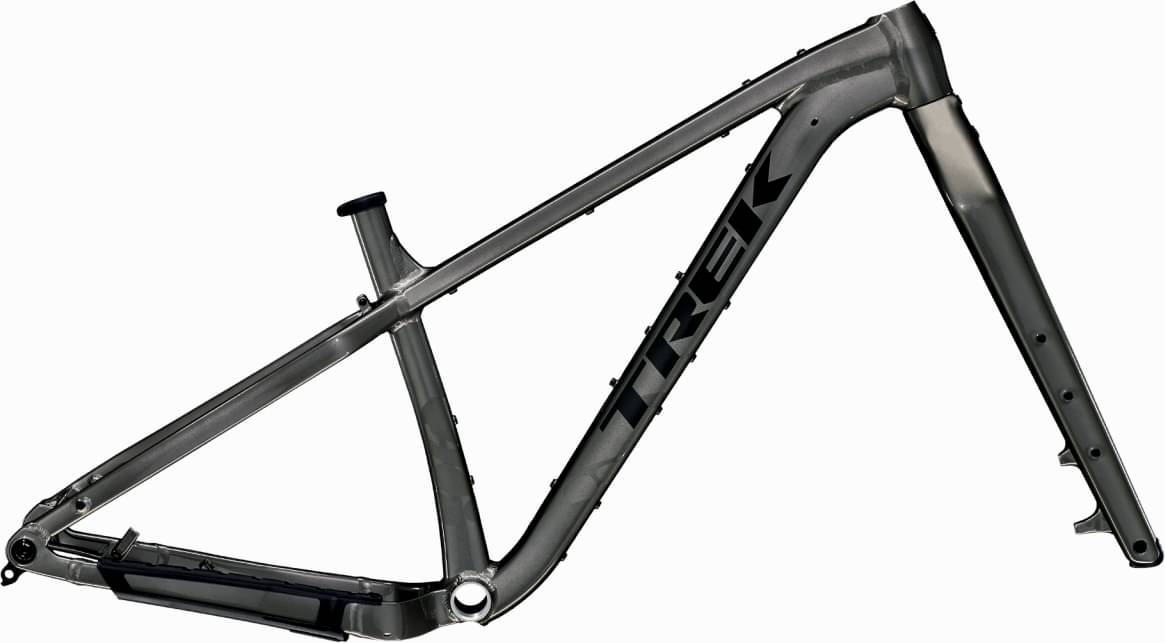

Trek Farley AL Frameset 2025
2025 Mountain
Estimate price |
1,744$
Weight | 3.95 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 178cm
LG
175cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, 100mm threaded BB, UDH, 197x12mm
Suspension Fork
Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle
Drivetrain
Bottom Bracket
BSA, 100mm, threaded
Wheels
Tires
27.5x4.50"
Cockpit
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.473 mm | 1.393 mm | 1.333 mm | 1.265 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 655 mm | 689 mm | 724 mm | 764 mm |
| Rake | 42 mm | 42 mm | 42 mm | 43 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 589 mm | 599 mm | 613 mm | 626 mm |
| Reach | 400 mm | 430 mm | 460 mm | 495 mm |
| Top Tube Length | 565 mm | 598 mm | 633 mm | 672 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1097 mm | 1131 mm | 1166 mm | 1207 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 730 mm | 740 mm | 760 mm | 780 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 166 cm | 178 cm | 189 cm | 195 cm |
