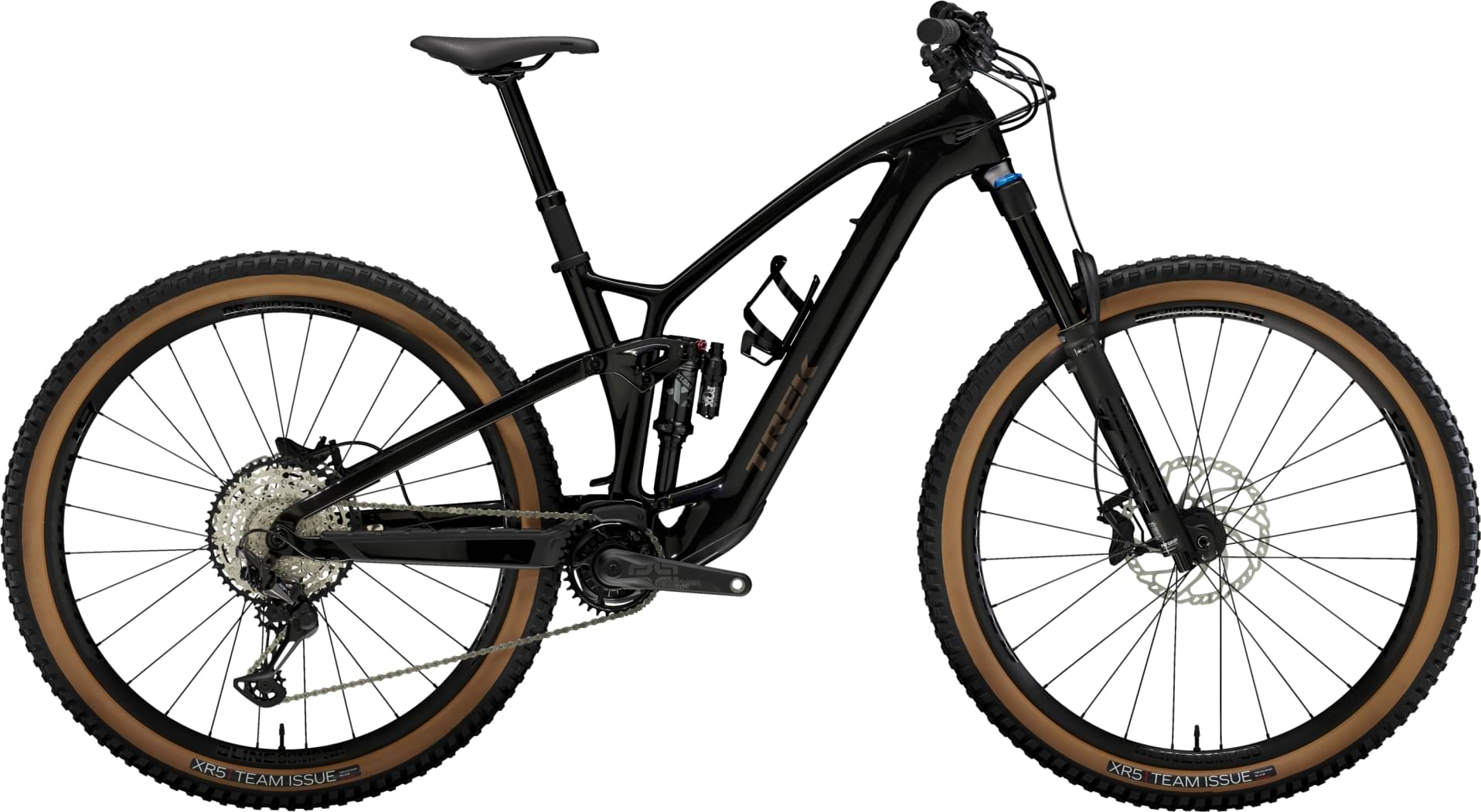

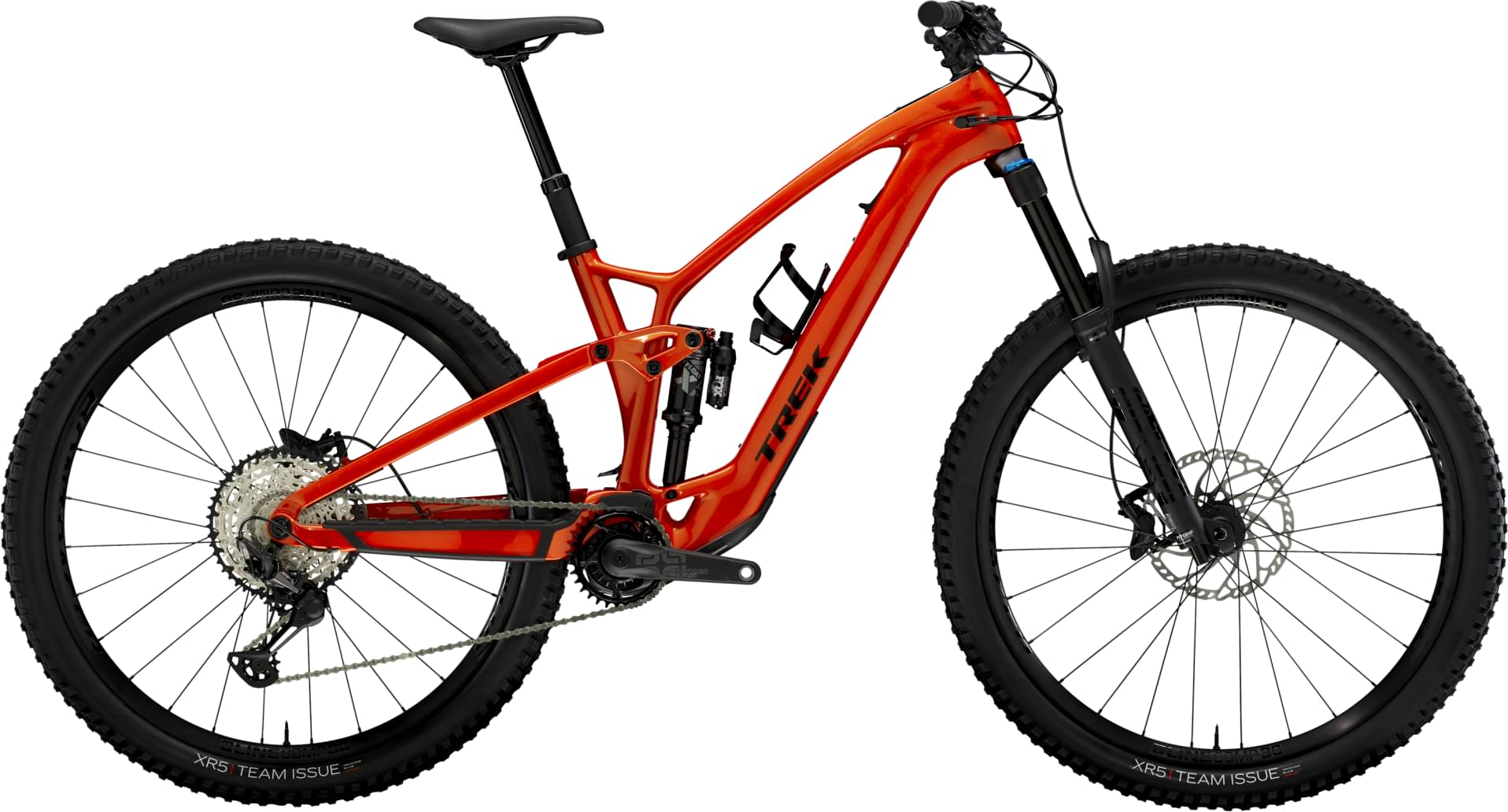

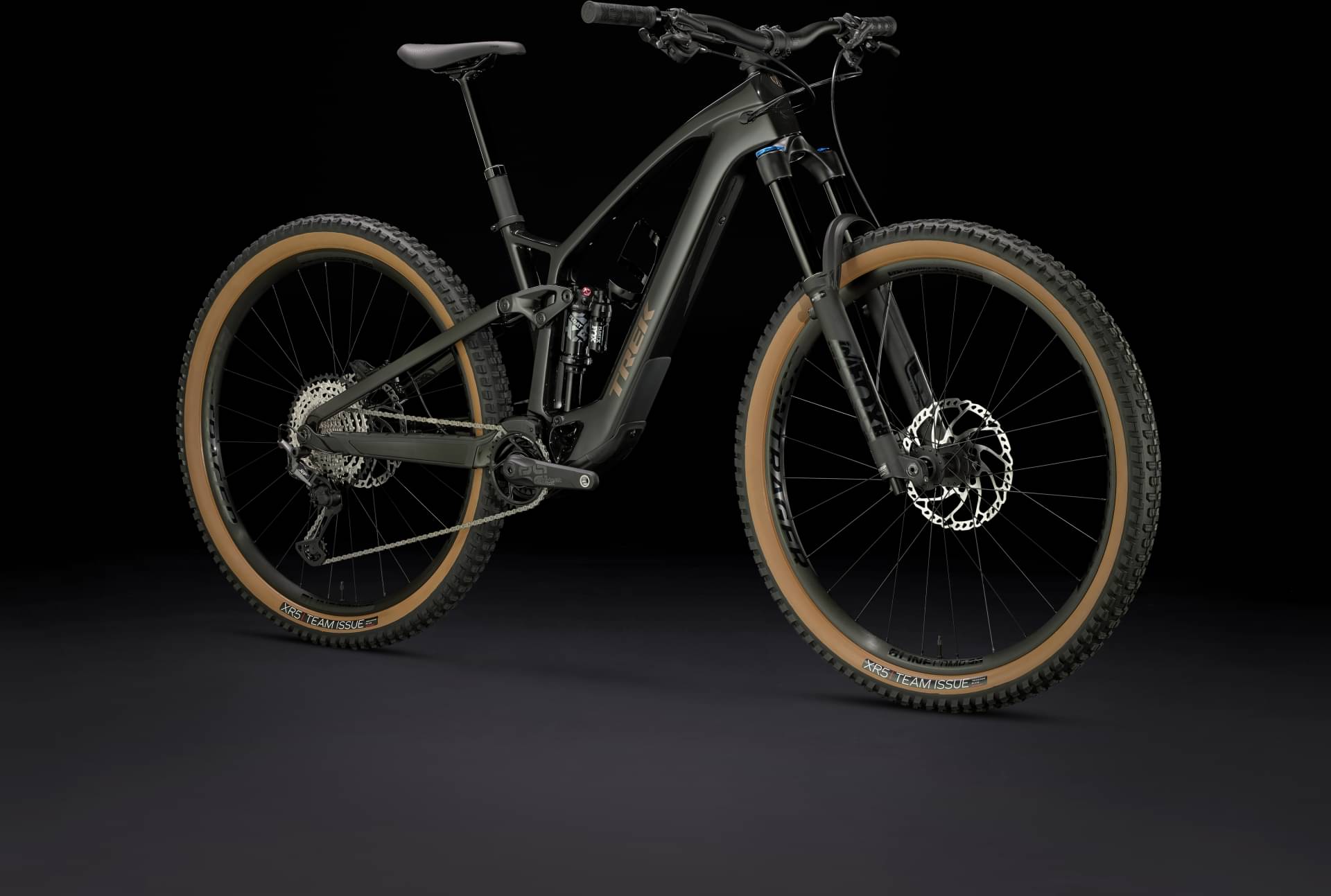

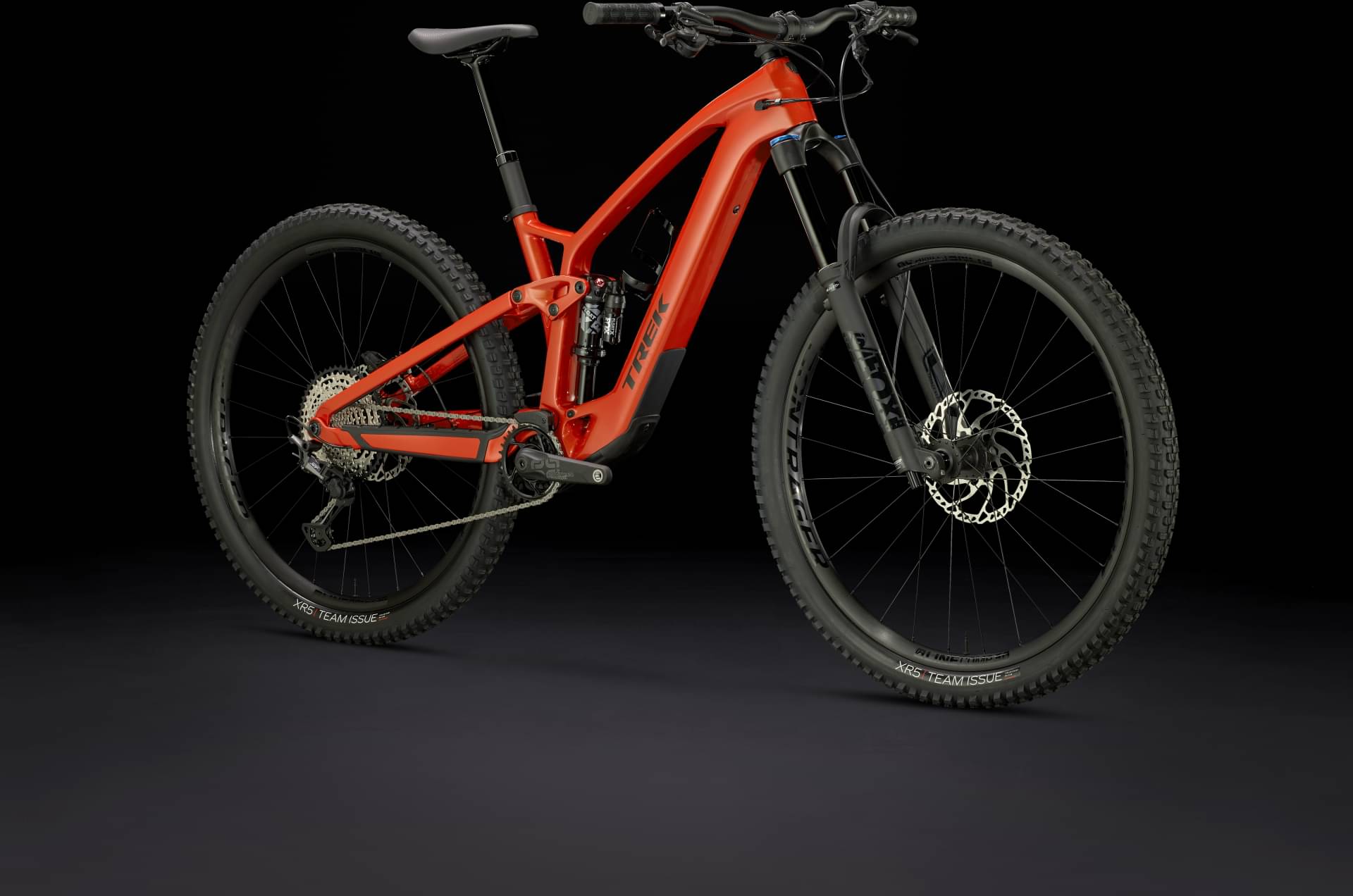

Trek Fuel EXe 9.7 2025
2025 E-bike
Estimate price |
7,677$
Weight | 19.33 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor TQ -
Battery TQ 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

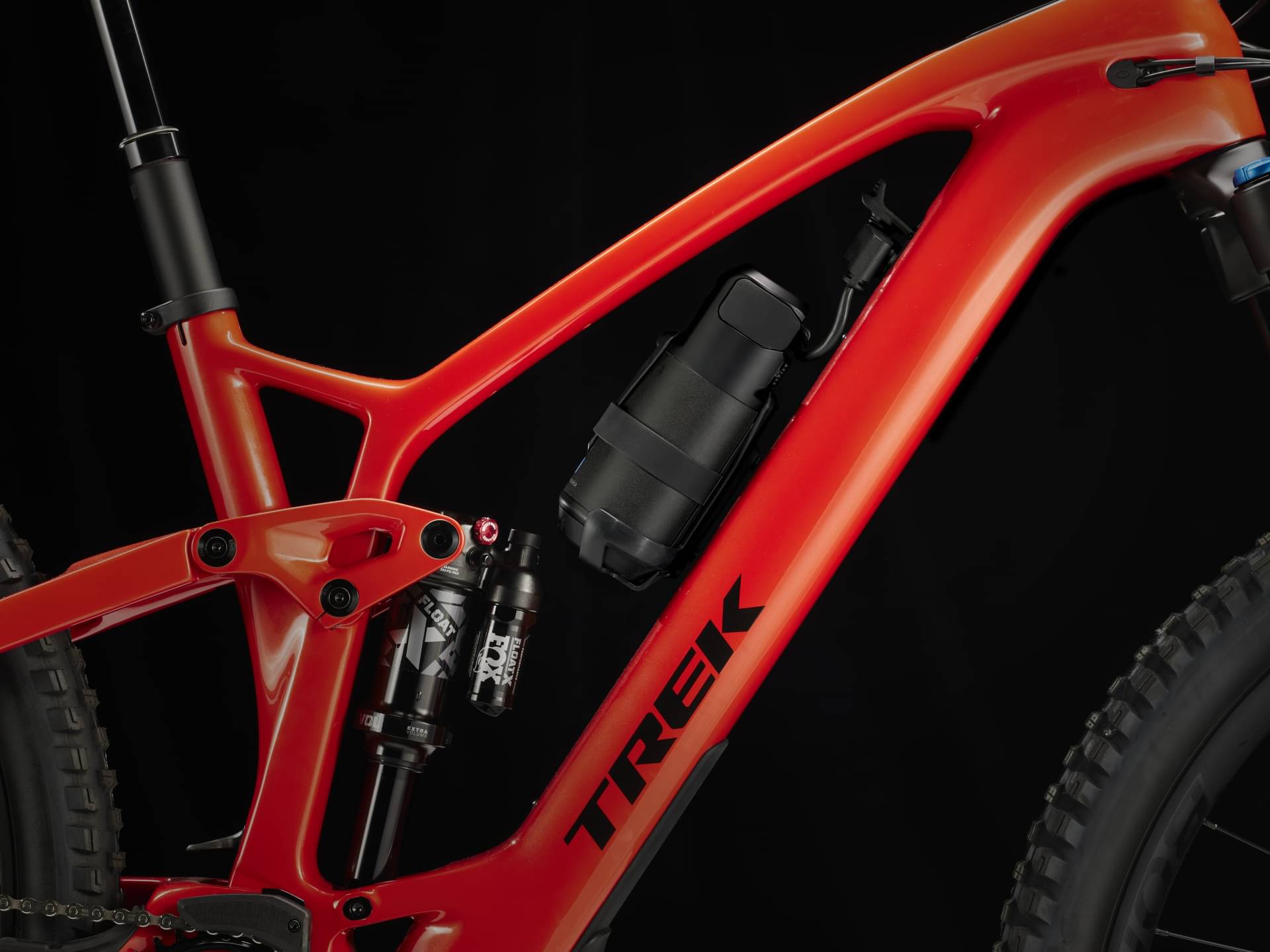

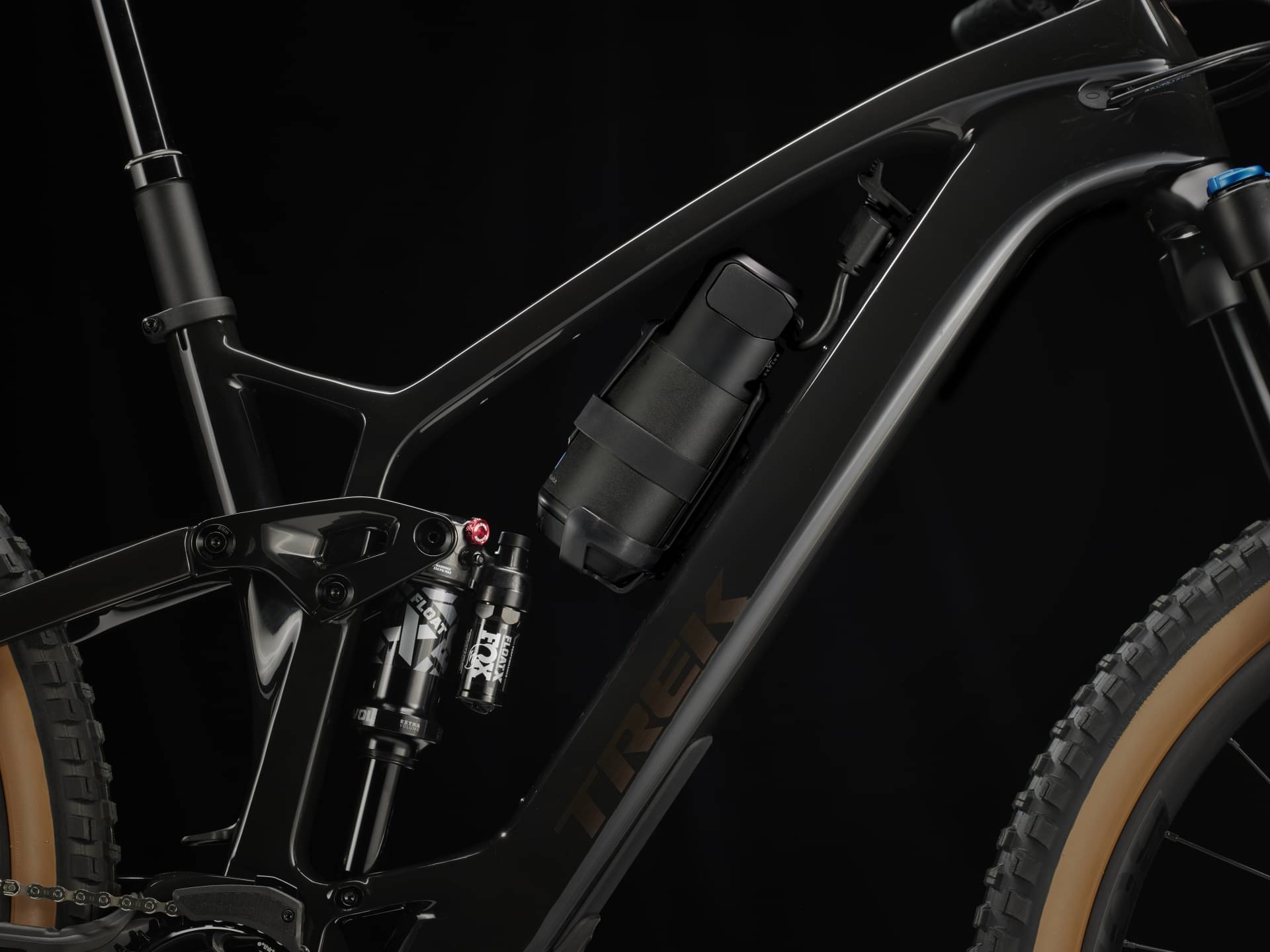

Frame
Frame

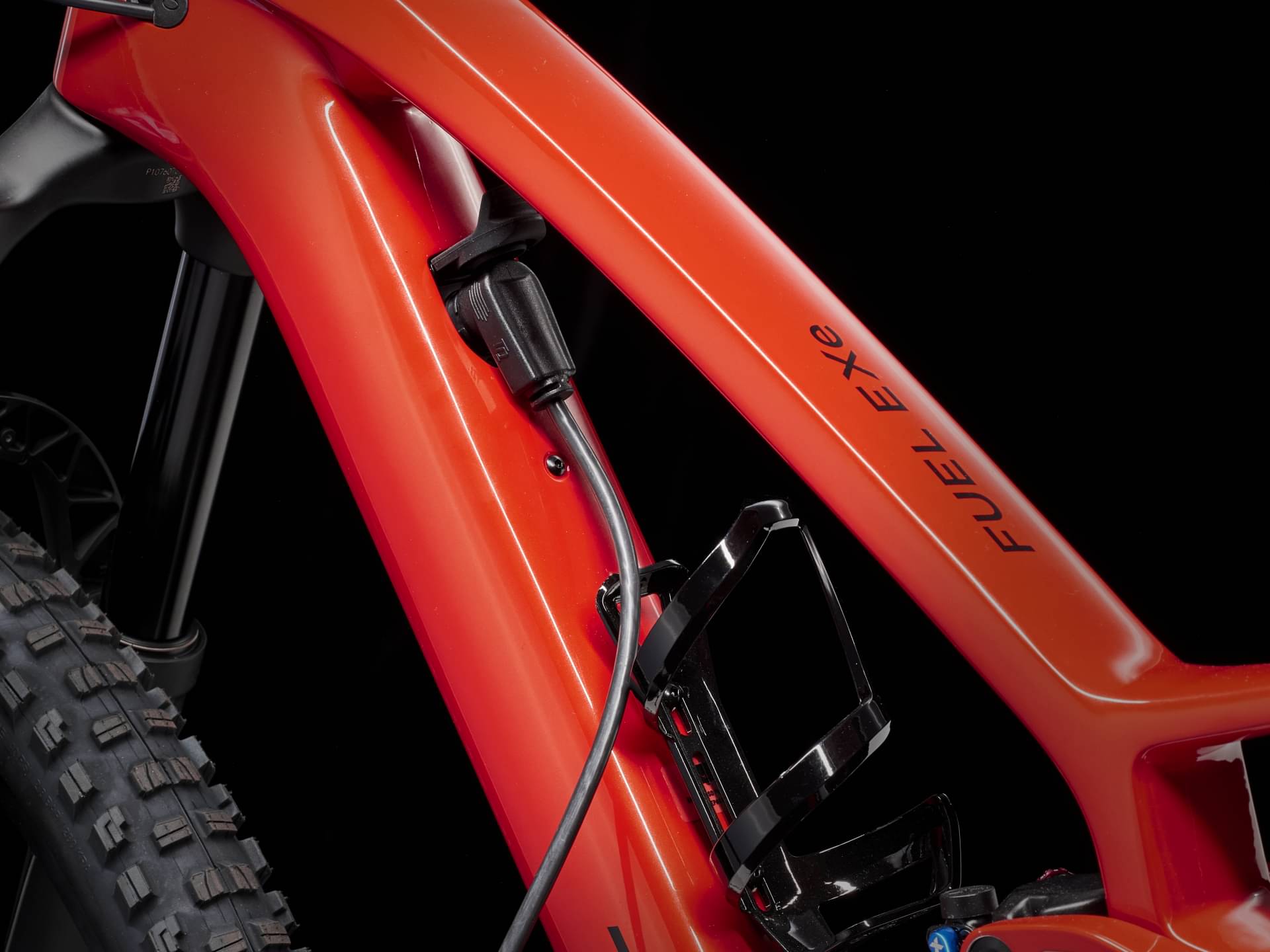

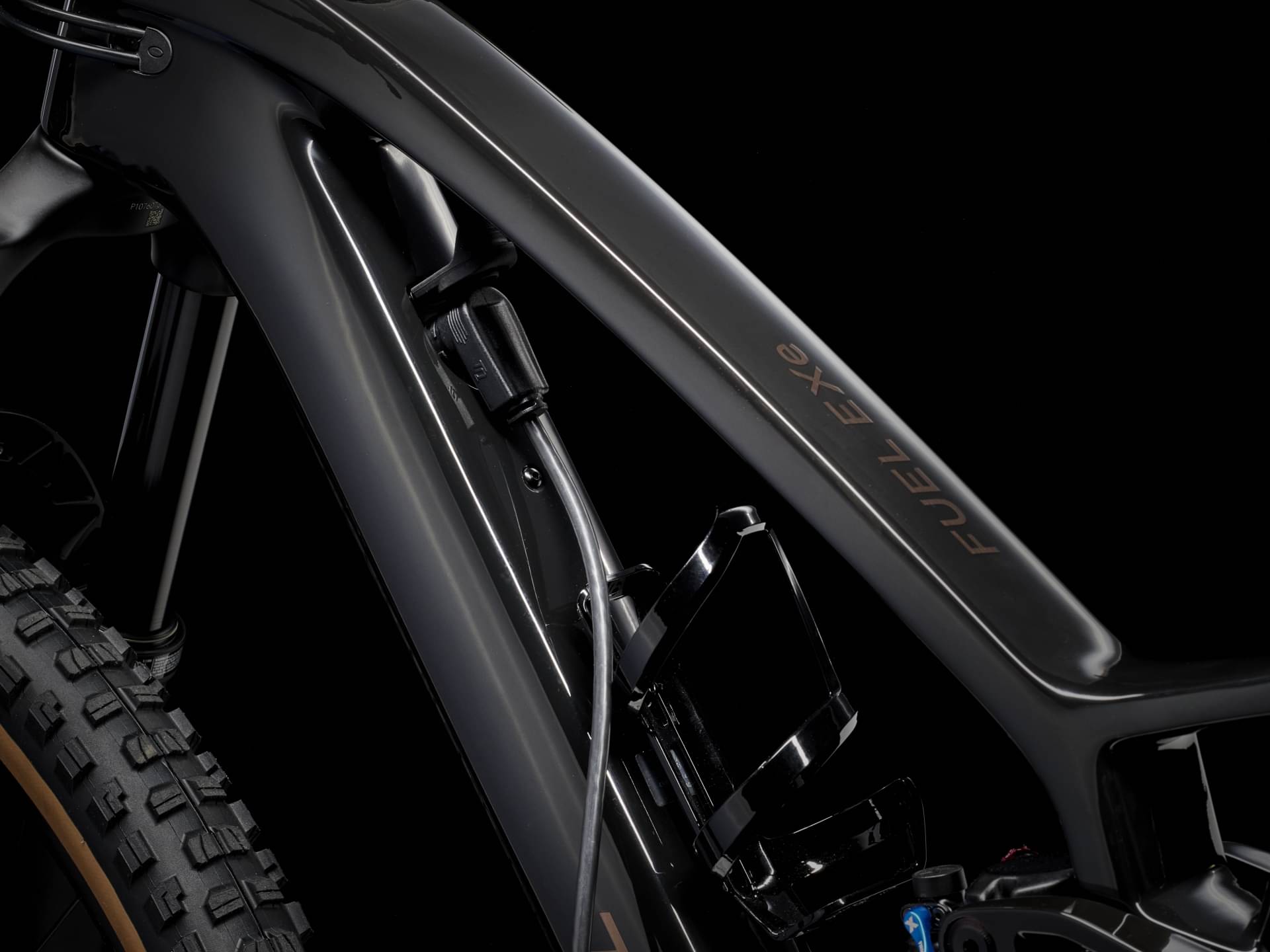

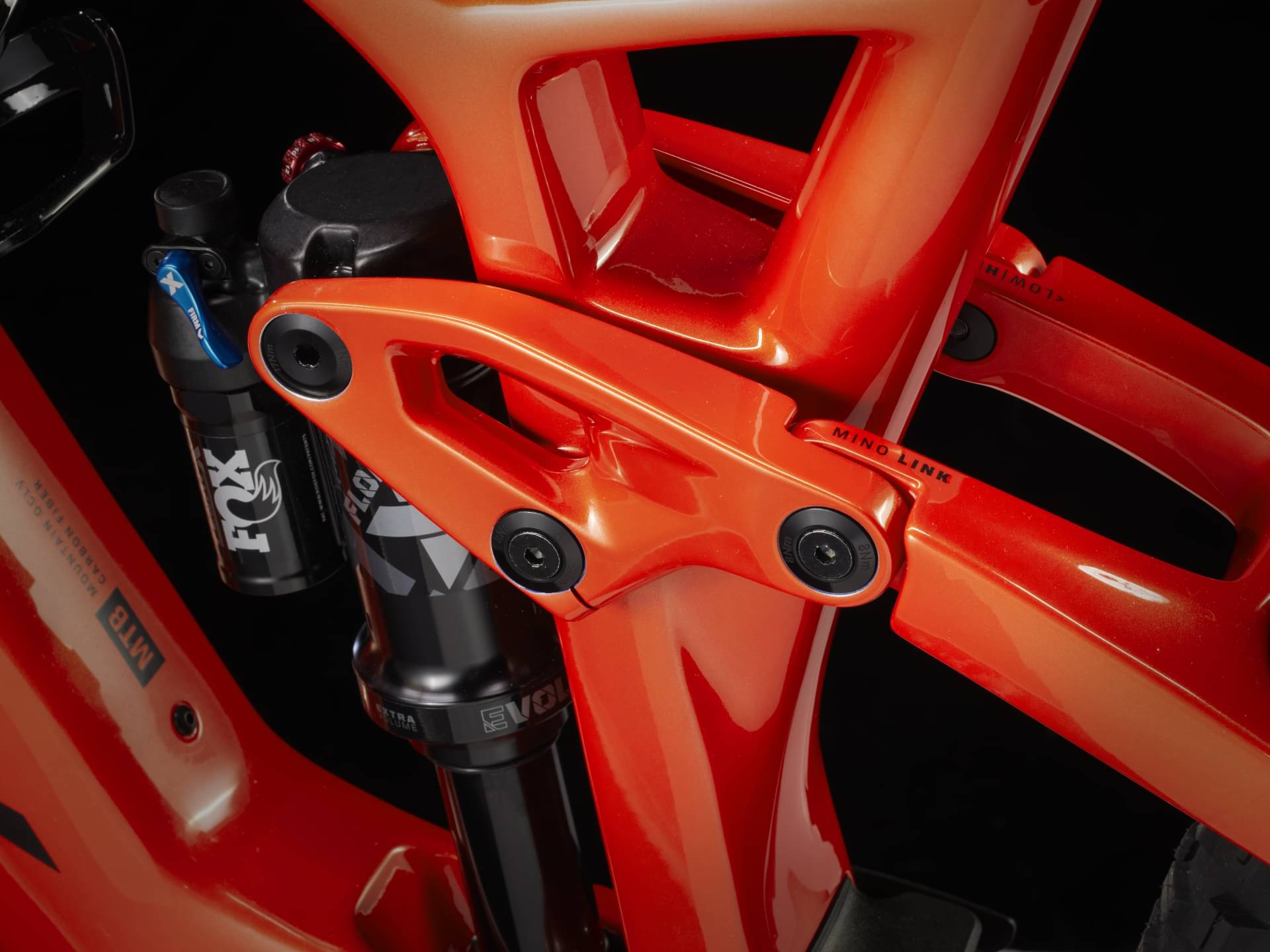

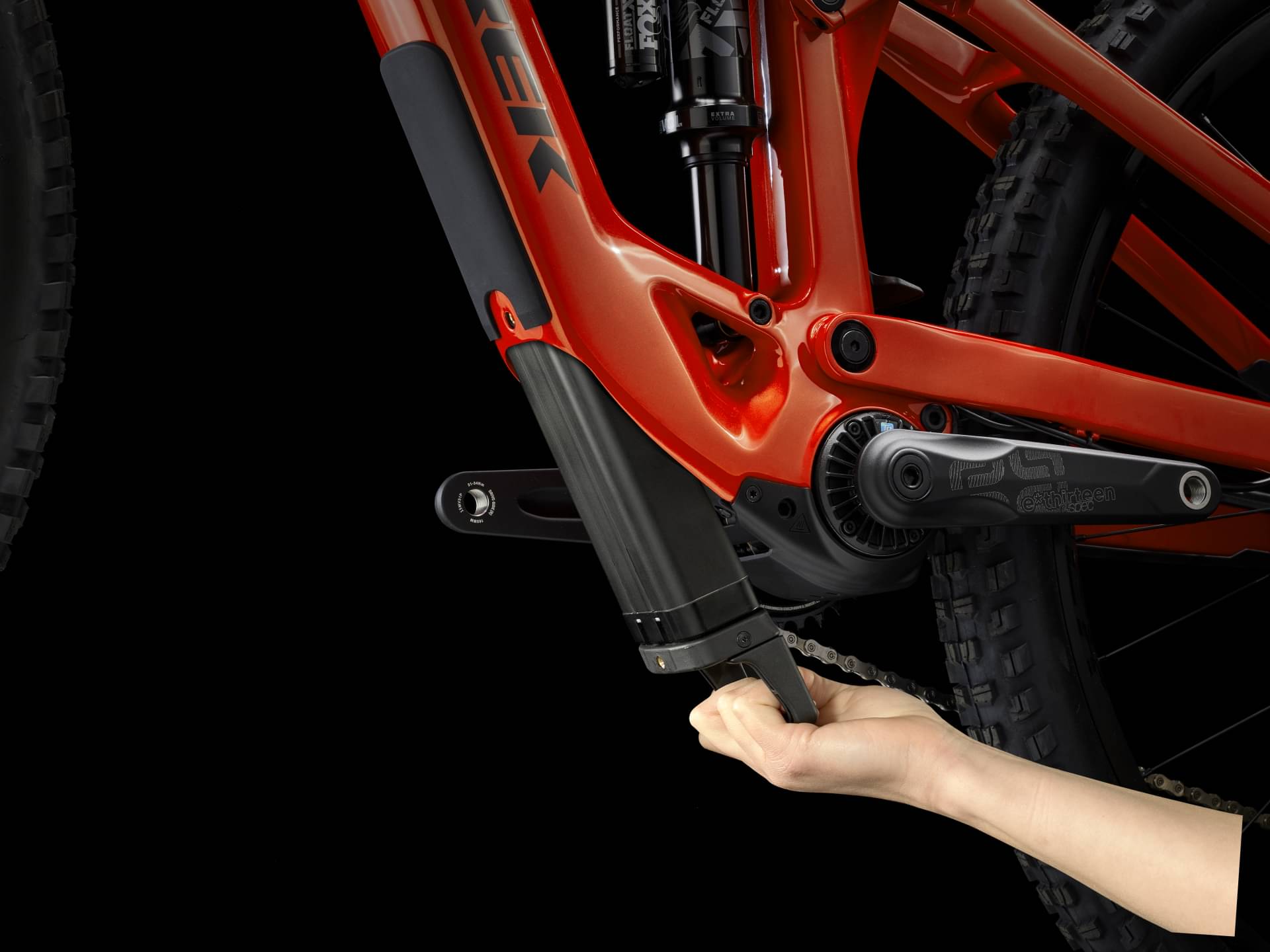

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Suspension Fork
Size: S, M, L, XL, Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel; Size: S, M, L, XL, RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

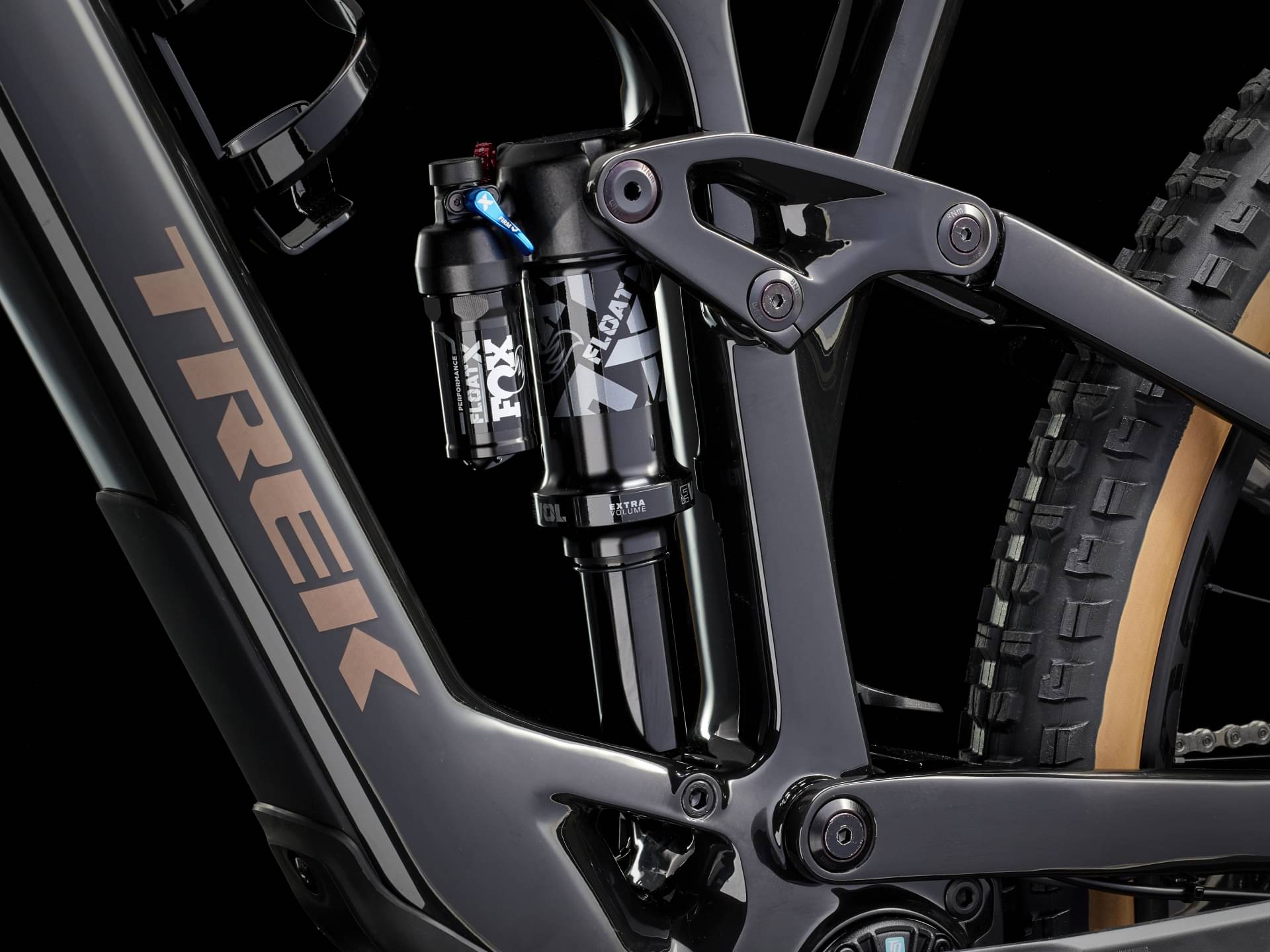

Rear Shock

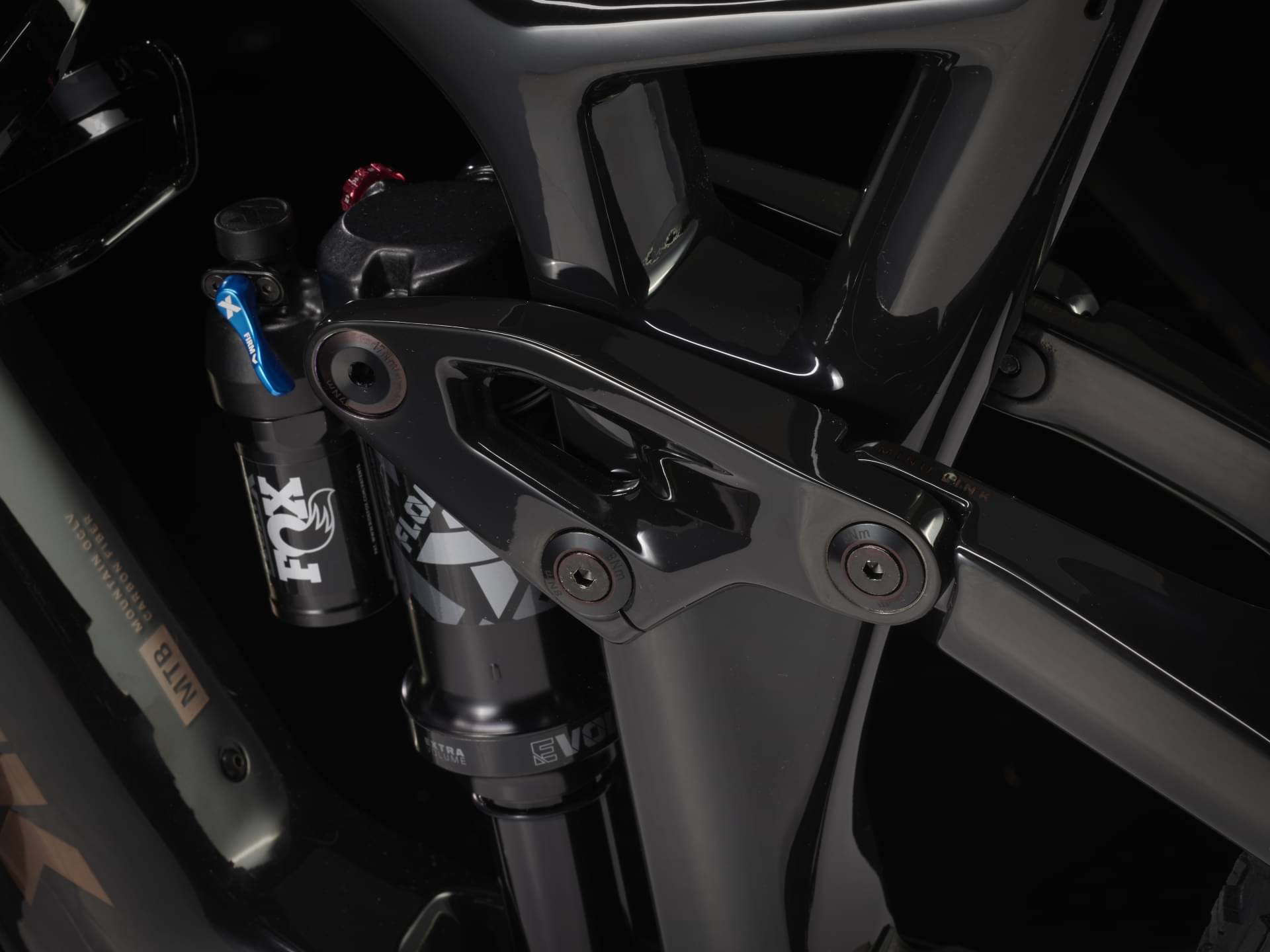

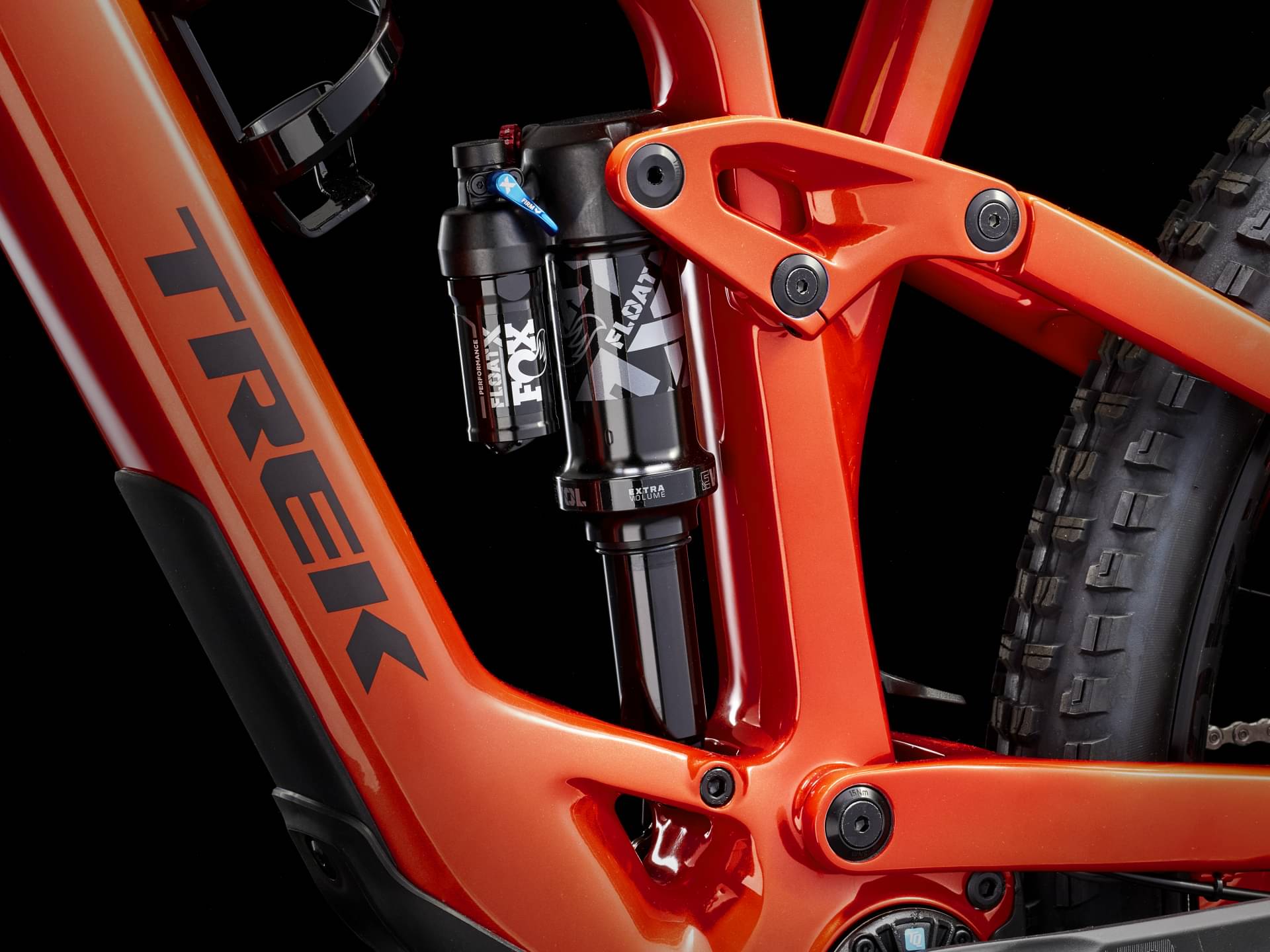

Size: S, M, L, XL, Fox Performance Float X, 2-position damper, 205 mm x 60 mm; Size: S, M, L, XL, RockShox Super Deluxe Select+ RT, 205mm x 60mm
Drivetrain
Rear Derailleur
Shimano XT M8100, long cage

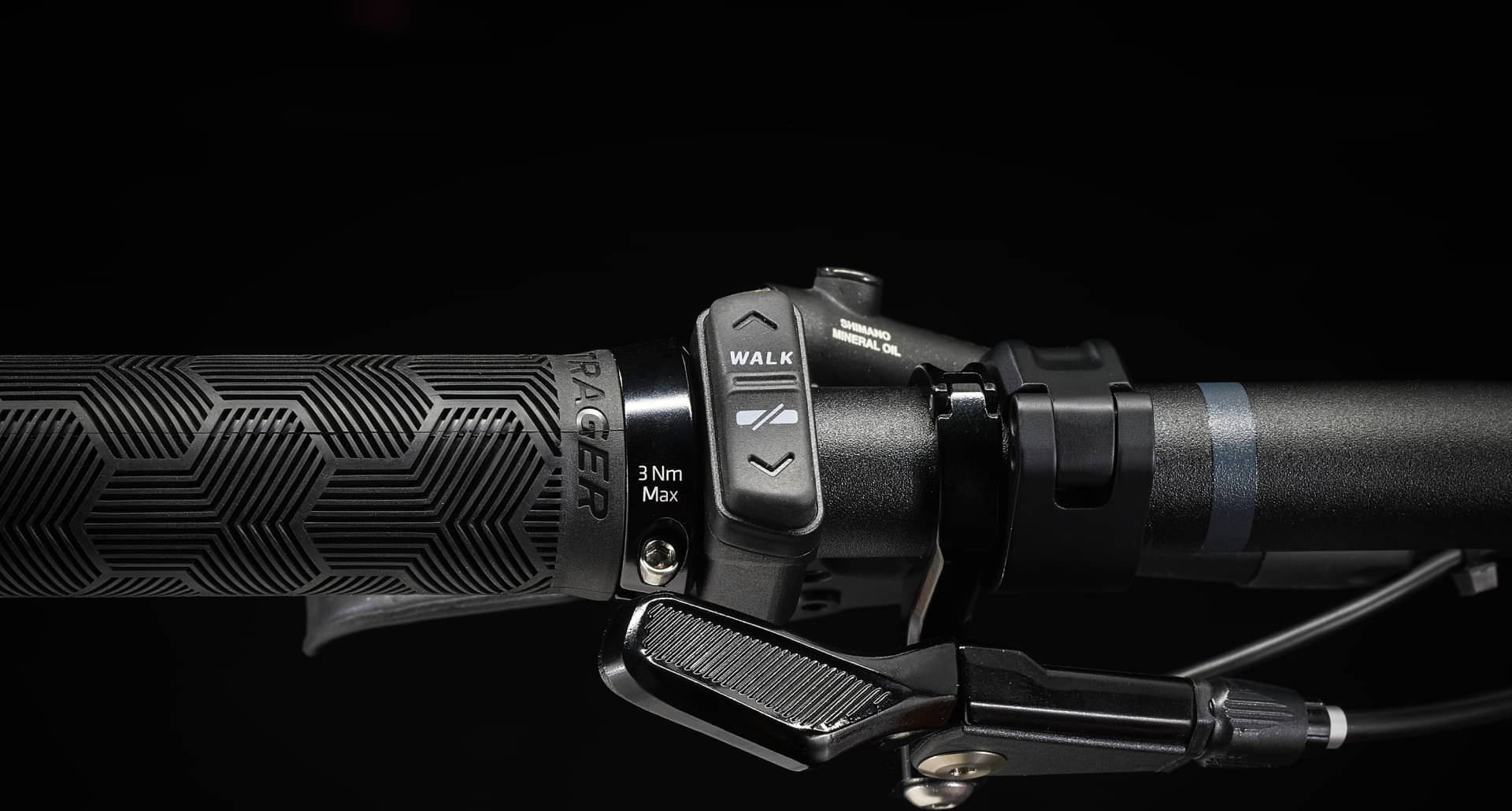

Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 10-51T, 12-speed
Crank

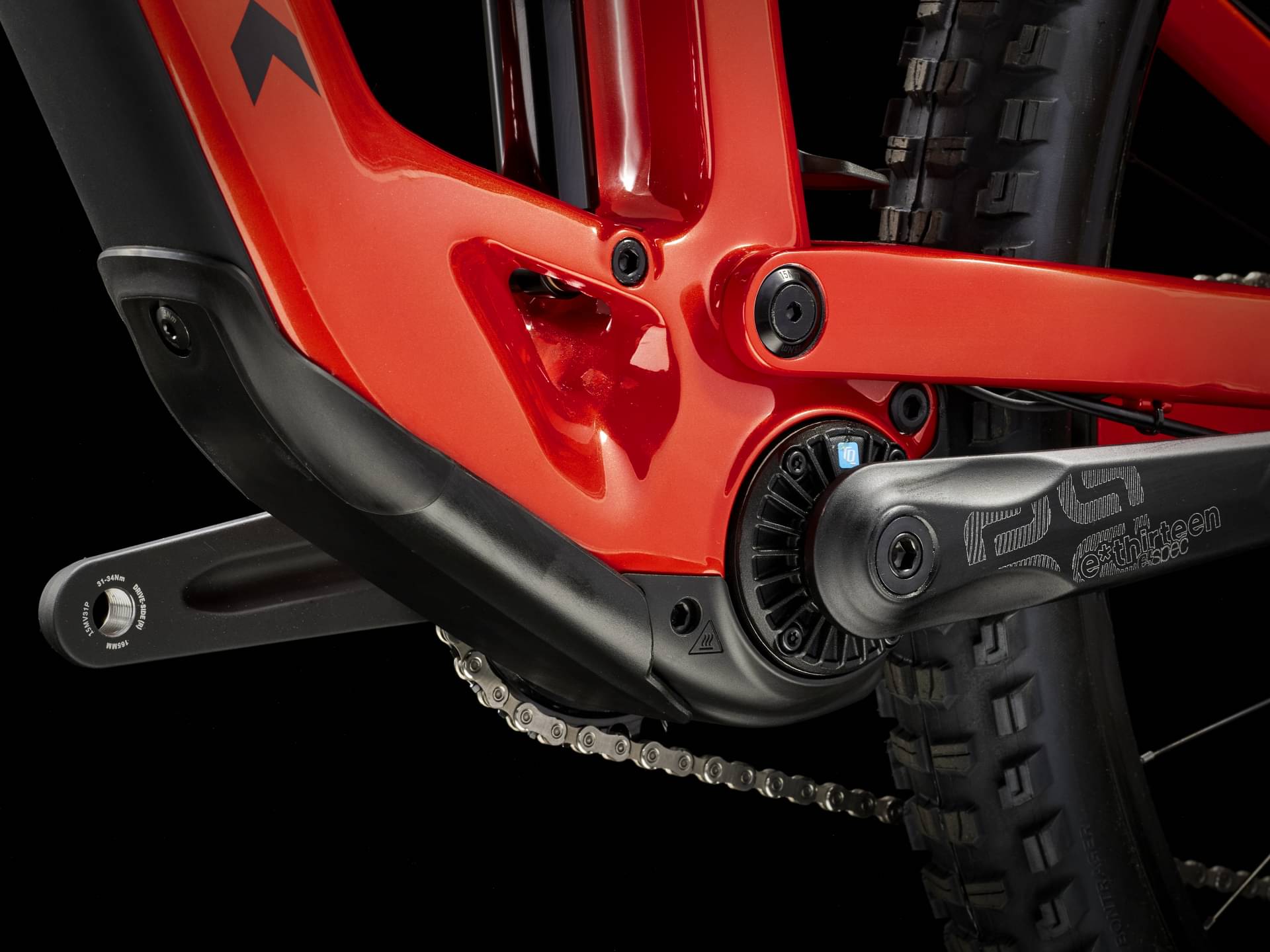

E*thirteen E*spec Plus, 165 mm length
Chain
Shimano SLX M7100, 12-speed
Wheels
Rims
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29", Rear: Size: S, M, L, XL, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"; Size: S, M, L, XL, Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
Tires
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Brakes
Brakes

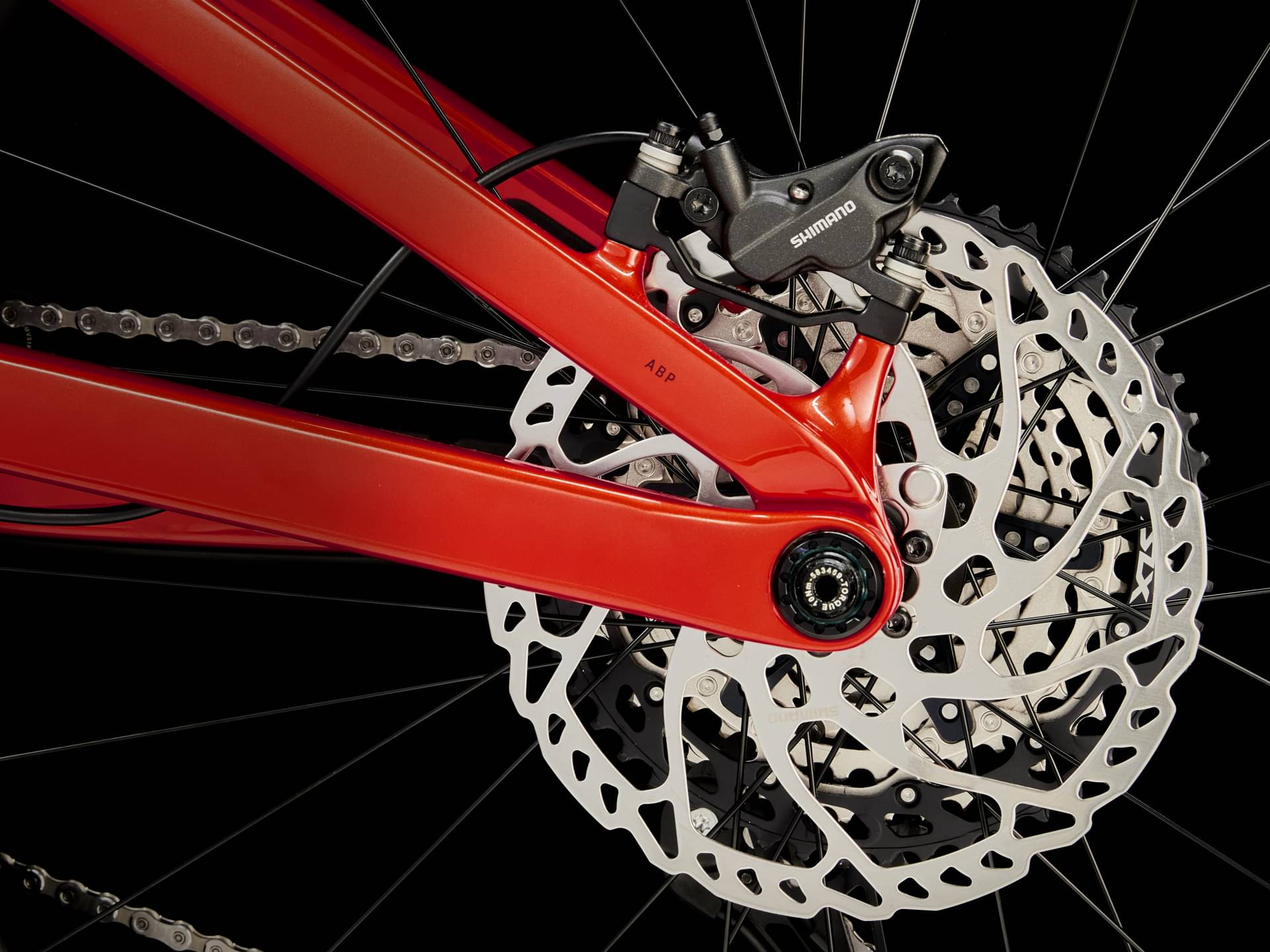

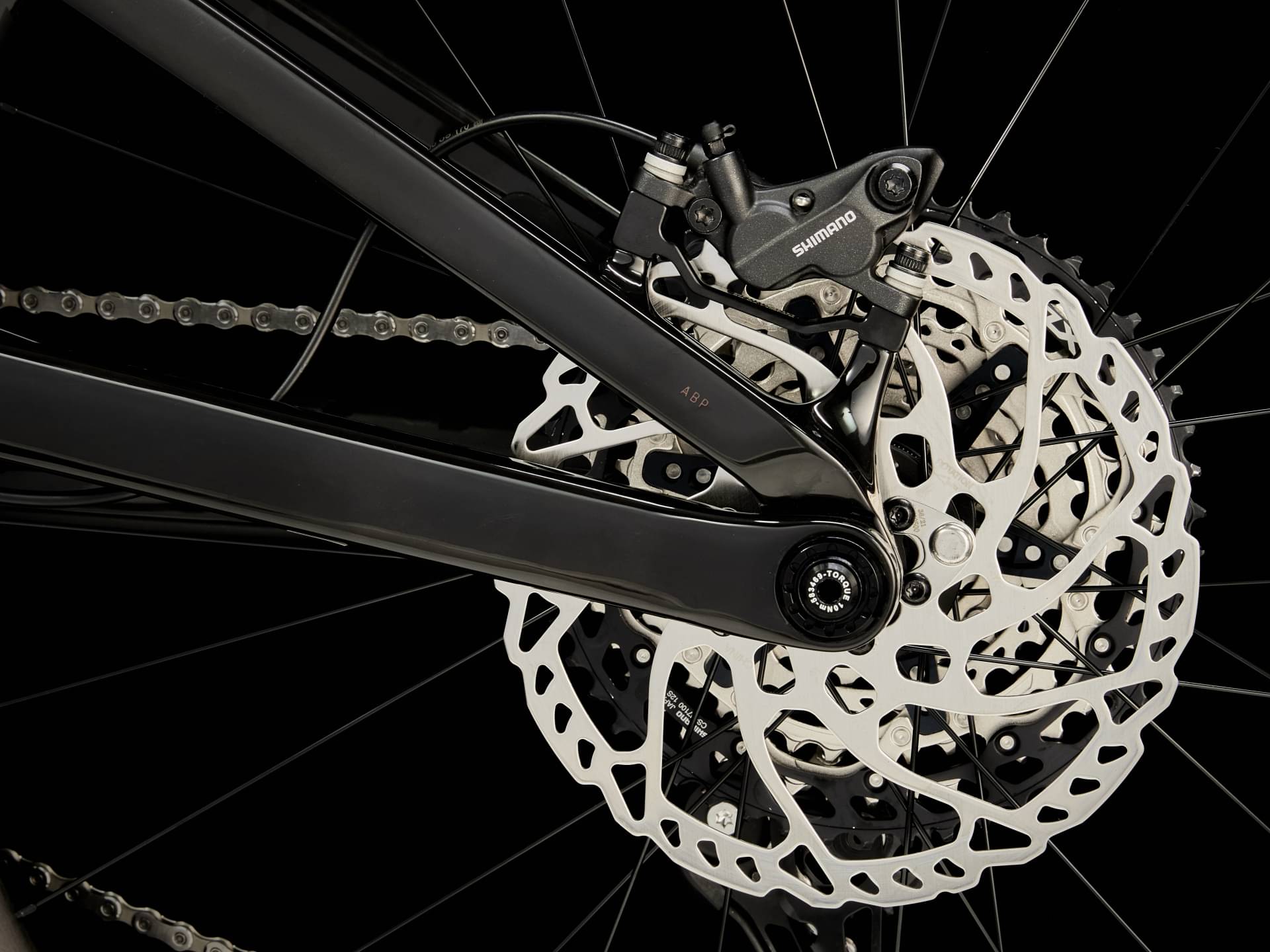

Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Cockpit

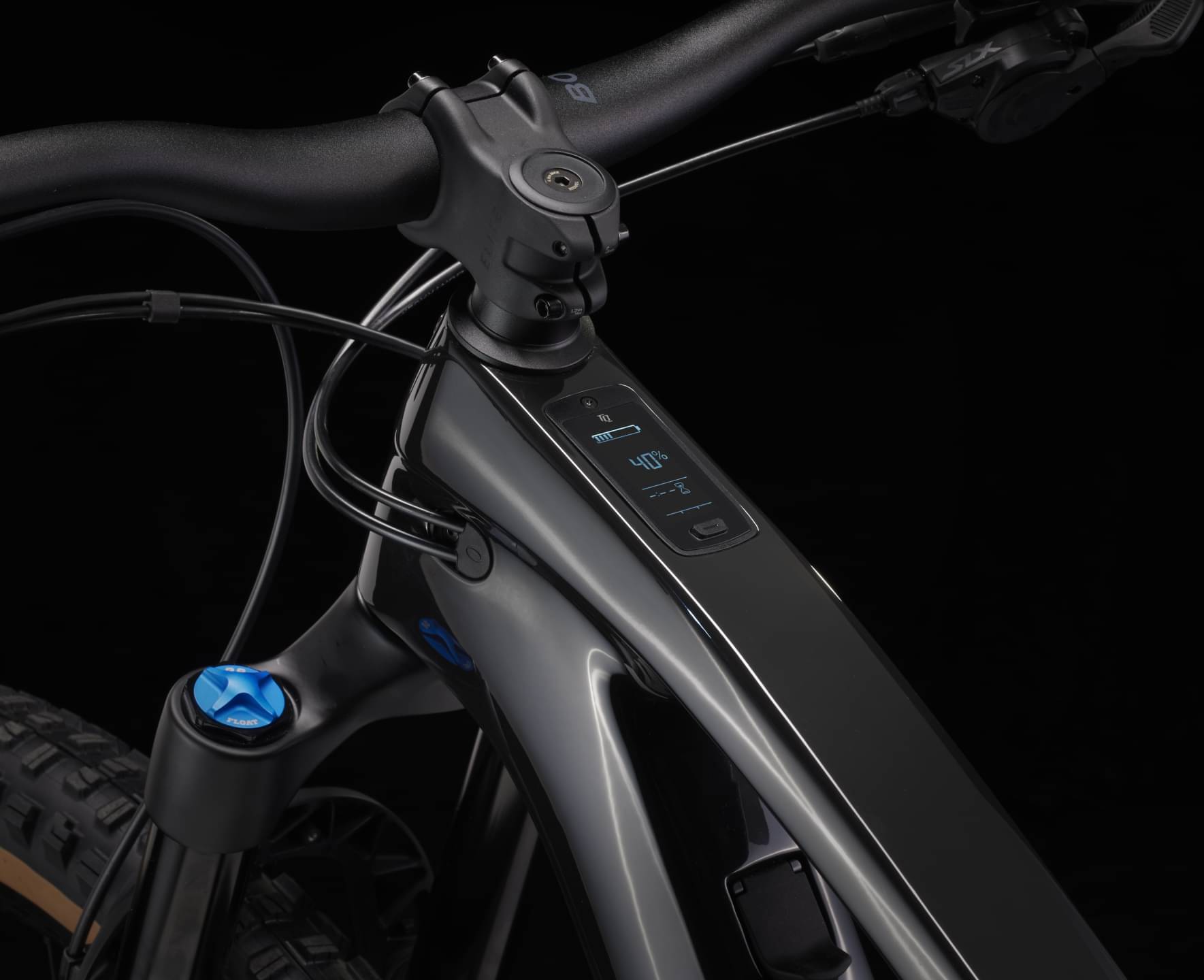

Stem
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Handlebar
Size: S, M, L, XL, Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width; Size: S, M, L, XL, Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Seat
Saddle
Size: S, M, L, XL, Bontrager Arvada, hollow chromoly rails, 138 mm width; Size: S, M, L, XL, Bontrager Verse P3, chromoly rails
Seatpost
Size: S, TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm; Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length; Size: M, TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm; Size: M, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length; Size: L, XL, TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm; Size: L, XL, Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Motor & Battery

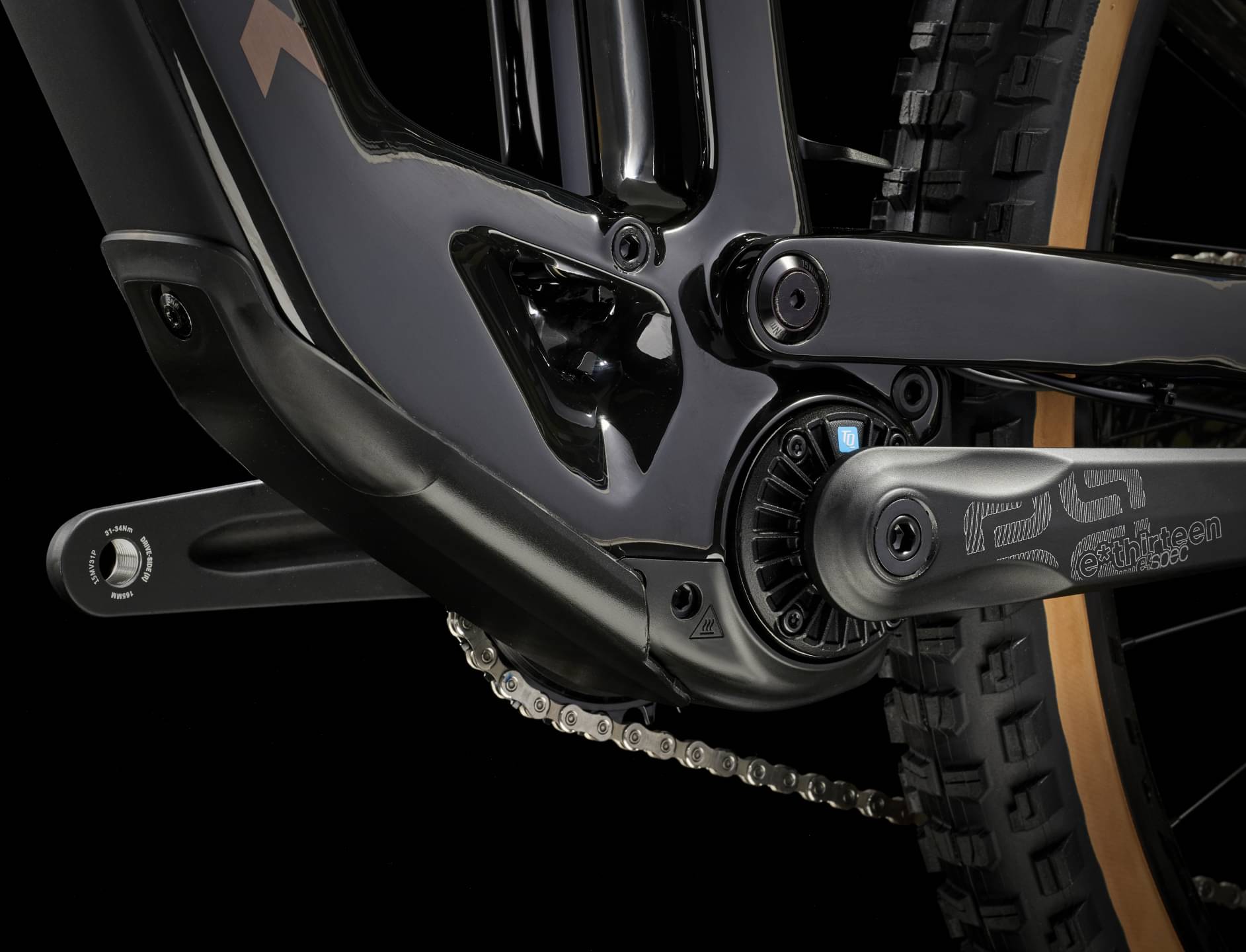

Motor
TQ 360Wh

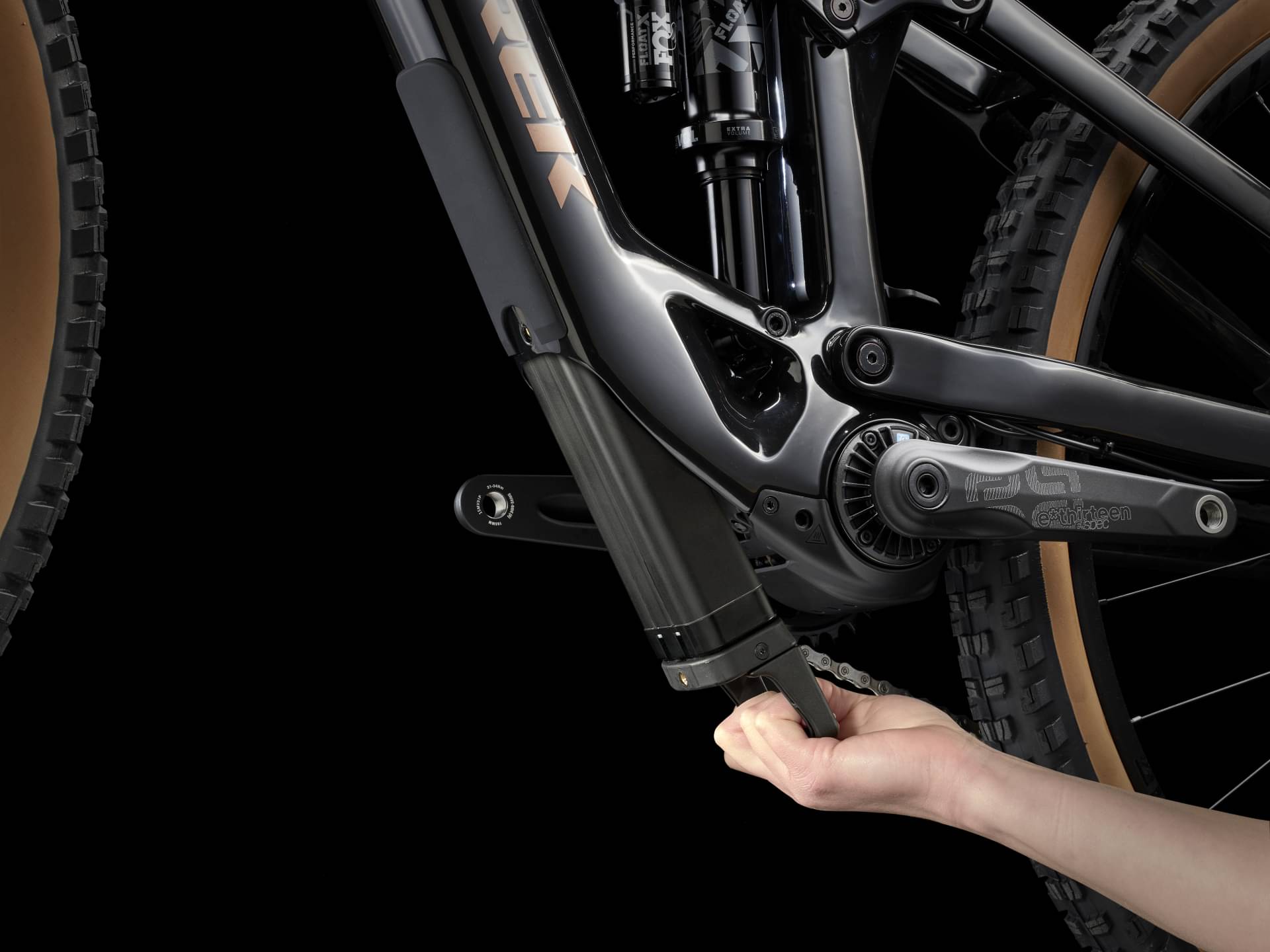

Battery
TQ 360Wh
Charger
TQ 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.449 mm | 1.362 mm | 1.389 mm | 1.278 mm | 1.302 mm | 1.233 mm | 1.256 mm |
| Bottom Bracket Height | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm |
| Front Center | 751 mm | 751 mm | 780 mm | 780 mm | 810 mm | 810 mm | 840 mm | 839 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm |
| Stack | 616 mm | 620 mm | 625 mm | 629 mm | 625 mm | 629 mm | 634 mm | 638 mm |
| Reach | 434 mm | 428 mm | 459 mm | 453 mm | 489 mm | 483 mm | 514 mm | 508 mm |
| Top Tube Length | 572 mm | 573 mm | 599 mm | 600 mm | 629 mm | 630 mm | 656 mm | 658 mm |
| Seat Tube Angle | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 438 mm | 440 mm | 438 mm | 440 mm | 438 mm | 440 mm | 438 mm | 440 mm |
| Wheelbase | 1187 mm | 1188 mm | 1216 mm | 1217 mm | 1246 mm | 1247 mm | 1276 mm | 1276 mm |
| Bottom Bracket Drop | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm |
| Standover Height | 732 mm | 726 mm | 733 mm | 727 mm | 739 mm | 733 mm | 759 mm | 753 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
