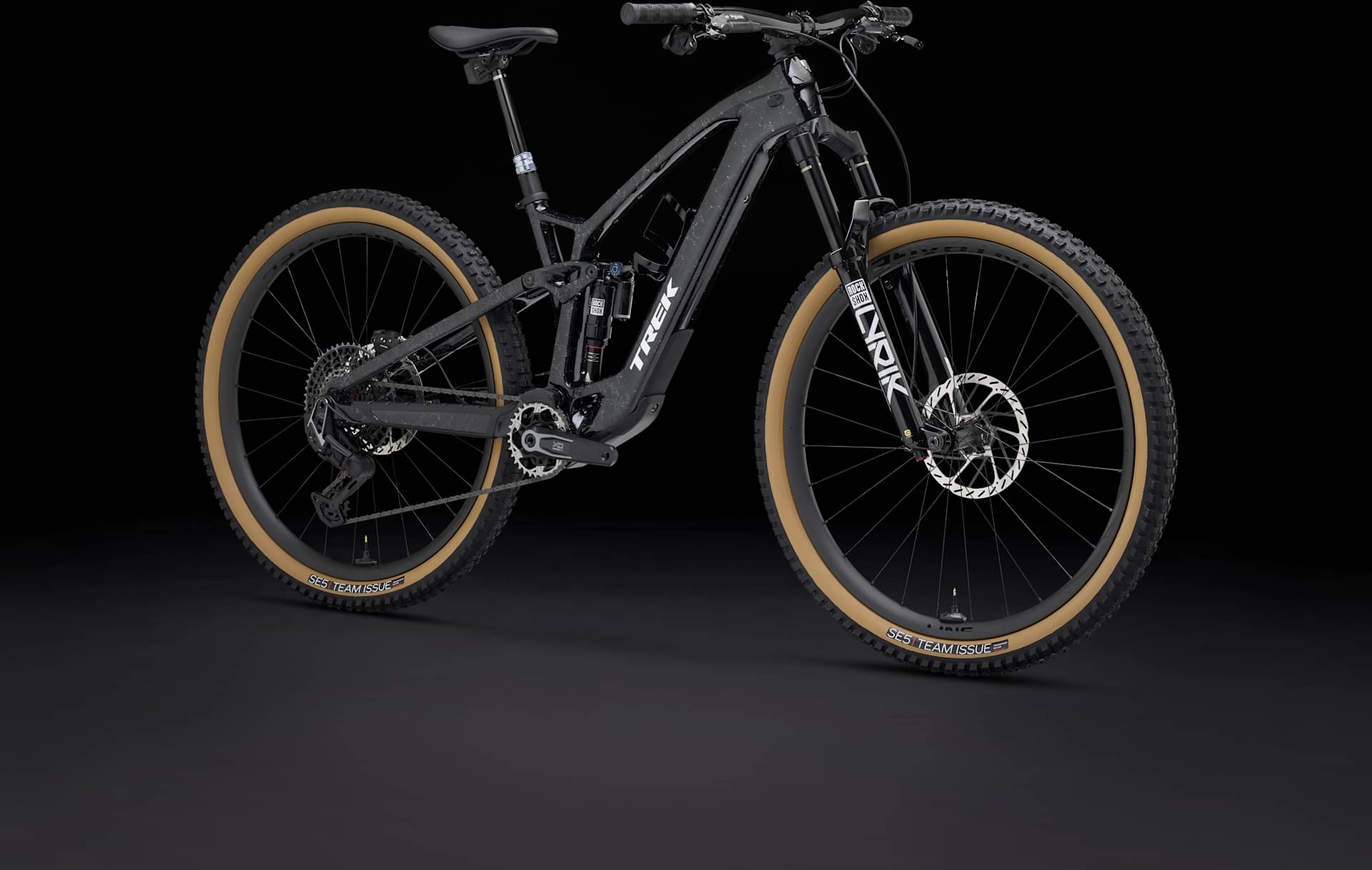

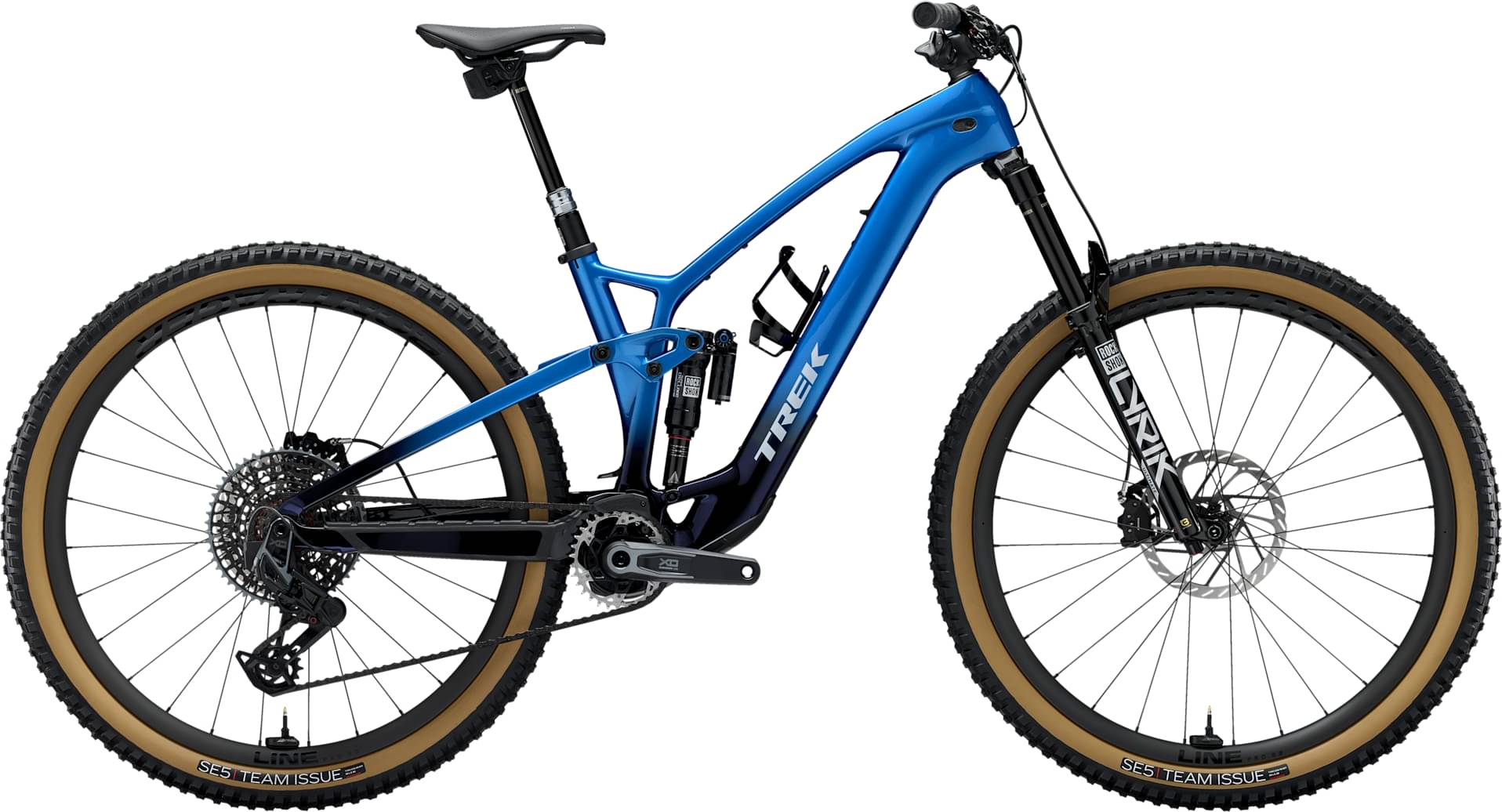

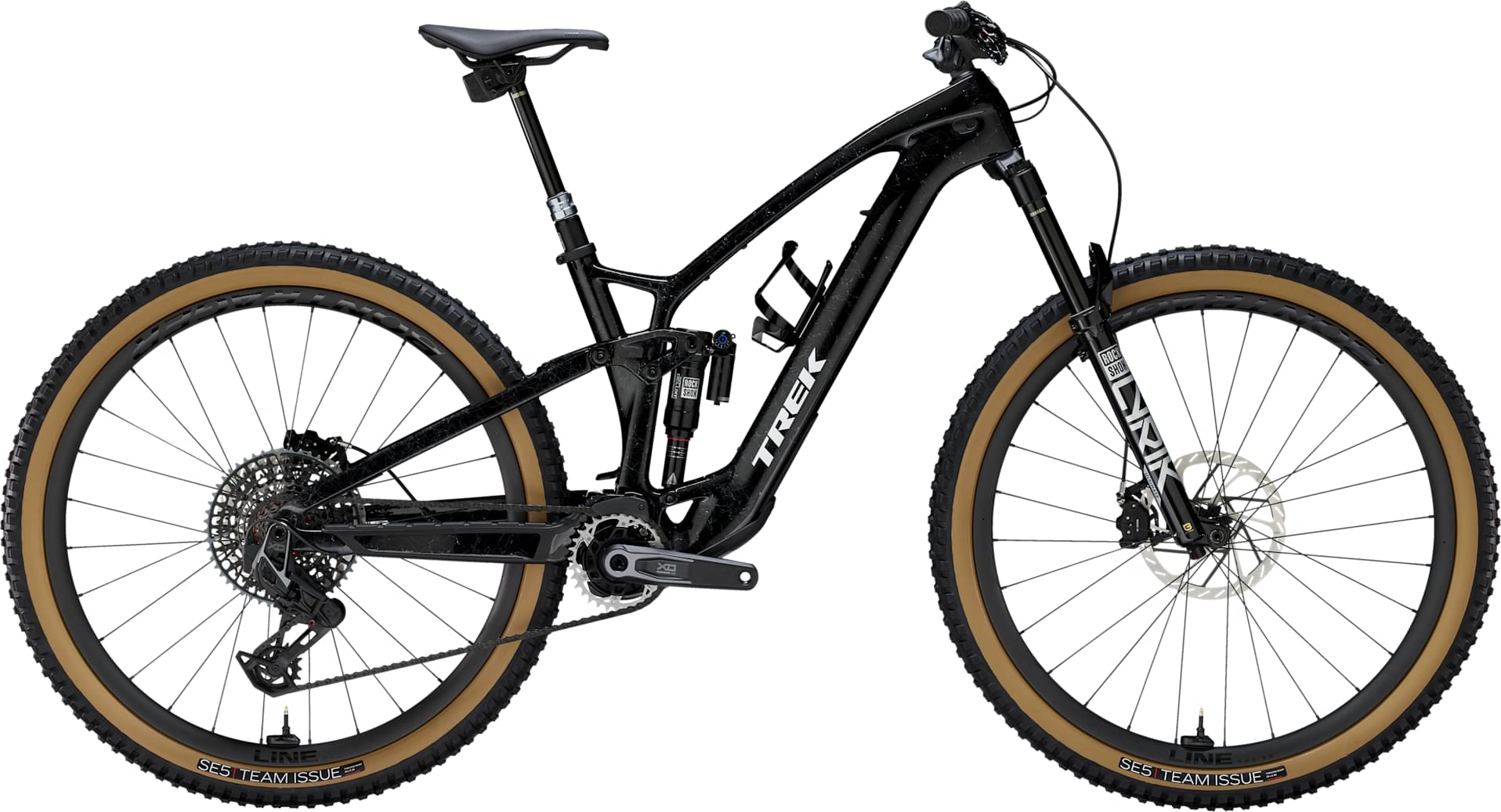

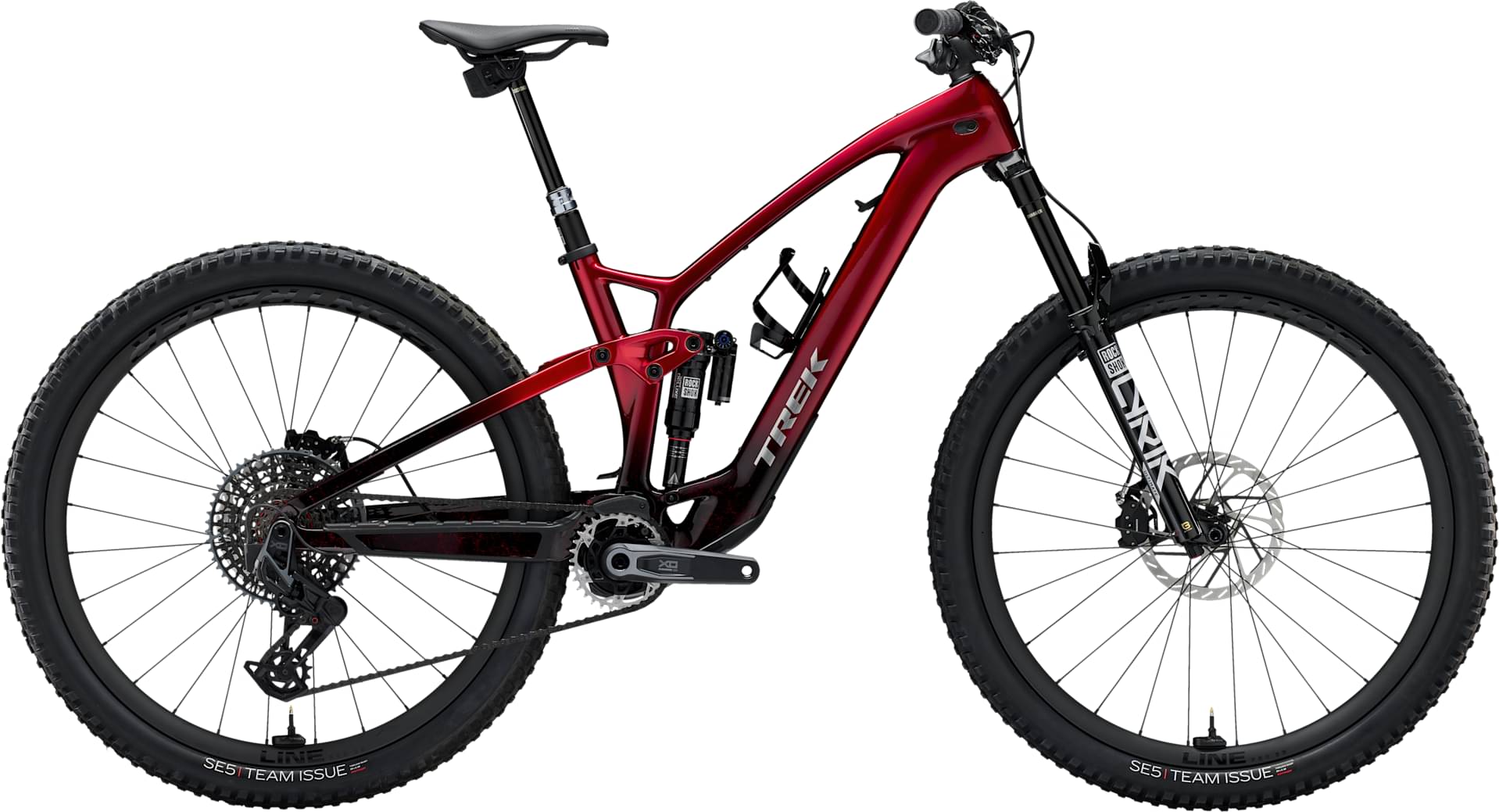

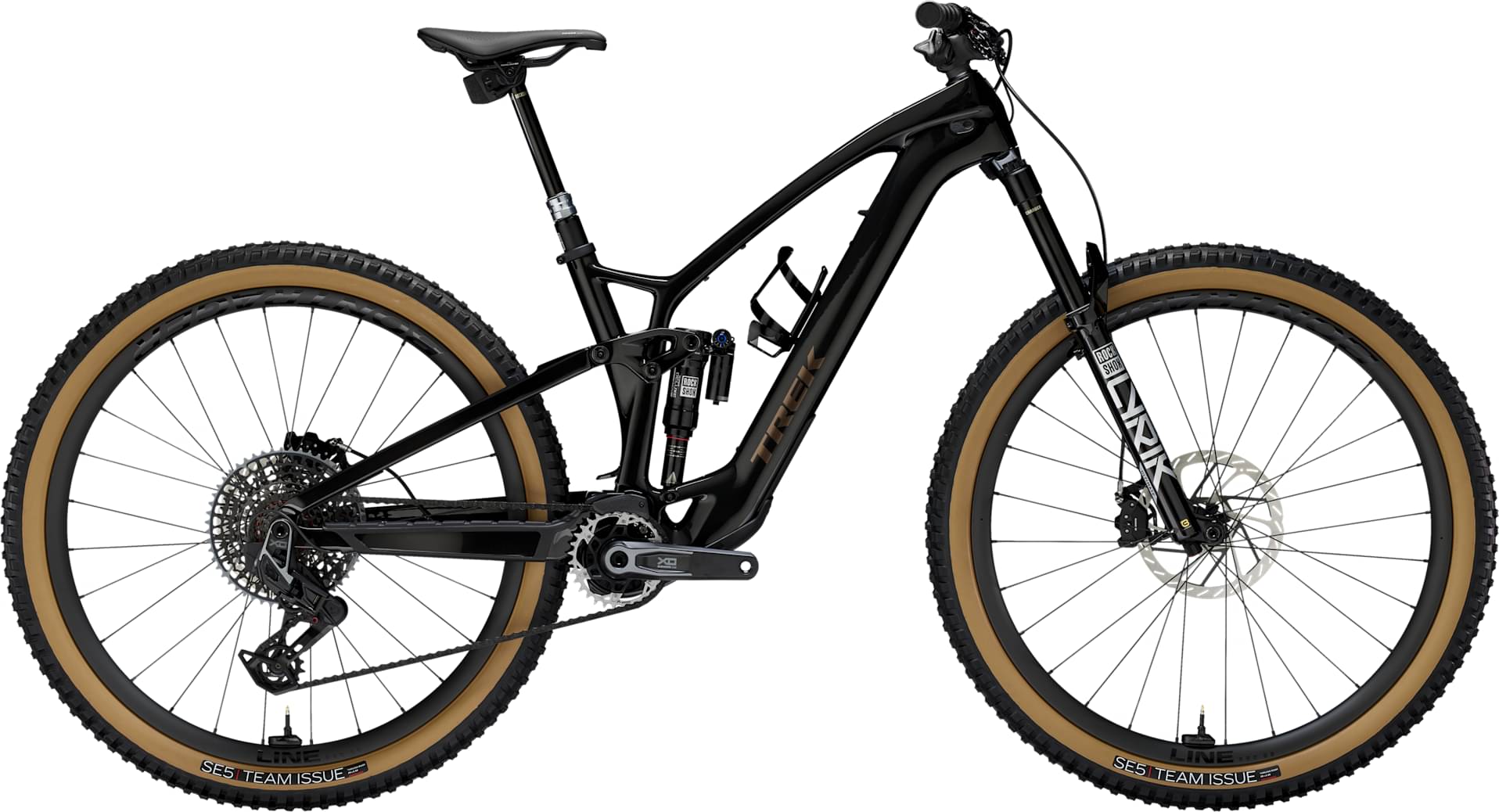

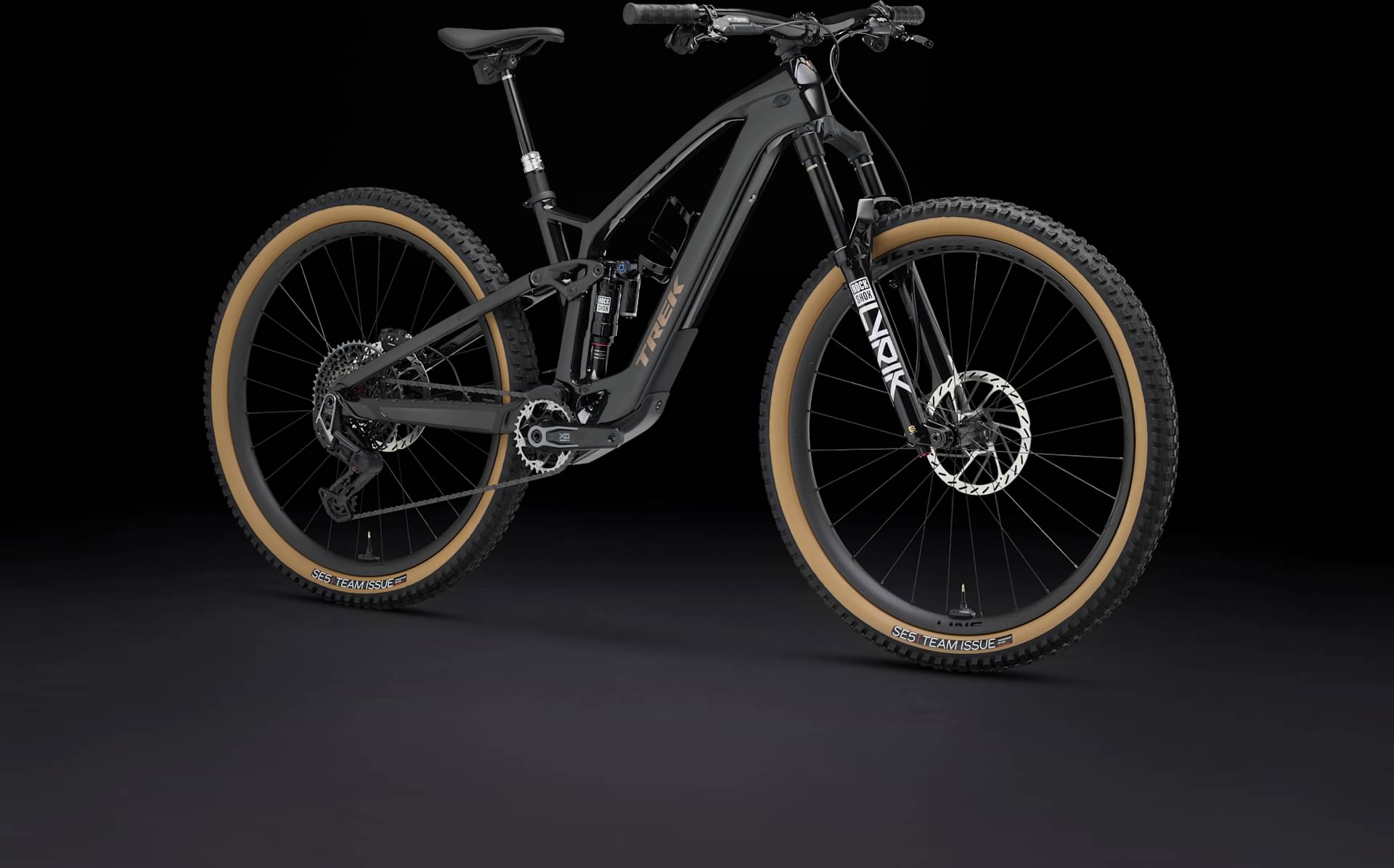

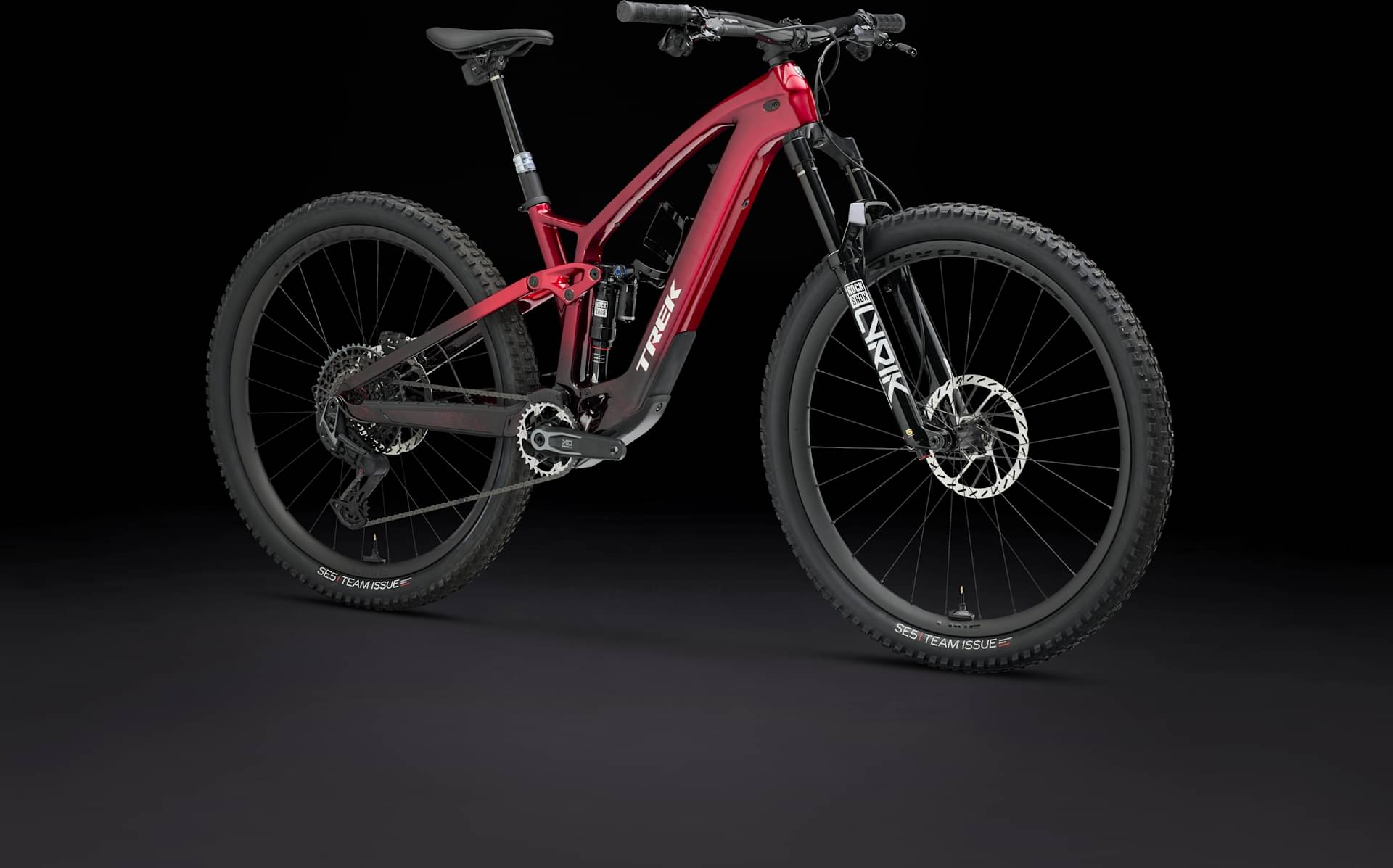

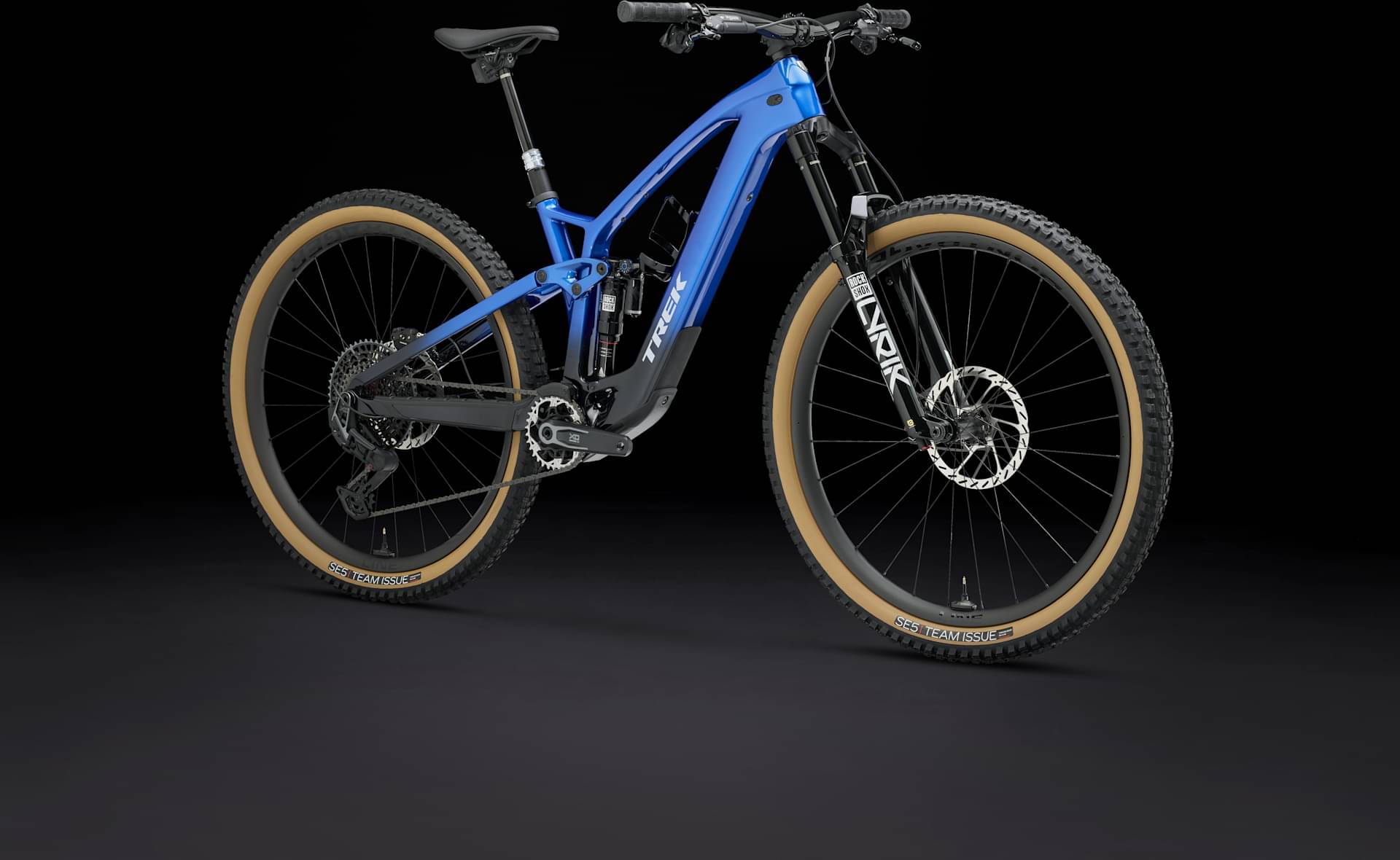

Trek Fuel EXe 9.9 X0 AXS T-Type 2025
2025 E-bike
Estimate price |
12,796$
Weight | 18.93 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0, X0 Eagle Transmission -
Suspension Full -
Motor TQ 250W 50Nm mid-drive -
Battery Size: S, M, L, XL, TQ 360Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Suspension Fork
RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

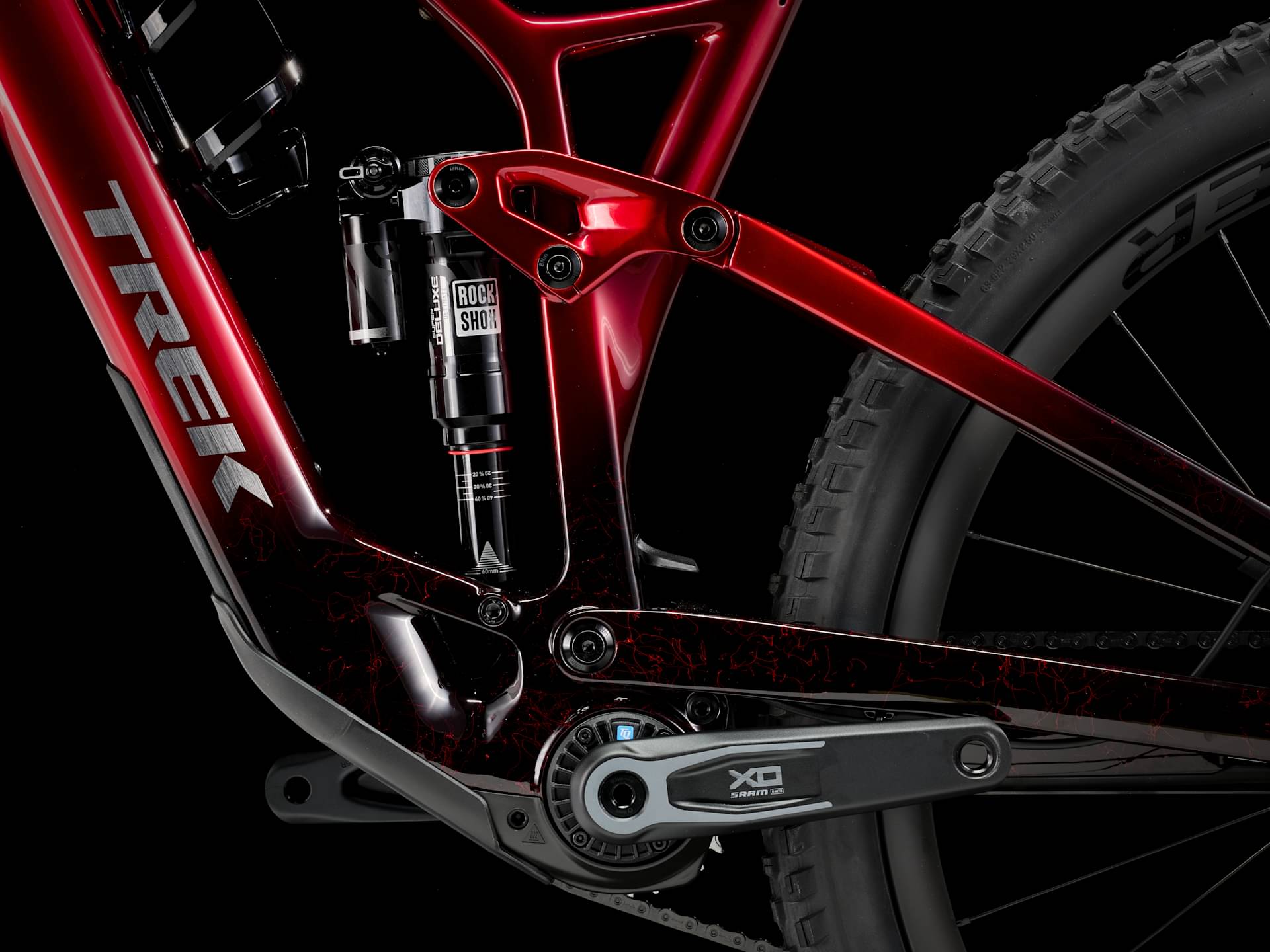

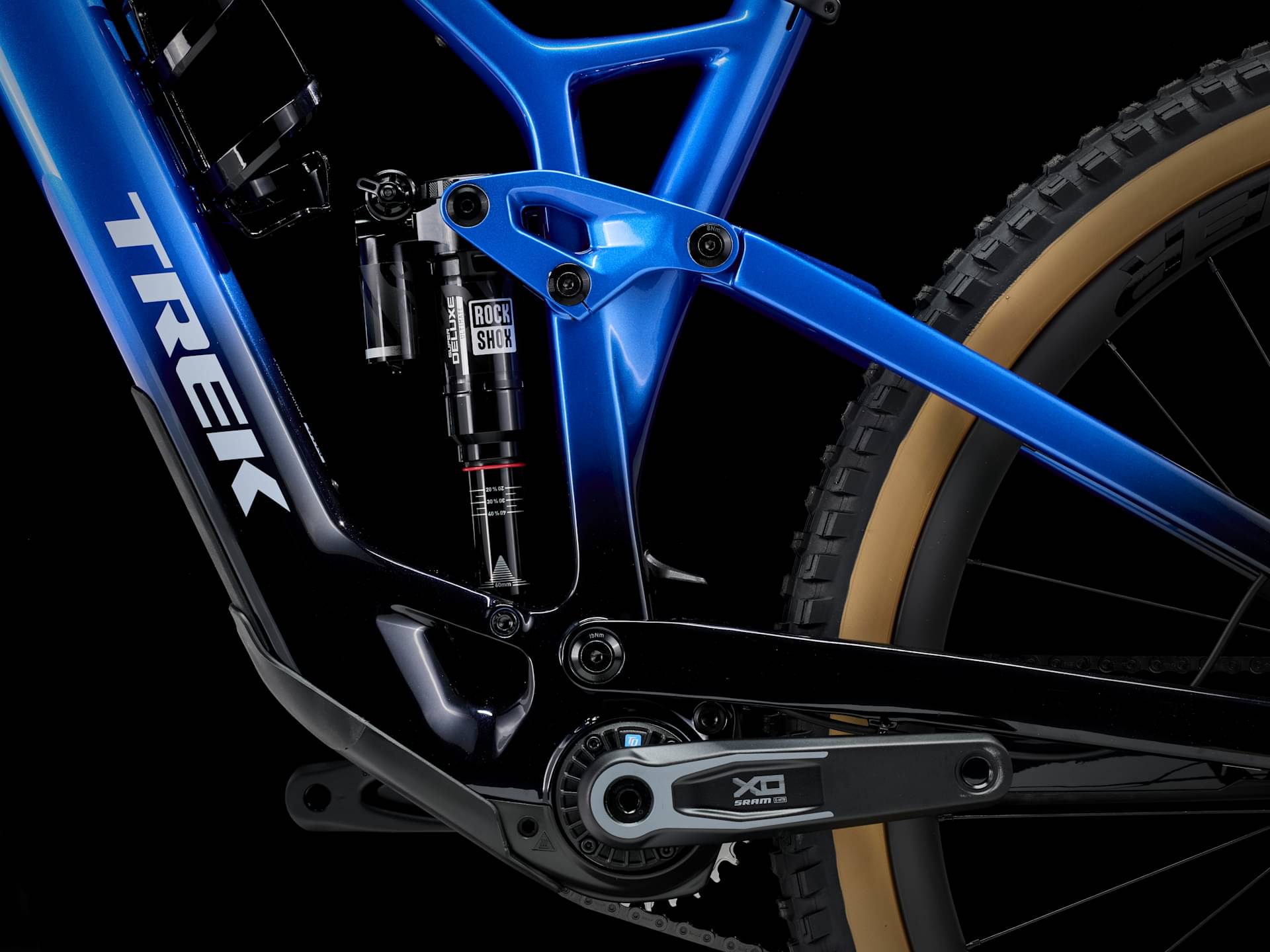

Rear Shock
RockShox Super Deluxe Ultimate RC2T, 205x60mm

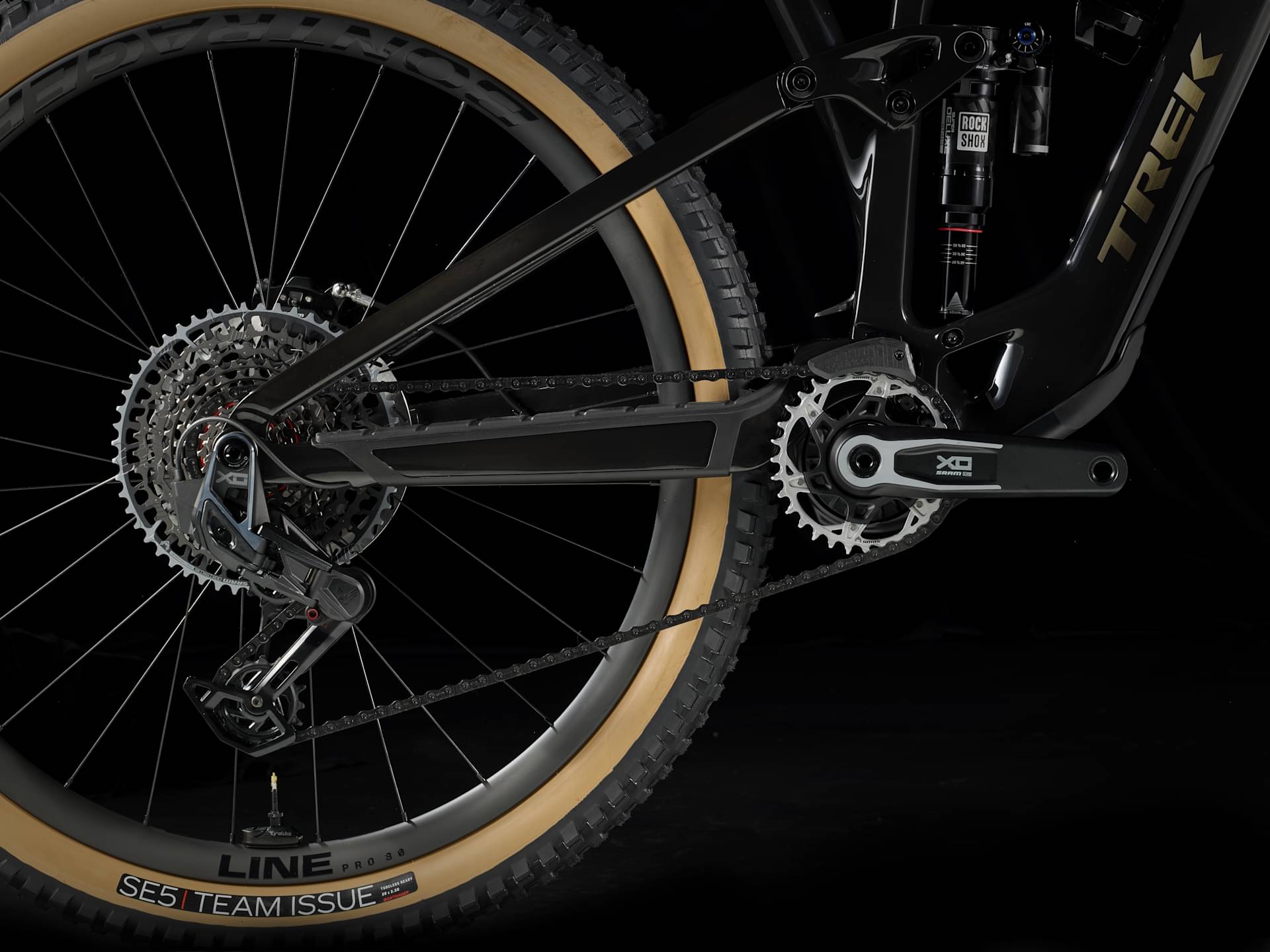

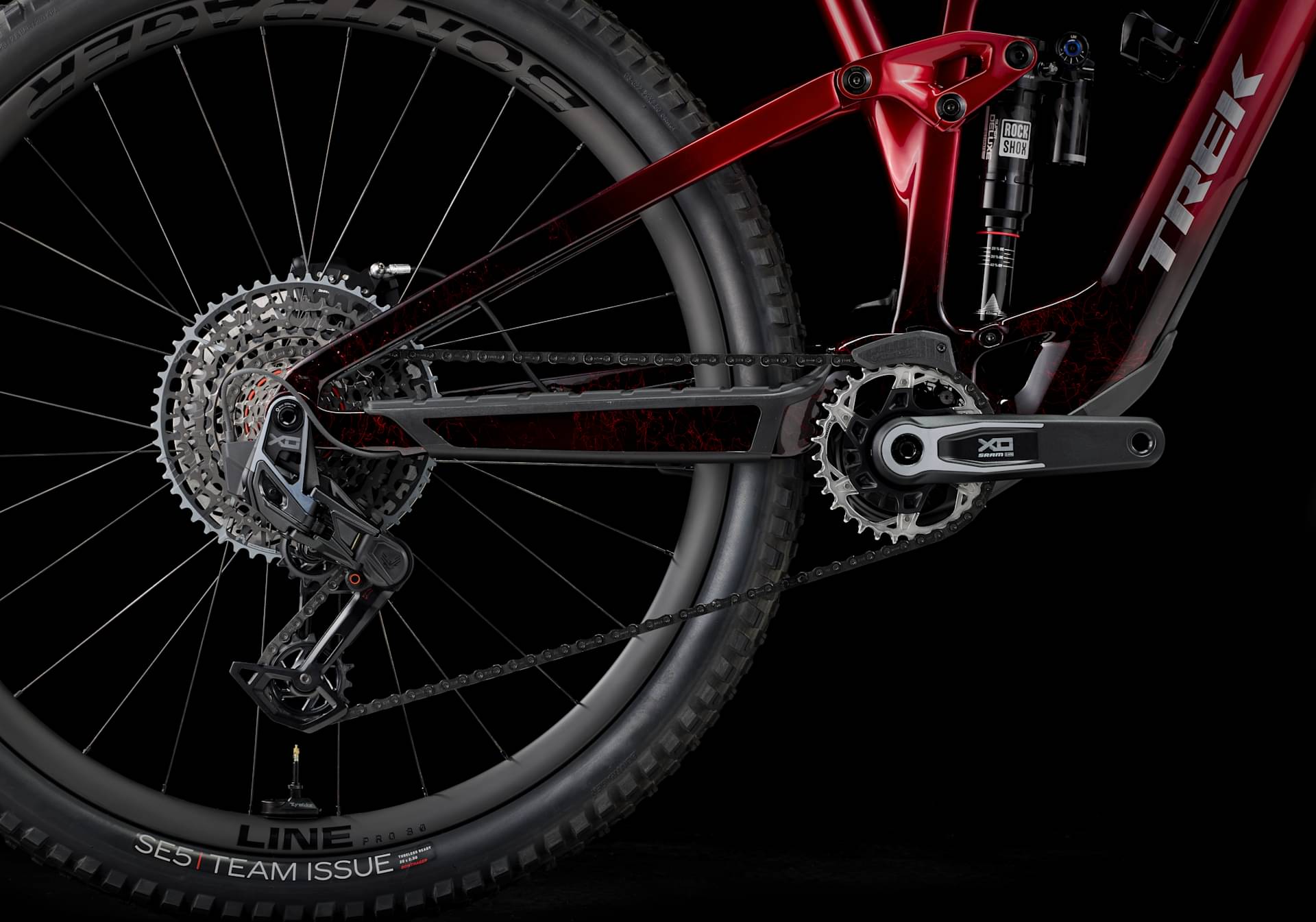

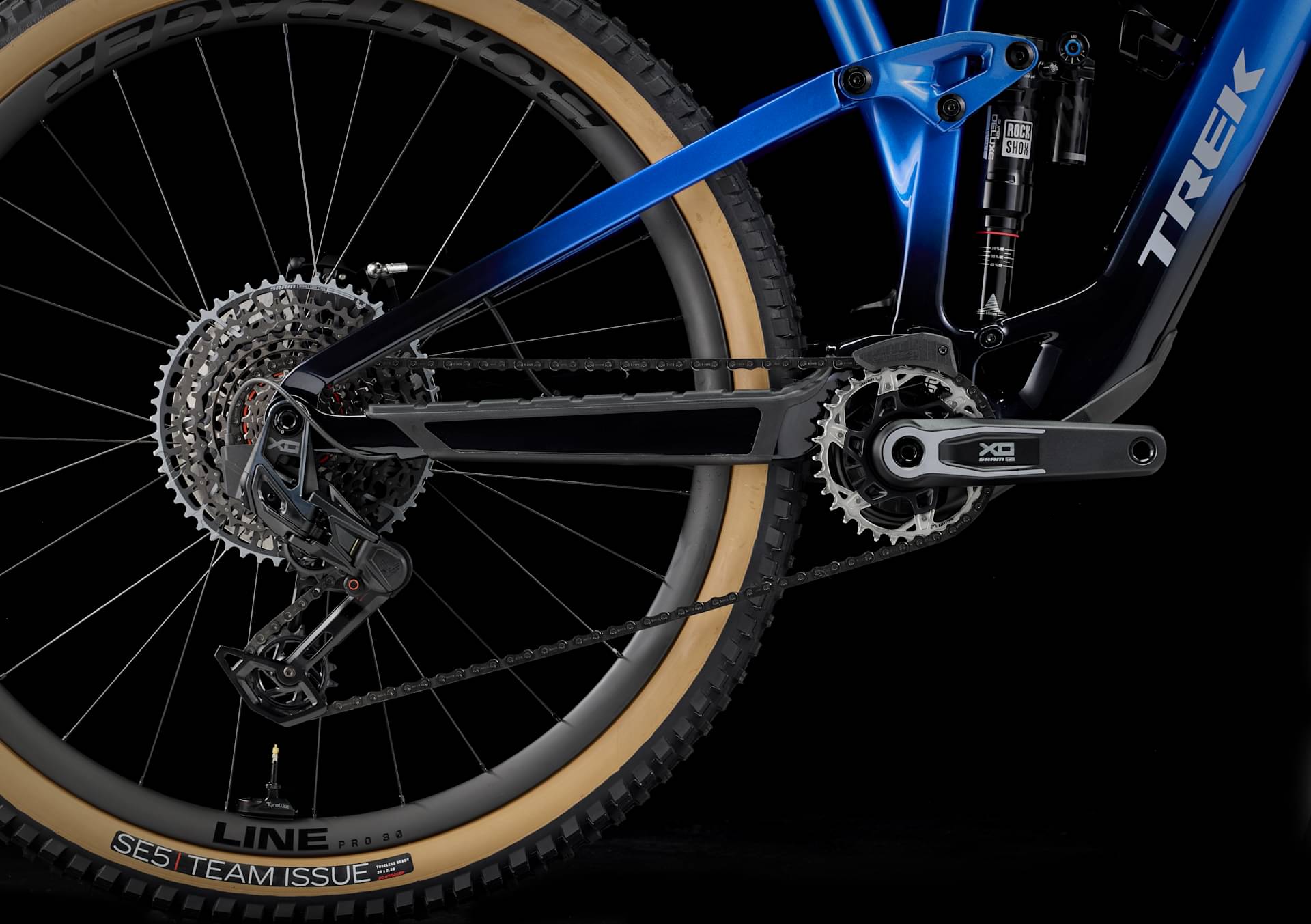

Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS, T-Type
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Crank
SRAM X0 Eagle,165mm length
Chain
SRAM X0 Eagle, T-Type, 12 speed
Wheels
Rims
Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''
Tires
Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50''; Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes
Brakes
SRAM Maven Silver 4-piston hydraulic disc

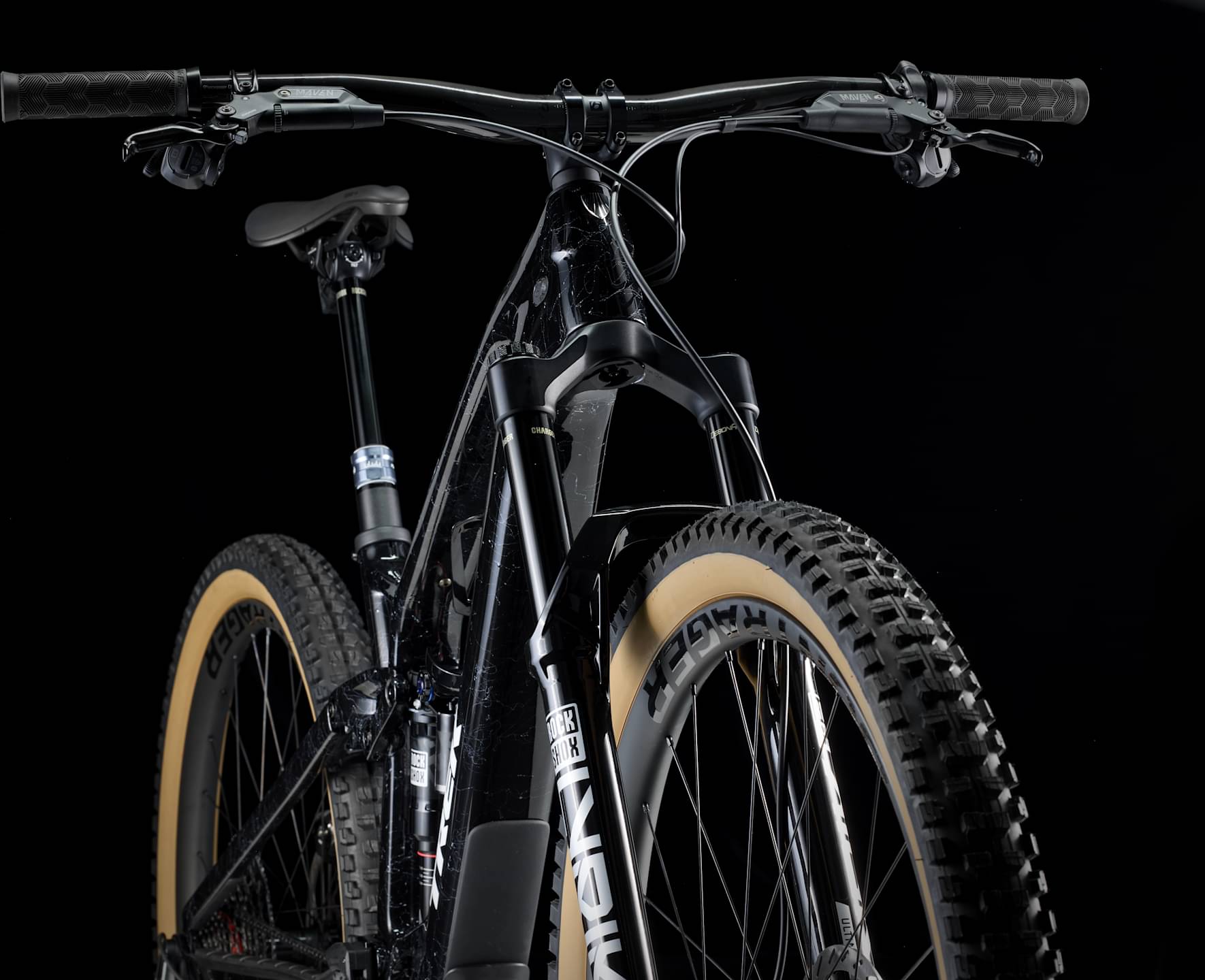

Cockpit
Stem
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Seat
Saddle
Verse Short Pro, carbon rails, 145mm width
Seatpost
Size: S, RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length; Size: M, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Motor & Battery
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
Size: S, M, L, XL, TQ 360Wh
Charger
TQ 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.449 mm | 1.362 mm | 1.389 mm | 1.278 mm | 1.302 mm | 1.233 mm | 1.256 mm |
| Bottom Bracket Height | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm | 341 mm | 334 mm |
| Front Center | 751 mm | 751 mm | 780 mm | 780 mm | 810 mm | 810 mm | 840 mm | 839 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm | 124 mm | 127 mm |
| Stack | 616 mm | 620 mm | 625 mm | 629 mm | 625 mm | 629 mm | 634 mm | 638 mm |
| Reach | 434 mm | 428 mm | 459 mm | 453 mm | 489 mm | 483 mm | 514 mm | 508 mm |
| Top Tube Length | 572 mm | 573 mm | 599 mm | 600 mm | 629 mm | 630 mm | 656 mm | 658 mm |
| Seat Tube Angle | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° | 77.3 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° | 65.3 ° | 64.8 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 438 mm | 440 mm | 438 mm | 440 mm | 438 mm | 440 mm | 438 mm | 440 mm |
| Wheelbase | 1187 mm | 1188 mm | 1216 mm | 1217 mm | 1246 mm | 1247 mm | 1276 mm | 1276 mm |
| Bottom Bracket Drop | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm |
| Standover Height | 732 mm | 726 mm | 733 mm | 727 mm | 739 mm | 733 mm | 759 mm | 753 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
