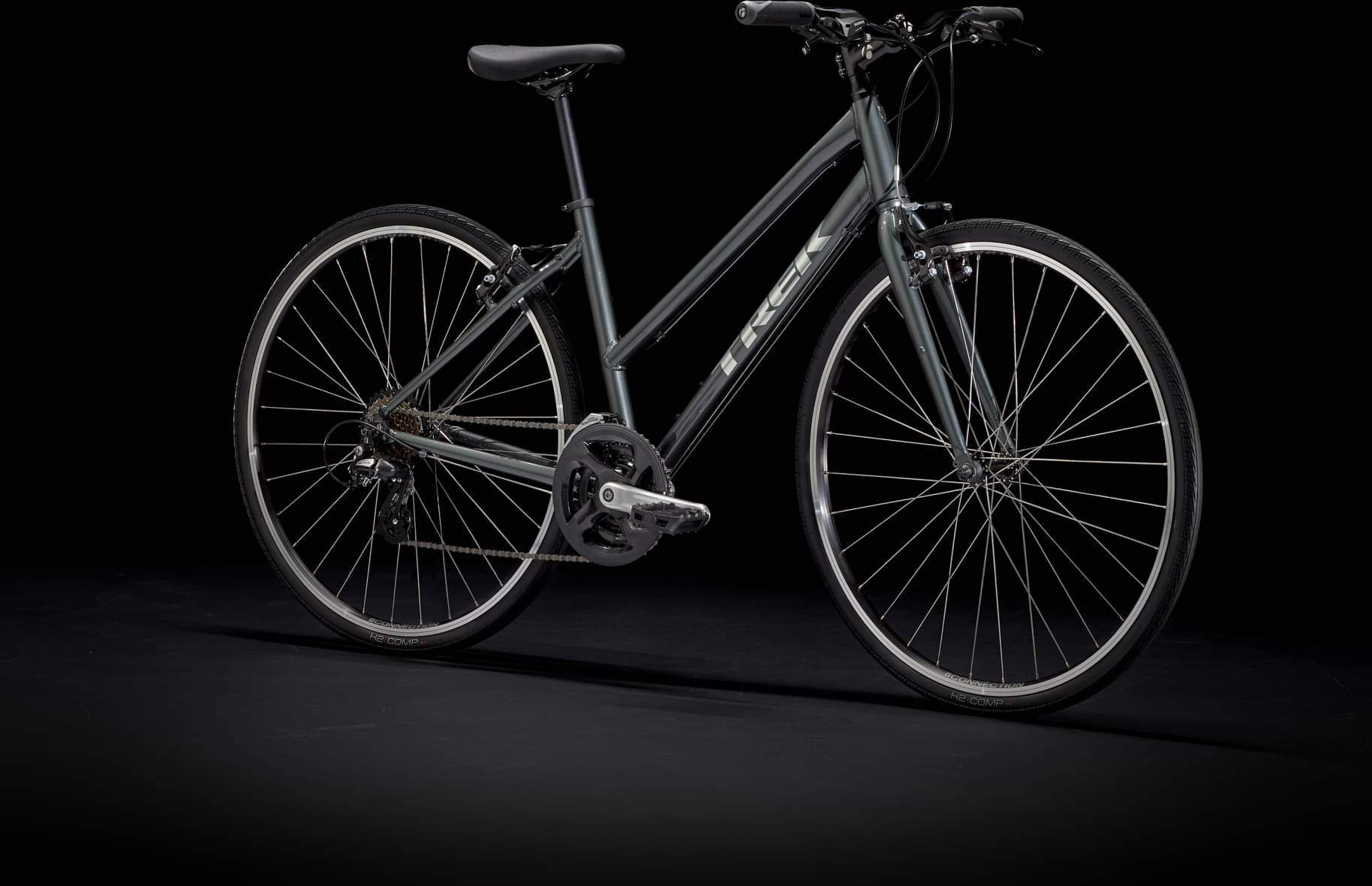

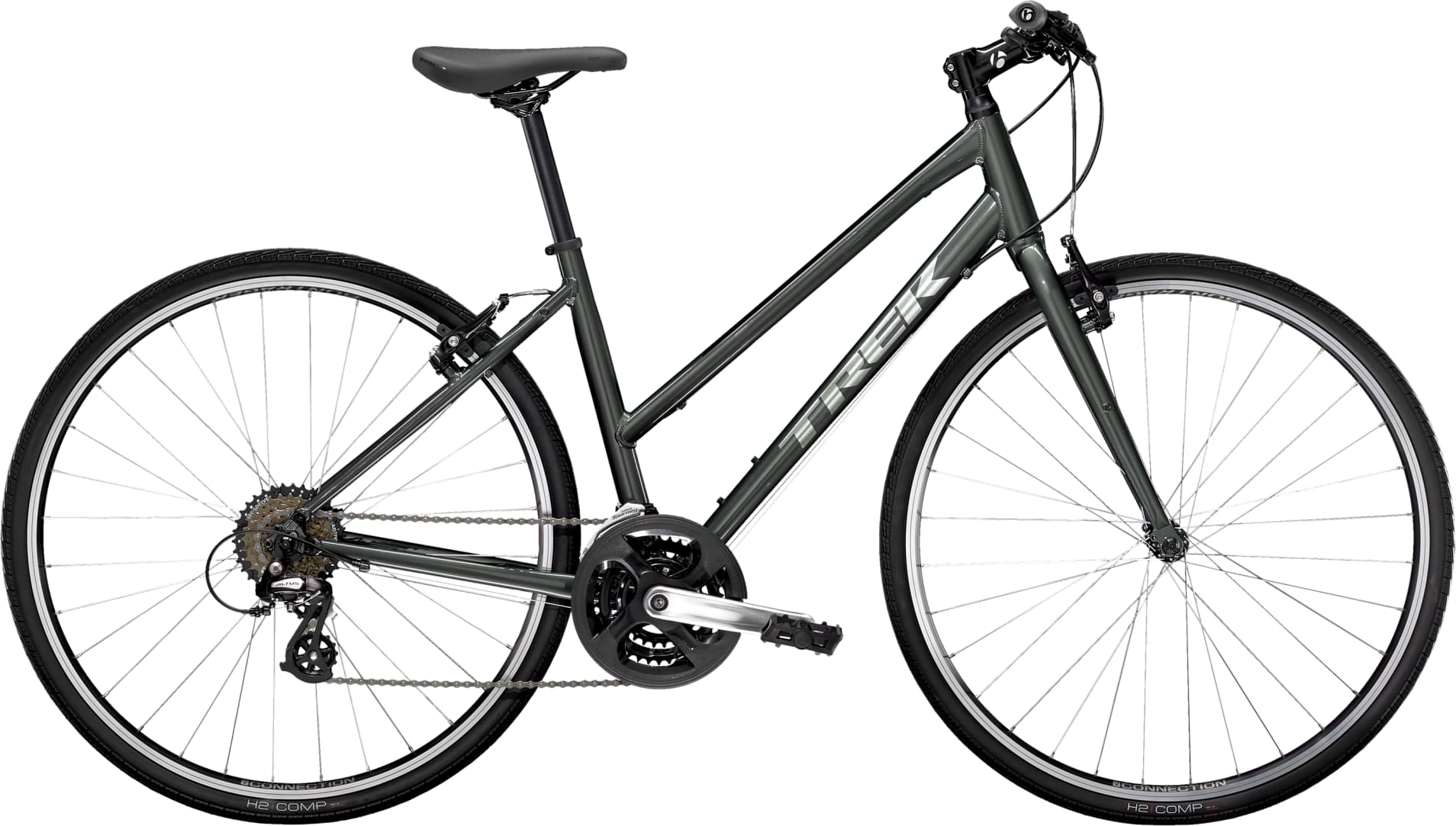

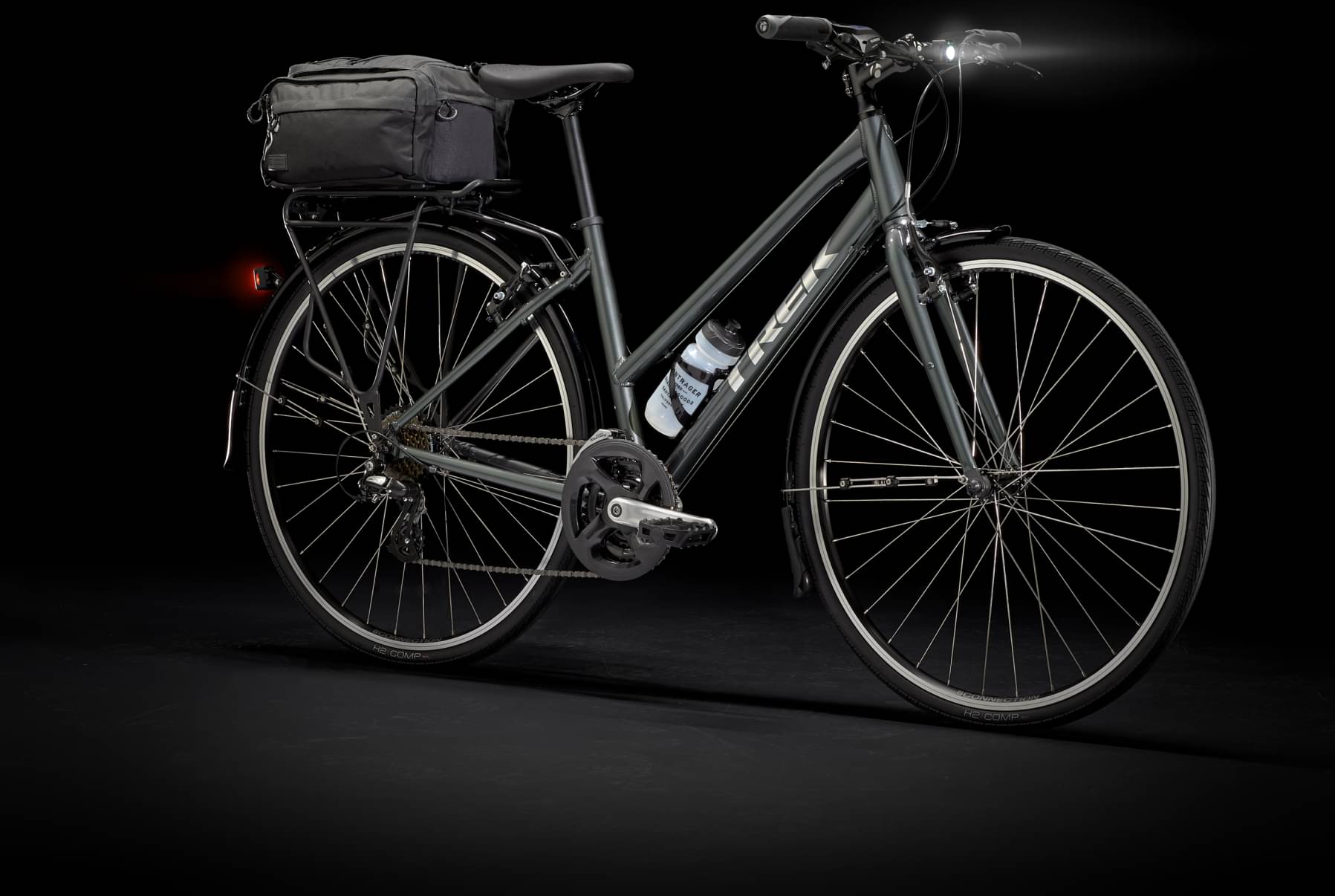

Trek FX 1 Stagger Gen 4 2024
2024 Urban
Estimate price |
630$
Weight | 12.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components

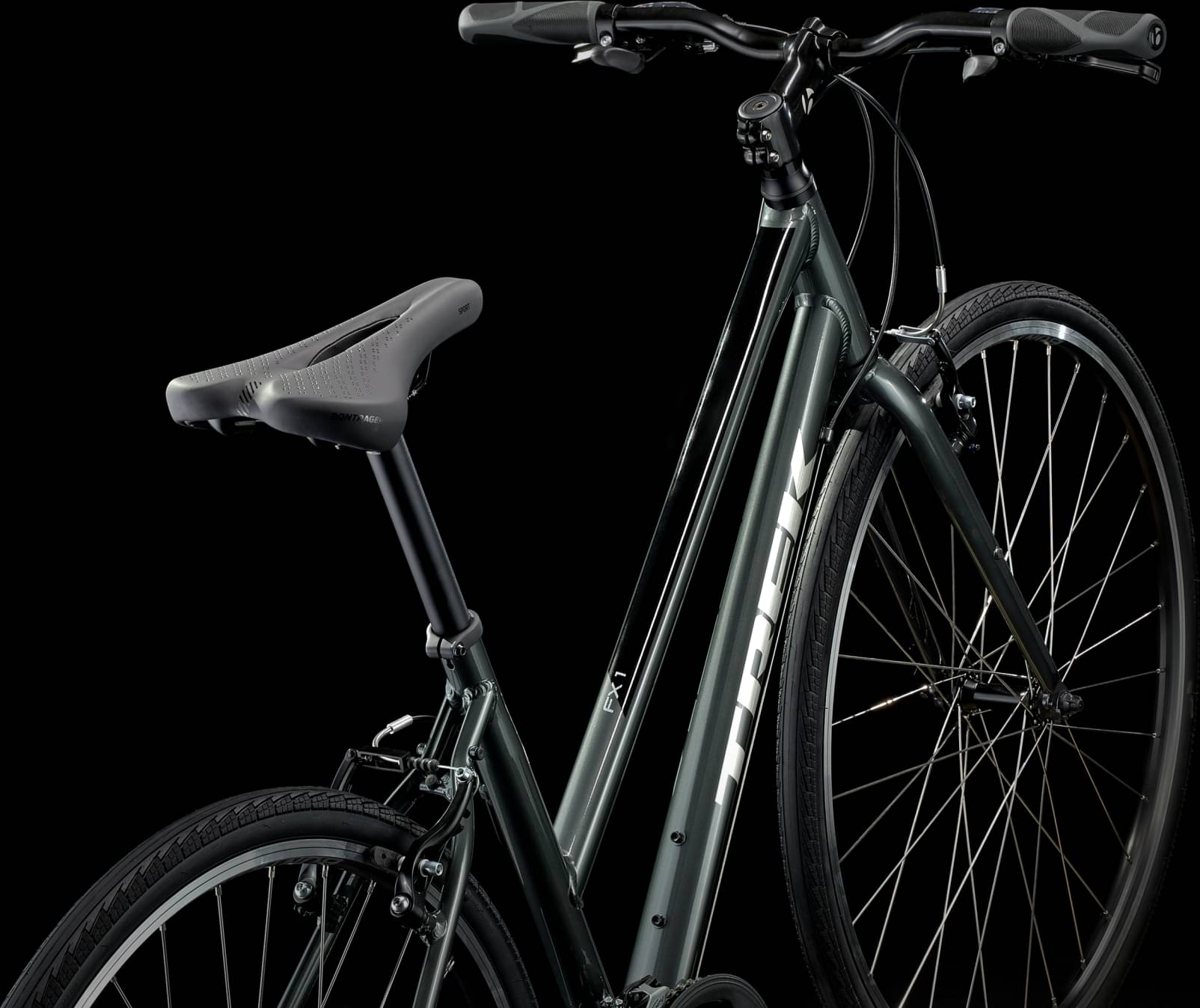

Frame
Frame
Alpha Gold Aluminum, stagger top tube, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR
Suspension Fork
FX Steel, threadless steel steerer, rack mounts, cantilever brake mount, 405mm axle-to-crown, 5x100mm QR

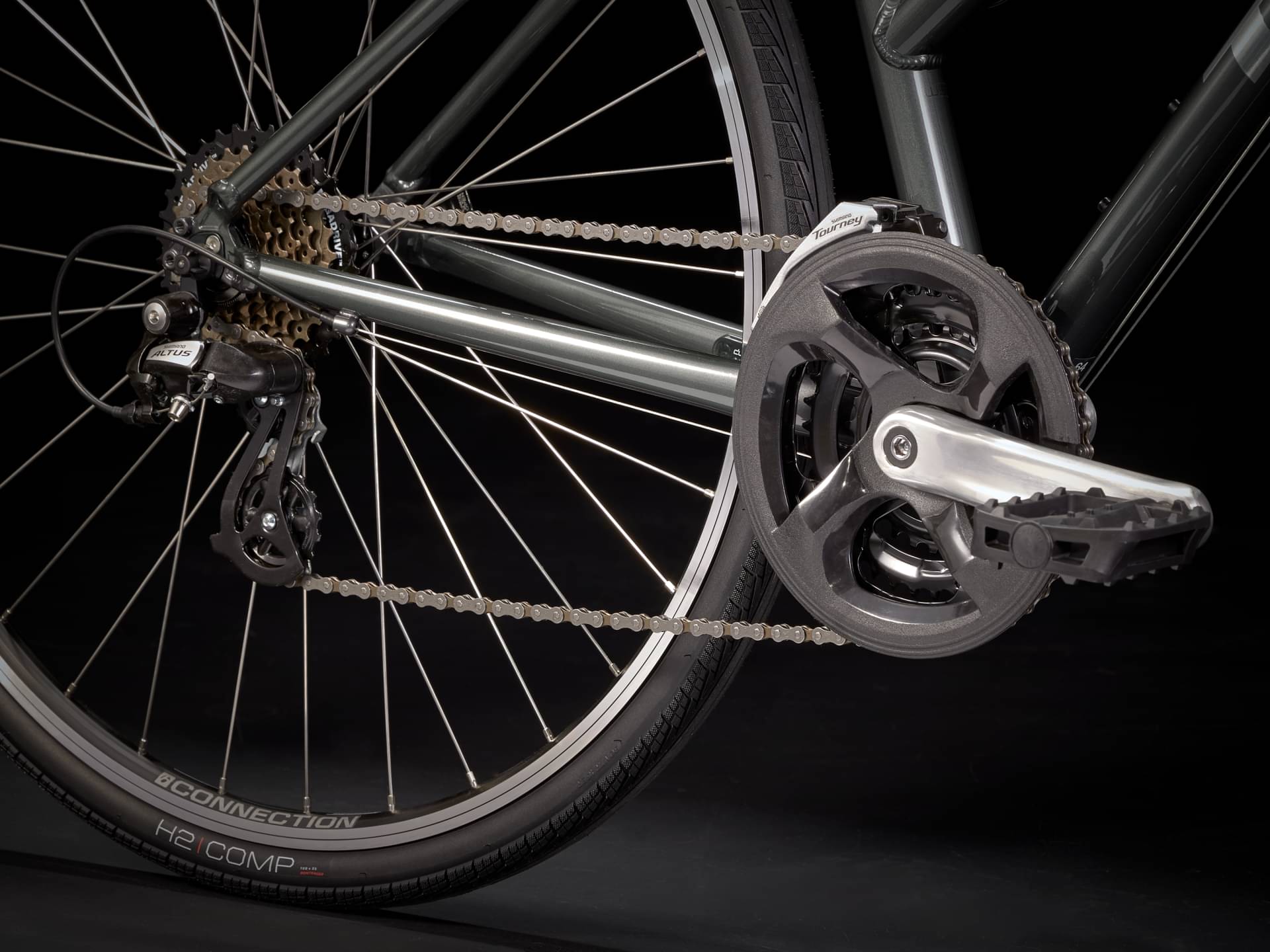

Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano EF500, 7 speed
Cassette
14-34, 7 speed freewheel
Crank
Forged alloy, 48/38/28, chainguard, 170mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
KMC Z7
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula FM21 alloy, 100x5mm QR
Rear Hub
Formula FM31 alloy, 135x5mm QR

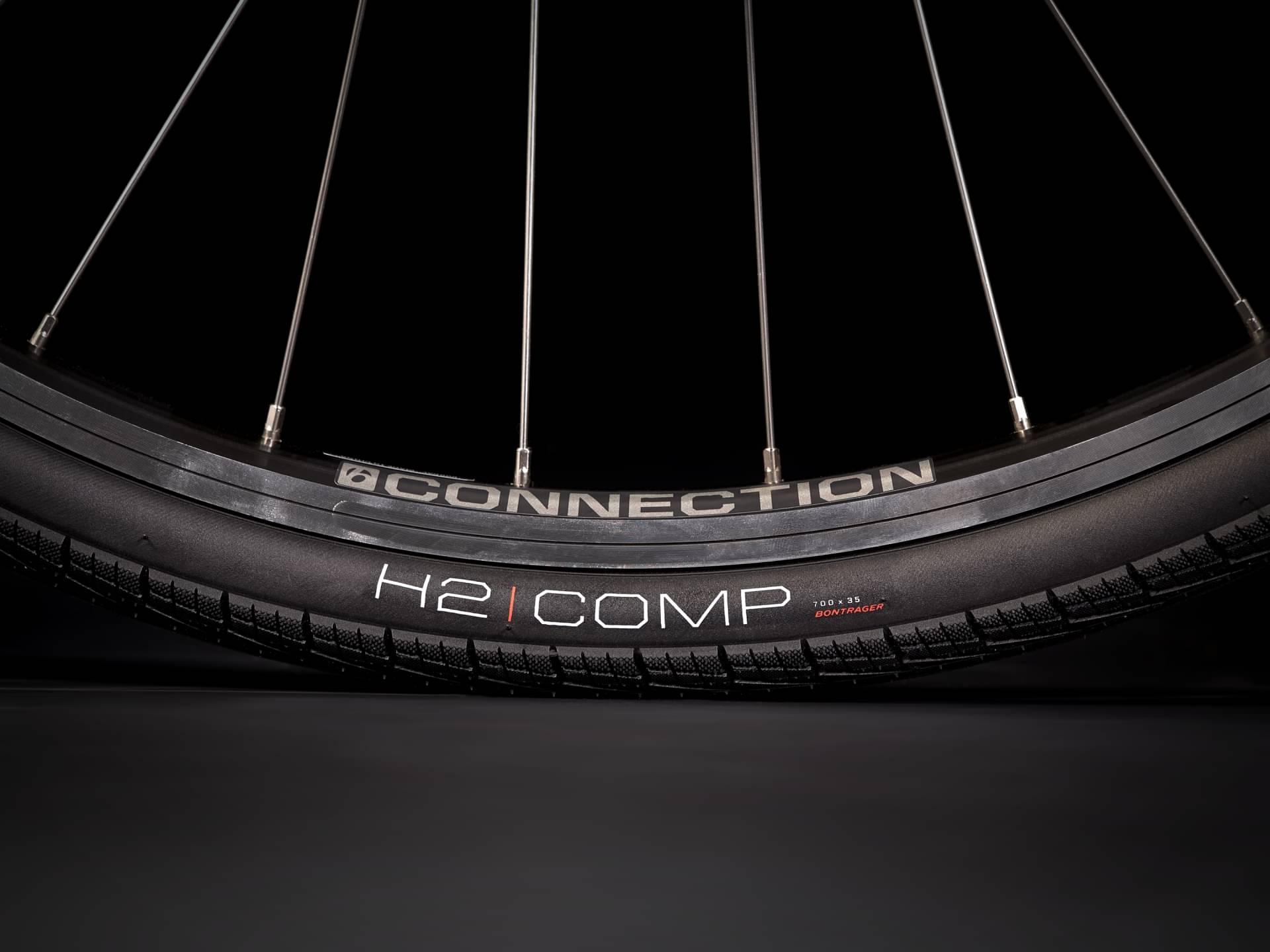

Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Brakes

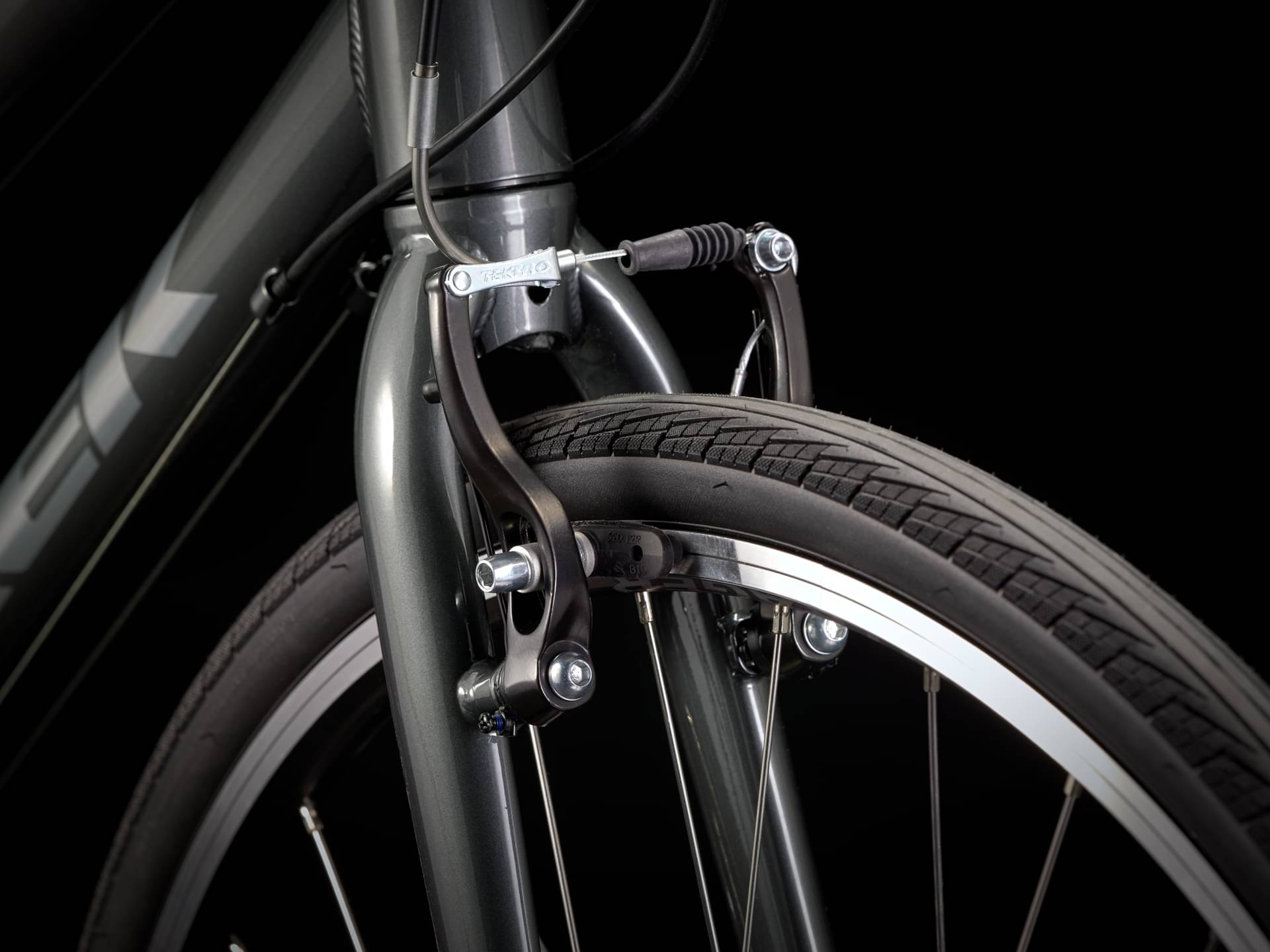

Brakes
Tektro alloy linear-pull

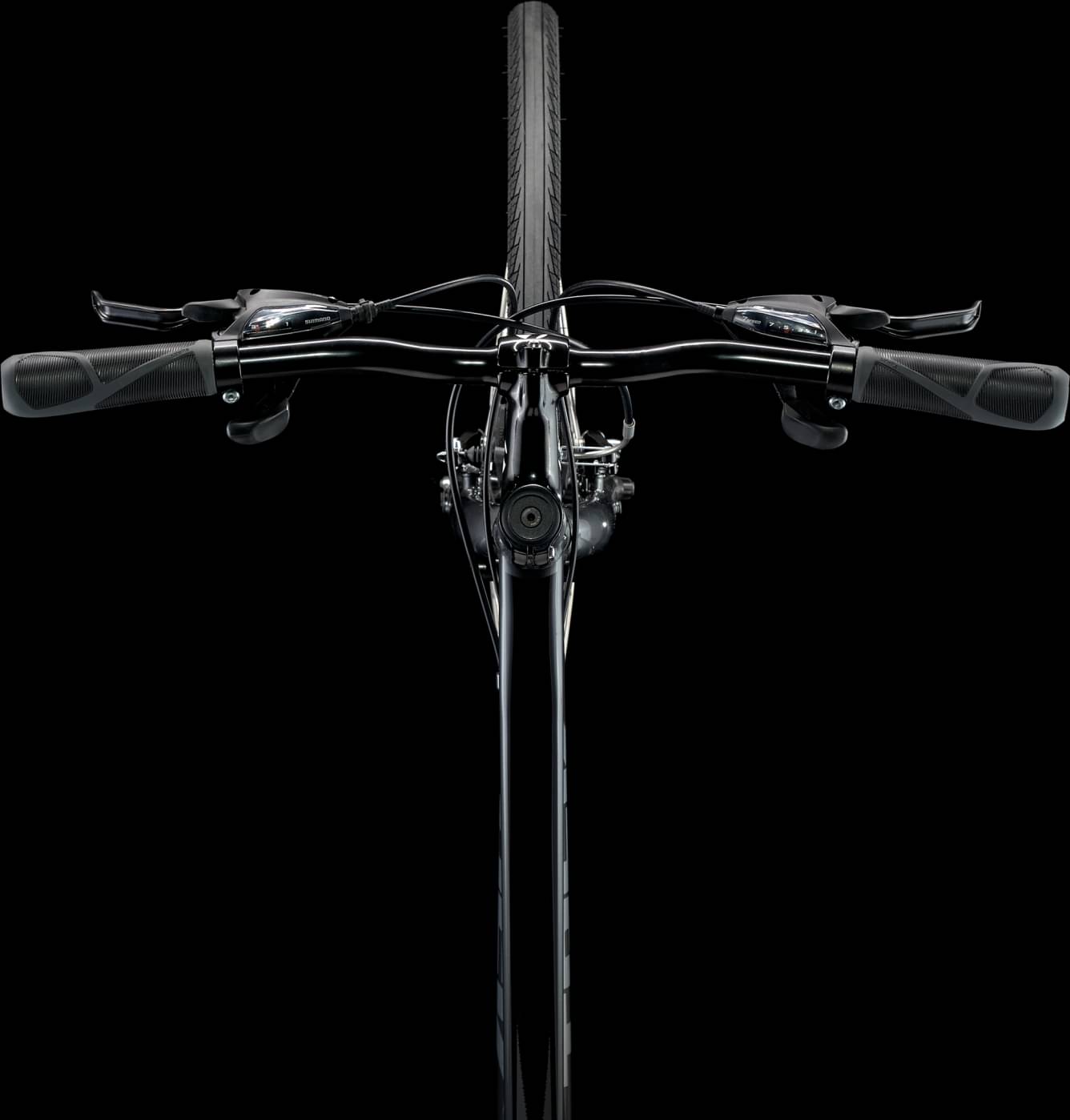

Cockpit
Stem
Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
Handlebar
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width

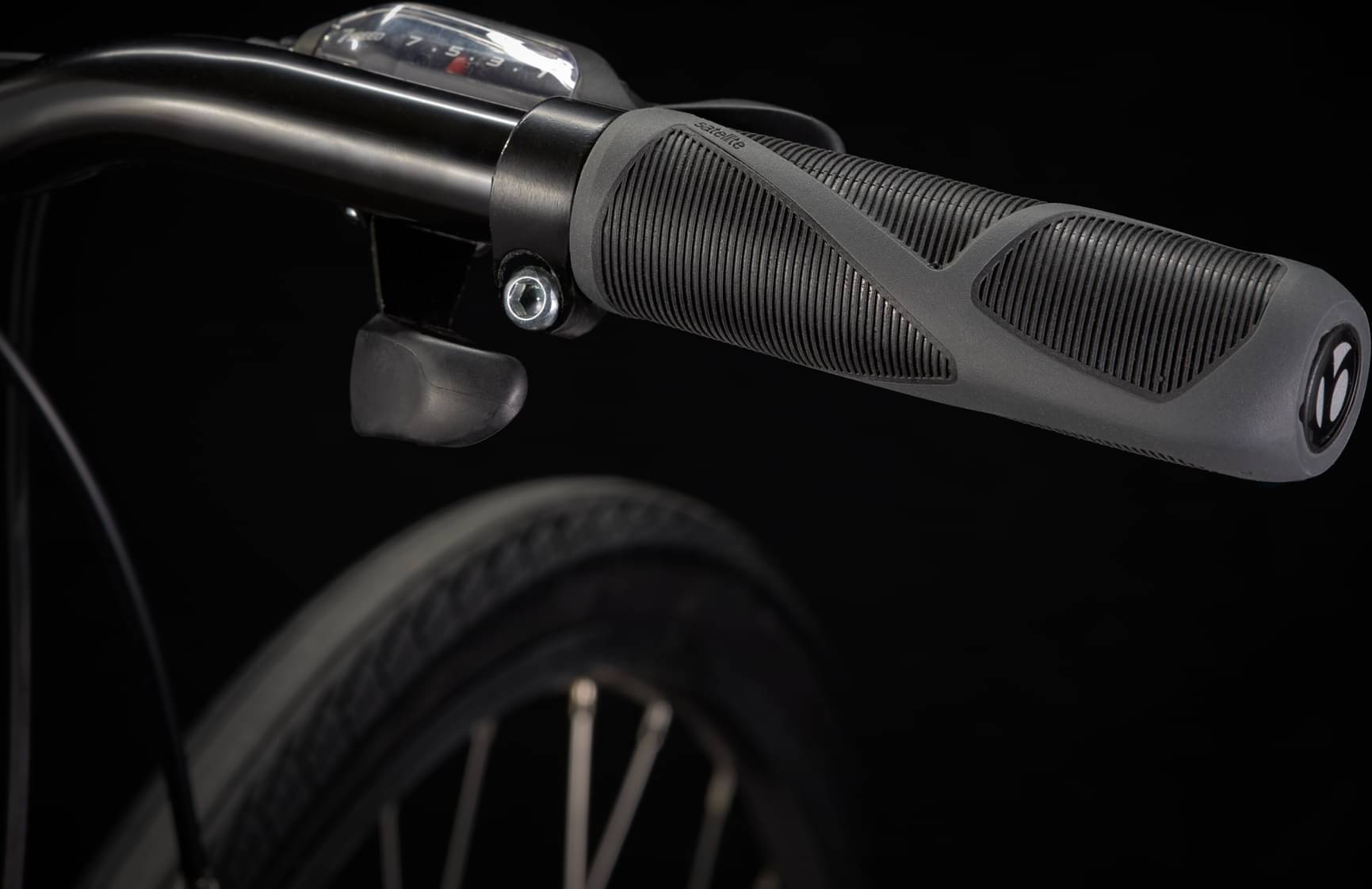

Grips
Bontrager Satellite
Headset
1 1/8'' steel threadless
Seat

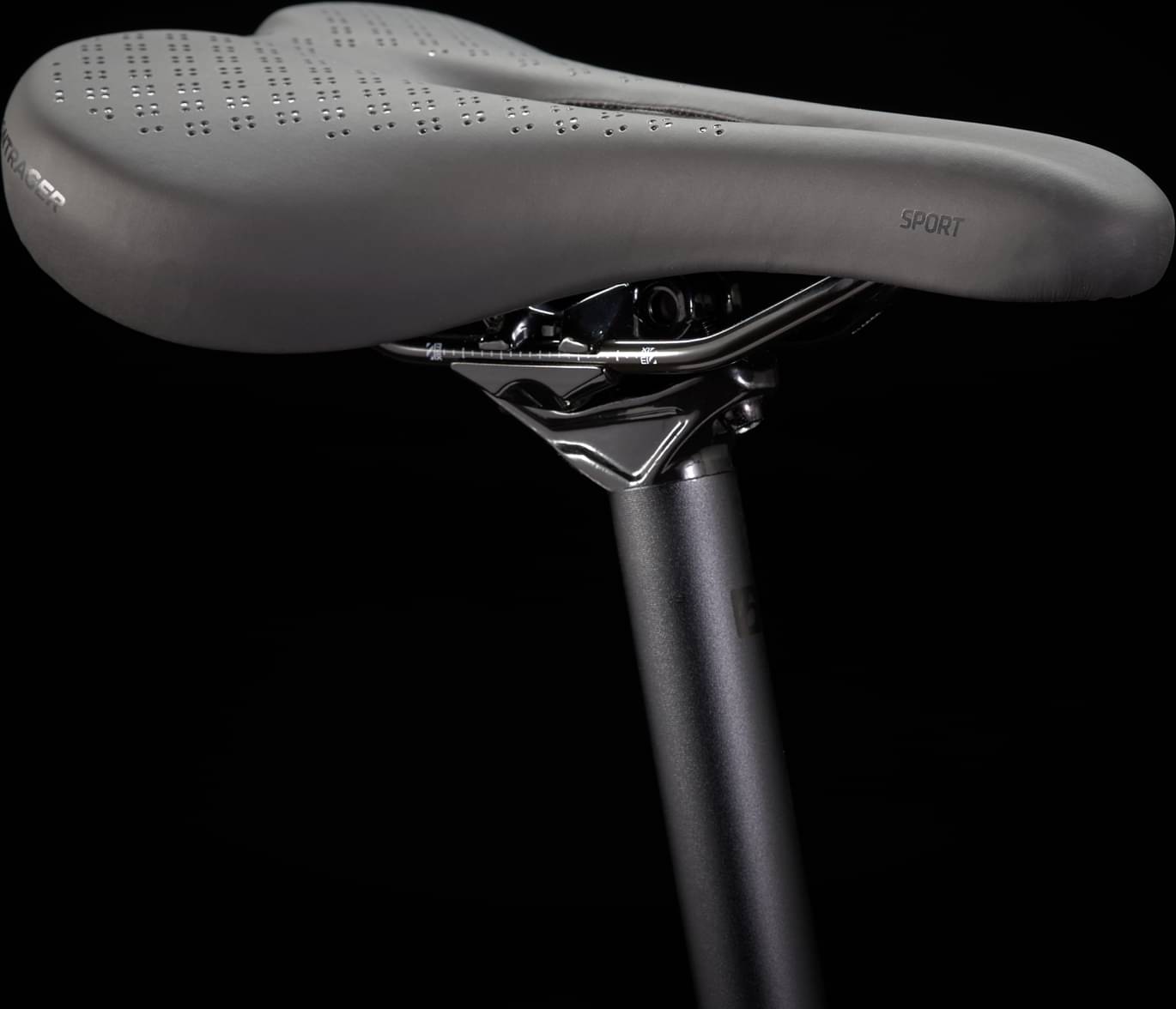

Saddle
Bontrager Sport Women's
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.47 mm |
| Bottom Bracket Height | 296 mm | 296 mm |
| Front Center | 613 mm | 625 mm |
| Rake | 50 mm | 50 mm |
| Trail | 75 mm | 75 mm |
| Stack | 554 mm | 572 mm |
| Reach | 384 mm | 389 mm |
| Top Tube Length | 537 mm | 553 mm |
| Seat Tube Angle | 74.5 ° | 74 ° |
| Seat Tube Length | 381 mm | 445 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1055 mm | 1067 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 711 mm | 757 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm |
| Rider Max Height | 166 cm | 175 cm |
