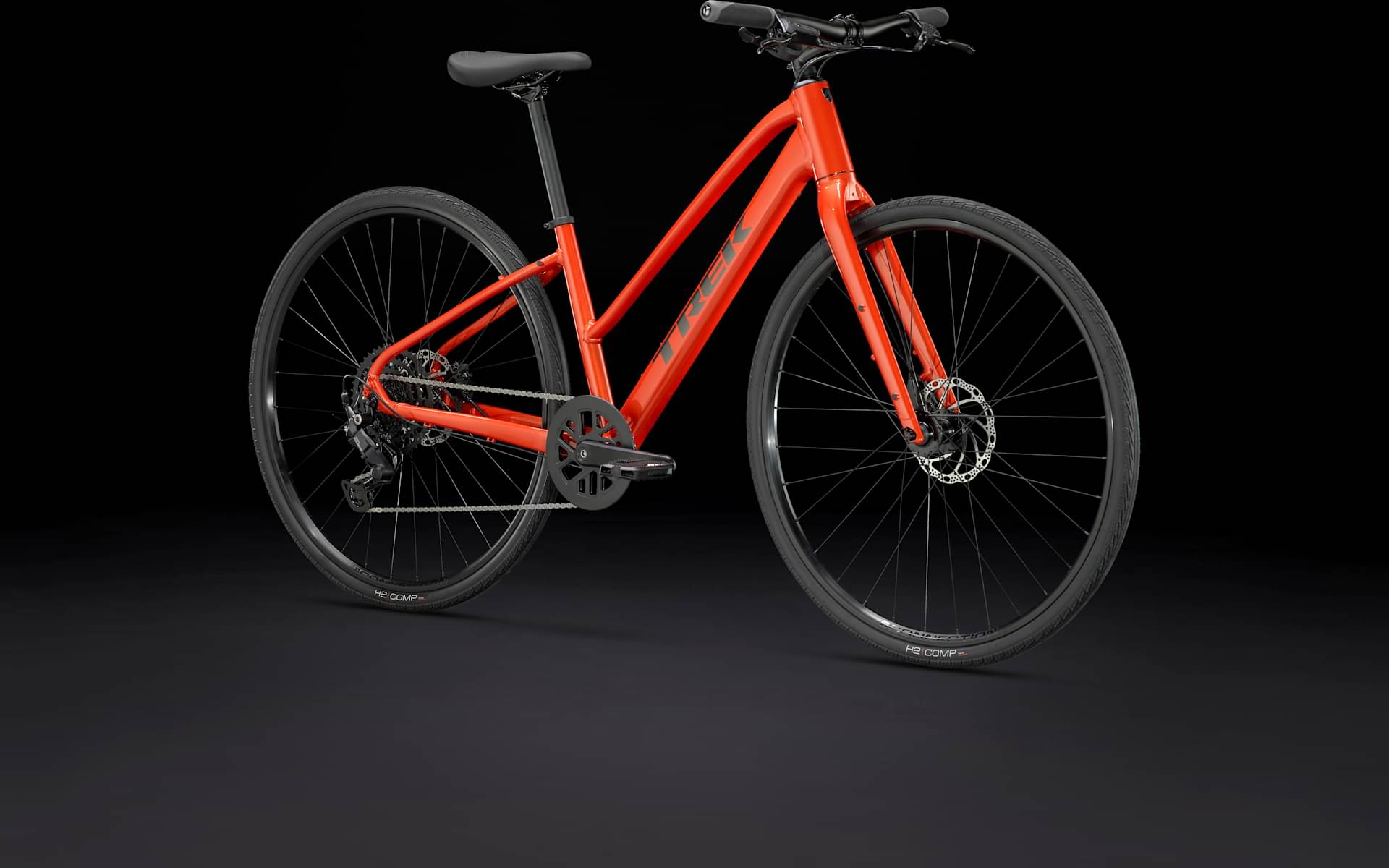

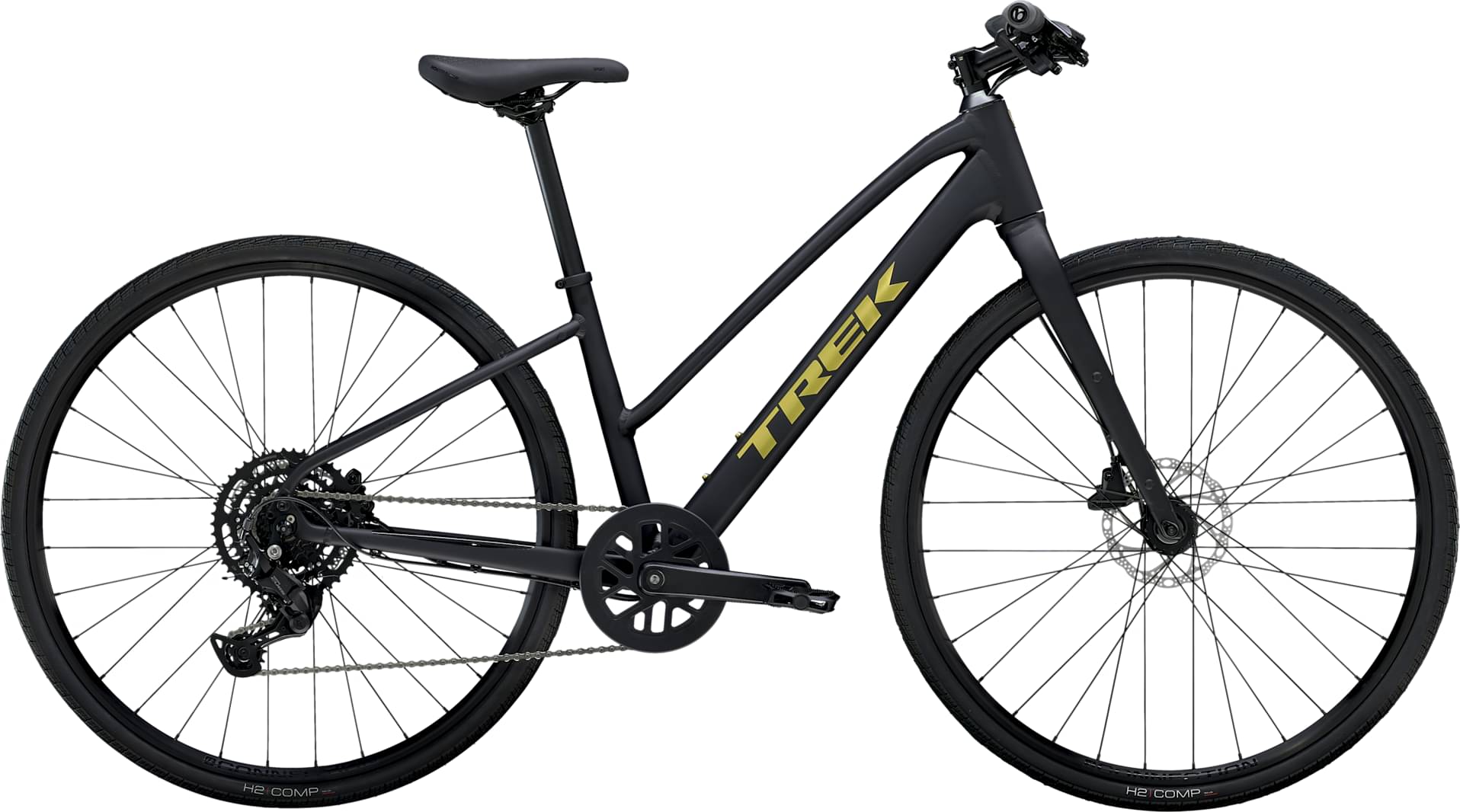

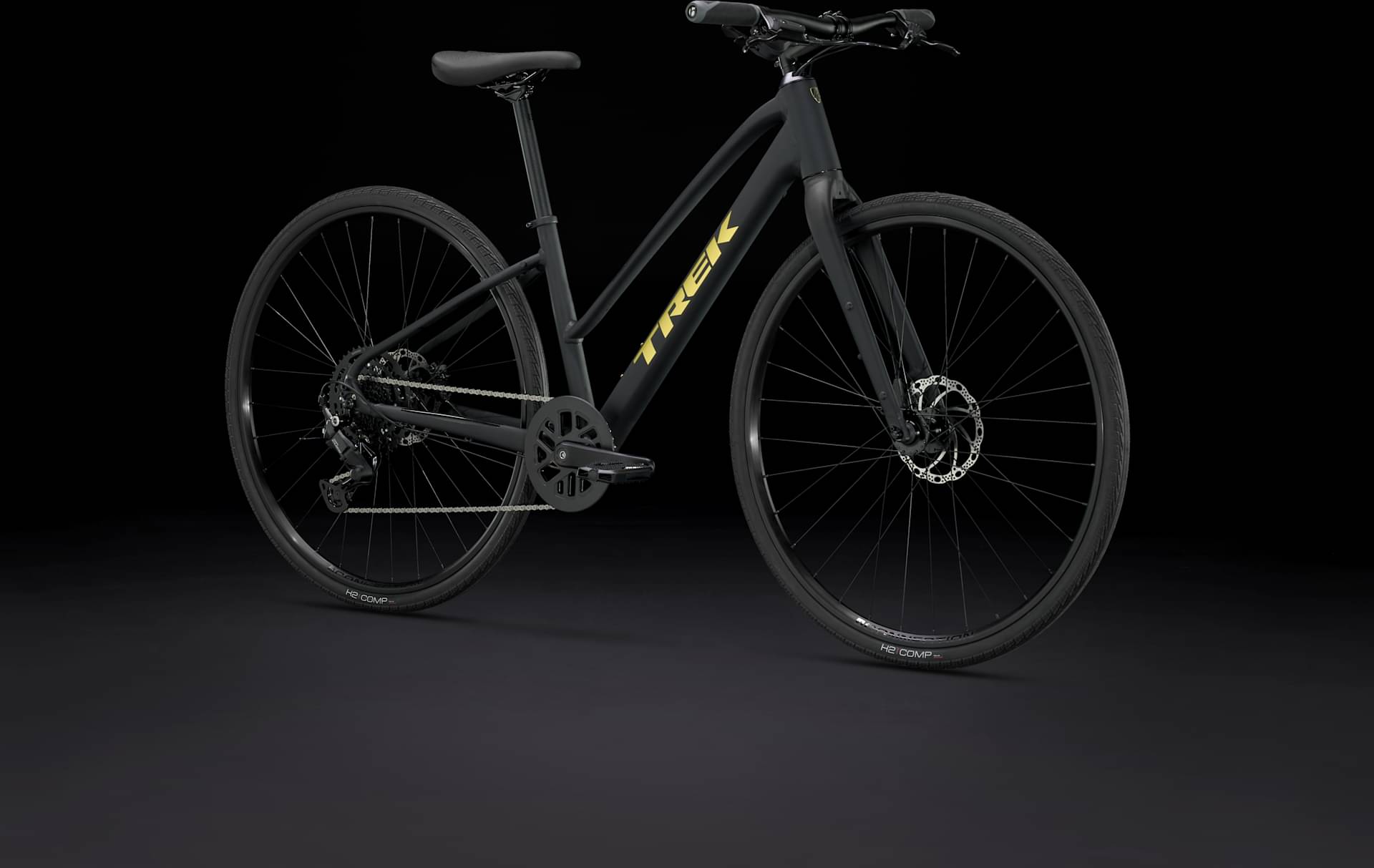

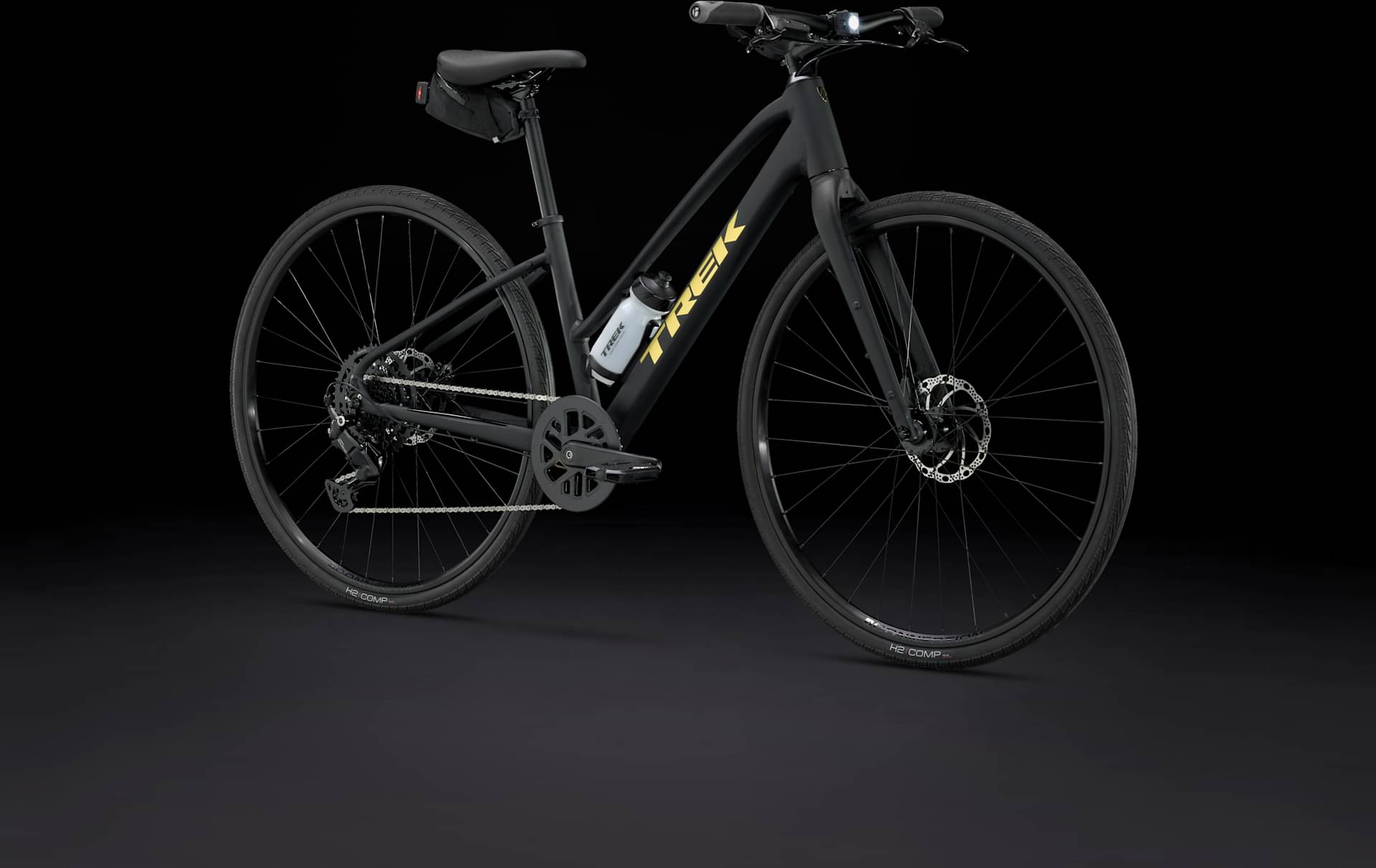

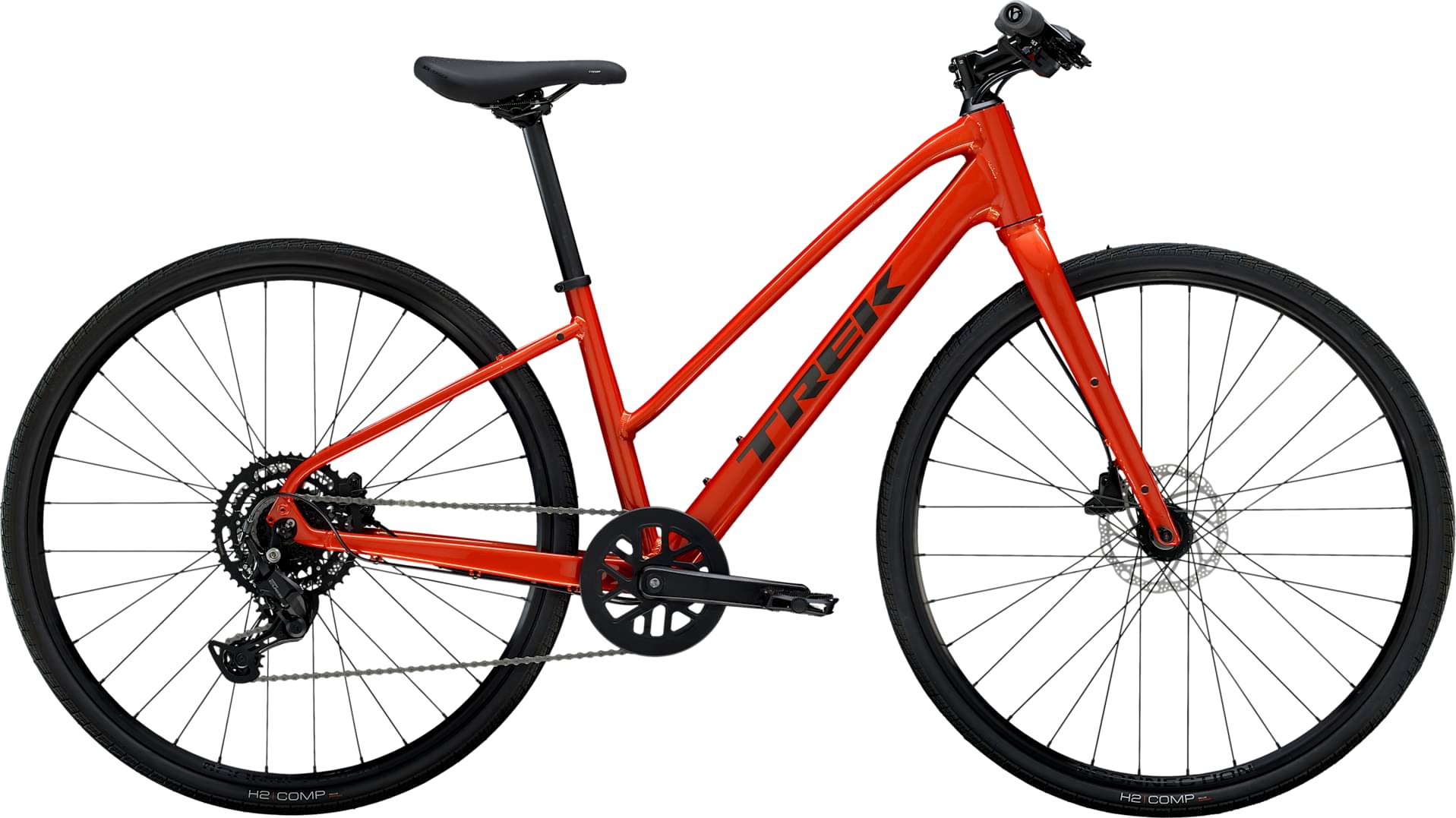

Trek FX 2 Stagger Gen 4 2025
2025 Urban
Estimate price |
813$
Weight | 11.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

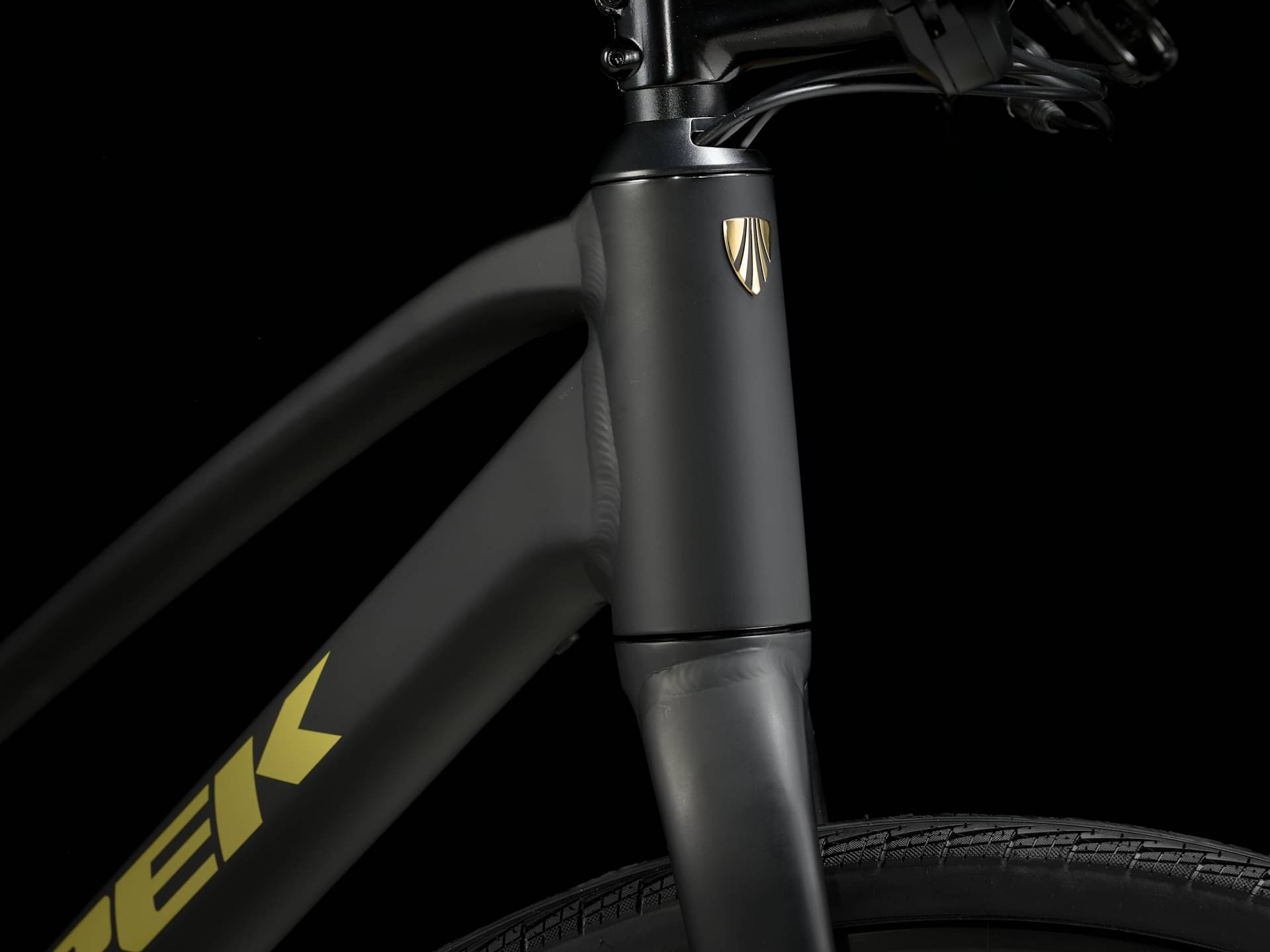

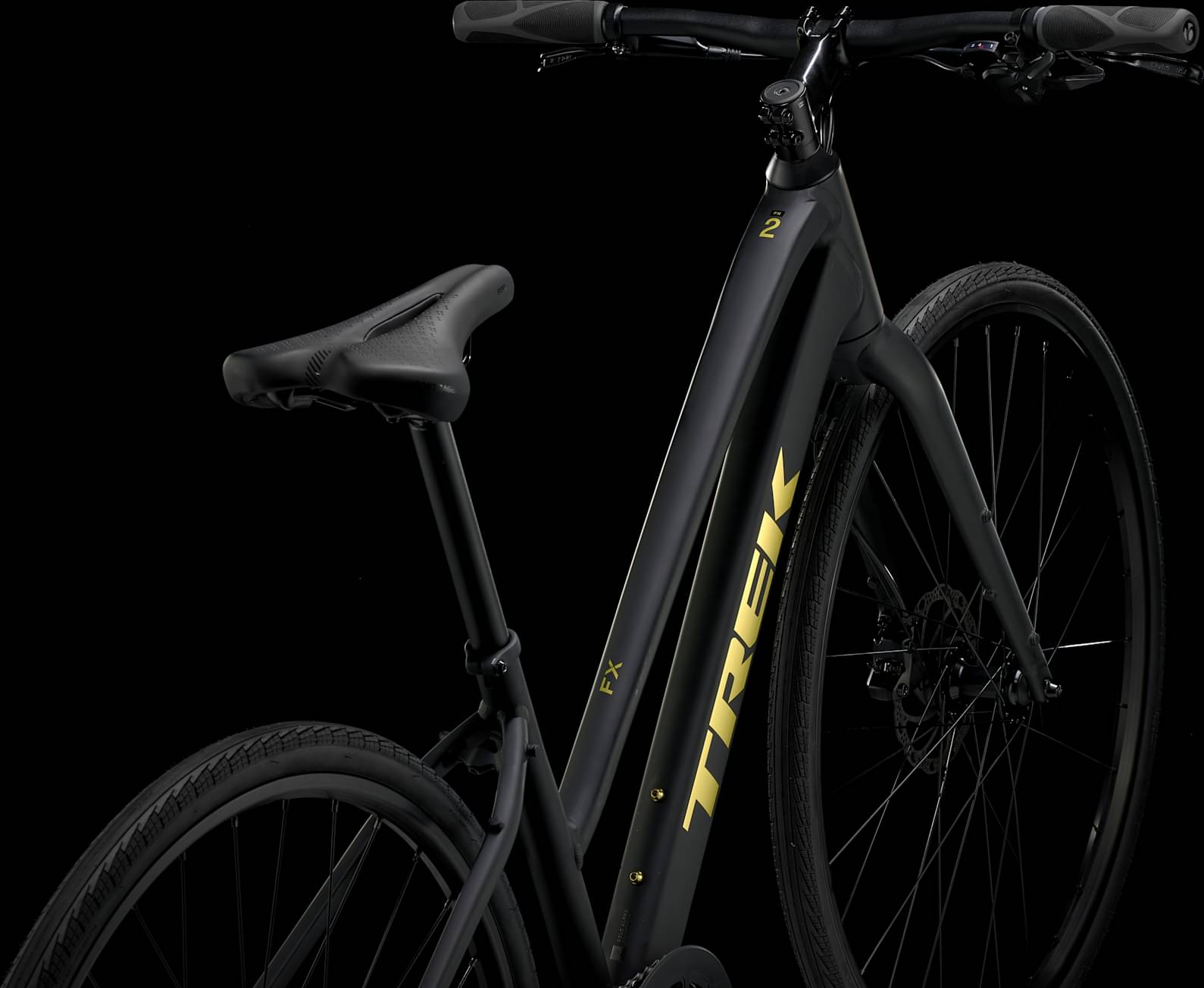

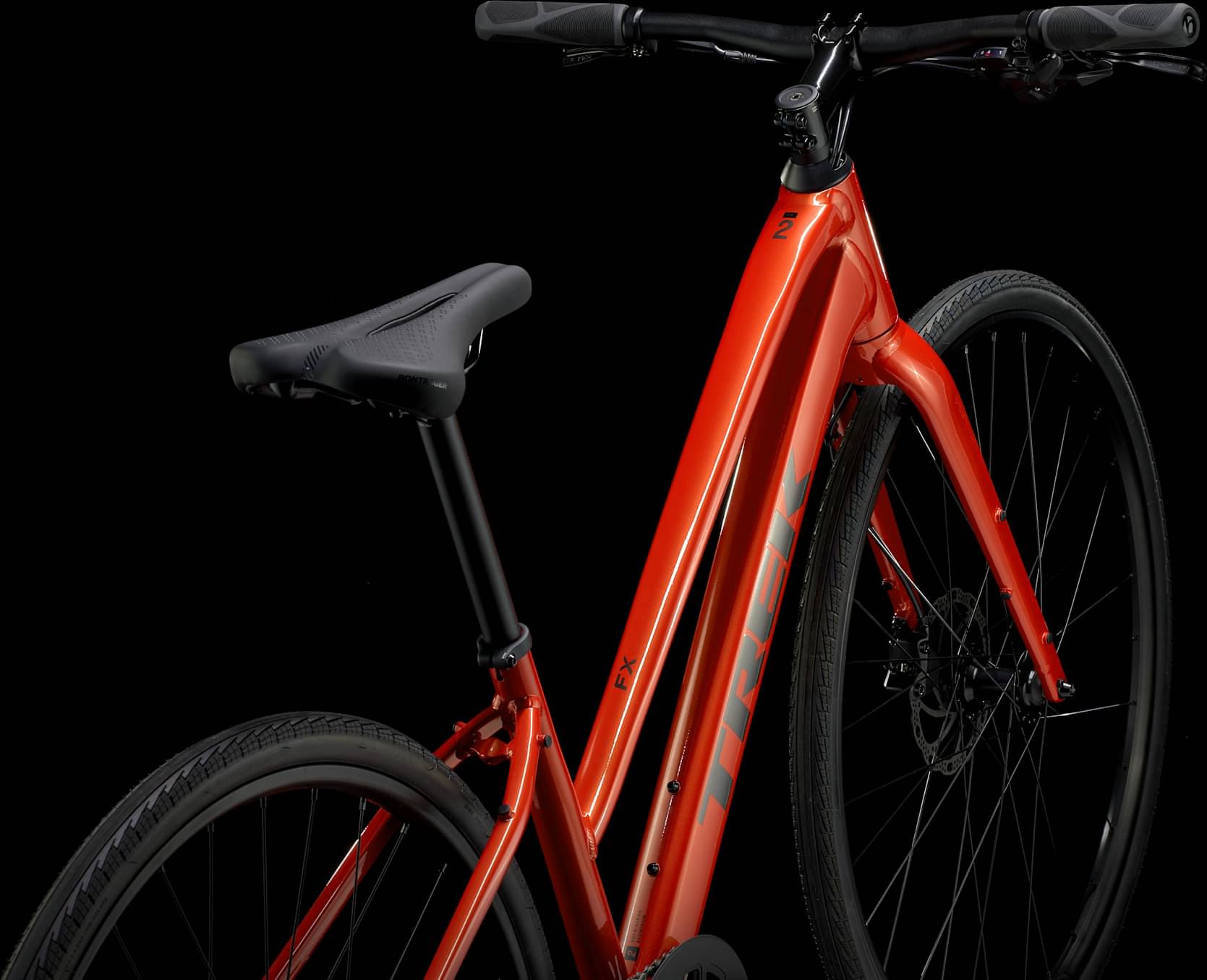

Frame
Frame

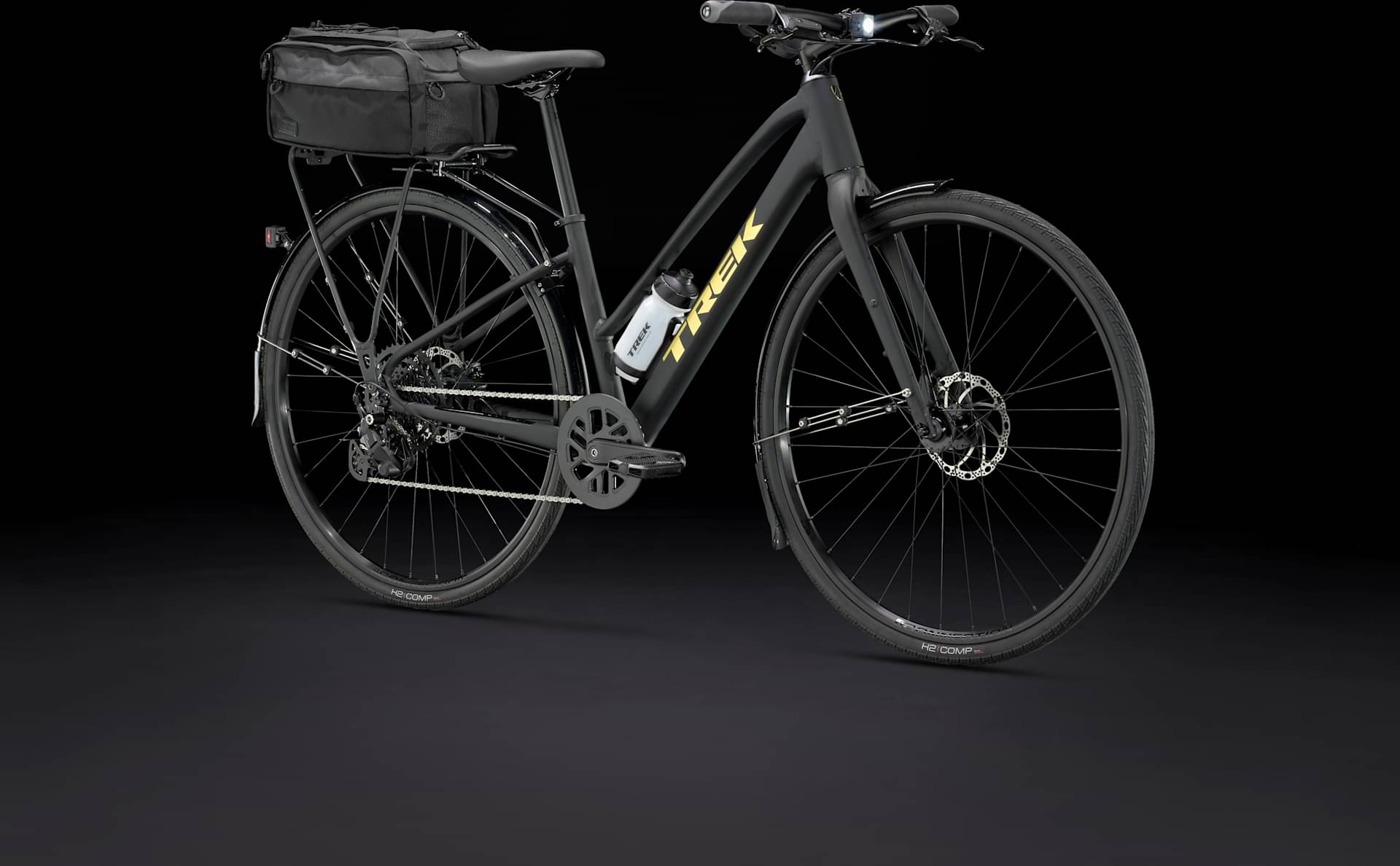

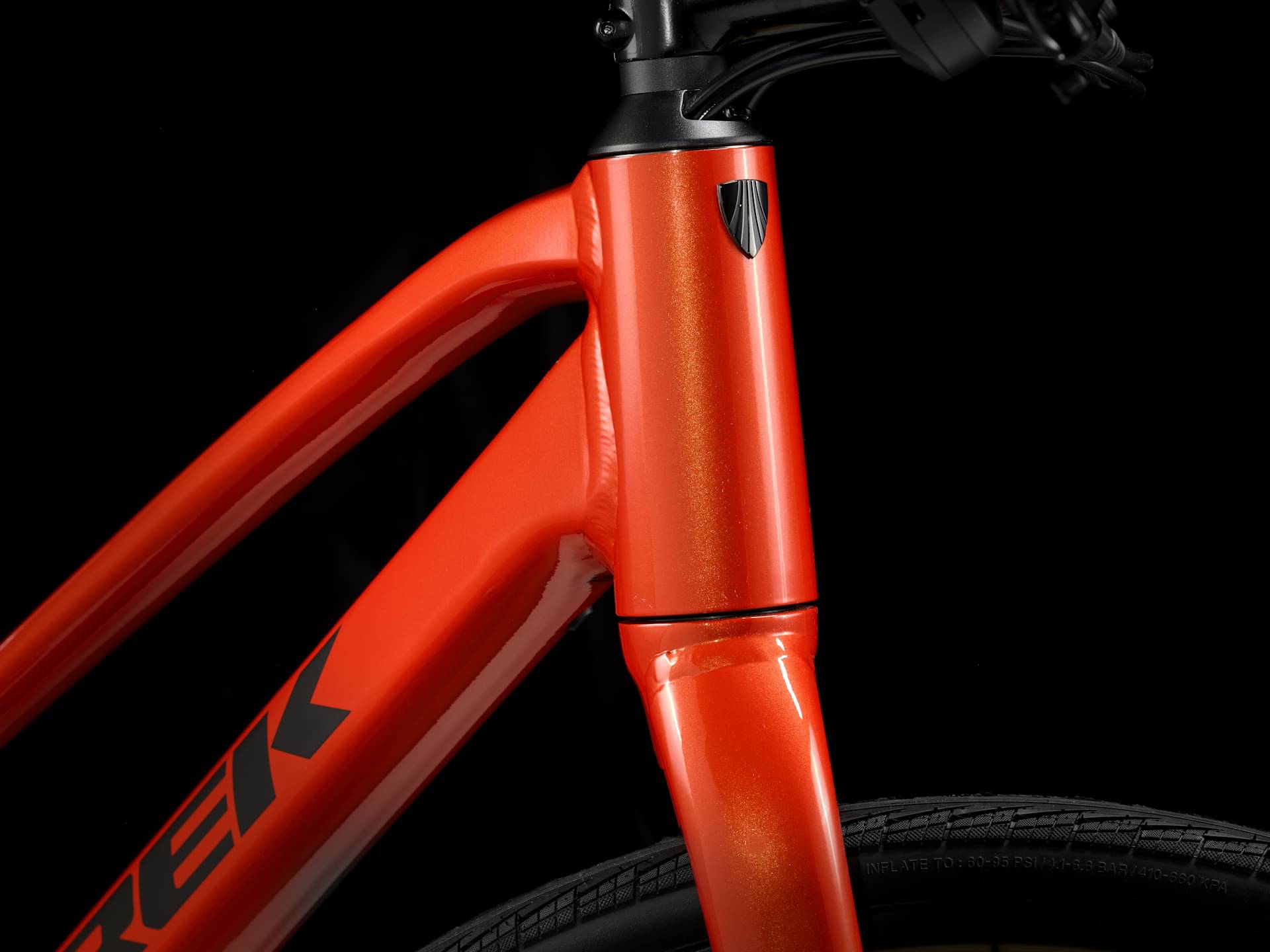

Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Suspension Fork
FX alloy, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

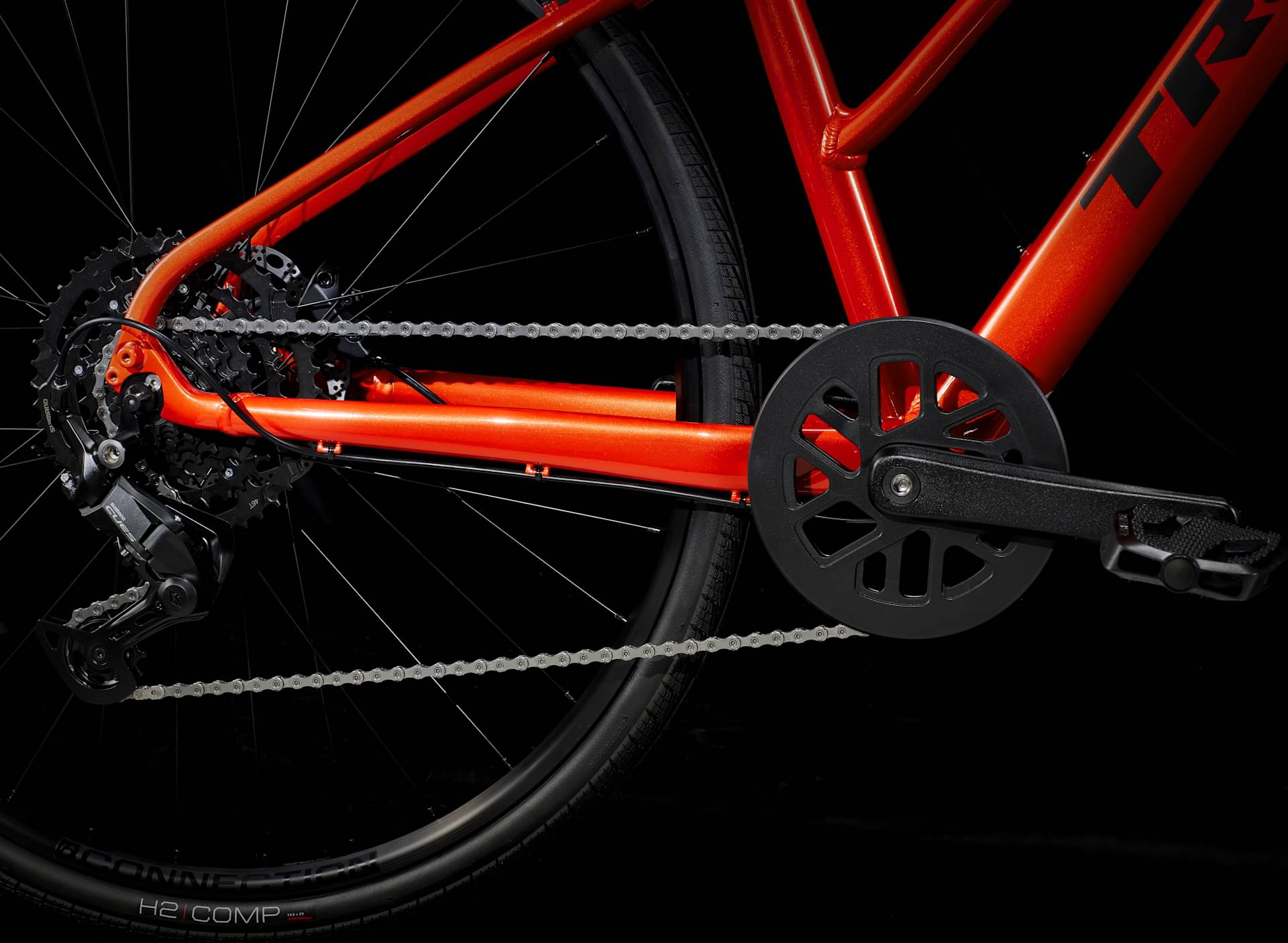

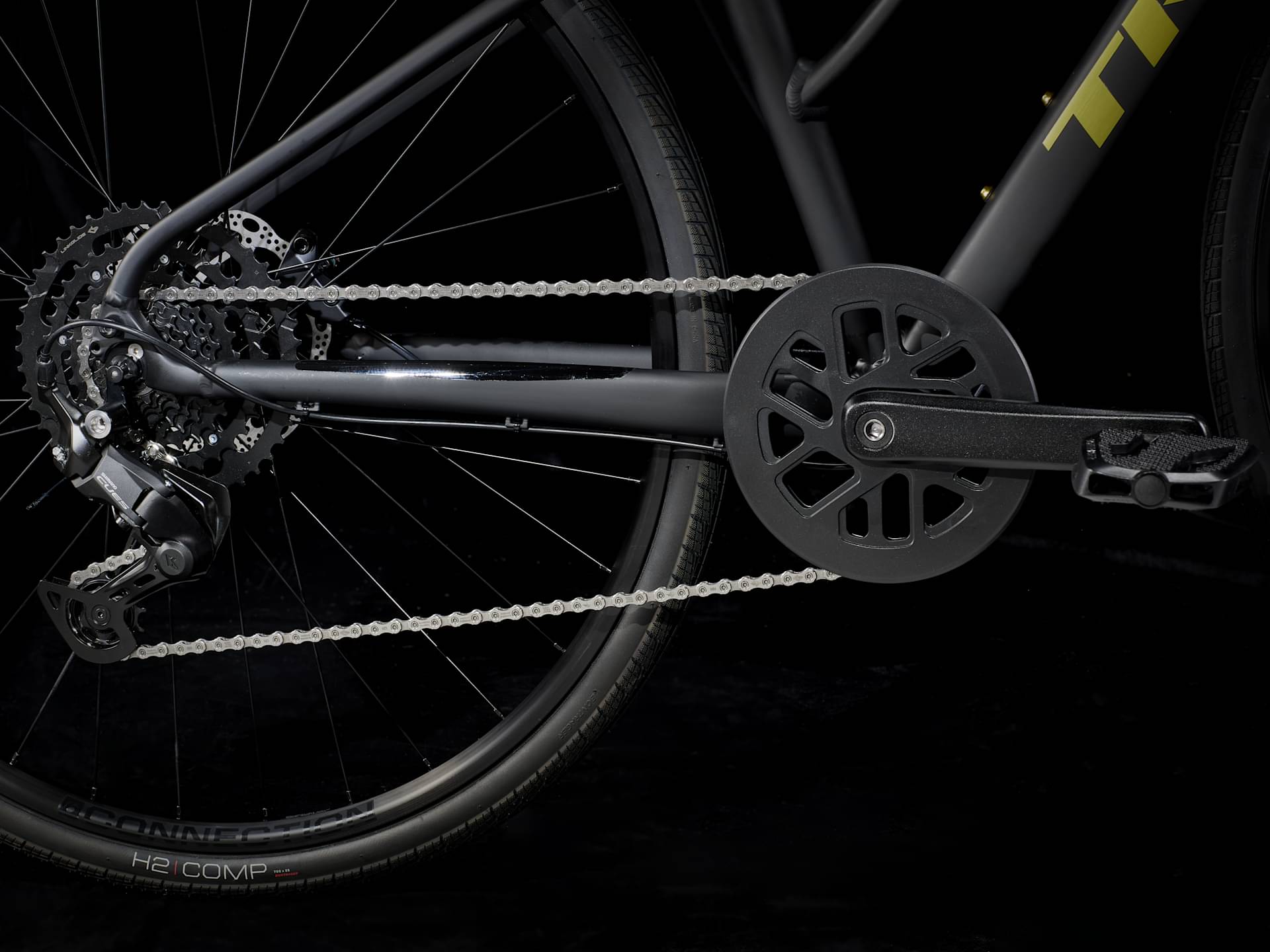

Drivetrain
Rear Derailleur
Shimano CUES U4000

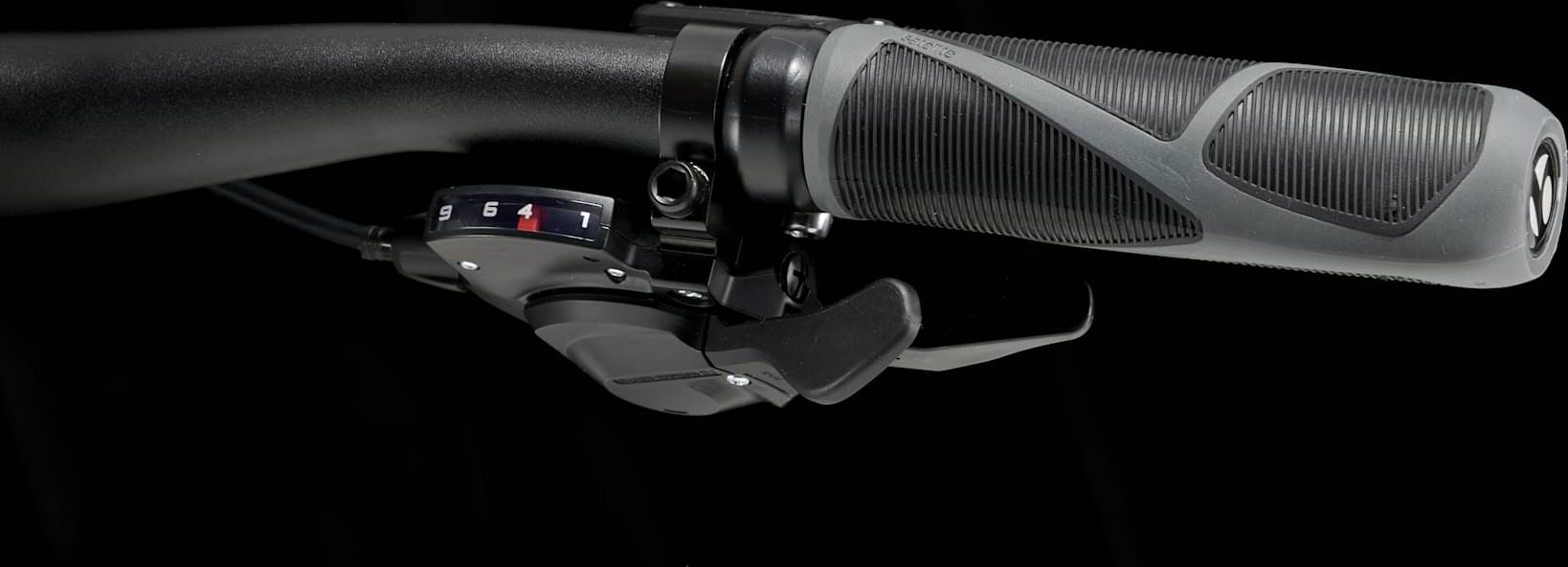

Shift Levers
Shimano U4000, 9 speed
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed
Crank
ProWheel Pro alloy, 40T narrow-wide steel ring, 170mm length
Bottom Bracket
Sealed cartridge, 68mm
Chain
Shimano LG500, 9/10/11 speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

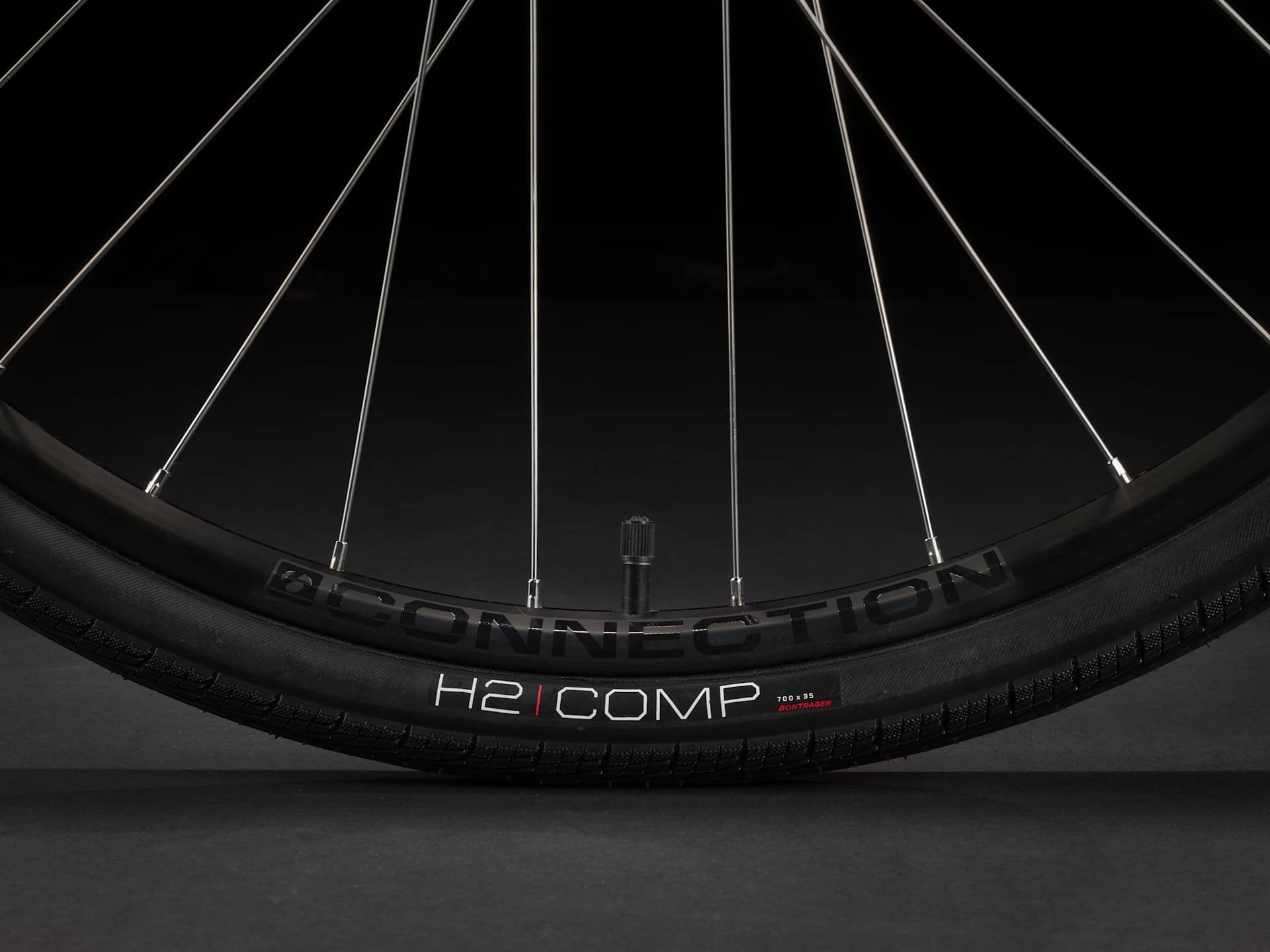

Rims
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Brakes
Brakes

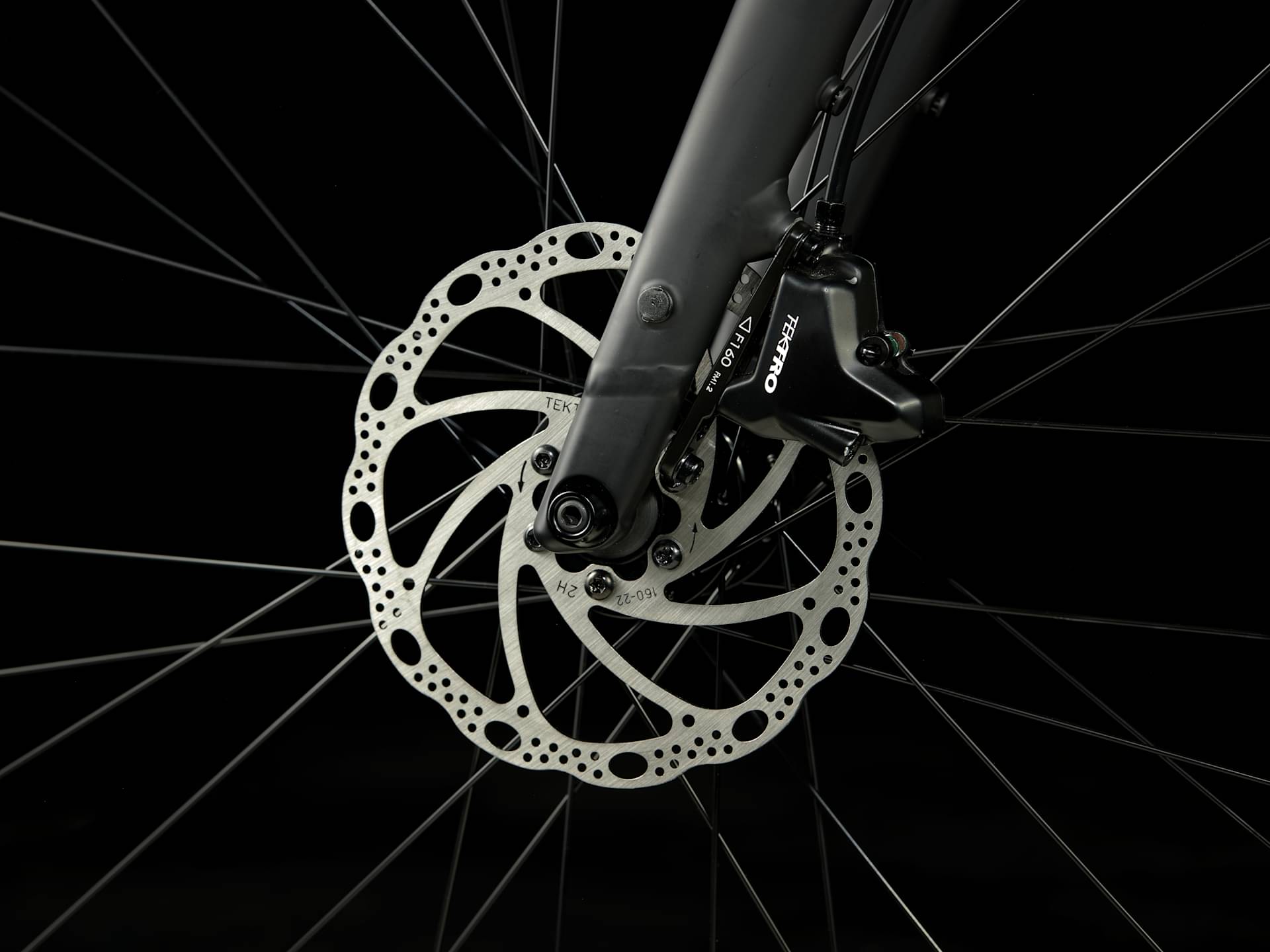

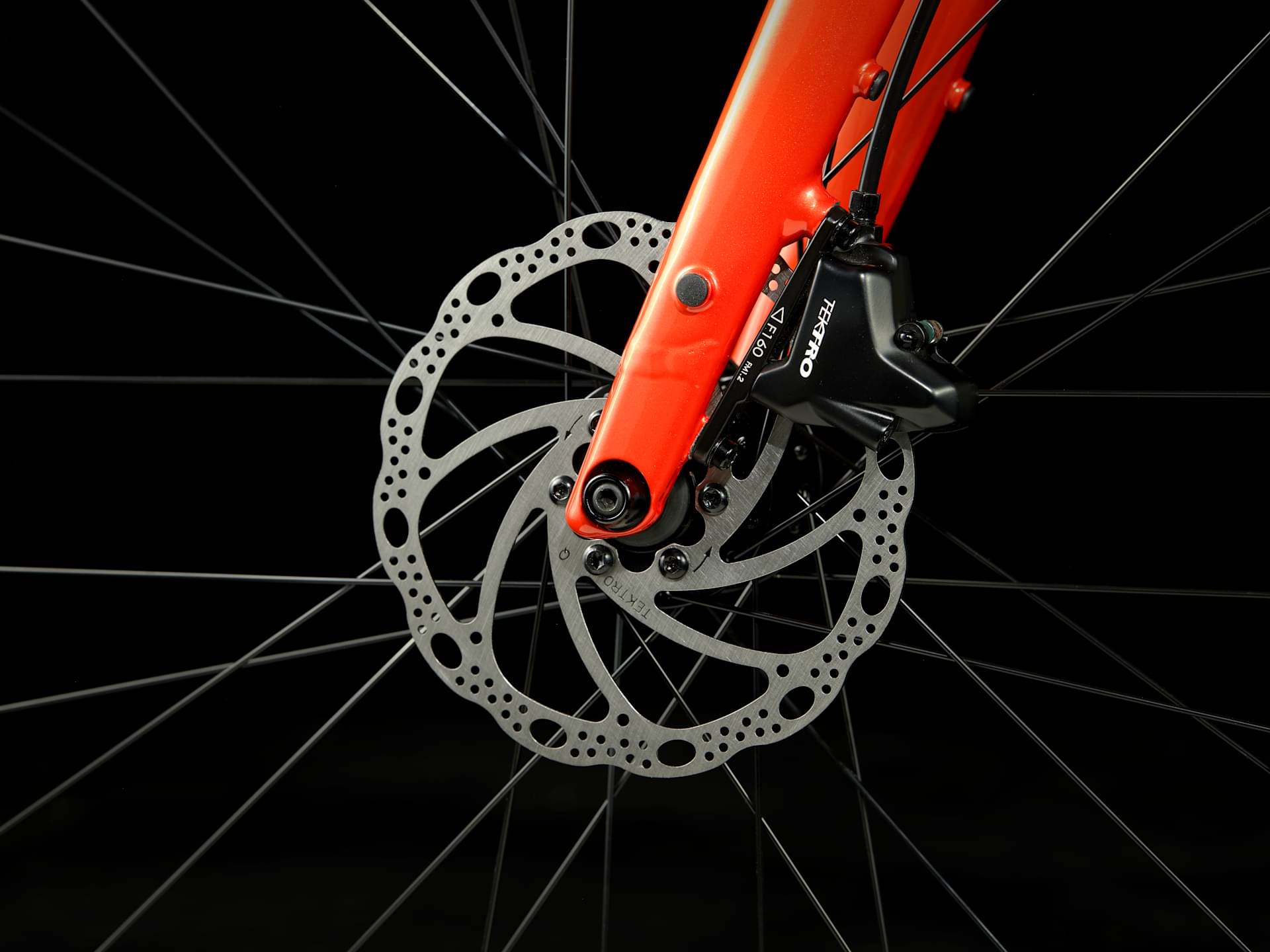

Tektro HD-R280 hydraulic disc, 160mm rotor

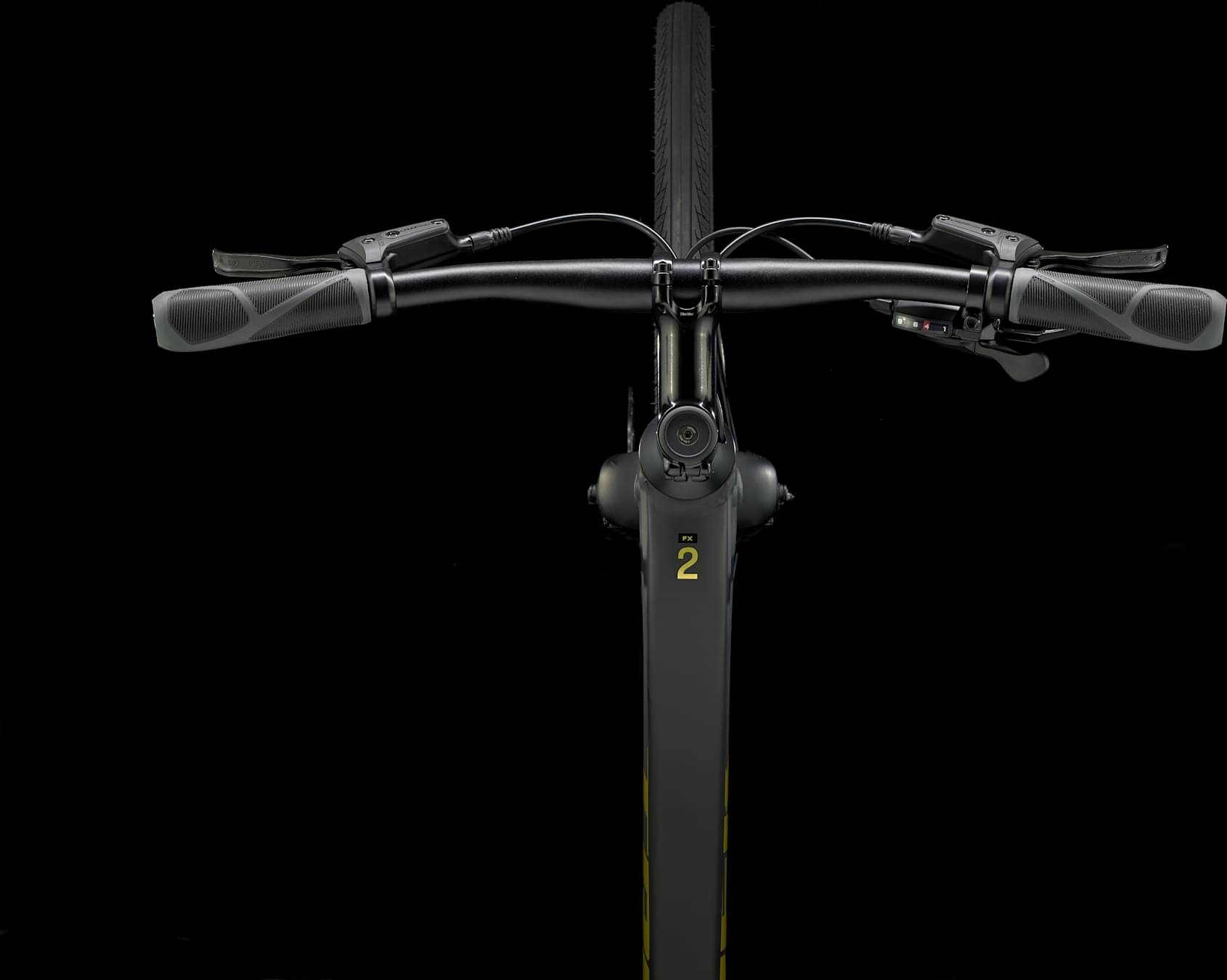

Cockpit
Stem
Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: M, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length

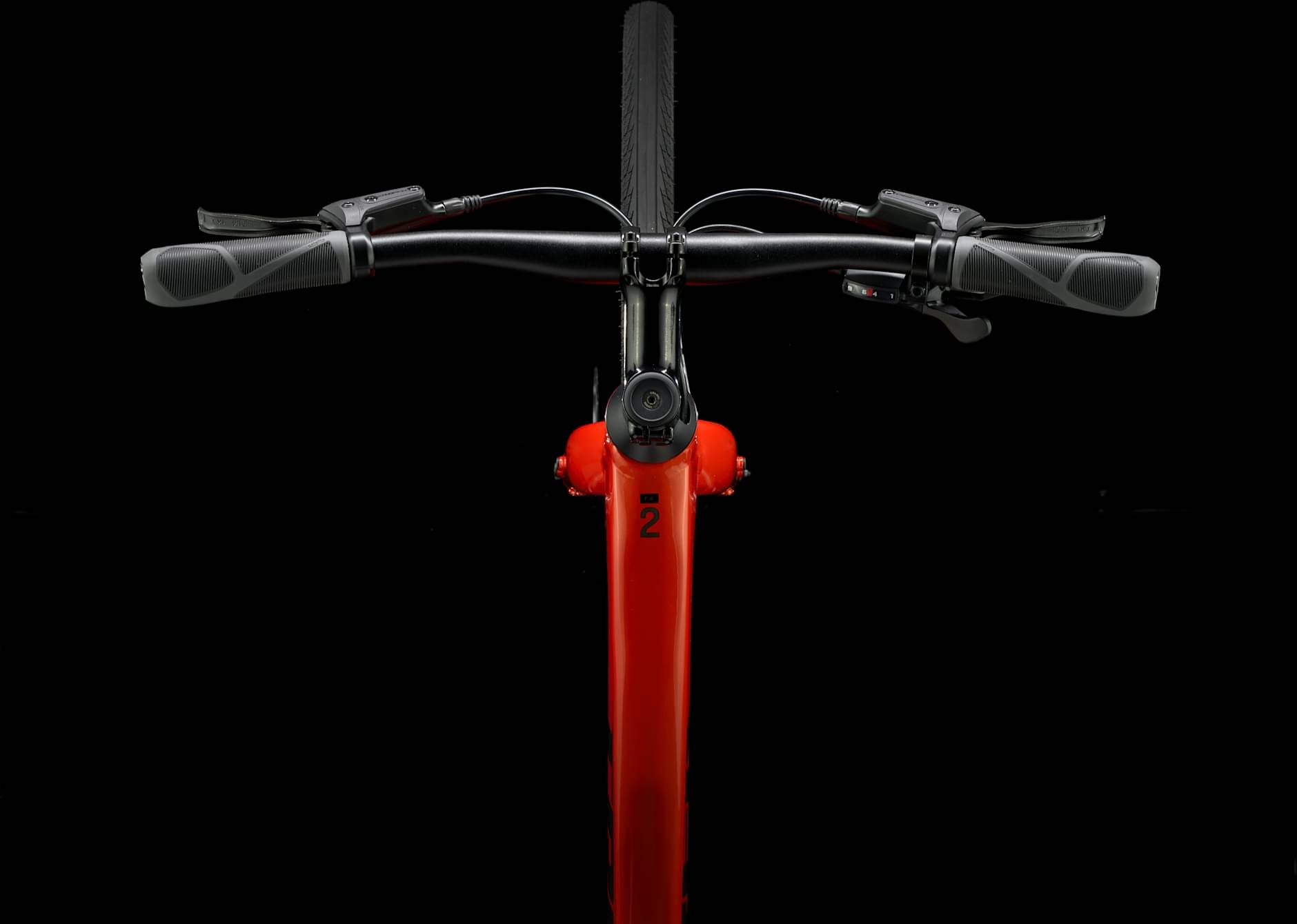

Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite
Seat

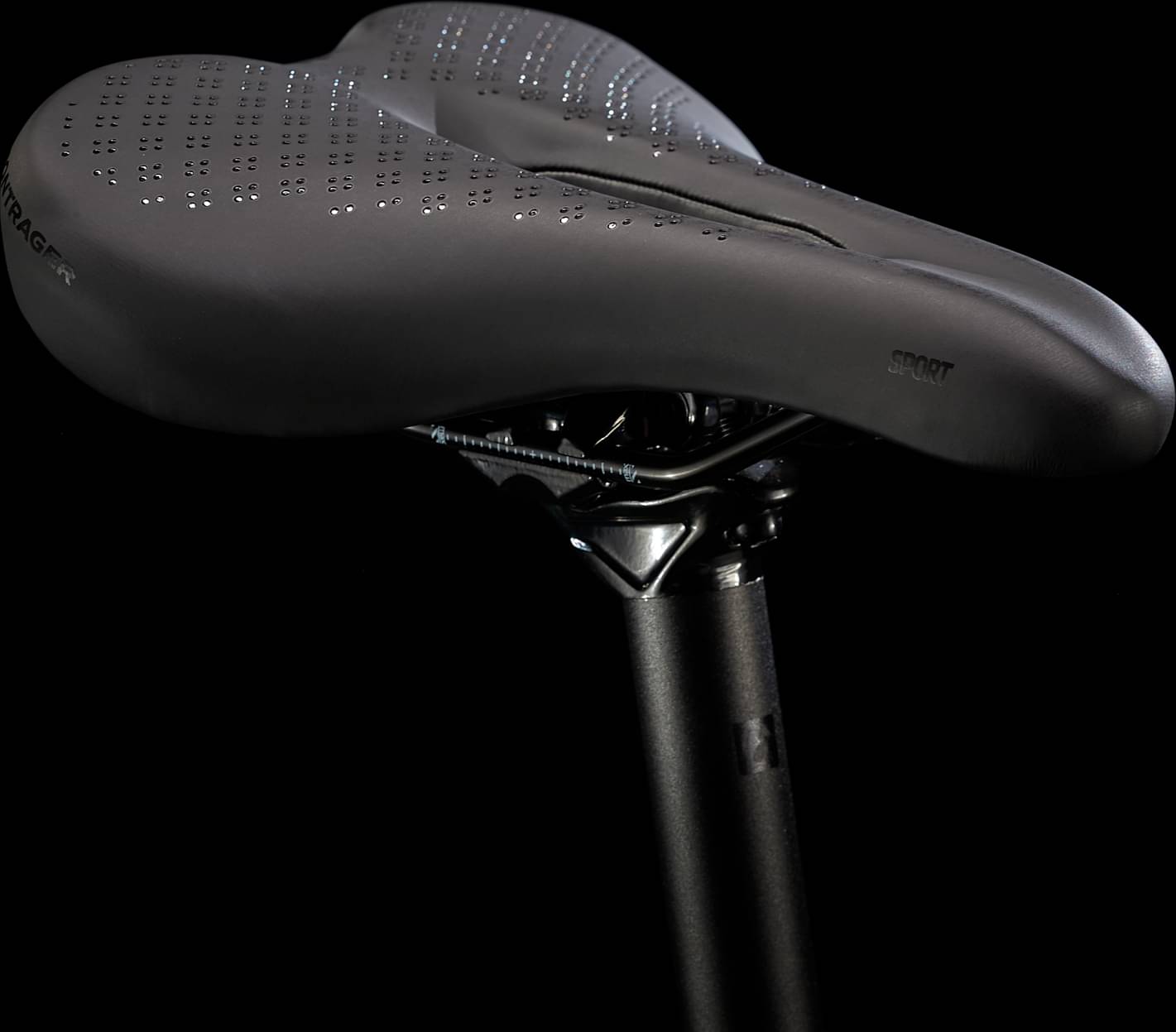

Saddle
Bontrager Sport Women's
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.511 mm | 1.554 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Front Center | 620 mm | 631 mm | 641 mm |
| Rake | 51 mm | 50 mm | 50 mm |
| Trail | 71 mm | 68 mm | 64 mm |
| Stack | 568 mm | 594 mm | 620 mm |
| Reach | 385 mm | 393 mm | 399 mm |
| Top Tube Length | 543 mm | 563 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 375 mm | 420 mm | 465 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 140 mm | 165 mm | 190 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1059 mm | 1070 mm | 1080 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 623 mm | 622 mm | 624 mm |
| Wheels | 700 | 700 | 700 |
