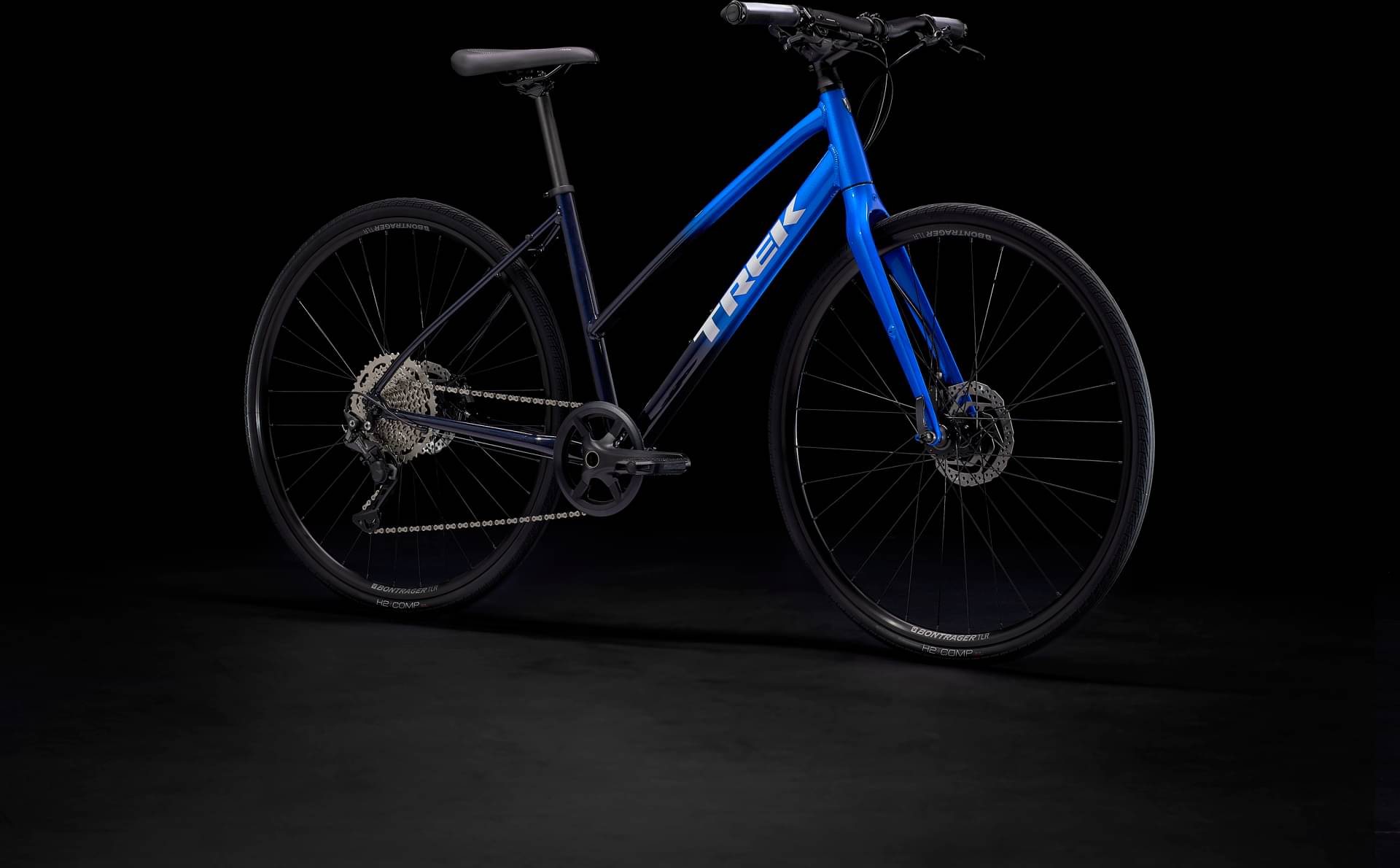

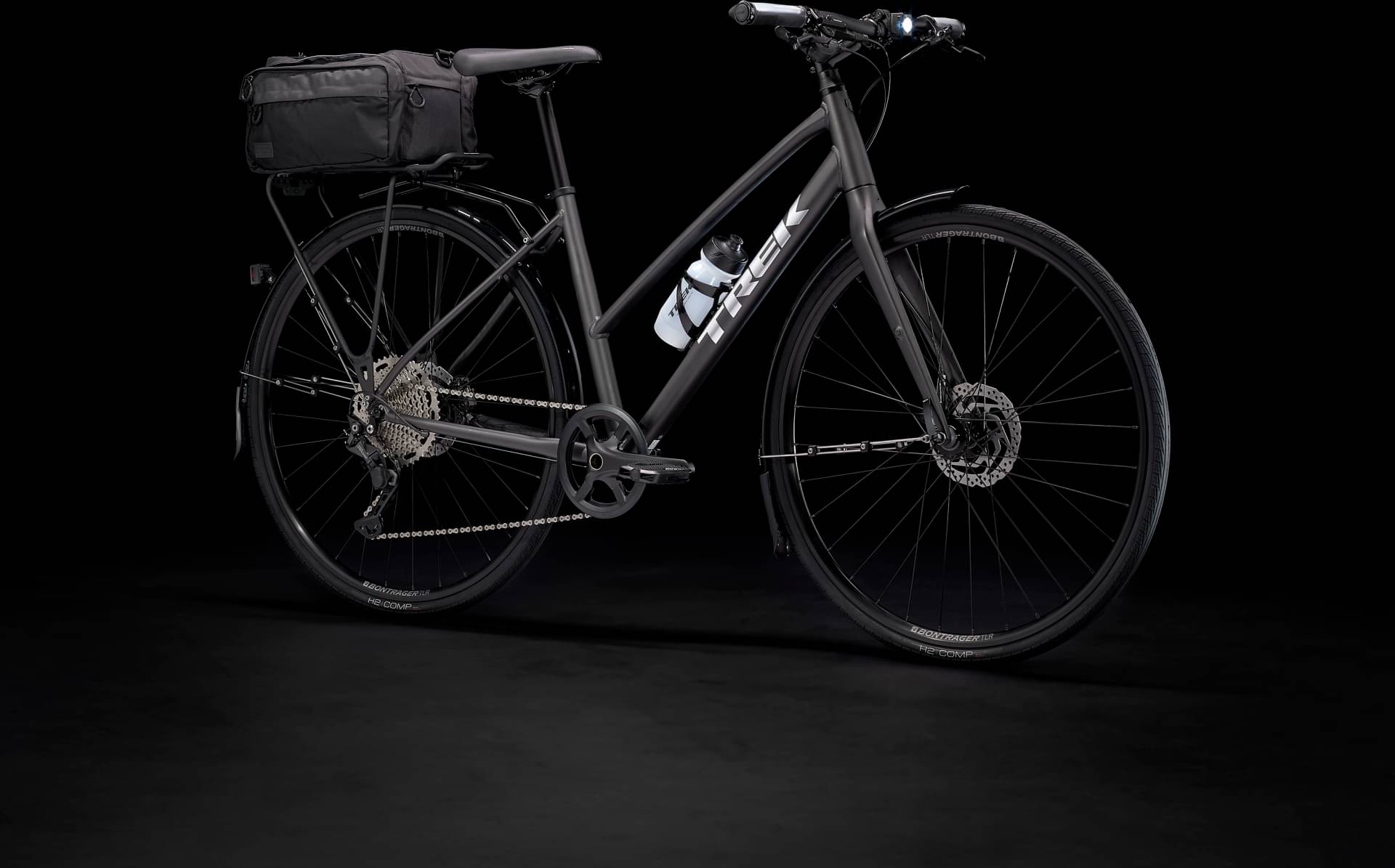

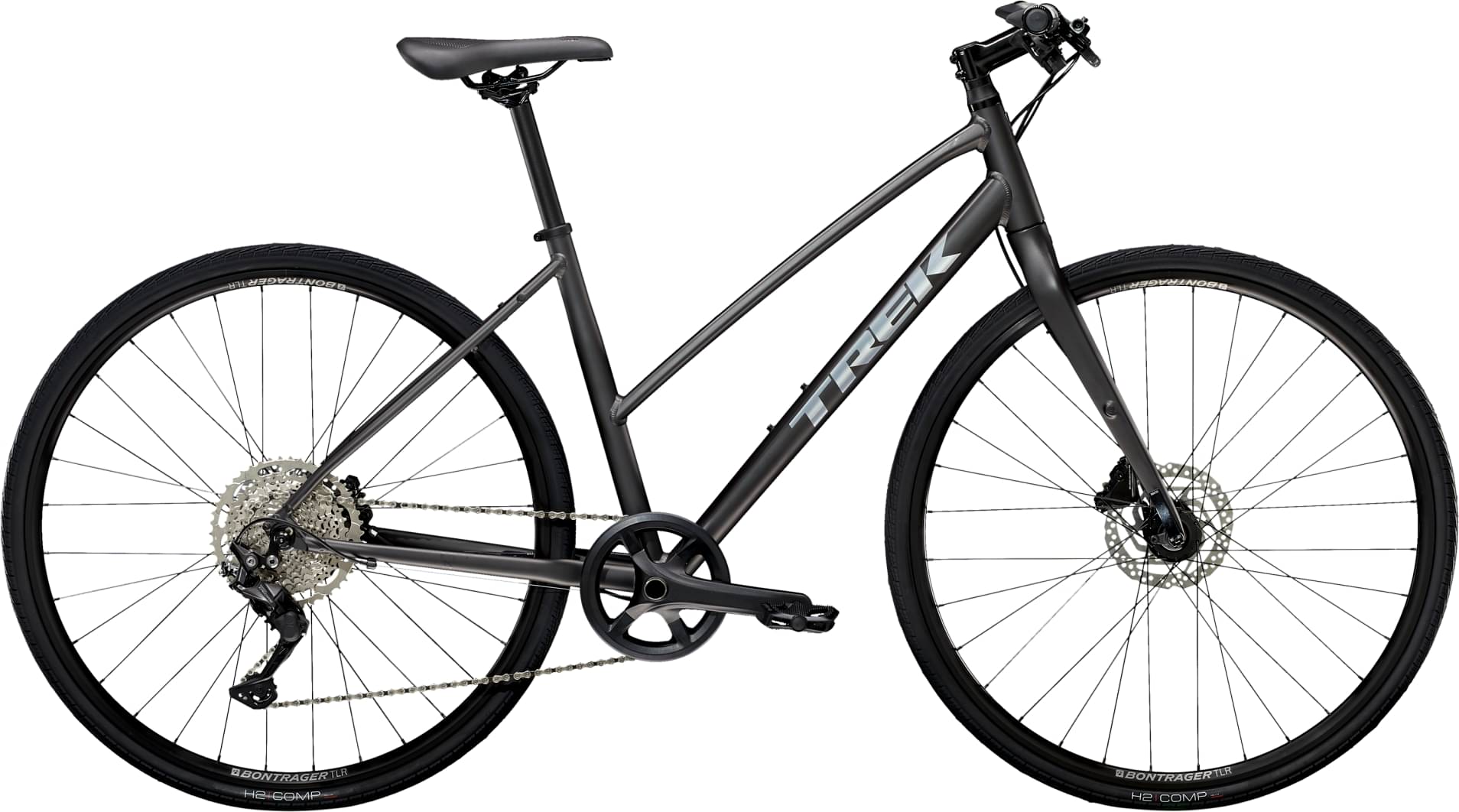

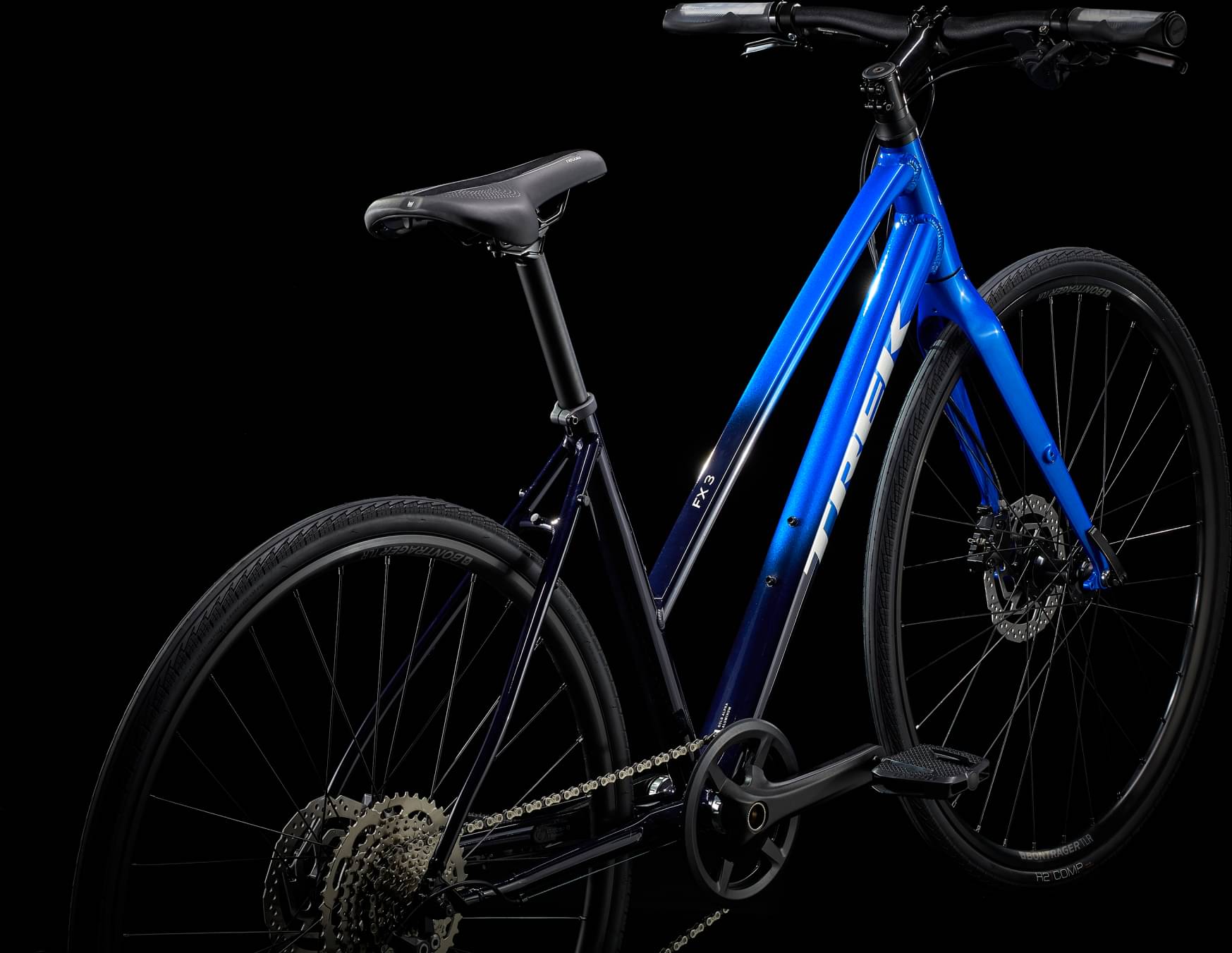

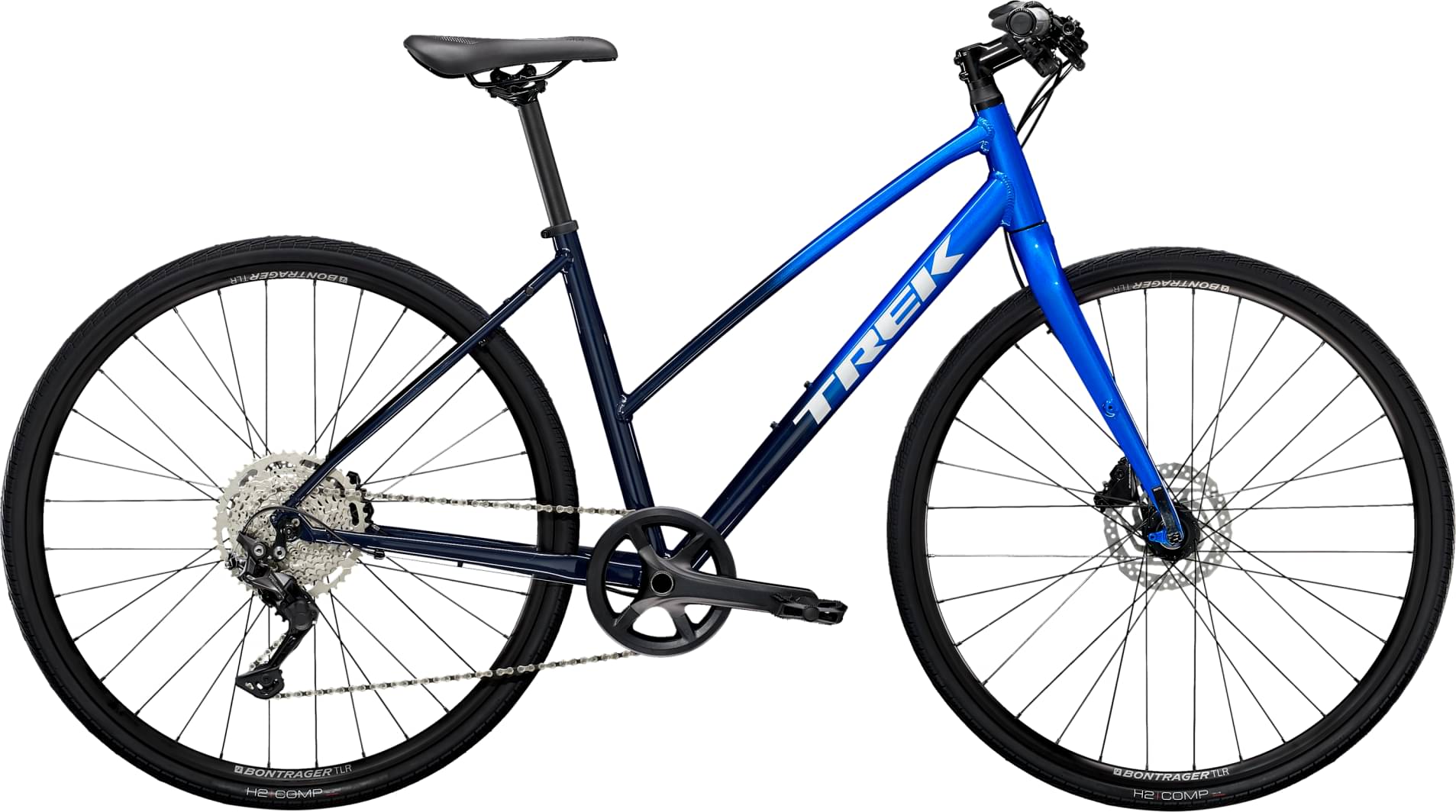

Trek FX 3 Disc Stagger Gen 3 2023
2023 Urban
Estimate price |
1,261$
Weight | 11.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

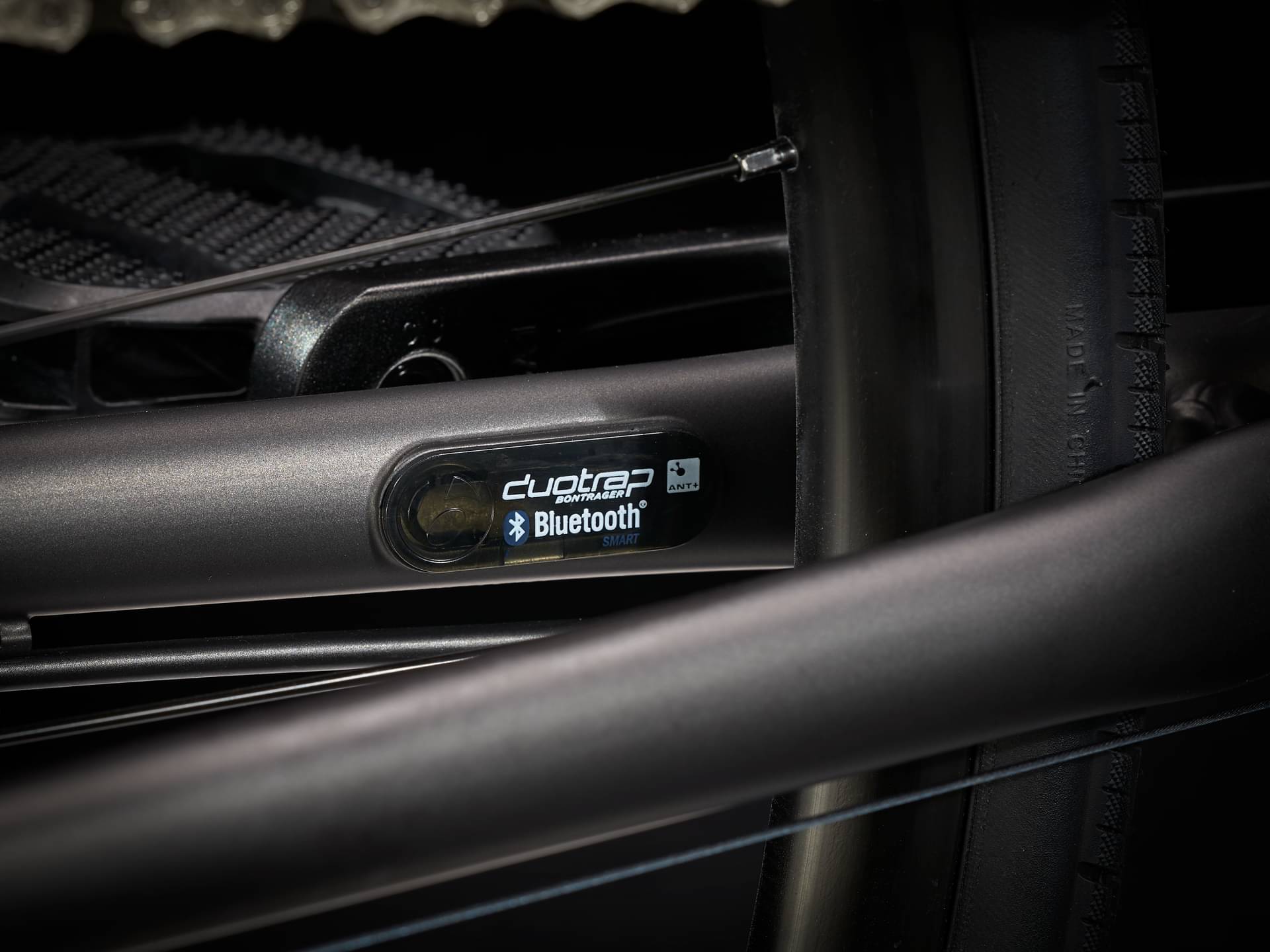

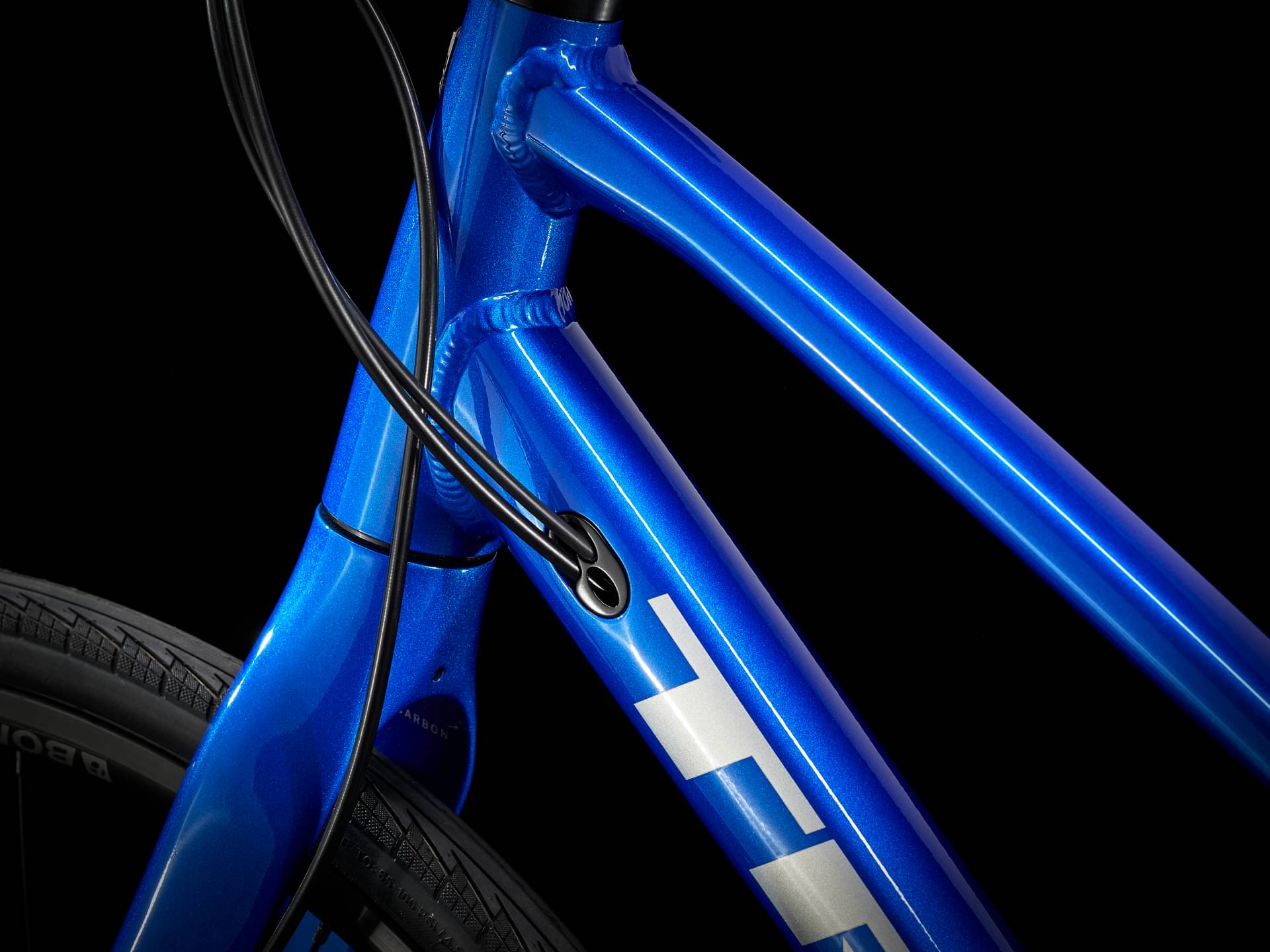

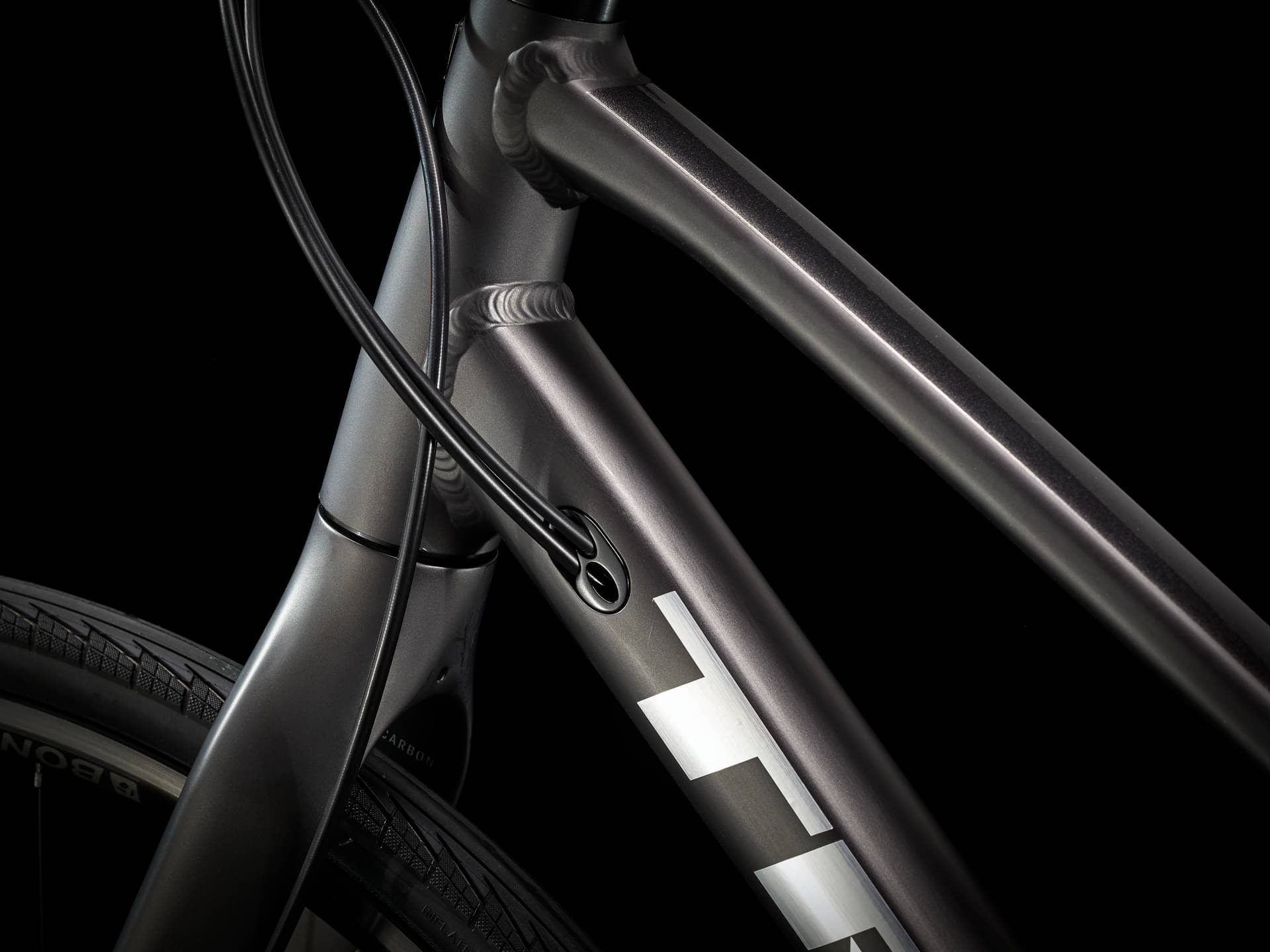

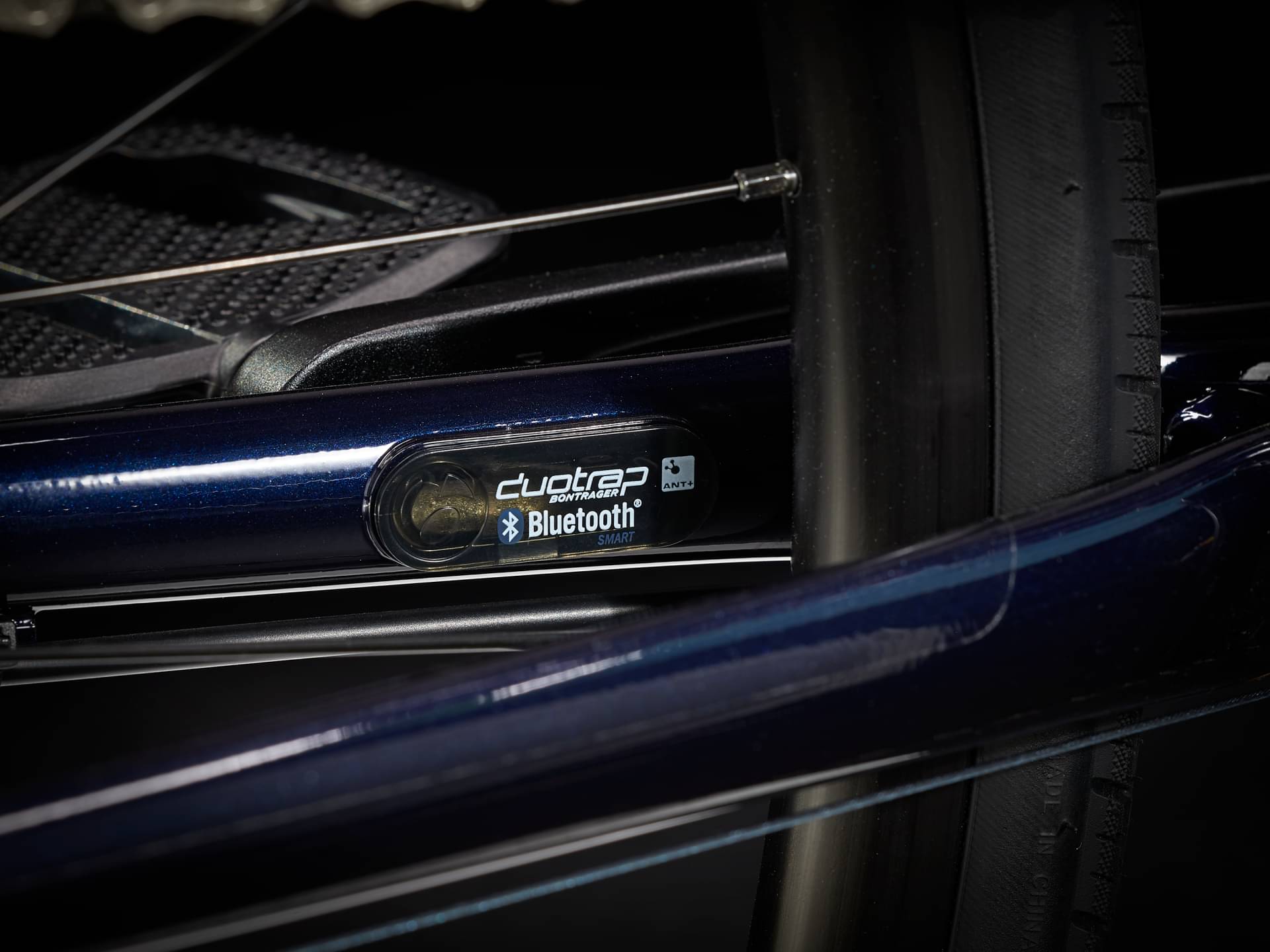

Alpha Gold Aluminium, stagger top tube, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Suspension Fork
FX Carbon, rack and mudguard mounts, flat-mount disc, 405 mm axle-to-crown. ThruSkew 5 mm QR

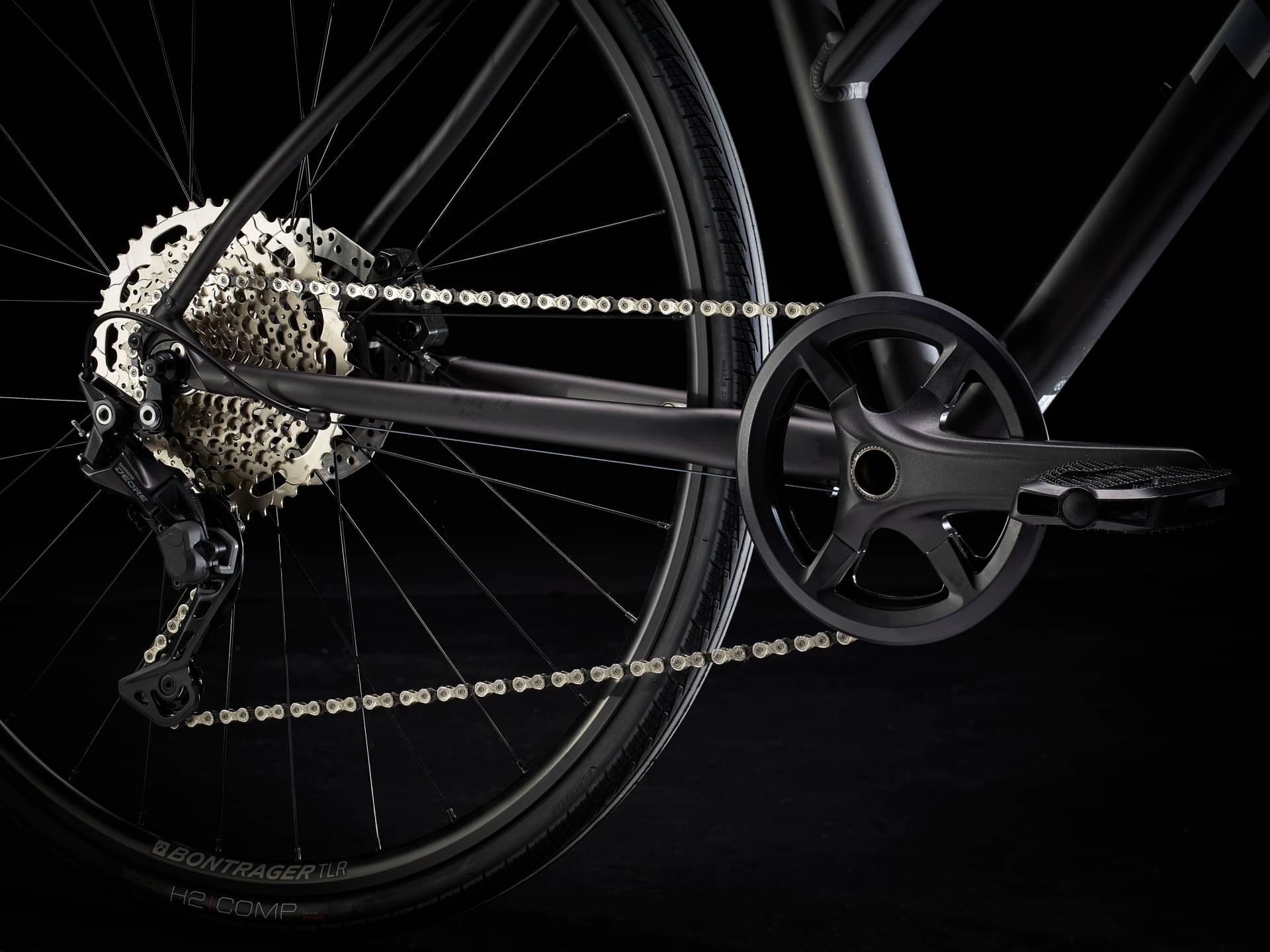

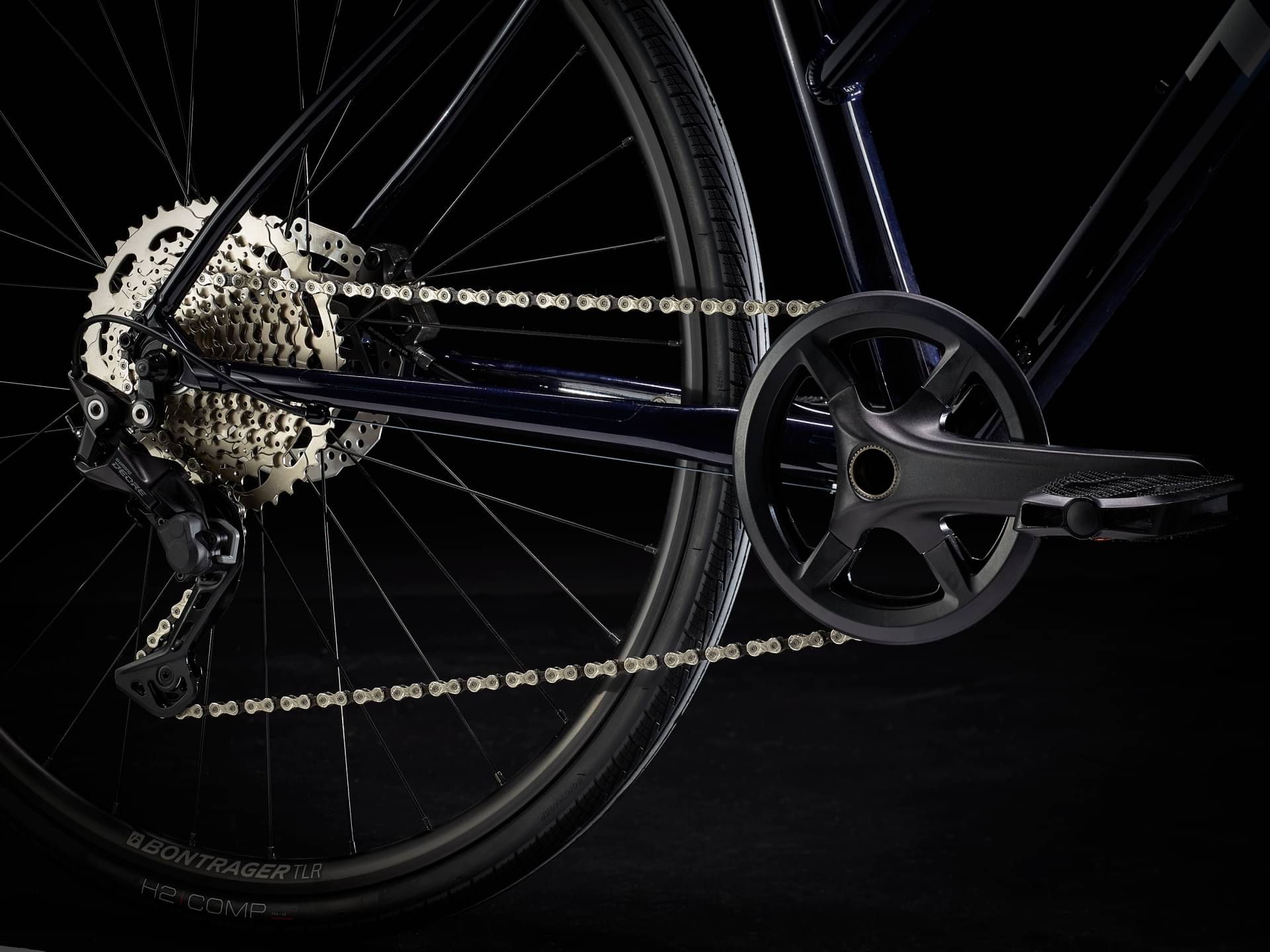

Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10-speed
Cassette
Shimano Deore M4100, 11-46, 10-speed
Crank
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Chain
KMC X10, 10-speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

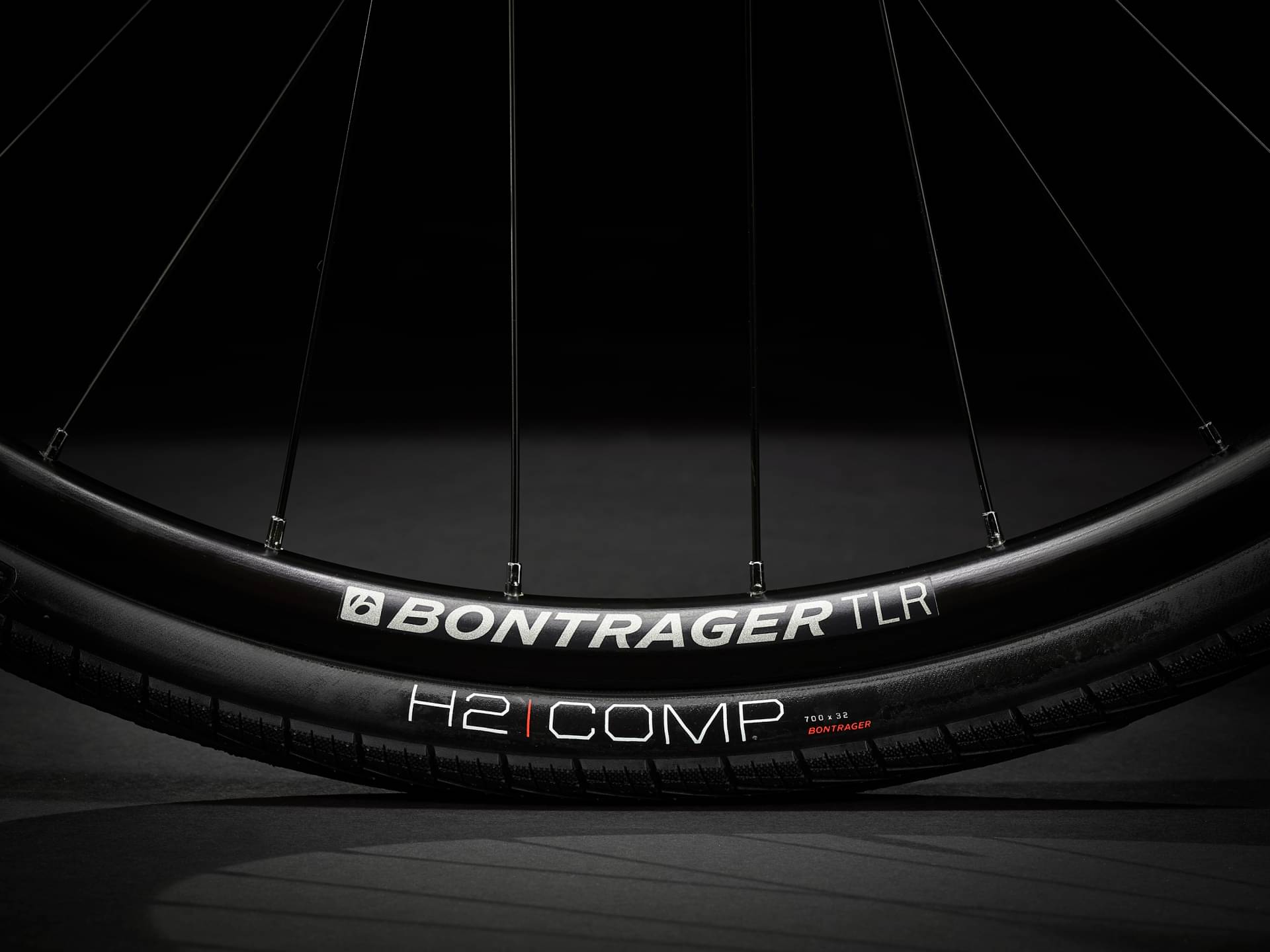

Rims
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Spokes
14 g stainless steel, black
Tires
Bontrager H2 Comp, wire bead, 30 tpi, 700x32 mm
Brakes

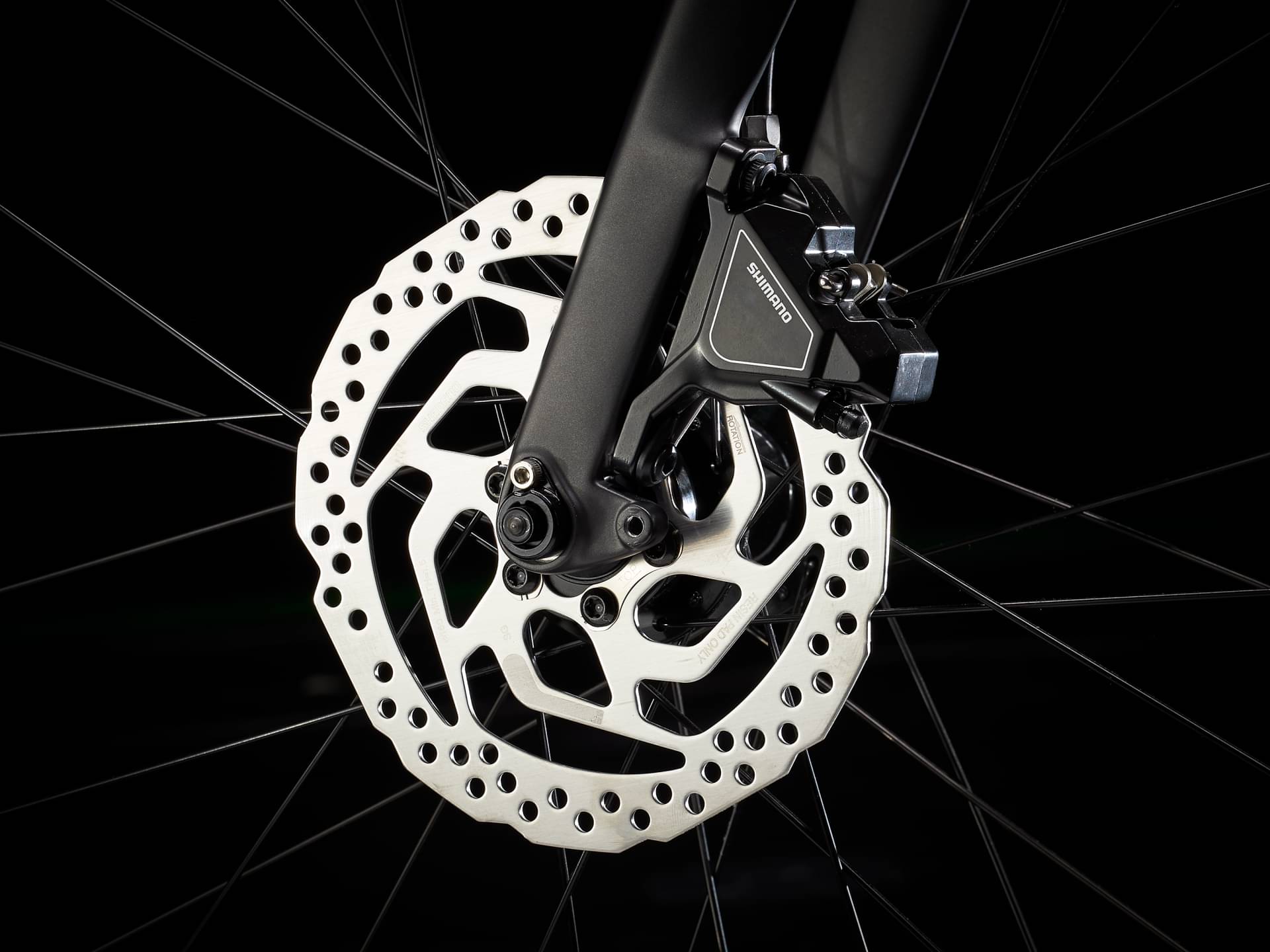

Brakes

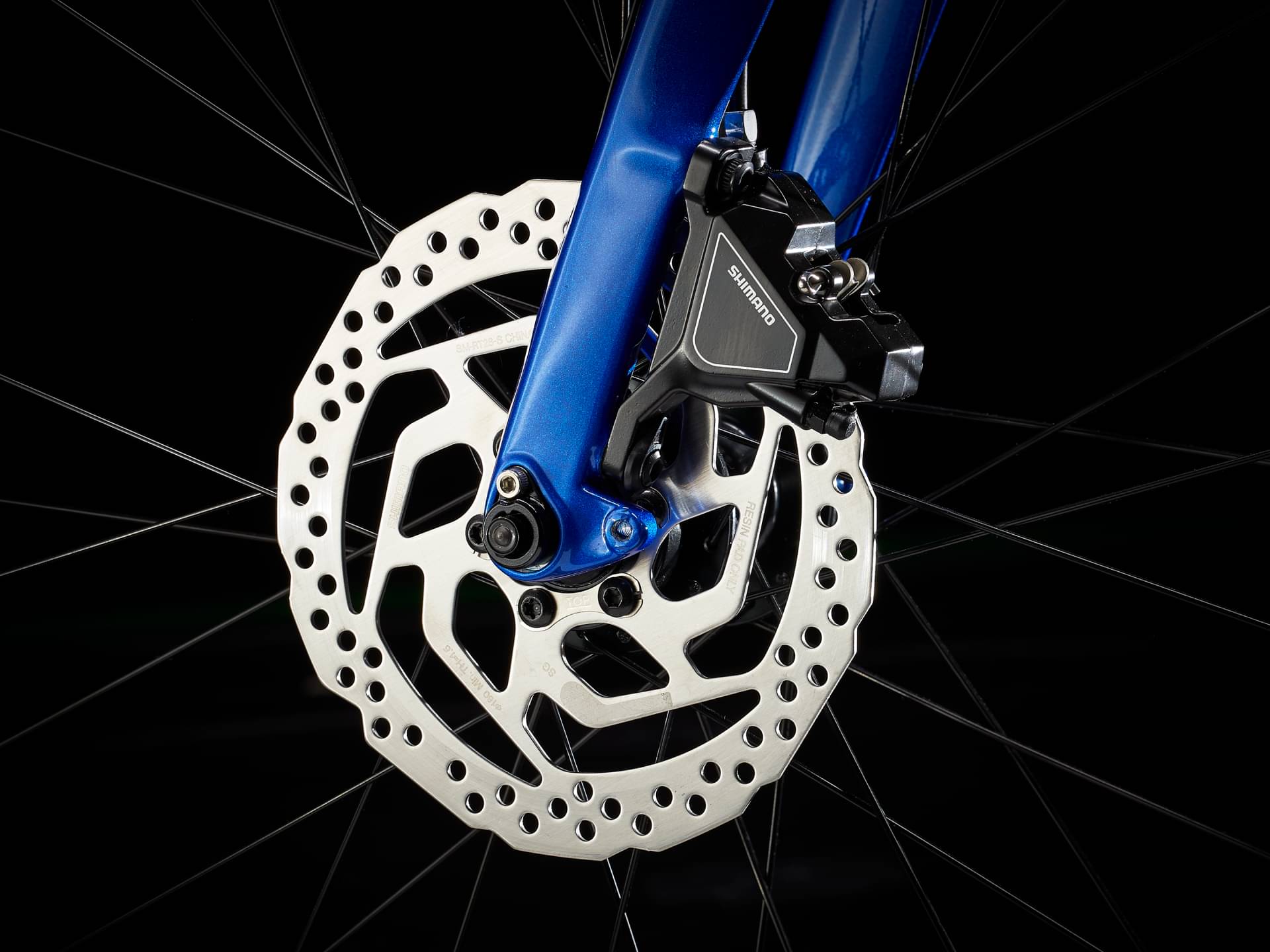

Shimano hydraulic disc, MT201 lever, UR300 calliper

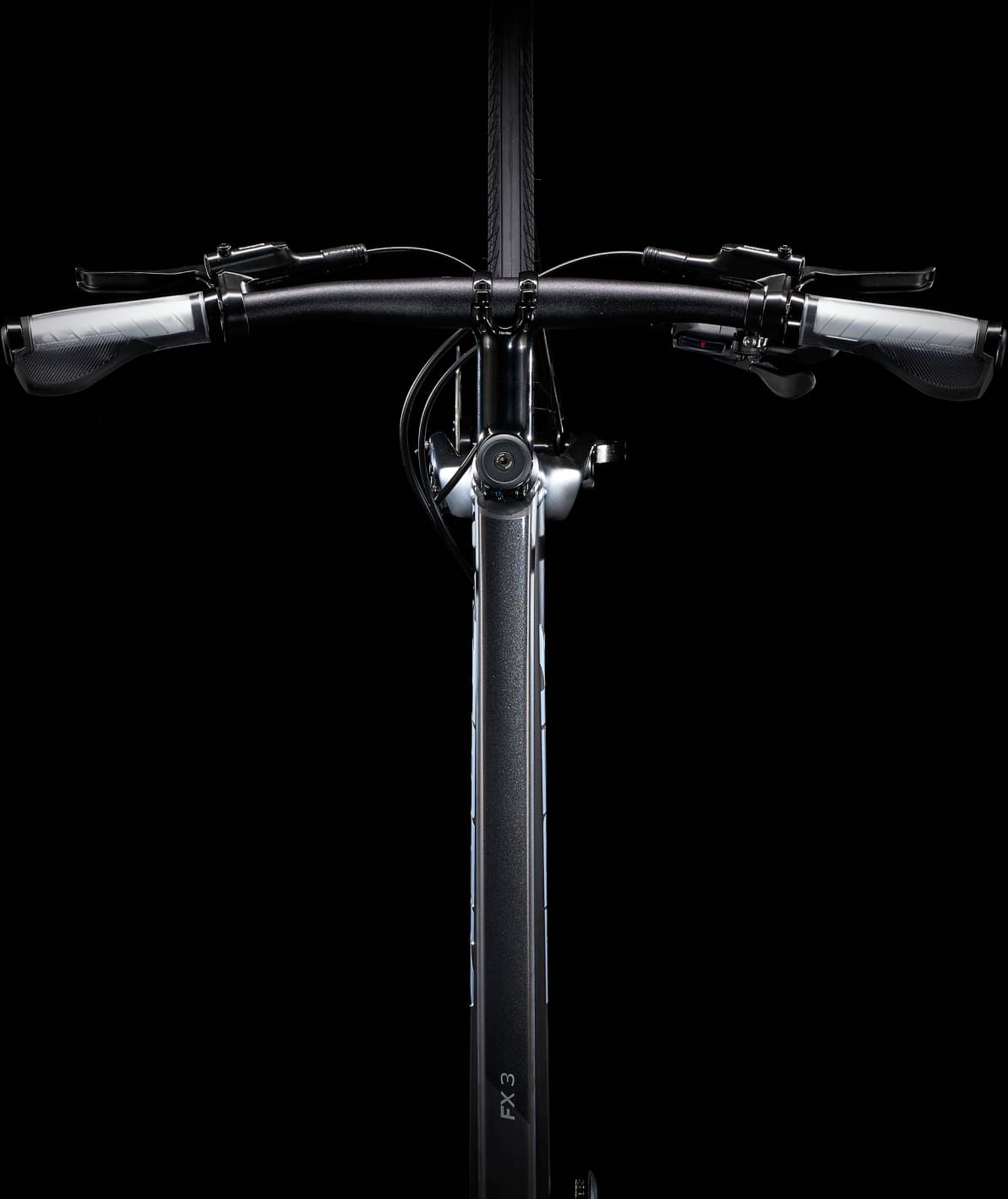

Cockpit
Stem
Size: S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length; Size: M, L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length

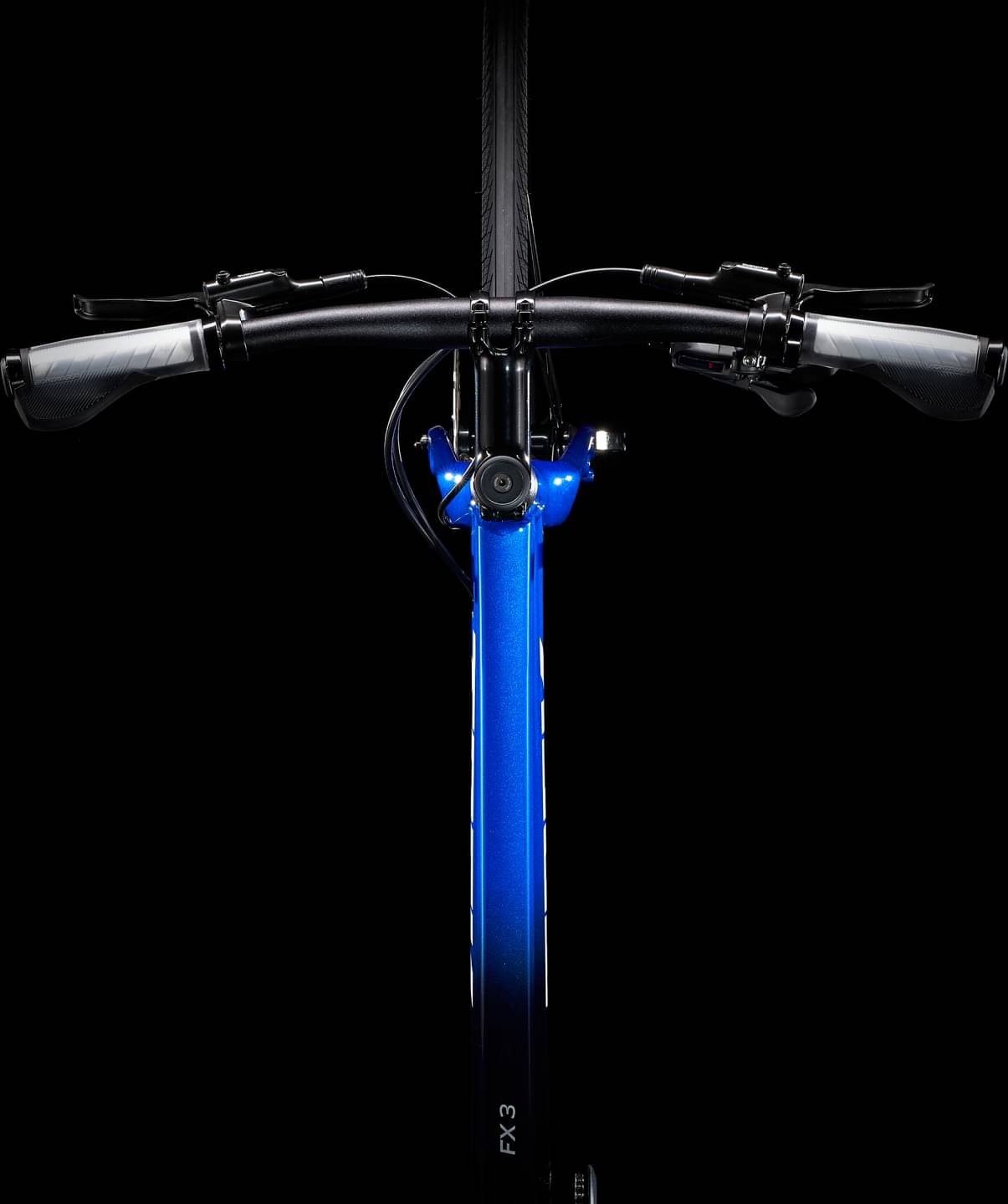

Handlebar
Size: S, M, Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width

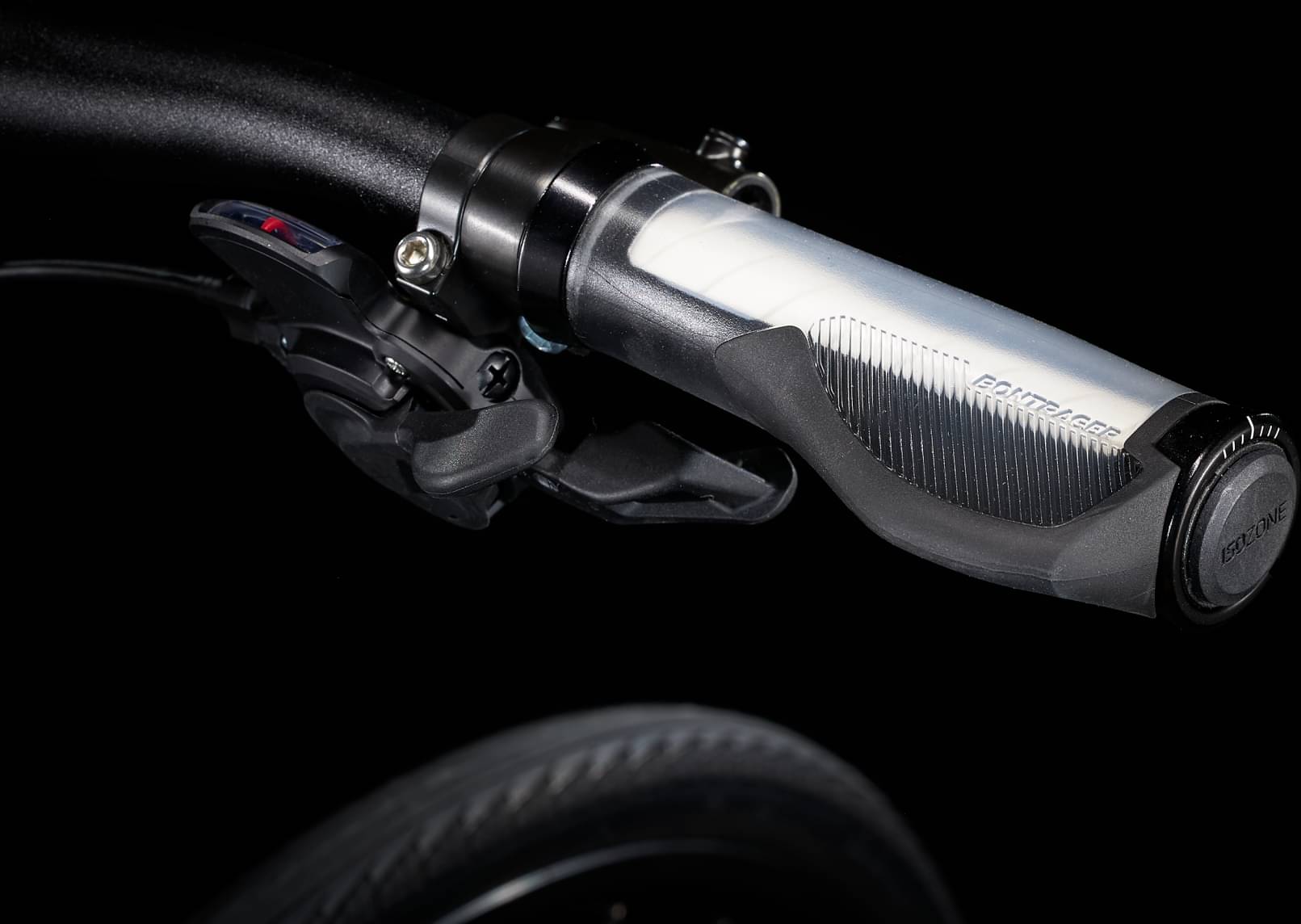

Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Seat

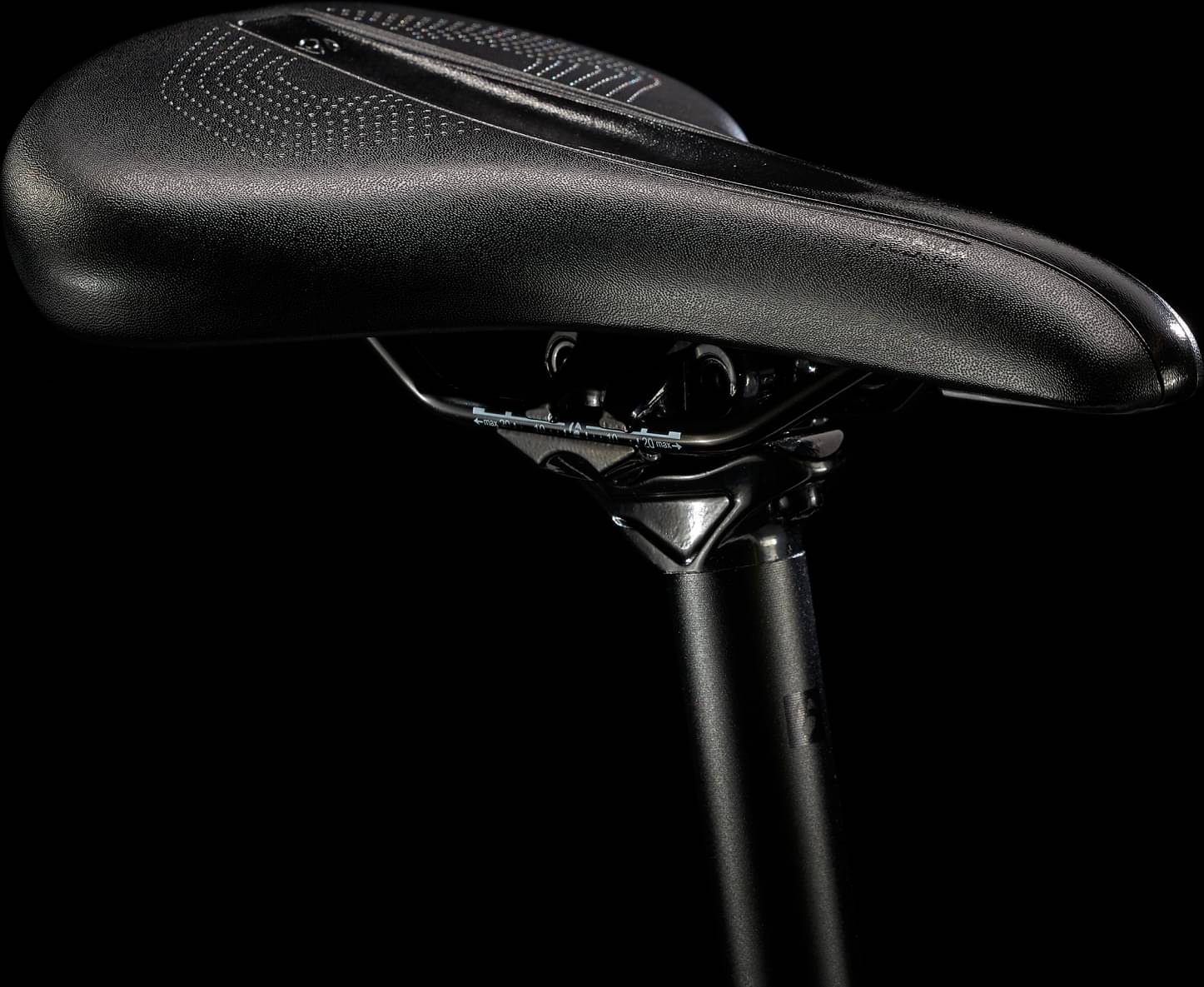

Saddle
Bontrager H1 Women's
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.47 mm | 1.522 mm |
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm |
| Front Center | 613 mm | 625 mm | 625 mm |
| Rake | 50 mm | 50 mm | 51 mm |
| Trail | 75 mm | 75 mm | 68 mm |
| Stack | 554 mm | 572 mm | 595 mm |
| Reach | 384 mm | 389 mm | 391 mm |
| Top Tube Length | 537 mm | 553 mm | 568 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1055 mm | 1067 mm | 1067 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 711 mm | 757 mm | 788 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
