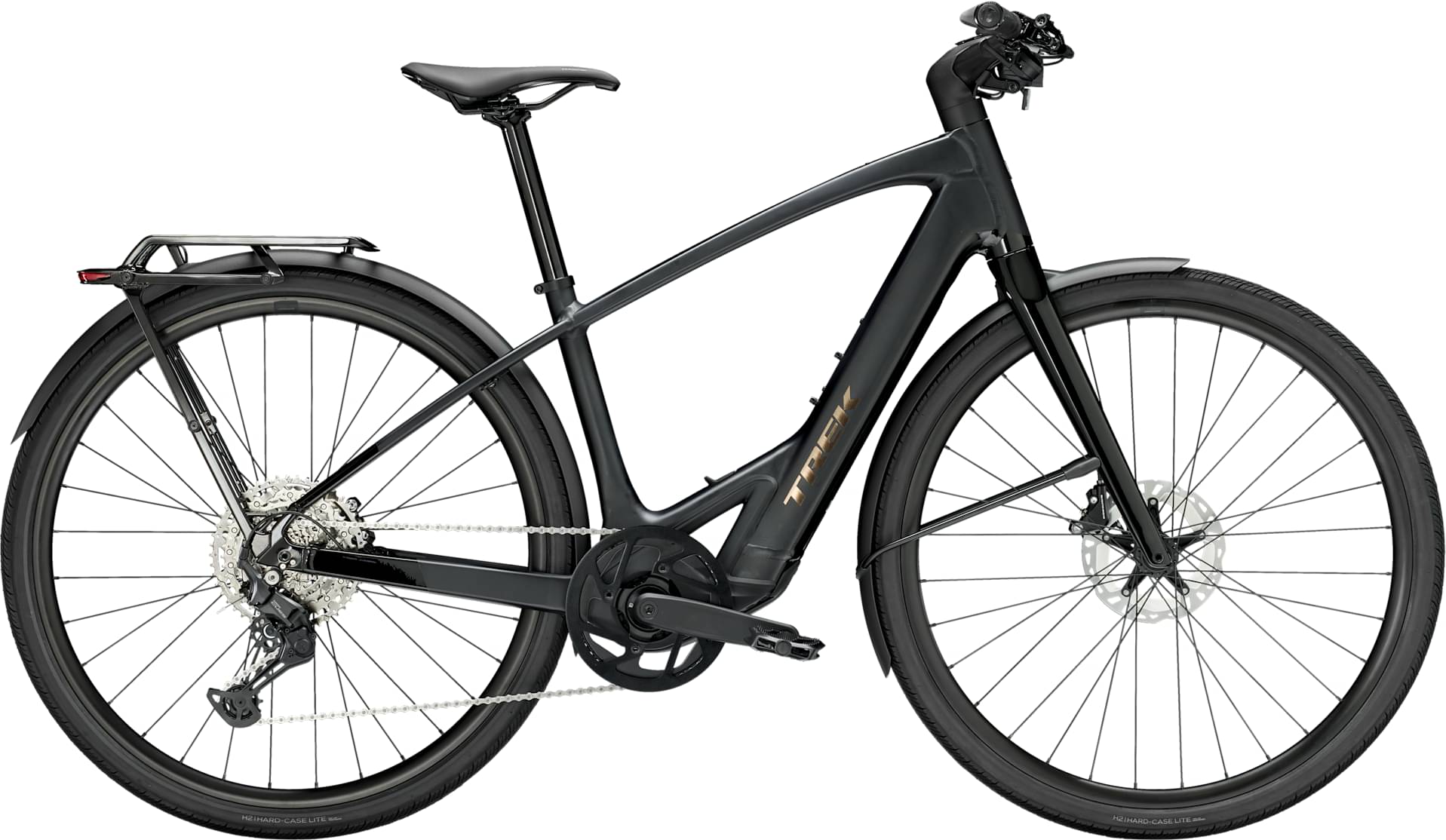

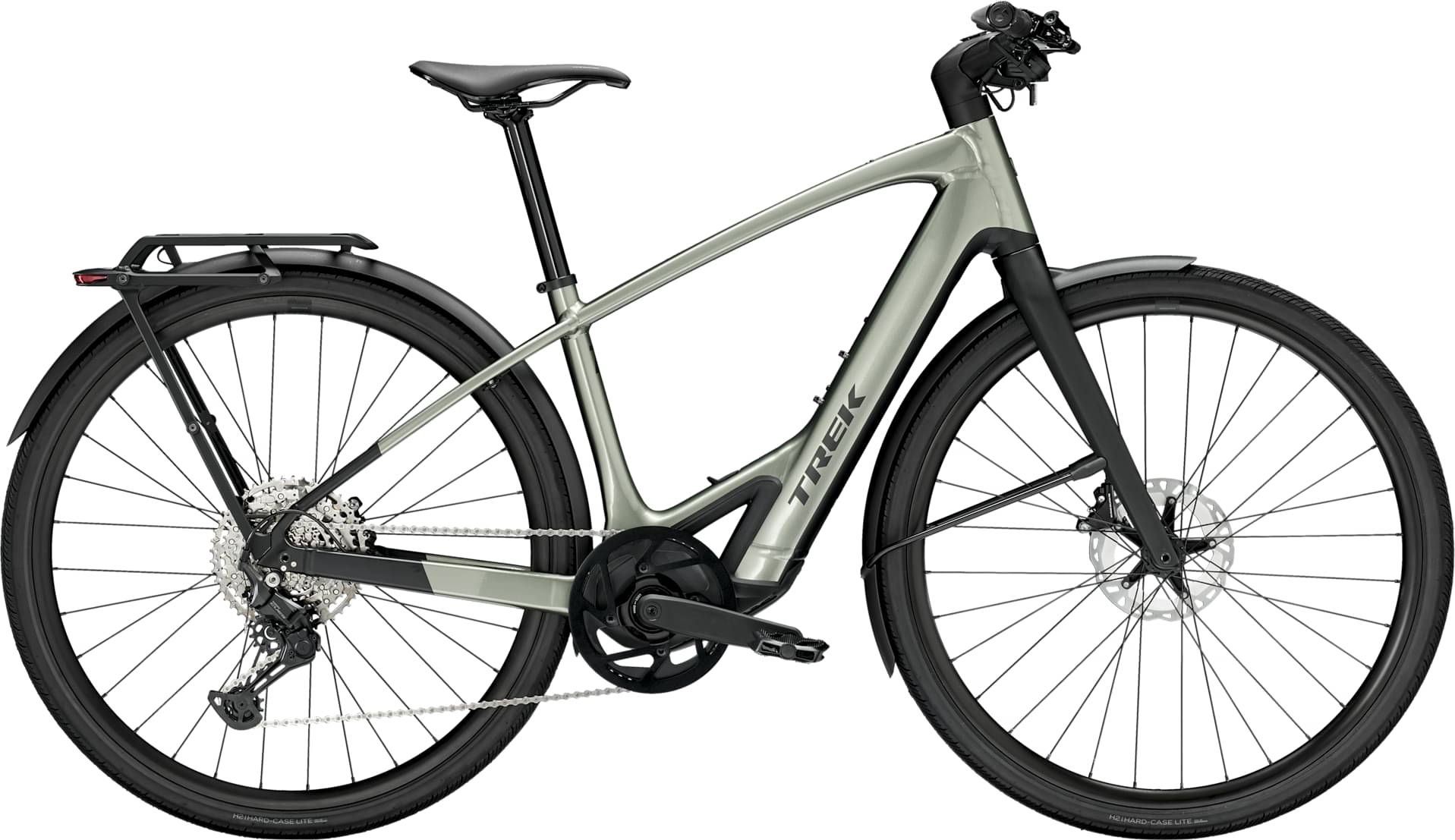

Trek FX+ 7S 2025
2025 E-bike
Estimate price |
4,399$
Weight | 18.65 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Motor TQ 250W 50Nm hub-drive -
Battery TQ 360Wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
45cm
155cm - 166cm
50cm
164cm - 176cm
55cm
174cm - 187cm
60cm
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, internal cable routing, dealer removable battery, rack & fender mounts, post mount disc, kickstand mount
Suspension Fork
FX+ 7, carbon legs, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle

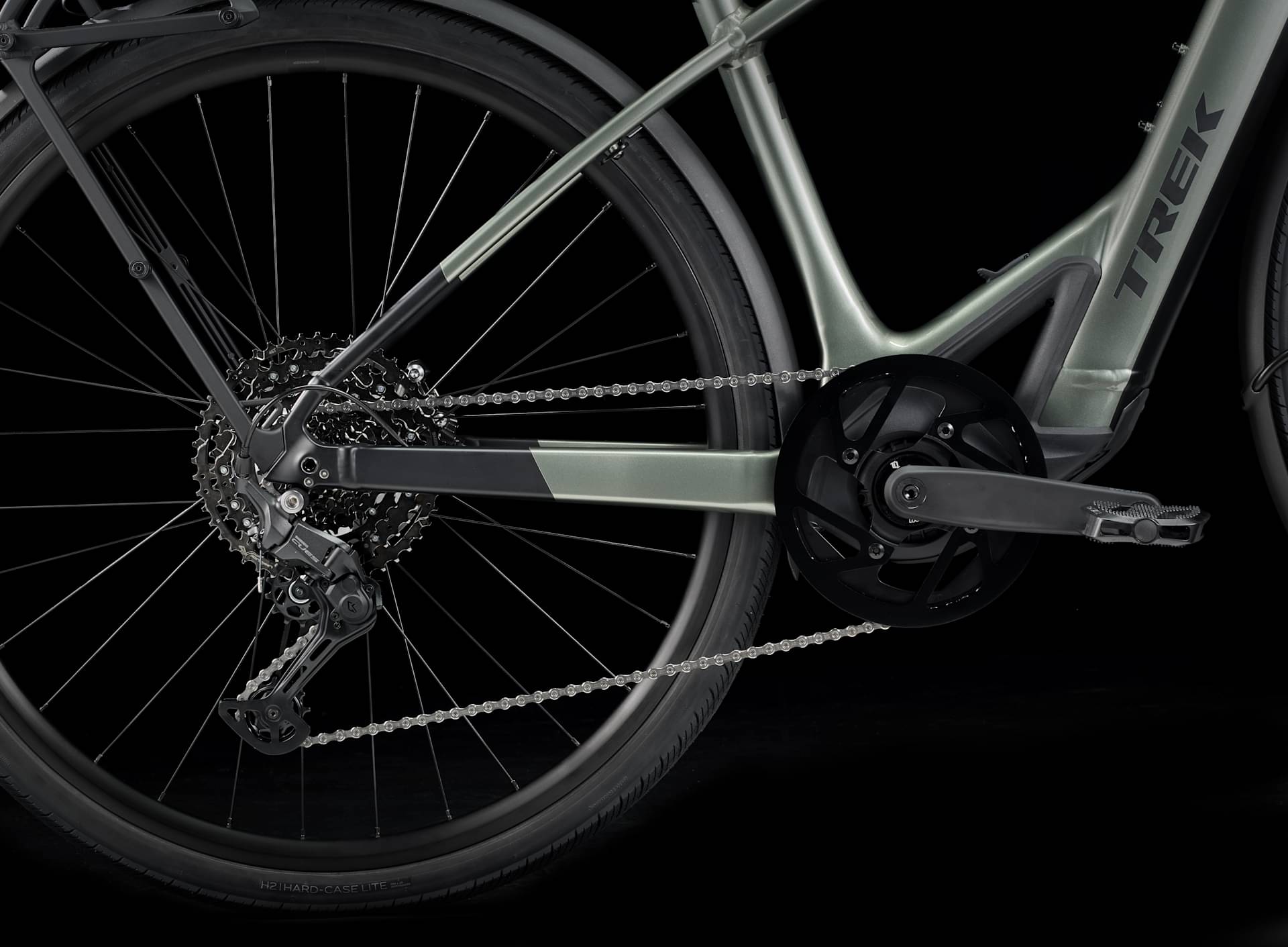

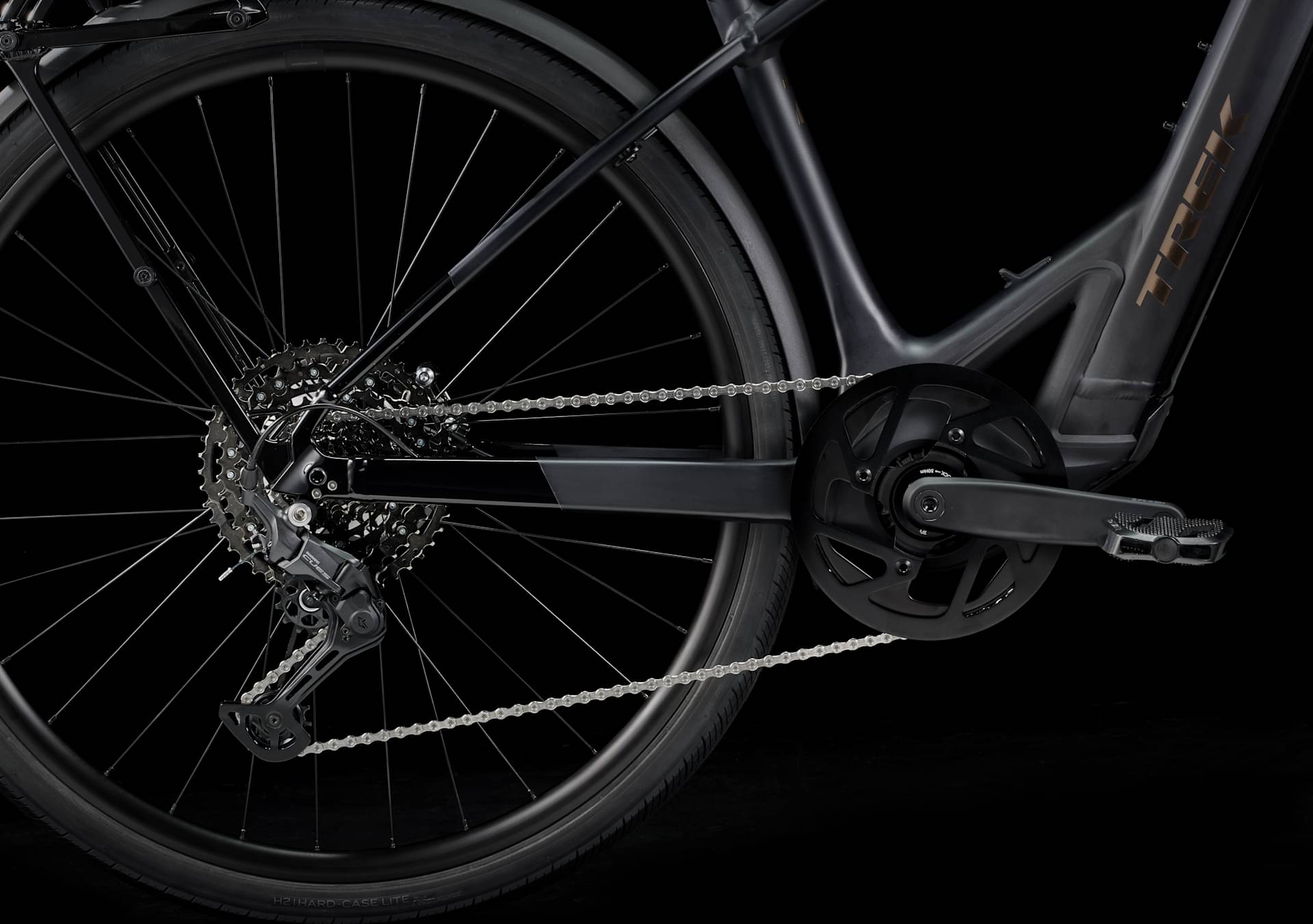

Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano U6000, 10 speed
Cassette
Shimano CUES LG400, LINKGLIDE, 11-48, 10 speed
Crank
ProWheel Alloy, 46T narrow-wide chainring, 170mm arm length ISIS spline
Chain
Shimano LG500, 9/10/11 speed
Wheels
Front Hub
Formula alloy, centerlock disc, 100x12mm thru-axle
Rear Hub
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager H2 Hard Case Lite, wire bead, 30 tpi, 700x40mm
Brakes
Brakes
Shimano hydraulic disc, RS600 lever, RS405 caliper

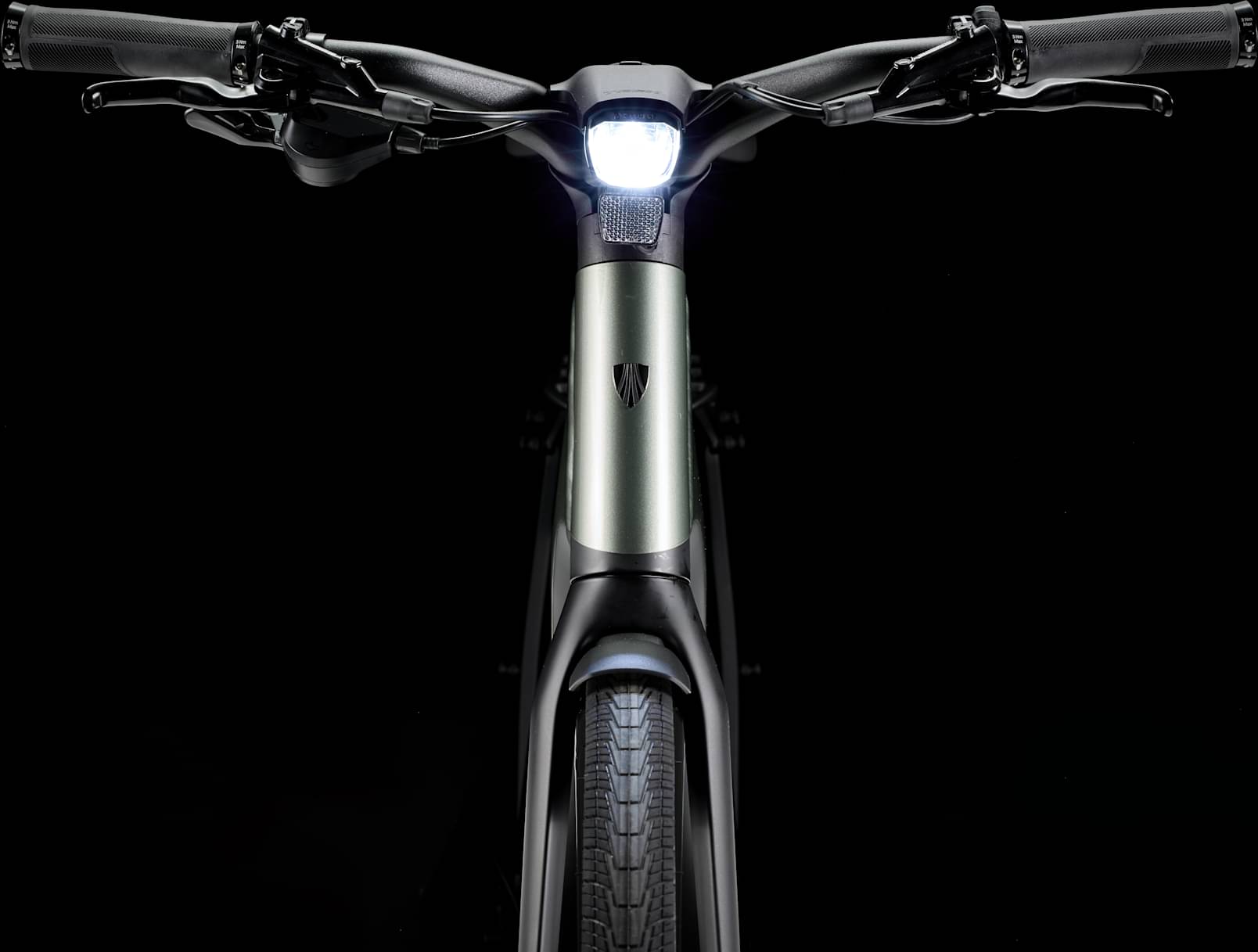

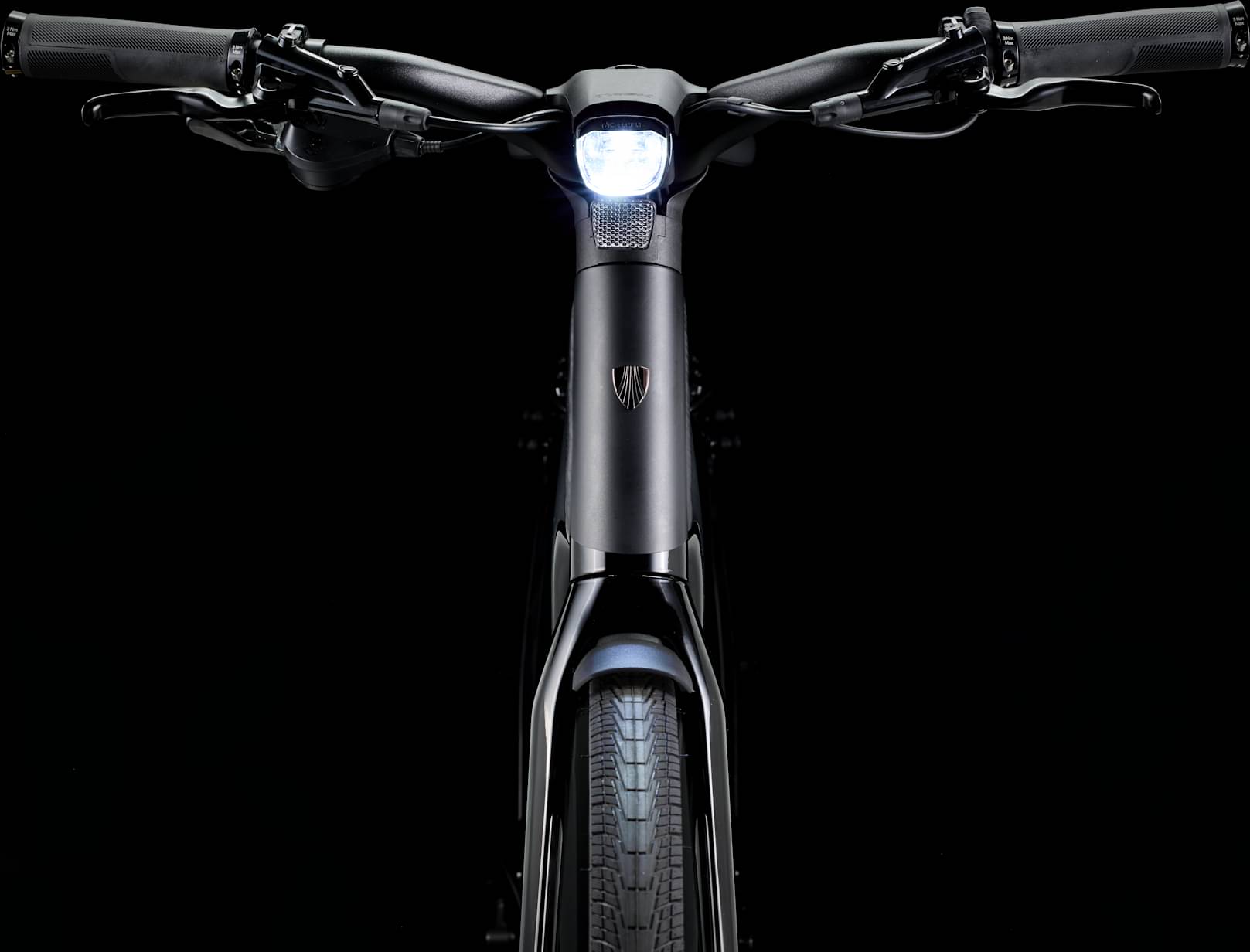

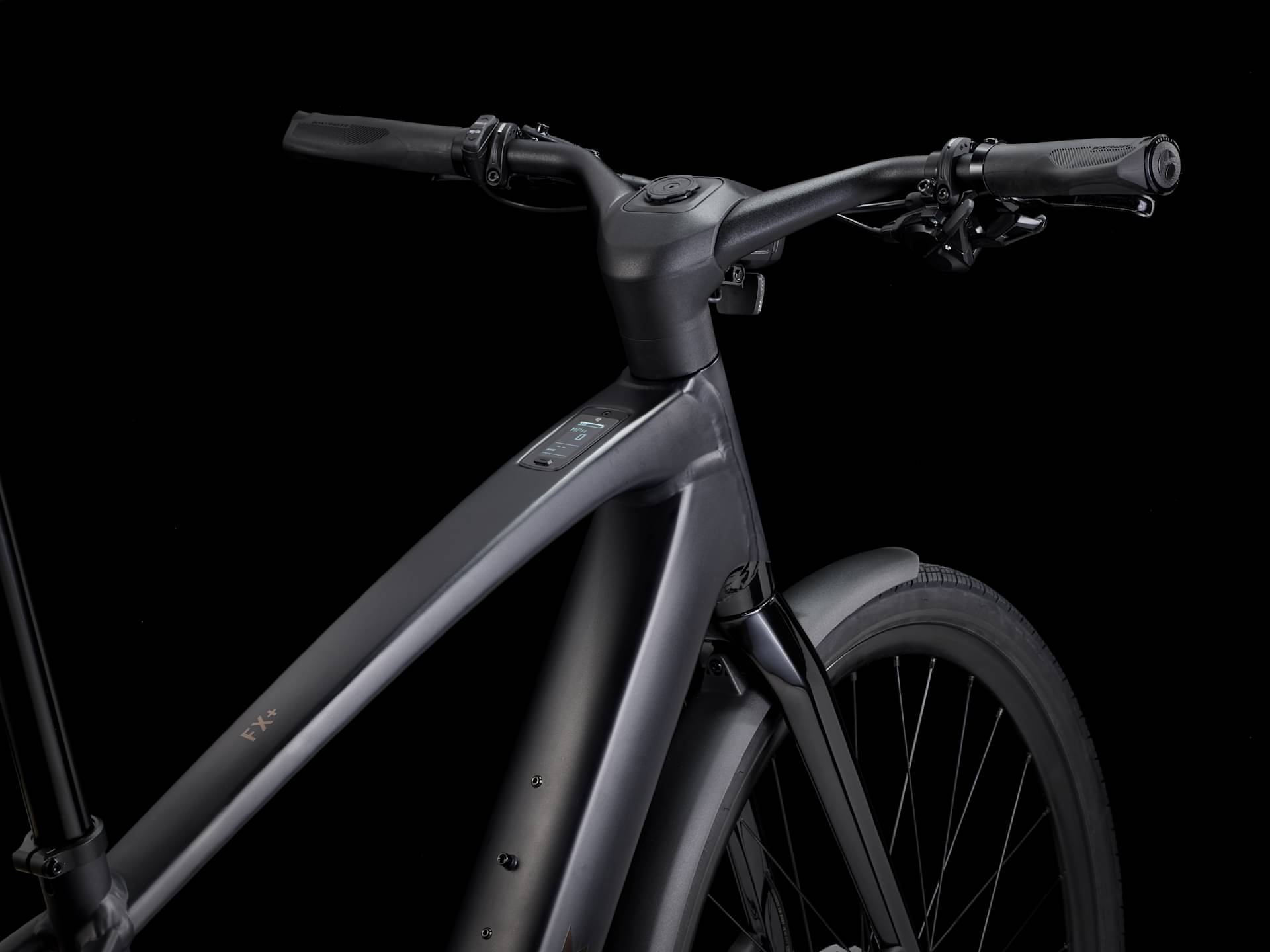

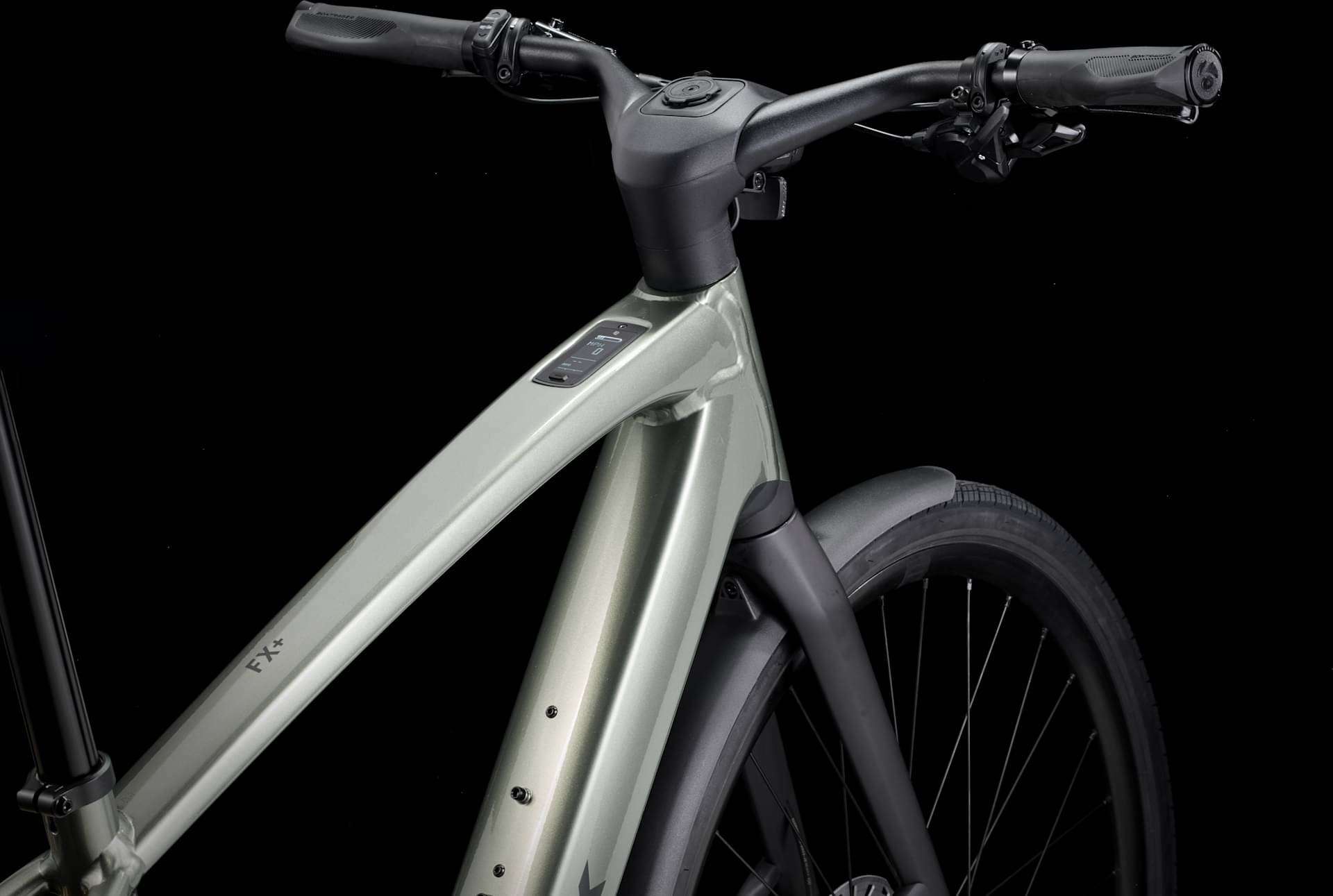

Cockpit
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Verse Comp, steel rails, 165mm width
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
Motor & Battery
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
TQ 360Wh
Charger
TQ 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.511 mm | 1.554 mm | 1.584 mm |
| Trail | 71 mm | 68 mm | 64 mm | 58 mm |
| Stack | 568 mm | 594 mm | 620 mm | 648 mm |
| Reach | 385 mm | 393 mm | 399 mm | 409 mm |
| Top Tube Length | 543 mm | 563 mm | 583 mm | 613 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 375 mm | 420 mm | 465 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1059 mm | 1070 mm | 1080 mm | 1087 mm |
| Standover Height | 715 mm | 754 mm | 791 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
