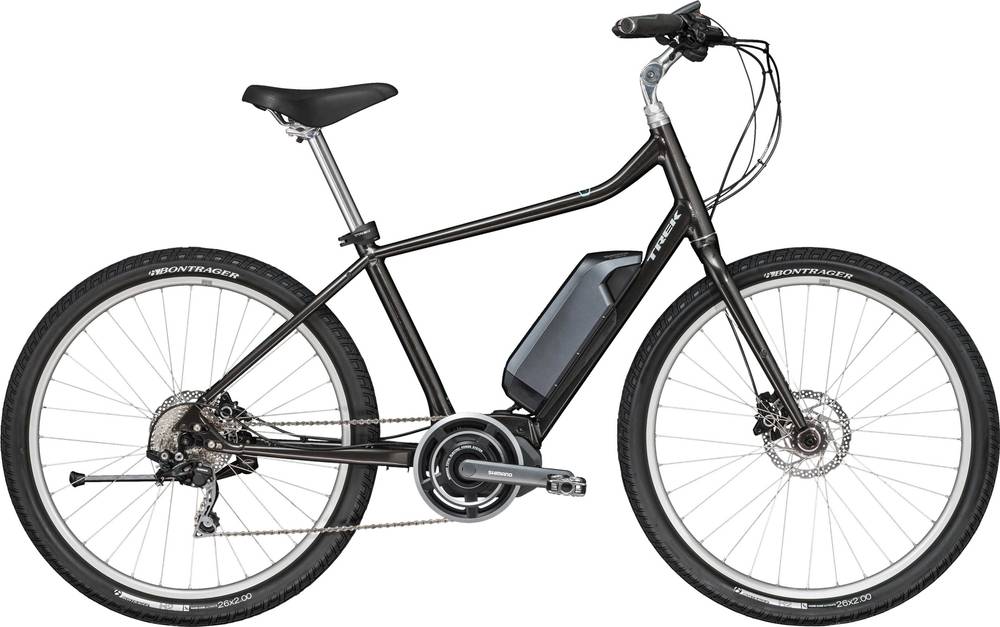

Trek Lift+ 2017
2017 E-bike
Estimate price |
2,799$
Weight | 20.32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano -
Battery SHIMANO STEPS downtube -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, custom designed for SHIMANO STEPS system, rack & fender mounts, internal cable routing
Suspension Fork
Lift+, alloy
Drivetrain
Rear Derailleur
Shimano Deore, Shadow Plus
Shift Levers
Shimano Deore, 10 speed
Cassette
Shimano Tiagra, 11-32, 10 speed
Crank
SHIMANO STEPS
Bottom Bracket
SHIMANO STEPS drive motor unit
Pedals
Alloy body w/Kraton inserts
Wheels
Front Hub
Formula DC20 alloy
Rear Hub
Formula DC22 alloy
Rims
Bontrager AT-850 32-hole double-walled alloy
Tires
Bontrager H2 Hard-Case Ultimate, 26x2.00"
Brakes
Brakes
Shimano M315 hydraulic disc
Cockpit
Stem
Alloy, adjustable rise, quill
Handlebar
Bontrager Satellite, semi-swept-back, 25.4mm, 50mm rise
Grips
Bontrager Satellite Elite, lock-on, ergonomic
Headset
1-1/8", semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager padded
Seatpost
Bontrager SSR, 31.6mm, 12mm offset
Motor & Battery
Motor
SHIMANO STEPS downtube
Battery
SHIMANO STEPS downtube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 16.5" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.75 mm | 1.72 mm | 1.81 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm |
| Trail | 73 mm | 73 mm | 73 mm |
| Stack | 601 mm | 601 mm | 648 mm |
| Reach | 343 mm | 350 mm | 358 mm |
| Top Tube Length | 615 mm | 623 mm | 653 mm |
| Seat Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Seat Tube Length | 420 mm | 457 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 210 mm | 210 mm | 260 mm |
| Chainstay Length | 498 mm | 498 mm | 498 mm |
| Wheelbase | 1093 mm | 1101 mm | 1126 mm |
| Standover Height | 698 mm | 720 mm | 783 mm |
| Wheels | 26" | 26" | 26" |
Model Overview
Lift+ is a Trek E Lift model. 1 e-bike variation carries this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban e-bikes
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2017 and its price was 2799$. If we compare this with the average General Urban e-bike cost we notice that the price is 33.41% more expensive.
Average weight for General Urban e-bikes
The average weight for General Urban e-bikes is 24.08 kg (53.09 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Trek Lift+ it’s weighing 20.32 kg (44.8 lbs). At this weight, is much lighter than average. In short, the average General Urban e-bike weight is 18.5% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Lift+ are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lift+ comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
