Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 internally and externally butted aluminum | Genesis Geometry
Suspension Fork
Manitou Axel Elite w/TPC Lock-Out | 100mm travel | Magnesium lowers
Drivetrain
Rear Derailleur
Shimano M-511 Deore
Front Derailleur
Shimano M-410 Alivio
Shift Levers
Shimano M-511 Deore
Cassette
SRAM PG950 | 11-34 | 9spd
Crank
Shimano M410 42/32/22
Pedals
Alloy platform
Wheels
Rims
Shimano M475 disc hubs + Bontrager Ranger Disc rims | Bontrager Jones XR 26x2.25 tires
Tires
Bontrager Jones XR 26x2.25 / Bontrager Jones XR 26x2.2
Brakes
Brakes
Hayes HMX-2 mechanical disc | 6" rotor w/ Tektro RS360A
Cockpit
Stem
Bontrager Sport | 10d rise
Handlebar
Bontrager Crowbar Sport
Headset
Aheadset | semi-cartridge | sealed
Seat
Saddle
Bontrager Select ATB
Seatpost
Bontrager Sport
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

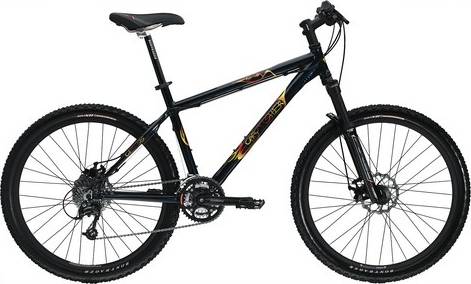

Piranha belongs to the Trek Piranha model. Trek released 5 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Piranha components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of magnesium, but they are not so popular as steel or carbon forks.
Wheels
When it comes to wheels, the Piranha bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Piranha has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
