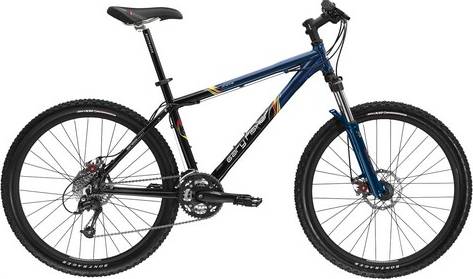

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 internally and externally butted aluminum | Genesis Geometry
Suspension Fork
Manitou Axel Elite w/TPC Lockout | 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Deore
Cassette
SRAM PG950 | 11-32 | 9 speed
Crank
Shimano M410 42/32/22
Pedals
Alloy platform
Wheels
Rims
Shimano M475 disc hubs | Bontrager Ranger Disc rims | Bontrager Jones XR 26x2.25/2.2 tires
Tires
Bontrager Jones XR 26x2.25 / Bontrager Jones XR 26x2.2
Brakes
Brakes
Avid BB5 mechanical disc
Cockpit
Stem
Bontrager Sport | 10d
Handlebar
Bontrager Crowbar Sport | 25mm rise
Headset
Aheadset semi-cartridge
Seat
Saddle
Bontrager Select
Seatpost
Bontrager Sport
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Piranha completes the Trek Piranha model. 5 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Trek Piranha 2007, has a 26″ aluminum model. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Piranha comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Piranha comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
