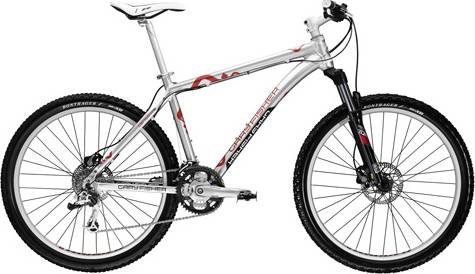

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox
-
Groupset X5 -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 aluminum, G2 Geometry, butted DT, cold-forged dropouts & BB
Suspension Fork
RockShox Tora SL Coil, 100mm Travel, Custom Fisher Genesis 2 Geometry 46mm offset crown, Coil Spring w/ Turnkey Lockout, External Preload and Rebound Adjustment, Magnesium Lowers, International Standard Disc Mount
Drivetrain
Rear Derailleur
SRAM X.5
Front Derailleur
SRAM X.5
Shift Levers
SRAM X.5, trigger, 9spd
Cassette
SRAM PG950 11-32T, 9spd
Pedals
Wellgo LU-216A
Wheels
Rims
Shimano M495 CenterLock disc hubs, Bontrager Ranger disc rims, 32h
Tires
Bontrager Jones XR, 2.2 rear/2.25 front, wire bead
Brakes
Brakes
Shimano M486, hydraulic disc, 160mm CenterLock rotors
Cockpit
Stem
Bontrager SSR, 10d rise
Handlebar
Bontrager SSR riser, 25mm rise, 620mm width, 6d backsweep
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Race
Seatpost
Bontrager SSR, micro adjust, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Piranha belongs to the Trek Piranha model. Trek launched 5 bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Piranha comes factory-installed with the RockShox fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Piranha has a magnesium fork, so, it’s a bit lighter than steel. However, it is not so resistant as a fork steel is.
Wheels
When leaving the production line, the Piranha model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Piranha comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Trek Piranha bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
