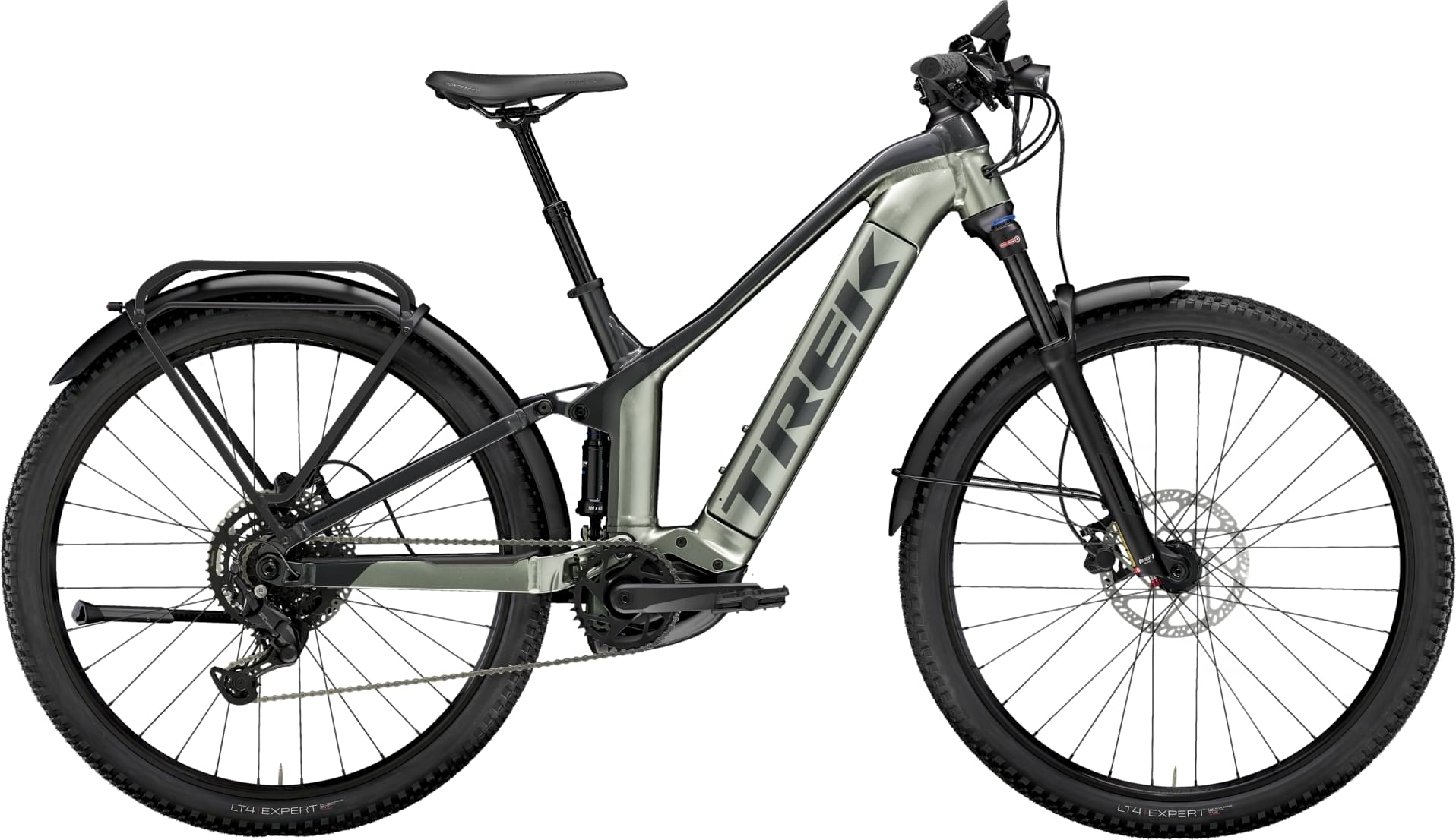

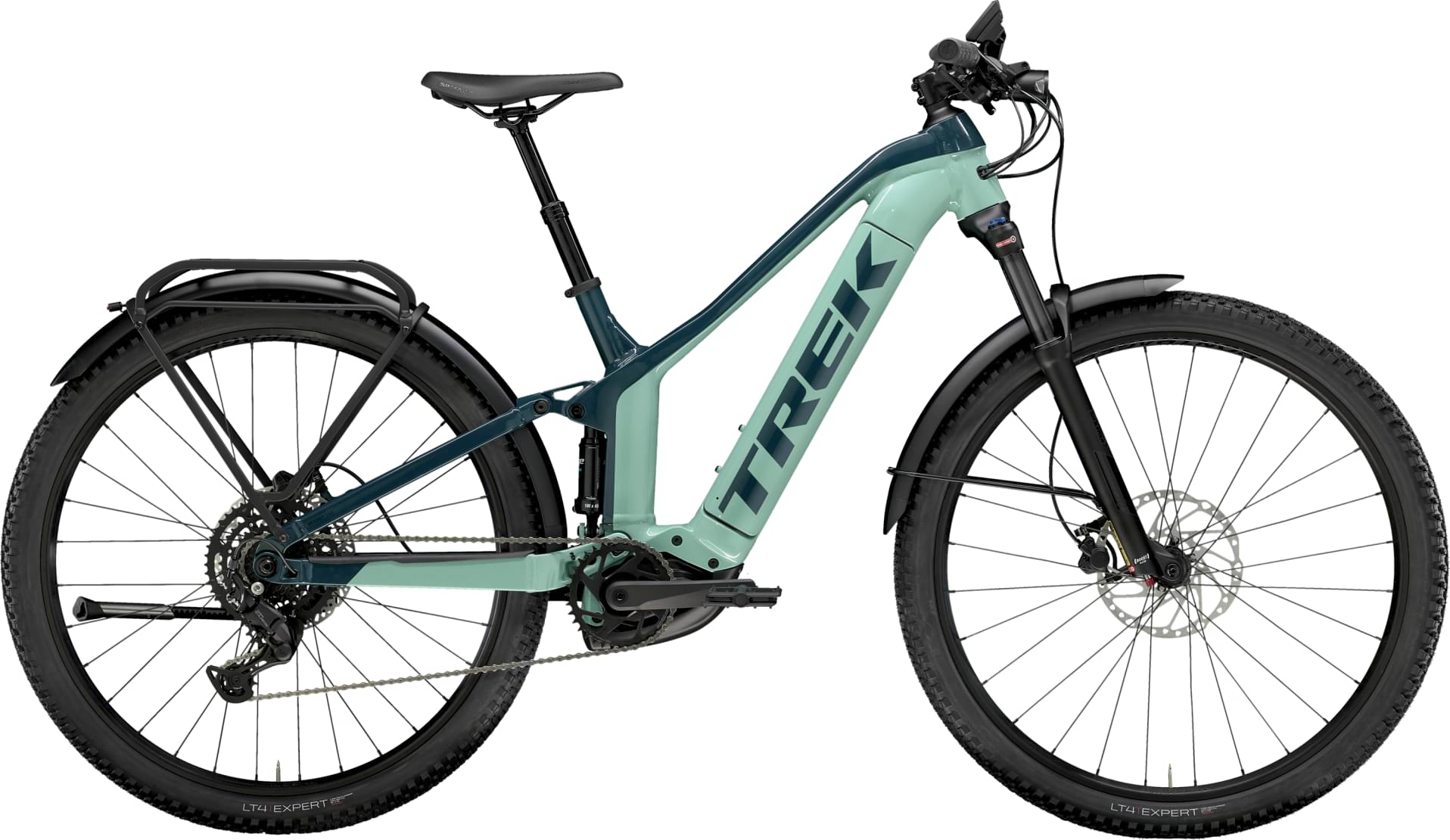

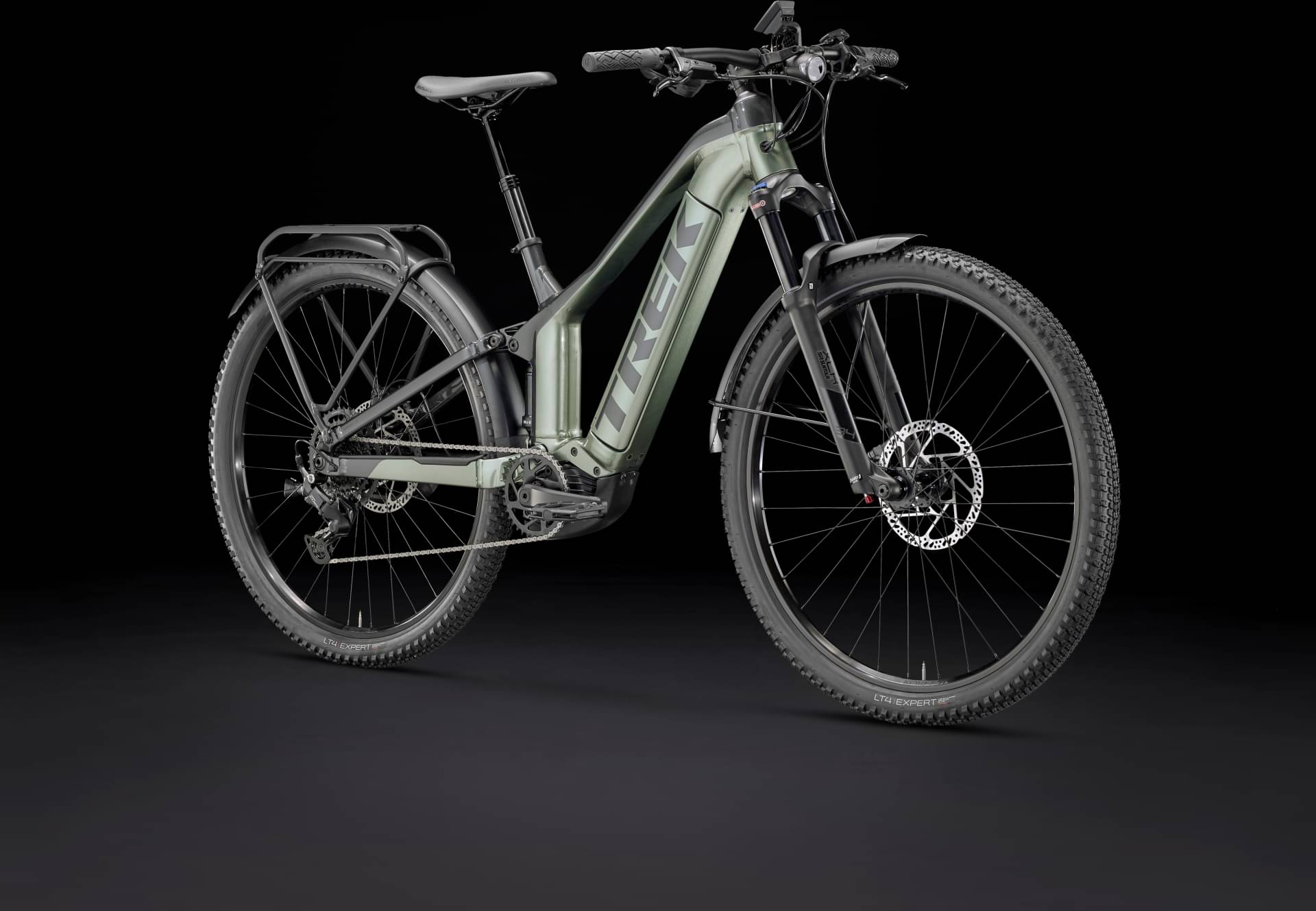

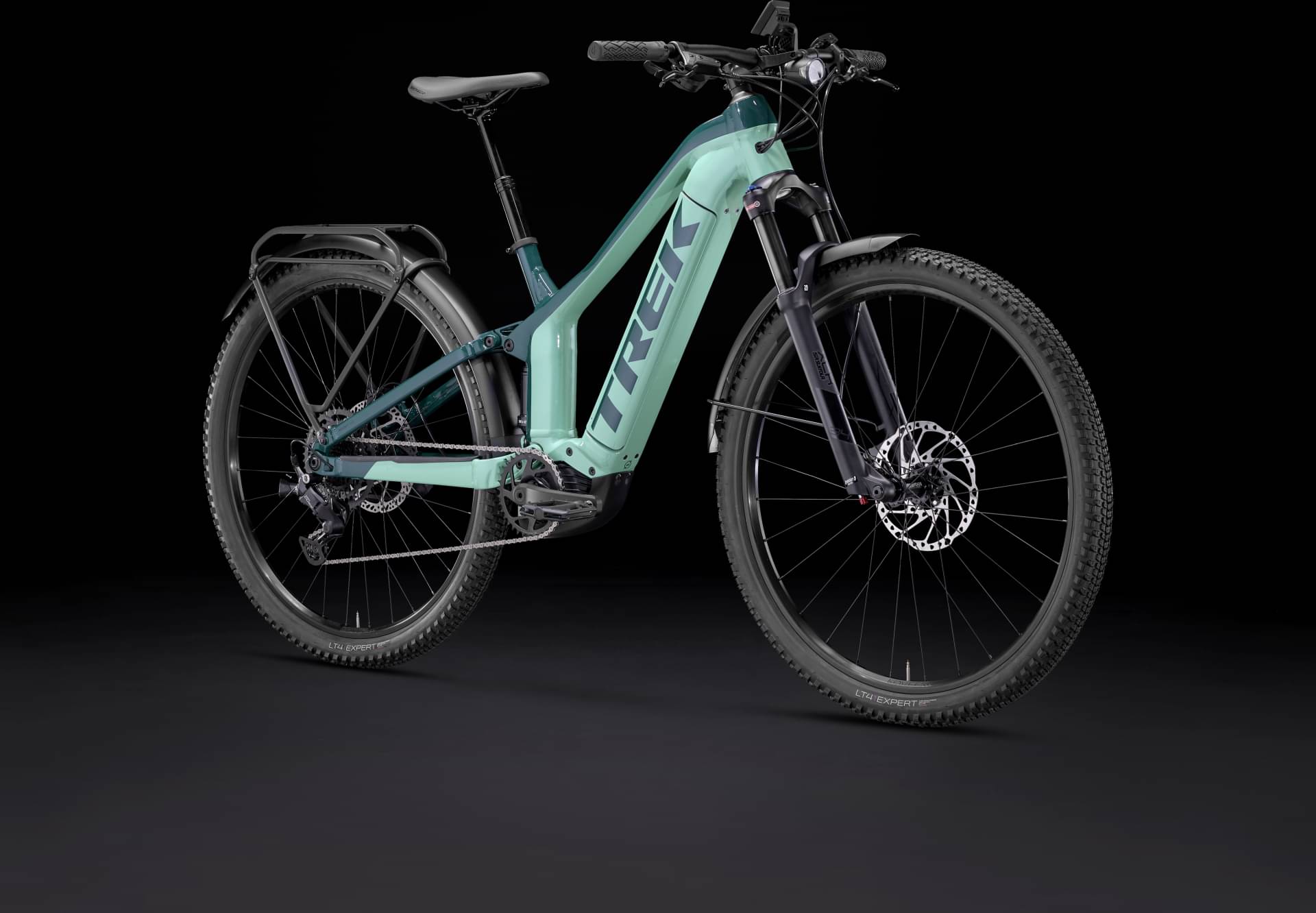

Trek Powerfly FS 4 Equipped Gen 3 2024
2024 E-bike
Estimate price |
6,307$
Weight | 25.65 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Suntour XCR Air
-
Groupset CUES, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
13.5"
145cm - 156cm
15.5"
154cm - 166cm
17.5"
164cm - 178cm
19.5"
175cm - 189cm
21.5"
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

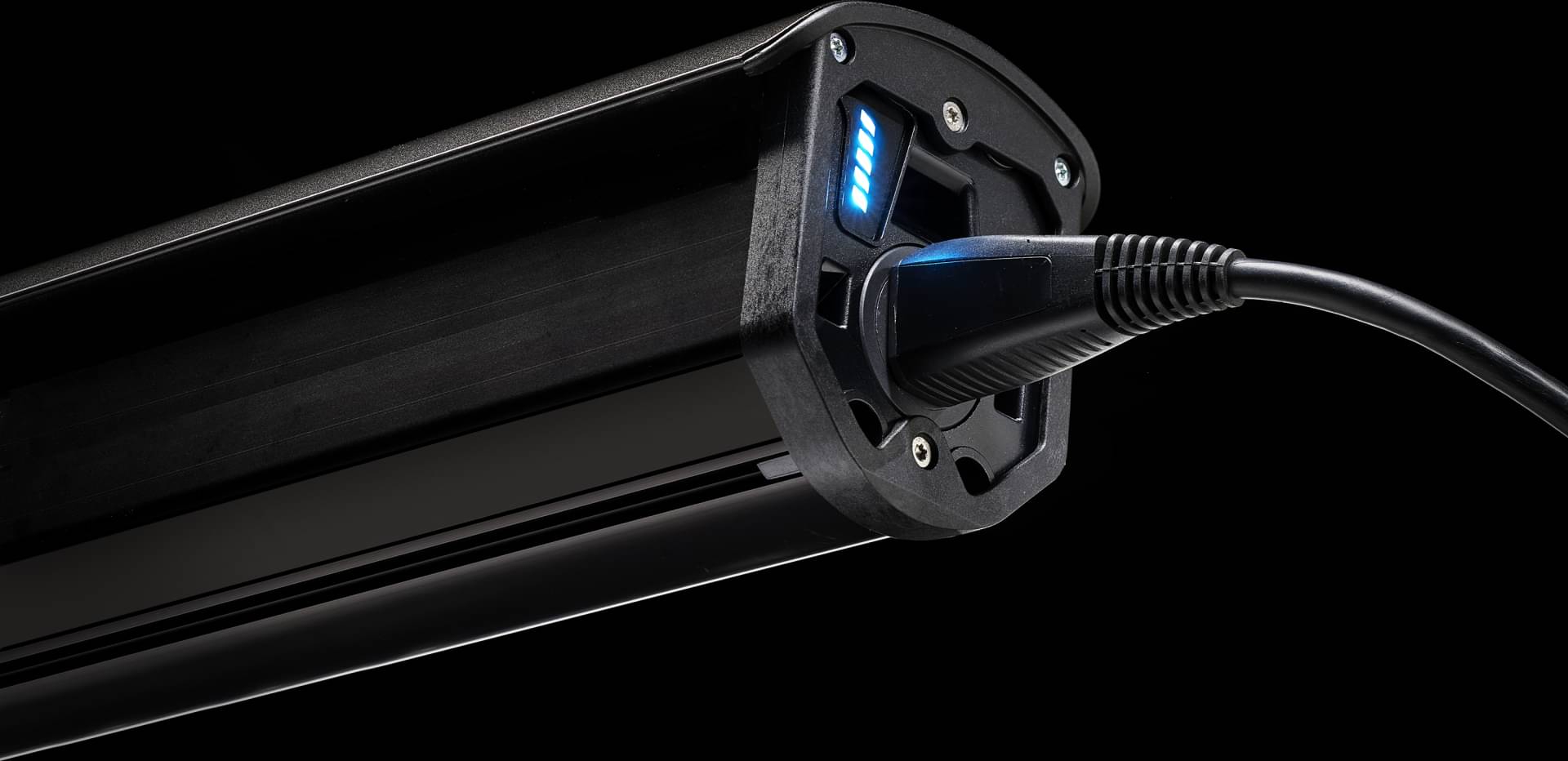

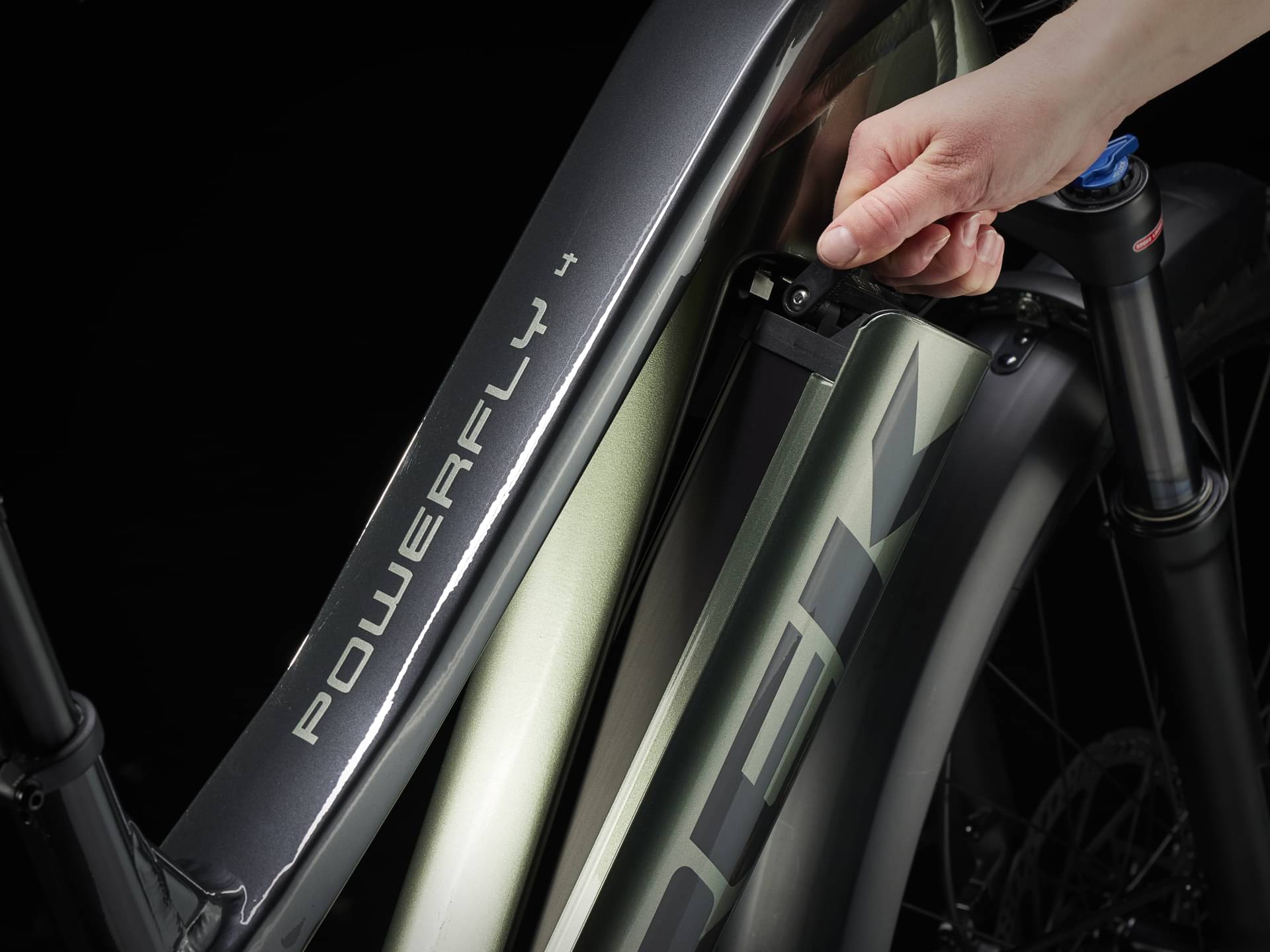

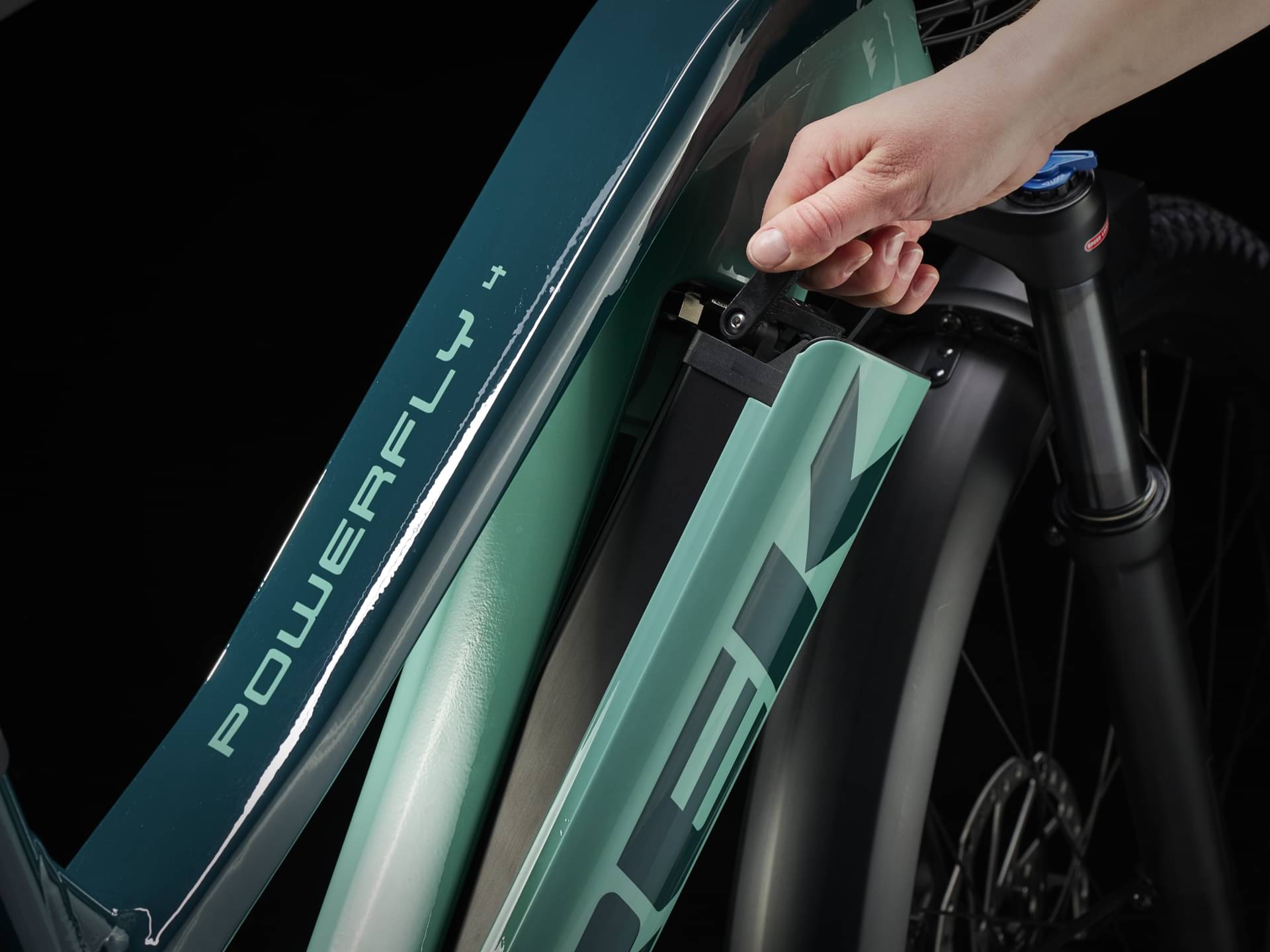

Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armour, rocker link, rack and mudguard mount, ABP, Boost148, 100 mm travel
Suspension Fork
Size: XS, S, SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 41mm offset, oversized crown for eMTB, Boost110, 15 mm bolt-on thru axle, 100 mm travel; Size: M, L, XL, SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm bolt-on thru axle, 100 mm travel

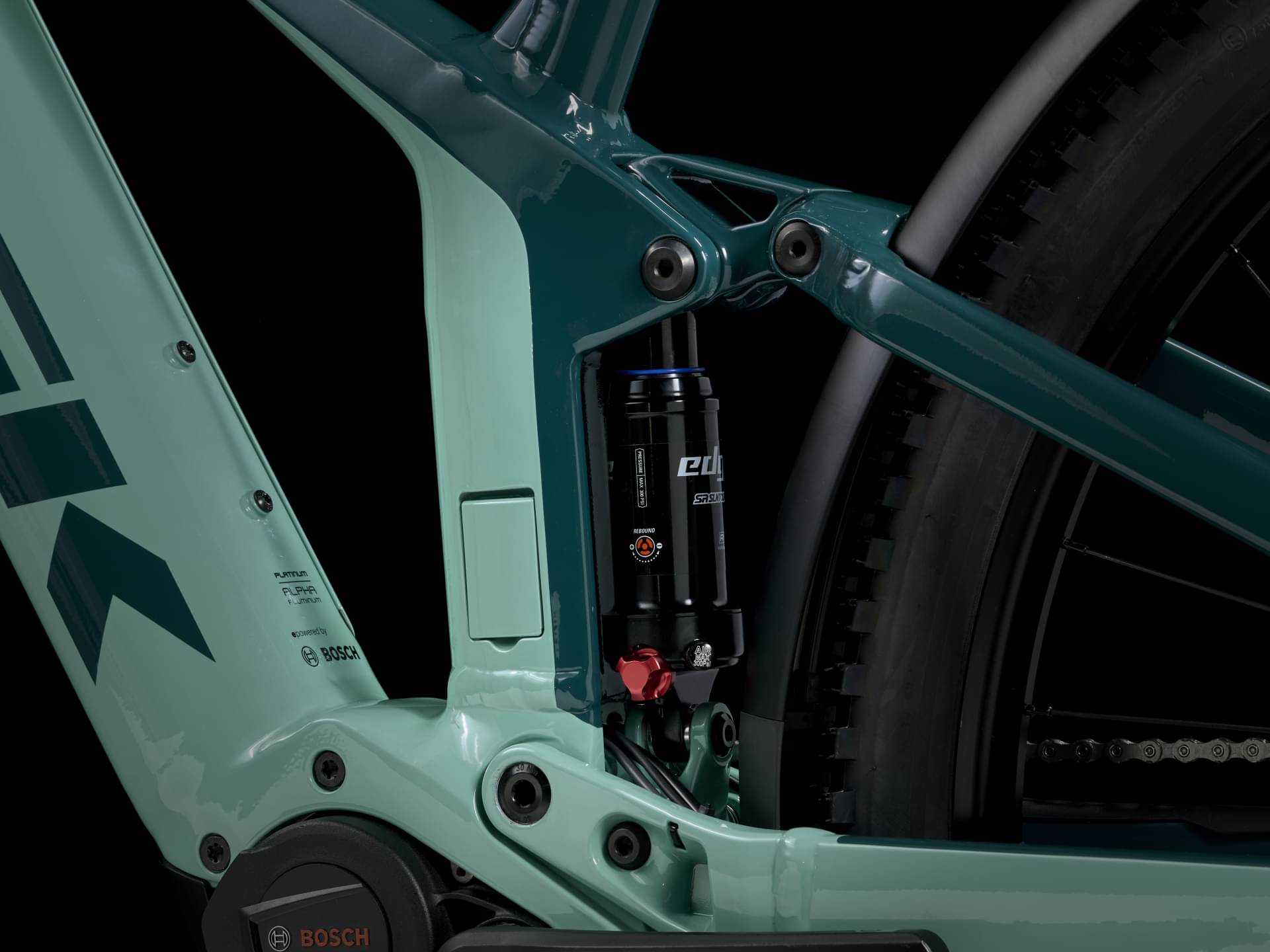

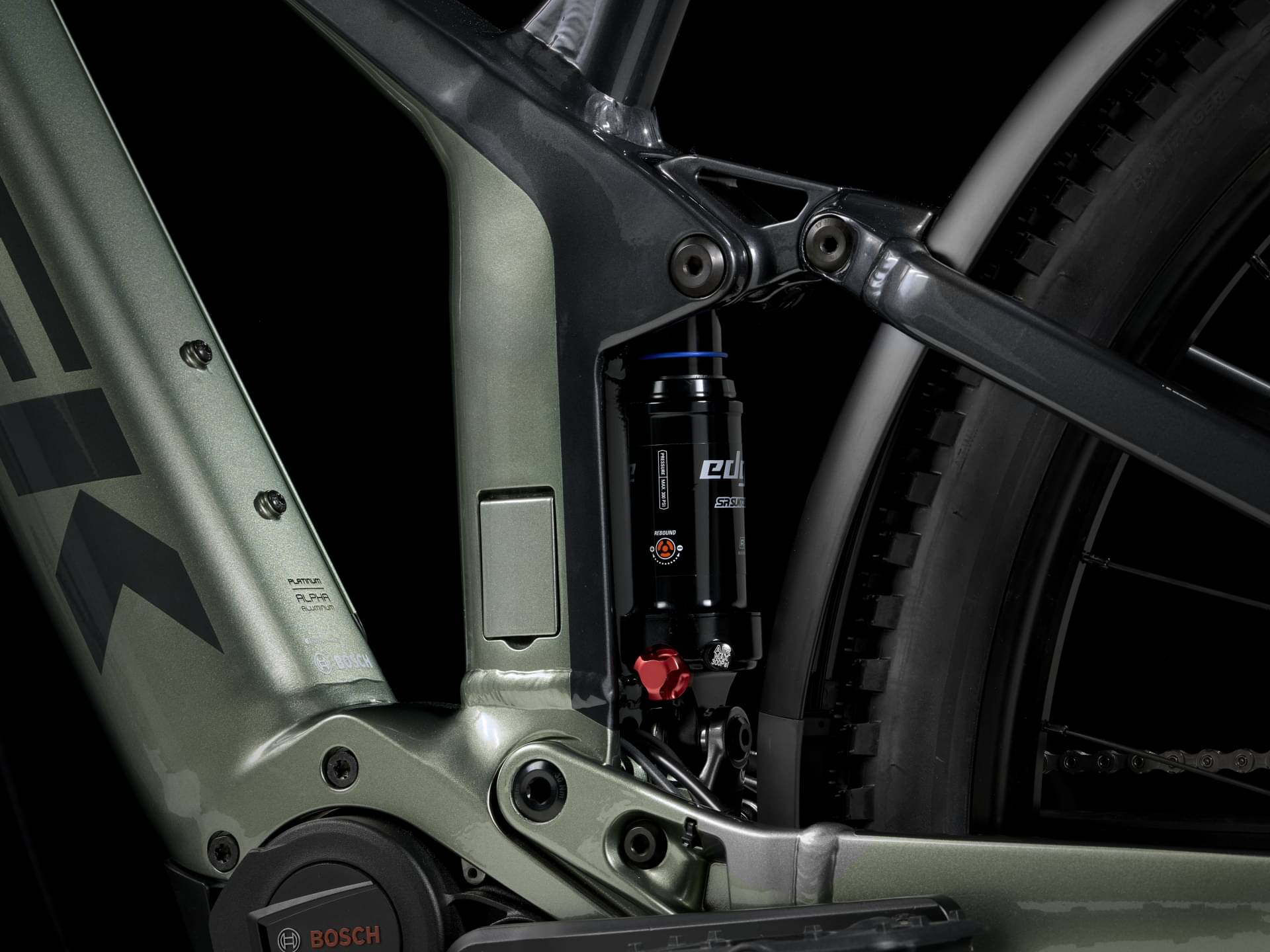

Rear Shock
SR Suntour Edge R, 190 mm x 45 mm
Drivetrain

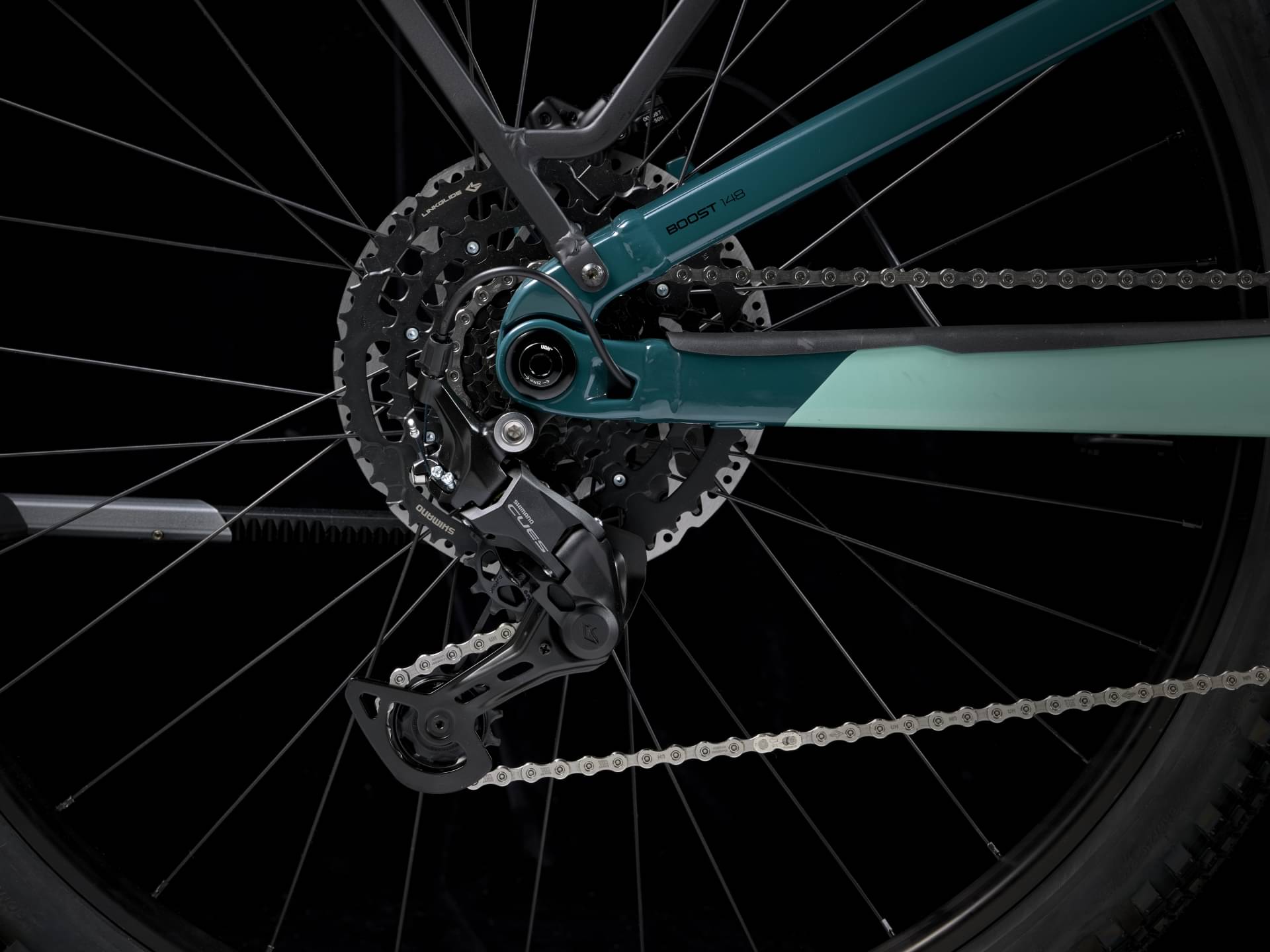

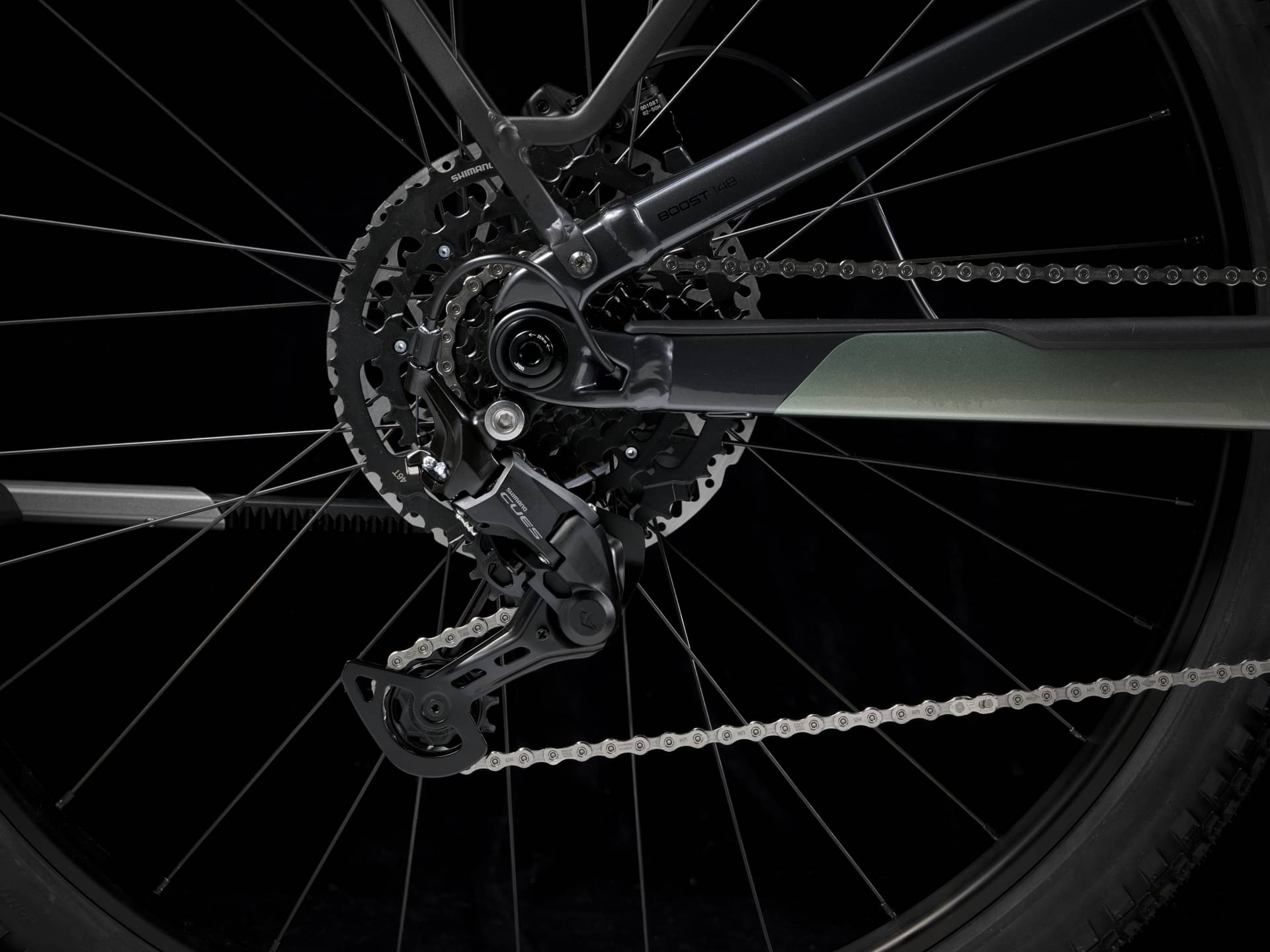

Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano U4000, 9-speed
Cassette
Shimano LINKGLIDE LG300, 11-46, 9-speed
Crank
FSA Bosch CK-220, 36T ring, 165 mm length
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500, 9/10/11-speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle

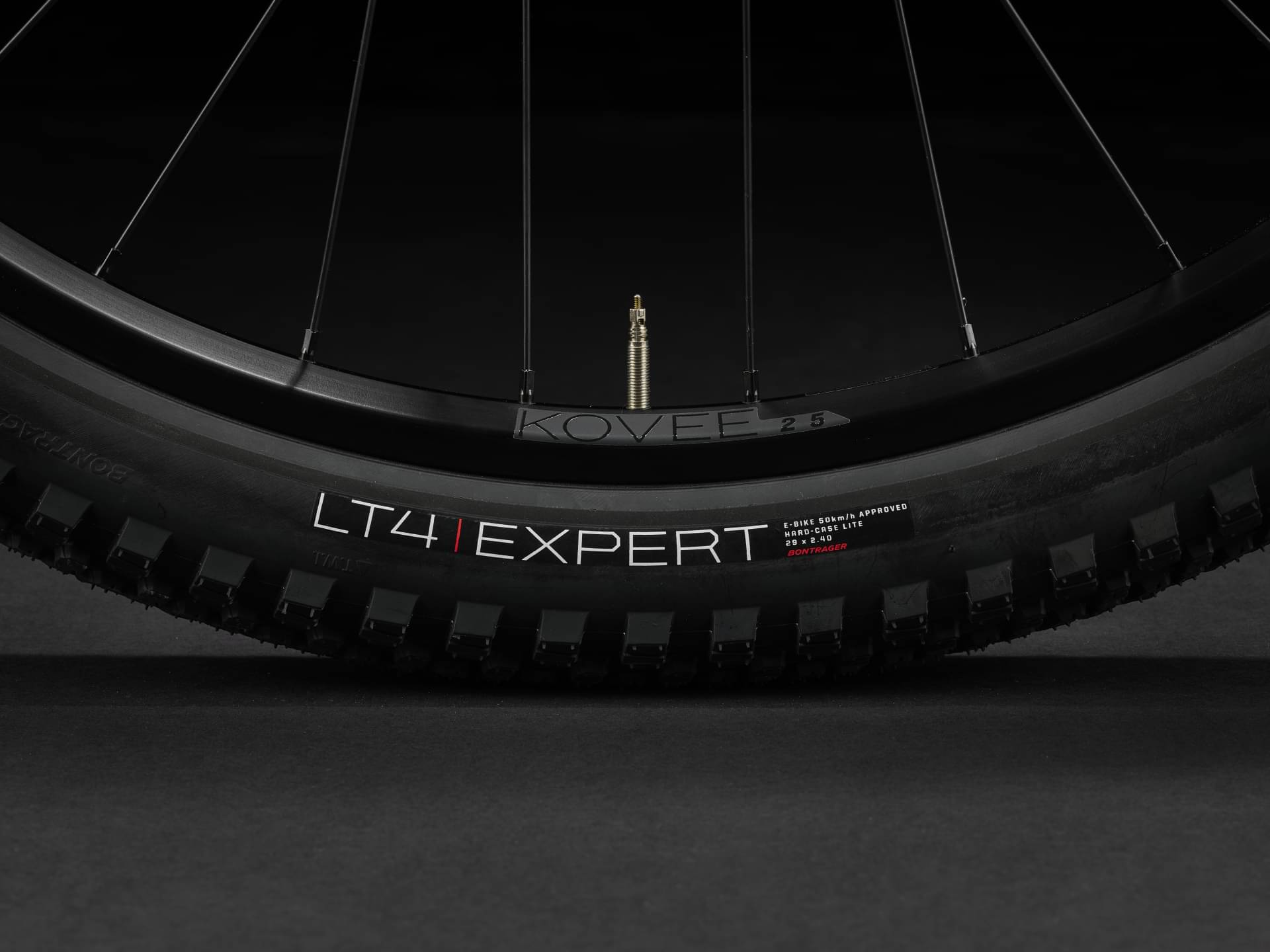

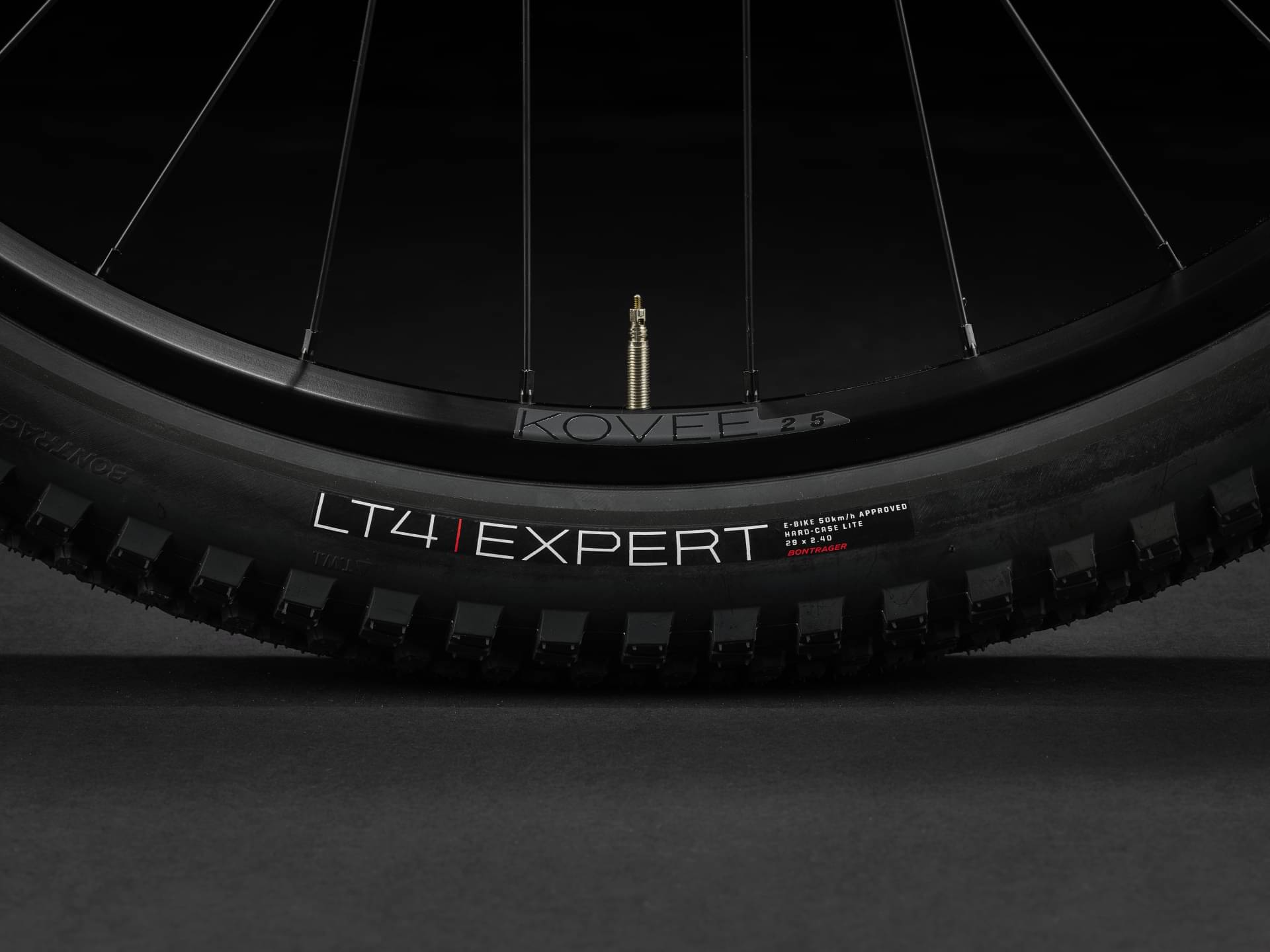

Rims
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Tires
Size: XS, S, Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 27.5x2.40"; Size: M, L, XL, Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40"
Brakes
Brakes
Tektro HD-M275 hydraulic disc
Cockpit
Stem
Size: XS, S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length; Size: M, L, XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length

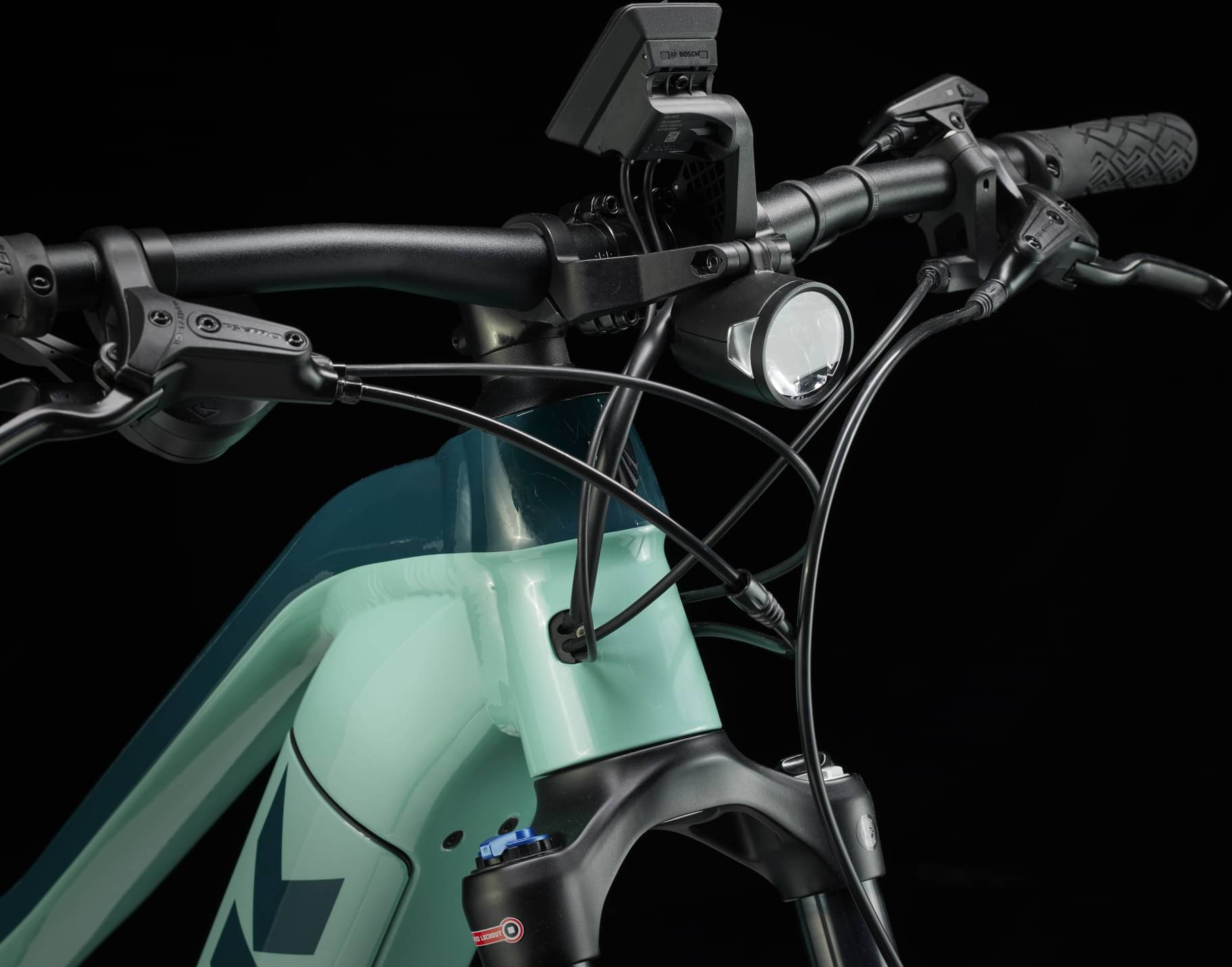

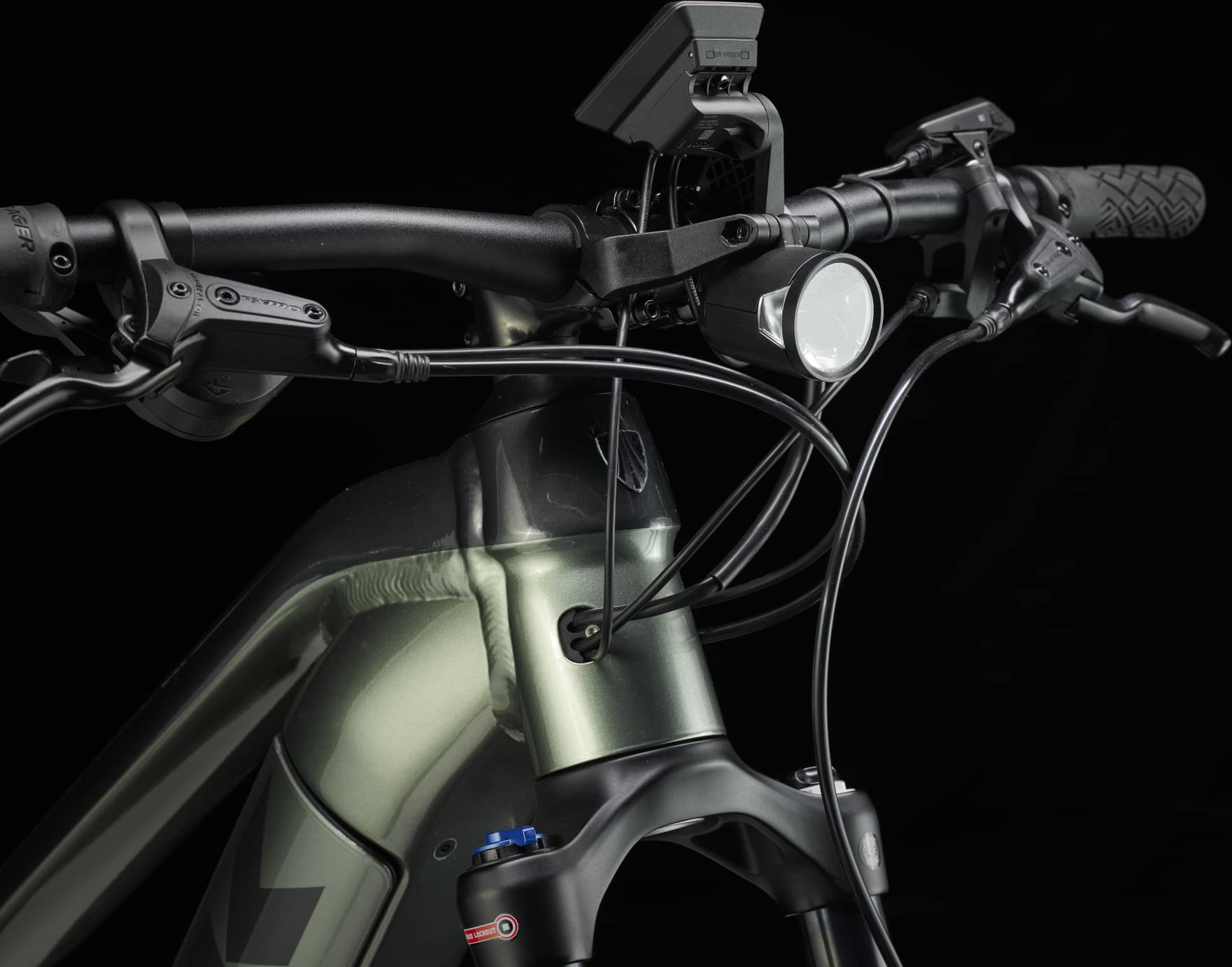

Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Grips
Bontrager XR Endurance Comp, lock-on
Seat

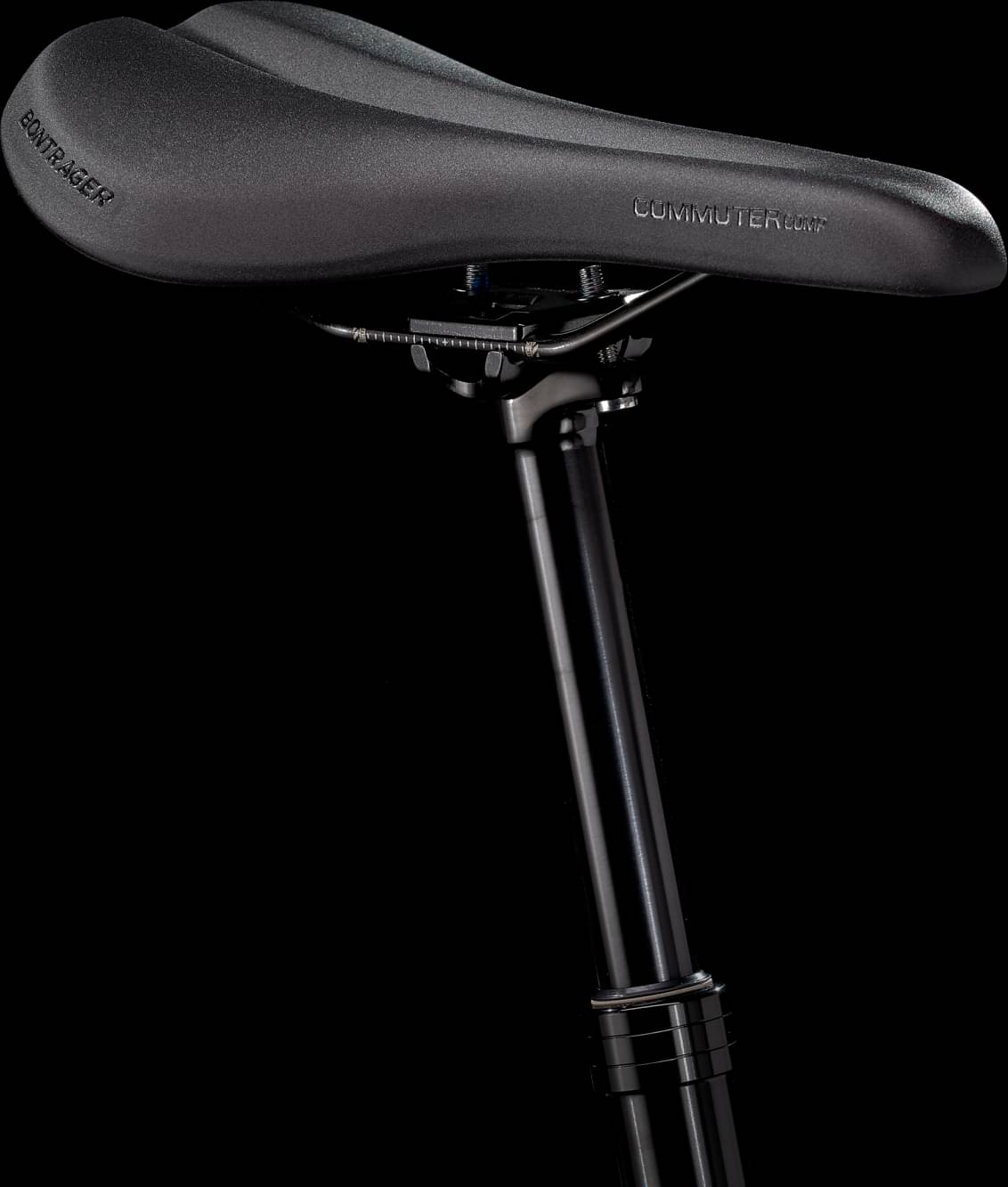

Saddle
Bontrager Commuter Comp
Seatpost
Size: XS, S, M, TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length; Size: L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Motor & Battery

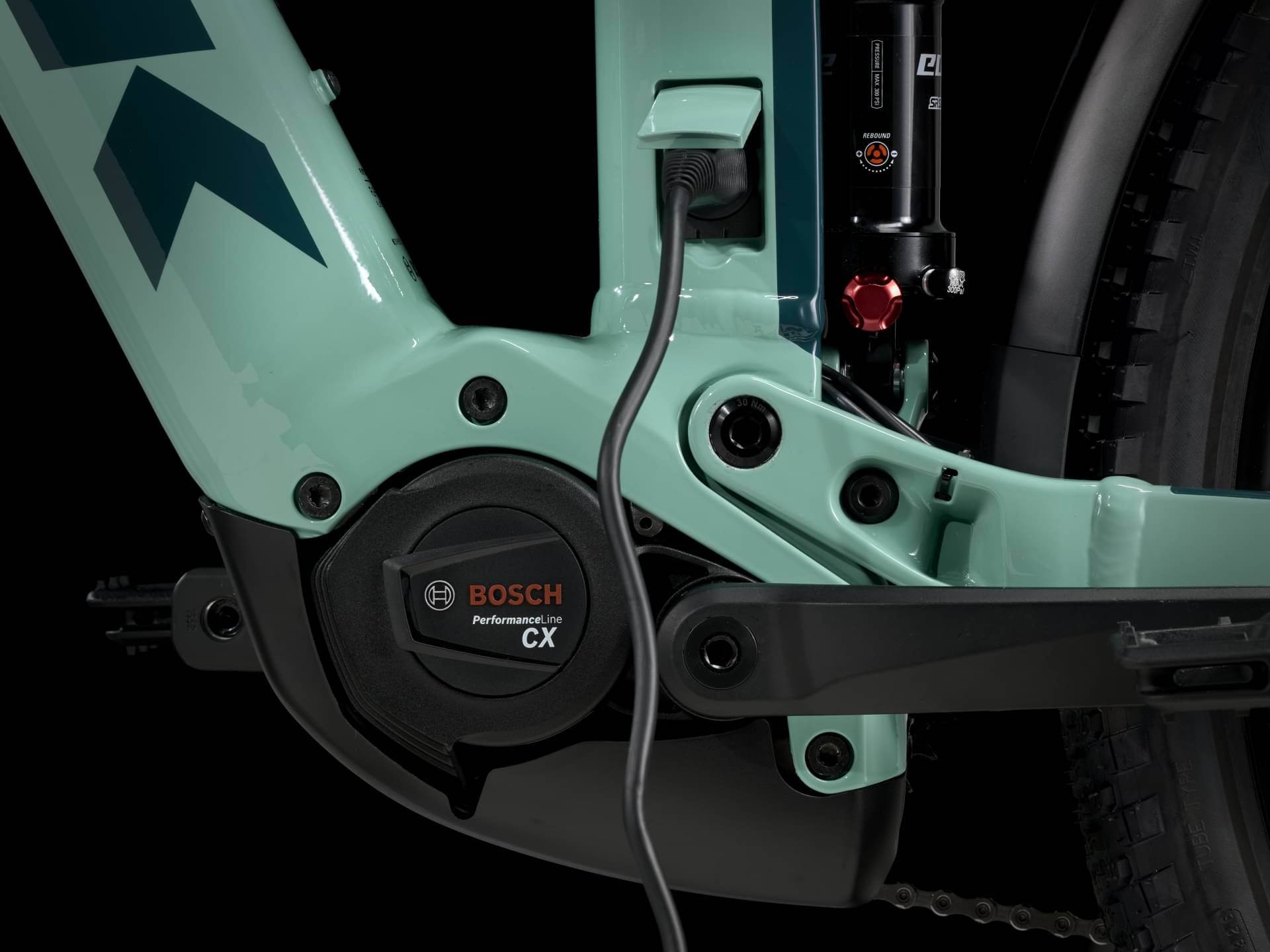

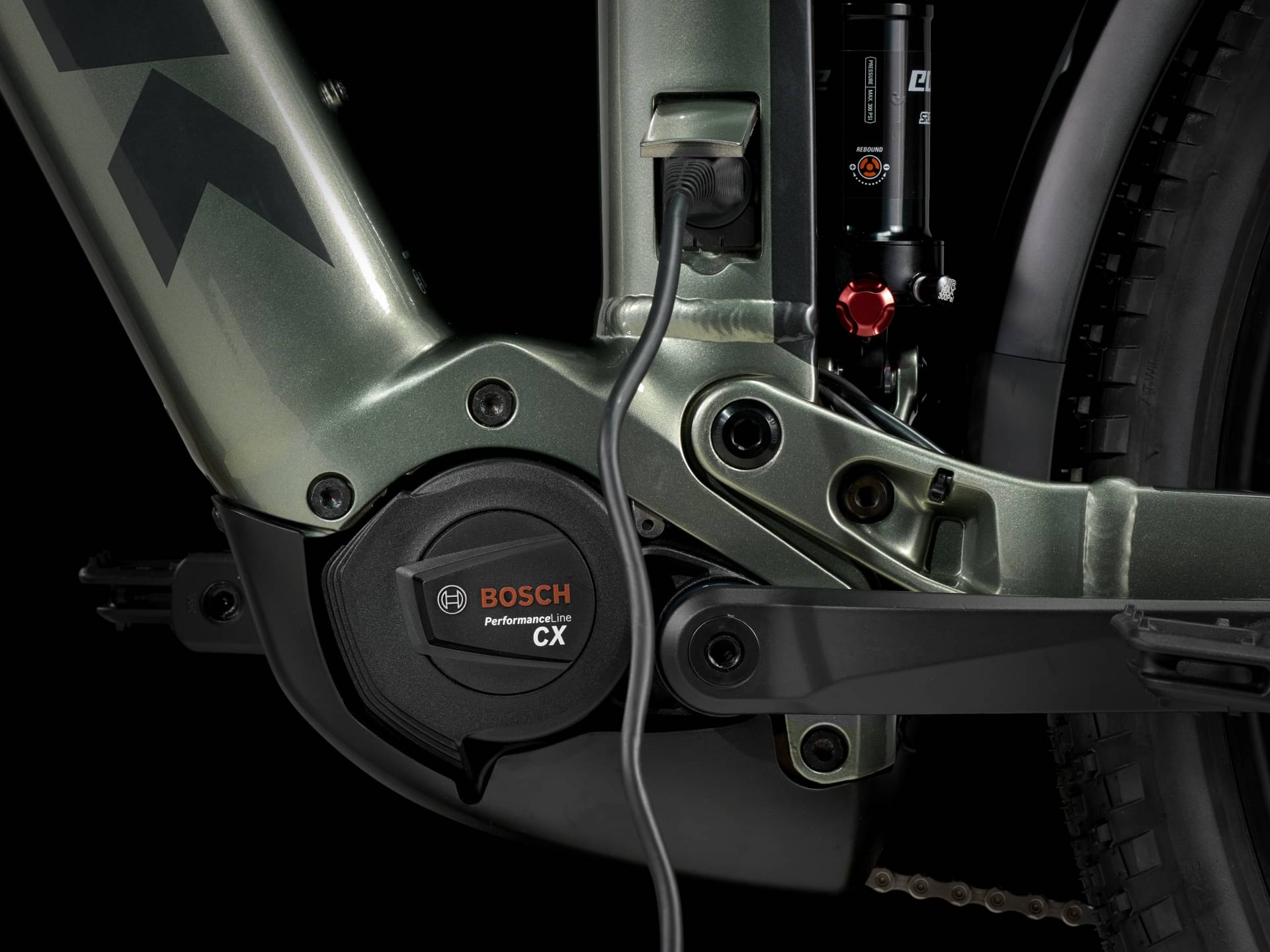

Motor
The Bosch Performance Line CX sets the standard for eMTB performance with up to 85 Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.764 mm | 1.597 mm | 1.574 mm | 1.518 mm | 1.476 mm |
| Bottom Bracket Height | 328 mm | 307 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 683 mm | 674 mm | 704 mm | 729 mm | 761 mm |
| Rake | 52 mm | 43 mm | 51 mm | 51 mm | 51 mm |
| Trail | 114 mm | 101 mm | 98 mm | 98 mm | 98 mm |
| Stack | 621 mm | 623 mm | 639 mm | 648 mm | 667 mm |
| Reach | 352 mm | 390 mm | 406 mm | 427 mm | 452 mm |
| Top Tube Length | 579 mm | 598 mm | 617 mm | 641 mm | 672 mm |
| Seat Tube Angle | 70 ° | 71.5 ° | 71.7 ° | 71.7 ° | 71.7 ° |
| Seat Tube Length | 363 mm | 394 mm | 419 mm | 470 mm | 521 mm |
| Head Tube Angle | 65 ° | 67.6 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1135 mm | 1125 mm | 1155 mm | 1180 mm | 1212 mm |
| Bottom Bracket Drop | 37 mm | 49 mm | 49 mm | 50 mm | 50 mm |
| Standover Height | 706 mm | 721 mm | 794 mm | 816 mm | 818 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 154 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 156 cm | 166 cm | 178 cm | 189 cm | 195 cm |
