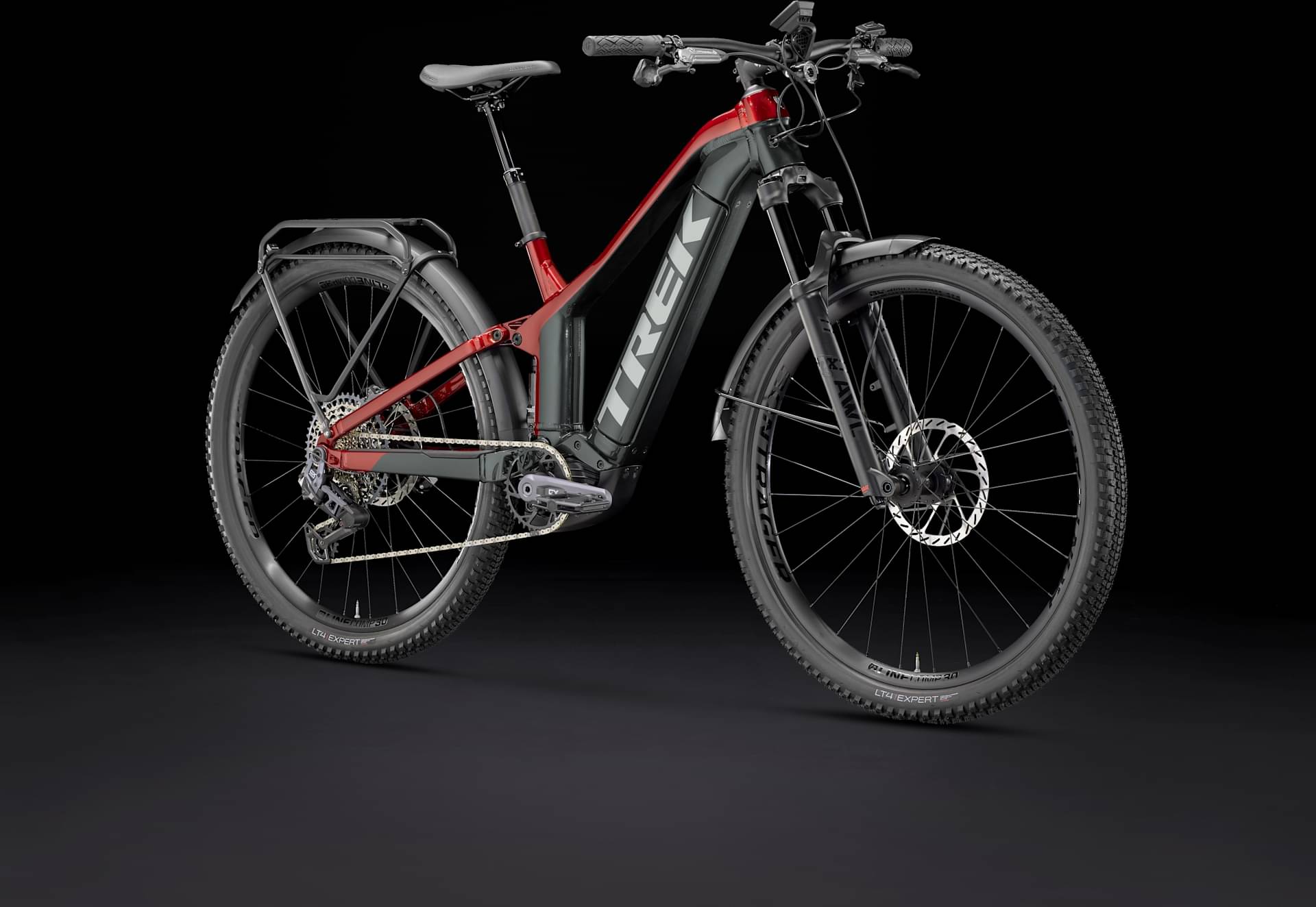

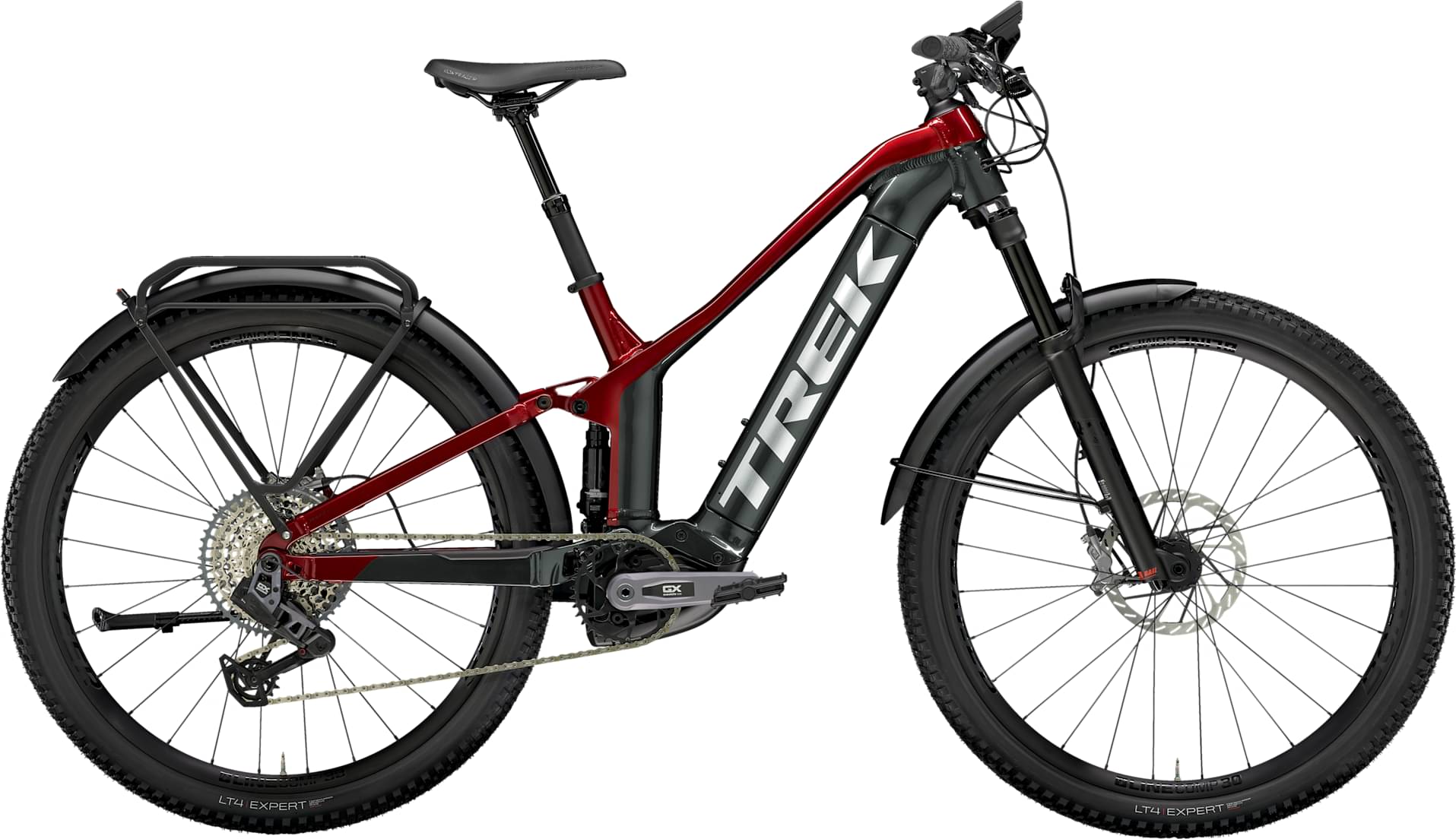

Trek Powerfly FS 9 Equipped Gen 3 2024
2024 E-bike
Estimate price |
6,499$
Weight | 26.61 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox AWL
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 625Wh, smart system -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
14.5" Low
145cm - 156cm
15.5" Low
154cm - 166cm
17.5" Low
164cm - 178cm
19.5" Low
175cm - 189cm
21.5" Low
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

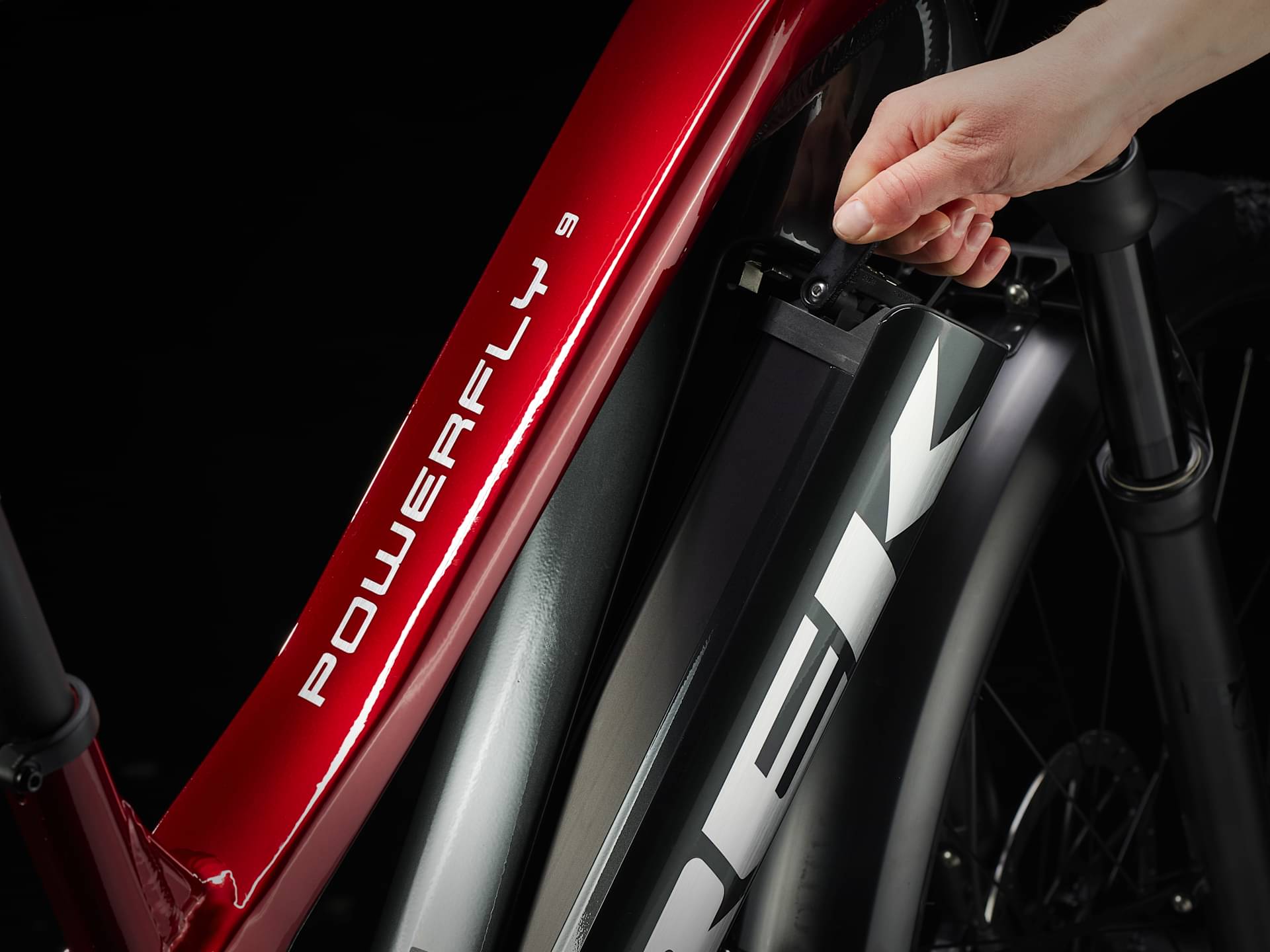

Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armor, rocker link, rack and fender mount, ABP, Boost148, 100mm travel
Suspension Fork
Size: XS, S, FOX AWL, tapered steerer, 44mm offset, Boost 110, 15mm Kabolt axle, fender mounts, 100mm travel; Size: M, L, XL, FOX AWL, tapered steerer, 44mm offset, Boost 110, 15mm Kabolt axle, fender mounts, 120mm travel

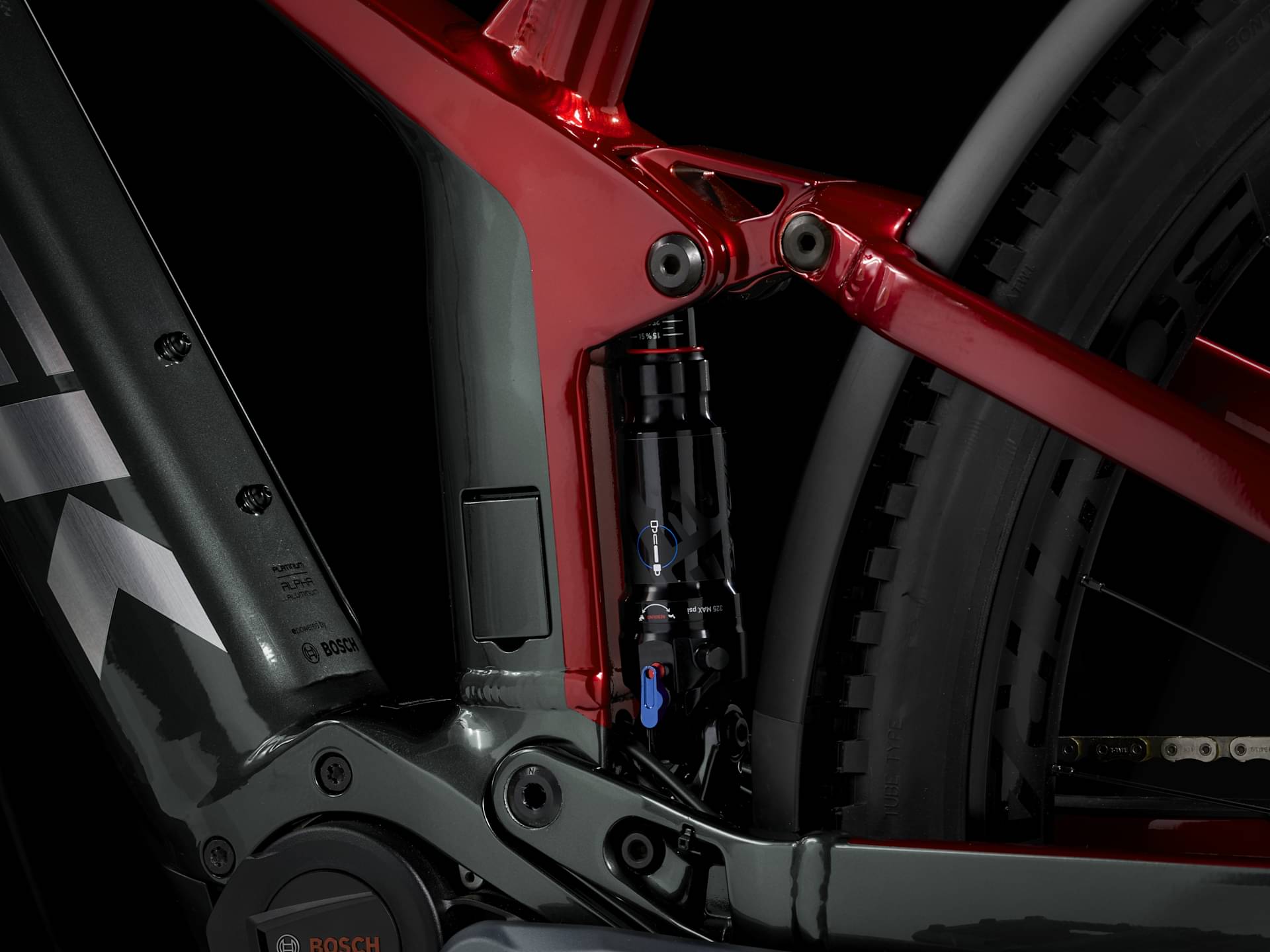

Rear Shock
RockShox SID Select+, 190mm x 45mm
Drivetrain

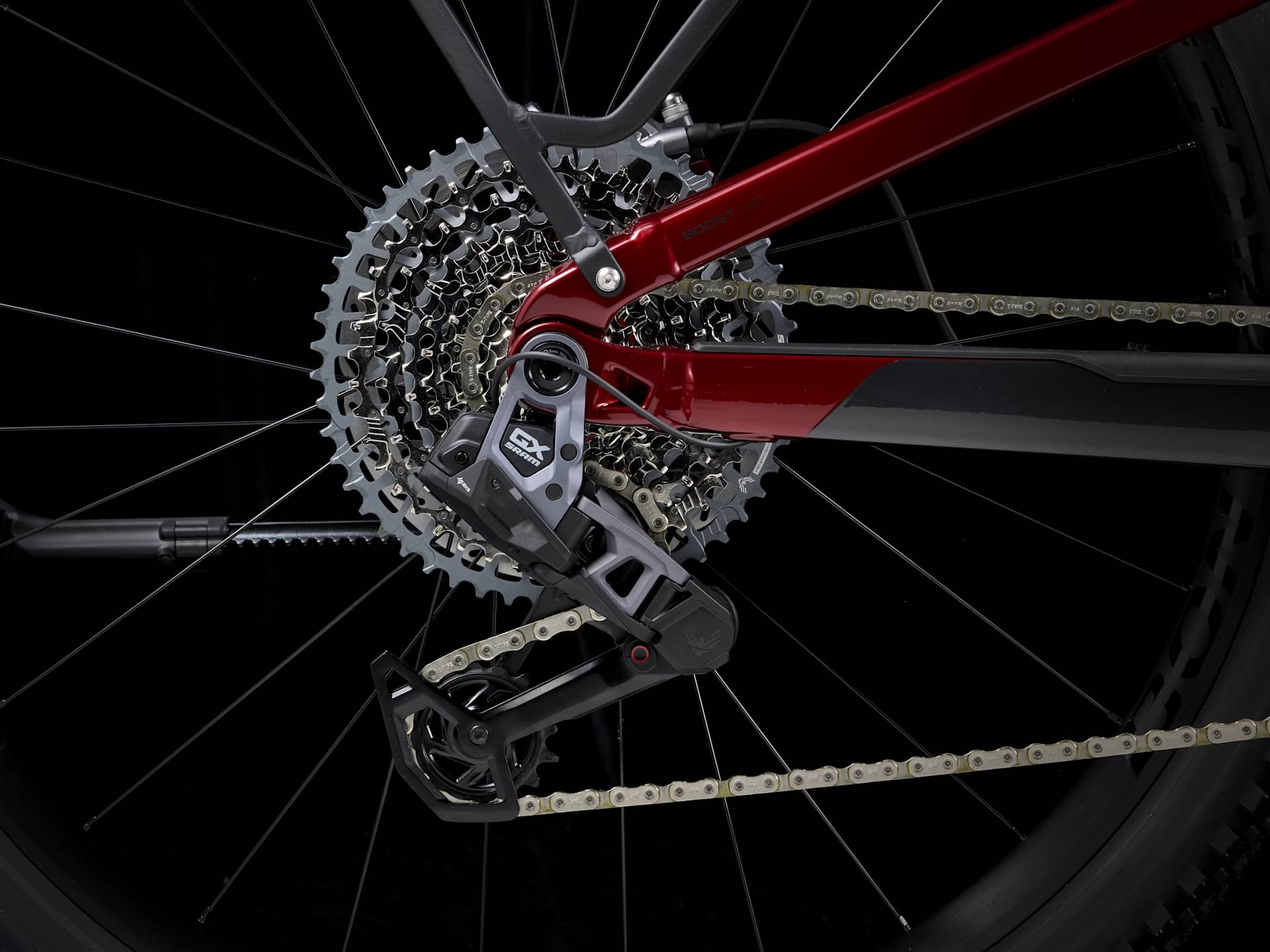

Rear Derailleur
SRAM GX Eagle AXS, T-Type
Shift Levers

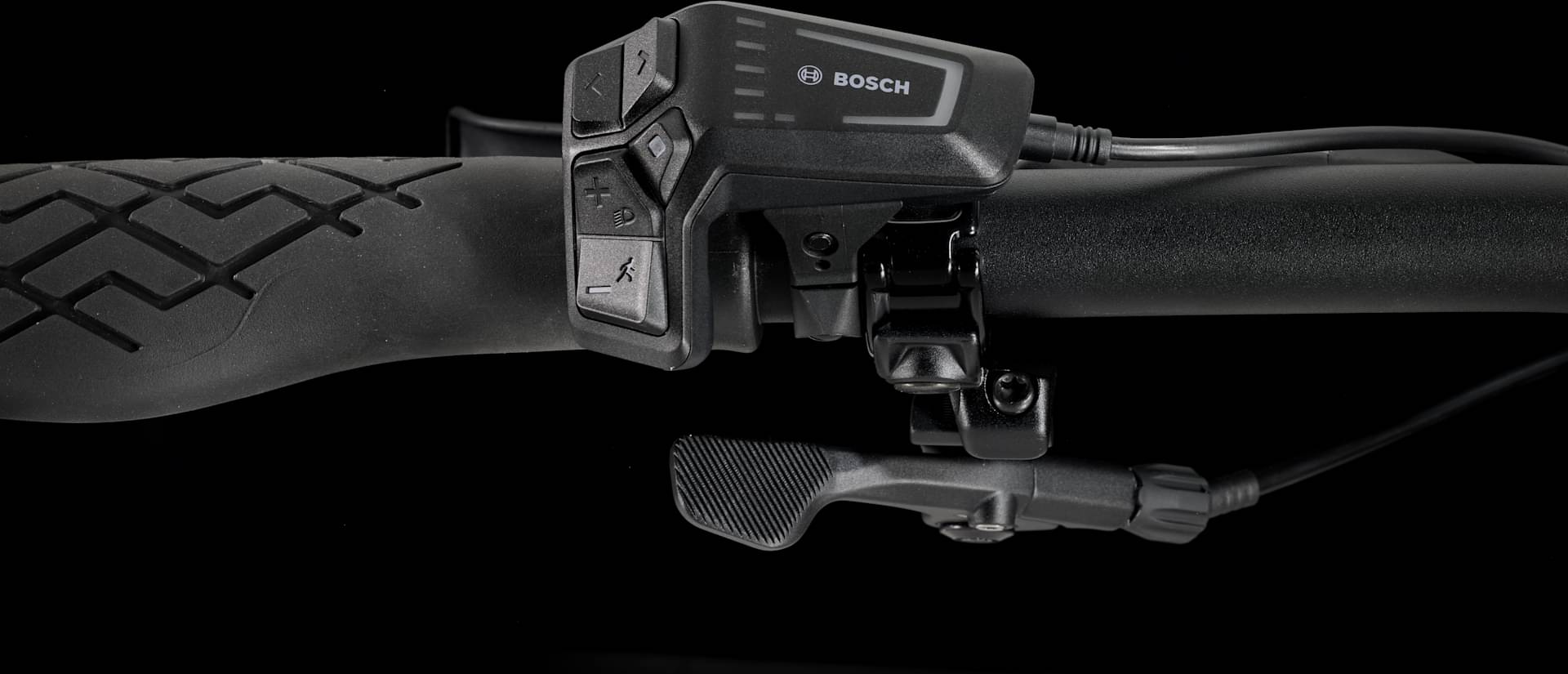

SRAM AXS POD

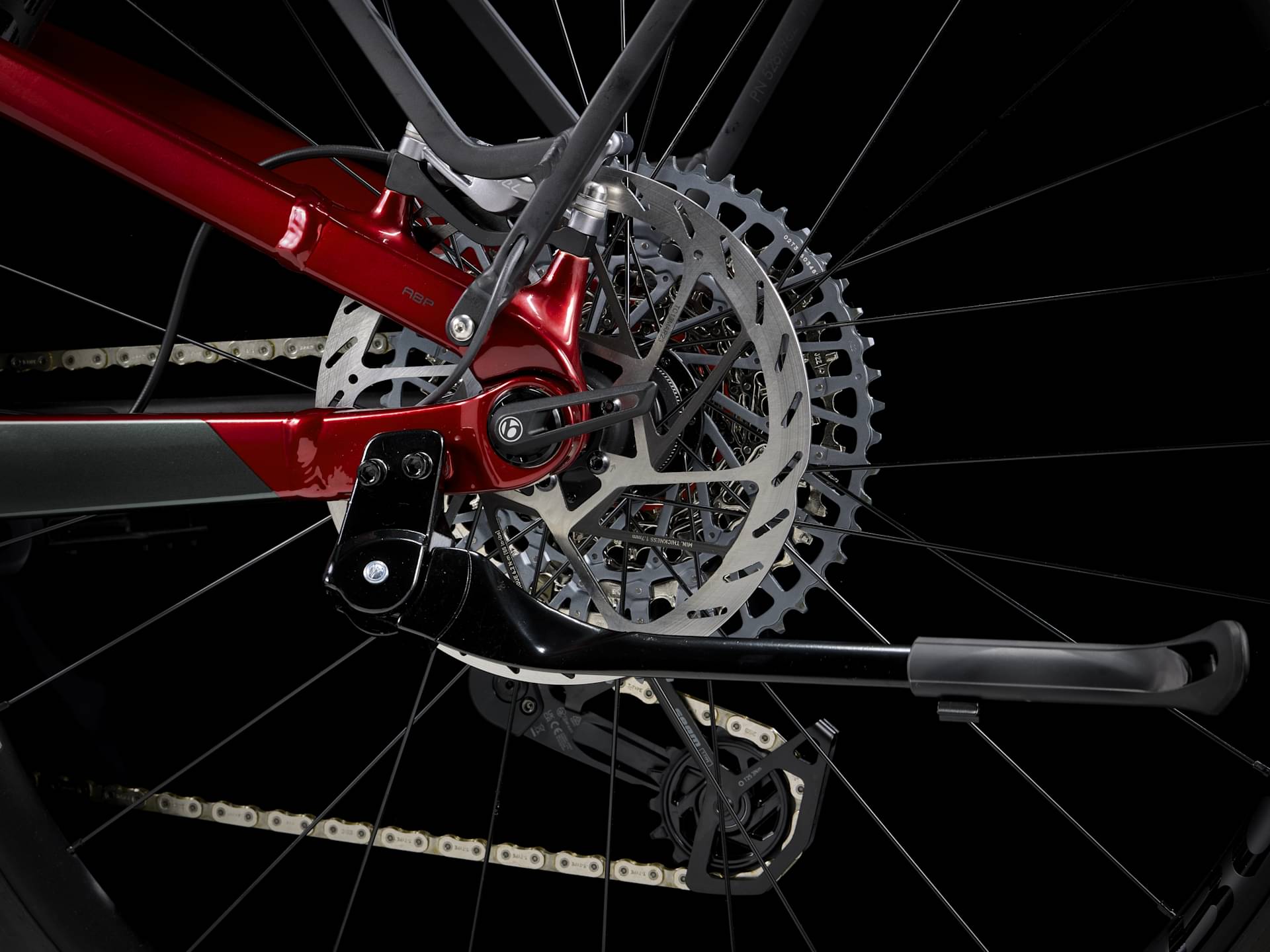

Cassette
SRAM Eagle XS-1275, T-Type,10-52, 12 speed
Crank
SRAM GX, 165mm length
Chain
SRAM GX Eagle, T-Type, 12 speed
Pedals
VP-536 nylon platform
Wheels
Rims
Front: Size: XS, S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''; Size: M, L, XL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Size: XS, S, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''; Size: M, L, XL, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
Tires

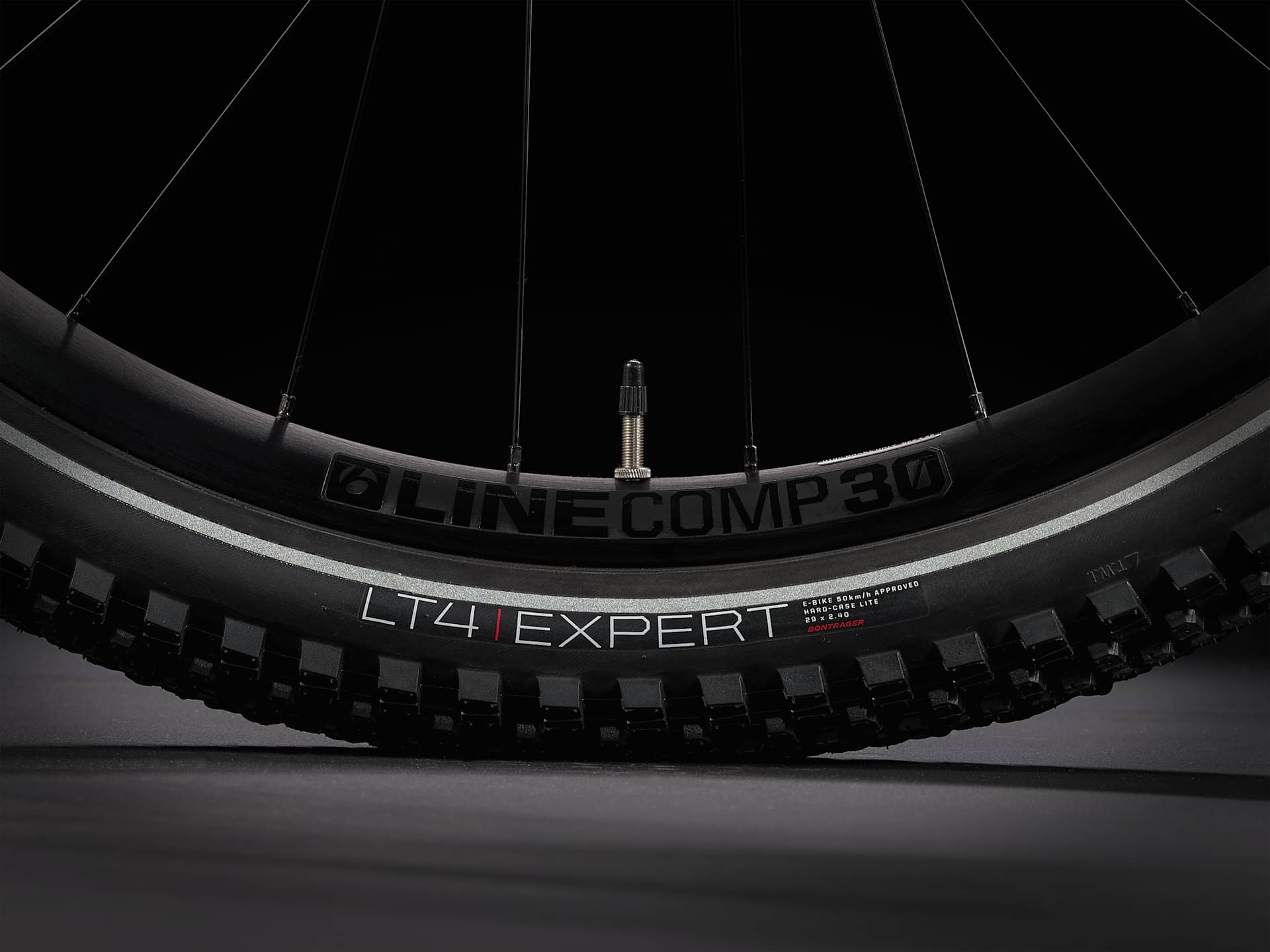

Size: XS, S, Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 27.5x2.40''; Size: M, L, XL, Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40''
Brakes
Brakes
SRAM Level Bronze 4-piston hydraulic disc
Cockpit
Stem
Size: XS, S, Bontrager Elite, 31.8mm, Blendr light mount, 7 degree rise, 60mm length; Size: M, L, XL, Bontrager Elite, 31.8mm, Blendr light mount, 7 degree rise, 70mm length

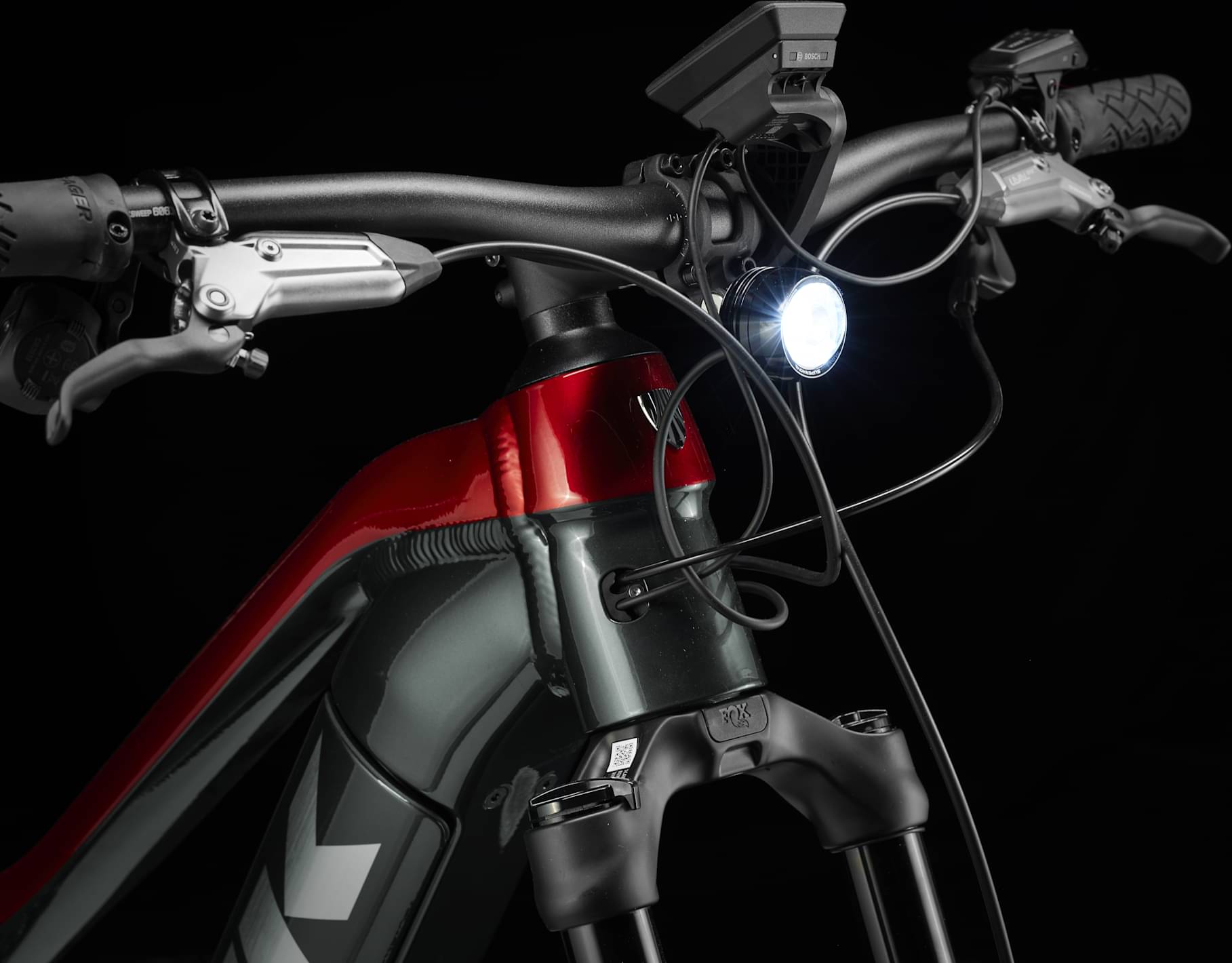

Handlebar
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Endurance Comp, lock-on
Headset
FSA IS-2
Seat
Saddle

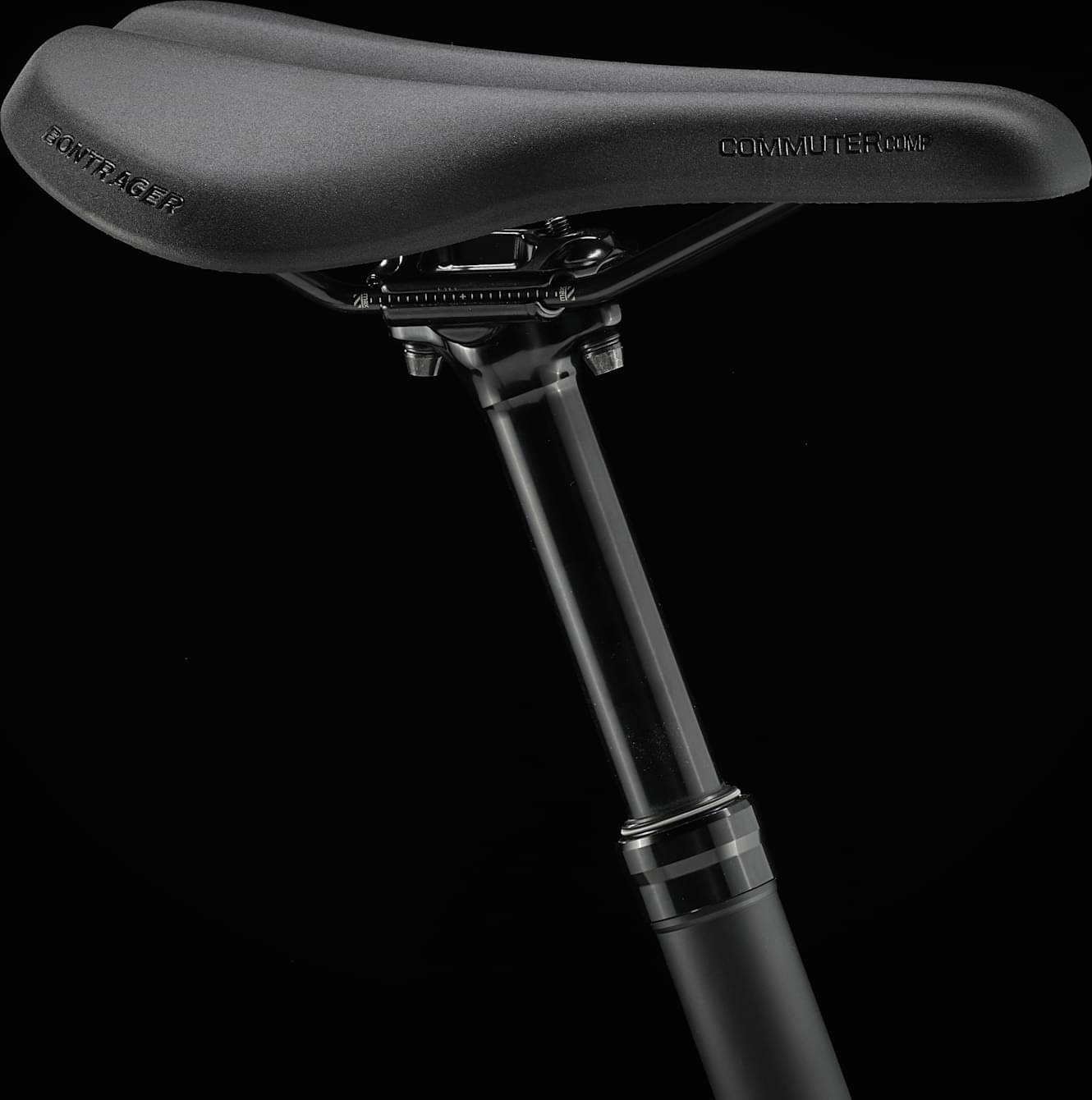

Bontrager Commuter Comp
Seatpost
Size: XS, S, Bontrager Line Dropper, 100mm travel, internal routing, 31.6mm, 345mm length; Size: M, L, XL, Bontrager Line Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Motor & Battery

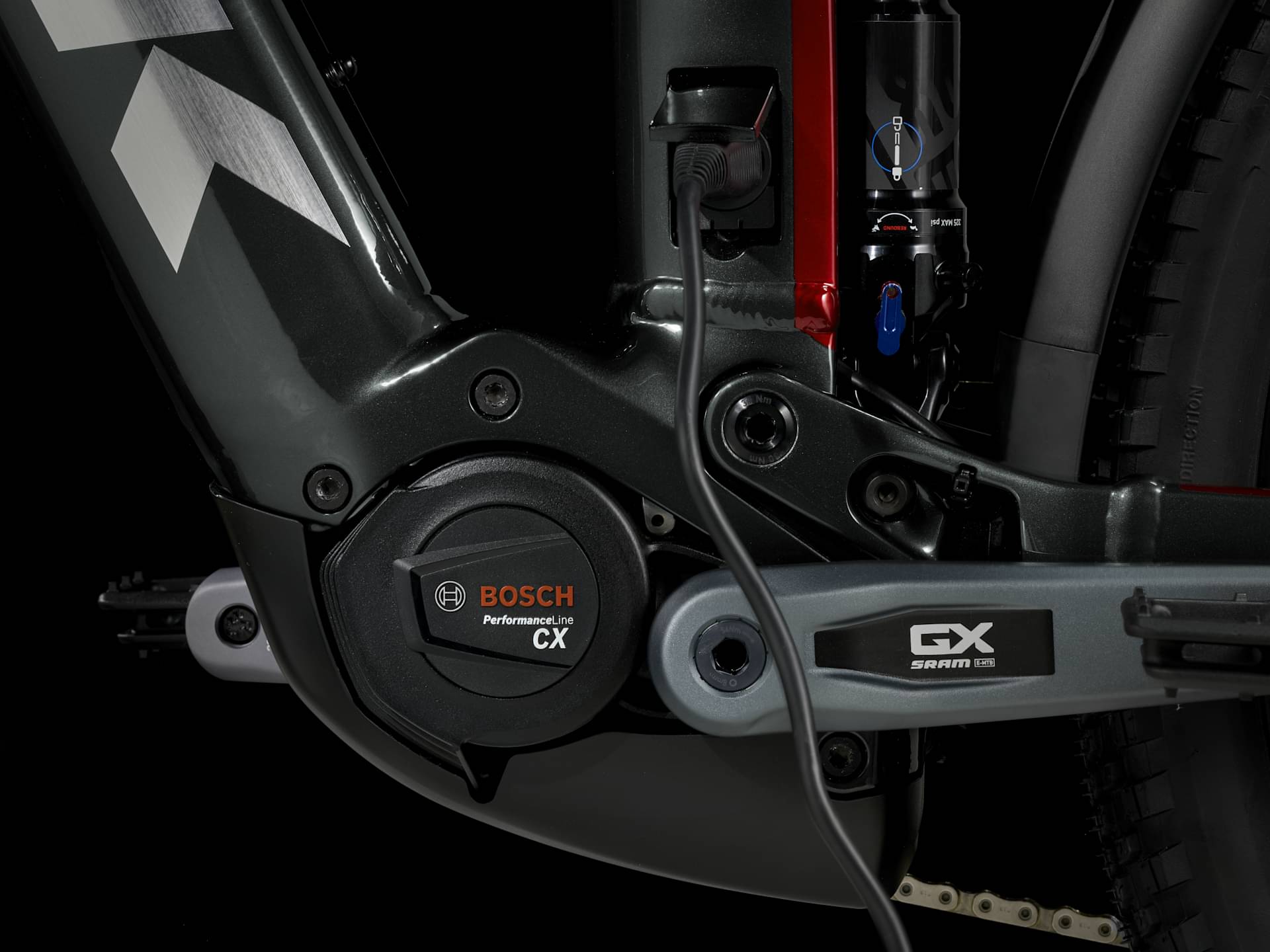

Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

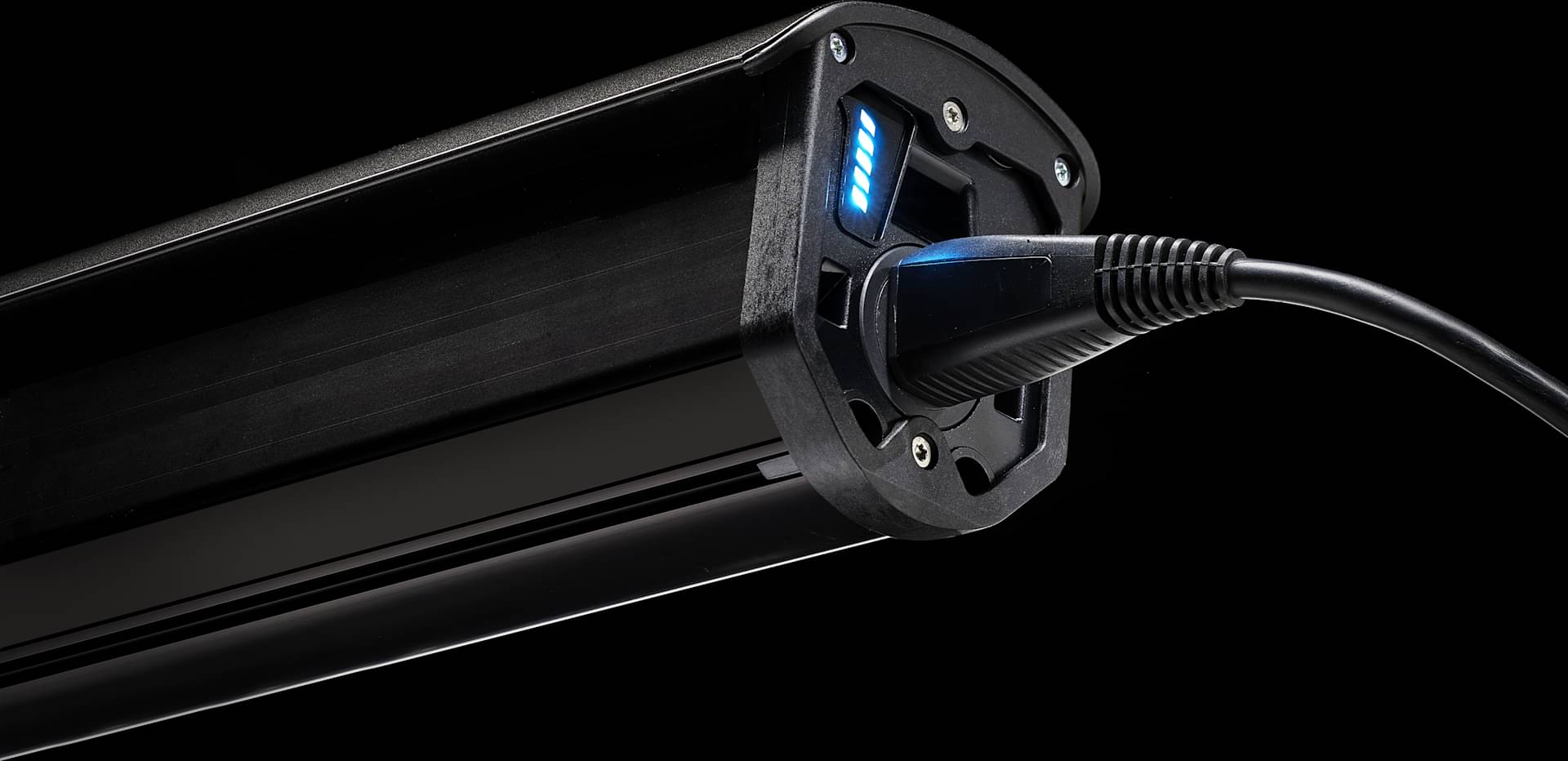

Battery
Bosch PowerTube 625Wh, smart system
Charger
Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" Low | 15.5" Low | 17.5" Low | 19.5" Low | 21.5" Low |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.479 mm | 1.443 mm | 1.481 mm | 1.404 mm | 1.332 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 703 mm | 713 mm | 739 mm | 773 mm | 798 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 114 mm | 114 mm | 114 mm |
| Stack | 599 mm | 599 mm | 637 mm | 646 mm | 646 mm |
| Reach | 405 mm | 415 mm | 430 mm | 460 mm | 485 mm |
| Top Tube Length | 554 mm | 564 mm | 589 mm | 621 mm | 646 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 395 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 140 mm | 140 mm | 130 mm | 140 mm | 140 mm |
| Chainstay Length | 468 mm | 468 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1170 mm | 1180 mm | 1206 mm | 1240 mm | 1265 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 691 mm | 691 mm | 712 mm | 716 mm | 713 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 154 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 156 cm | 166 cm | 178 cm | 189 cm | 195 cm |
