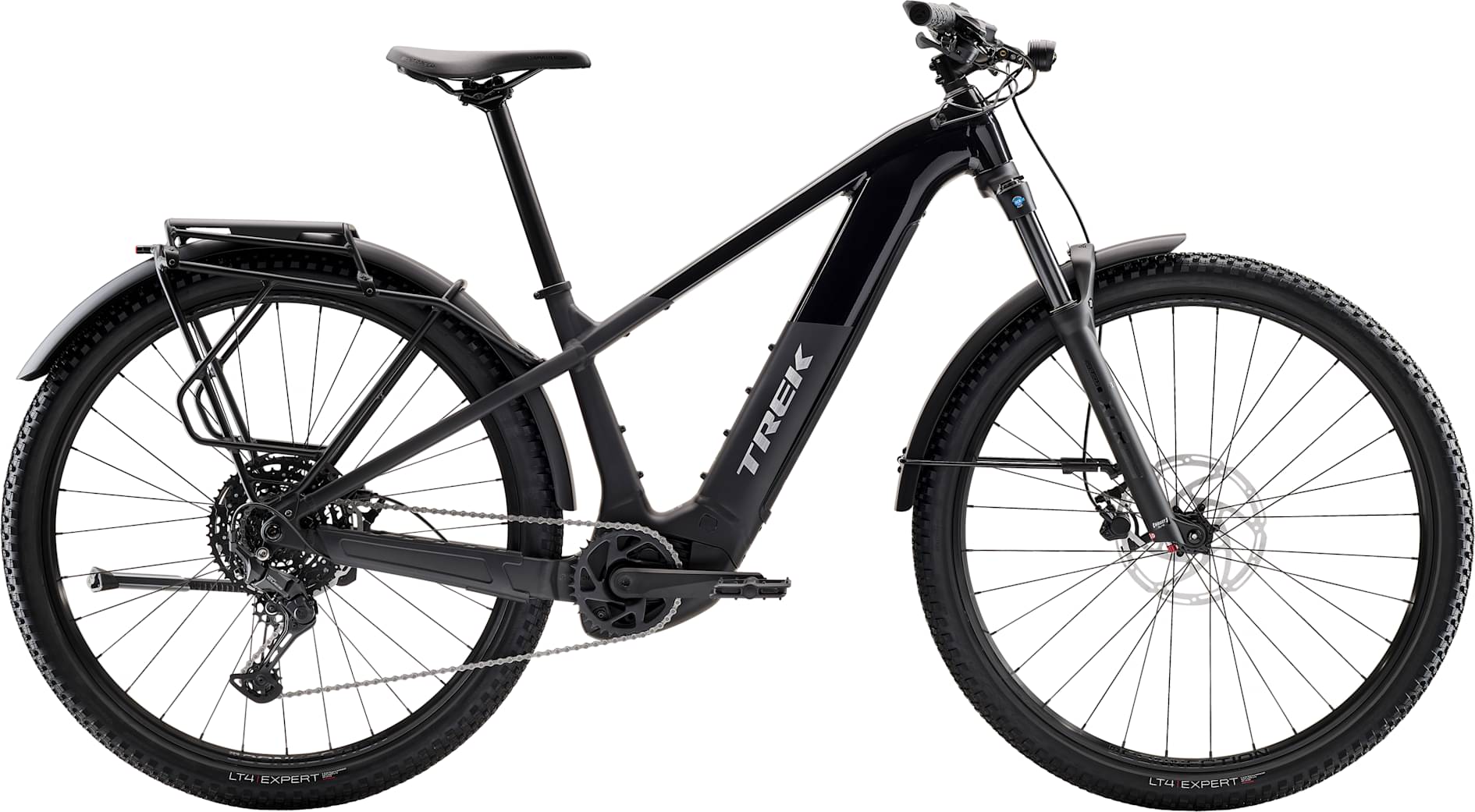

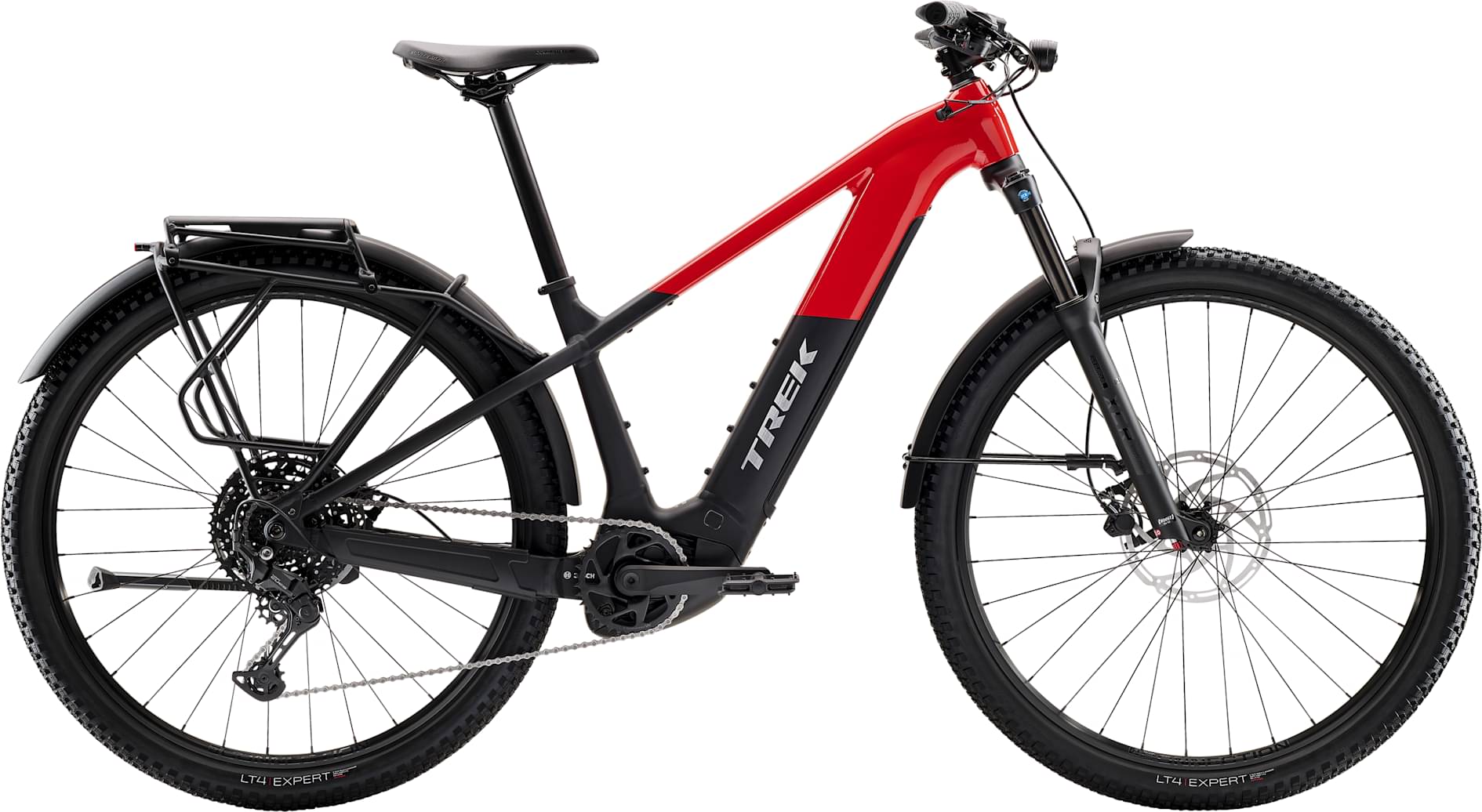

Trek Powerfly+ 4 Equipped Gen 5 2025
2025 E-bike
Estimate price |
4,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 600 Wh, smart system -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 178cm
LG
175cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle
Suspension Fork
Size: S, SR Suntour XCR 34, air spring, 2CR damper, hydraulic lockout, tapered steerer, 44 mm offset, Boost 110, 15 mm bolt-on thru axle, 100 mm travel; Size: M, L, XL, SR Suntour XCR 34, air spring, 2CR damper, hydraulic lockout, tapered steerer, 44 mm offset, Boost 110, 15 mm bolt-on thru axle, 120 mm travel
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano U6000, 10-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Crank
FSA Bosch CK-220, 36T ring, 165 mm length
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500, 9/10/11-speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Rear Hub
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Size: S, Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 27.5x2.40"; Size: M, L, XL, Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40"
Brakes
Brakes
Tektro HD-M275 hydraulic disc
Cockpit
Stem
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Handlebar
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips
Bontrager XR Endurance Comp, lock-on
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Size: S, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: M, Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length; Size: L, XL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Motor & Battery
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Battery
Bosch PowerTube 600 Wh, smart system
Charger
Bosch standard 2A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.461 mm | 1.457 mm | 1.409 mm | 1.373 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 713 mm | 741 mm | 772 mm | 805 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 116 mm | 117 mm | 117 mm | 117 mm |
| Stack | 599 mm | 641 mm | 655 mm | 673 mm |
| Reach | 410 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 571 mm | 612 mm | 640 mm | 658 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 76 ° |
| Seat Tube Length | 370 mm | 400 mm | 420 mm | 450 mm |
| Head Tube Angle | 65.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 133 mm | 108 mm | 123 mm | 143 mm |
| Chainstay Length | 442 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1151 mm | 1195 mm | 1226 mm | 1259 mm |
| Bottom Bracket Drop | 45 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 697 mm | 747 mm | 746 mm | 746 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 166 cm | 178 cm | 189 cm | 195 cm |
