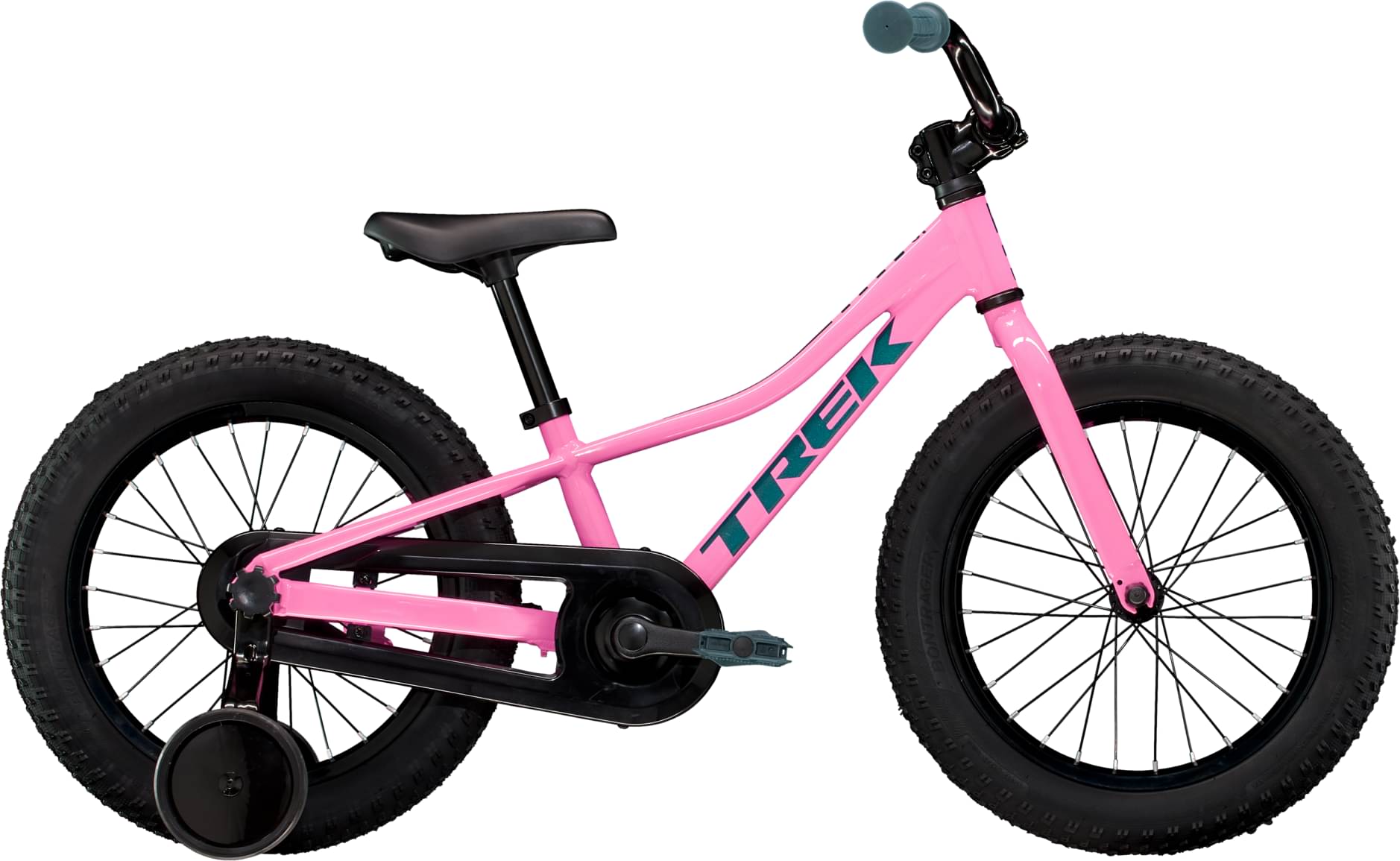

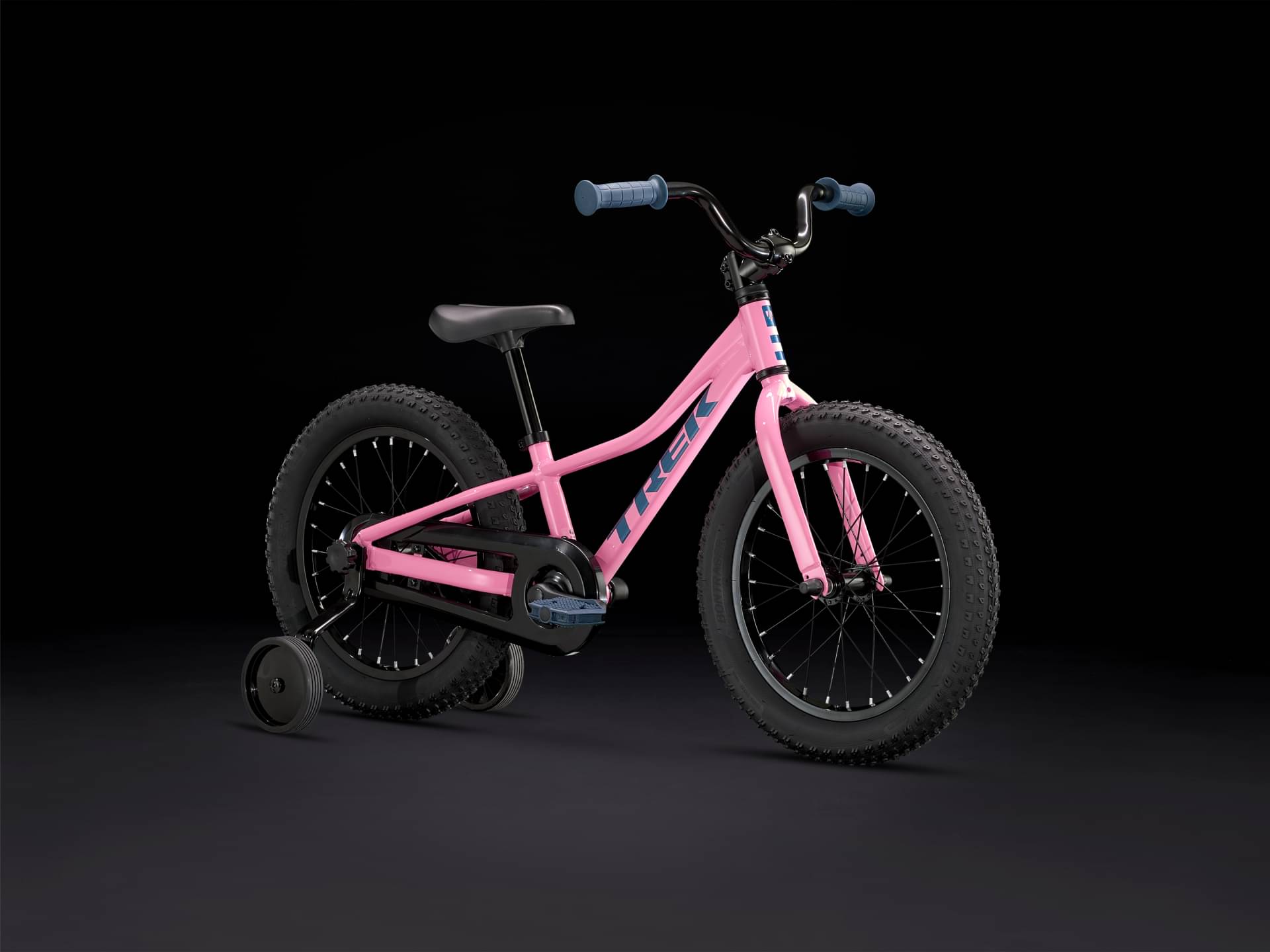

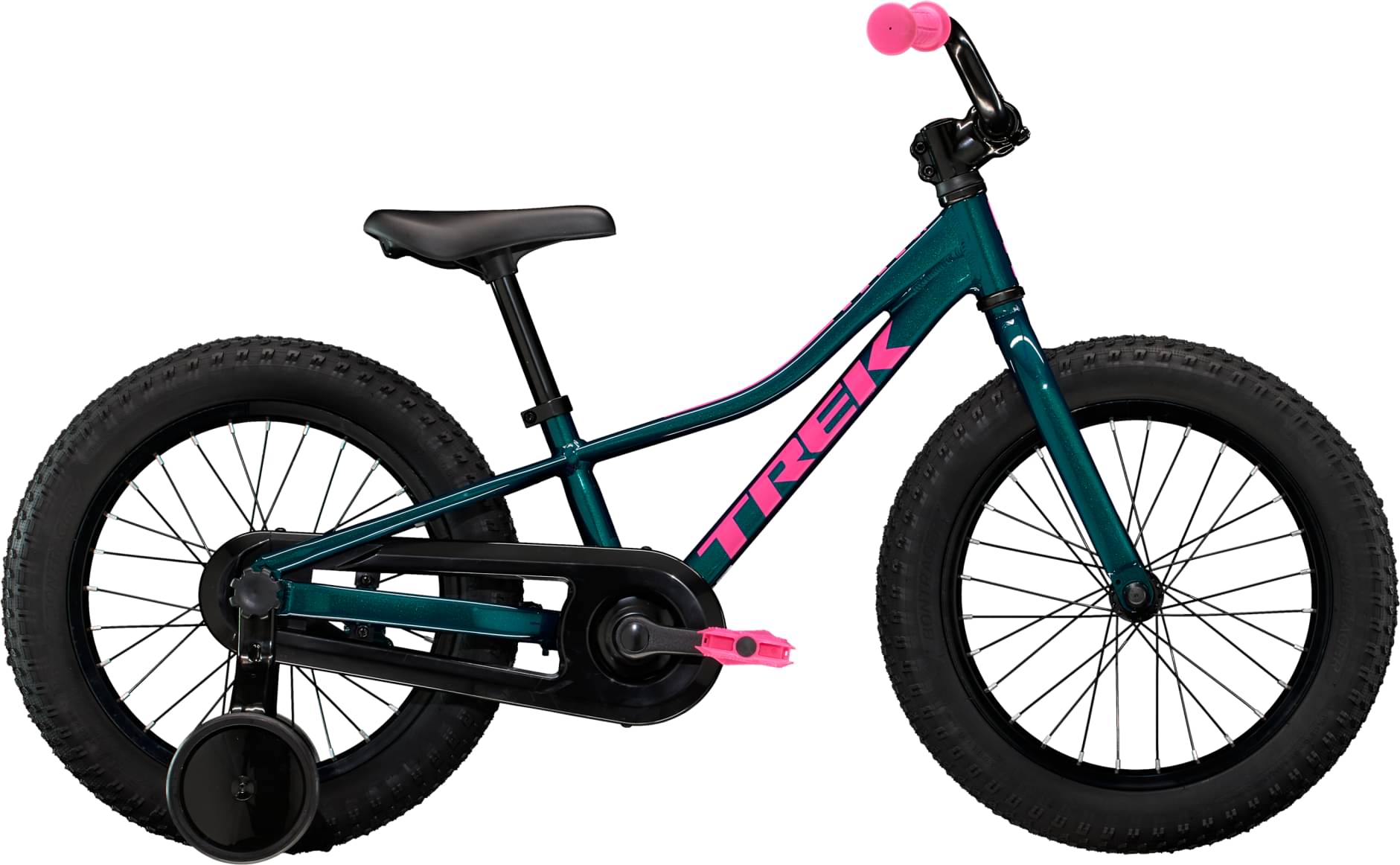

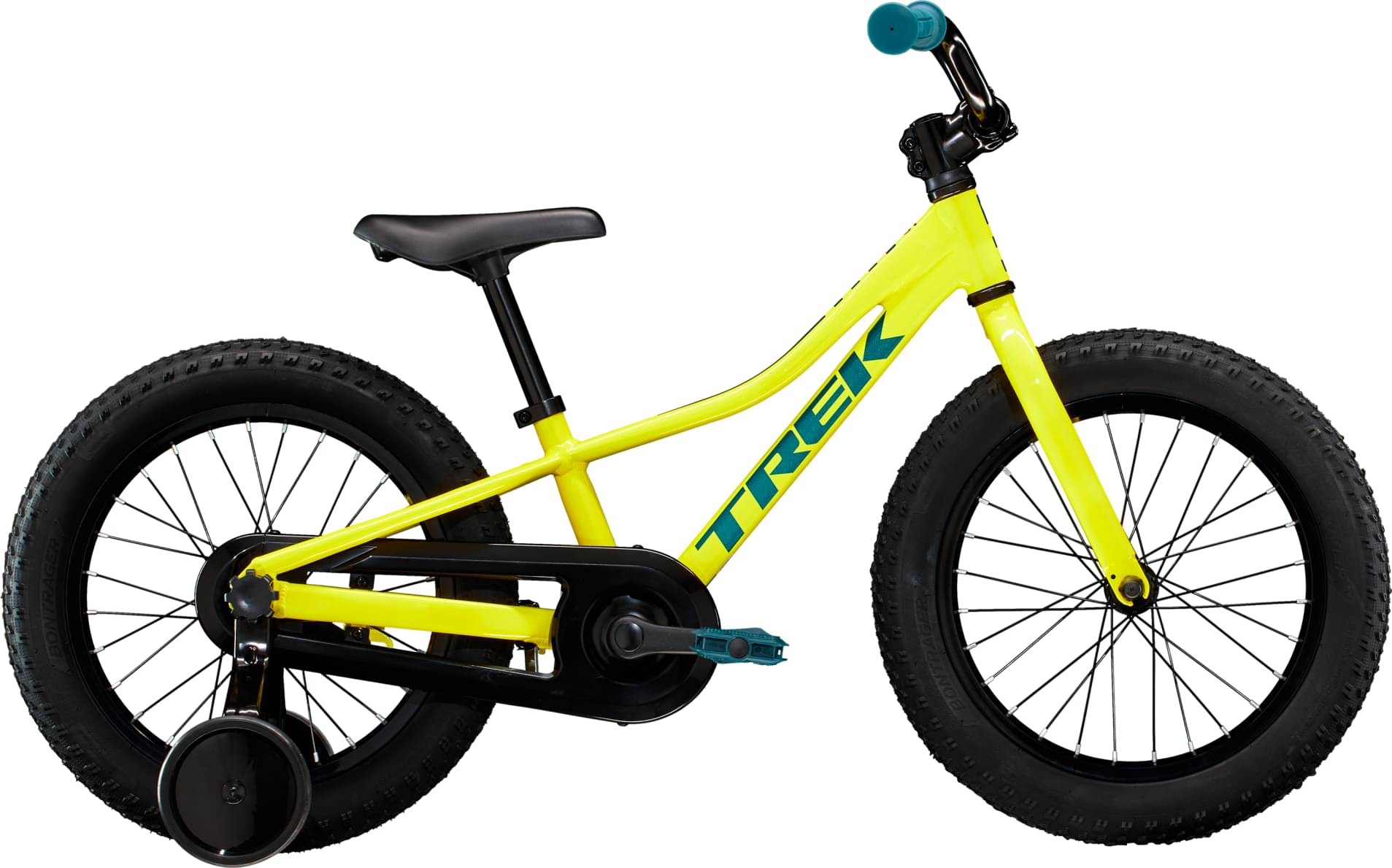

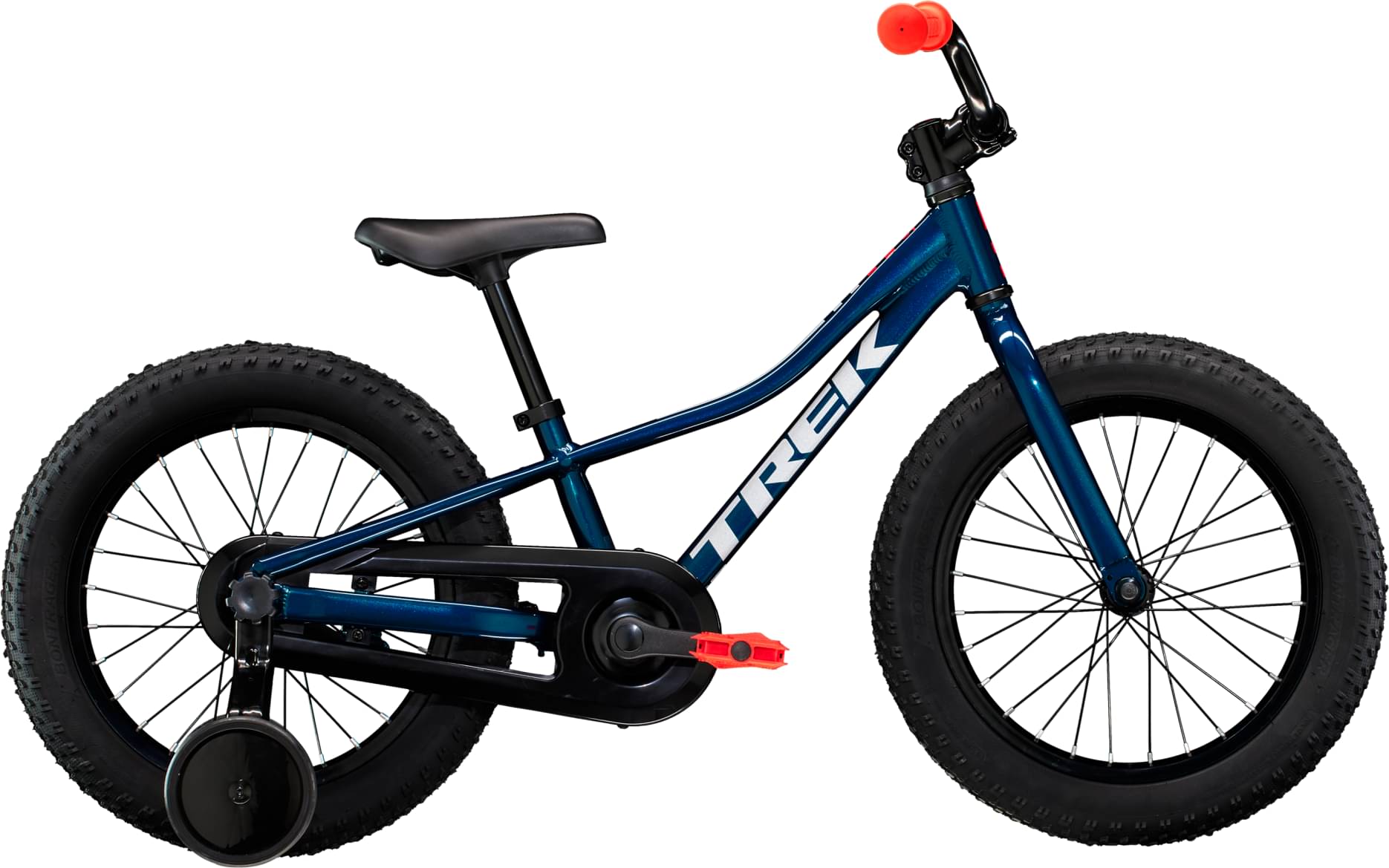

Trek Precaliber 16 Coaster Brake 2025
2025 Youth
Estimate price |
288$
Weight | 7.97 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Coaster
Sizing
Recommended size guide.
16"
99cm - 117cm
Parts list
Components
Main components, grouped by system.
Bike components

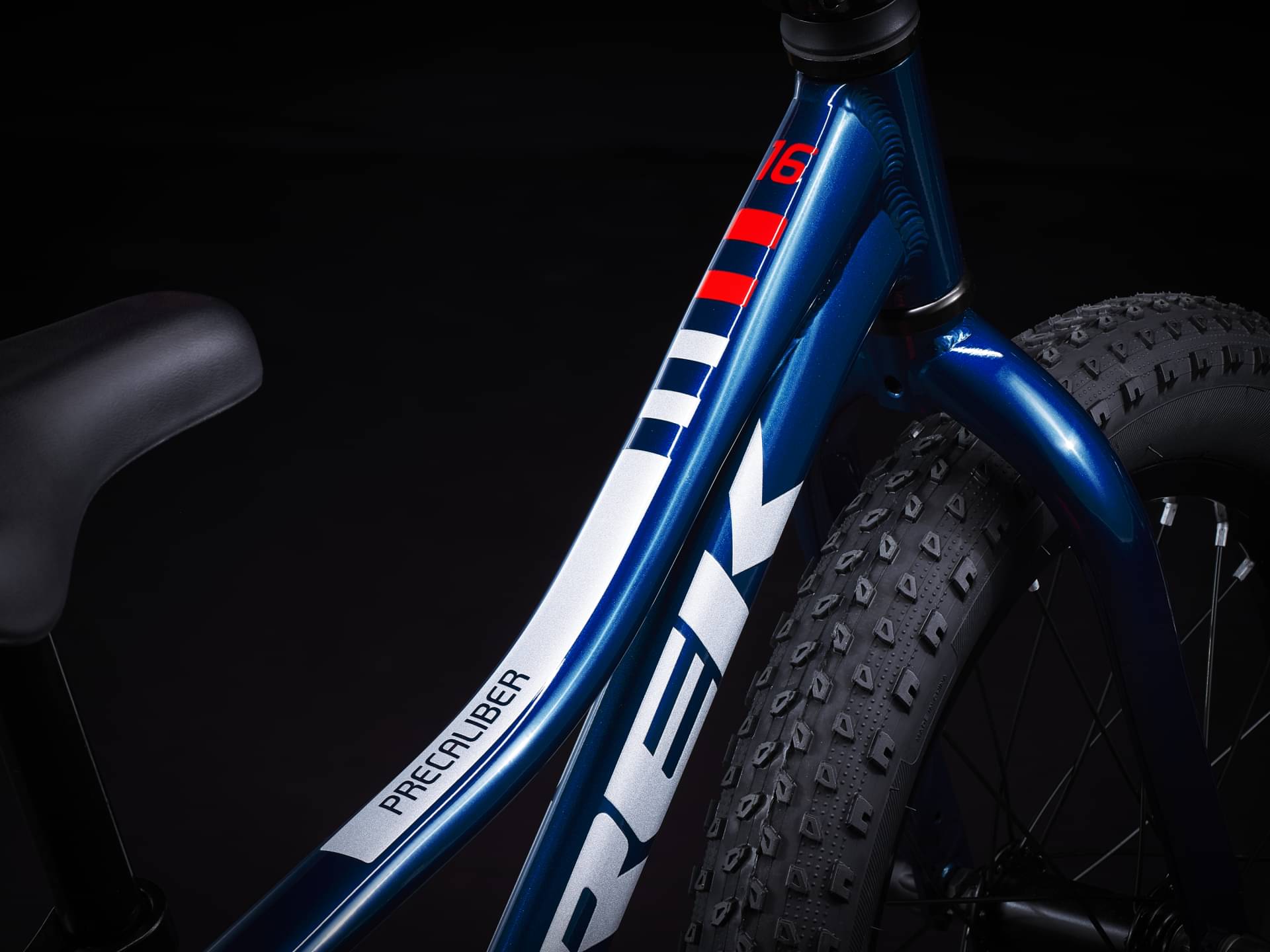

Frame

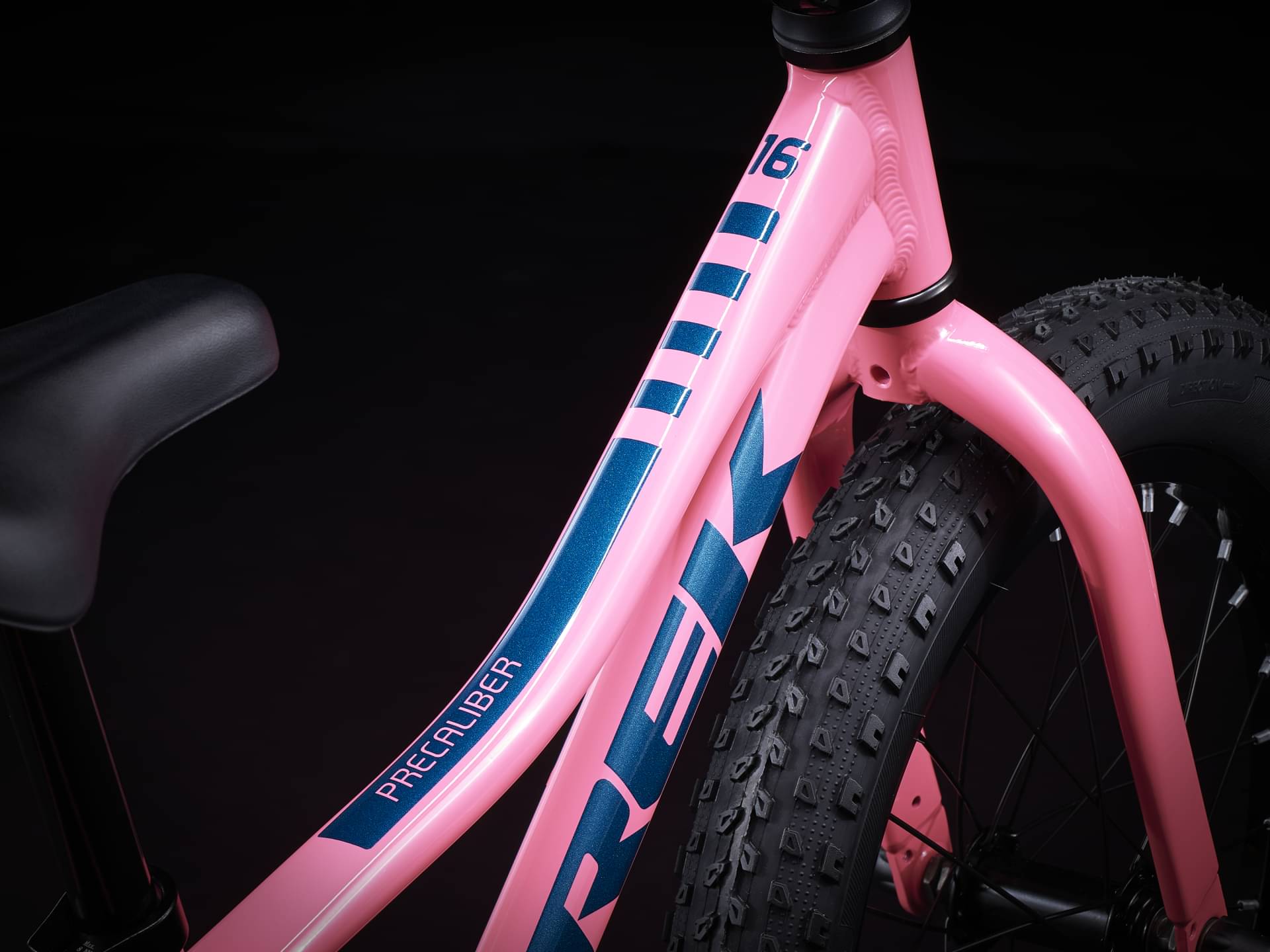

Frame
Alpha Silver Aluminium, 16" kids' frame size
Suspension Fork
Steel, 16", threadless 1" steerer
Drivetrain
Crank
Alloy, 26T steel ring, chainguard, 89 mm length
Bottom Bracket
Square taper, 68 mm, sealed cartridge
Chain
HV410, 1/2x1/8
Pedals
Kids' Satellite, 9/16 thread
Wheels
Front Hub
Steel, 100 mm bolt-on
Rear Hub
Coaster brake, 18T, 120 mm bolt-on
Rims
Alloy 16", 28-hole, Schrader valve
Tires
Bontrager XR1, wire bead, 27 tpi, 16x2.25"
Brakes
Brakes
Coaster
Cockpit
Stem
Bontrager Approved alloy, 25.4 mm clamp, 15-degree rise, 50 mm

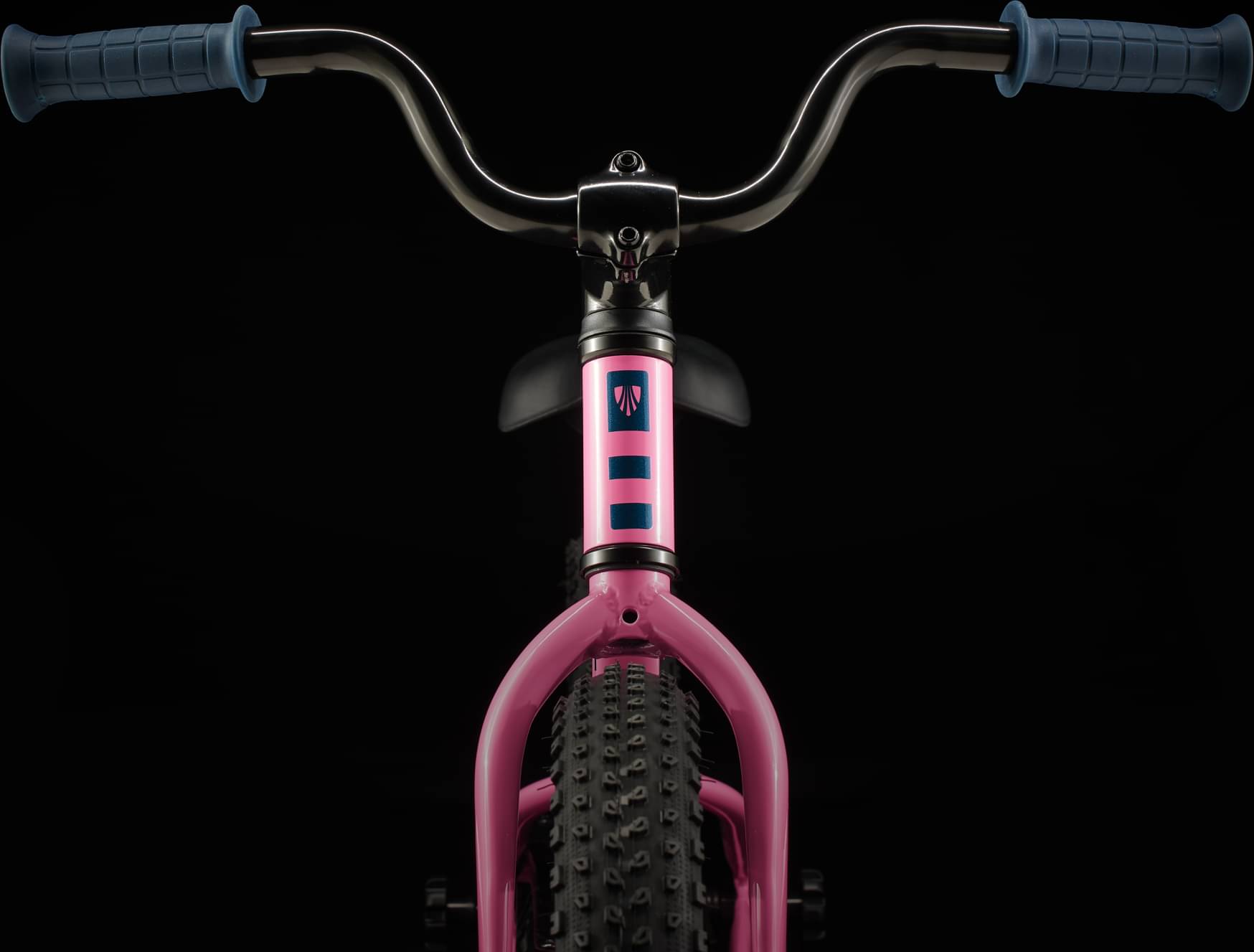

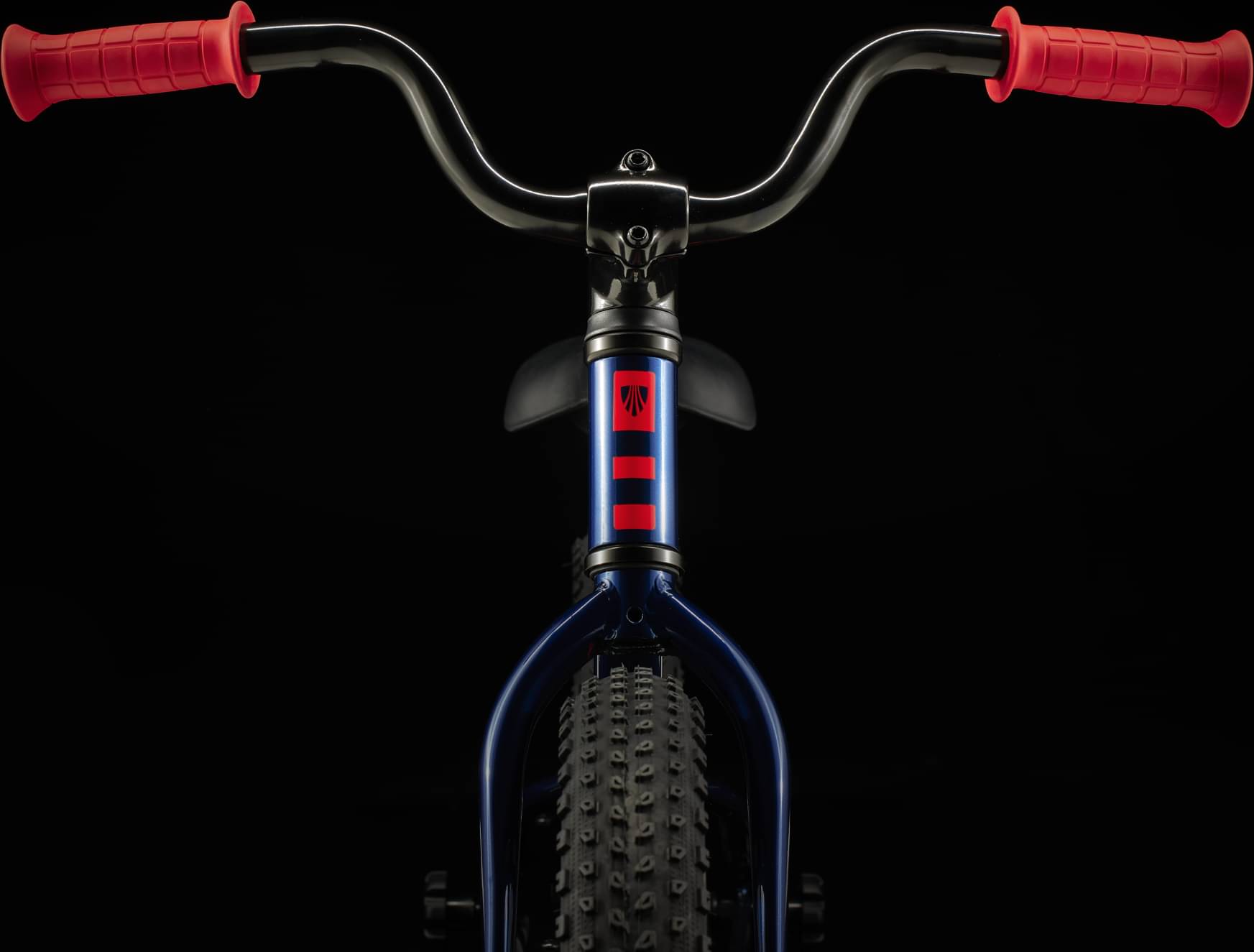

Handlebar
Kids' steel, 25.4 mm clamp, 80 mm rise, 500 mm width
Grips
Kids' grip, 107 mm width
Seat

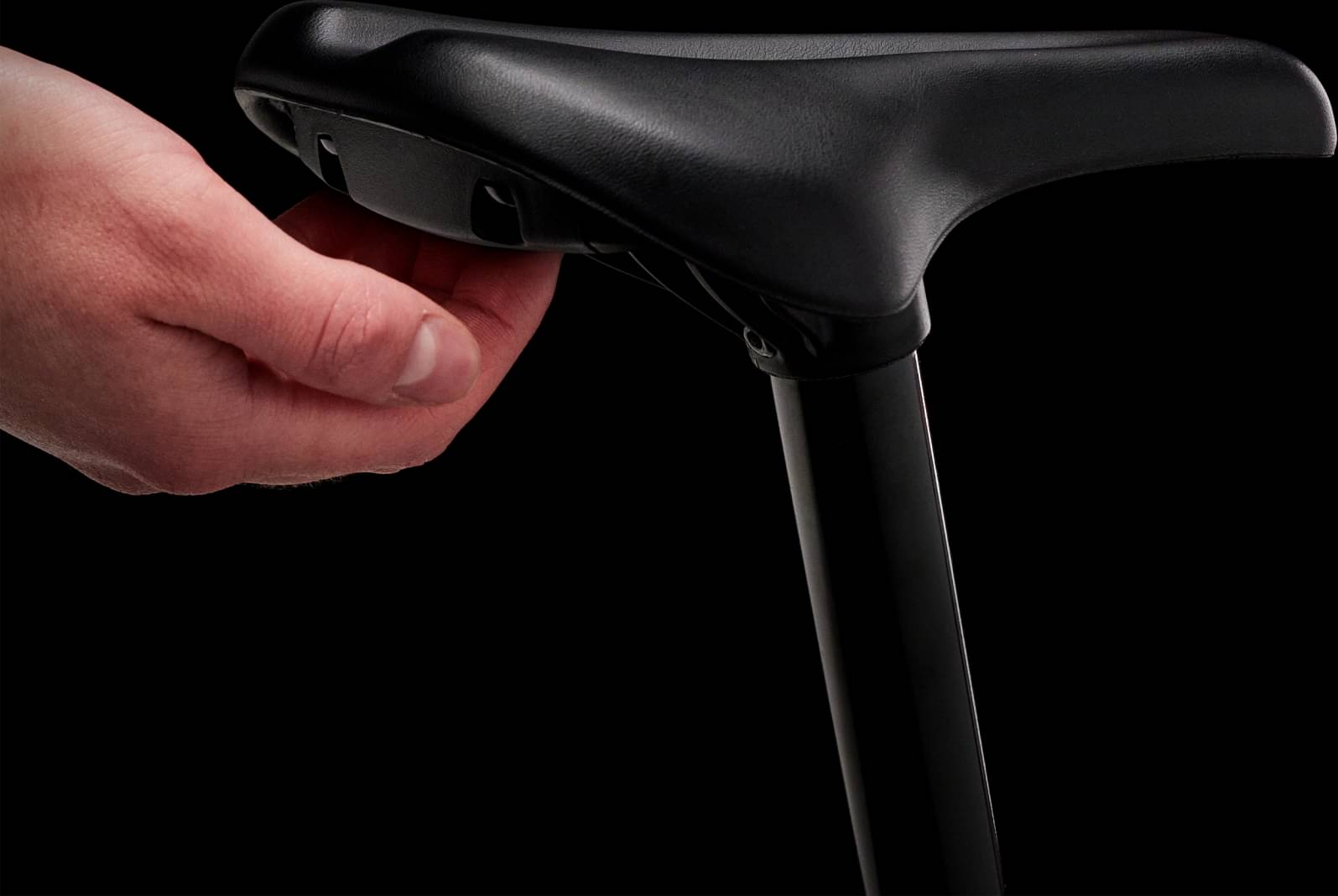

Saddle
Kids' padded, integrated seat post, with handle
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" |
|---|---|
| Stack Reach Ratio | 1.331 mm |
| Bottom Bracket Height | 183 mm |
| Front Center | 410 mm |
| Rake | 20 mm |
| Trail | 58 mm |
| Stack | 358 mm |
| Reach | 269 mm |
| Top Tube Length | 400 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 205 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 80 mm |
| Chainstay Length | 307 mm |
| Wheelbase | 713 mm |
| Bottom Bracket Drop | 35 mm |
| Standover Height | 389 mm |
| Wheels | 16" |
| Rider Min Height | 99 cm |
| Rider Max Height | 117 cm |
