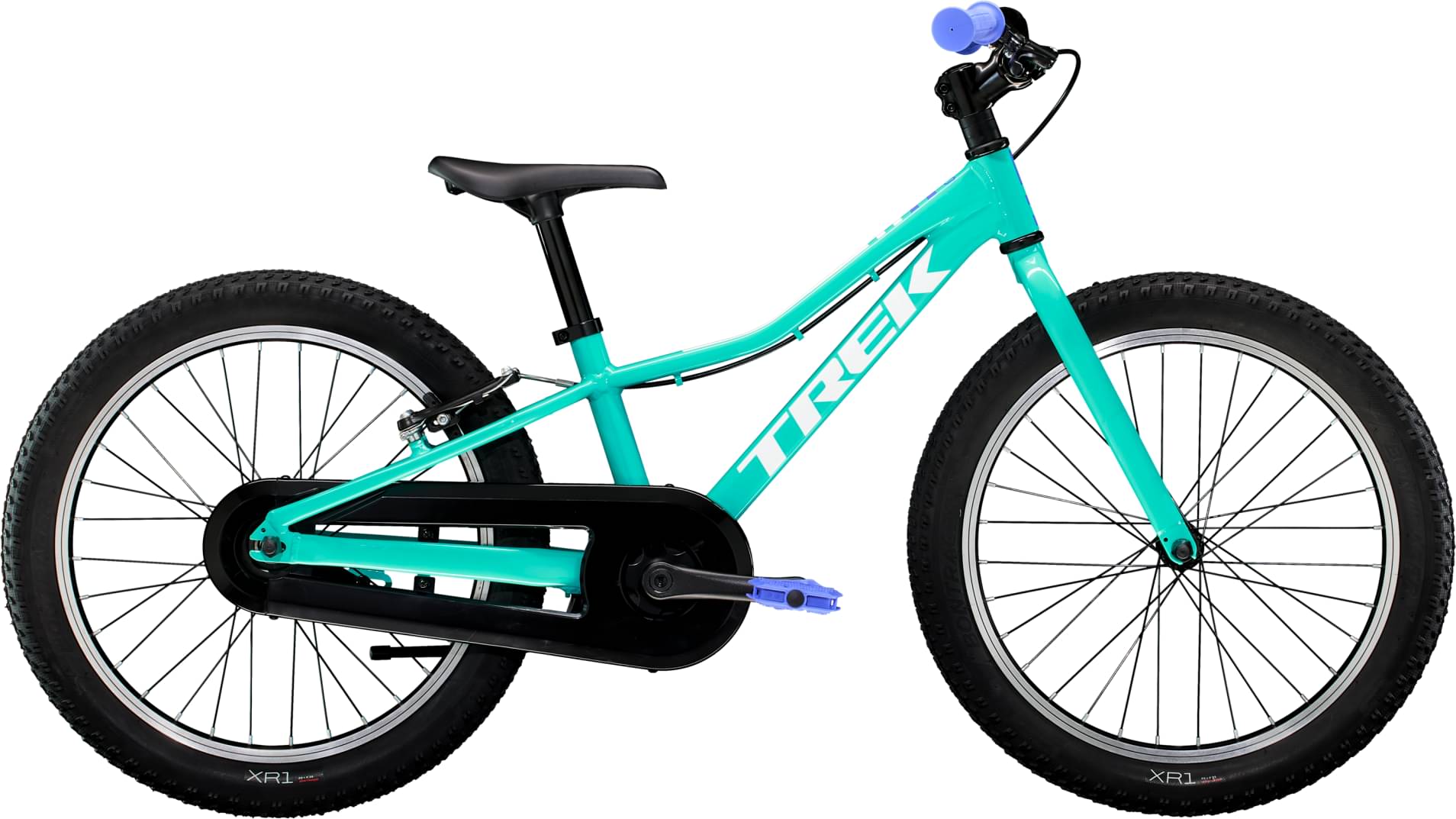

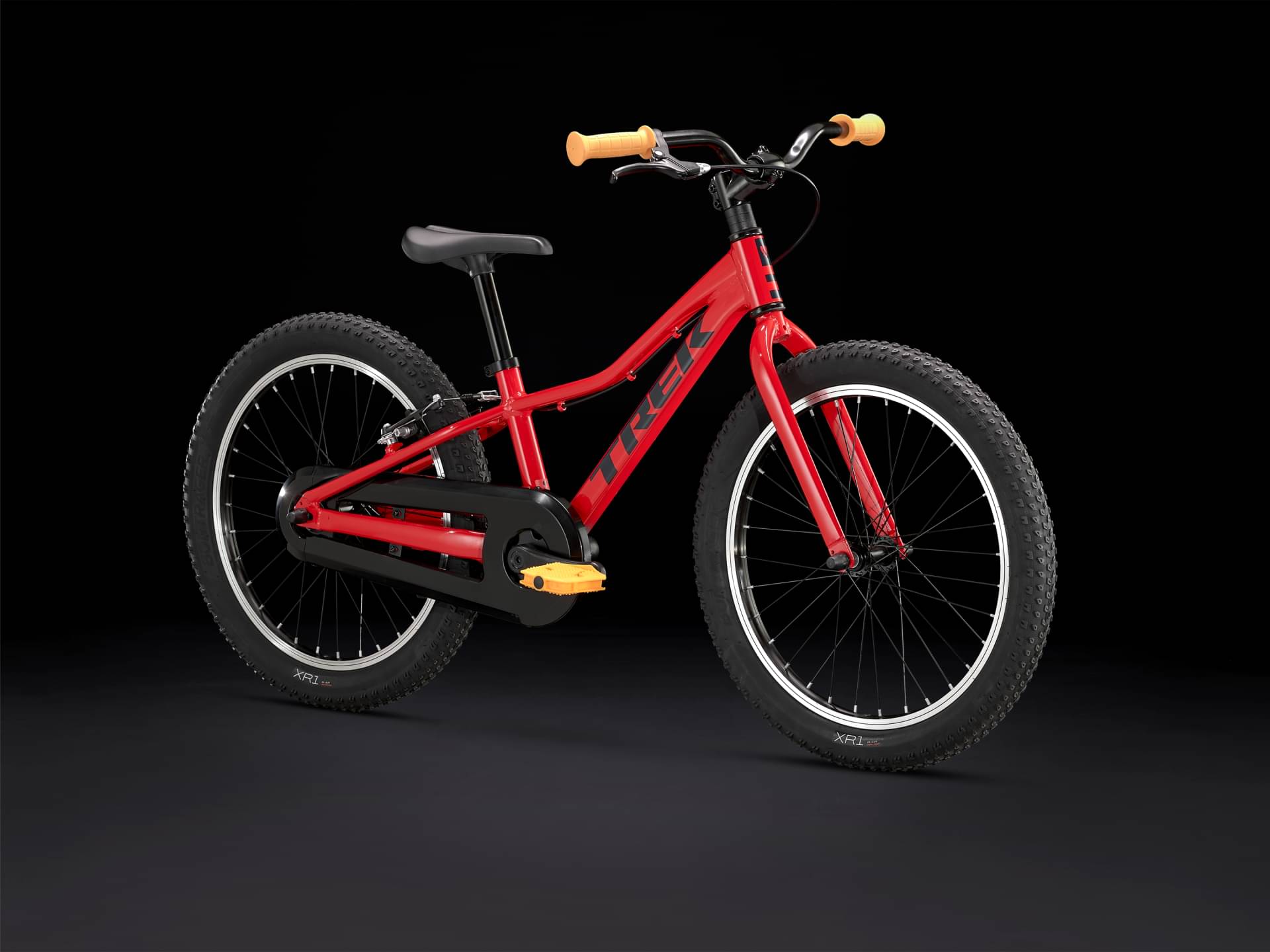

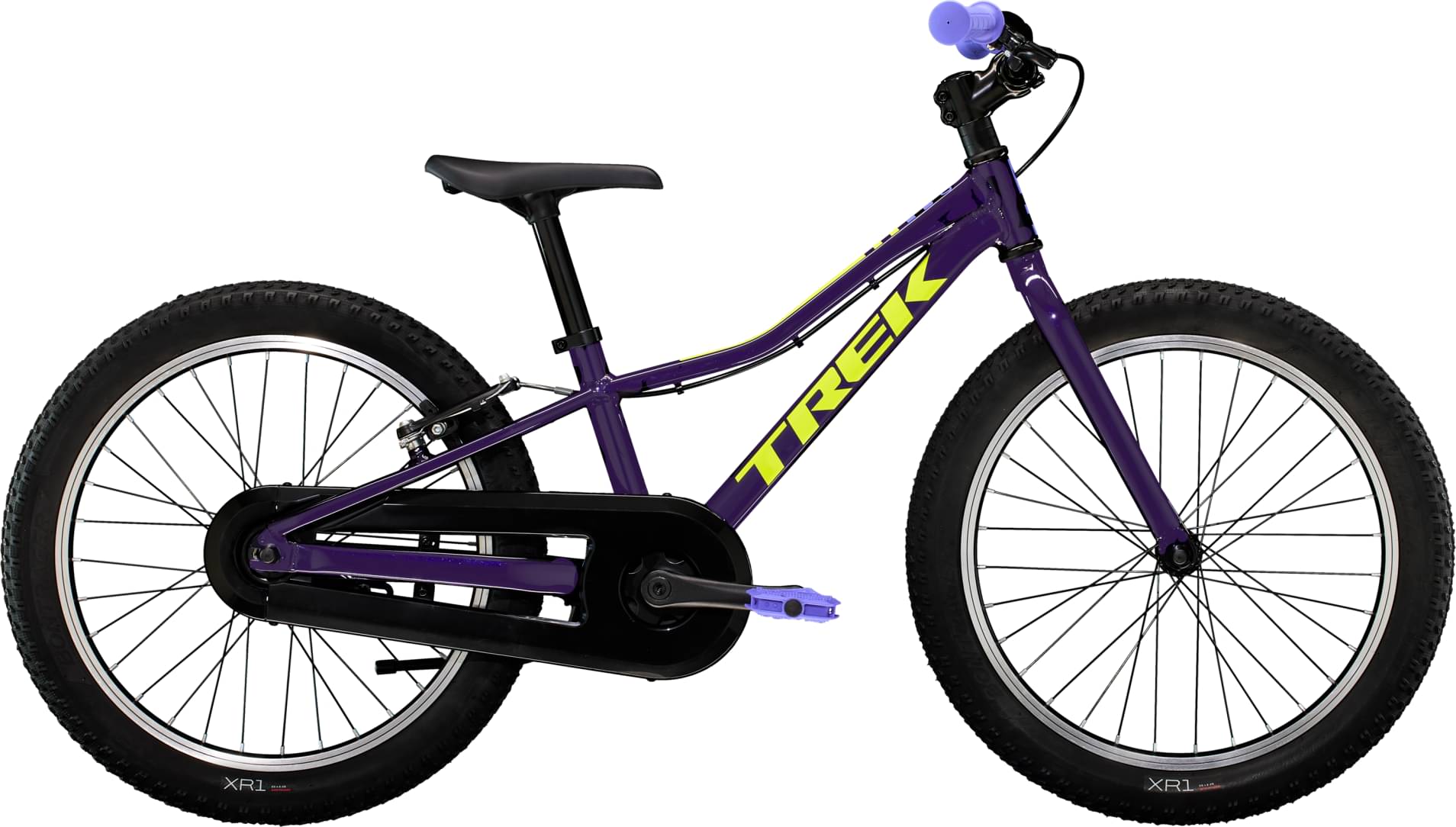

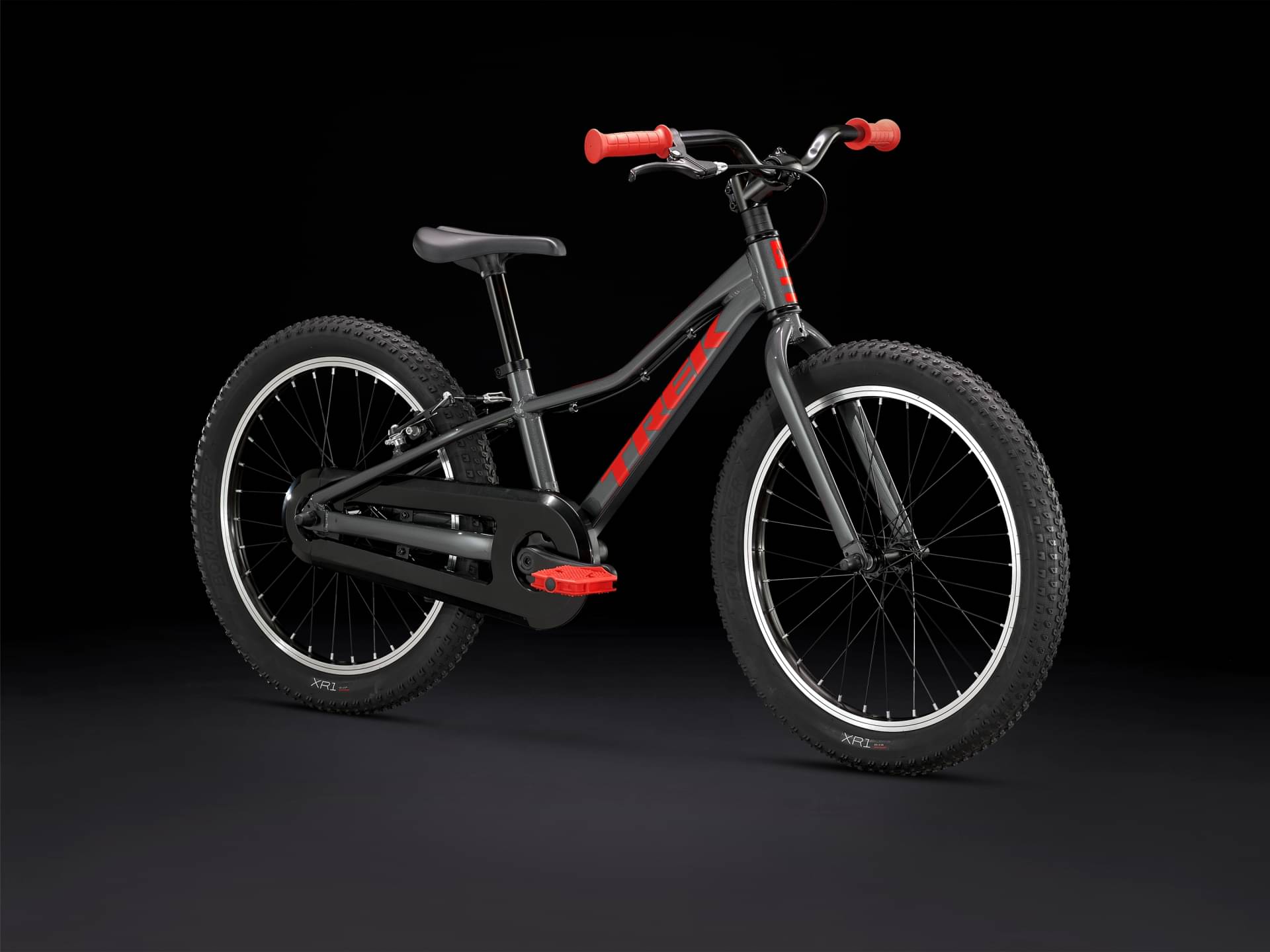

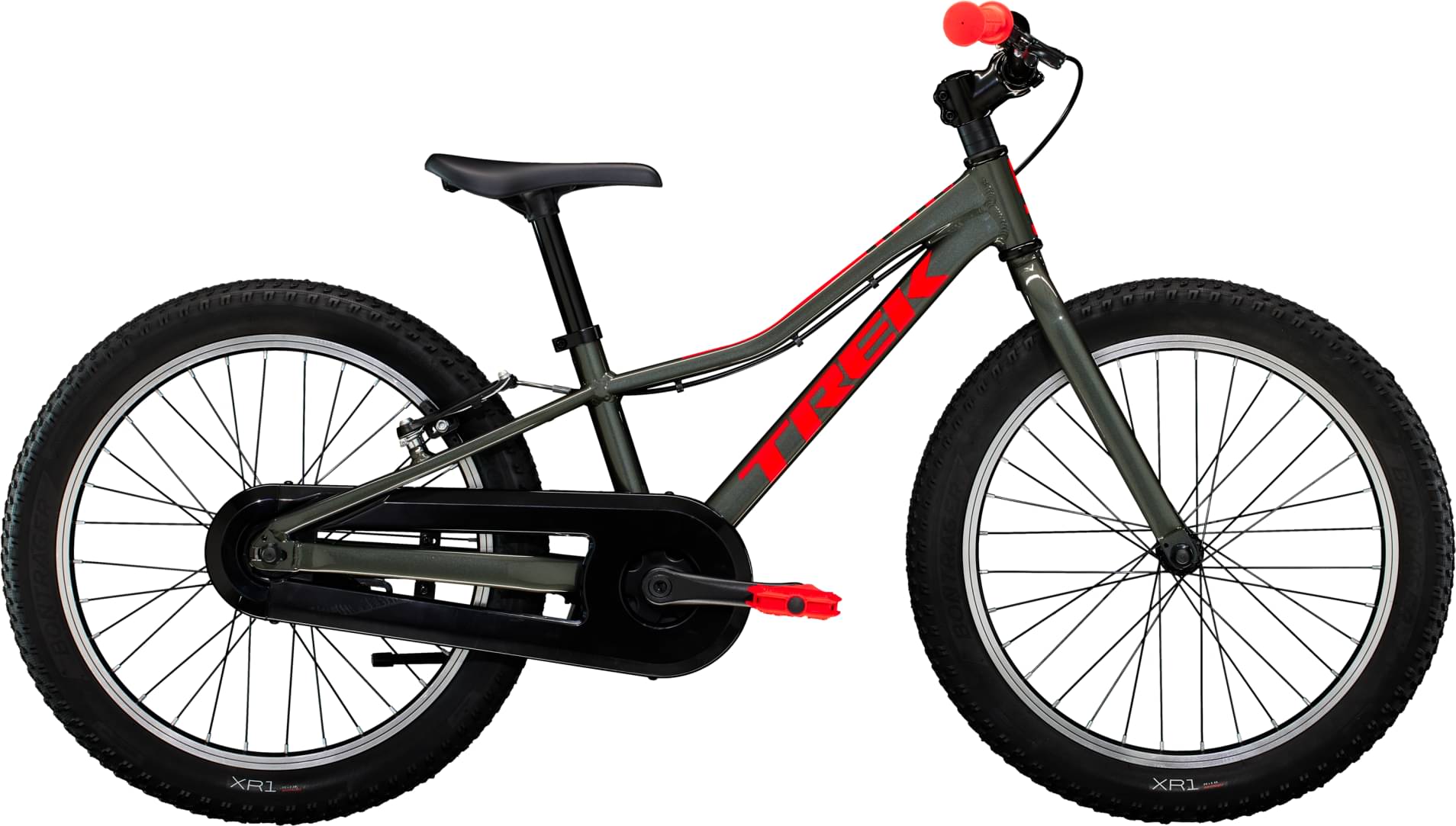

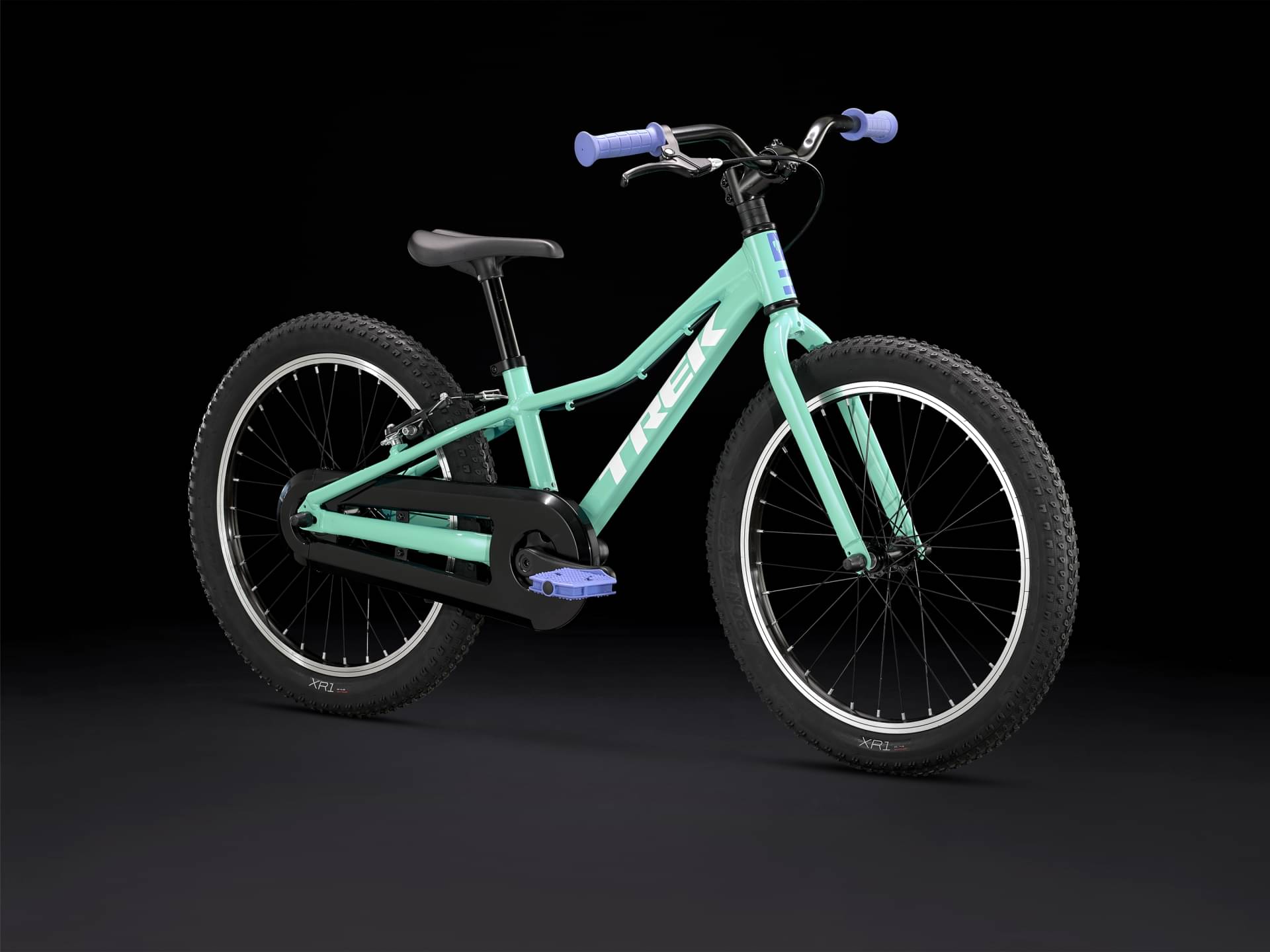

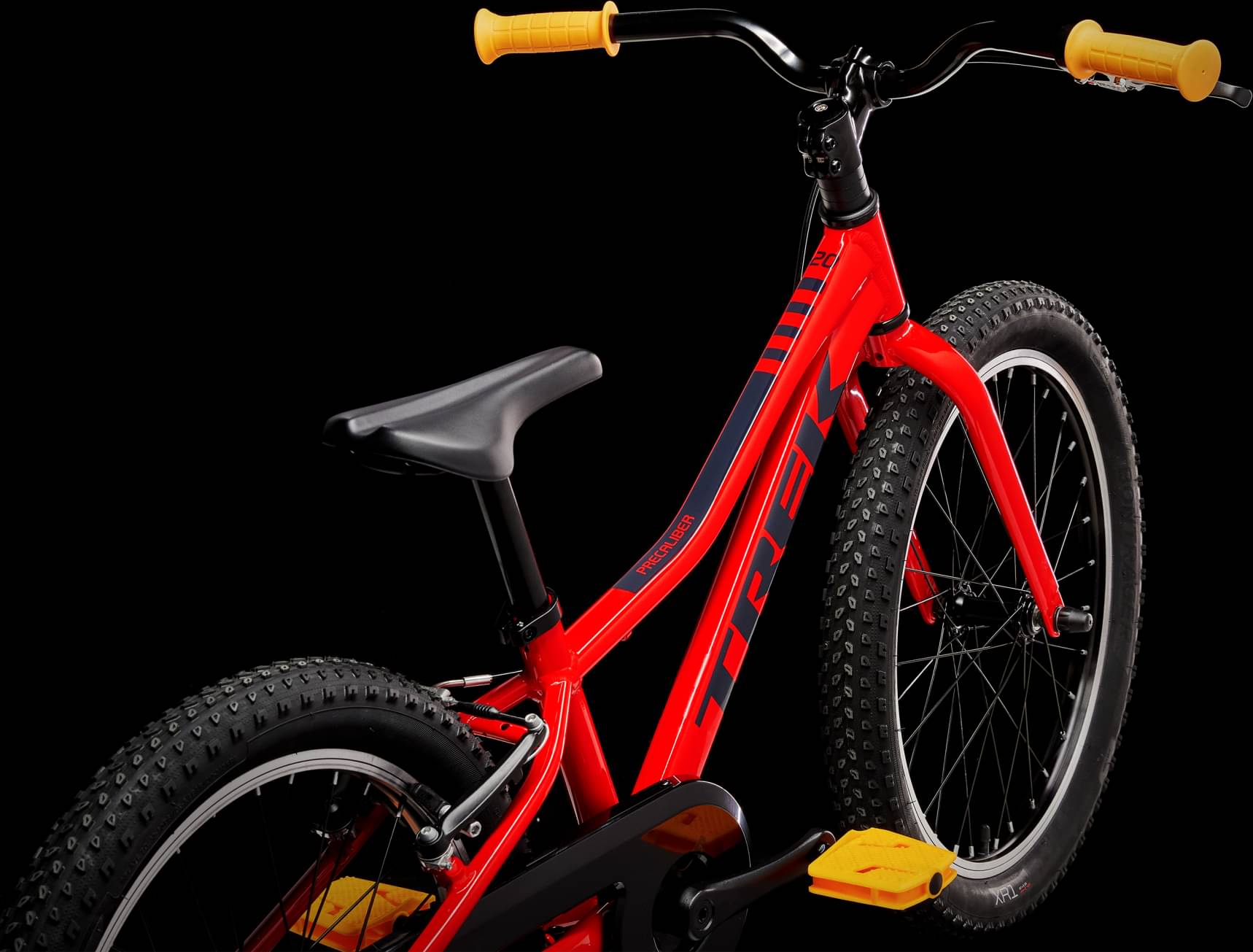

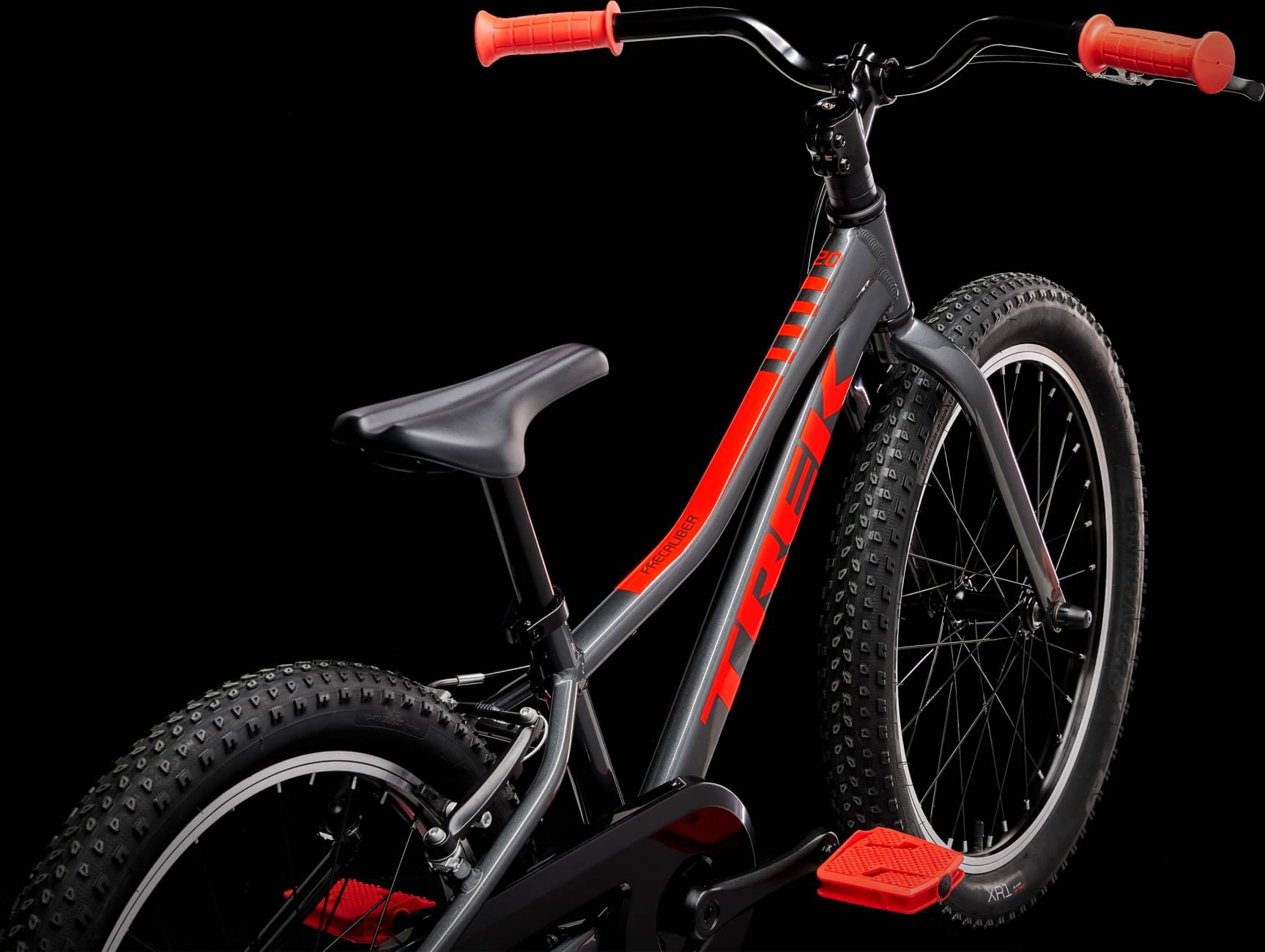

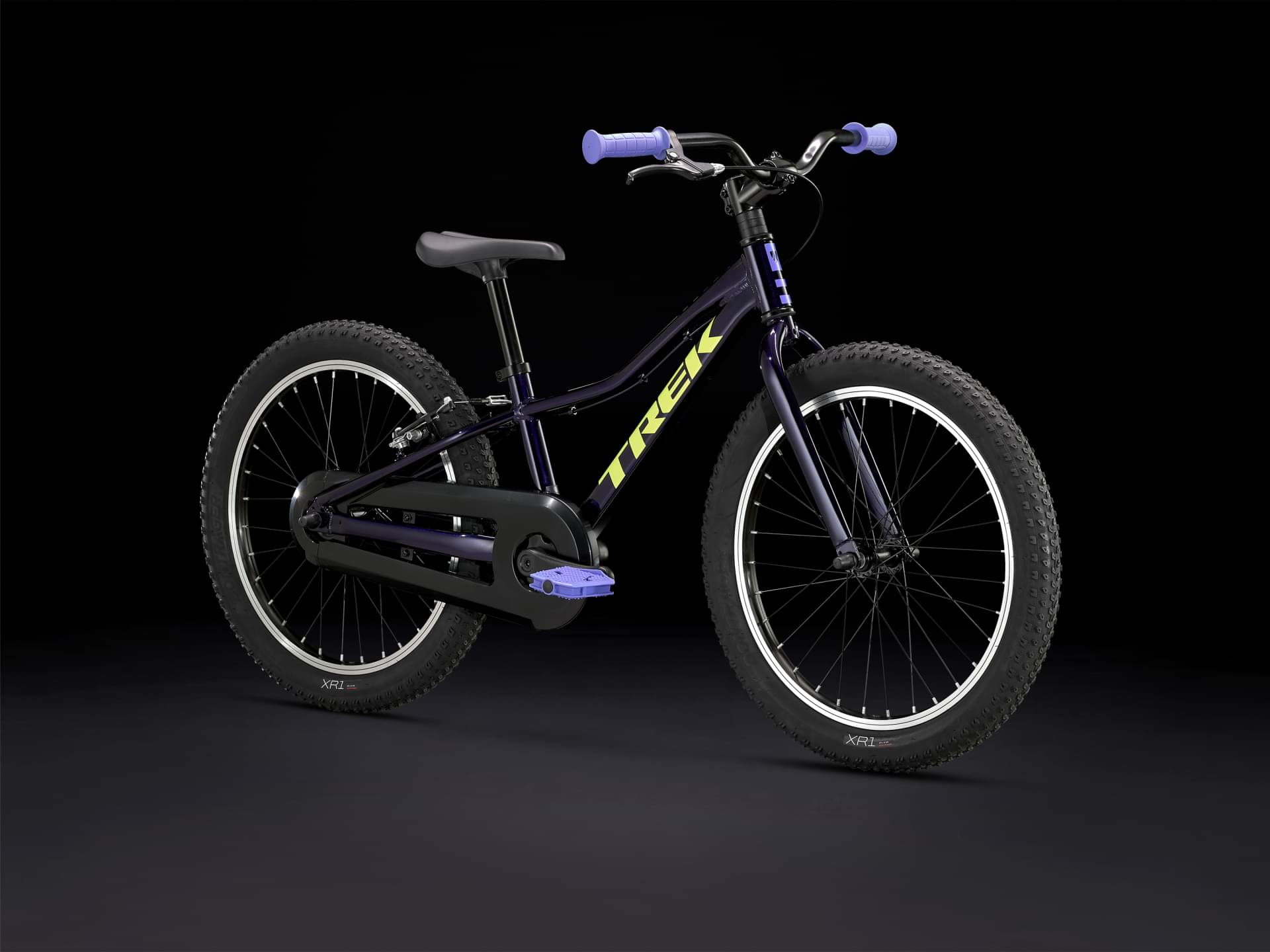

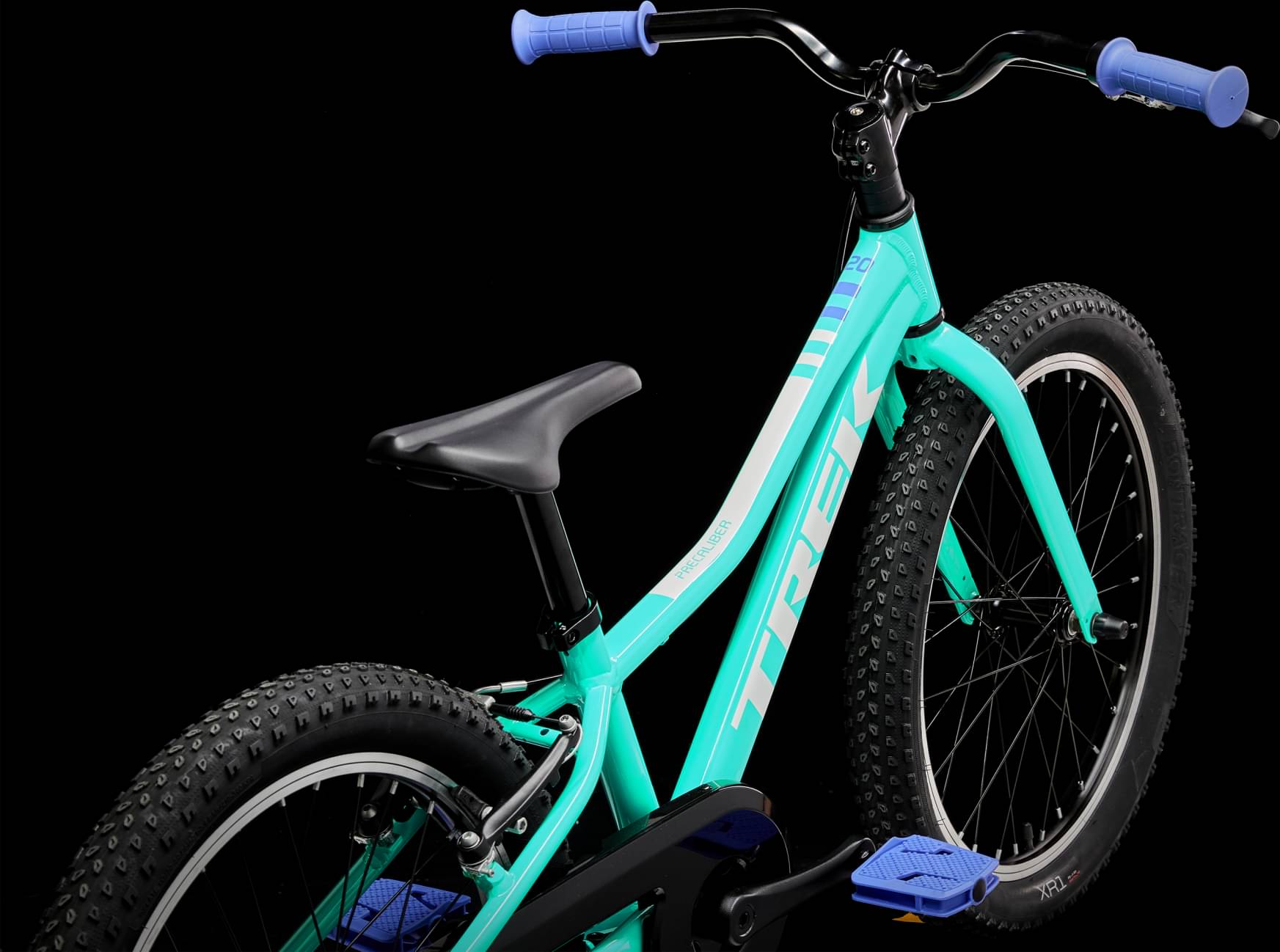

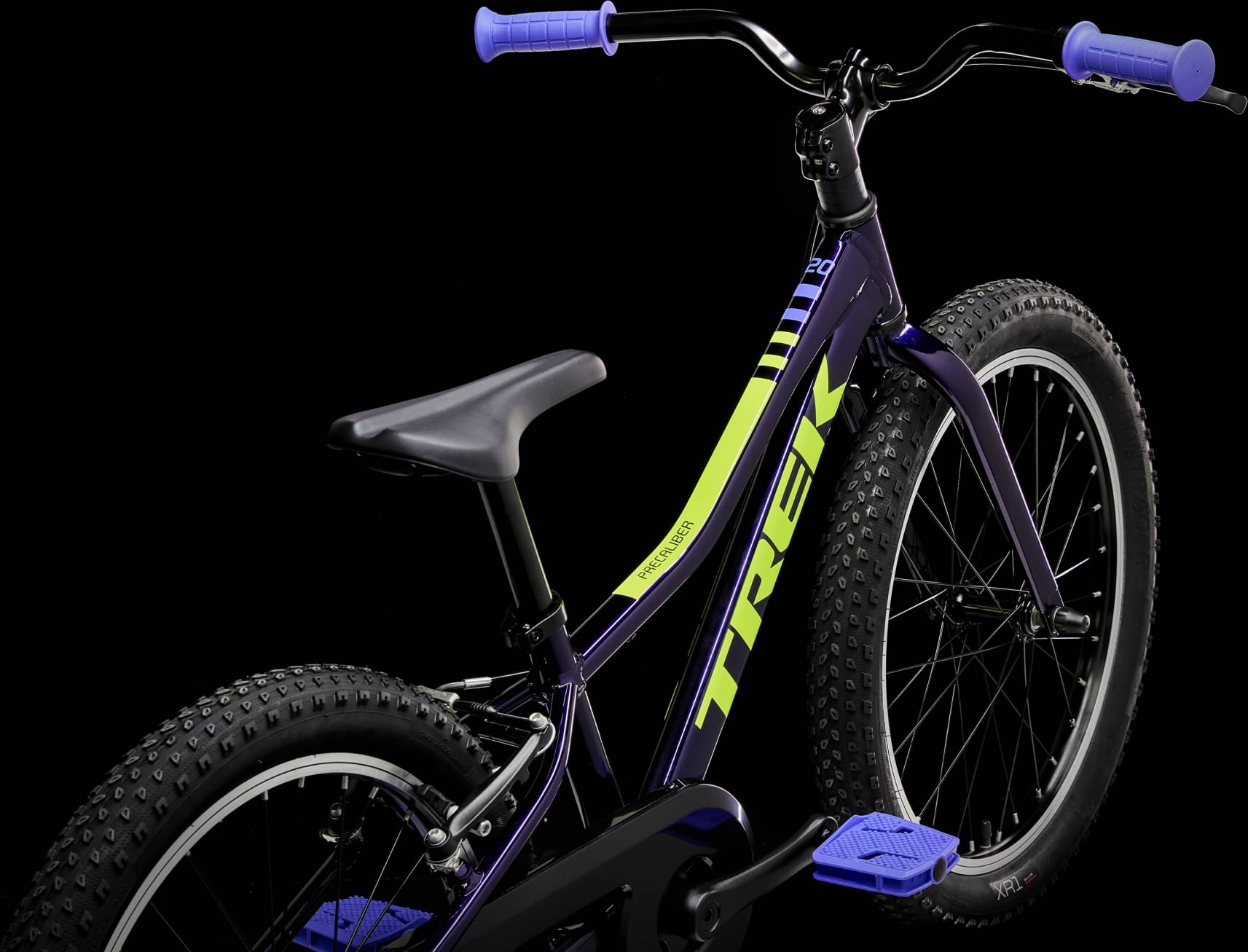

Trek Precaliber 20 2025
2025 Youth
Estimate price |
329$
Weight | 9.23 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Coaster
Sizing
Recommended size guide.
20"
114cm - 132cm
Parts list
Components
Main components, grouped by system.
Bike components

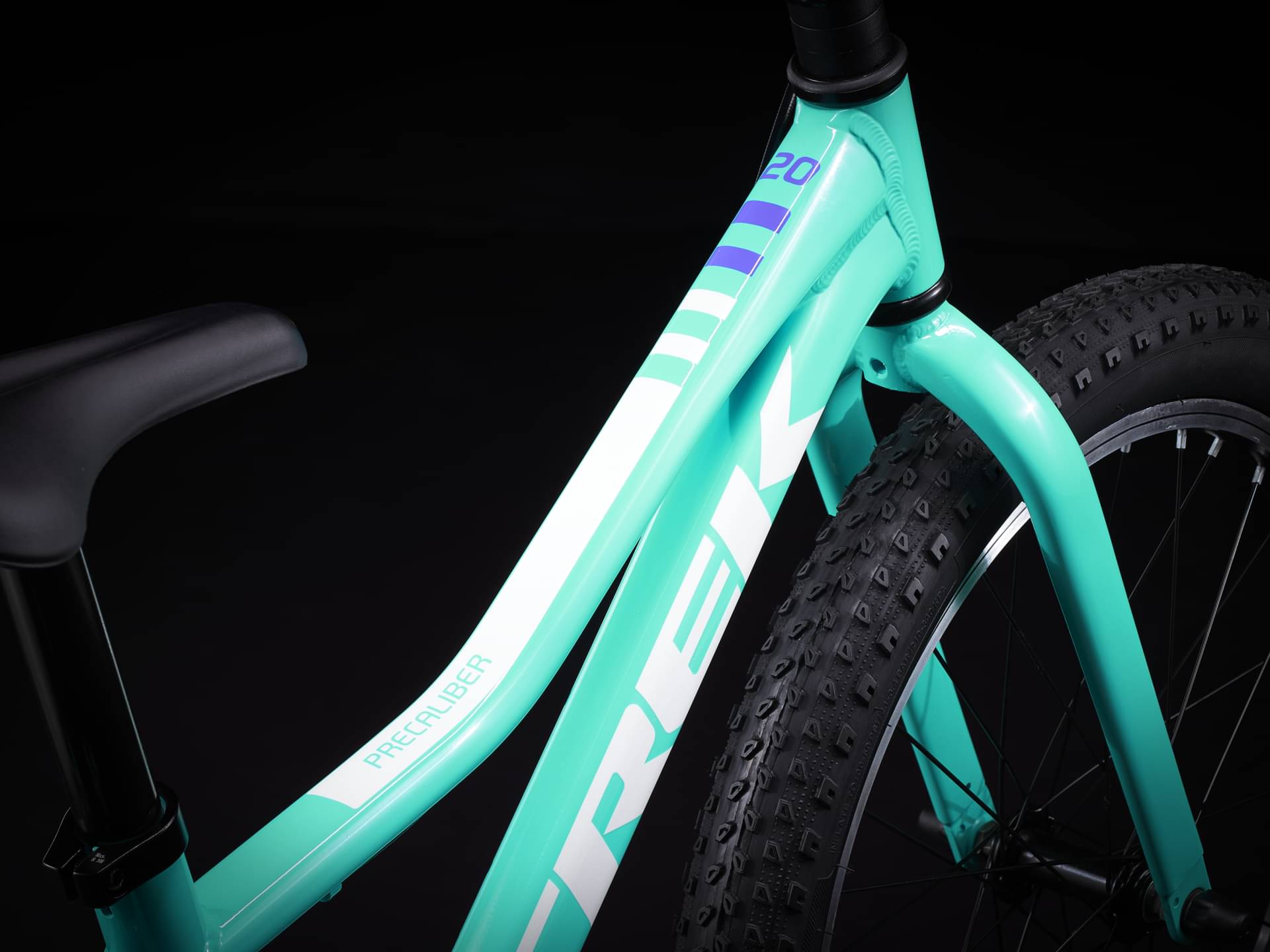

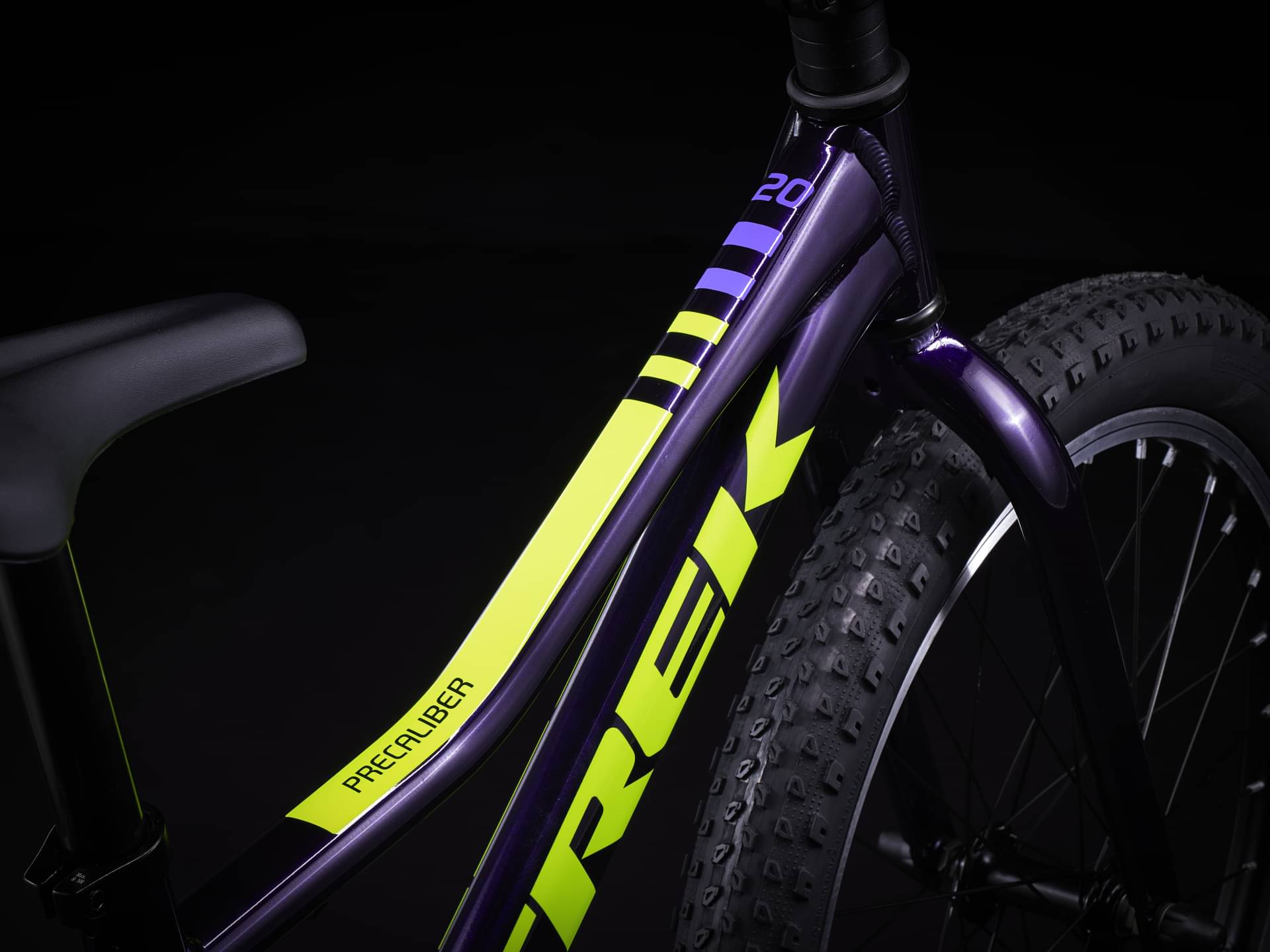

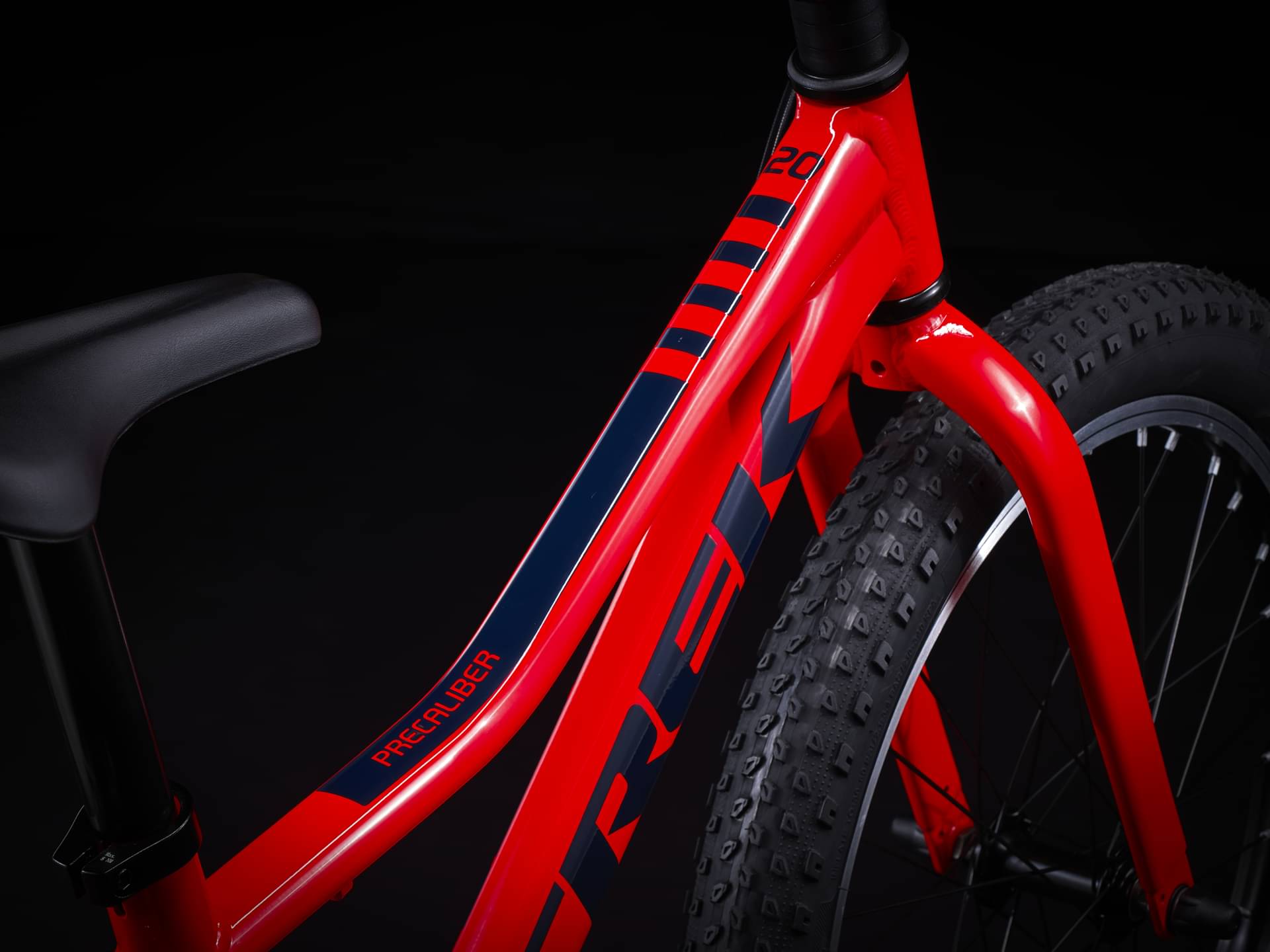

Frame

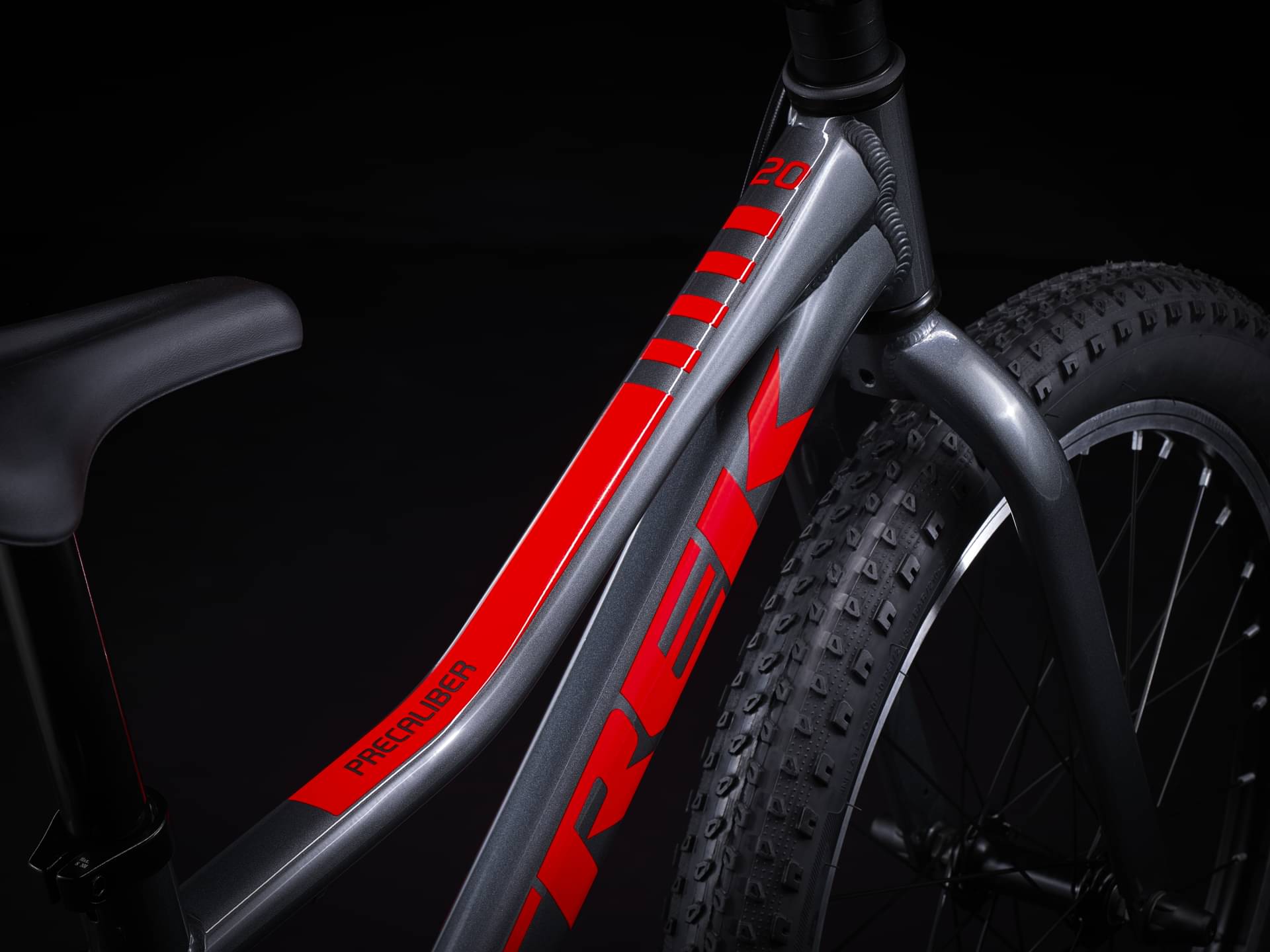

Frame
Alpha Silver Aluminum, 20'' kids' frame size

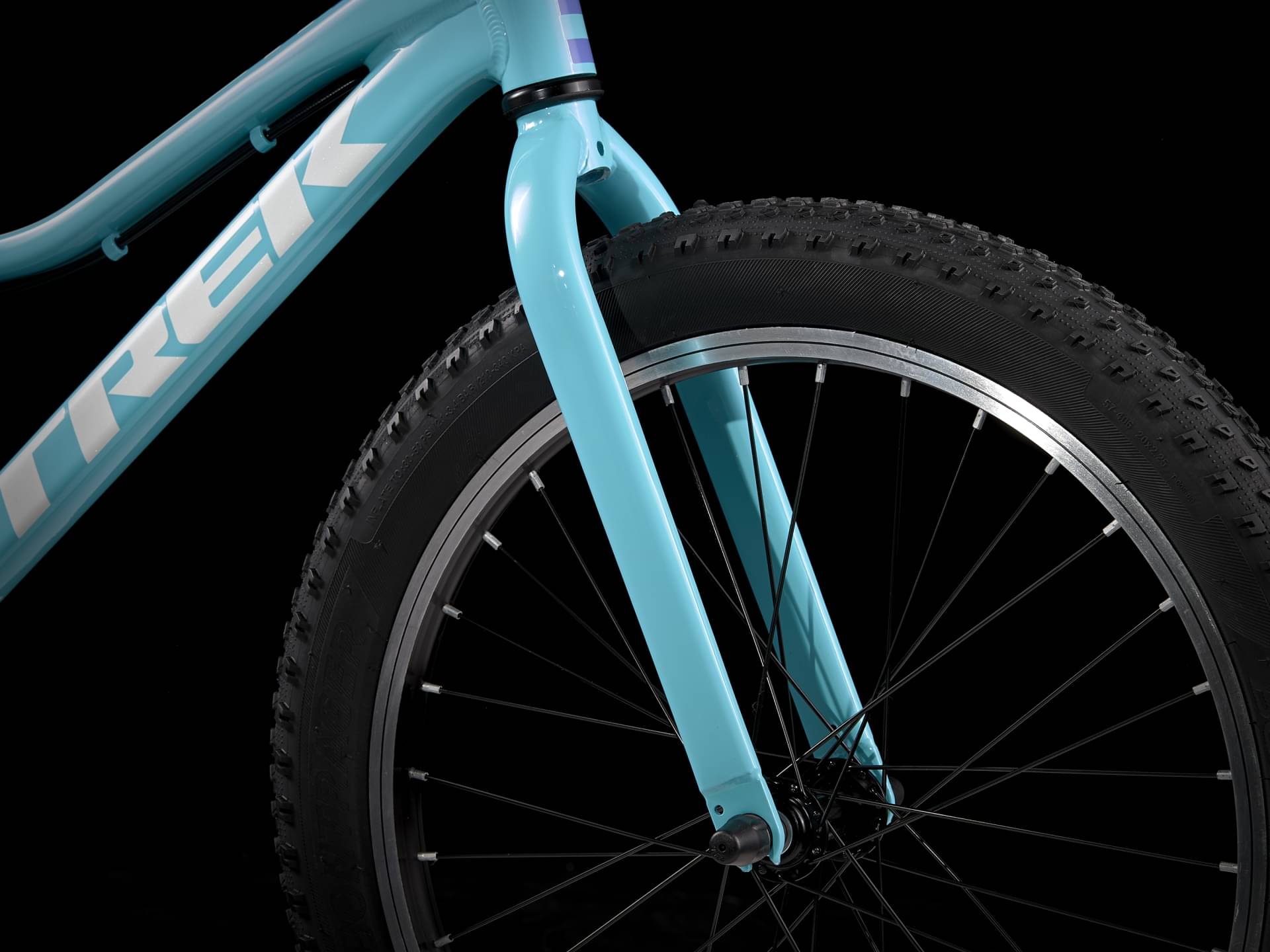

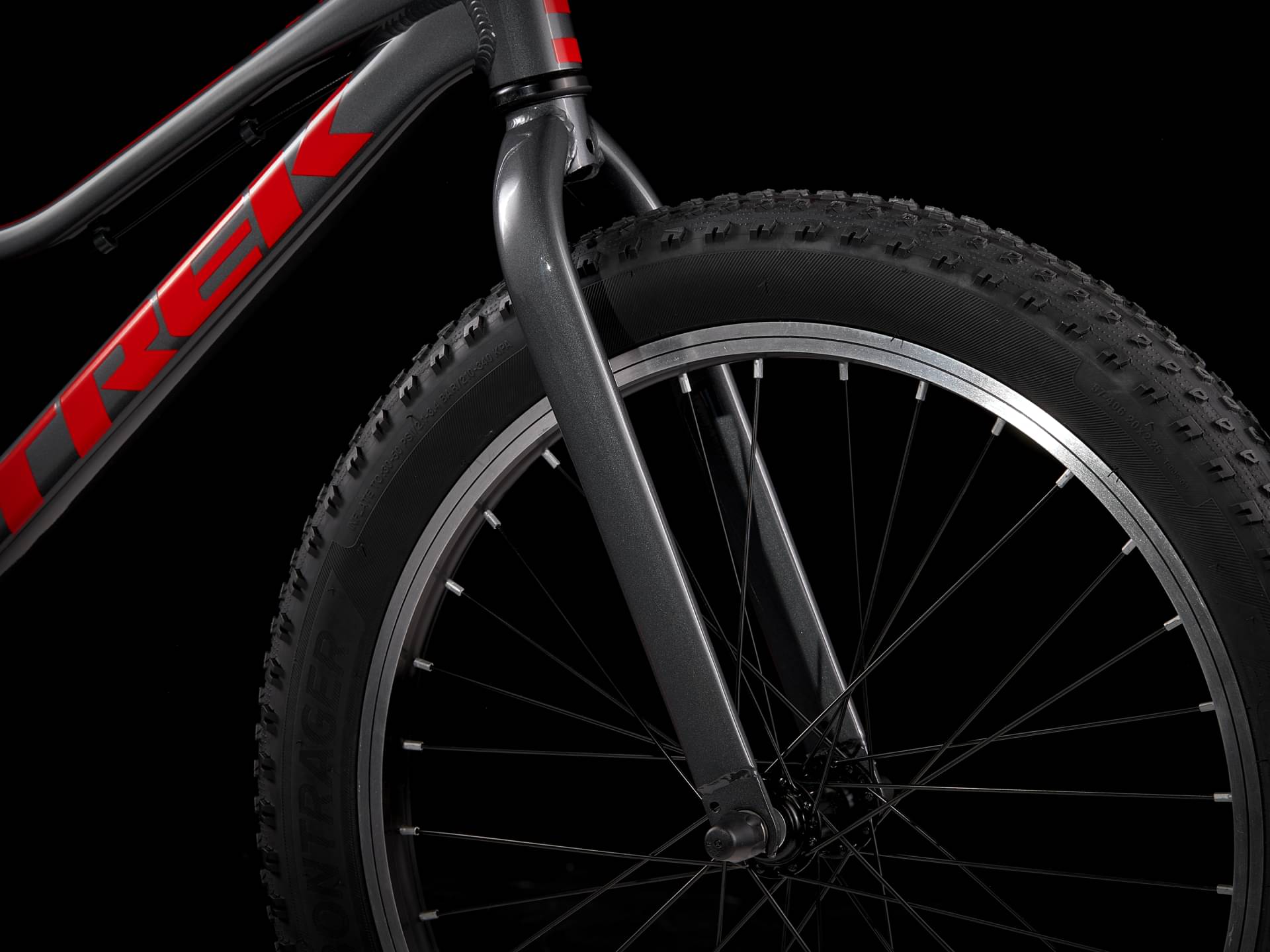

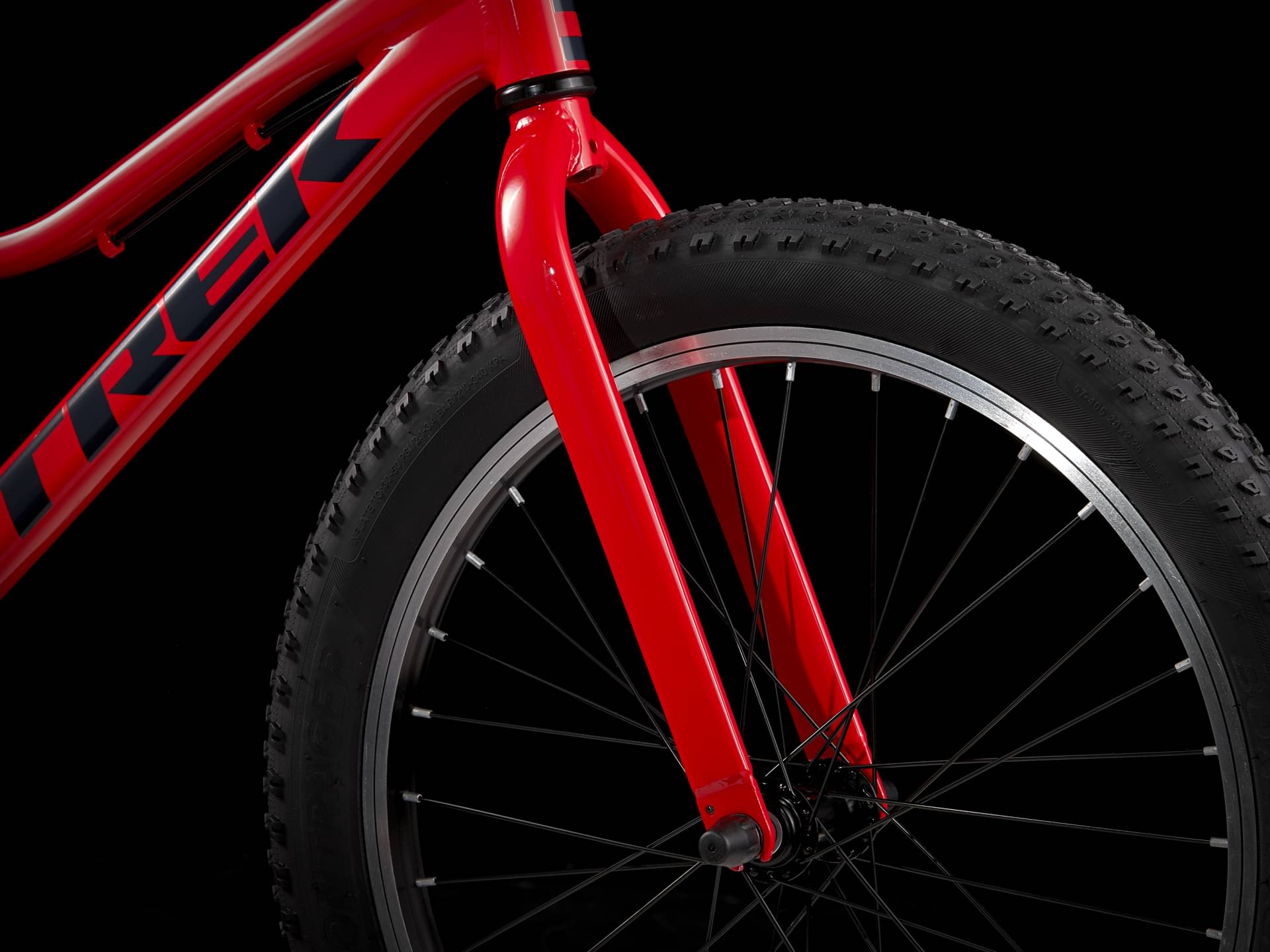

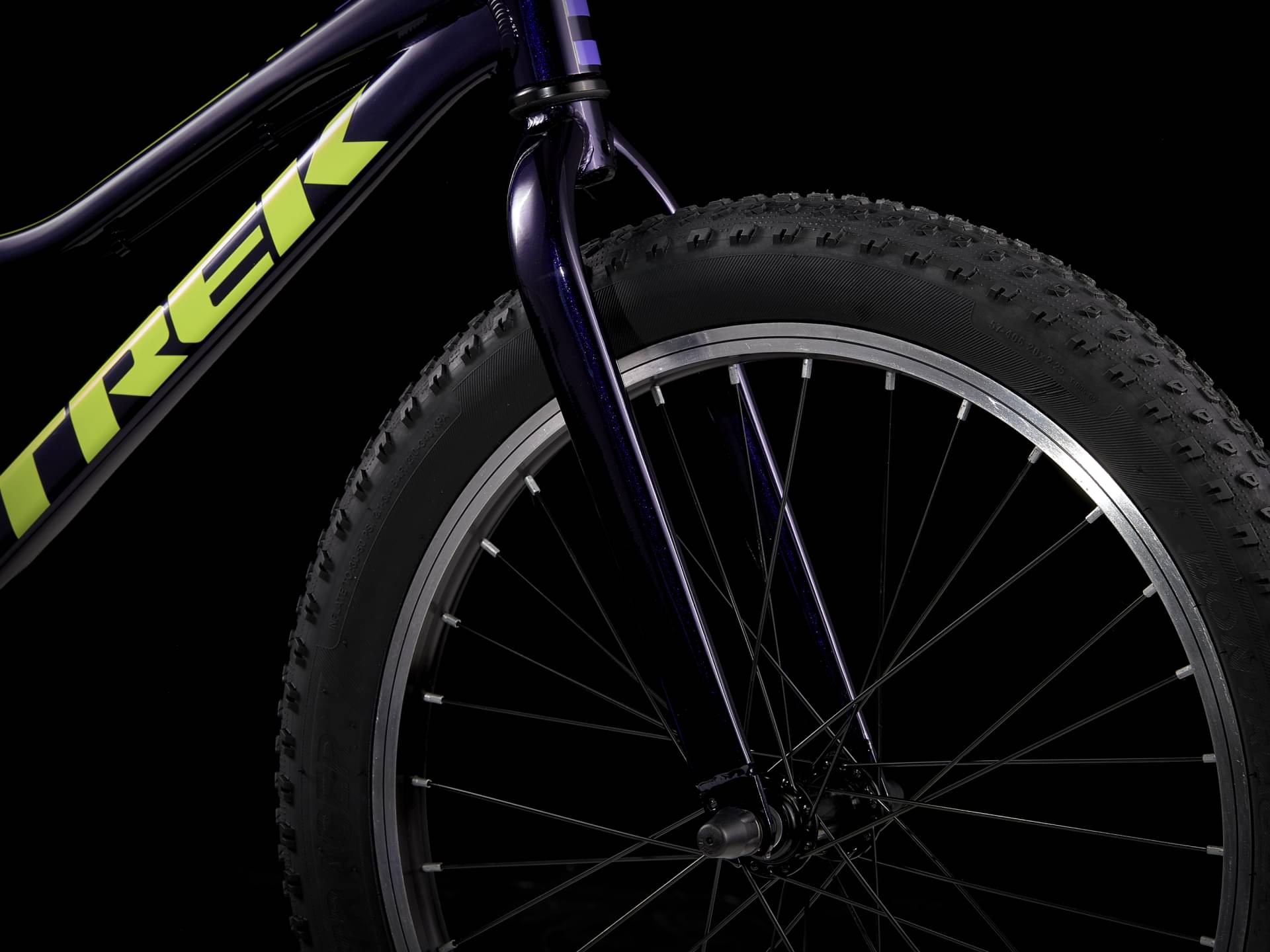

Suspension Fork
Kid's steel fork
Drivetrain
Crank
ProWheel alloy, 32T steel ring w/double guard, 127mm length
Bottom Bracket
Square taper, 68mm, sealed cartridge
Chain
HV410, 1/2x1/8
Pedals
Kids' Satellite, 9/16 thread
Wheels
Front Hub
Steel, 100mm, nutted axle
Rear Hub
Coaster brake, 19T, 110mm bolt-on
Rims
Alloy 20'', 32-hole, schrader valve
Tires
Bontrager XR1, wire bead, 27 tpi. 20x2.25''
Brakes
Brakes
Alloy linear-pull
Brake Levers
Kids', alloy
Cockpit
Stem
Bontrager Approved alloy, 25.4mm clamp, 15 degree rise, 60mm

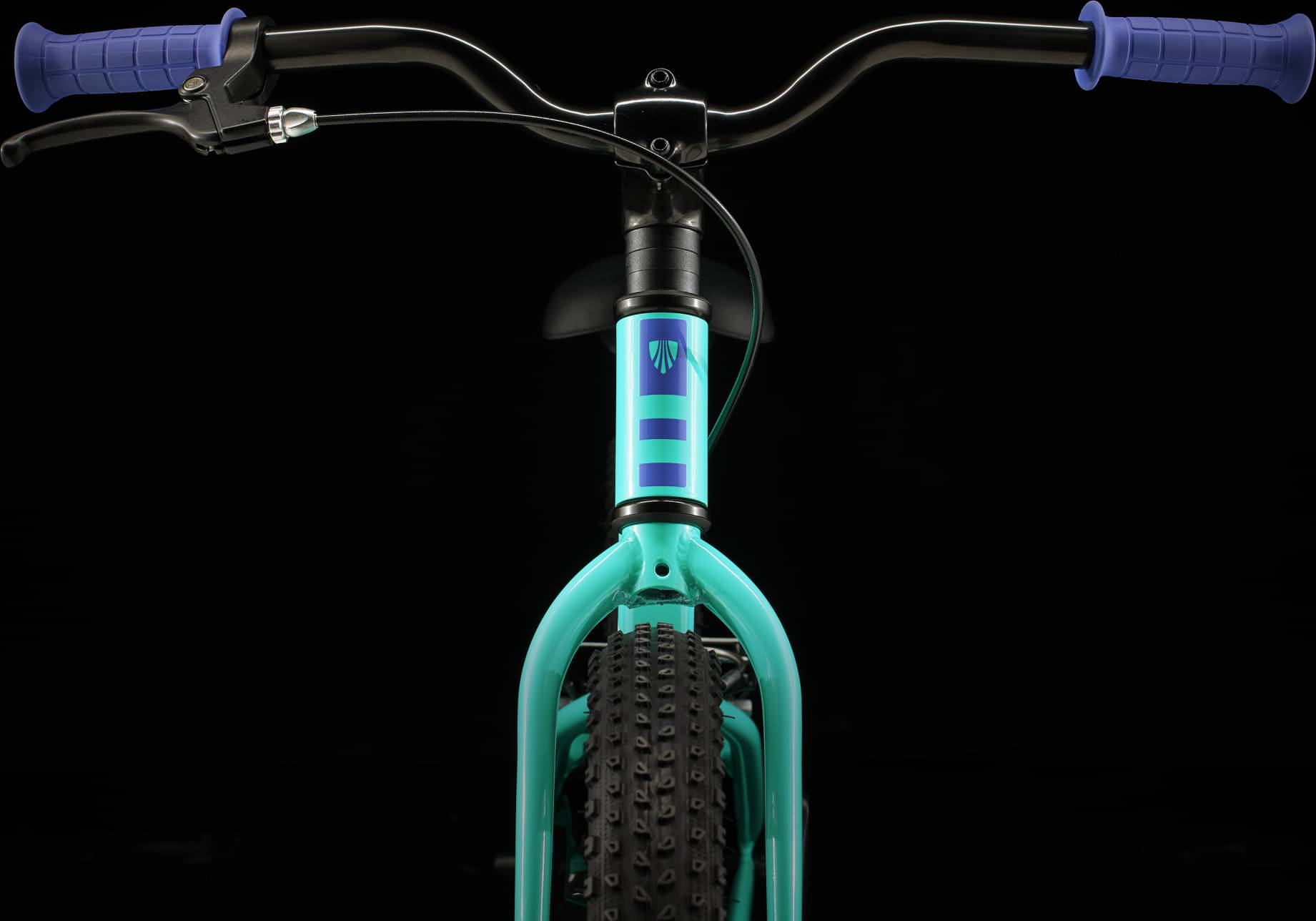

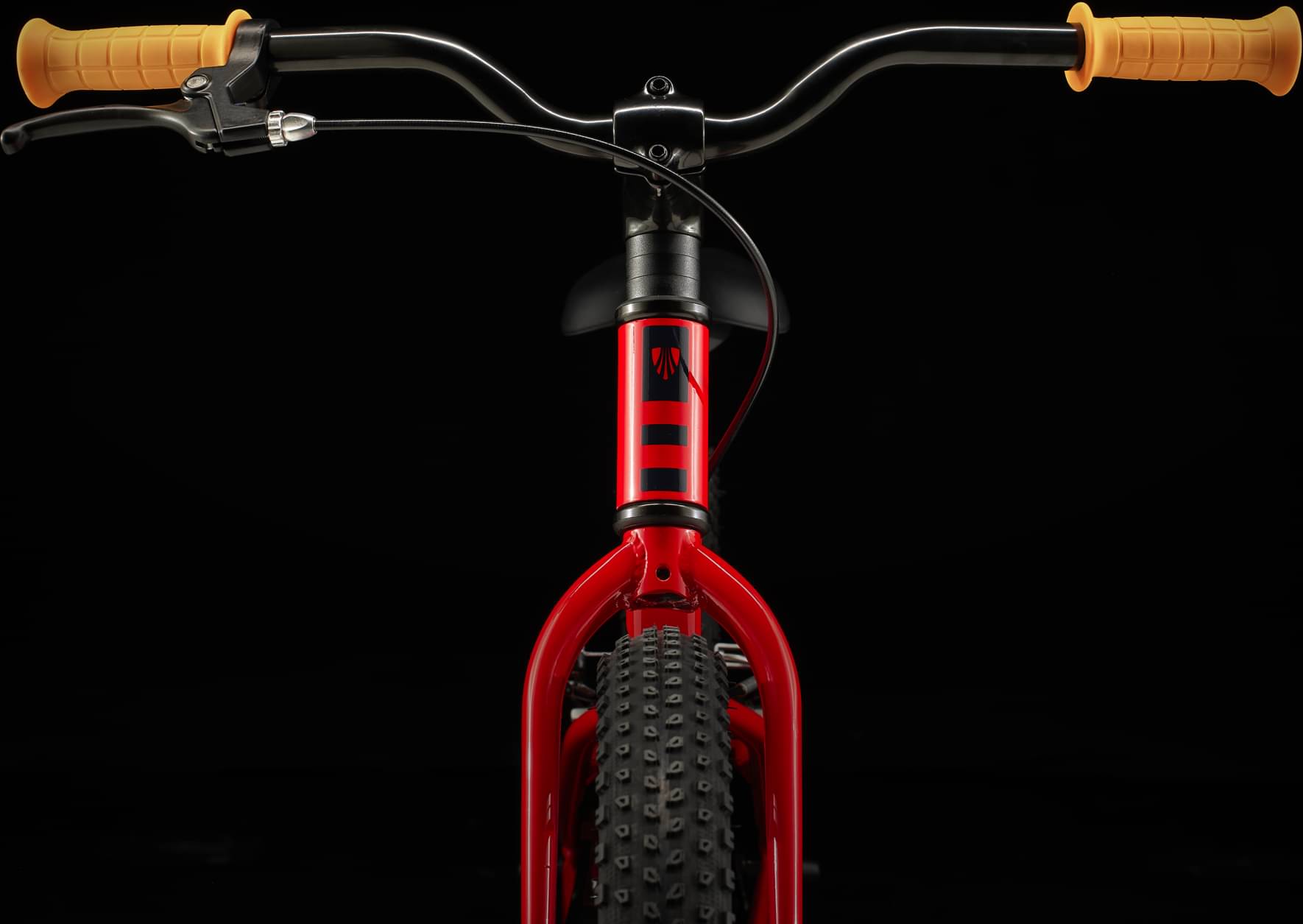

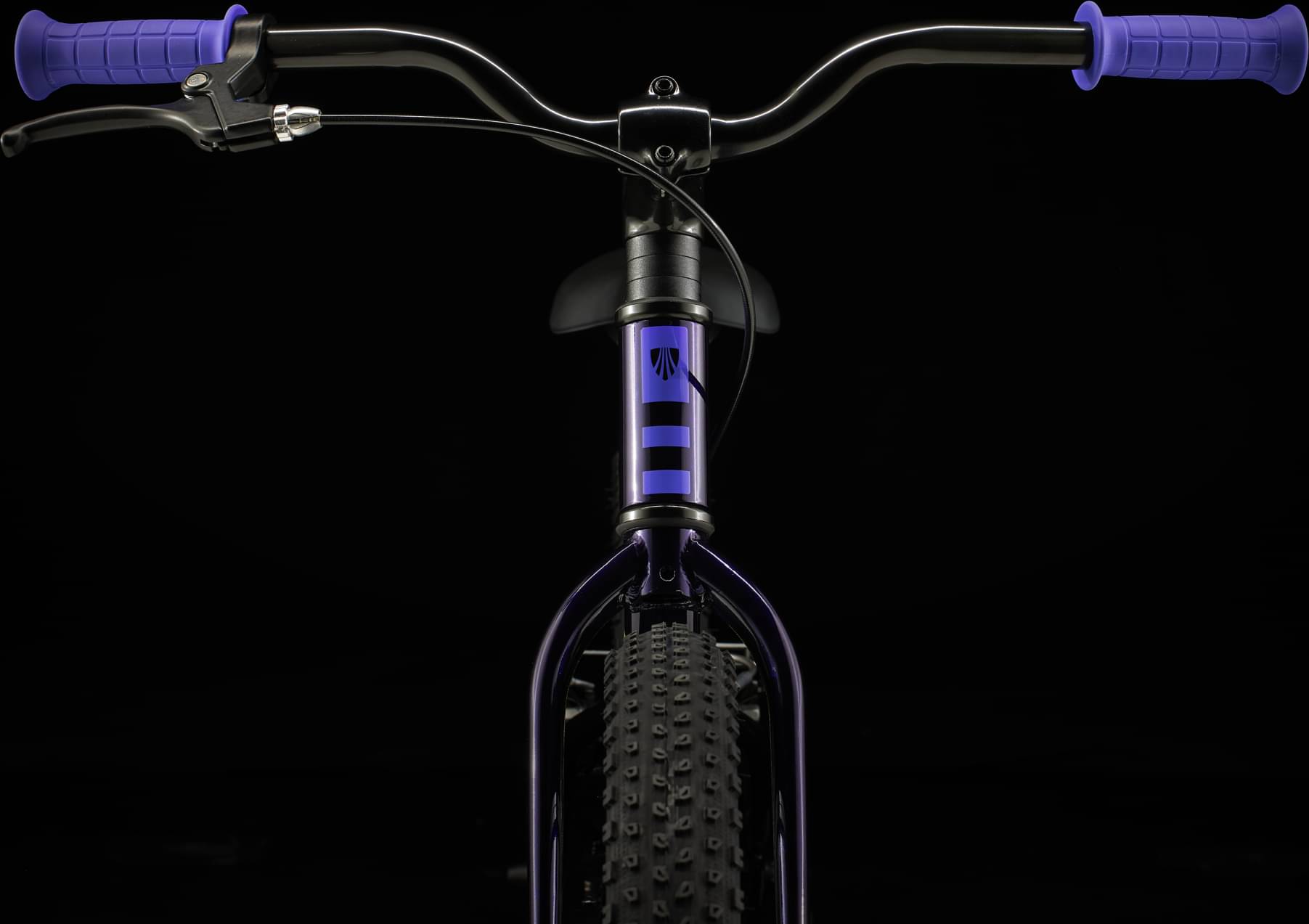

Handlebar
Kids' steel, 25.4mm clamp, 40mm rise, 560mm width

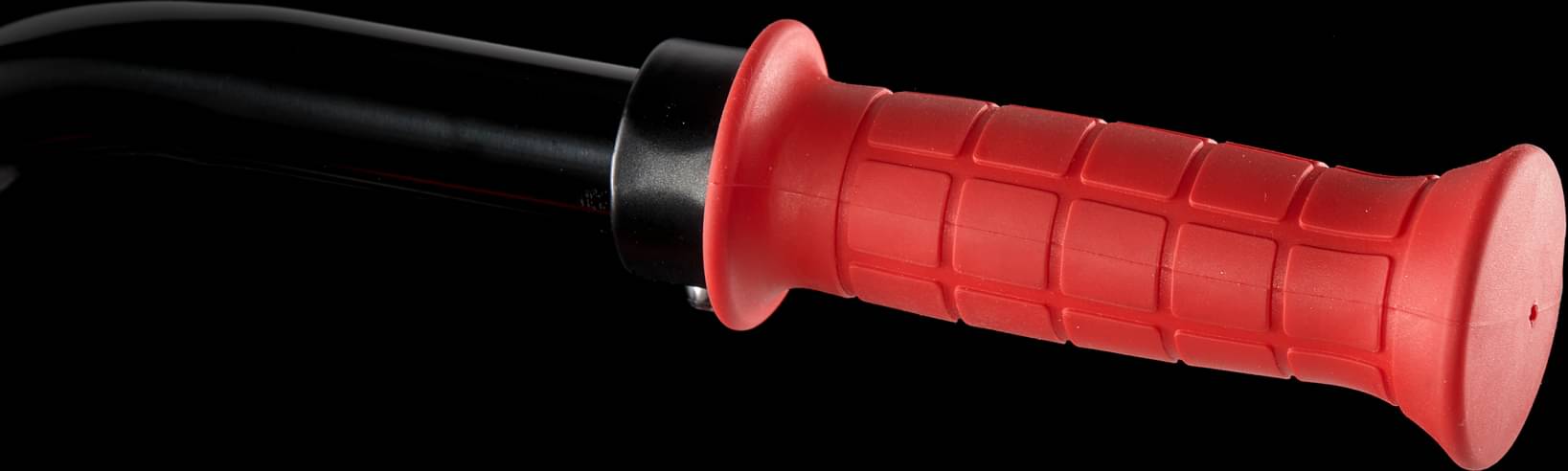

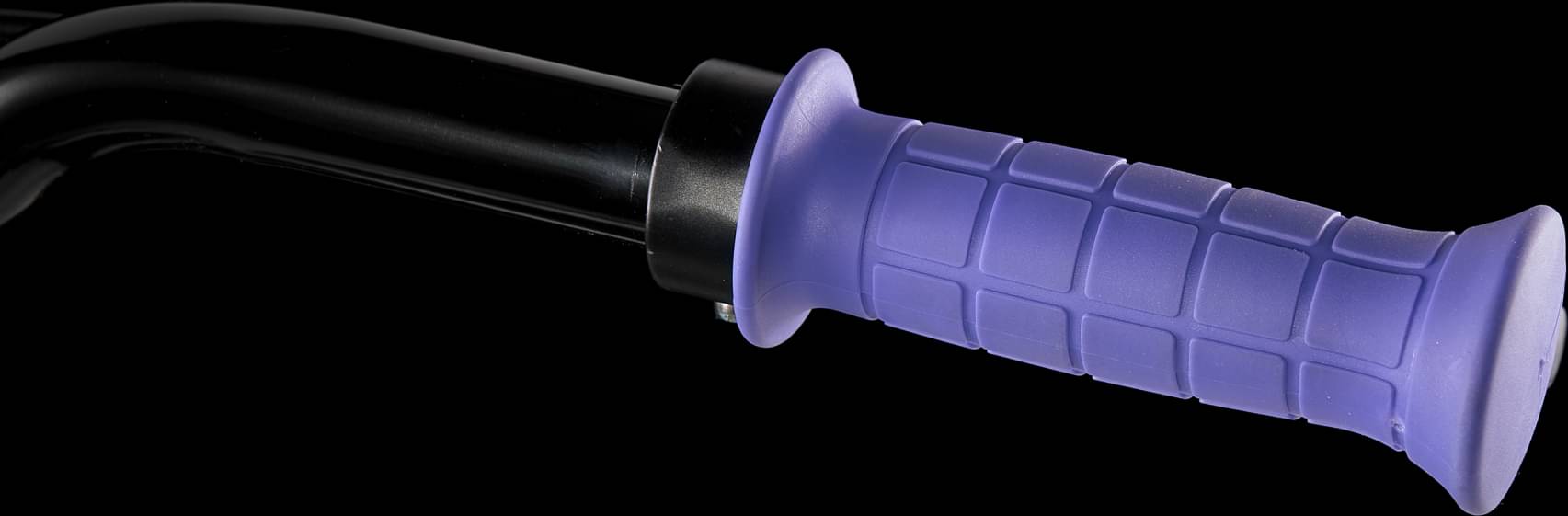

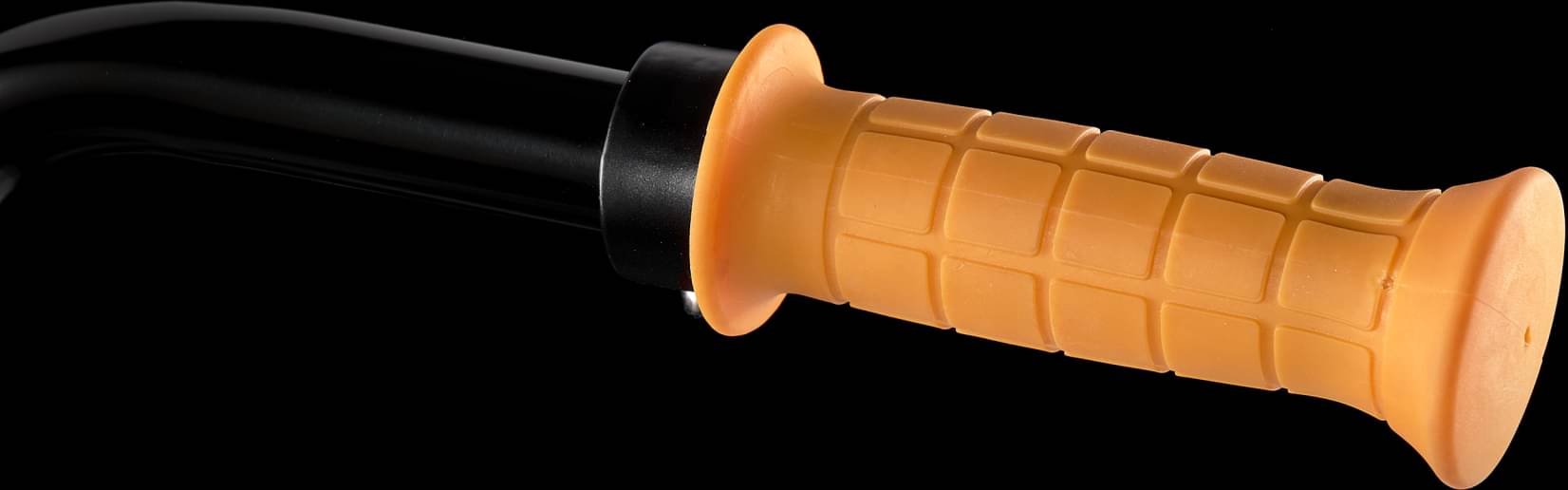

Grips
Kids' grip, 107mm width
Headset
Adjustable ball bearing, threadless
Seat

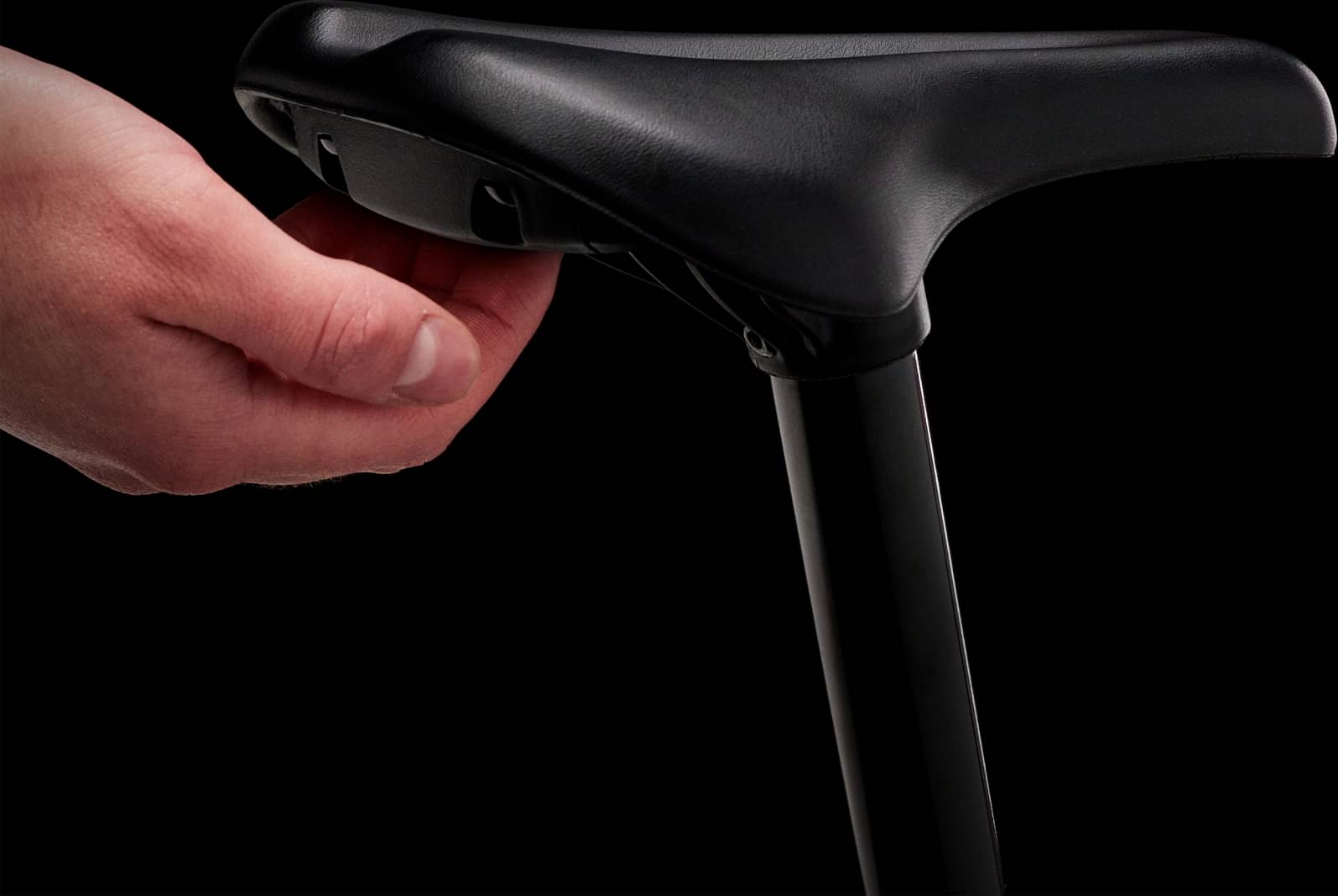

Saddle

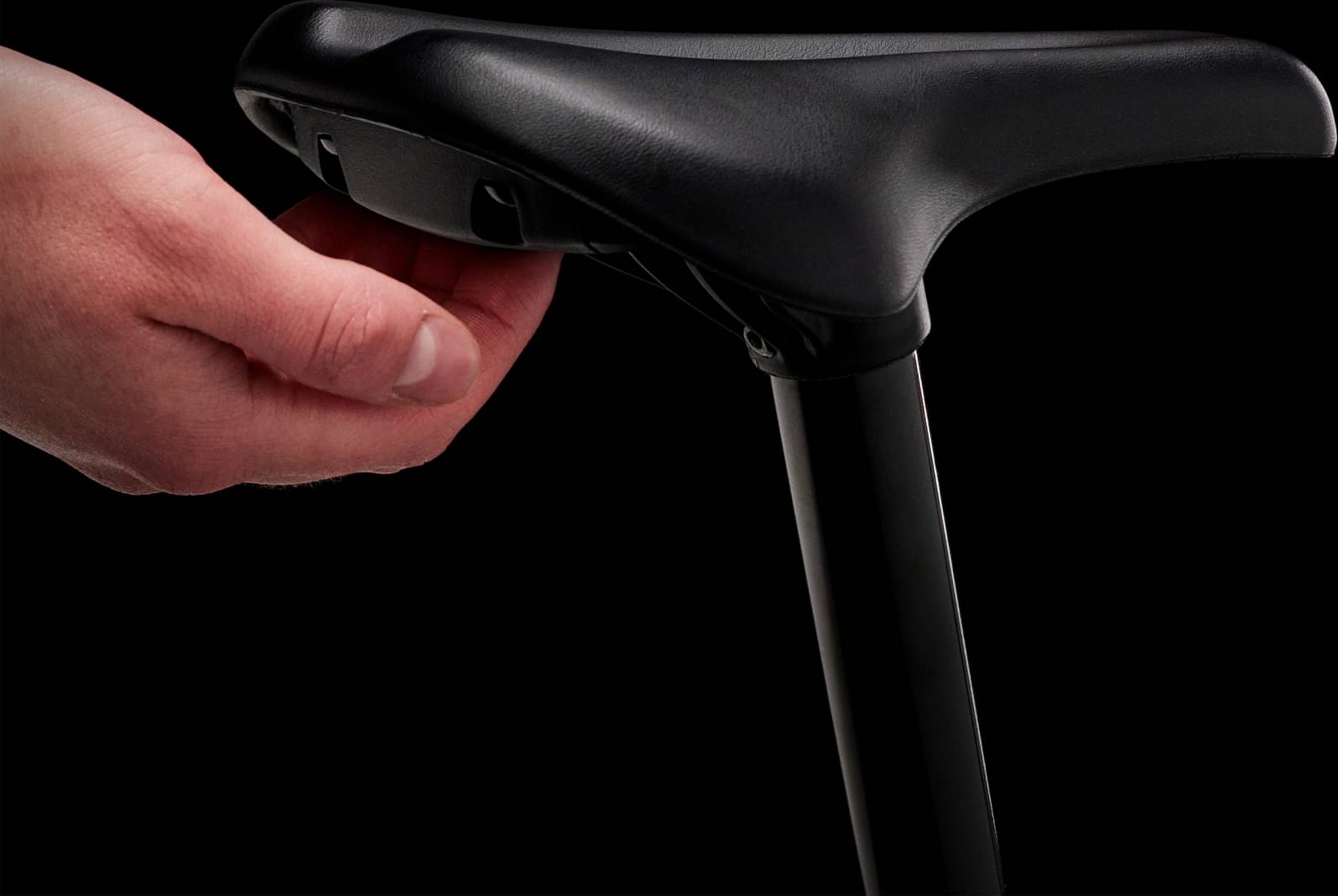

Kids' padded, integrated seatpost, with handle
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.301 mm |
| Bottom Bracket Height | 238 mm |
| Front Center | 495 mm |
| Rake | 43 mm |
| Trail | 53 mm |
| Stack | 406 mm |
| Reach | 312 mm |
| Top Tube Length | 445 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 255 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 85 mm |
| Chainstay Length | 372 mm |
| Wheelbase | 865 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 476 mm |
| Wheels | 20" |
| Rider Min Height | 114 cm |
| Rider Max Height | 132 cm |
