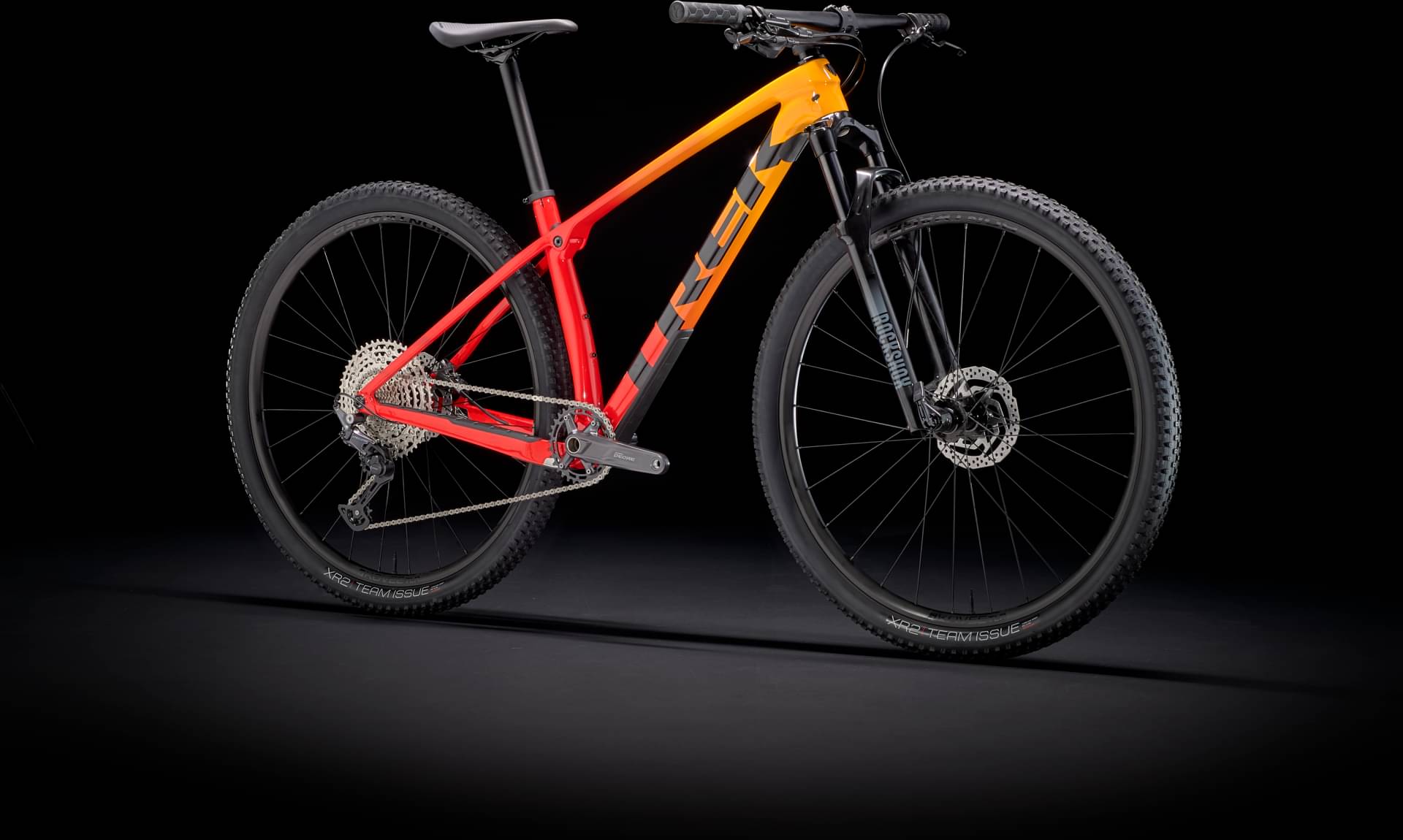

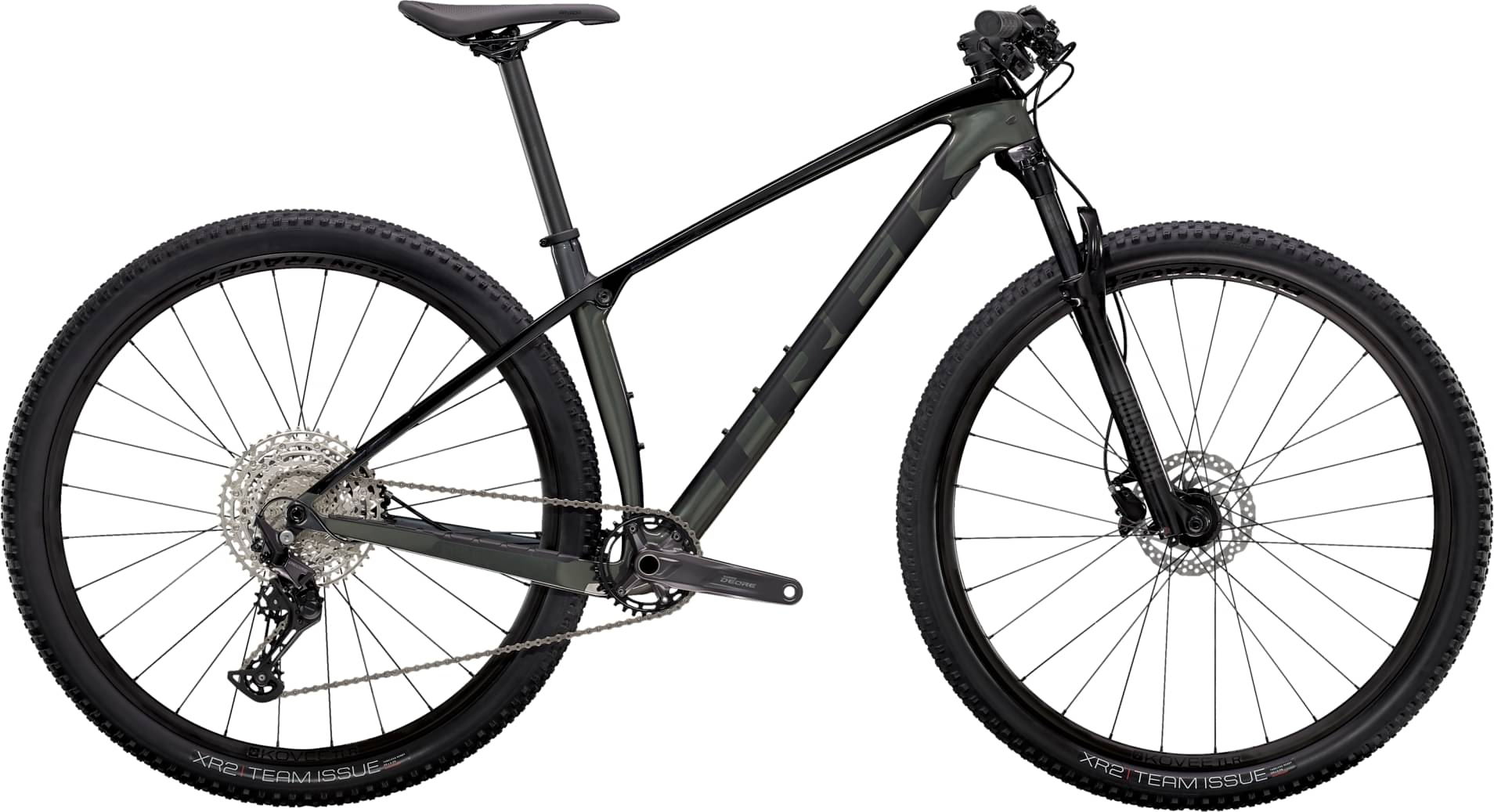

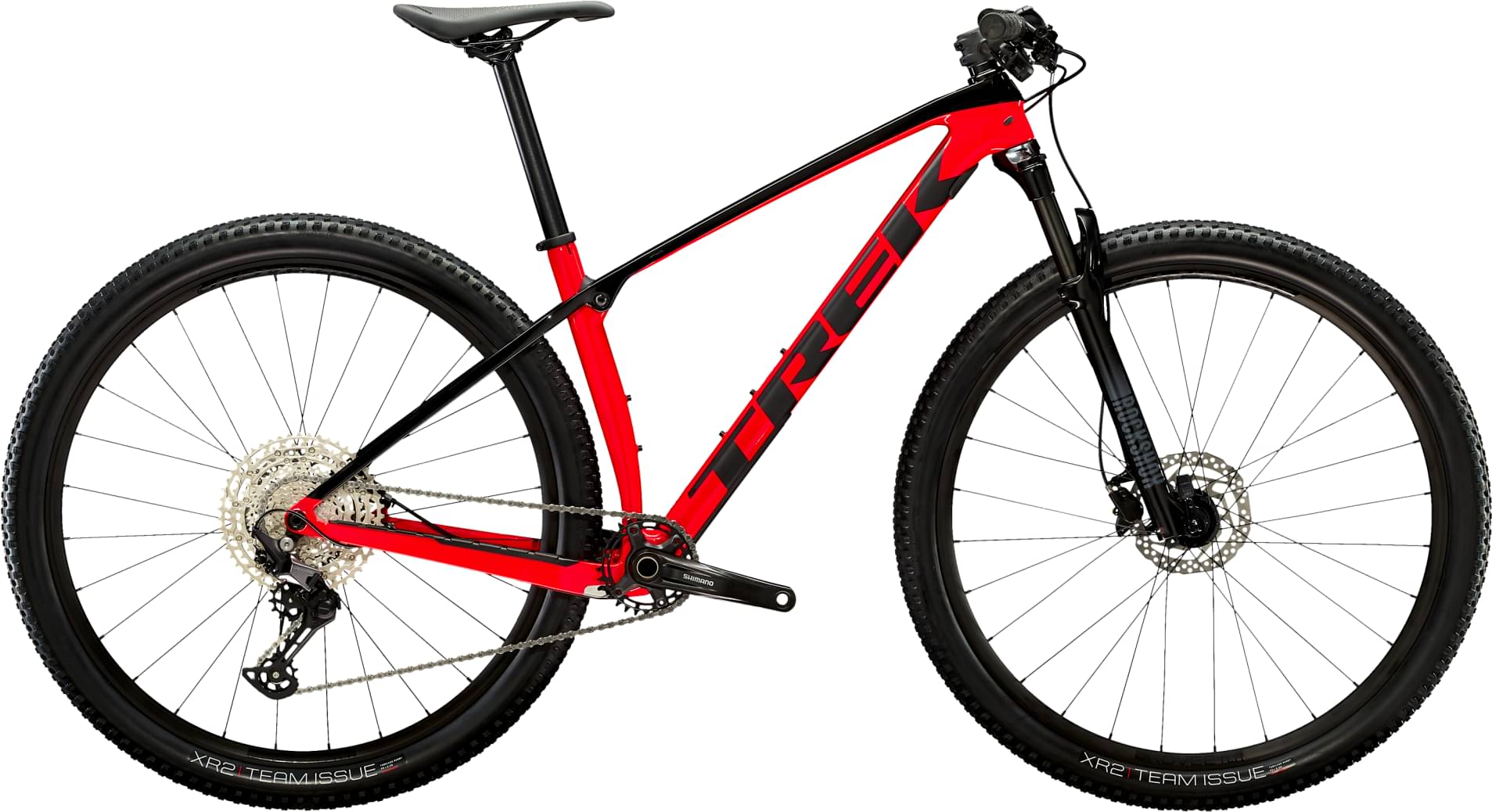

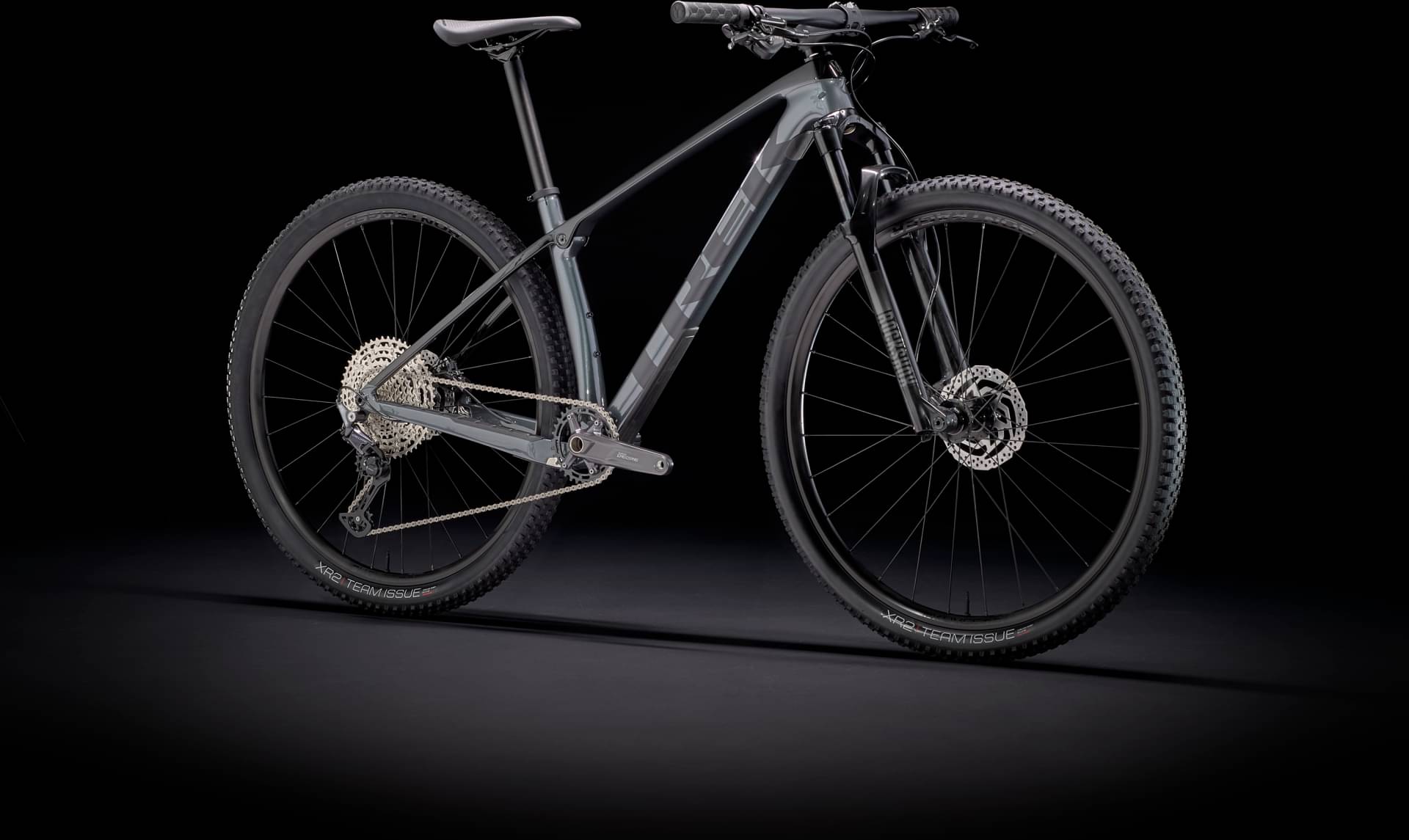

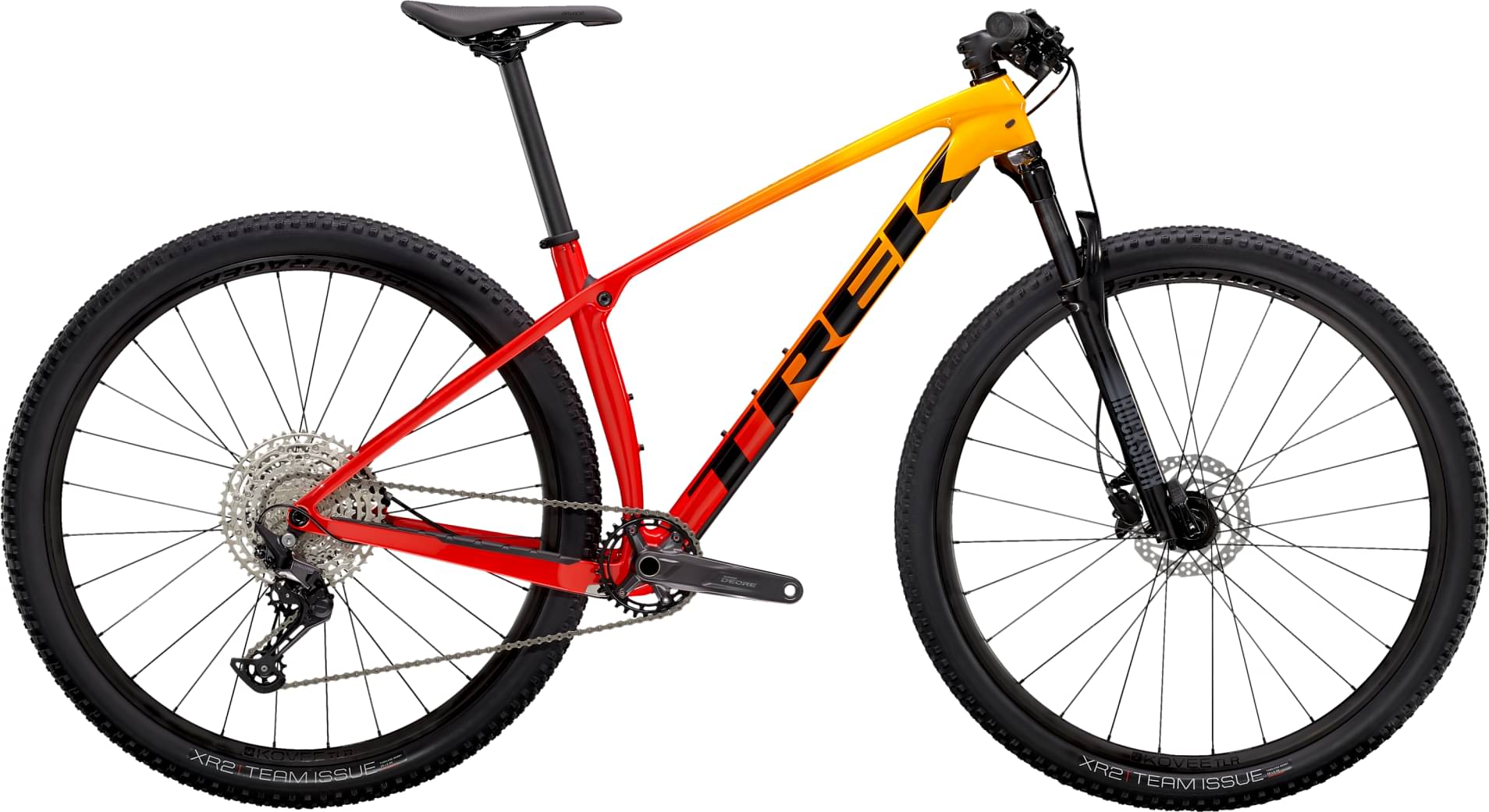

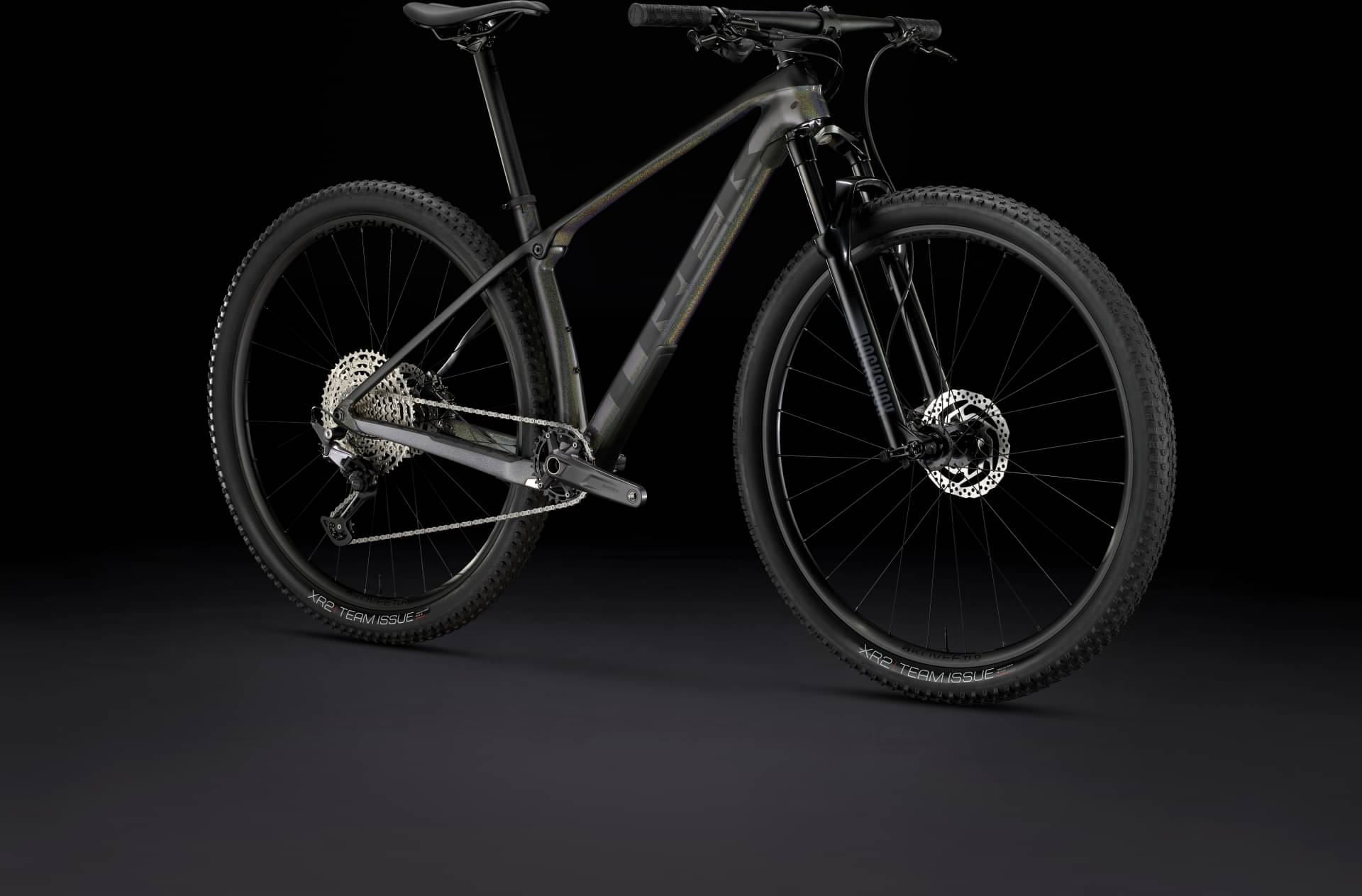

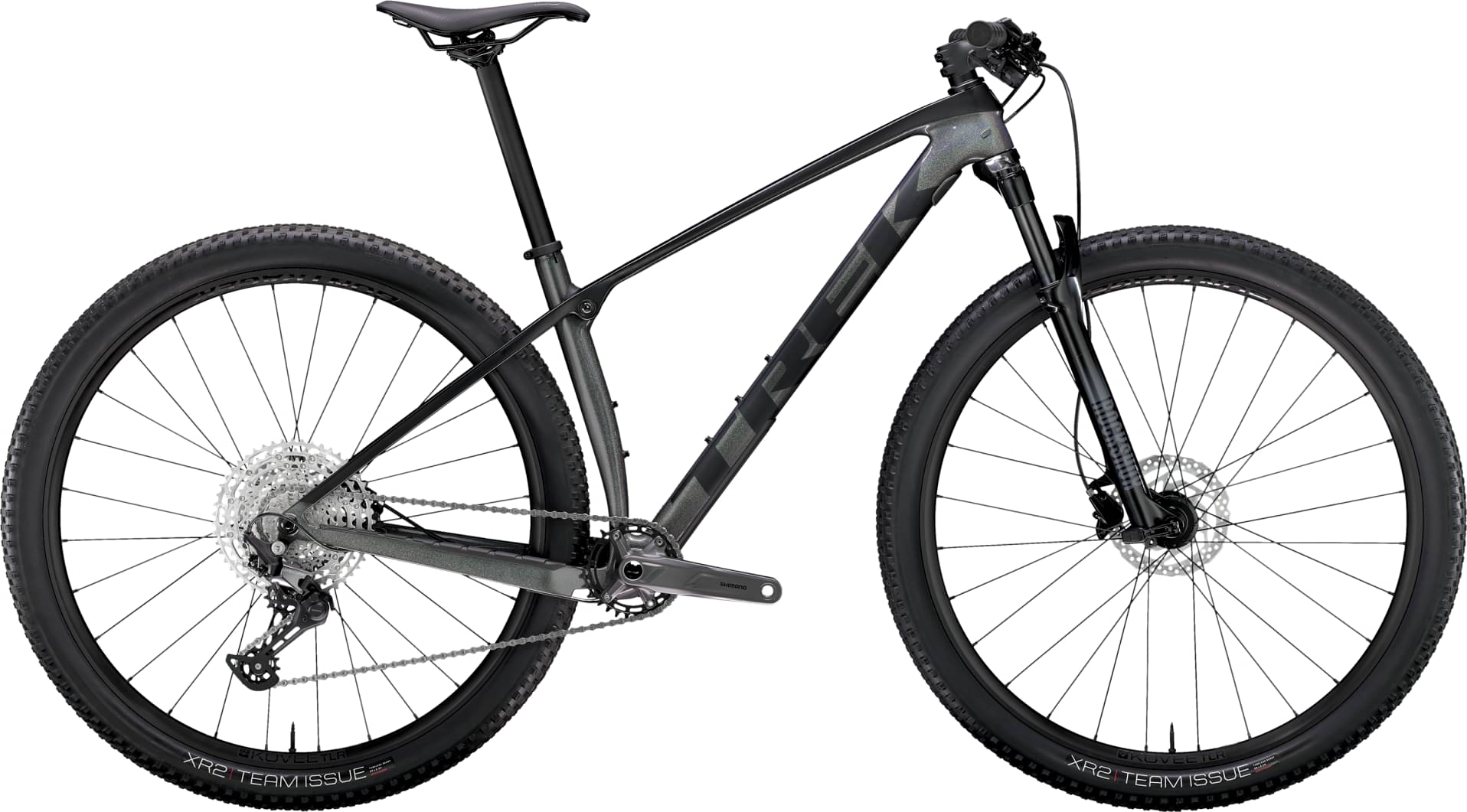

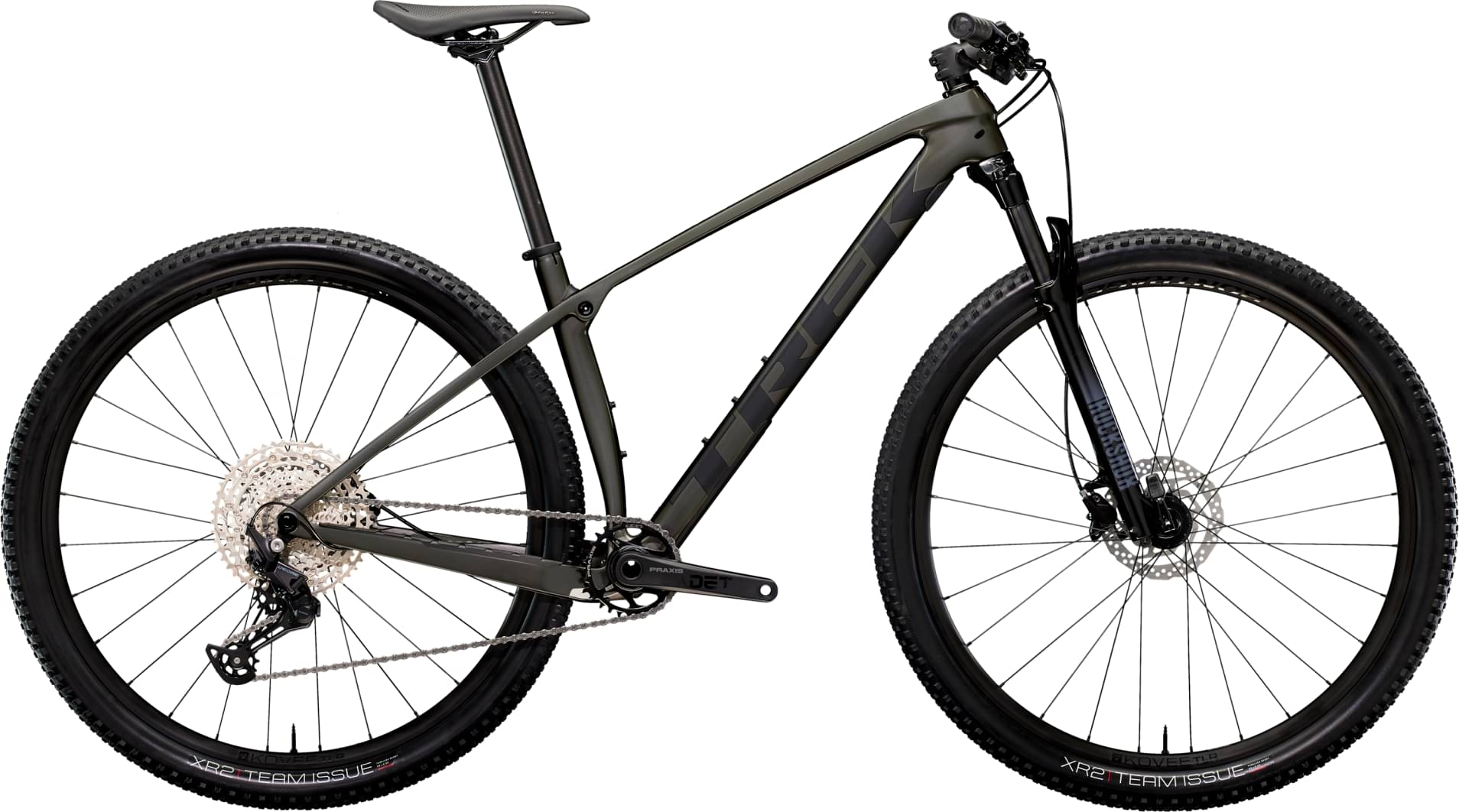

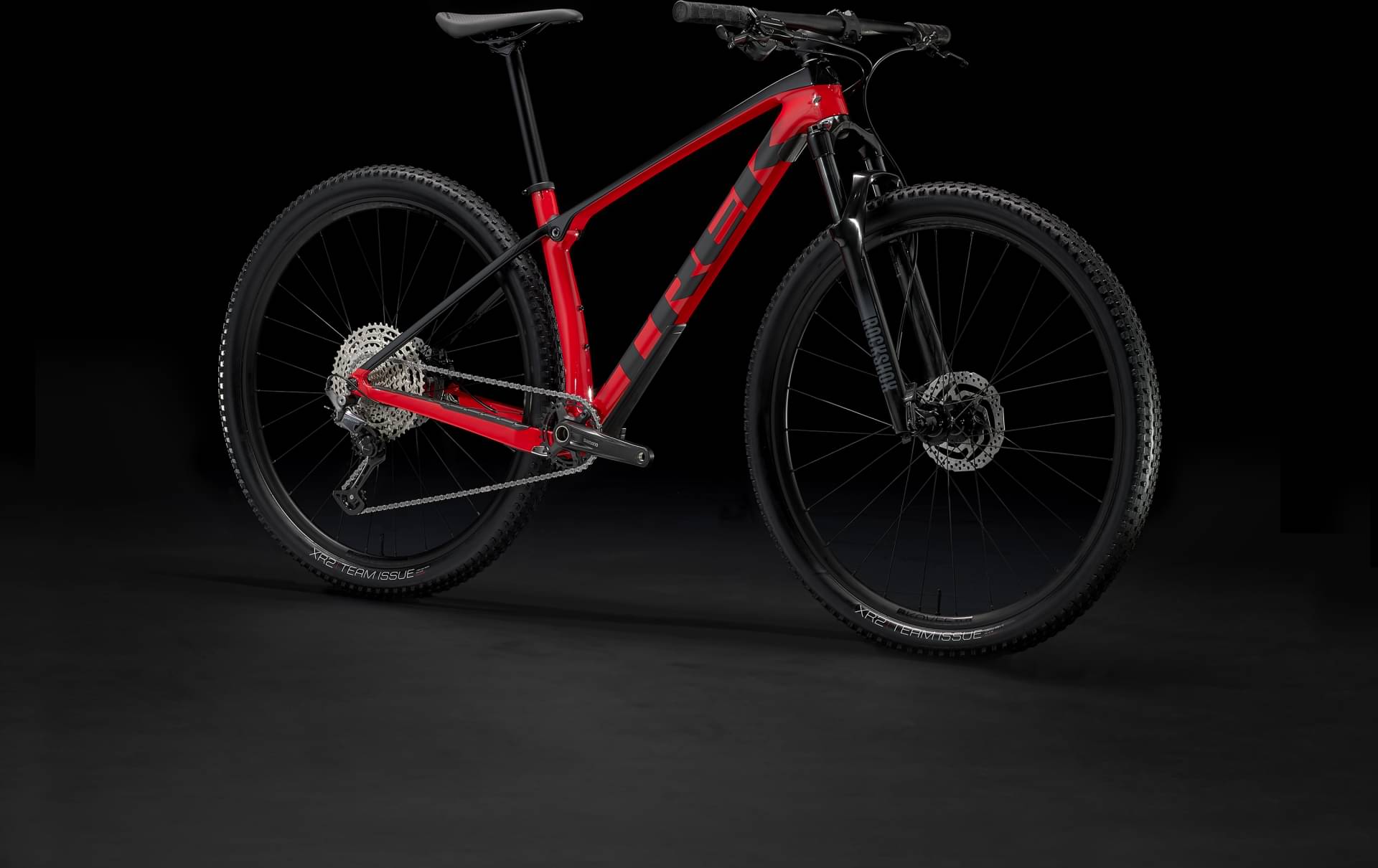

Trek Procaliber 9.5 Gen 2 2024
2024 Mountain
Estimate price |
1,662$
Weight | 12.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

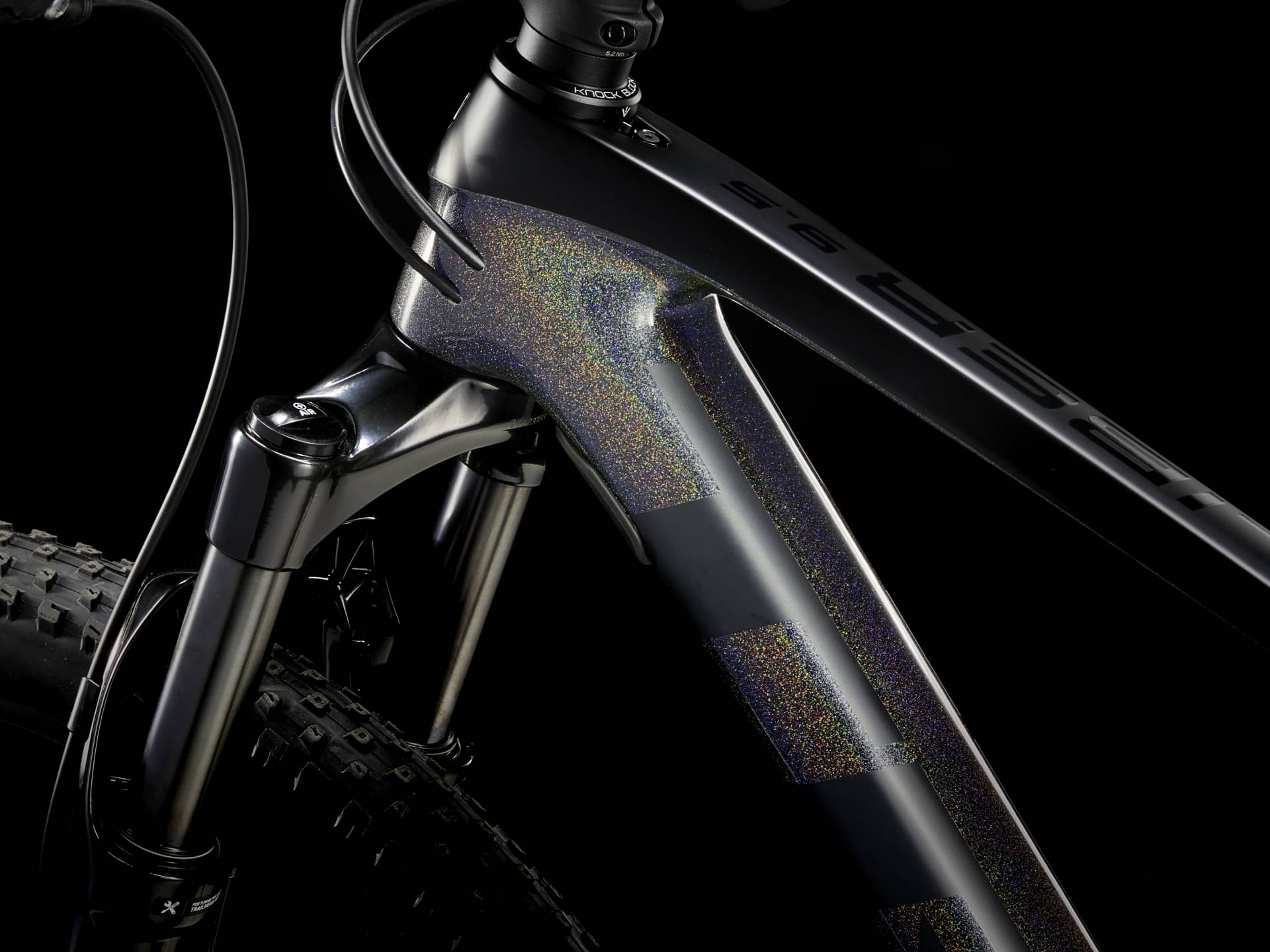

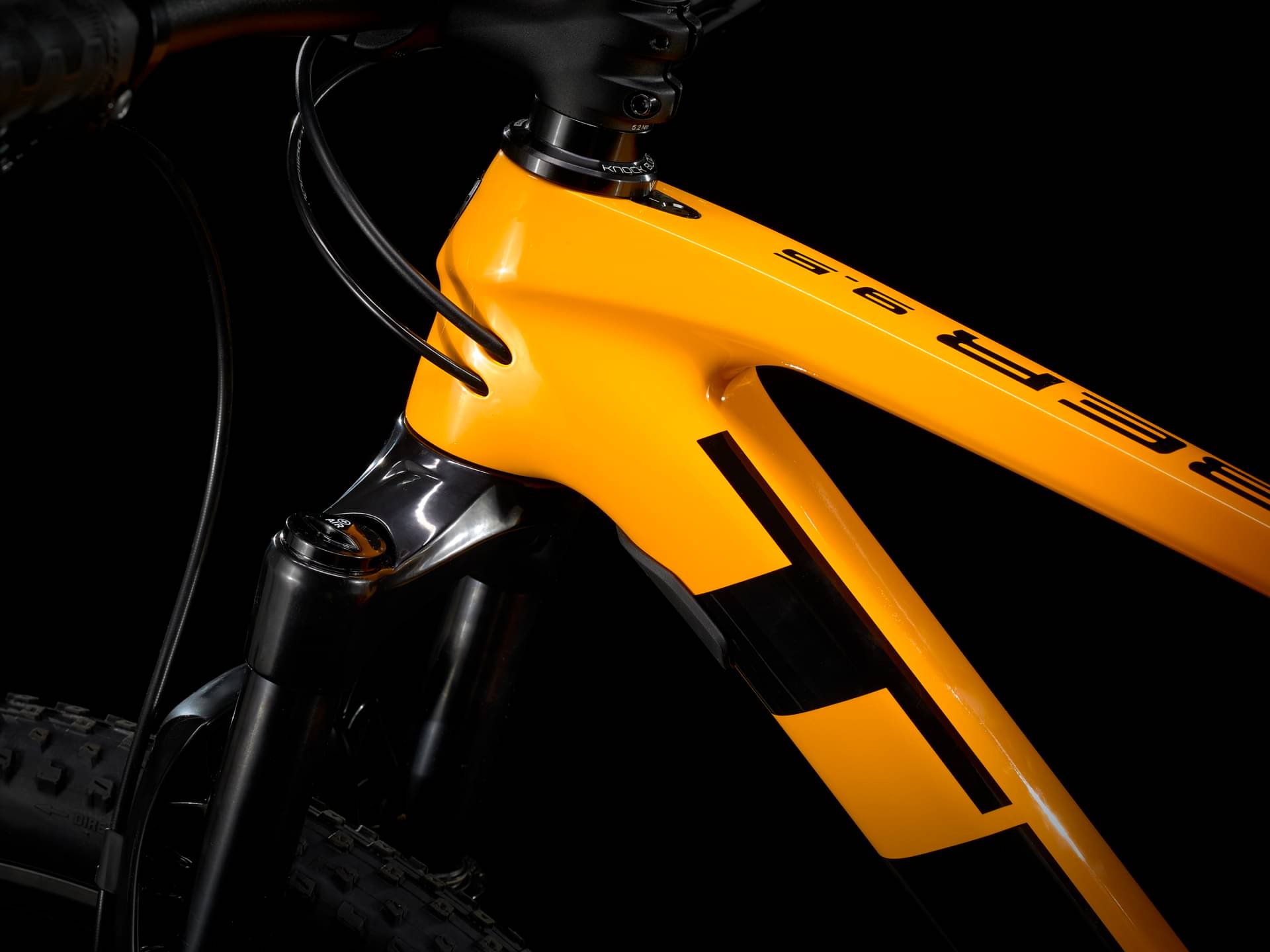

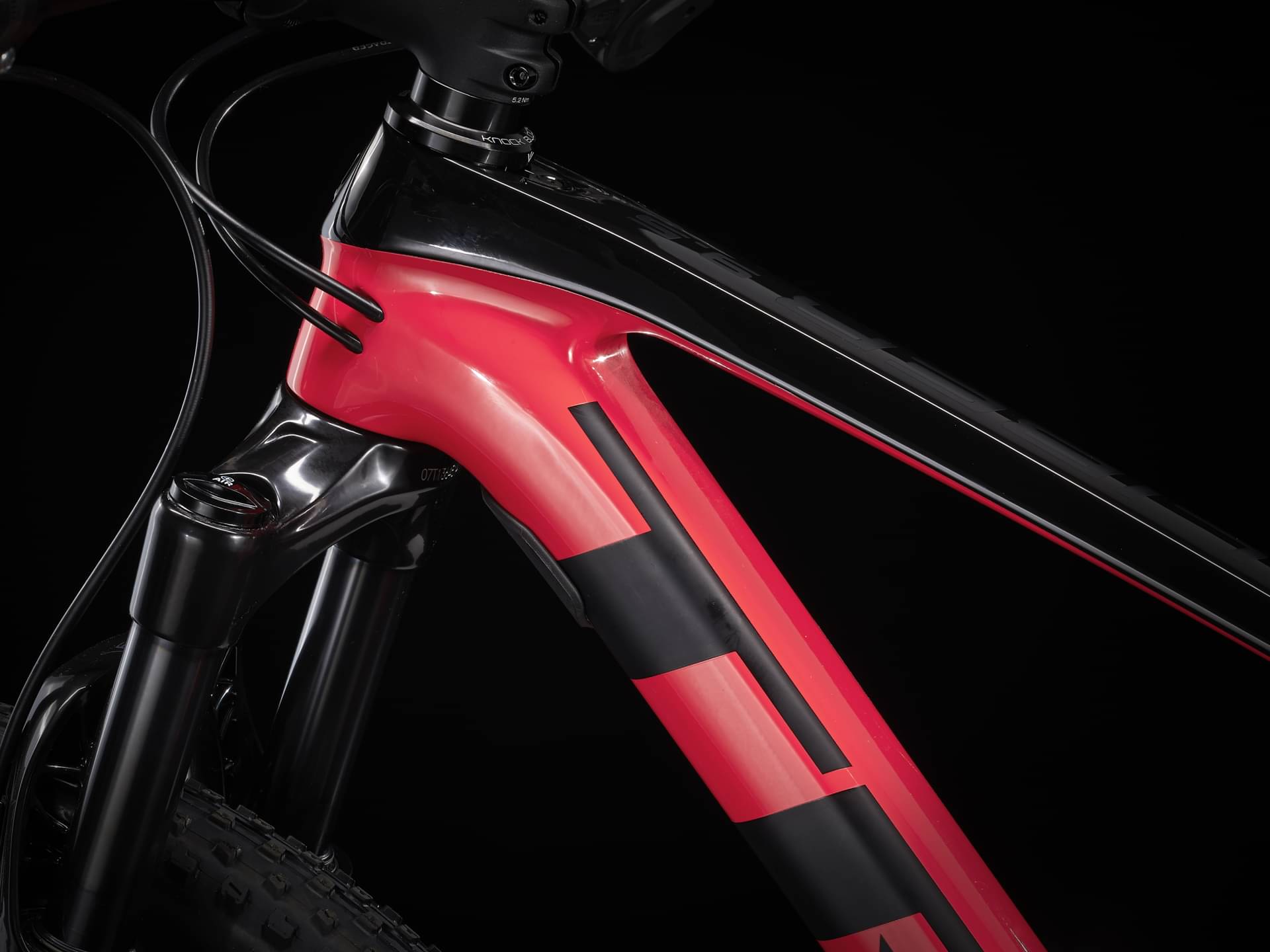

Frame

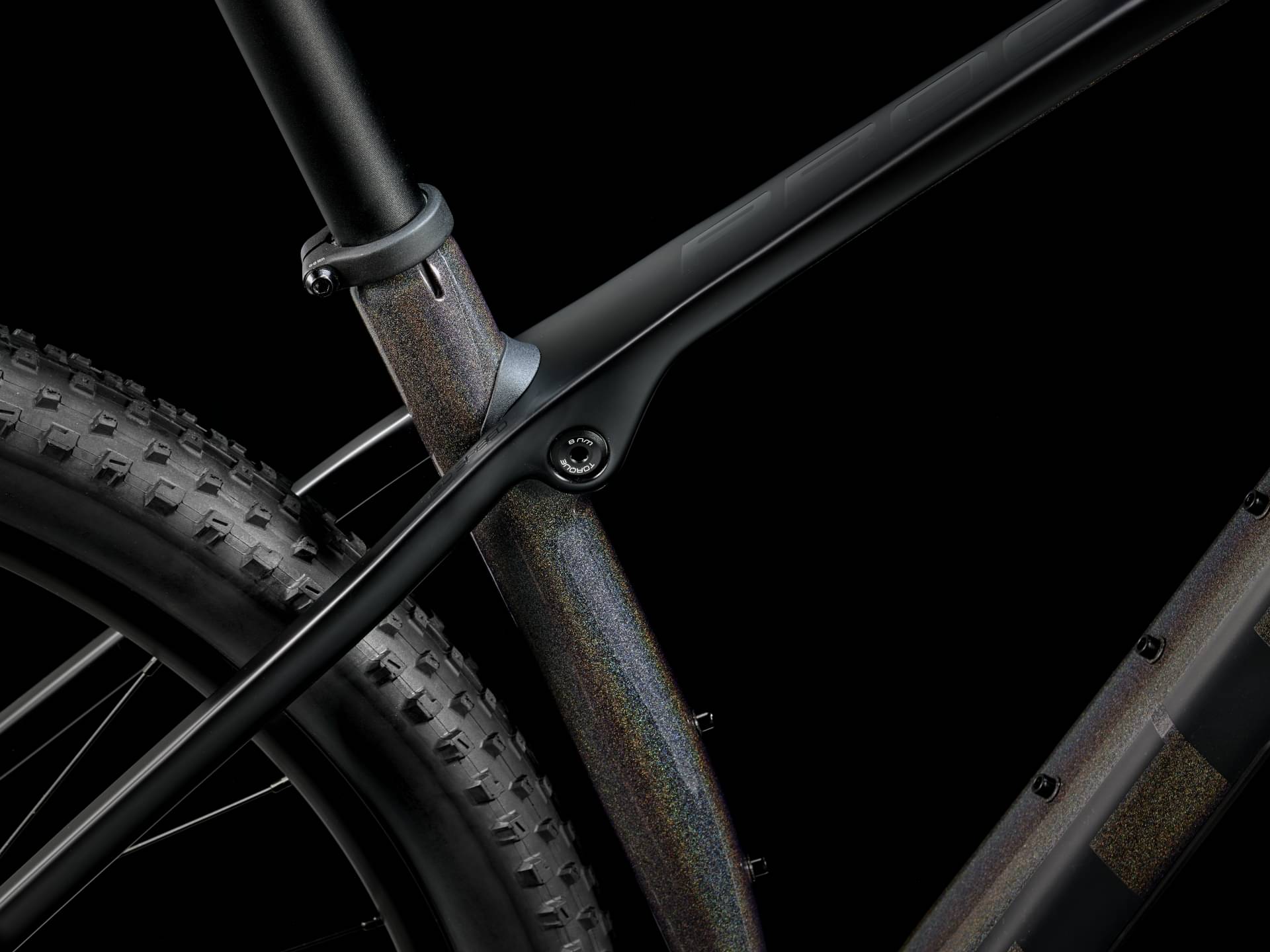

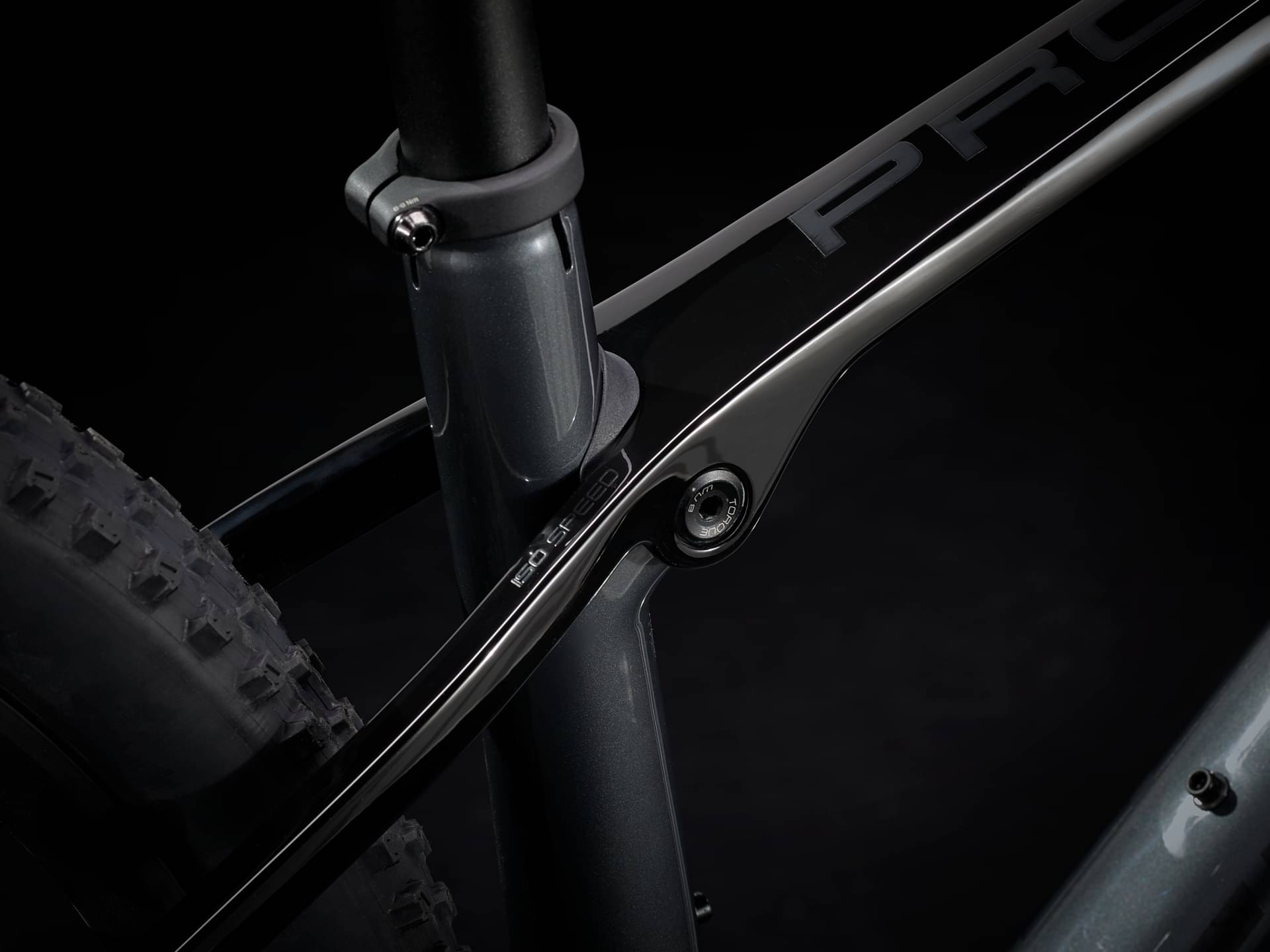

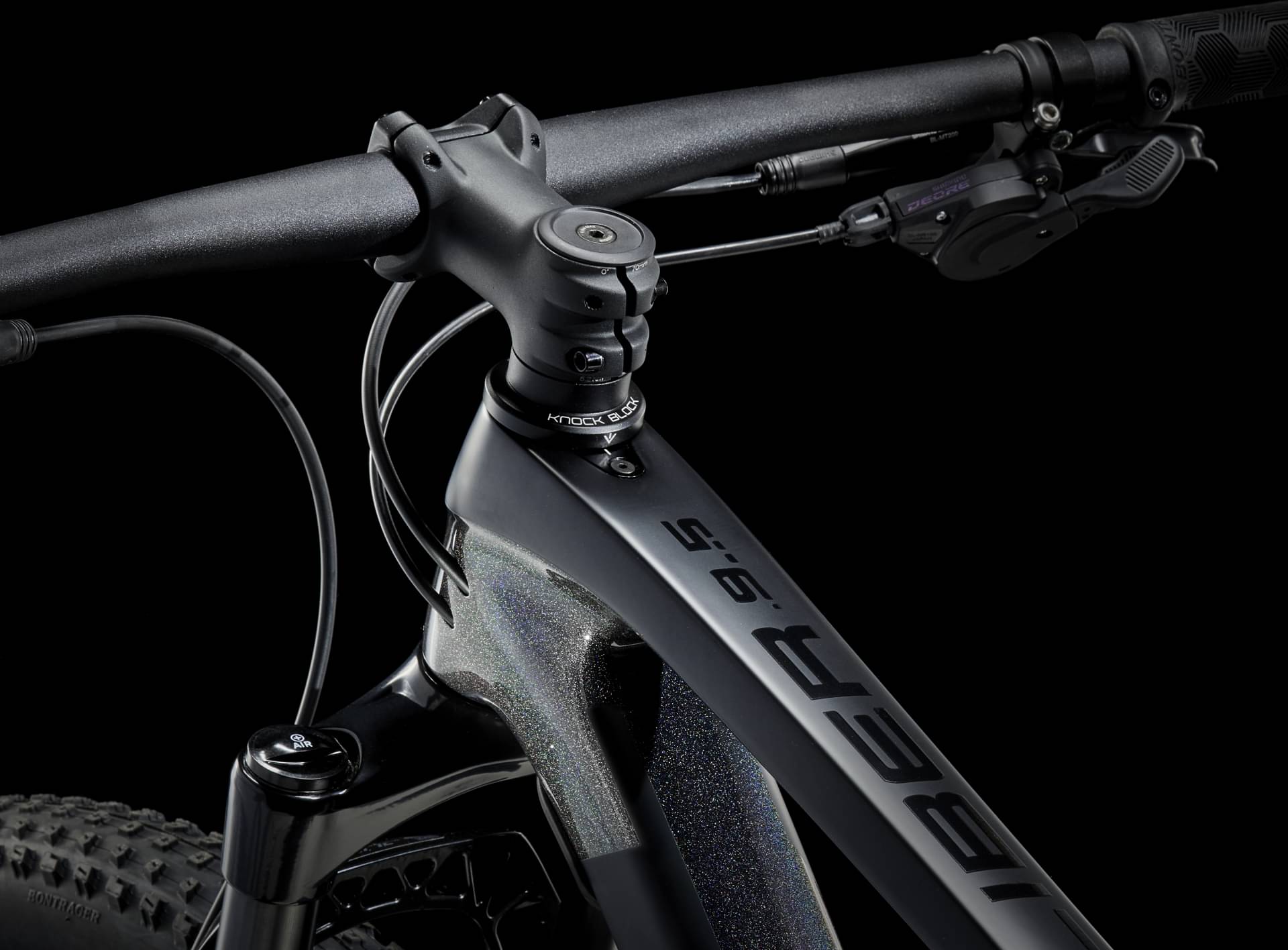

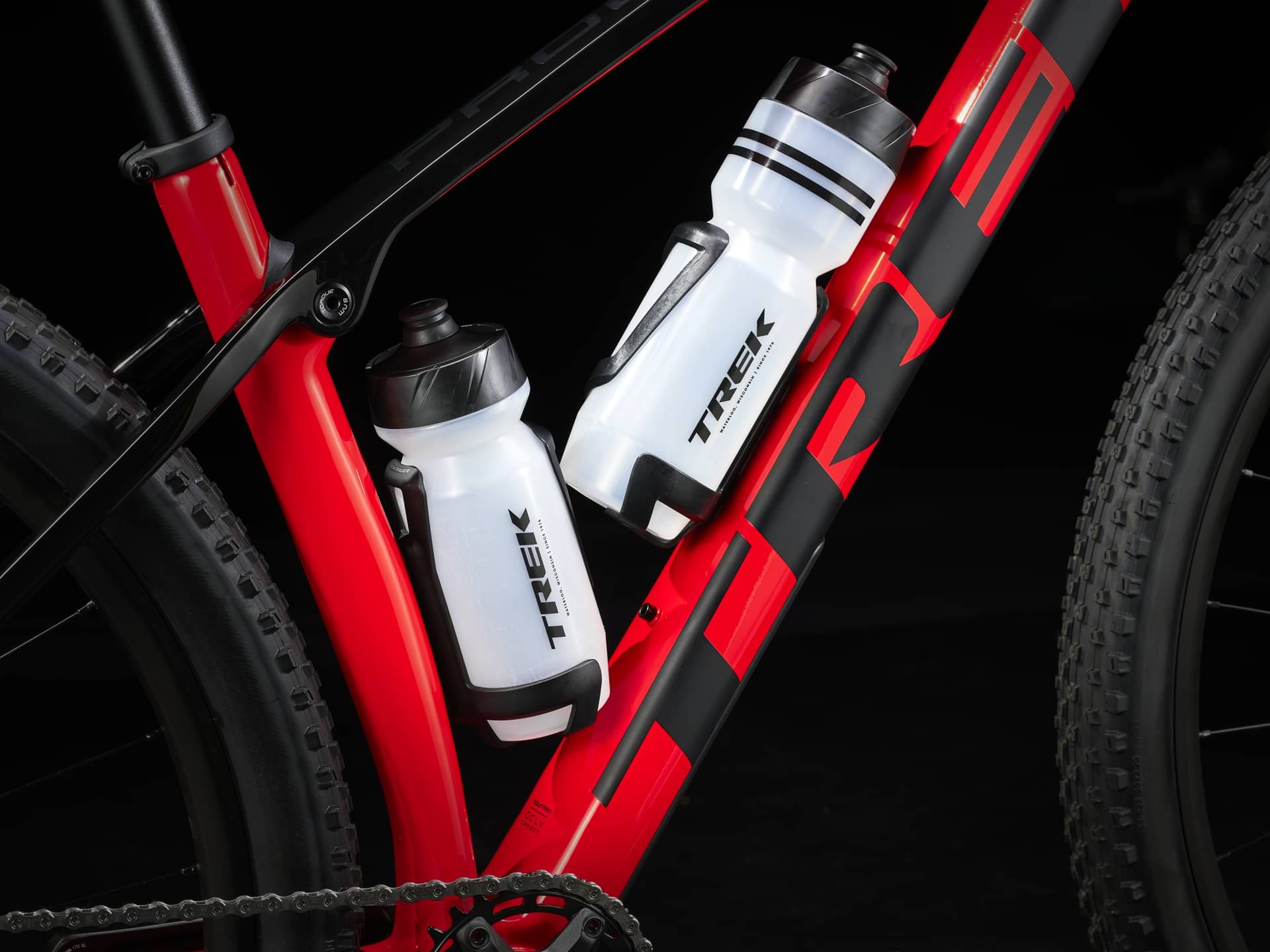

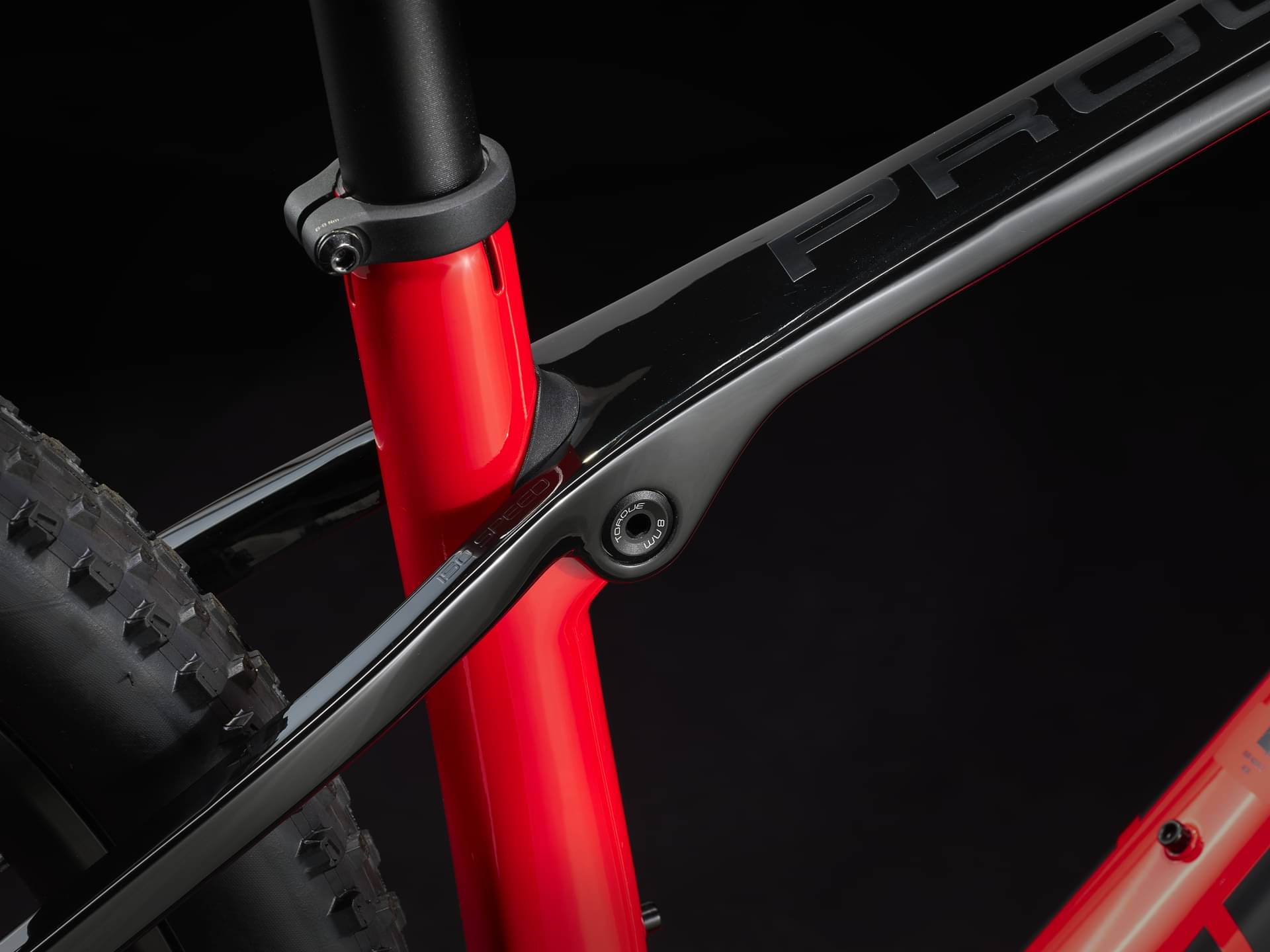

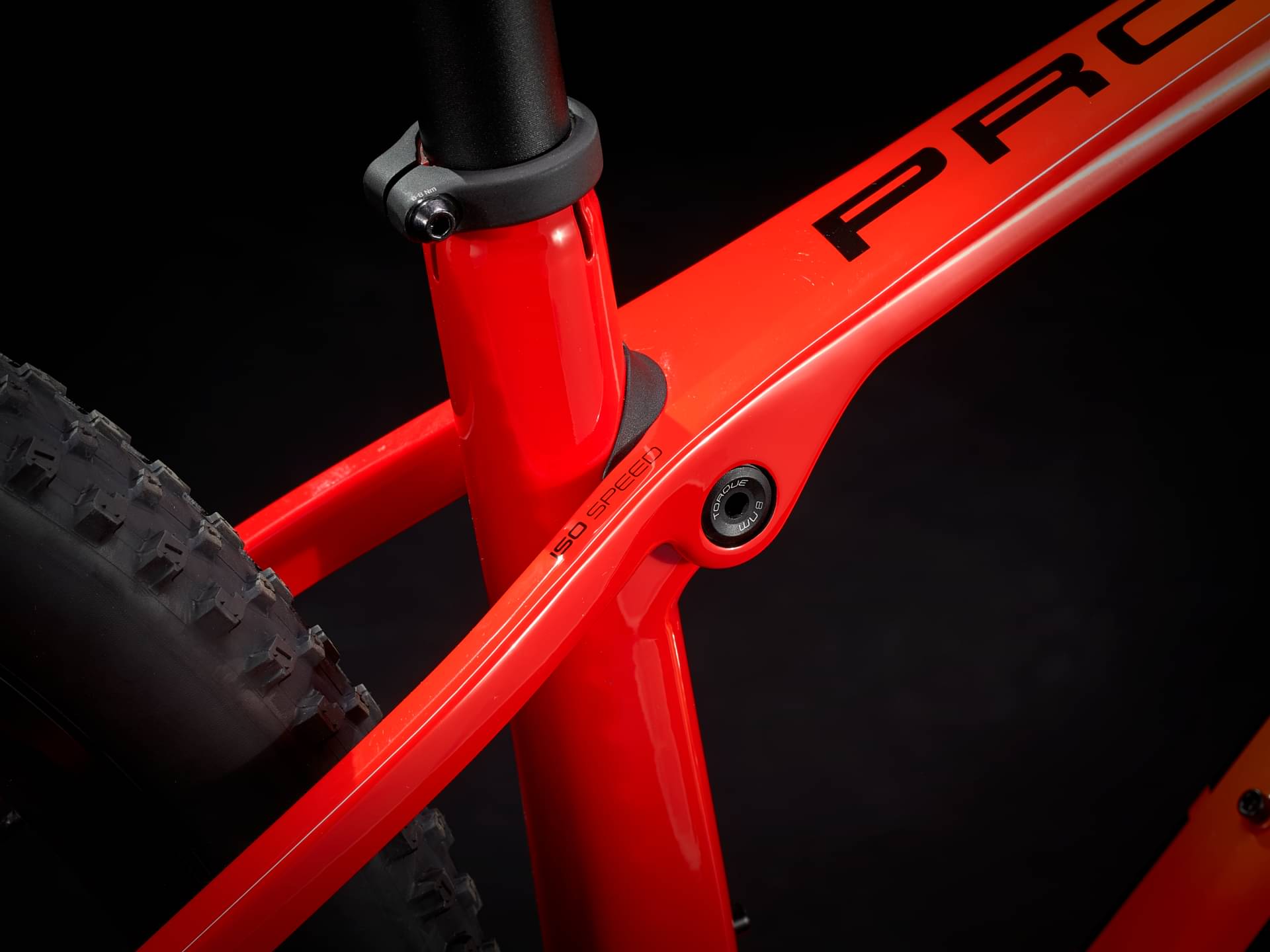

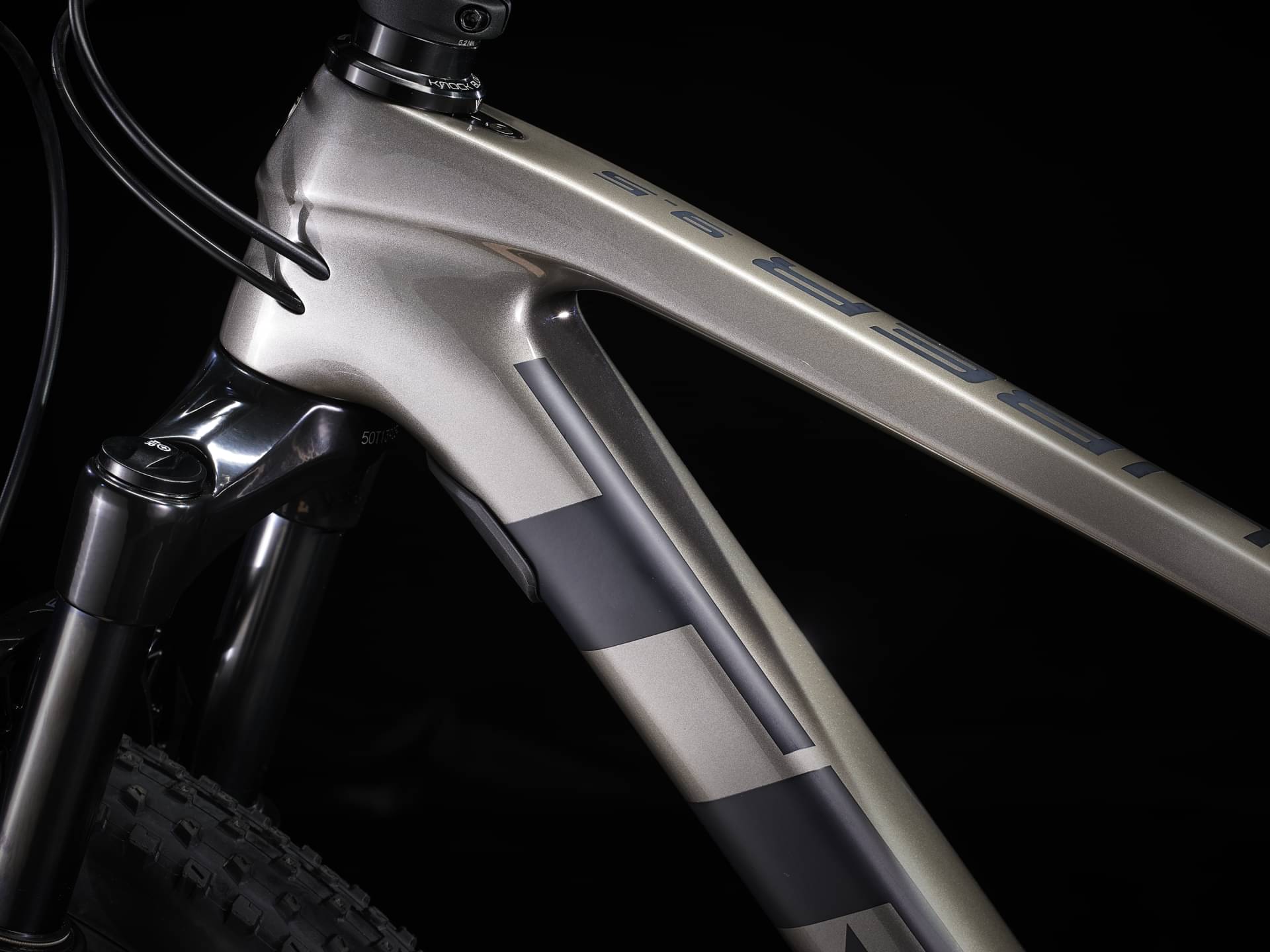

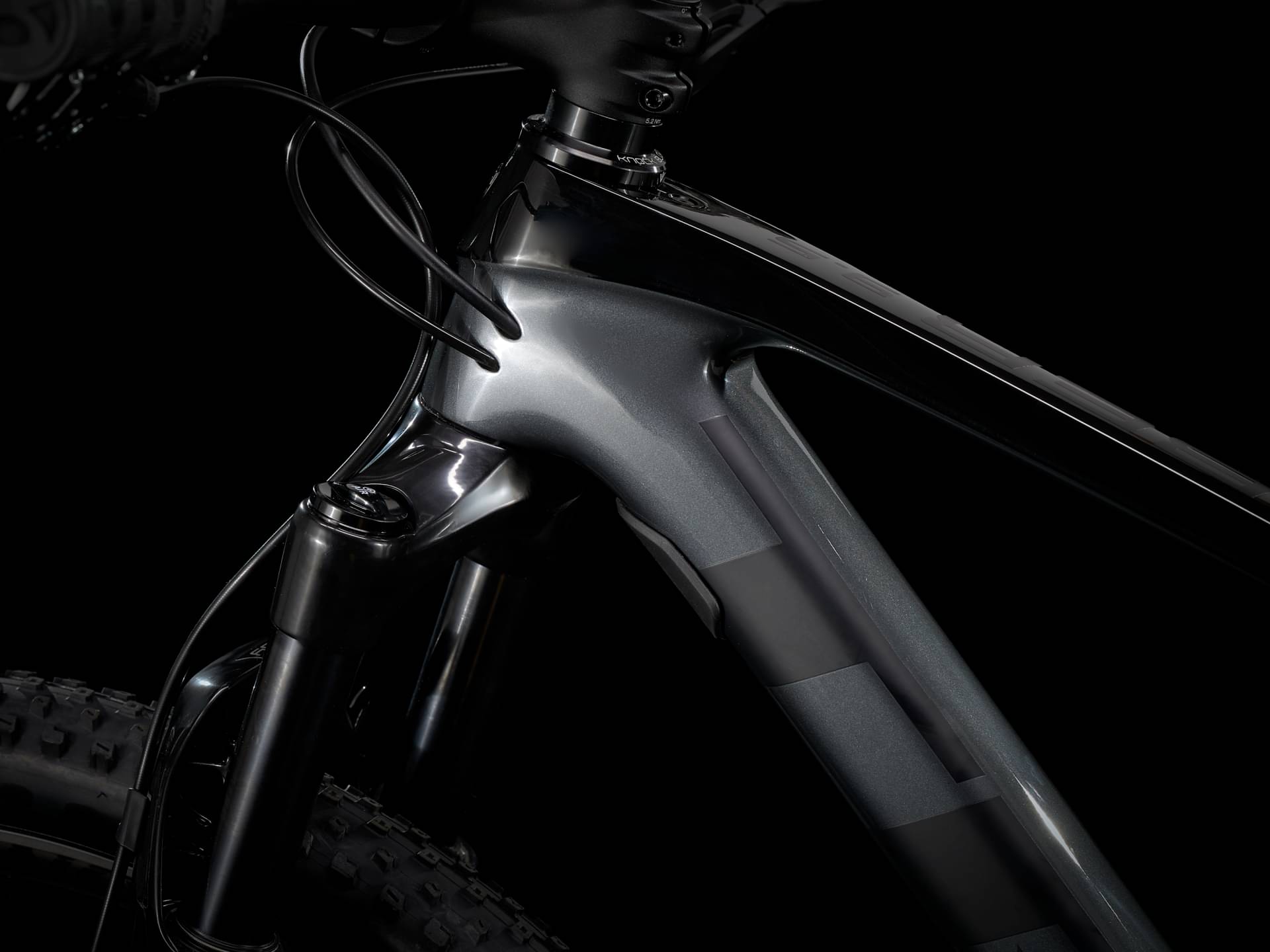

OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148

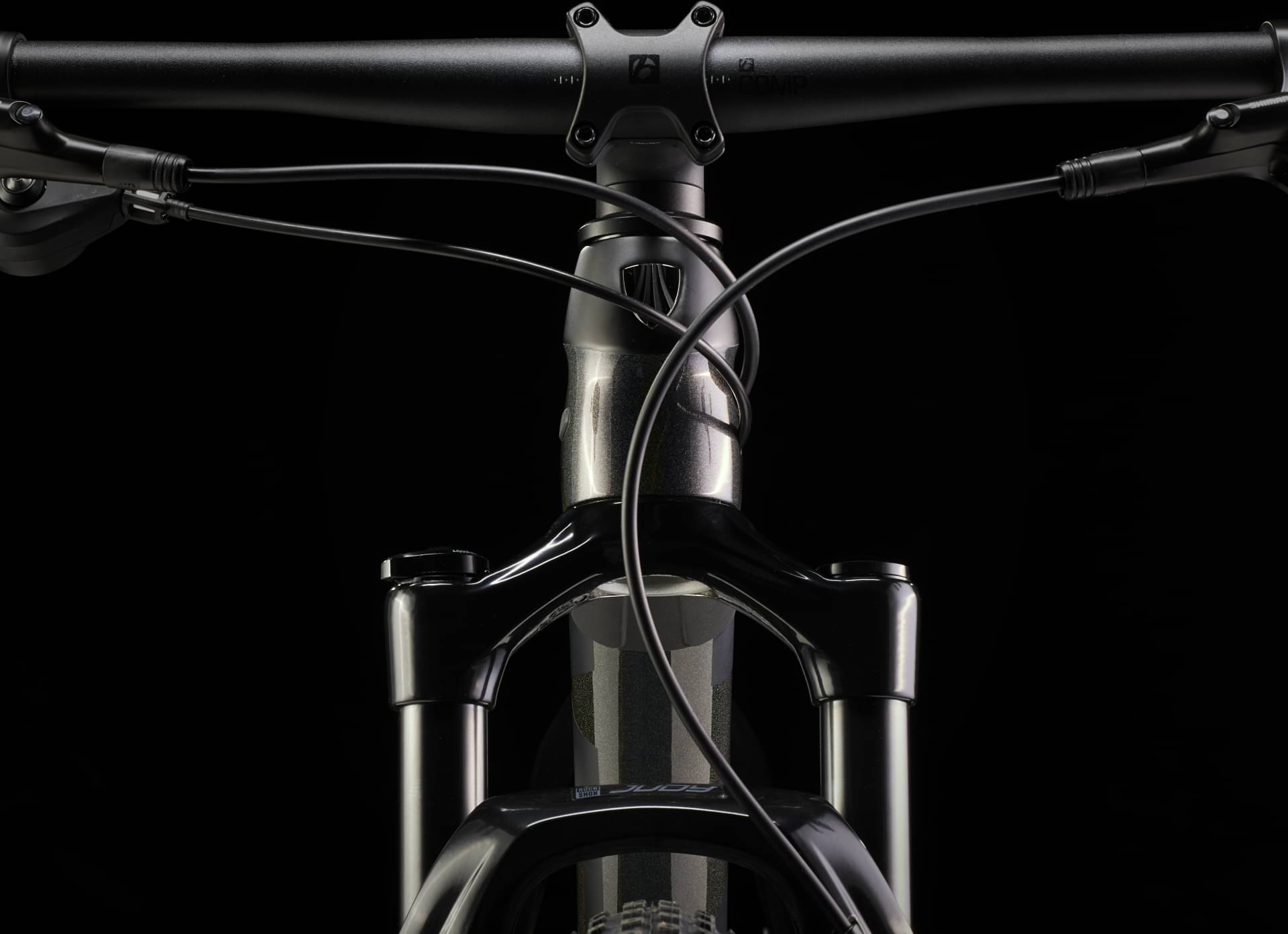

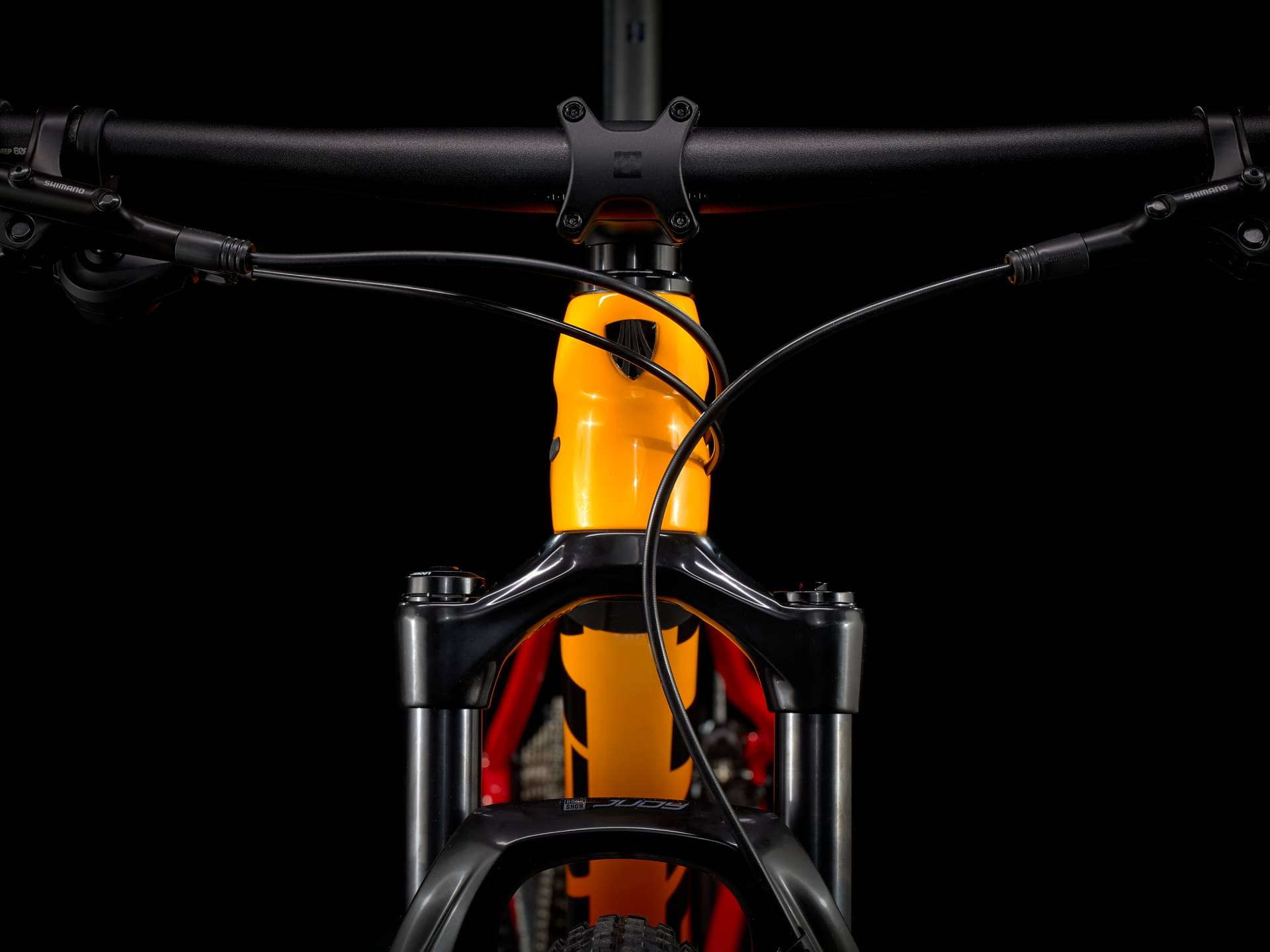

Suspension Fork

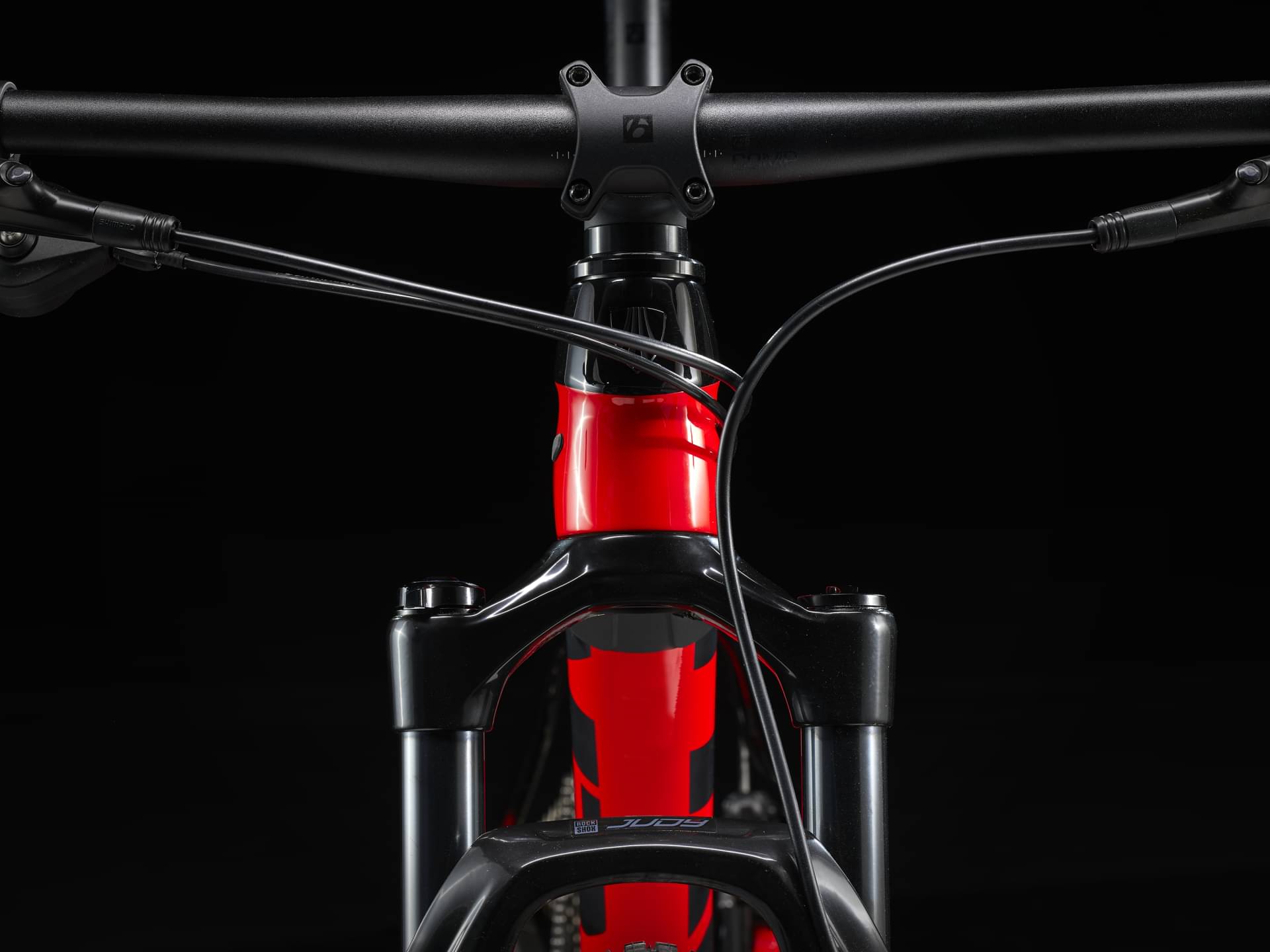

RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Drivetrain

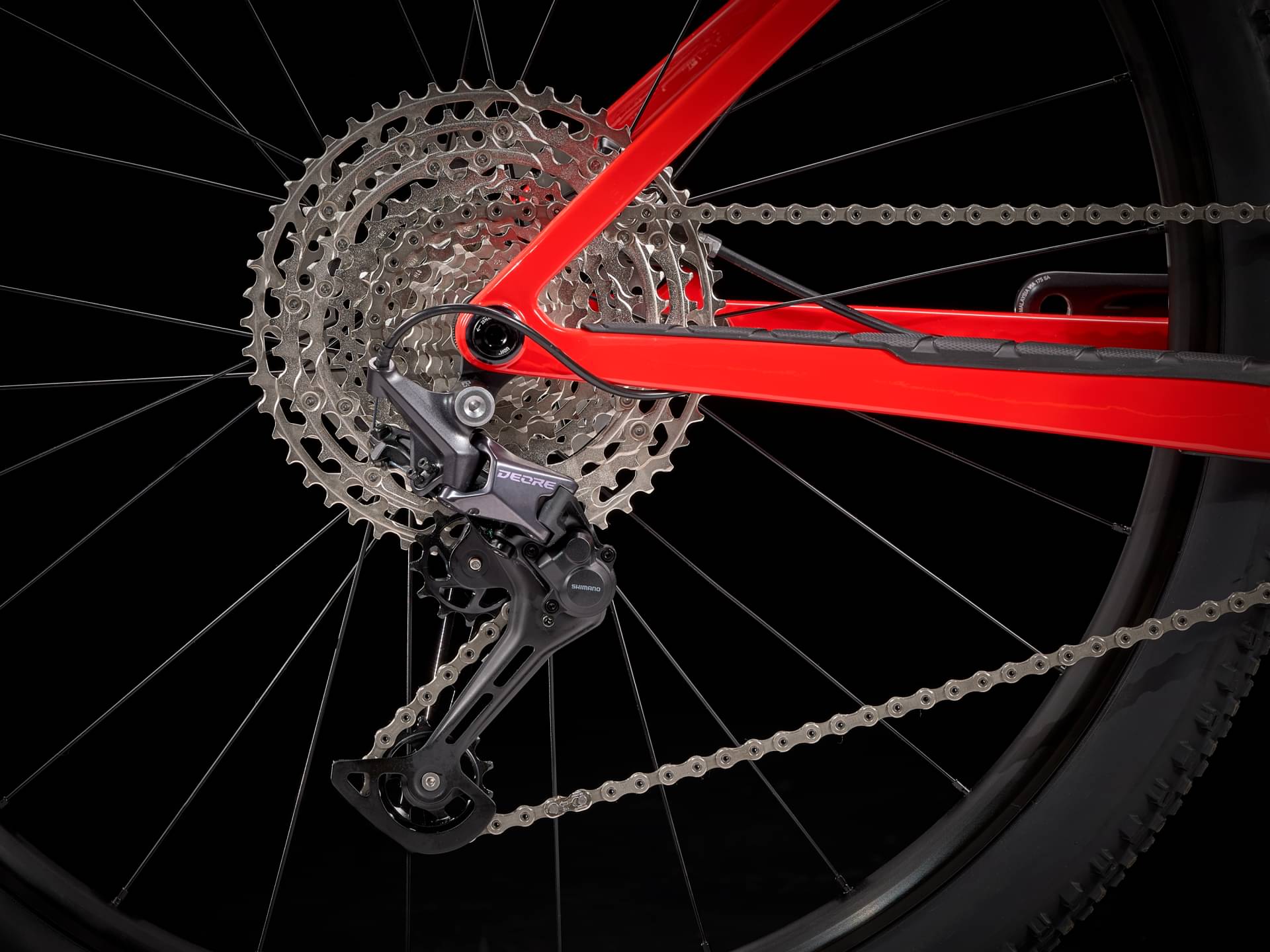

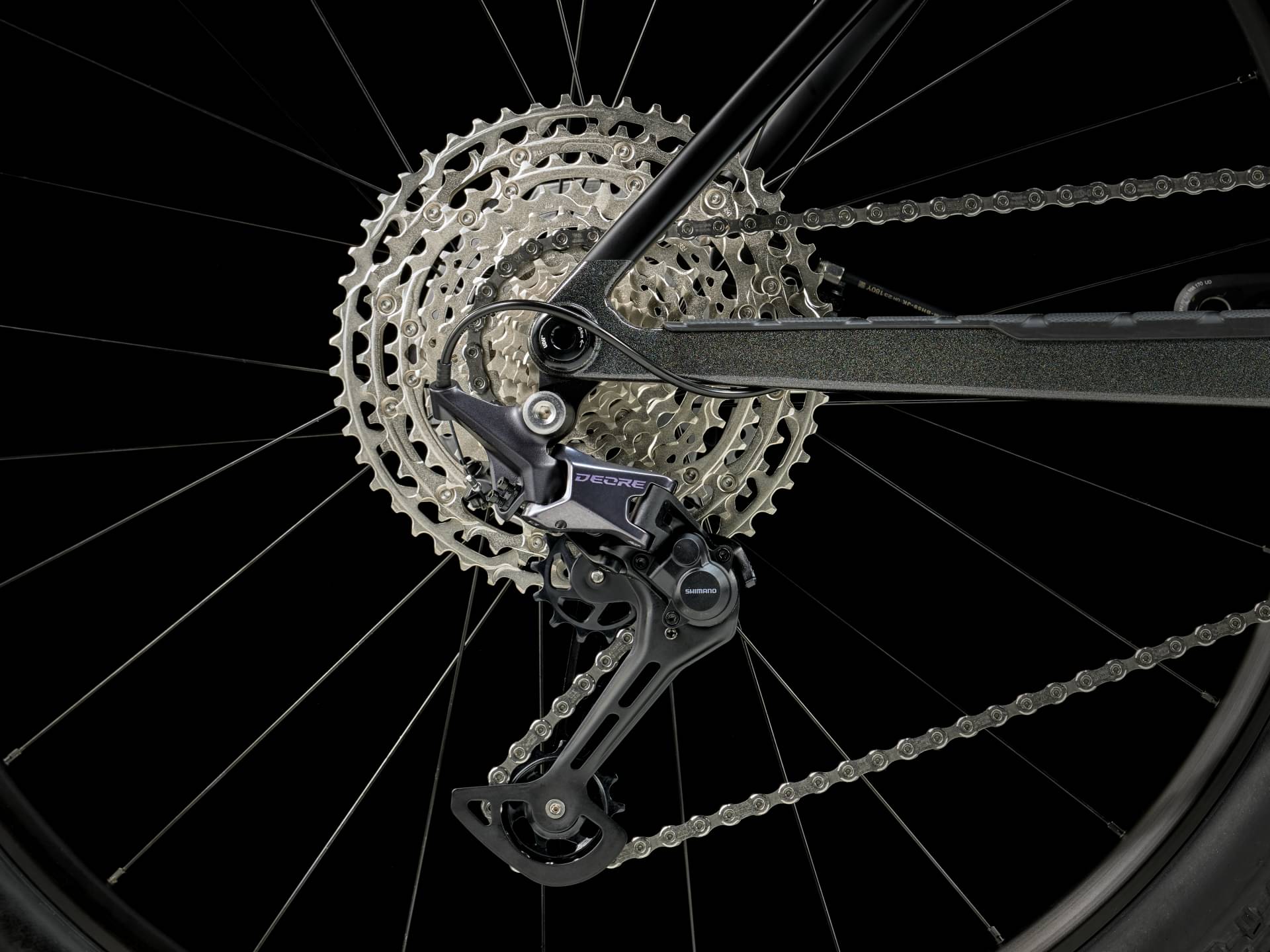

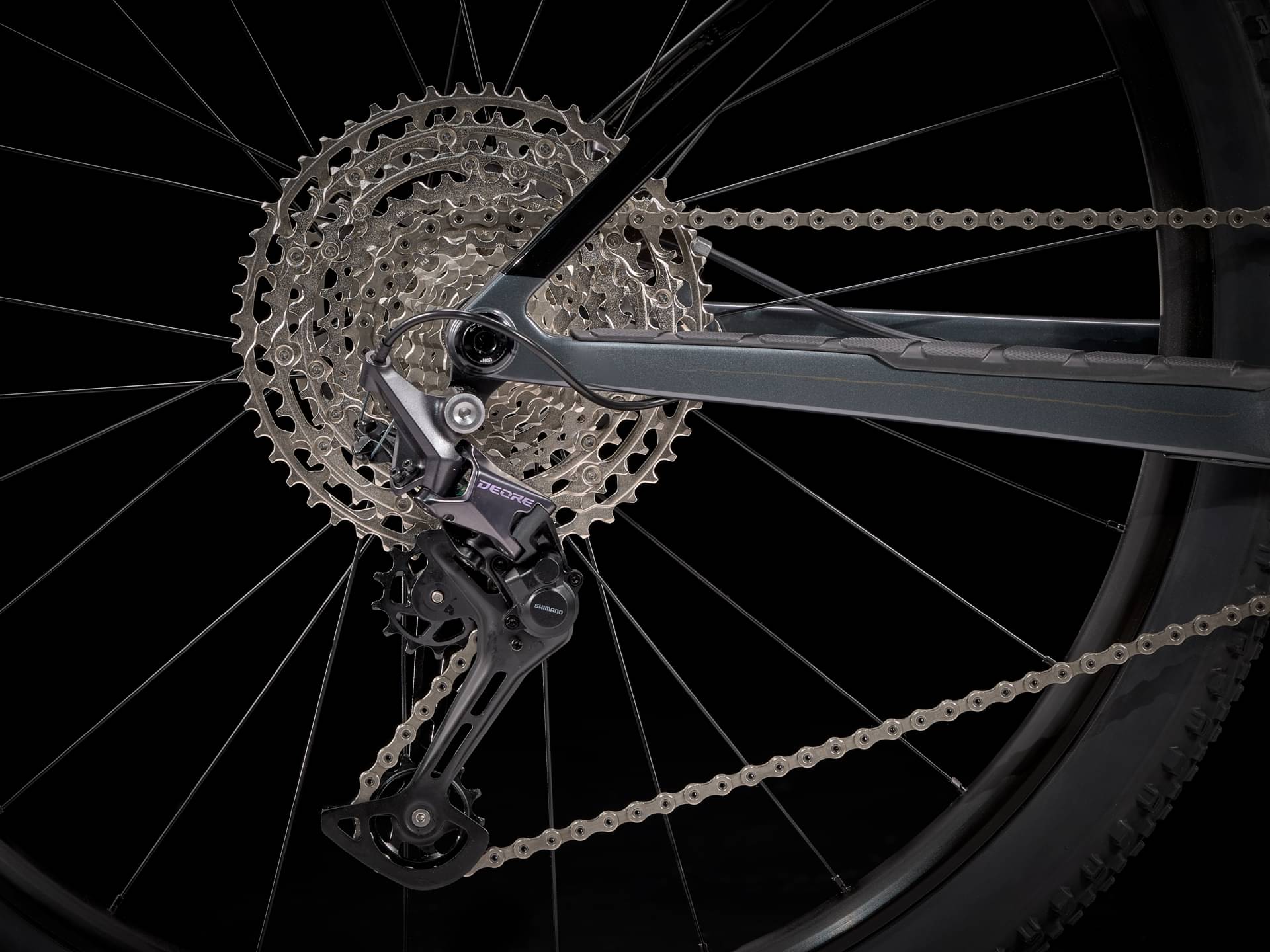

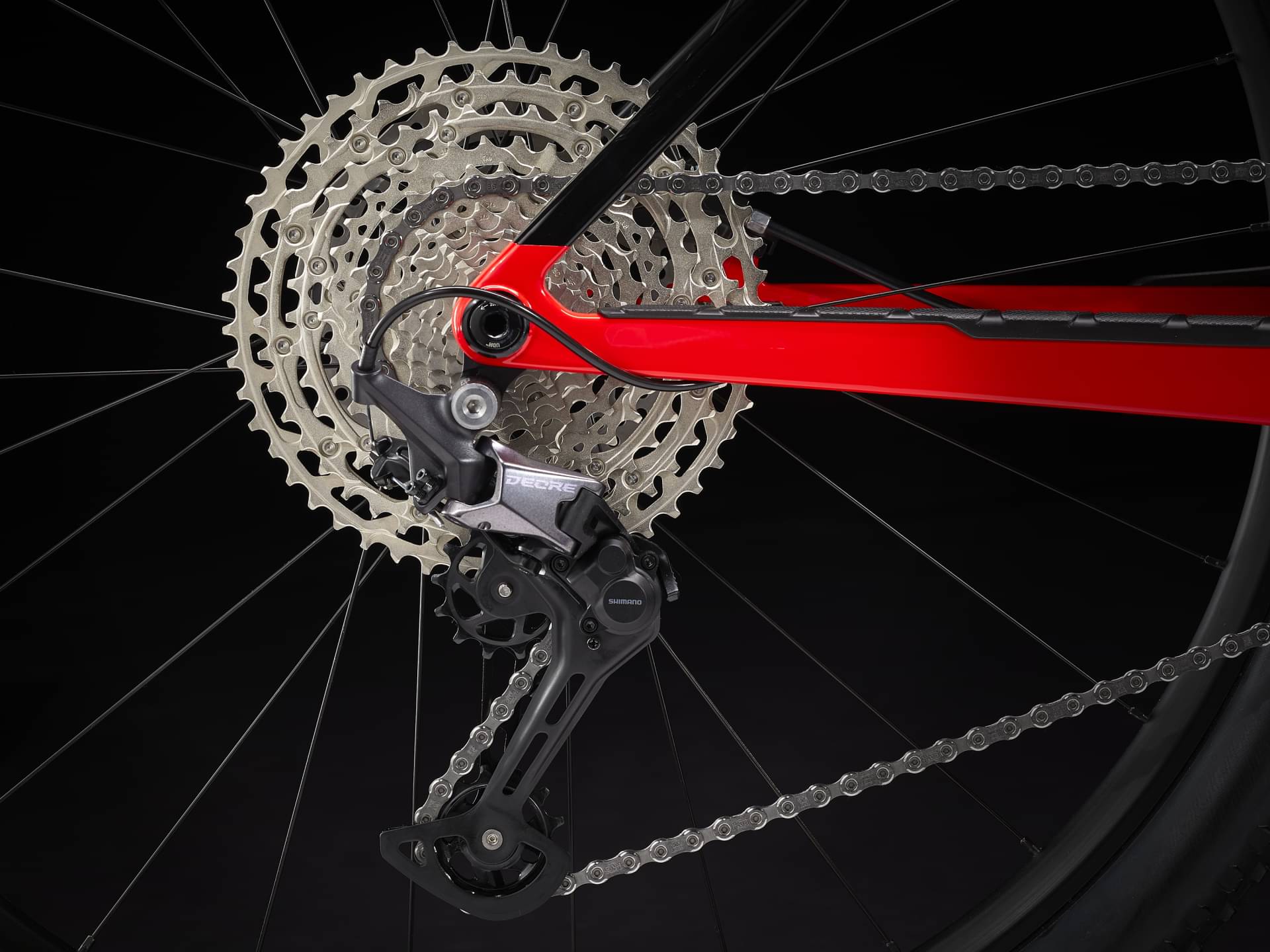

Rear Derailleur
Shimano Deore M6100, long cage
Shift Levers
Shimano Deore M6100, 12 speed

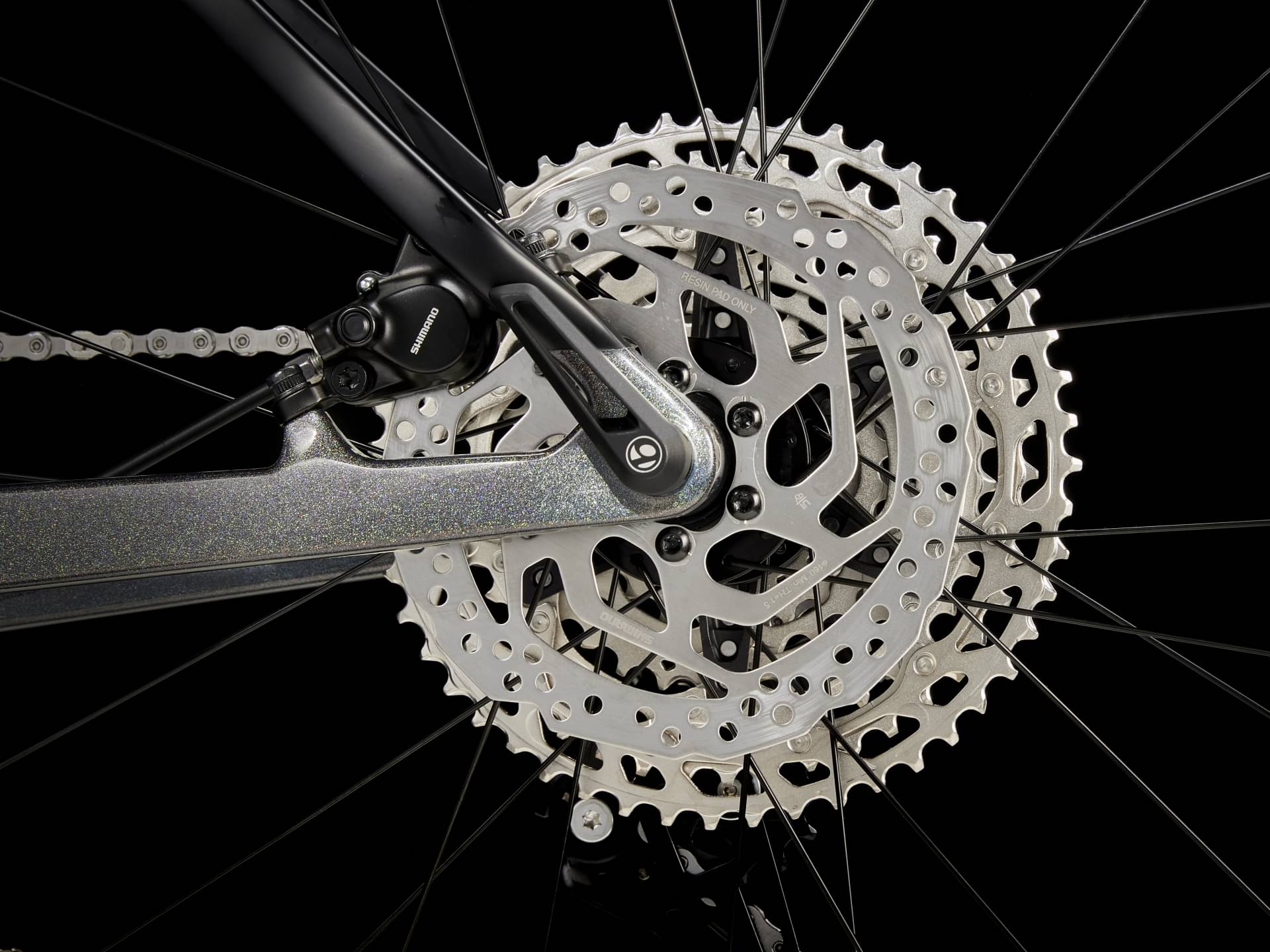

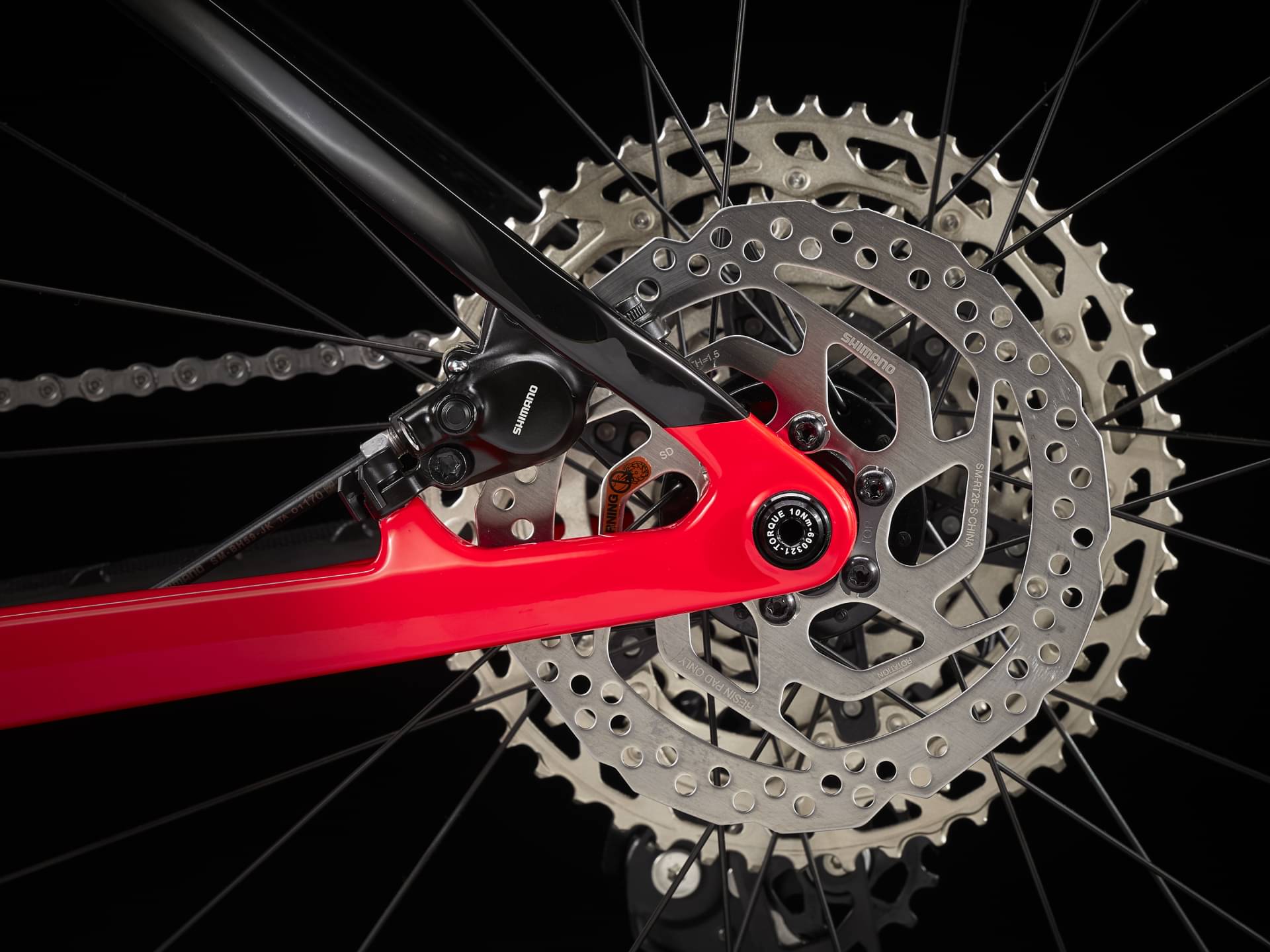

Cassette

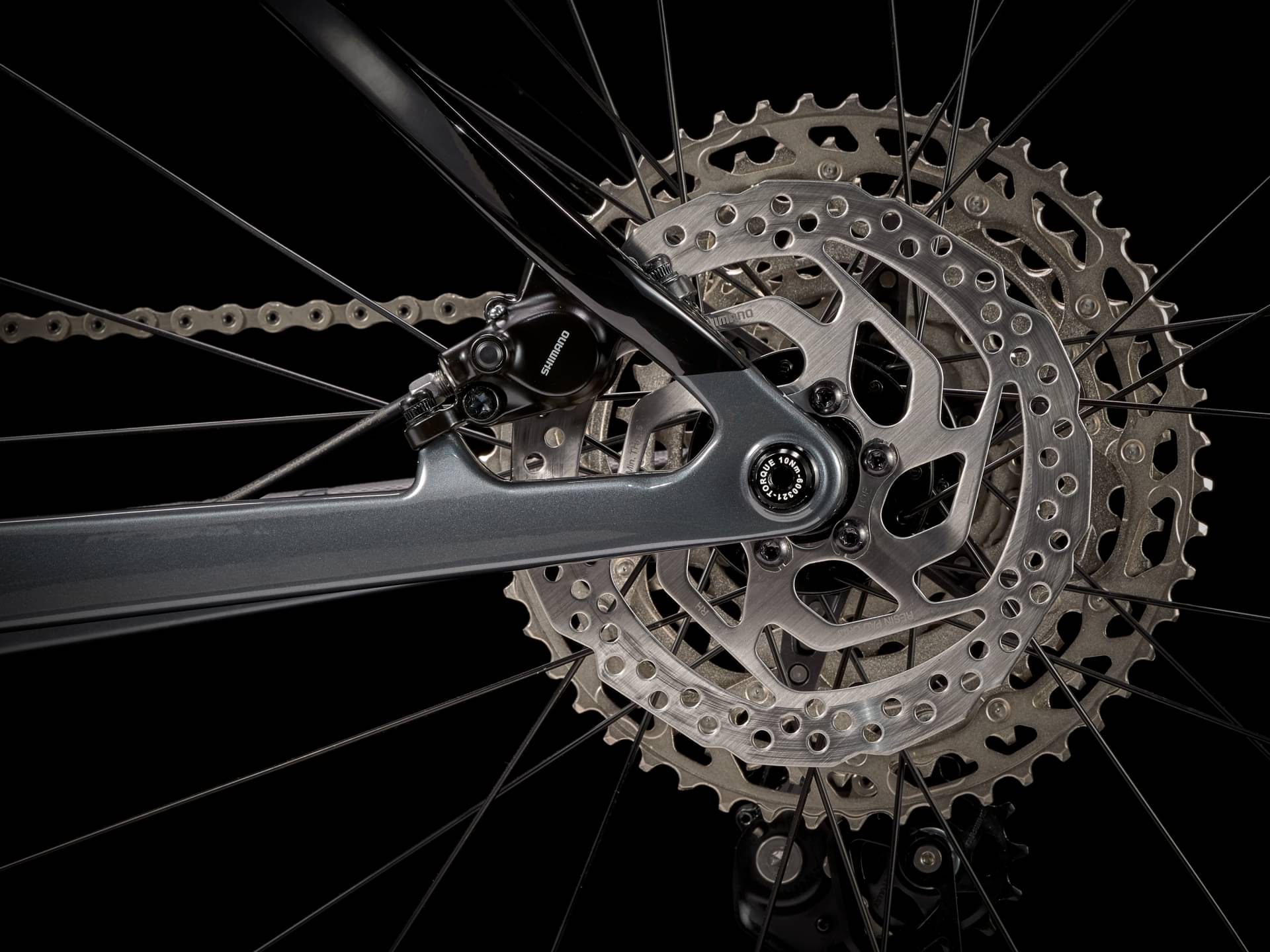

Shimano Deore M6100, 10-51, 12 speed

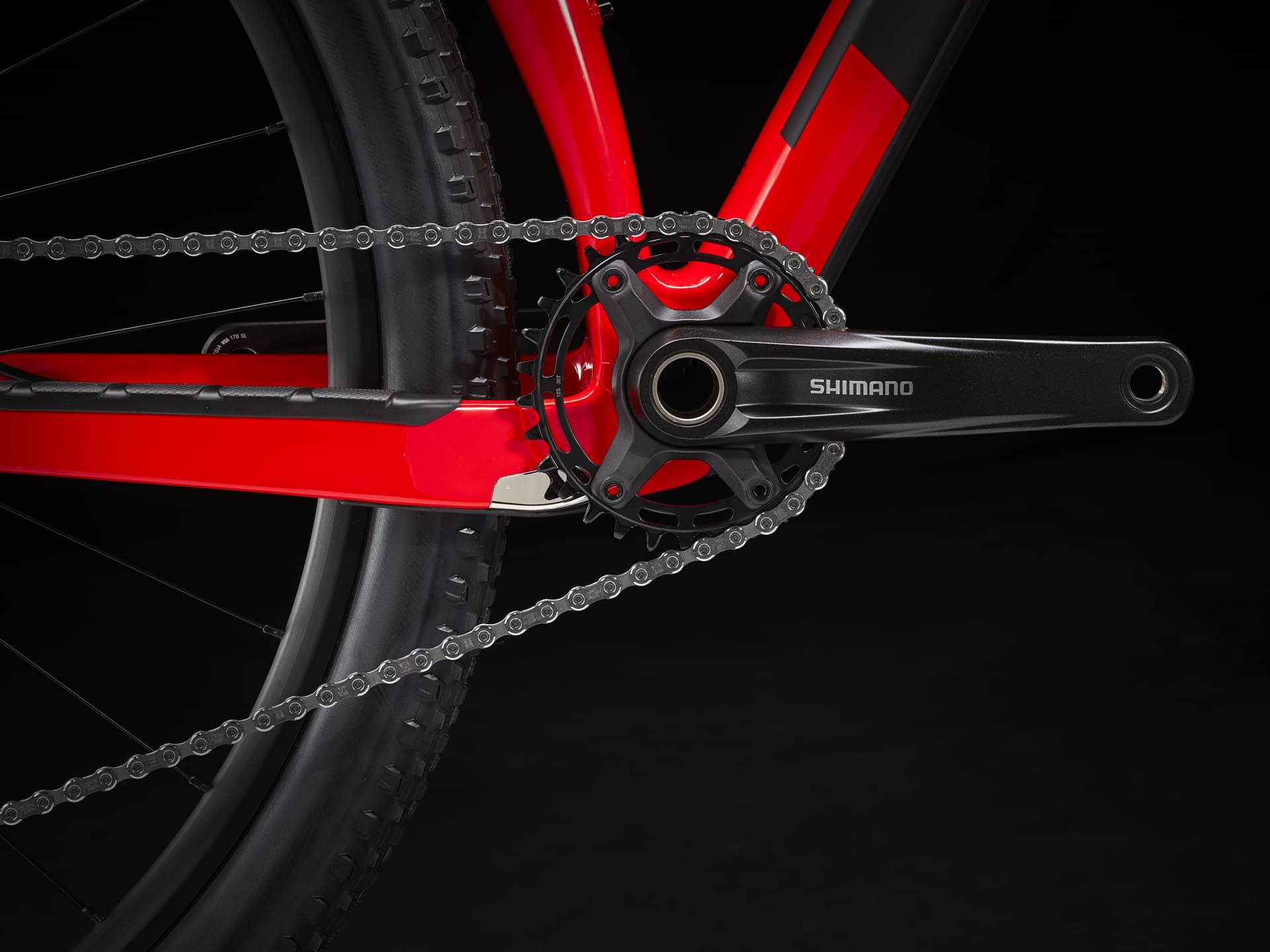

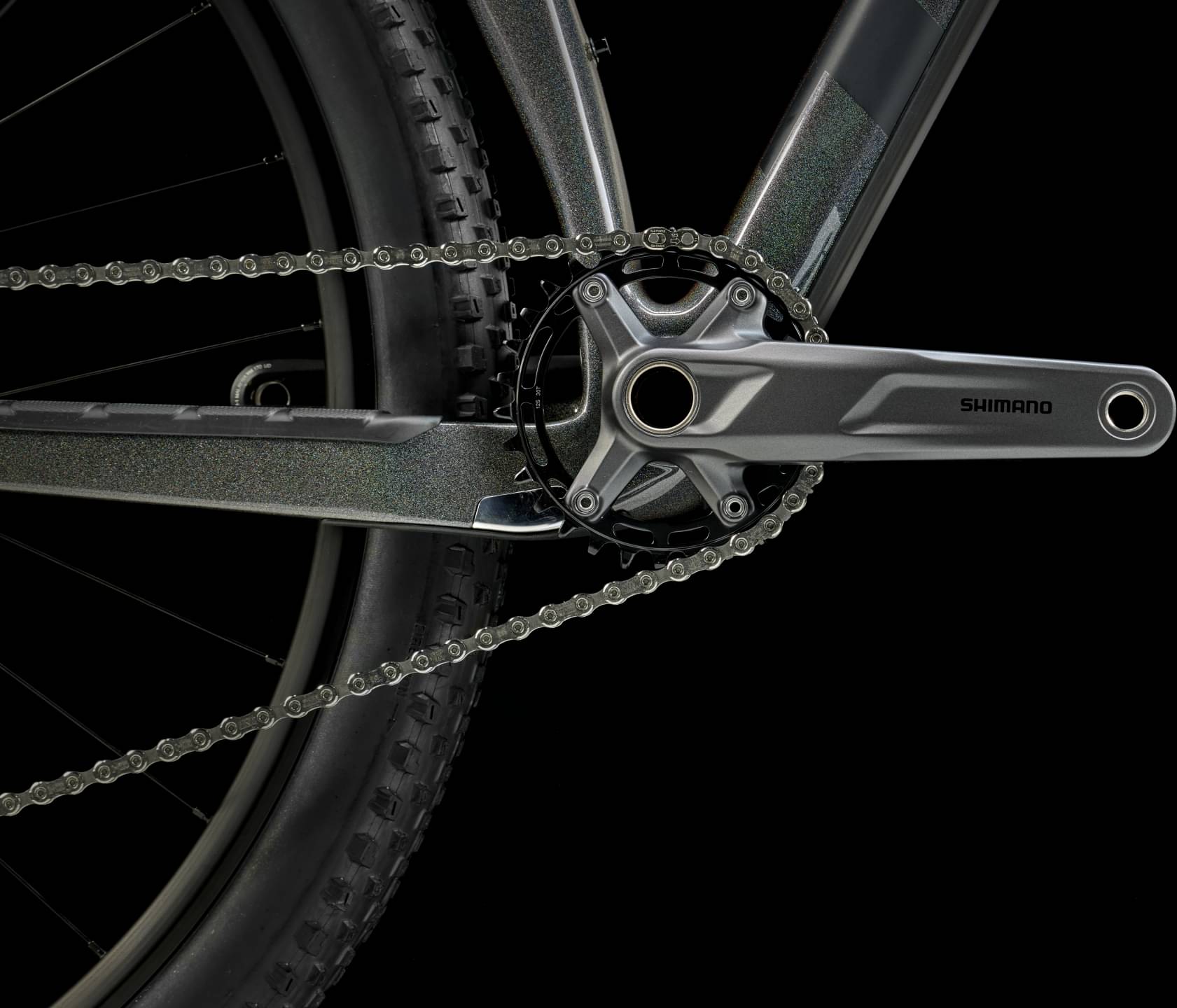

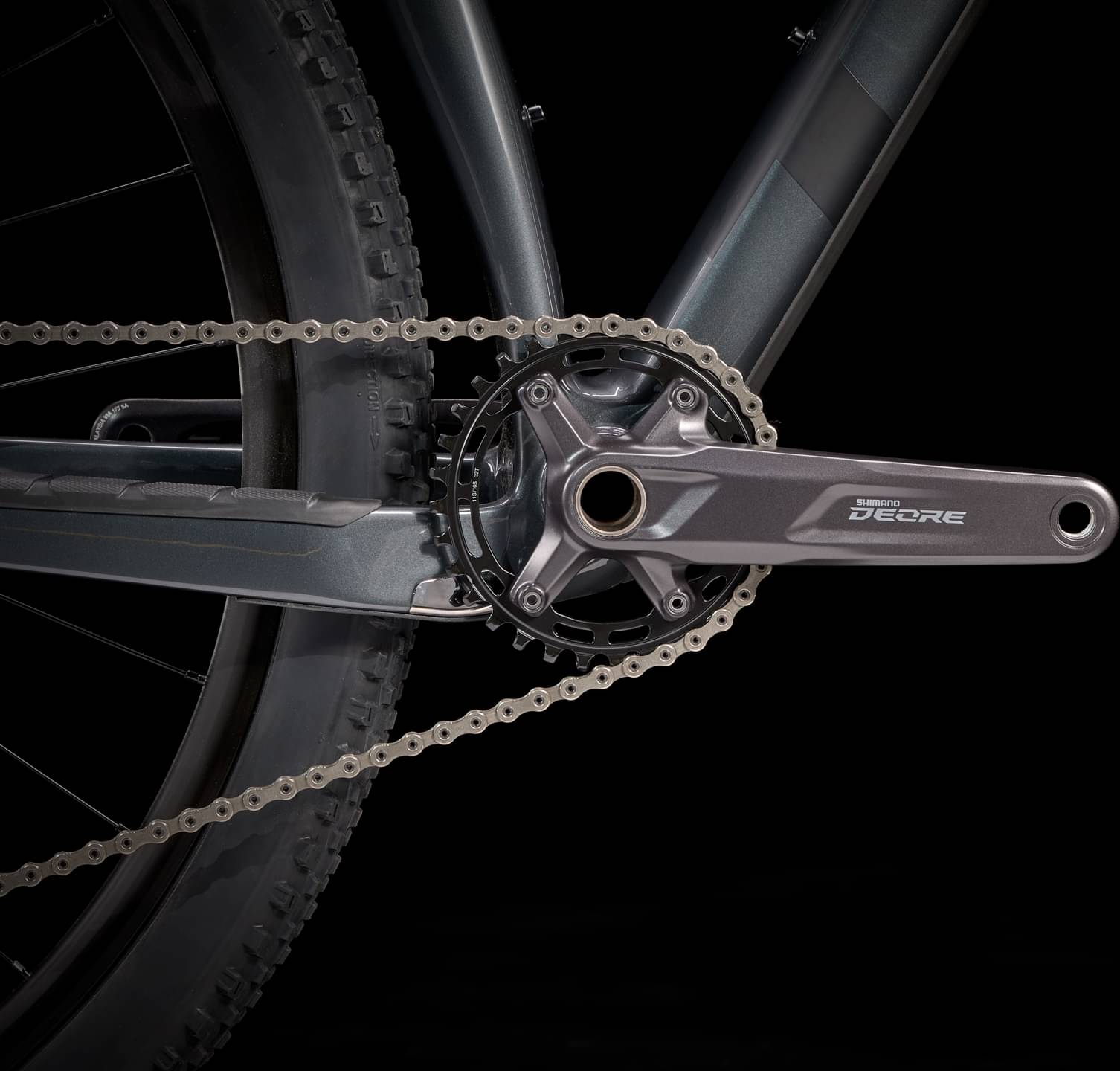

Crank

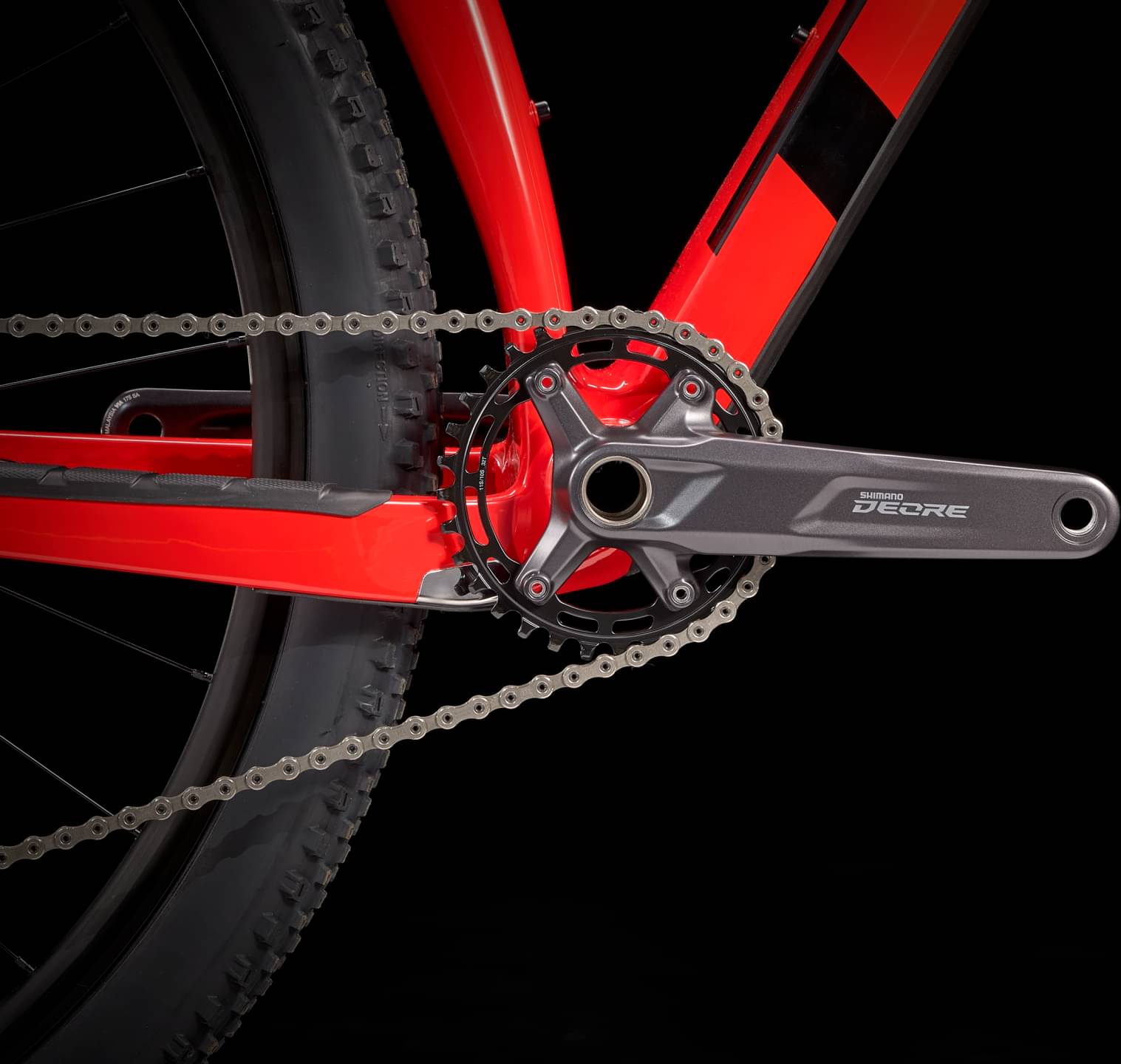

Size: S, M, Shimano MT511, 30T steel ring, 52mm chainline, 170mm length; Size: ML, L, XL, Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
Bottom Bracket
Shimano MT500, 92mm, PressFit
Chain
Shimano Deore M6100, 12 speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Spokes
14 g stainless steel, black

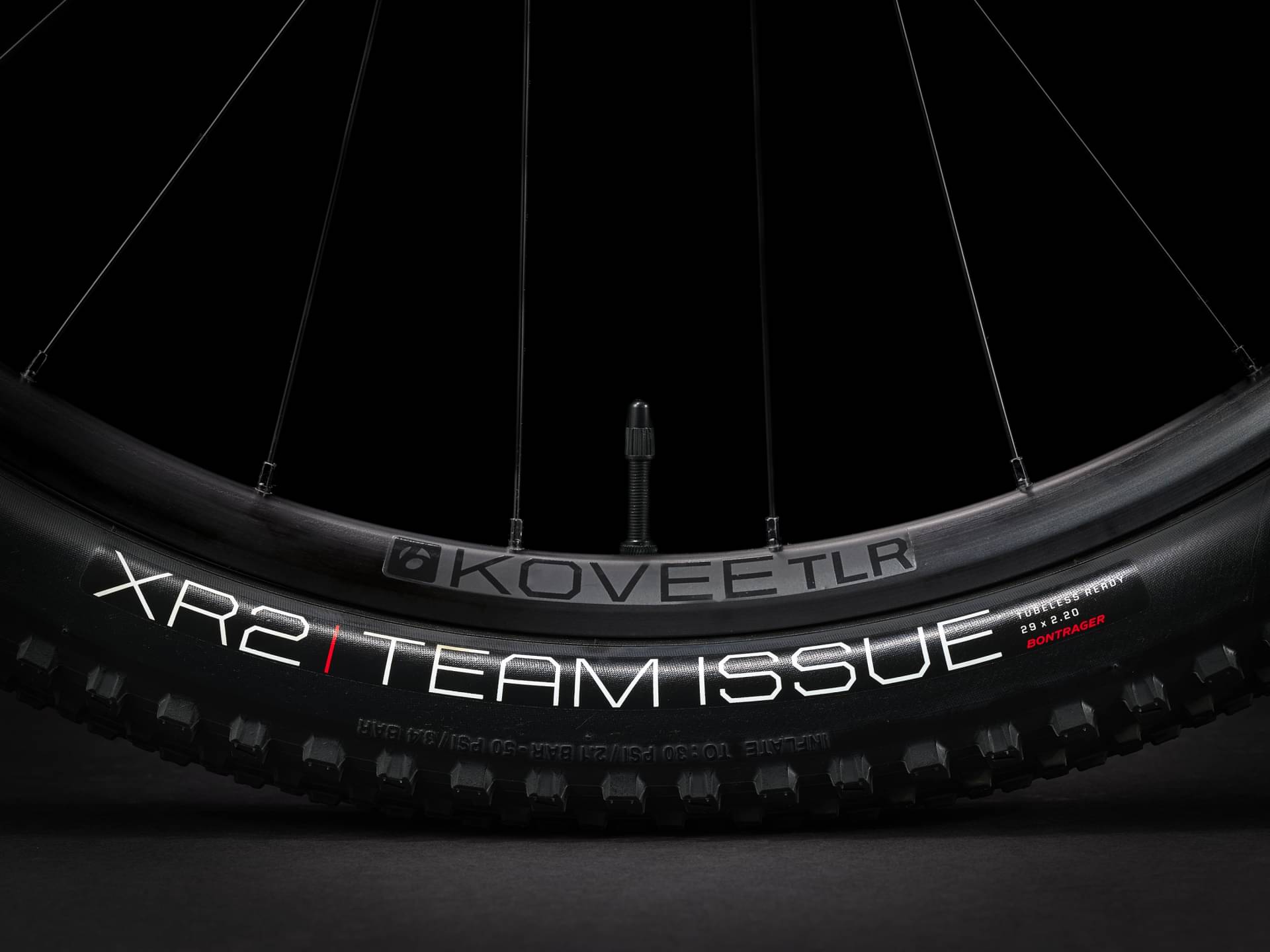

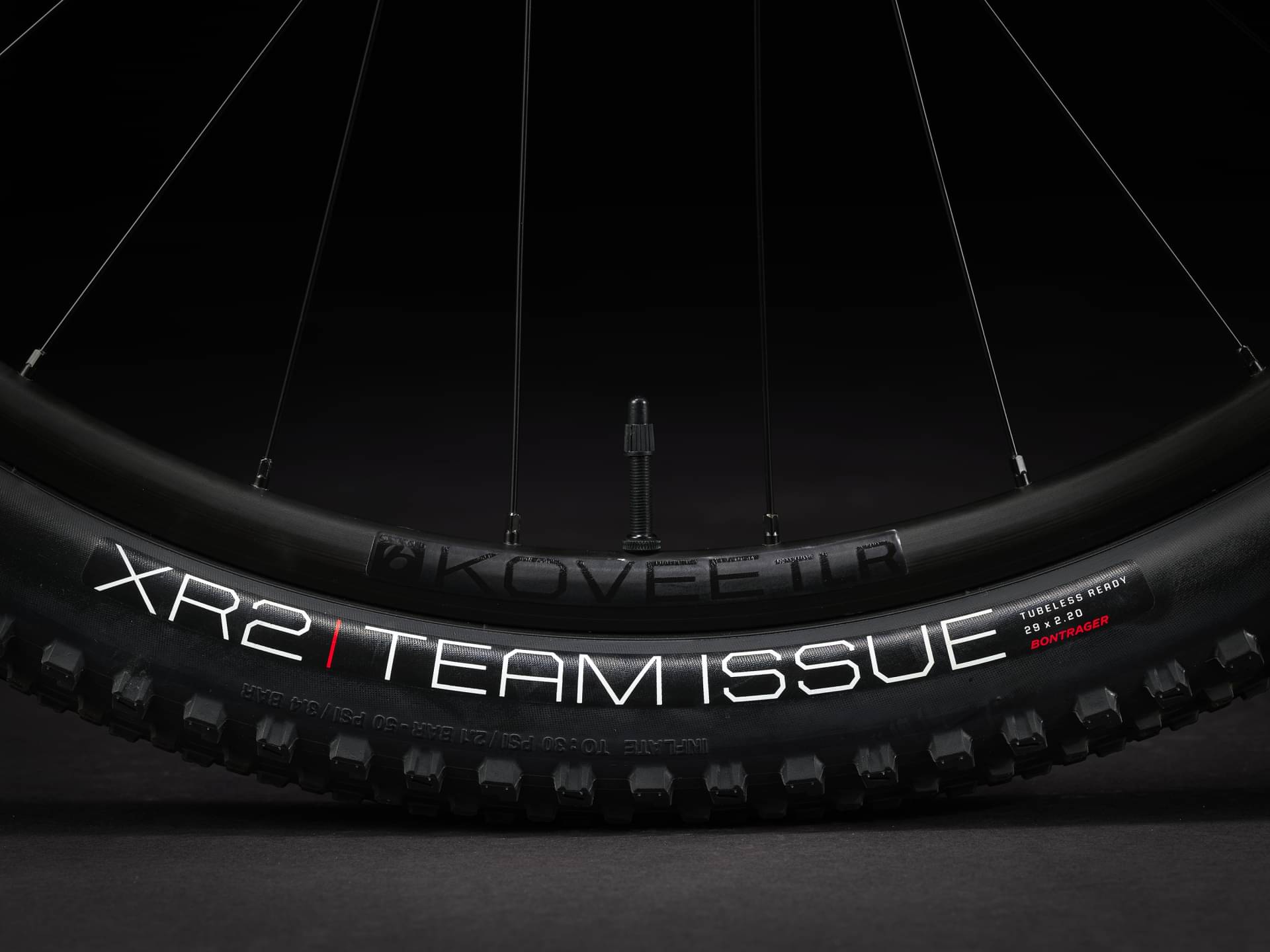

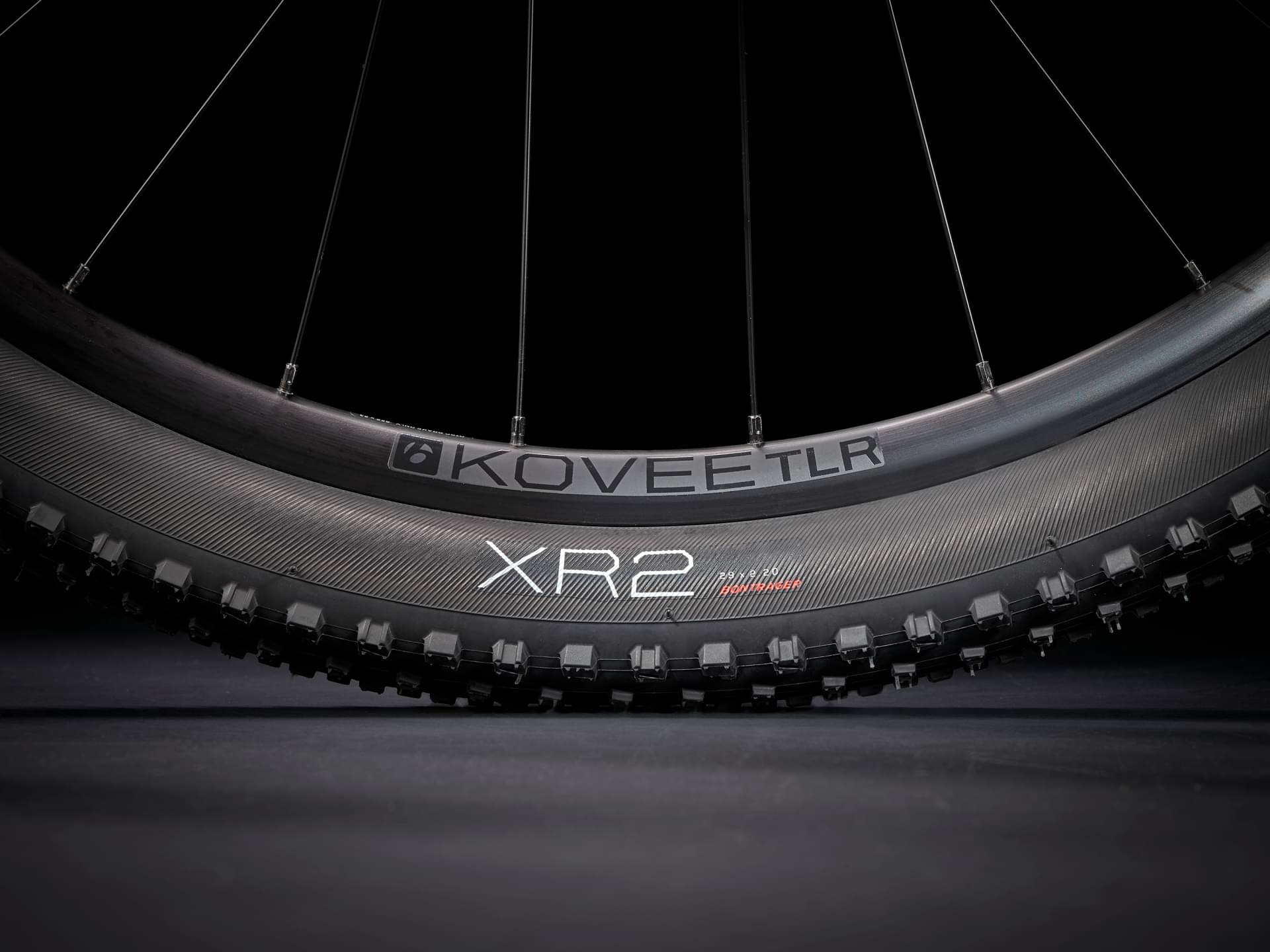

Tires
Size: S, M, ML, L, XL, Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''; Size: S, M, ML, L, XL, Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20''
Brakes

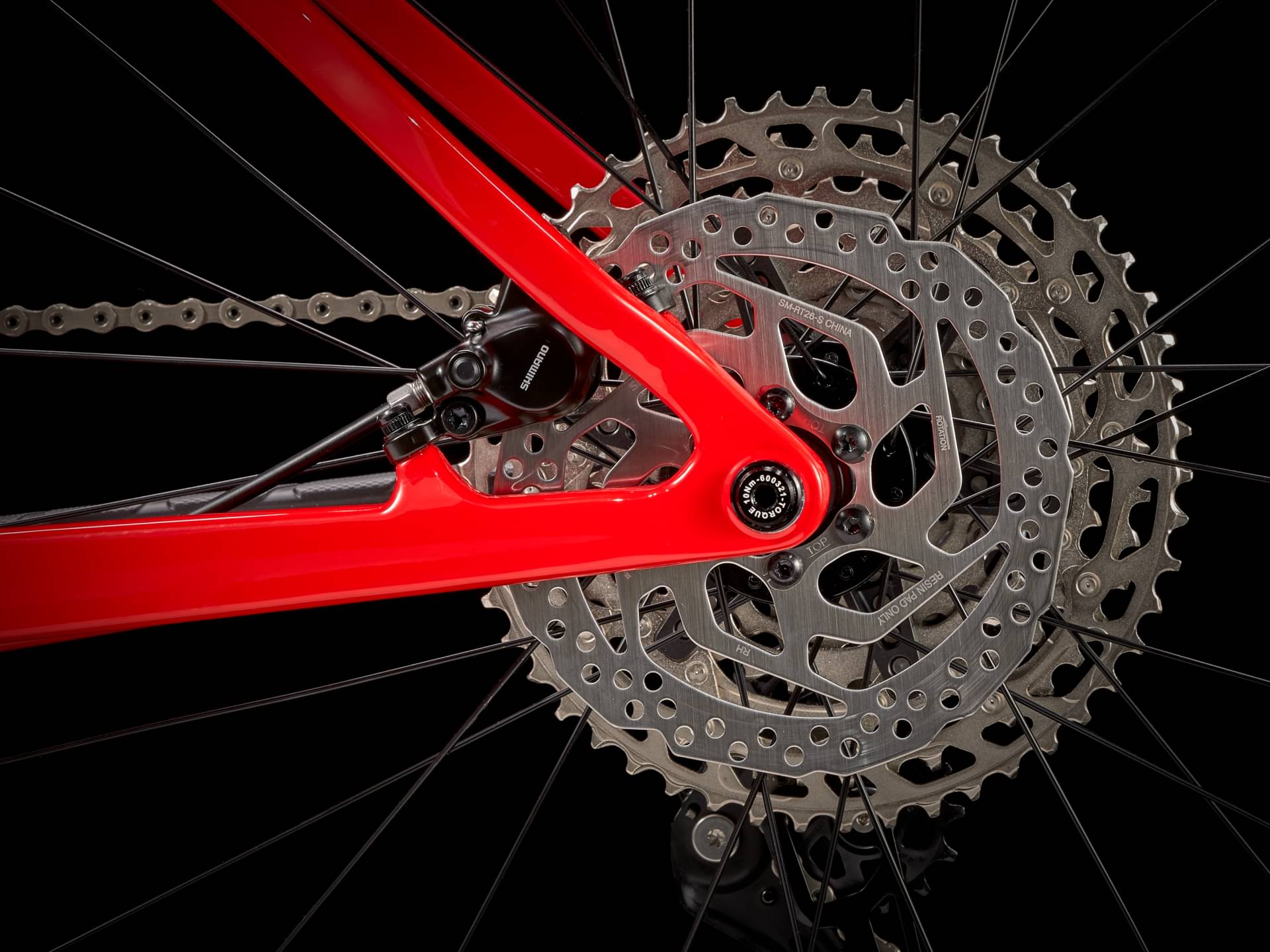

Brakes

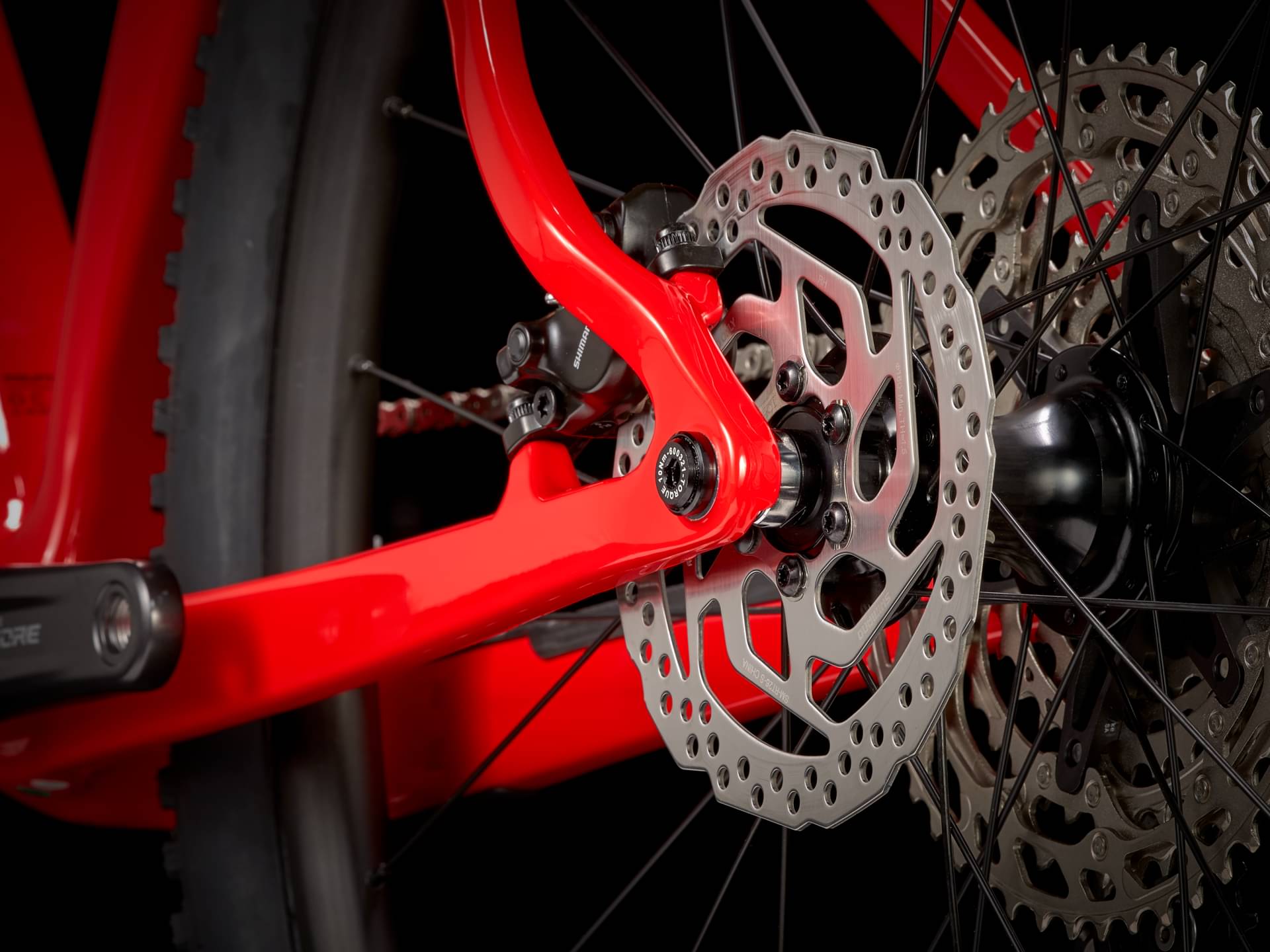

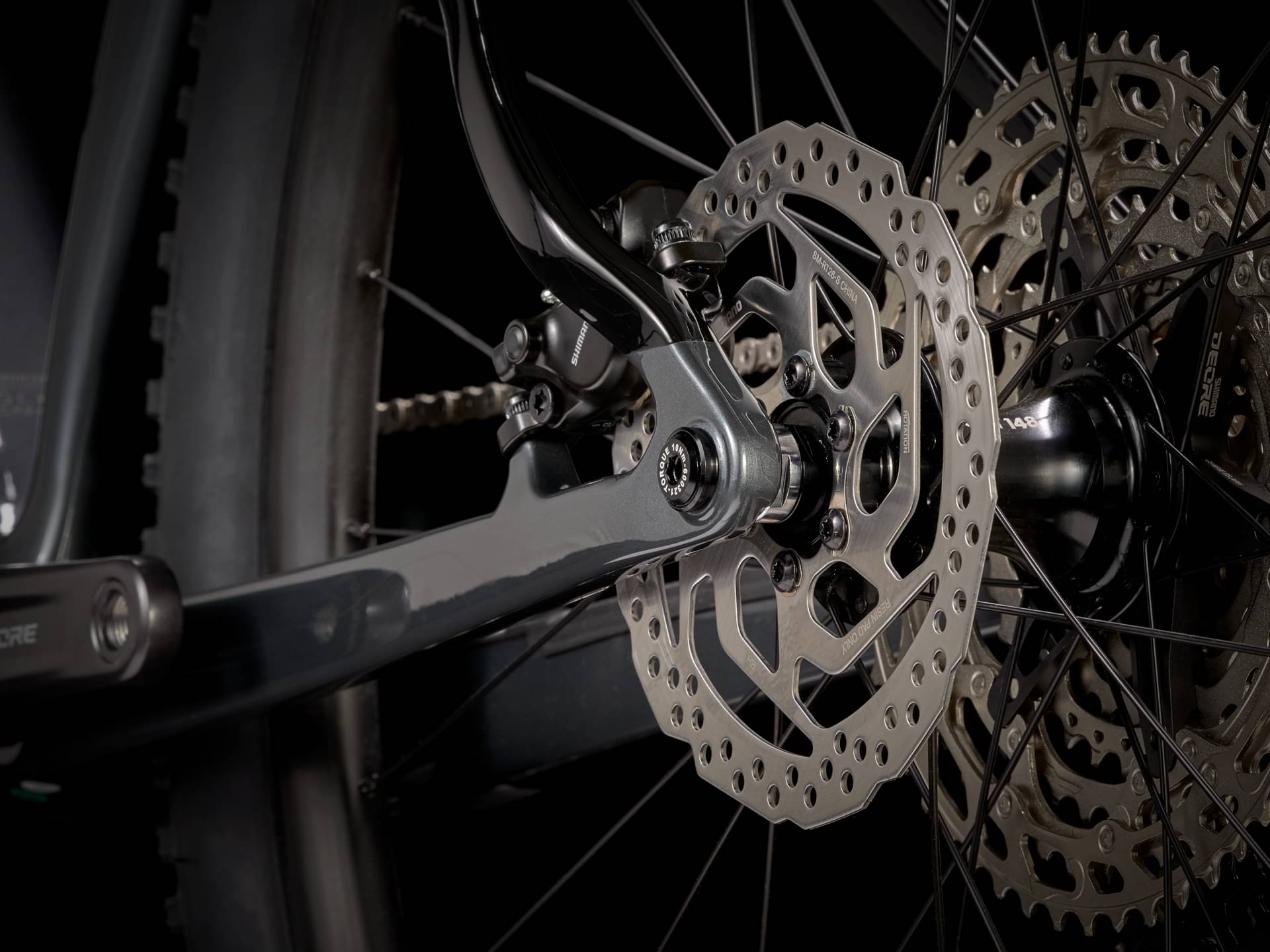

Shimano MT200 hydraulic disc
Cockpit

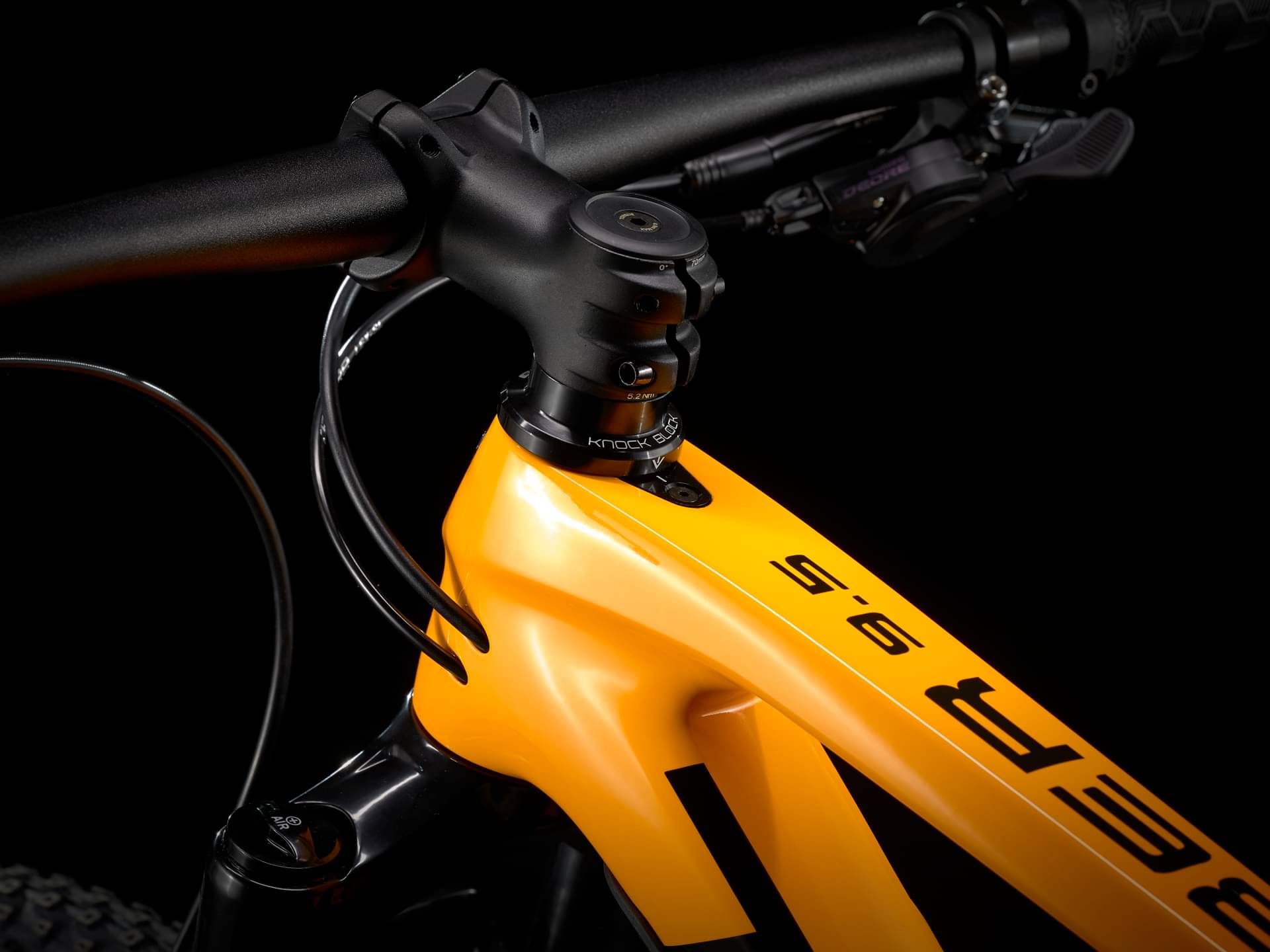

Stem
Size: S, M, Bontrager Rhythm Comp, 31.8mm, 0 degree, 60mm length; Size: M, ML, Bontrager Rhythm Comp, 31.8mm, 0 degree, 70mm length; Size: L, XL, Bontrager Rhythm Comp, 31.8mm, 0 degree, 80mm length

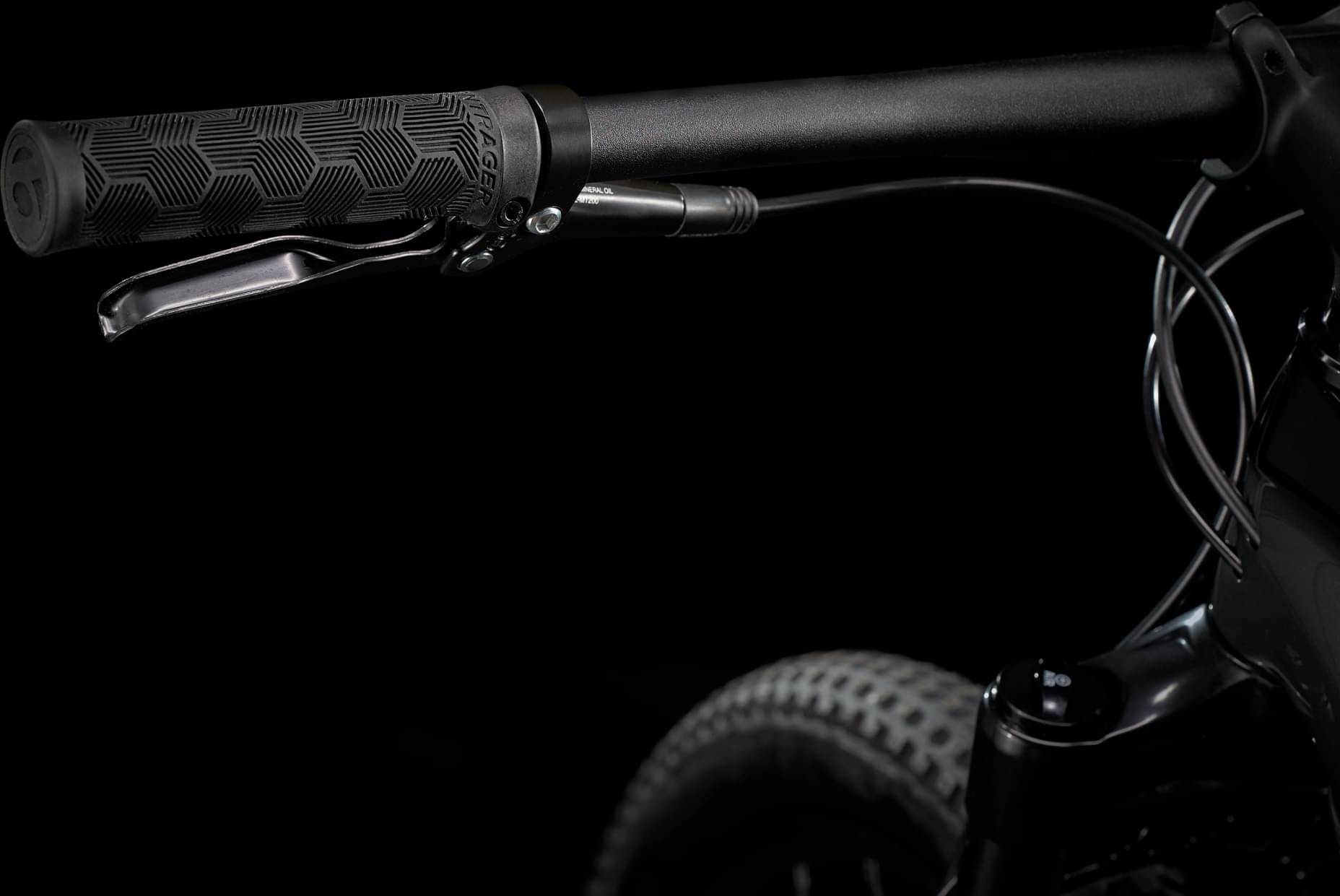

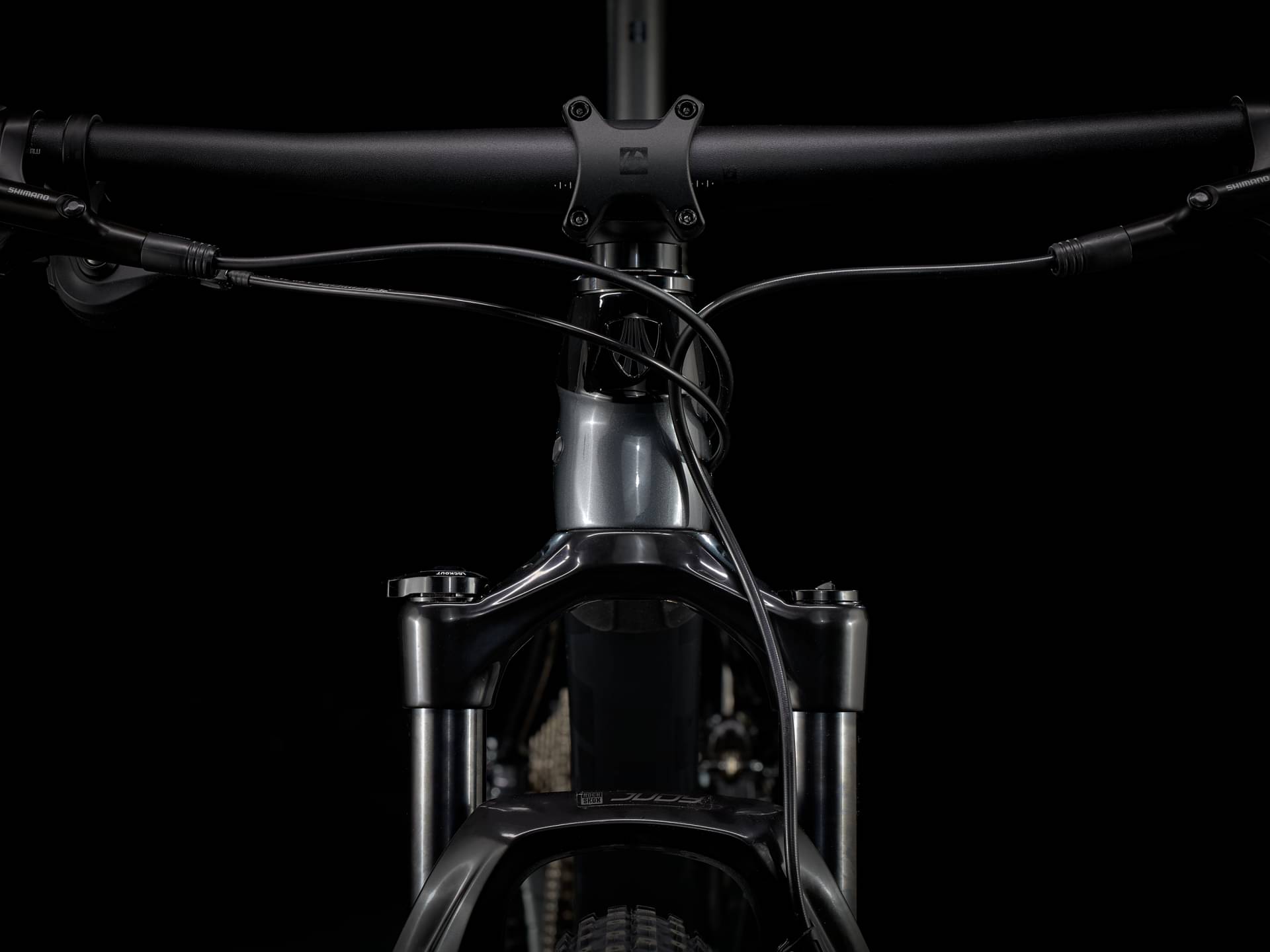

Handlebar
Size: S, M, ML, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width

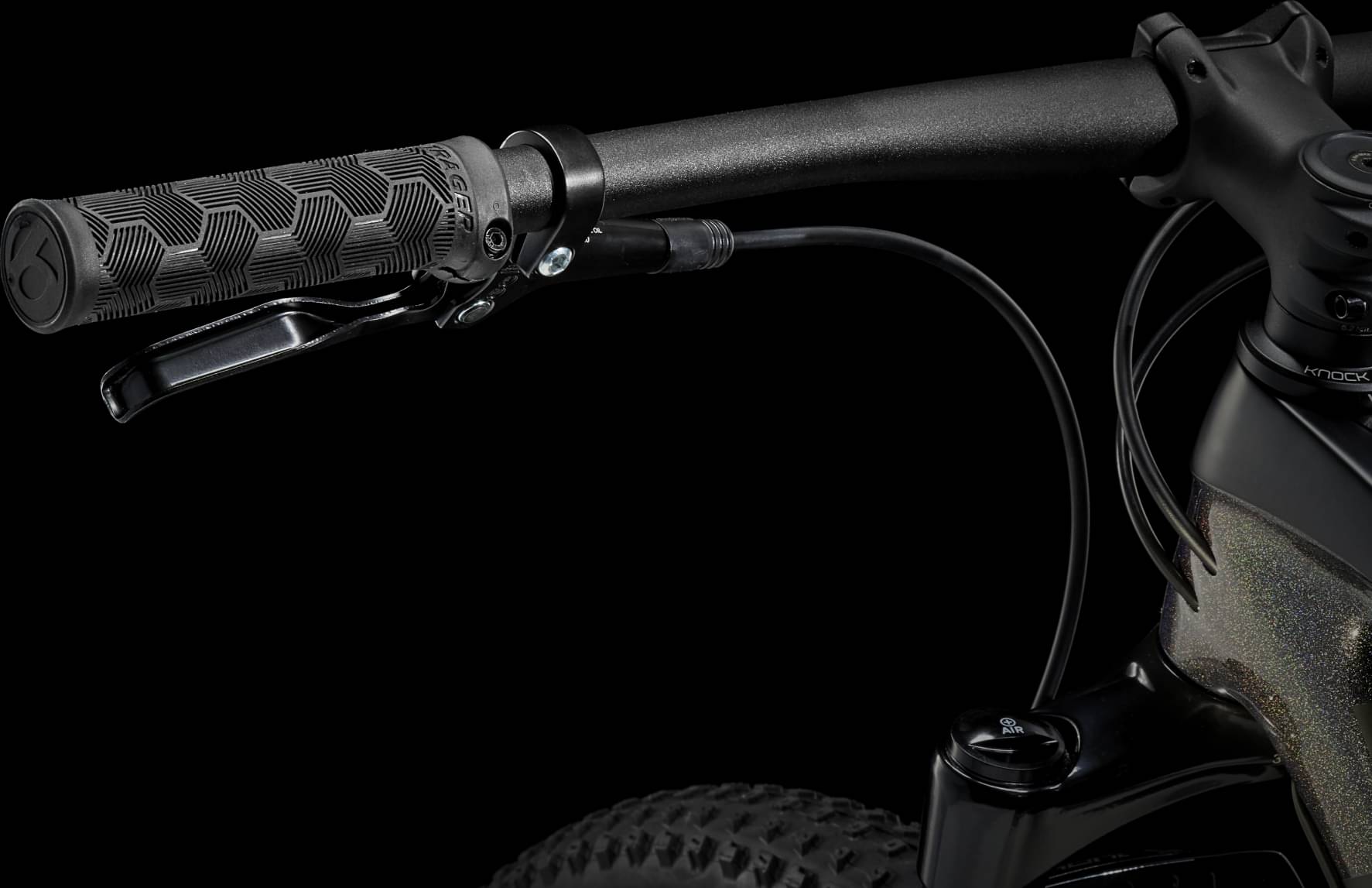

Grips

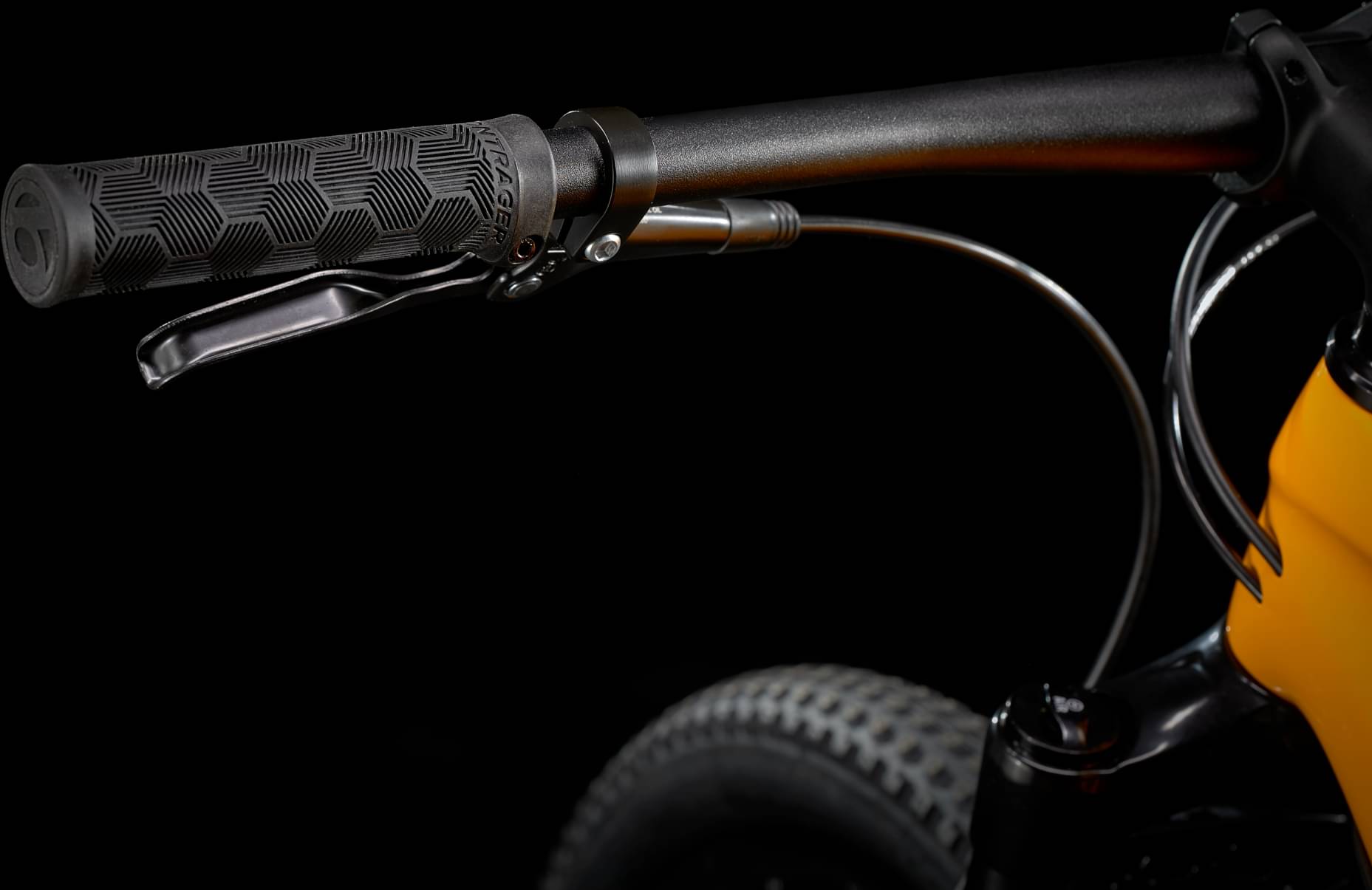

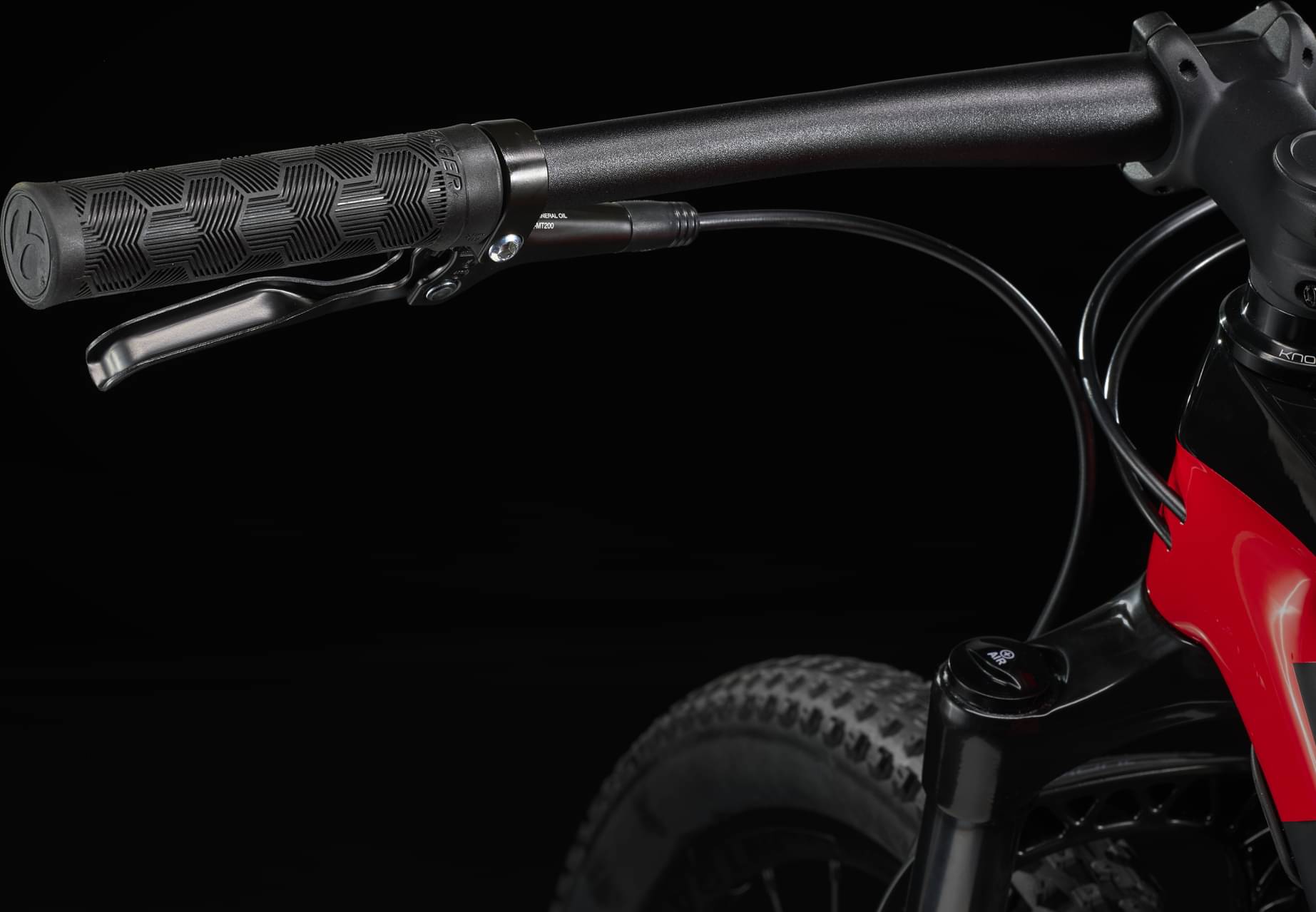

Bontrager XR Trail Comp, nylon lock-on
Headset

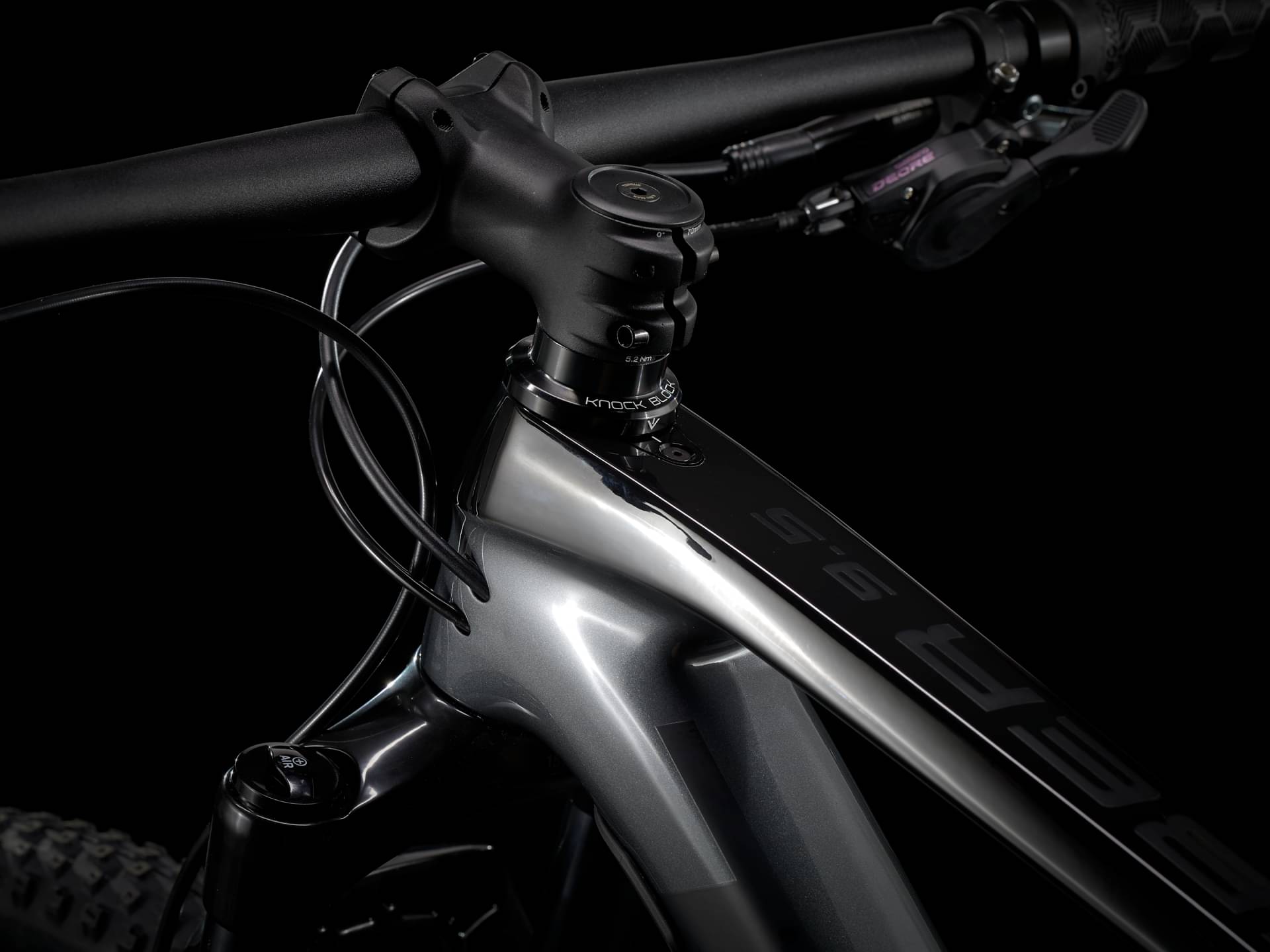

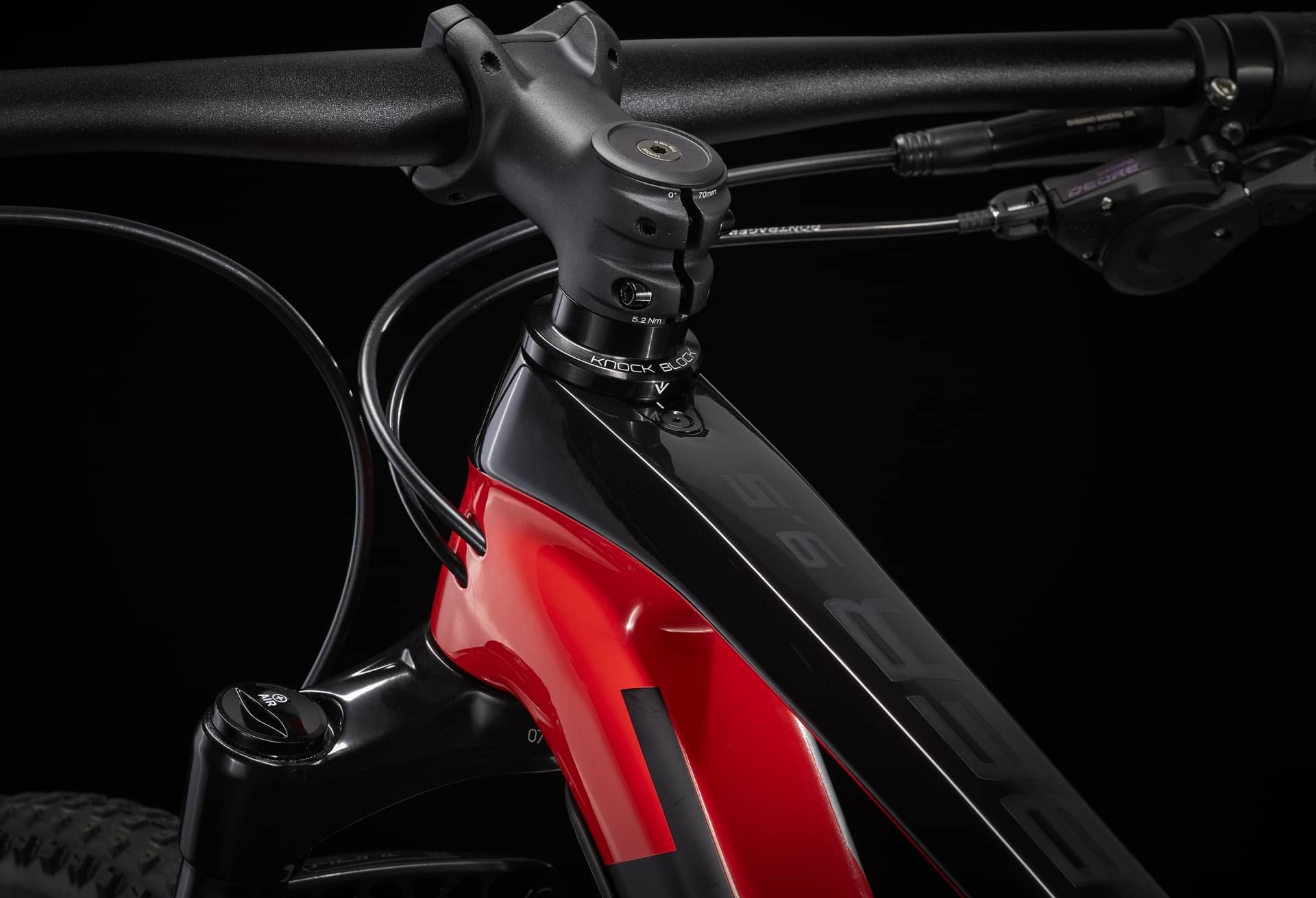

Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Size: S, M, ML, L, XL, Bontrager Arvada, steel rails, 138mm width; Size: S, M, ML, L, XL, Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Size: S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: ML, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.429 mm | 1.379 mm | 1.333 mm | 1.279 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 653 mm | 678 mm | 693 mm | 708 mm | 743 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 600 mm | 600 mm | 600 mm | 600 mm | 614 mm |
| Reach | 395 mm | 420 mm | 435 mm | 450 mm | 480 mm |
| Top Tube Length | 570 mm | 595 mm | 610 mm | 625 mm | 659 mm |
| Seat Tube Angle | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 393 mm | 419 mm | 444 mm | 470 mm | 510 mm |
| Head Tube Angle | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1078 mm | 1103 mm | 1118 mm | 1133 mm | 1168 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 715 mm | 755 mm | 765 mm | 784 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
