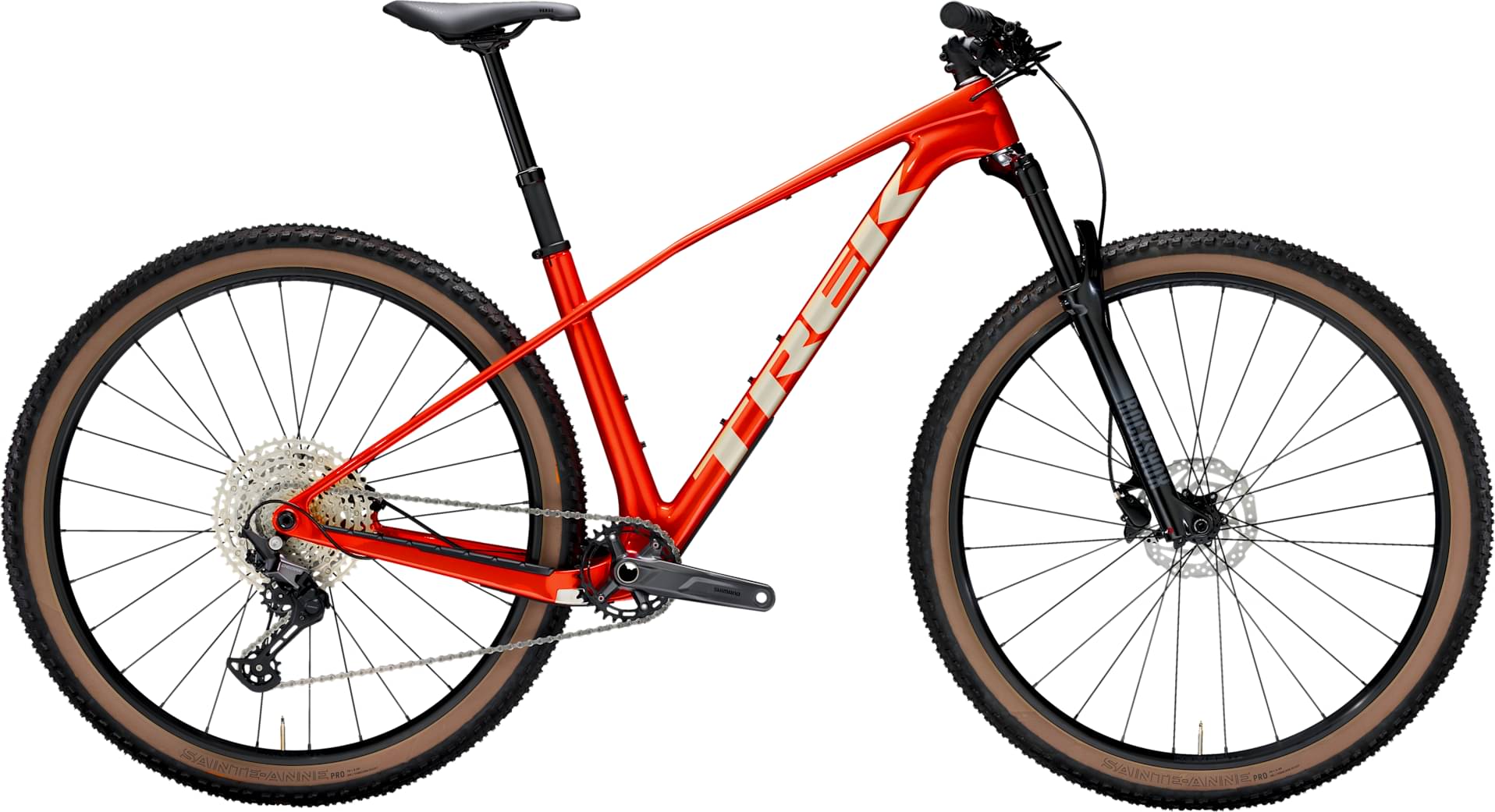

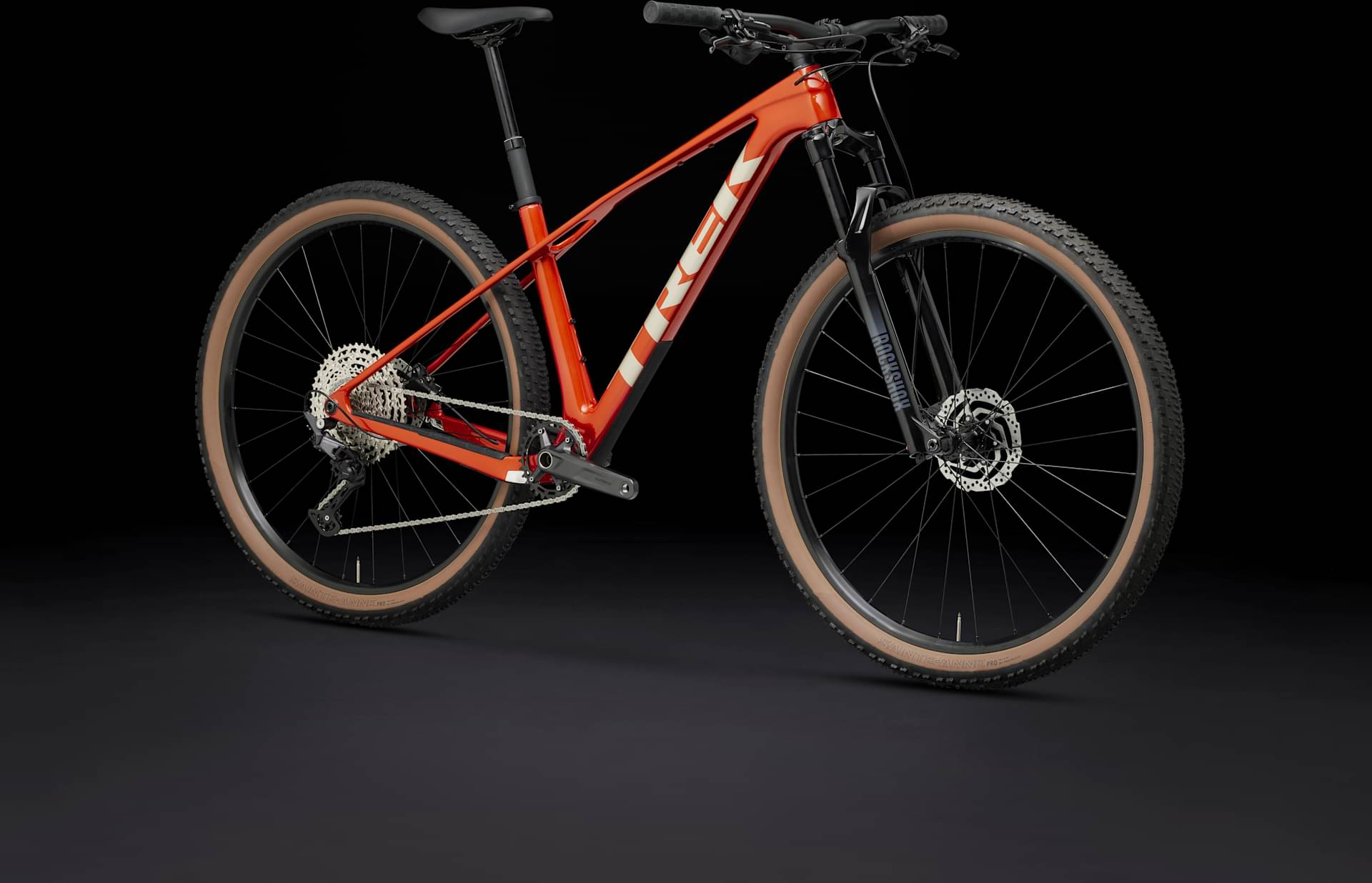

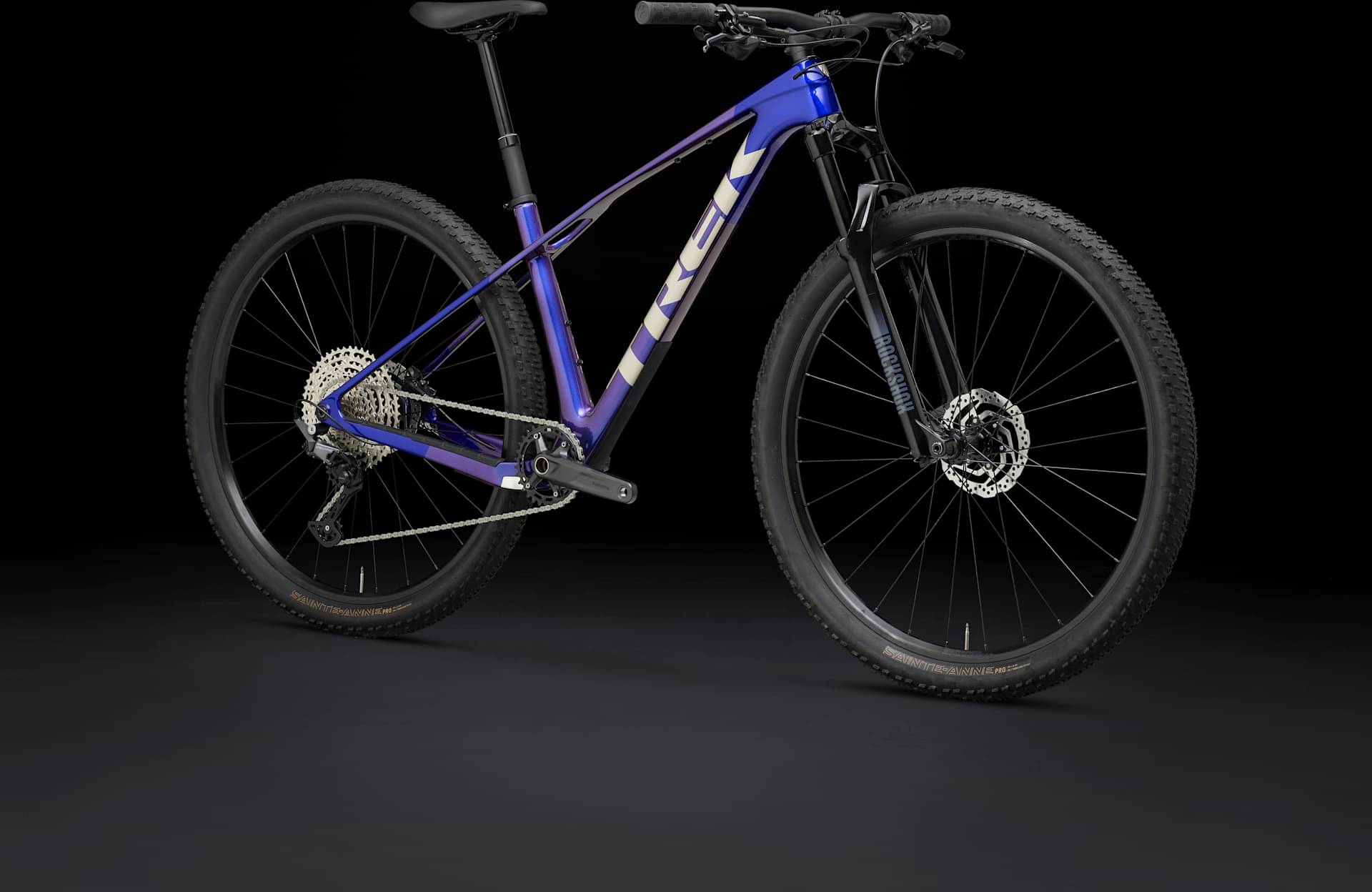

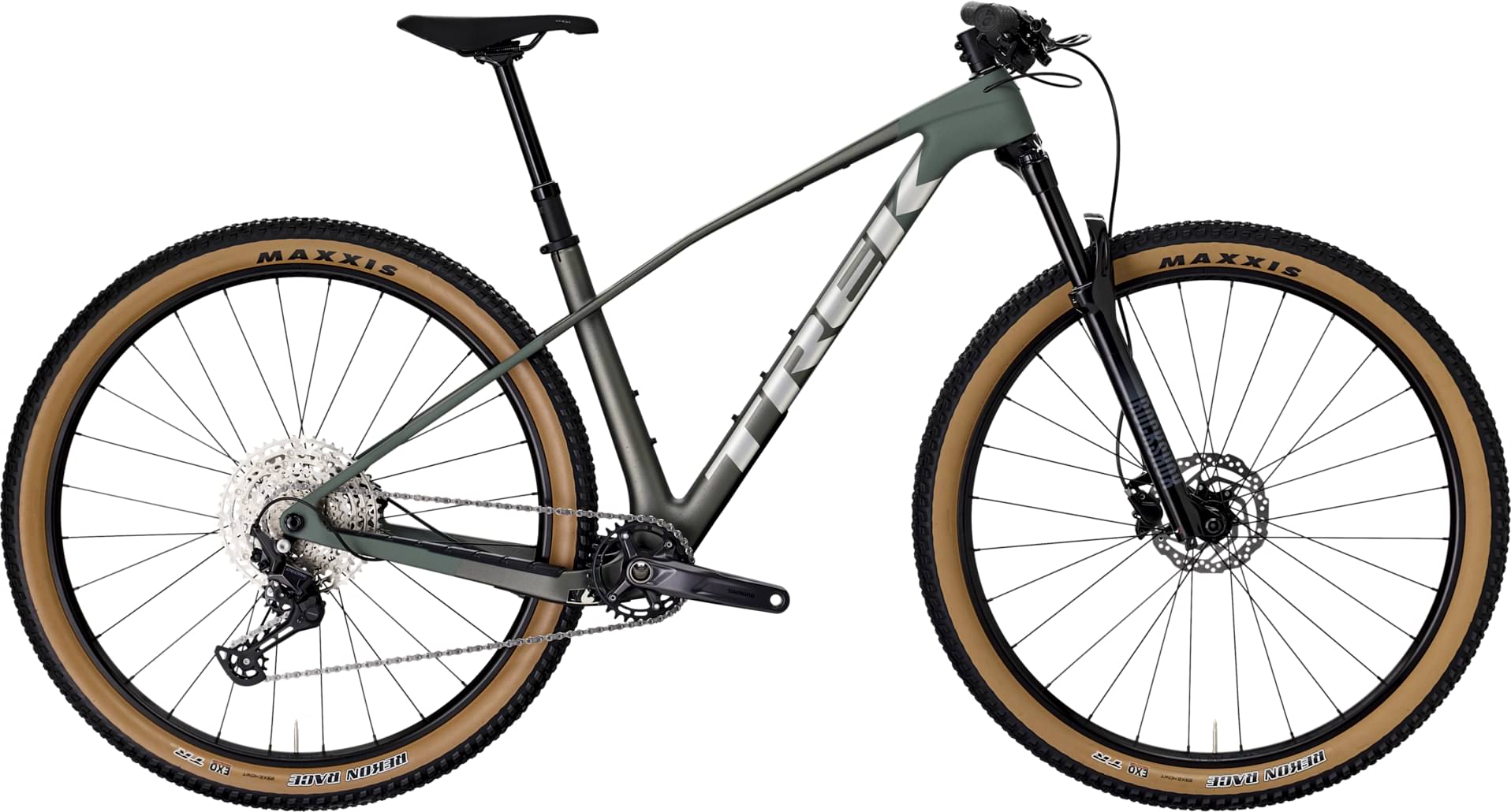

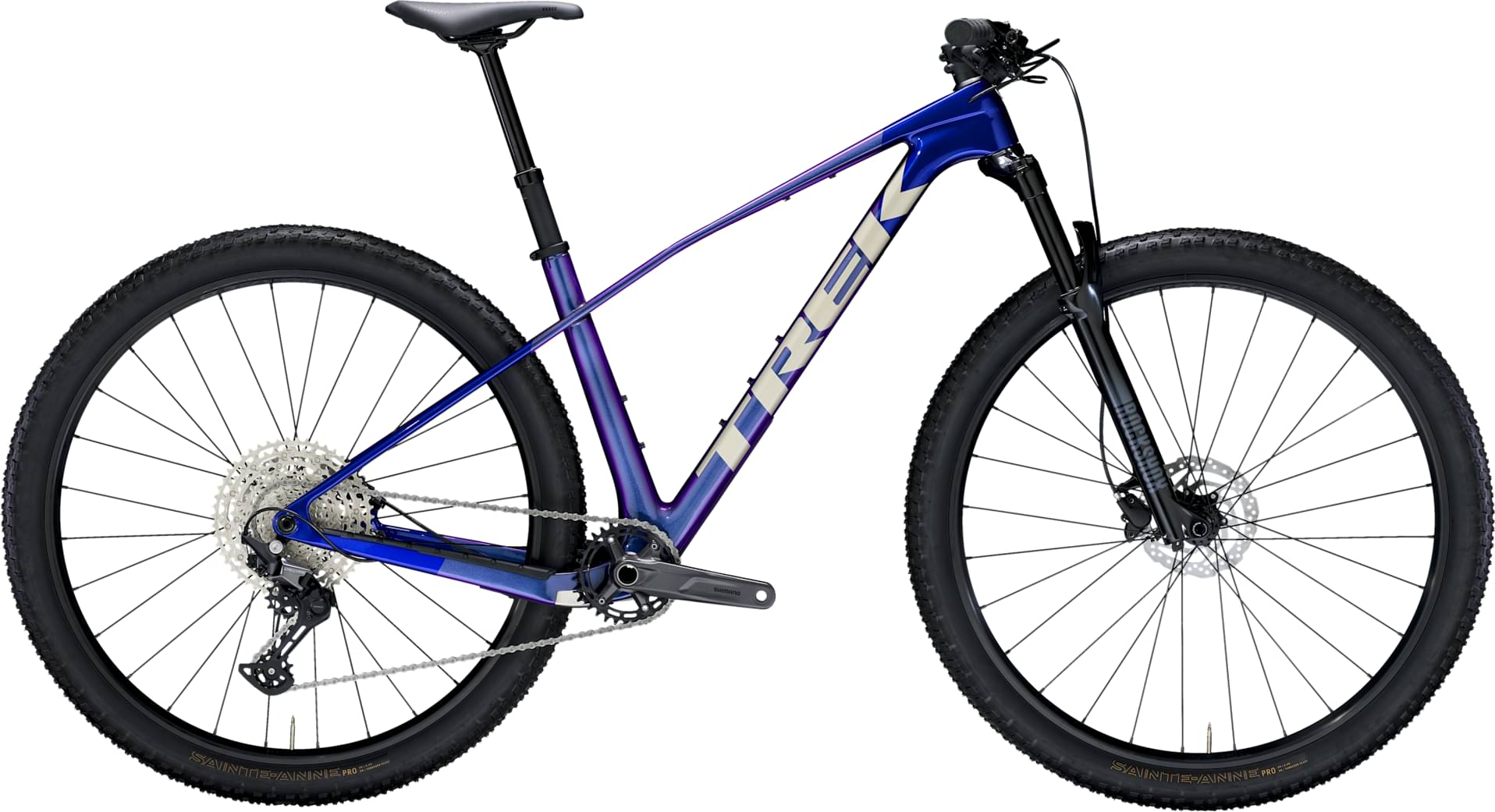

Trek Procaliber 9.5 Gen 3 2026
2026 Mountain
Estimate price |
2,093$
Weight | 12.13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
MD/LG
173cm - 180cm
LG
177cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

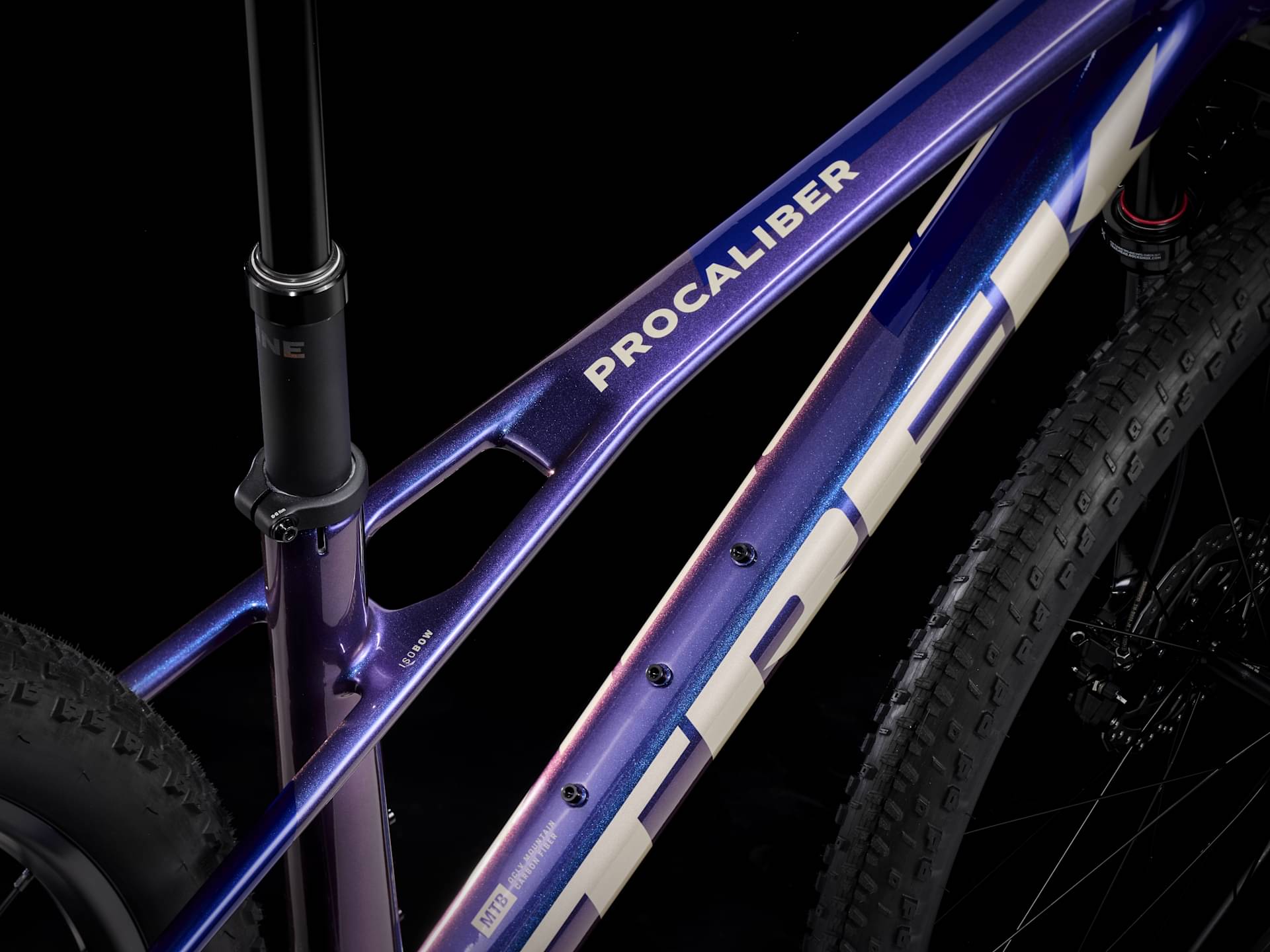

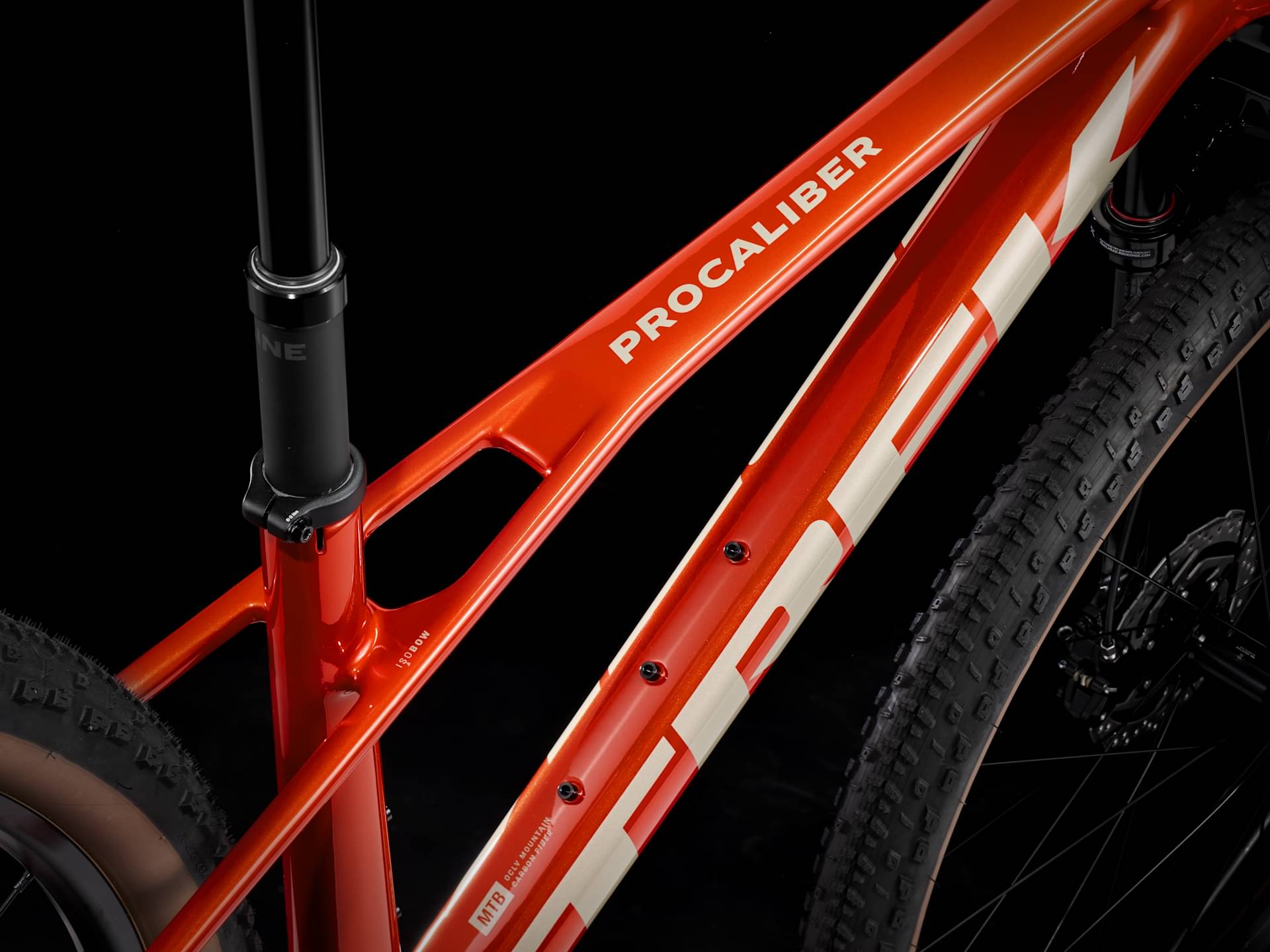

OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post mount brake, Boost148
Suspension Fork

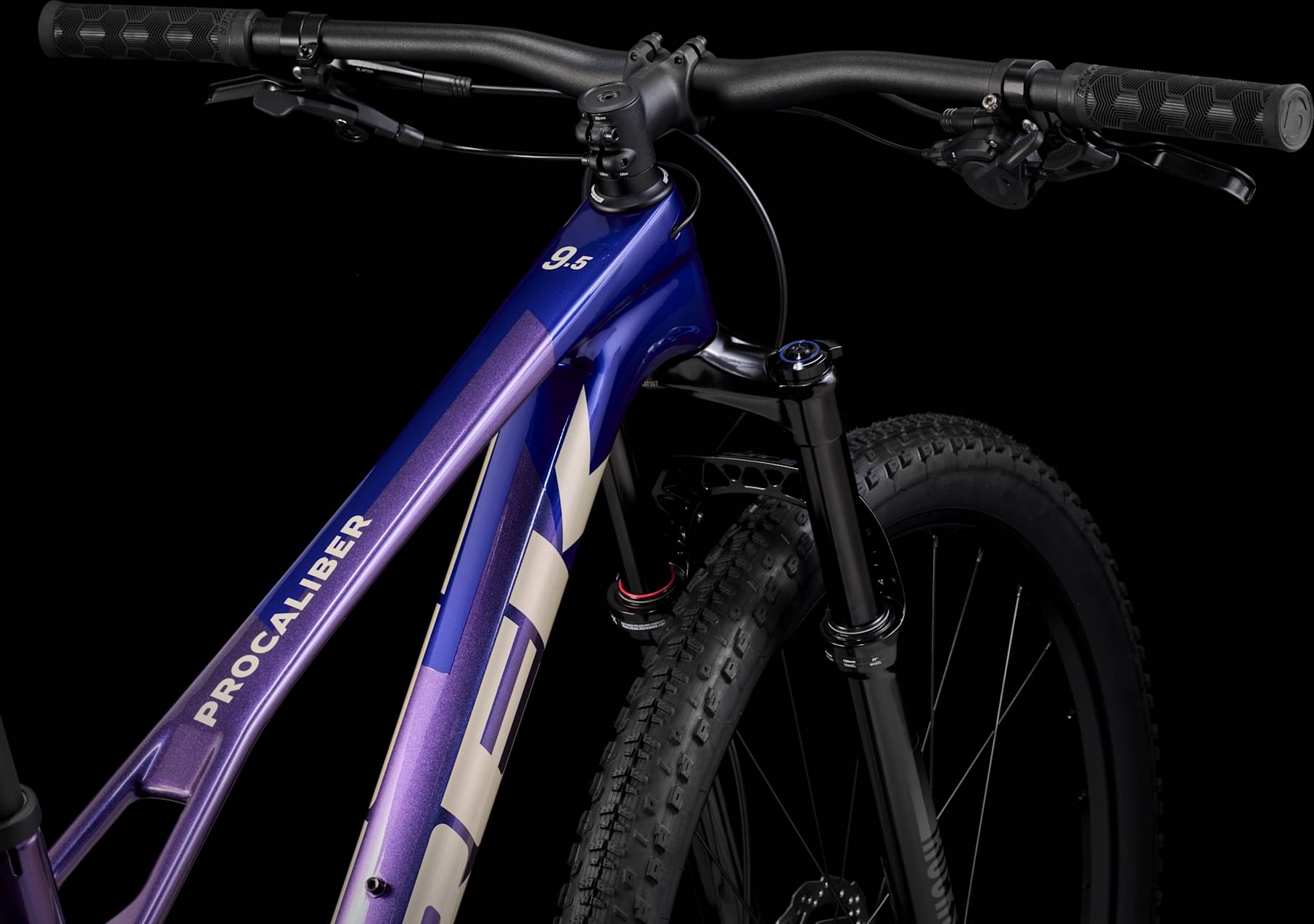

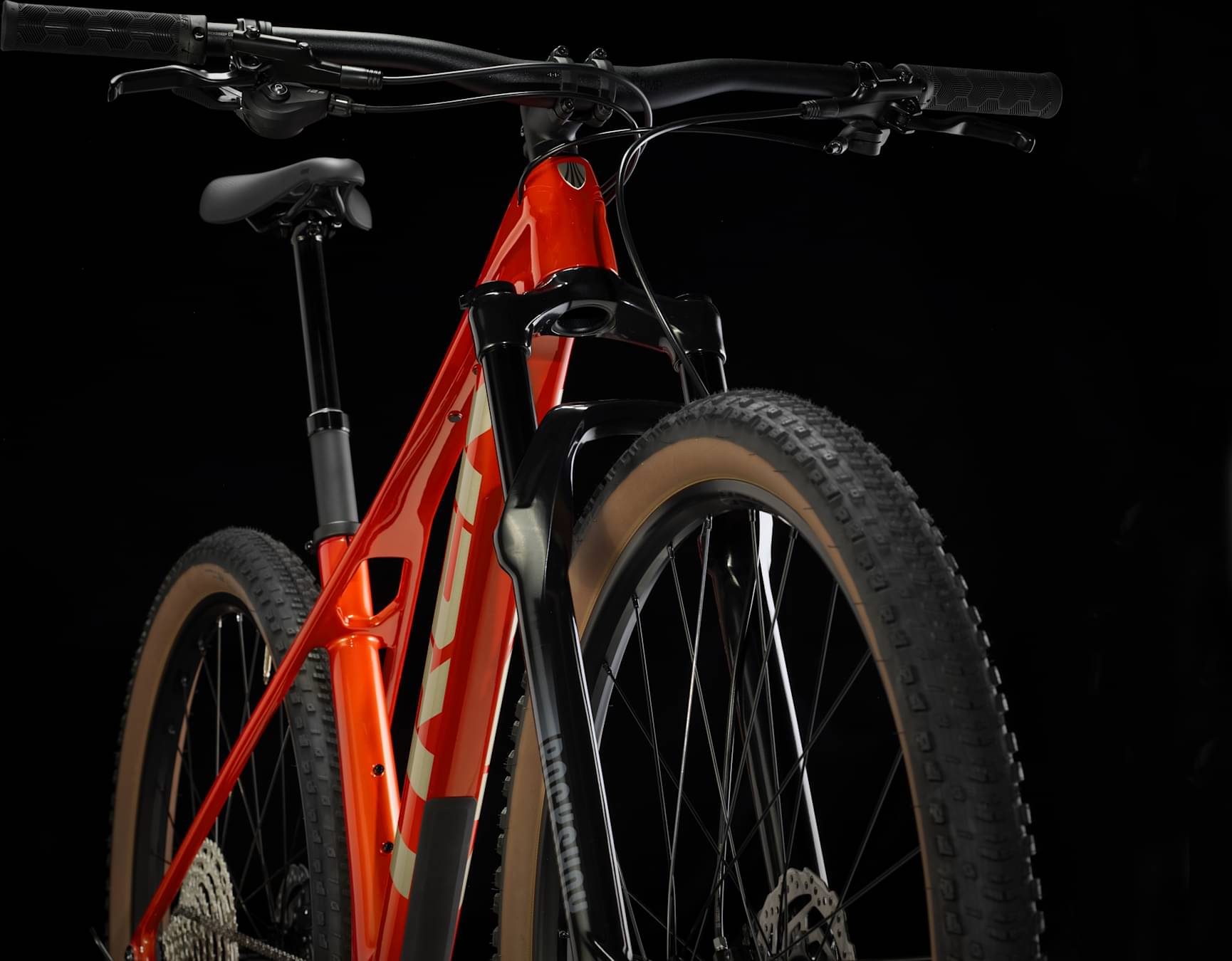

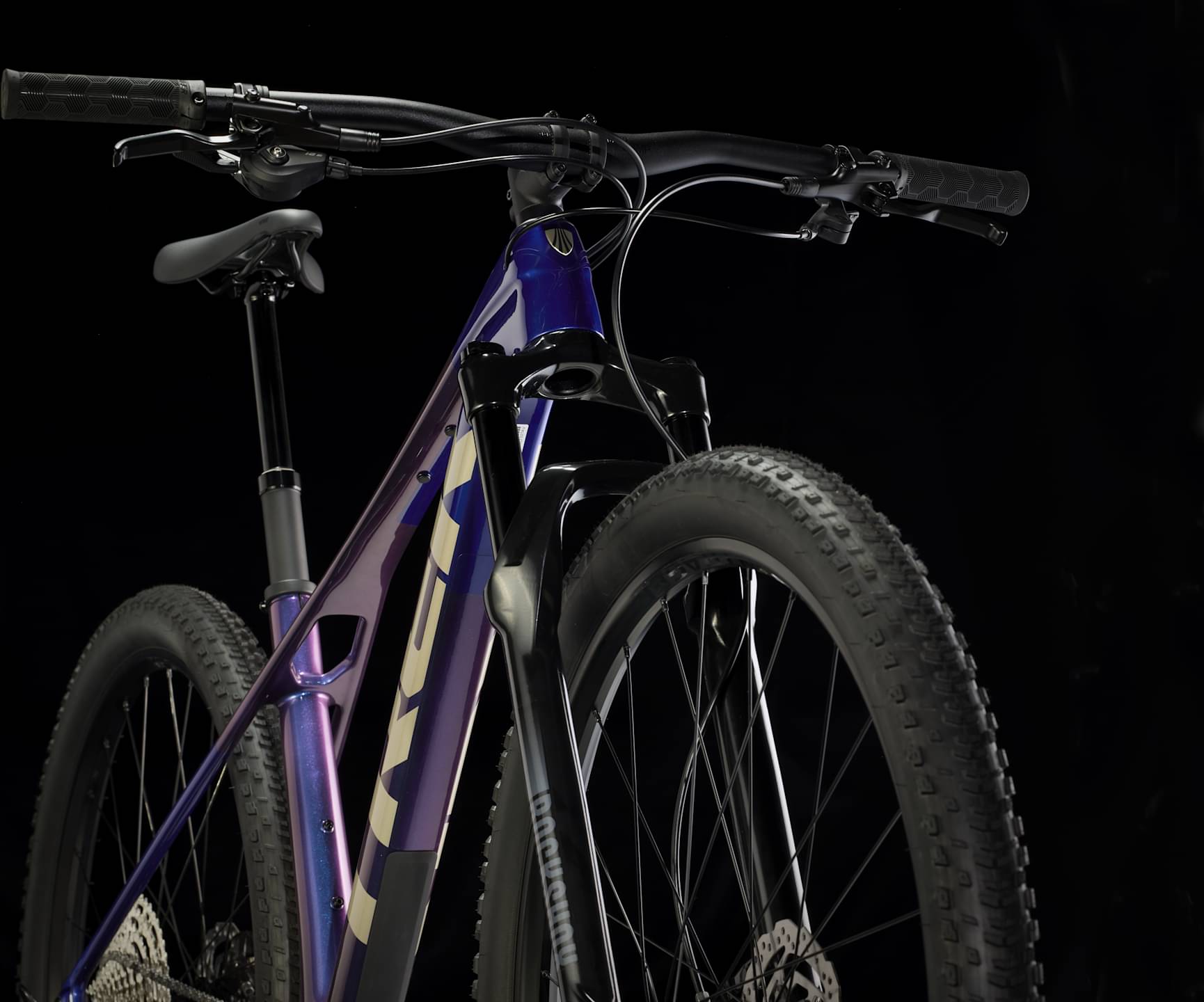

RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Drivetrain

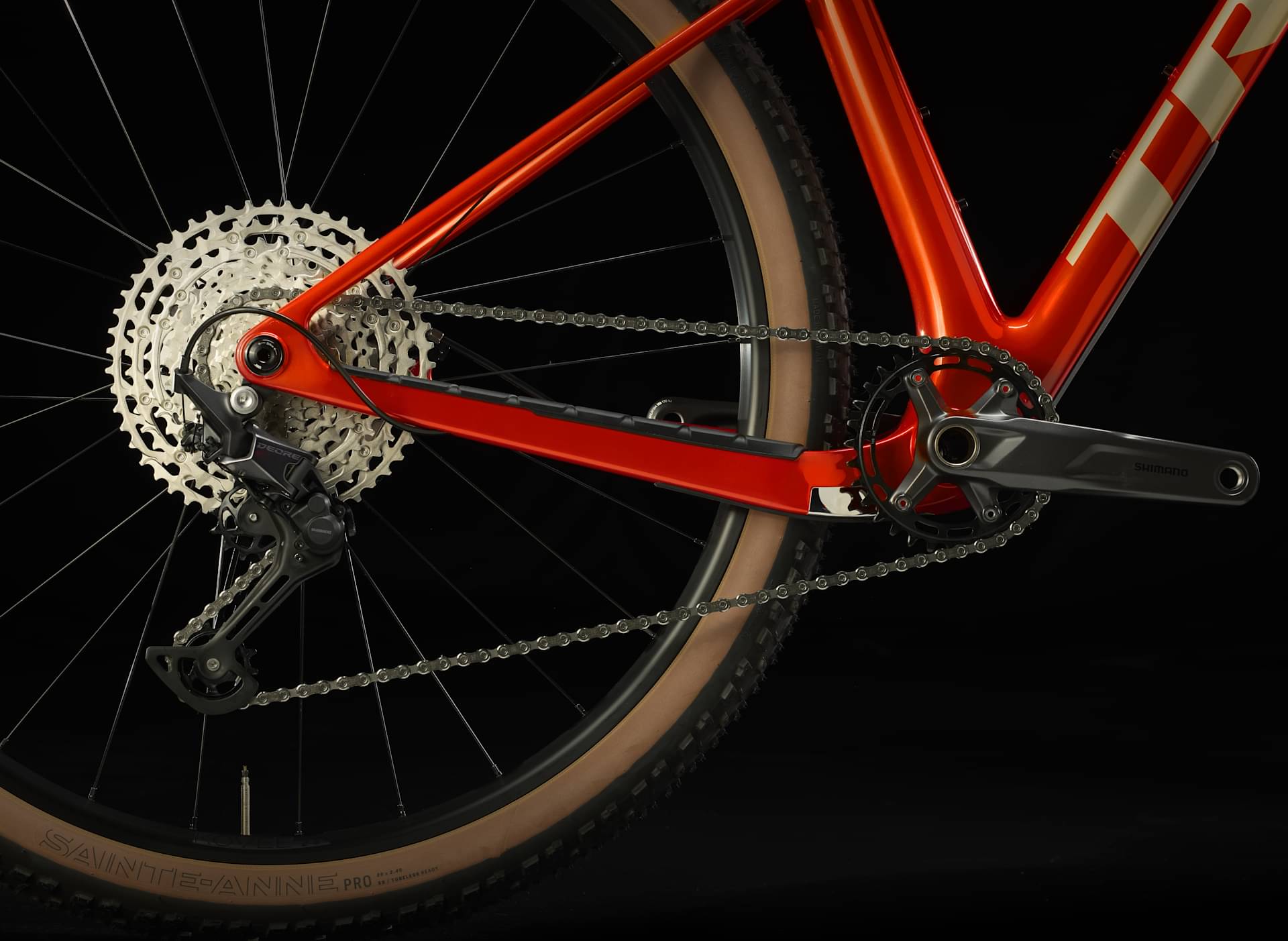

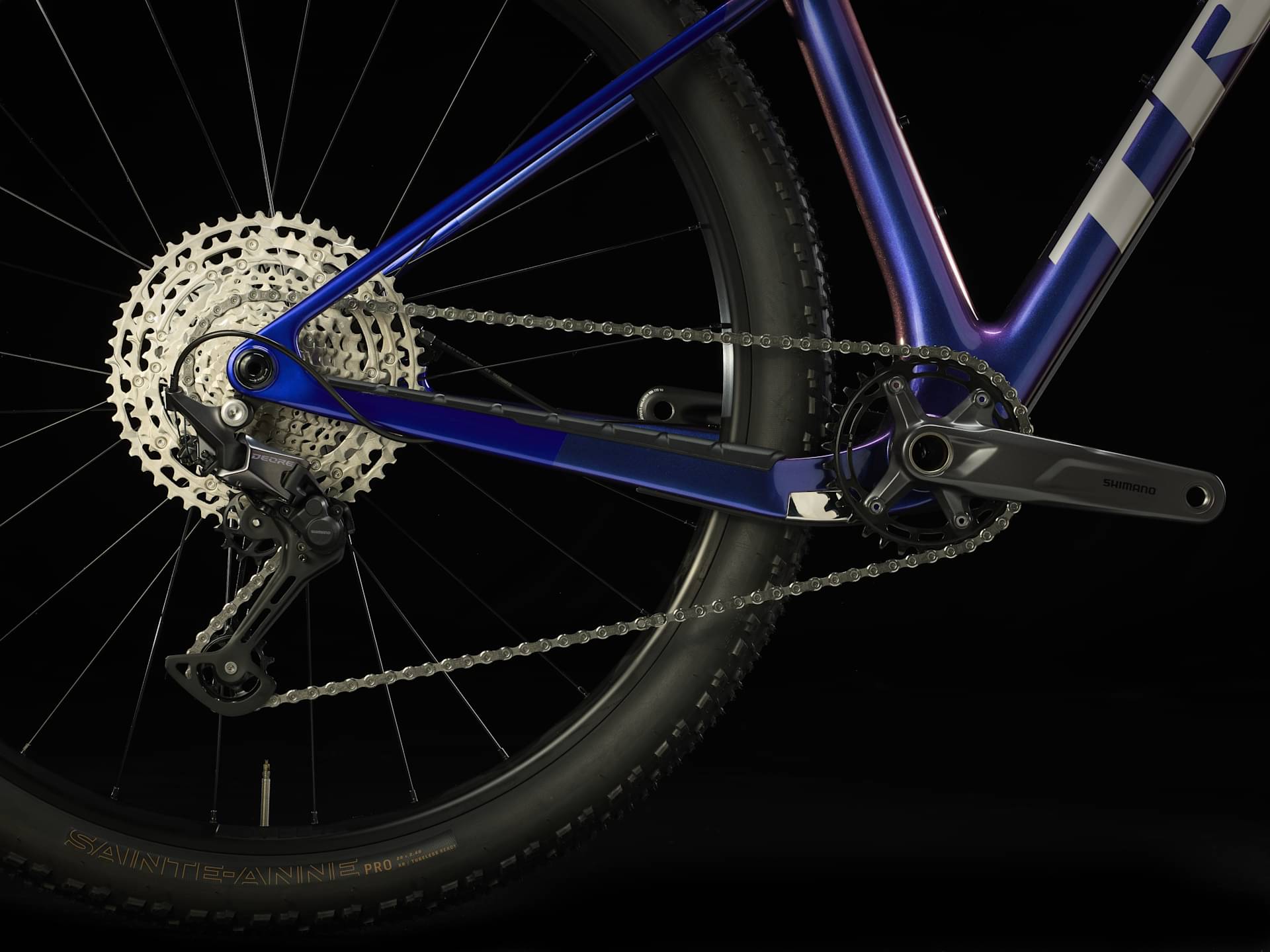

Rear Derailleur
Shimano Deore M6100, long cage
Shift Levers
Shimano Deore M6100, 12 speed
Cassette
Shimano Deore M6100, 10-51, 12 speed
Crank
Size: S, M, ML, Shimano MT512, 32T, 55mm chainline, 170mm; Size: L, XL, Shimano MT512, 32T, 55mm chainline, 175mm
Bottom Bracket
Shimano MT500, 92mm, PressFit
Chain
Shimano Deore M6100, 12 speed
Wheels
Front Hub
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Rear Hub
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Tires
Size: S, M, ML, L, XL, Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"; Size: S, M, ML, L, XL, Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20"
Brakes
Brakes
Shimano MT200 hydraulic disc

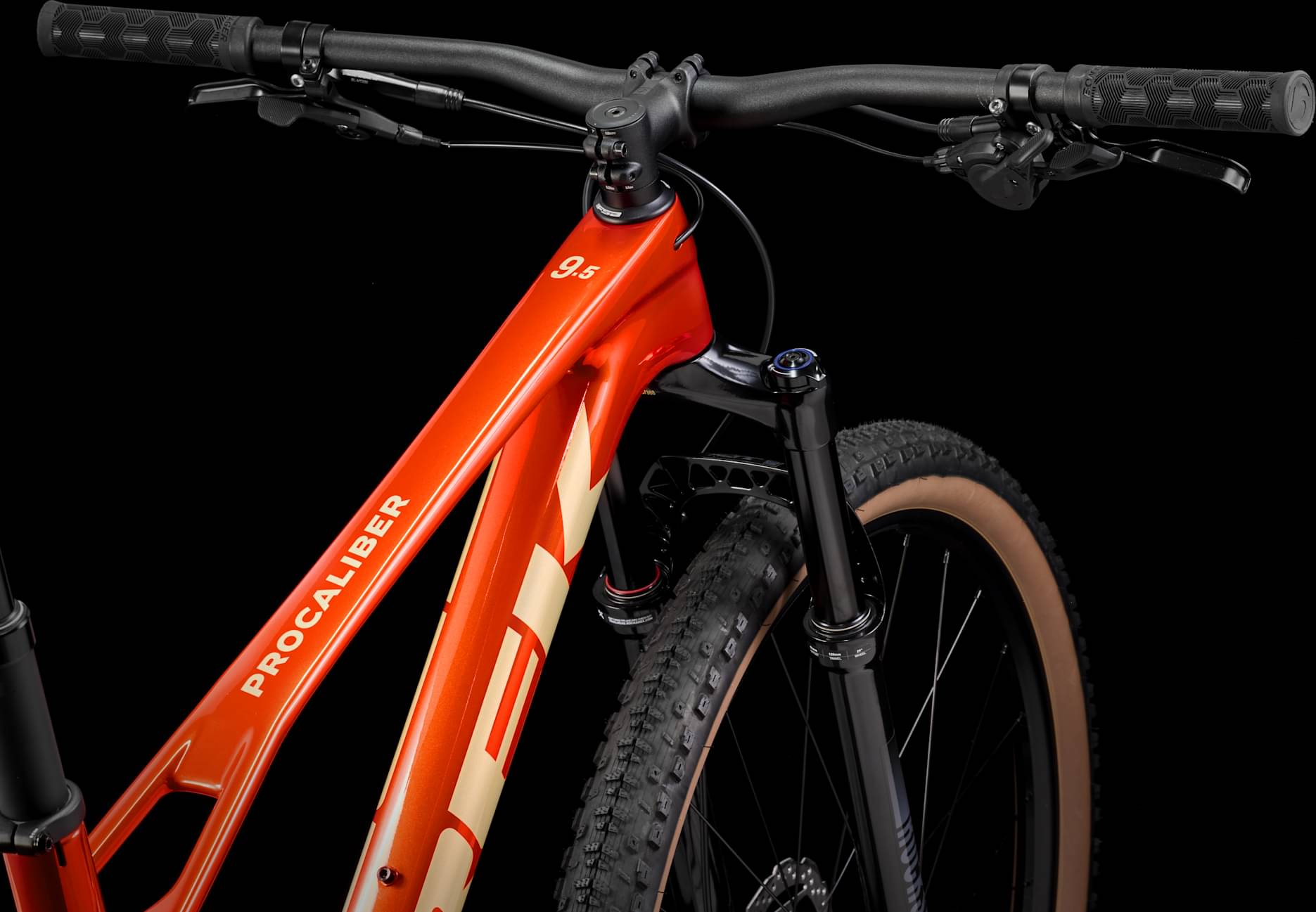

Cockpit
Stem
Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, ML, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Handlebar
Size: S, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: M, ML, L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Size: S, M, ML, L, XL, Bontrager XR Trail Comp, nylon lock-on; Size: S, M, ML, L, XL, Trek Line Comp, nylon lock-on
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Seat
Saddle
Verse Short, chromoly rails, 145mm width
Seatpost
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: M, ML, L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length; Size: XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.516 mm | 1.428 mm | 1.38 mm | 1.335 mm | 1.284 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 688 mm | 713 mm | 728 mm | 743 mm | 794 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm | 43 mm |
| Trail | 112 mm | 112 mm | 112 mm | 111 mm | 112 mm |
| Stack | 614 mm | 614 mm | 614 mm | 614 mm | 642 mm |
| Reach | 405 mm | 430 mm | 445 mm | 460 mm | 500 mm |
| Top Tube Length | 577 mm | 598 mm | 613 mm | 628 mm | 677 mm |
| Seat Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 435 mm | 435 mm | 440 mm |
| Wheelbase | 1110 mm | 1135 mm | 1155 mm | 1171 mm | 1227 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 747 mm | 749 mm | 758 mm | 763 mm | 791 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 195 cm |
