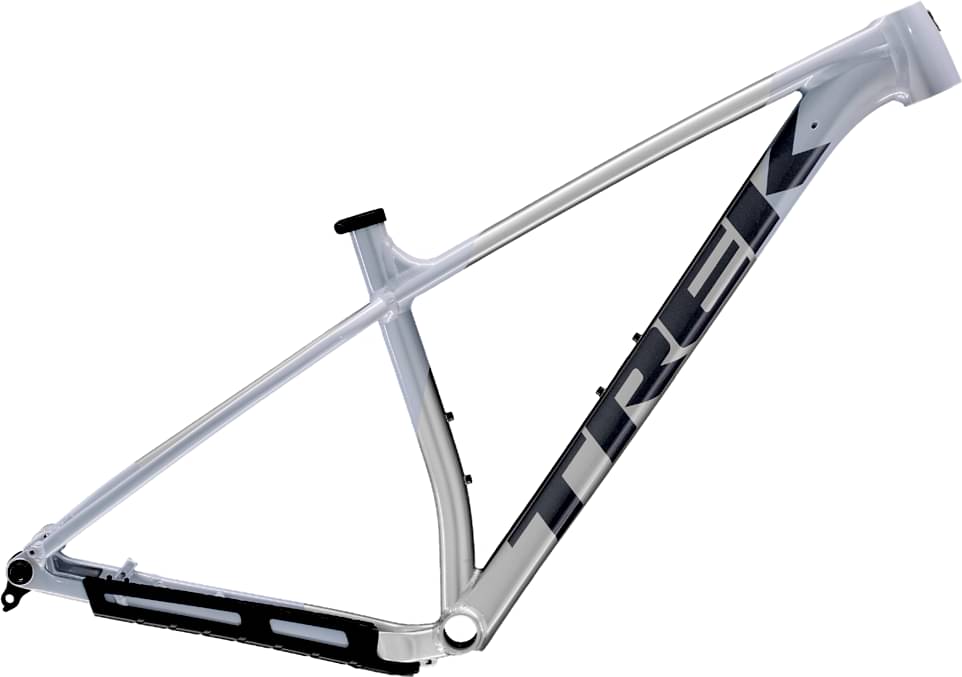

Trek Procaliber AL Frameset 2025
2025 Mountain
Estimate price |
930$
Weight | 2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
MD/LG
173cm - 180cm
LG
177cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12mm thru axle
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Wheels
Tires
Frame: 29x2.40", Fork: See manufacturer
Cockpit
Headset
Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.516 mm | 1.428 mm | 1.38 mm | 1.335 mm | 1.284 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 688 mm | 713 mm | 728 mm | 743 mm | 794 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm | 43 mm |
| Trail | 104 mm | 104 mm | 104 mm | 103 mm | 104 mm |
| Stack | 614 mm | 614 mm | 614 mm | 614 mm | 642 mm |
| Reach | 405 mm | 430 mm | 445 mm | 460 mm | 500 mm |
| Top Tube Length | 577 mm | 598 mm | 613 mm | 628 mm | 677 mm |
| Seat Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 435 mm | 435 mm | 440 mm |
| Wheelbase | 1110 mm | 1135 mm | 1155 mm | 1171 mm | 1227 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 747 mm | 749 mm | 758 mm | 763 mm | 791 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 195 cm |
