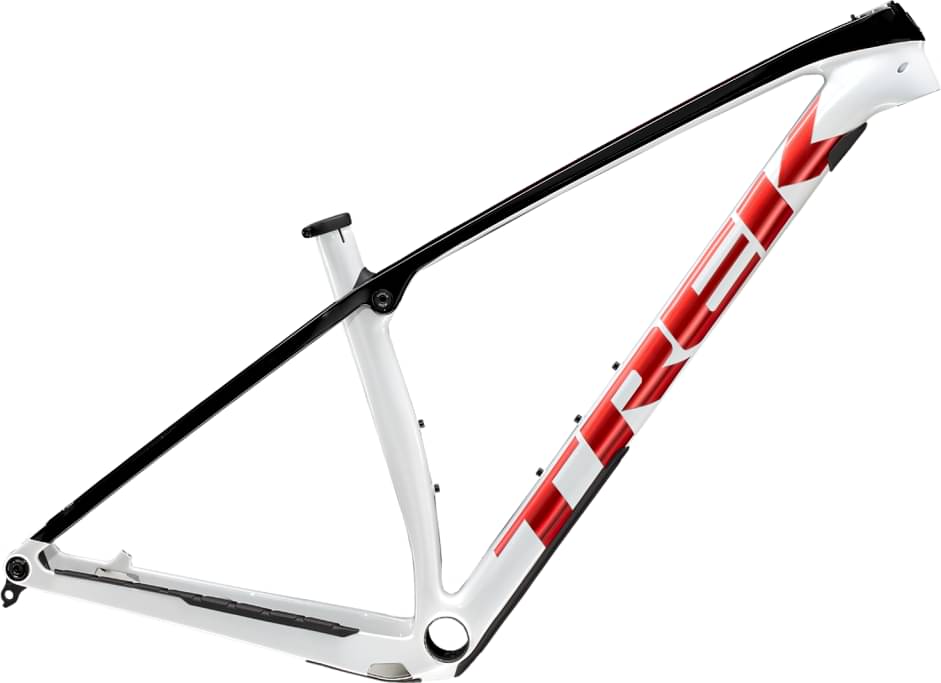

Trek Procaliber Frameset Gen 2 2024

Bike details

Overview

Key information split into simple groups.

Sizing

Parts list

Components

OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148

29x2.40"

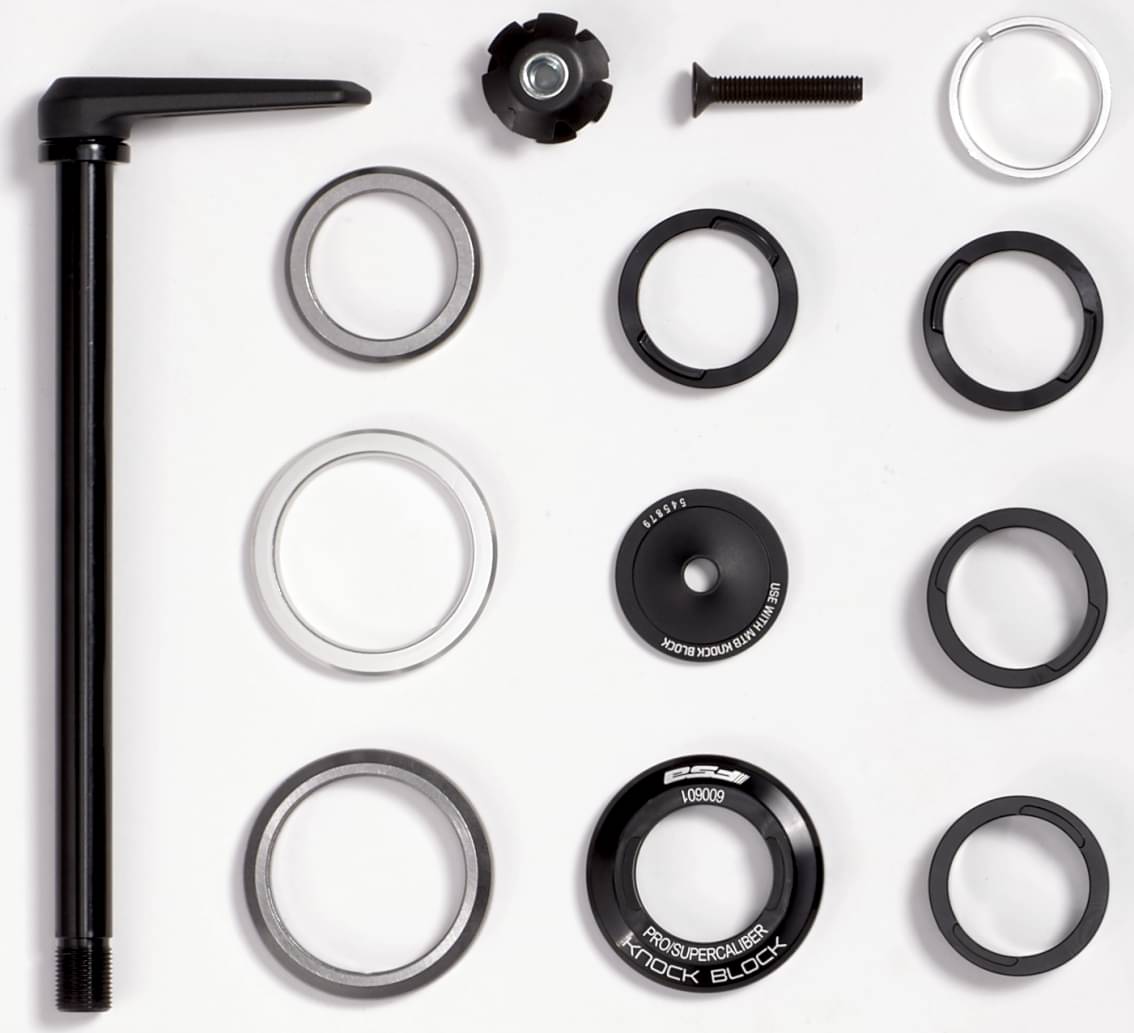

Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom

Fit data

Geometry

Numbers for sizing and ride feel.

Size	17.5"	15.5"	18.5"	19.5"	21.5"	23"
Stack Reach Ratio	1.429 mm	1.519 mm	1.379 mm	1.333 mm	1.279 mm	1.246 mm
Bottom Bracket Height	313 mm	313 mm	313 mm	313 mm	313 mm	313 mm
Front Center	678 mm	653 mm	693 mm	708 mm	743 mm	769 mm
Rake	43 mm	43 mm	43 mm	43 mm	42 mm	45 mm
Trail	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm
Stack	600 mm	600 mm	600 mm	600 mm	614 mm	623 mm
Reach	420 mm	395 mm	435 mm	450 mm	480 mm	500 mm
Seat Tube Angle	73.8 °	73.8 °	73.8 °	73.8 °	73.8 °	73.8 °
Seat Tube Length	419 mm	393 mm	444 mm	470 mm	510 mm	545 mm
Head Tube Angle	68.8 °	68.8 °	68.8 °	68.8 °	68.8 °	68.8 °
Head Tube Length	90 mm	90 mm	90 mm	90 mm	105 mm	120 mm
Chainstay Length	432 mm	432 mm	432 mm	432 mm	432 mm	432 mm
Wheelbase	1103 mm	1078 mm	1118 mm	1133 mm	1168 mm	1194 mm
Bottom Bracket Drop	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm
Standover Height	755 mm	715 mm	765 mm	784 mm	814 mm	841 mm
Wheels	29"	29"	29"	29"	29"	29"
Rider Min Height	164 cm	155 cm	173 cm	177 cm	187 cm	194 cm
Rider Max Height	176 cm	166 cm	180 cm	189 cm	196 cm	203 cm
