Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RockShox Reba
-
Groupset Bontrager -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Platinum Series ZR9000 SS internally and externally butted aluminum w/ eccentric bottom bracket | Genesis 29" Geometry
Suspension Fork
RockShox Reba SL Dual Air 29 / External rebound, internal floodgate, external compression and lock-out | Butted aluminum steerer | 80mm travel
Drivetrain
Cassette
18T 1/2x1/8
Crank
Bontrager Race Lite SS 32T
Bottom Bracket
EBB, press-fit
Pedals
Shimano M505 ATB clipless
Wheels
Rims
Bontrager Race 29 Disc SS wheelsystem | Bontrager Jones ACX K 29x2.2
Tires
Bontrager Jones ACX K 29x2.2
Brakes
Brakes
Avid BB 7 mechanical disc | 6" rotor w/ Avid FR-5
Cockpit
Stem
Bontrager Select OS | 7d rise
Handlebar
Bontrager Crowbar Select OS
Headset
Cane Creek S1 | Cartridge | Sealed
Seat
Saddle
Bontrager Select
Seatpost
Bontrager Select
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

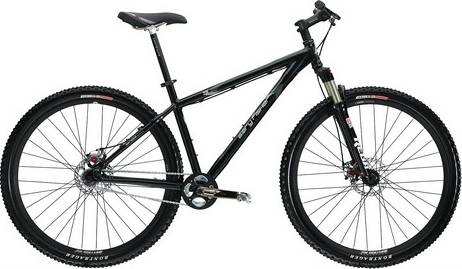

Rig belongs to the Trek Rig model. There are 10 bikes that carry this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the Rig bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Trek Rig bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
