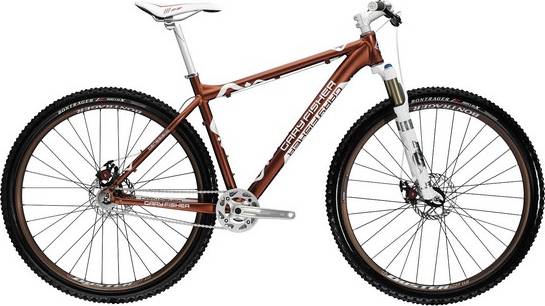

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Fox
-
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Platinum Series 6066 butted & hydroformed aluminum, eccentric BB, cold-forged dropouts, G2 29" Geometry
Suspension Fork
Fox F80RL 29, 80mm travel, custom G2 Geometry 51mm offset crown, air spring, external rebound & lockout
Drivetrain
Cassette
18T
Bottom Bracket
EBB, press-fit
Wheels
Rims
Bontrager Race Disc front hub/Bontrager Race sealed micro-cassette rear singlespeed hub, Bontrager Duster 29 tubeless ready* 28mm wide disc rims, 32h
Tires
Bontrager XDX, 29x2.1 (53/51), tubeless ready, abrasion resistant,120 TPI aramid folding bead
Brakes
Brakes
Avid BB7, mechanical disc, 160mm Roundagon 6-bolt rotors
Cockpit
Stem
Bontrager SSR, 10d rise, 31.8mm
Handlebar
Bontrager Race Big Sweep, 620mm width, 12d backsweep, 31.8mm
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Race
Seatpost
Bontrager SSR, micro adjust, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rig completes the Trek Rig model. There are 10 bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
This bike has the Fox fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Rig bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rig has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Rig comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
