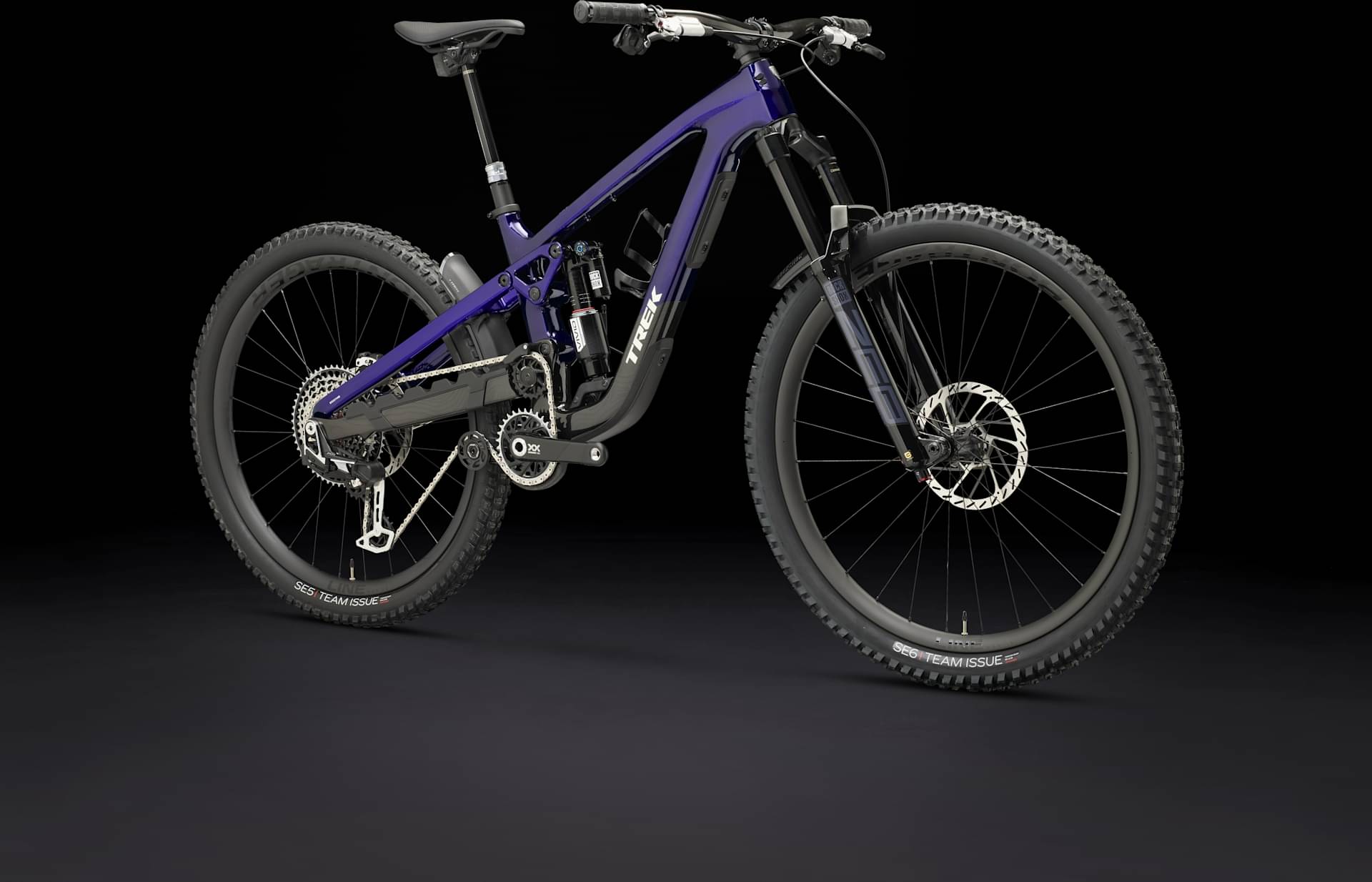

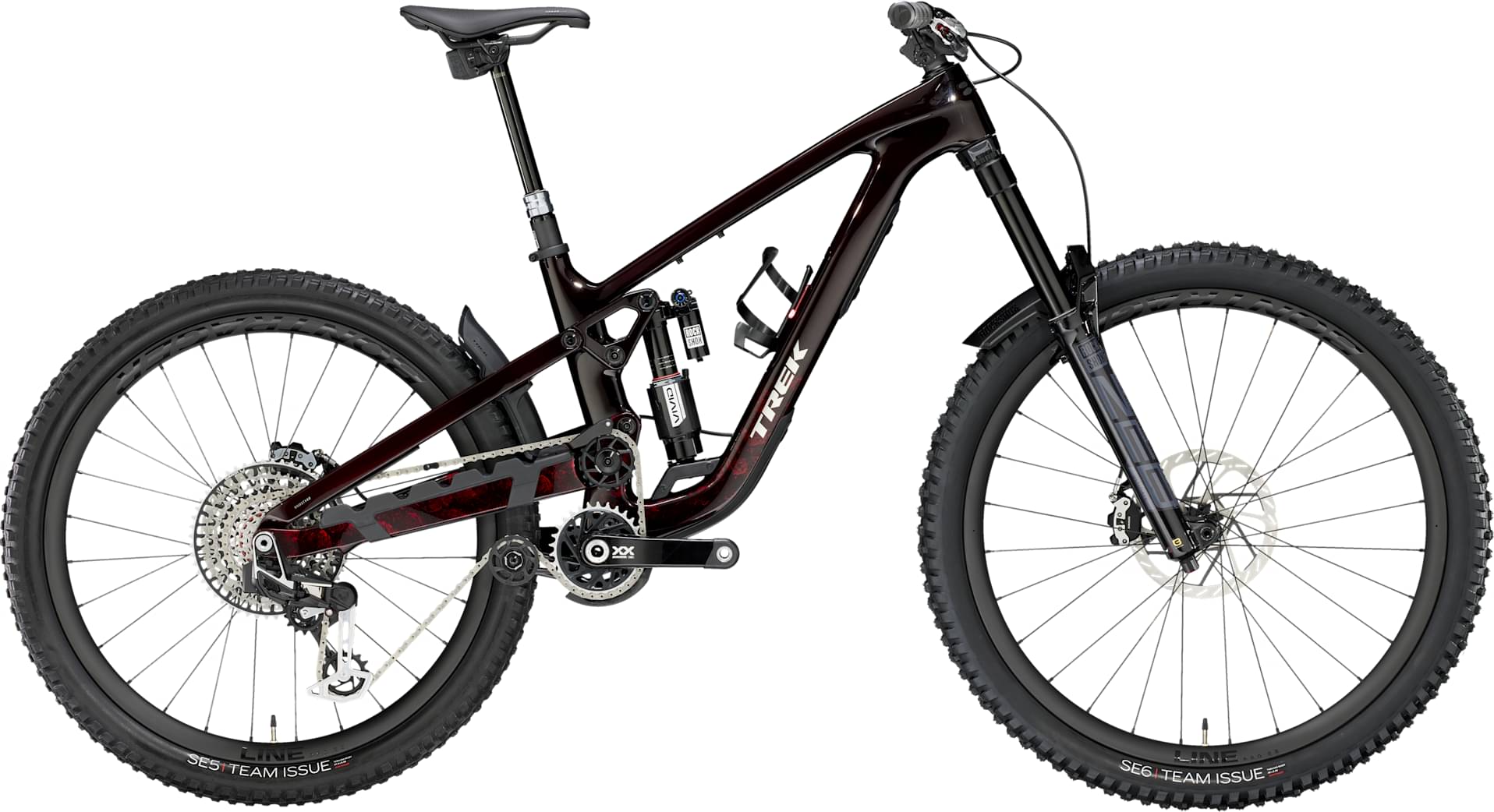

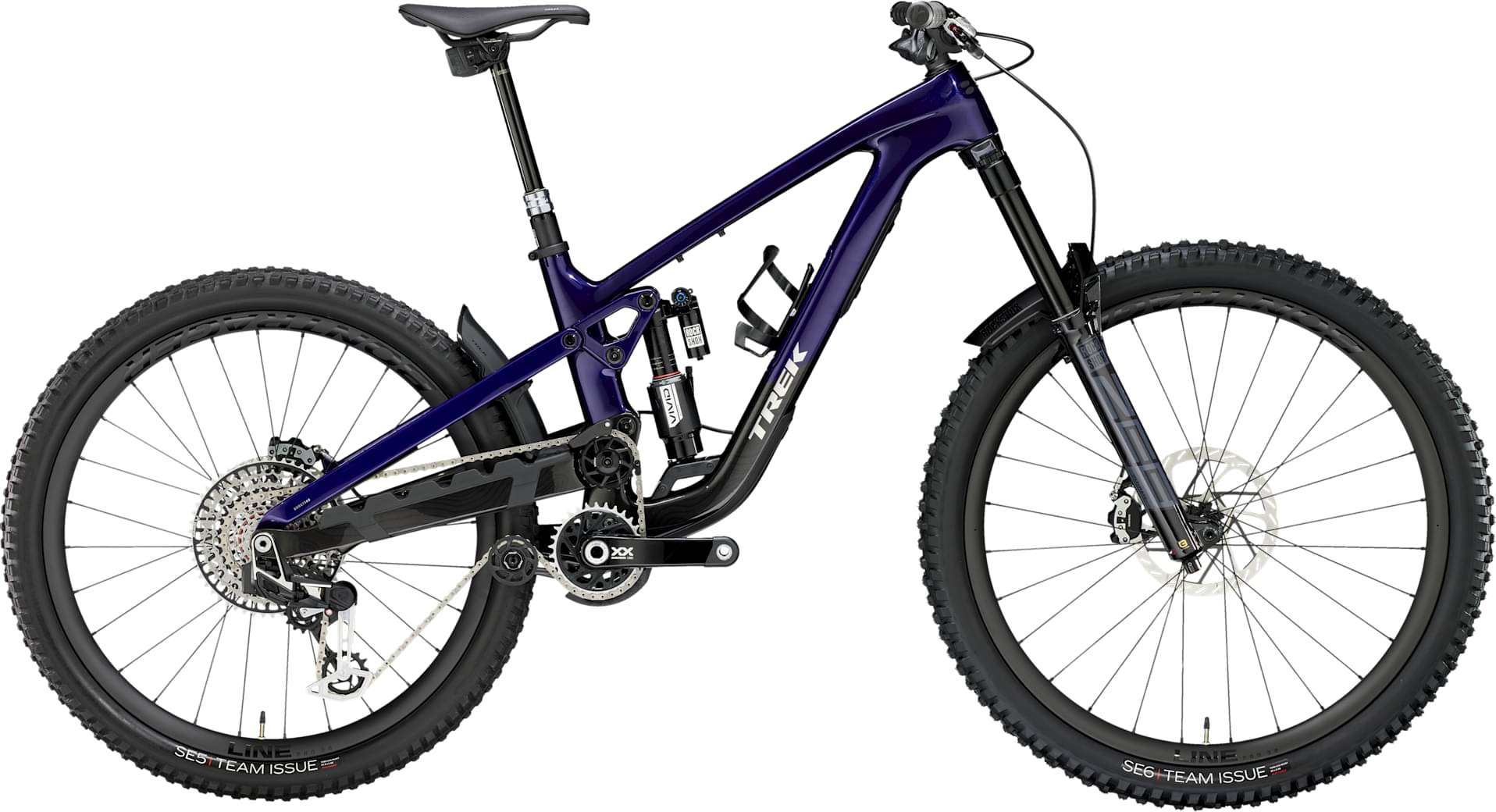

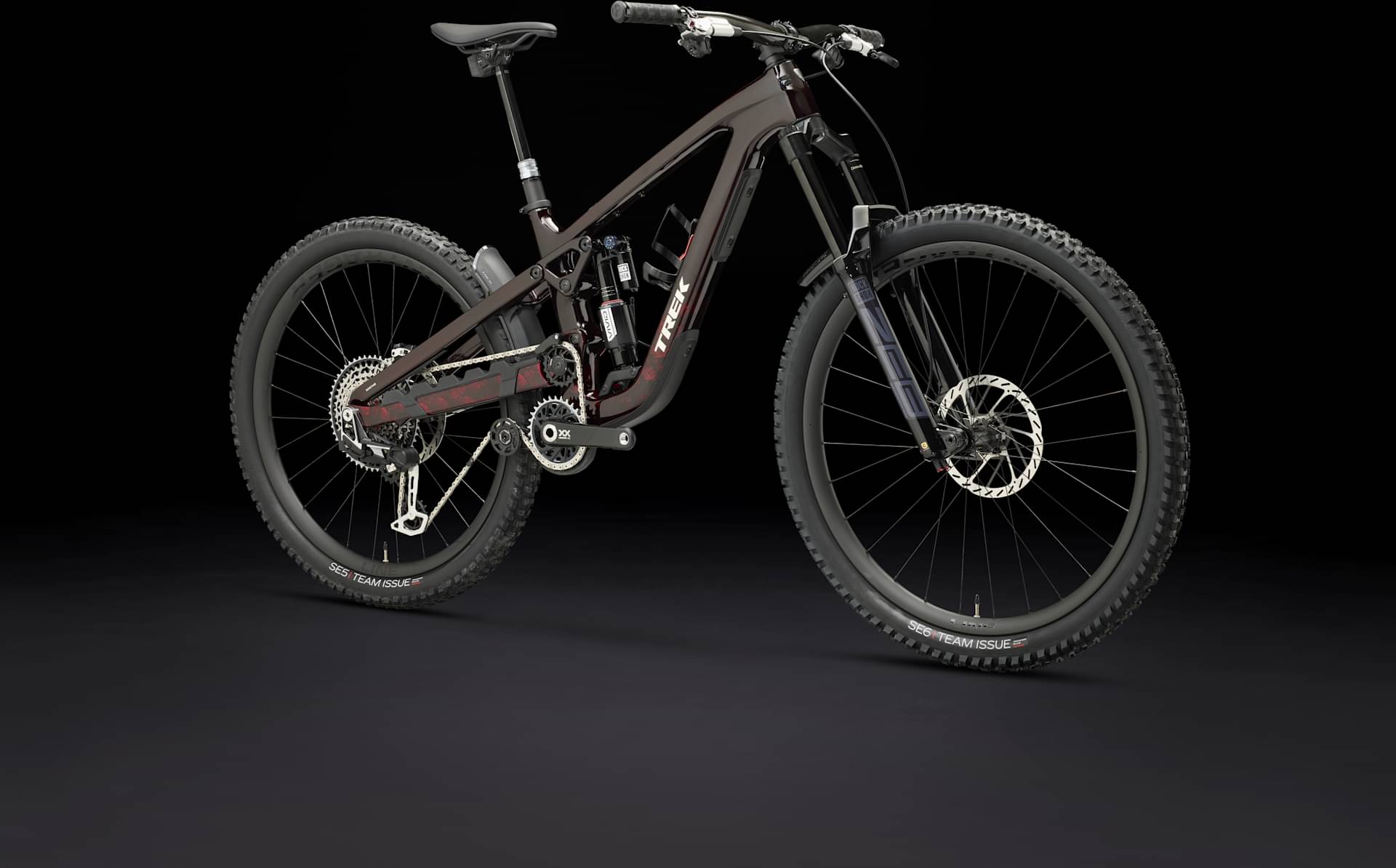

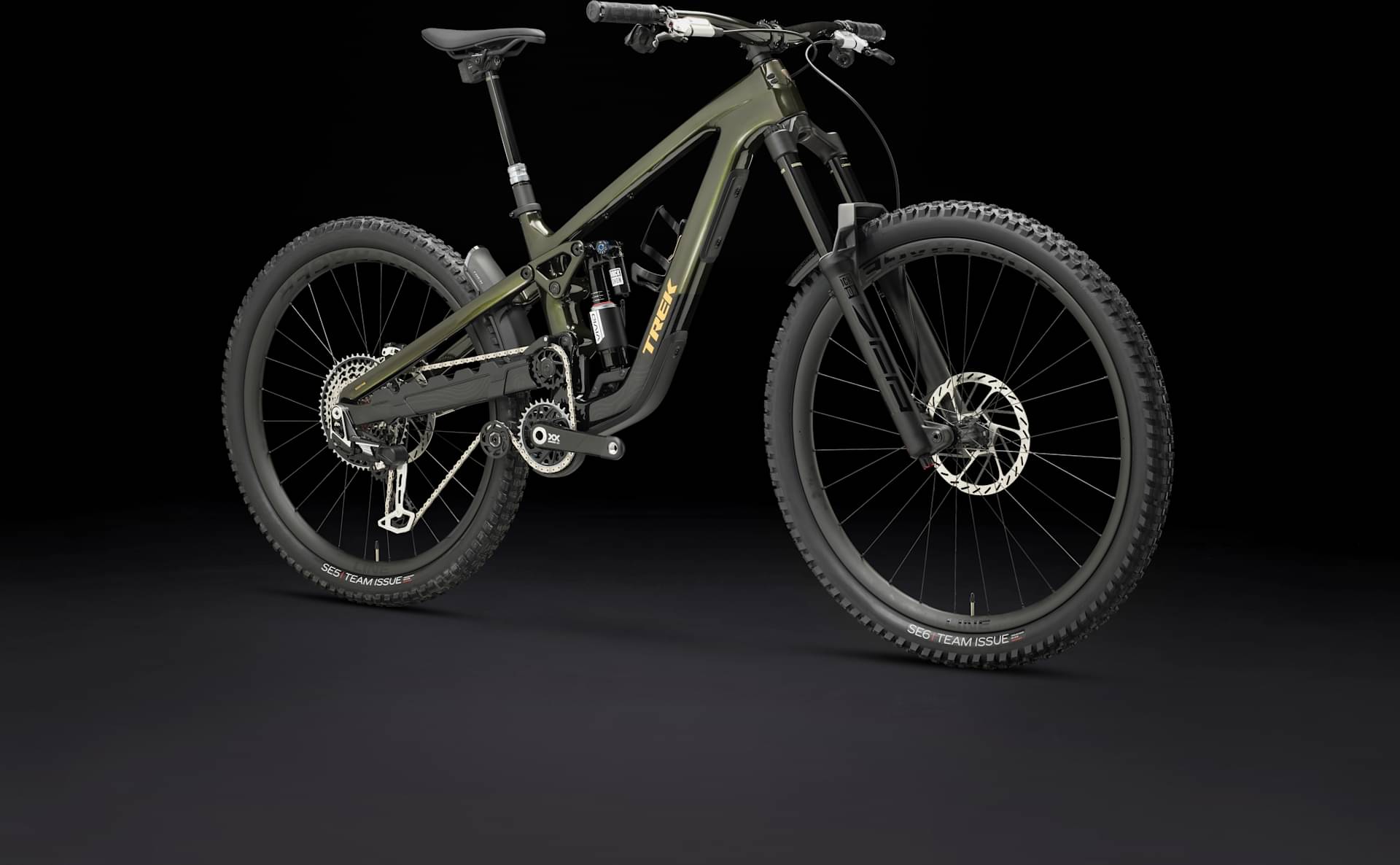

Trek Slash 9.9 XX AXS T-Type Gen 6 2025
2025 Mountain
Estimate price |
14,541$
Weight | 15.78 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
155cm - 166cm
17.5"
164cm - 176cm
18.5"
173cm - 180cm
19.5"
177cm - 189cm
21.5"
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12mm thru axle, 170mm travel

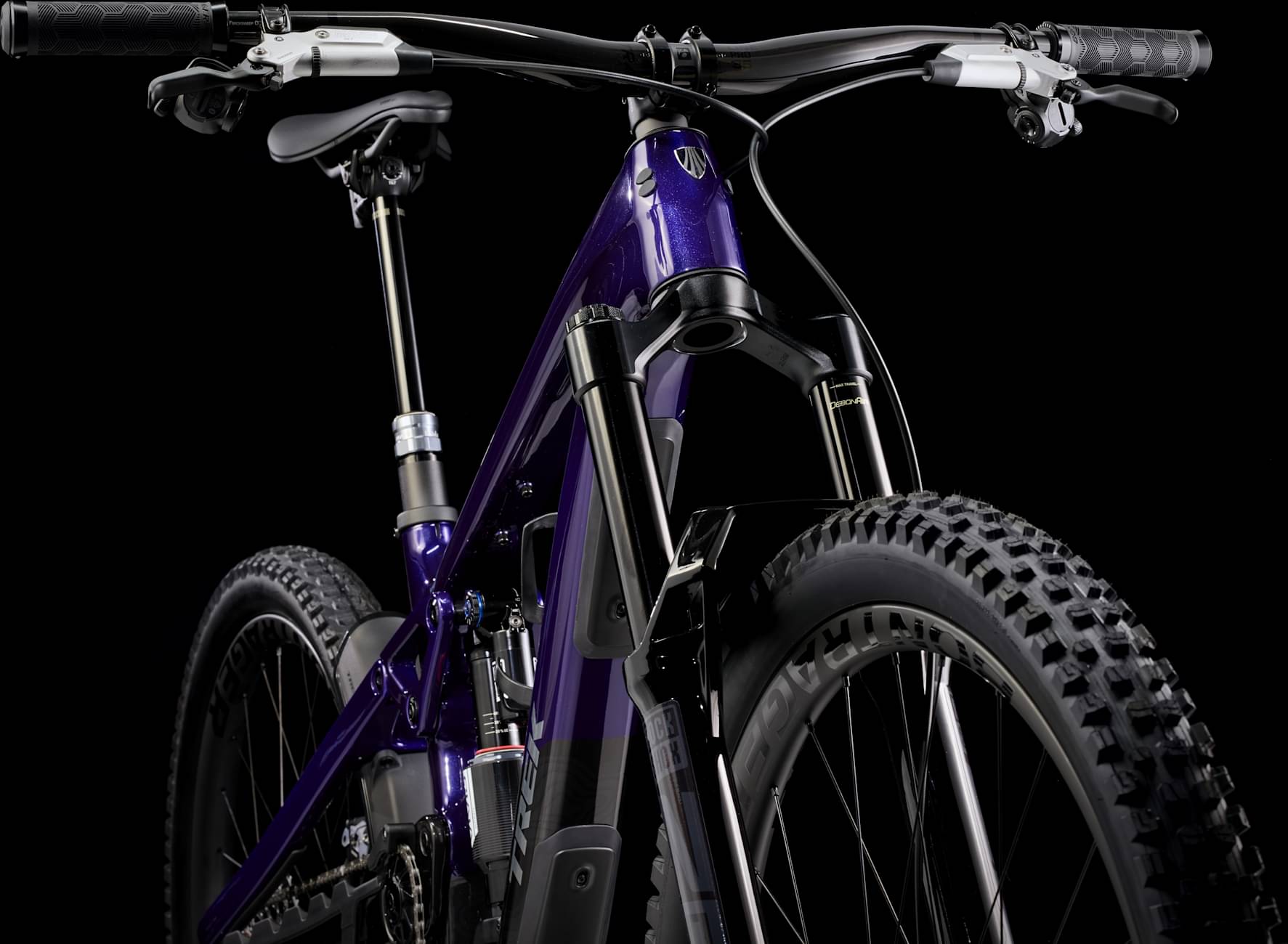

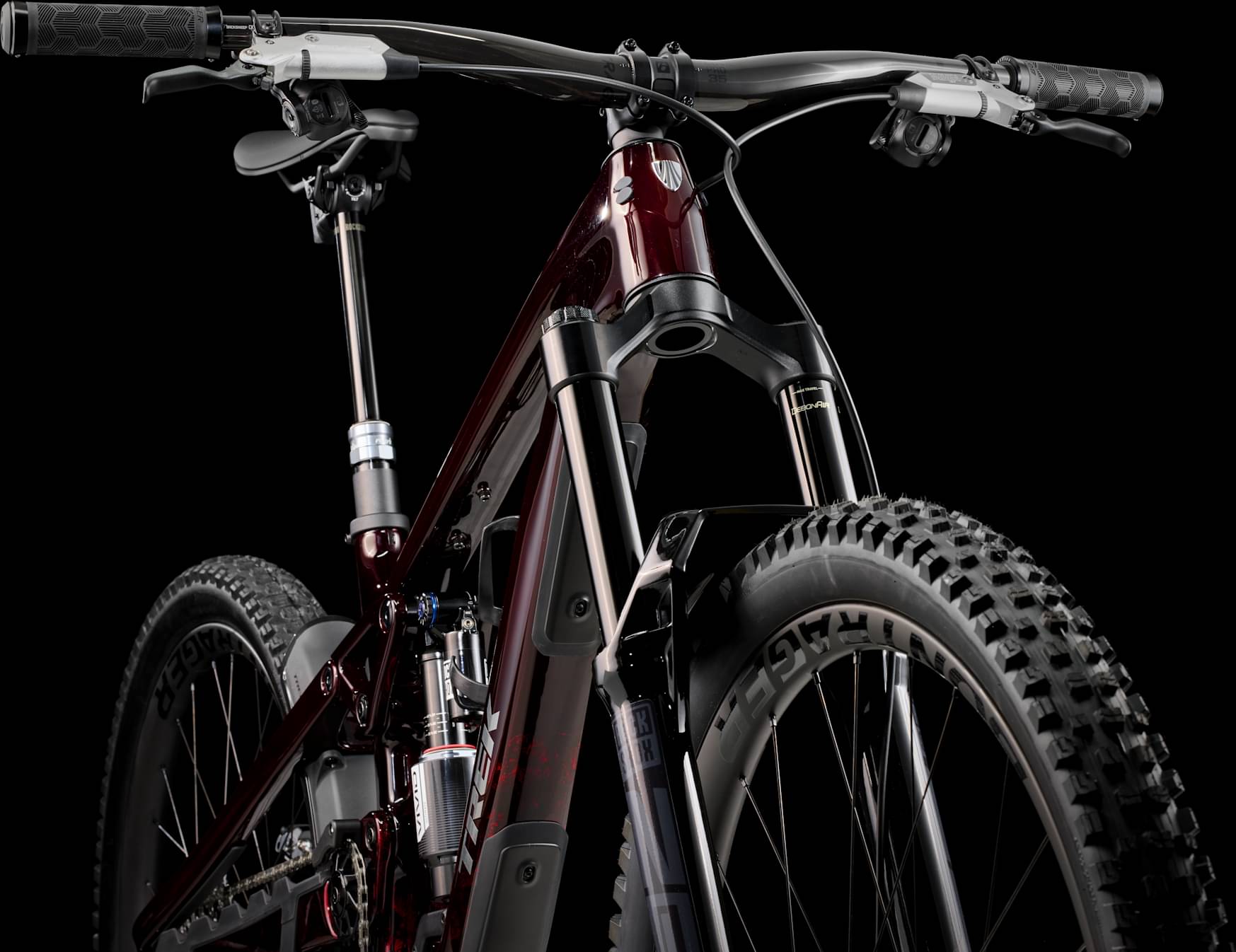

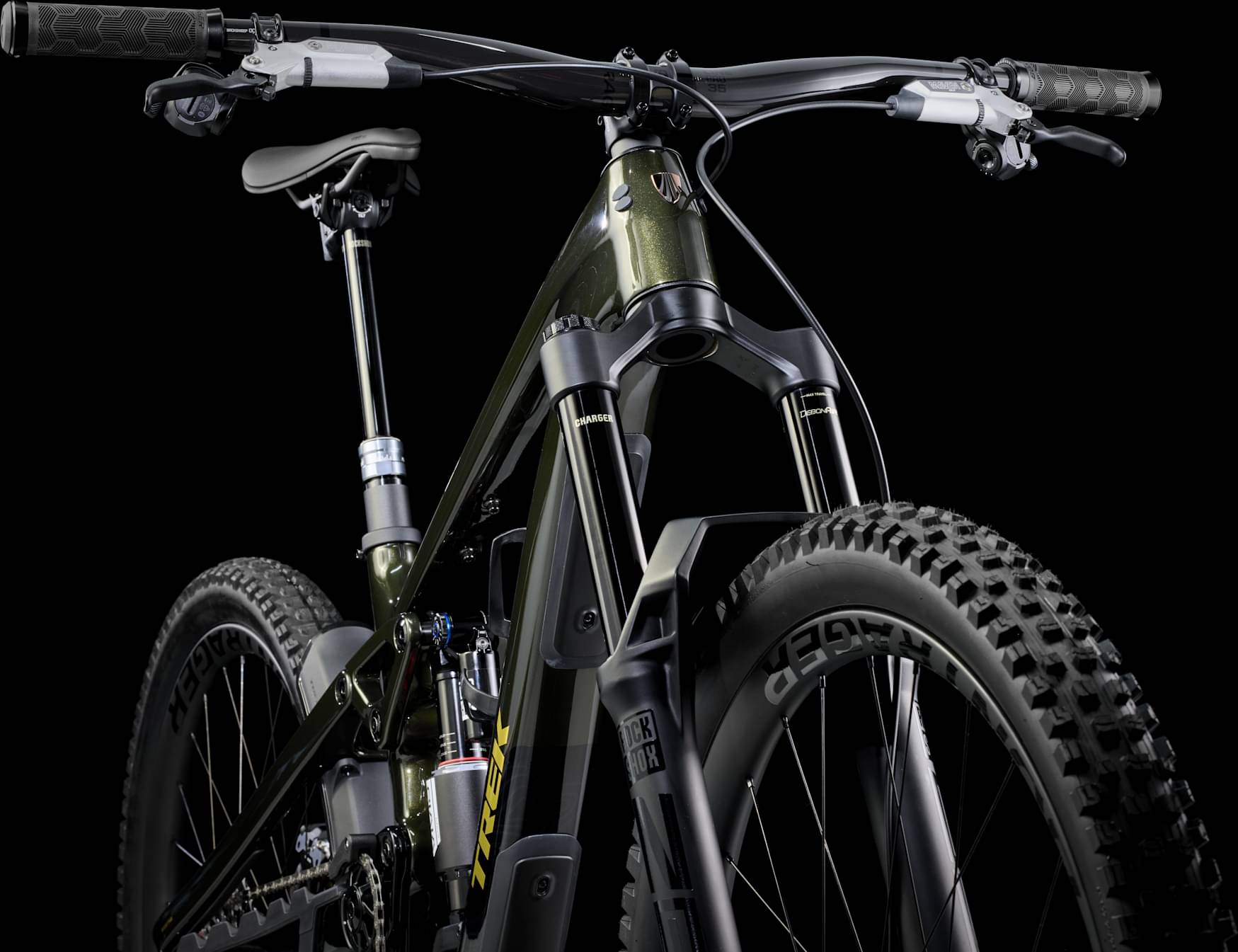

Suspension Fork
RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 170mm travel

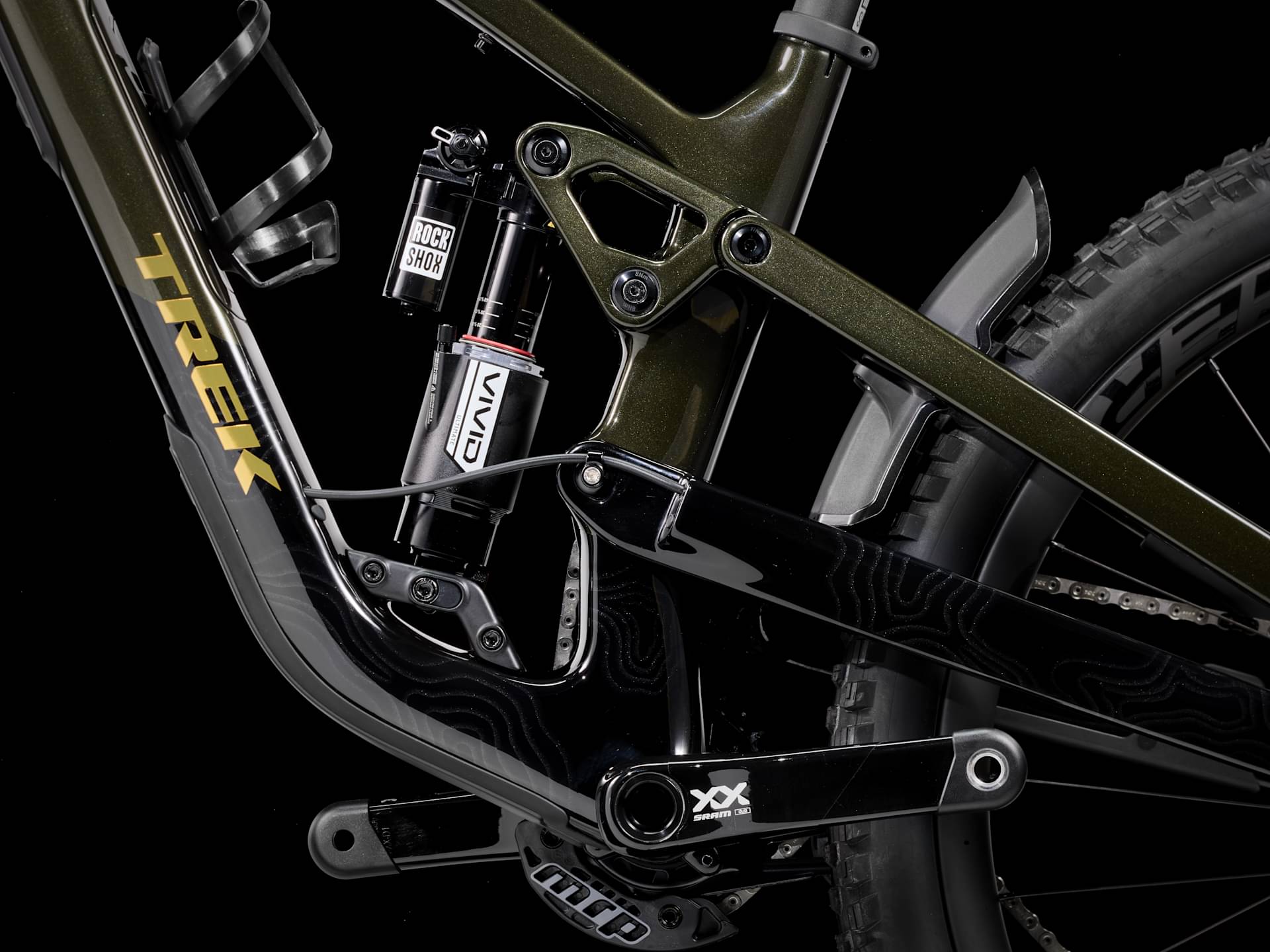

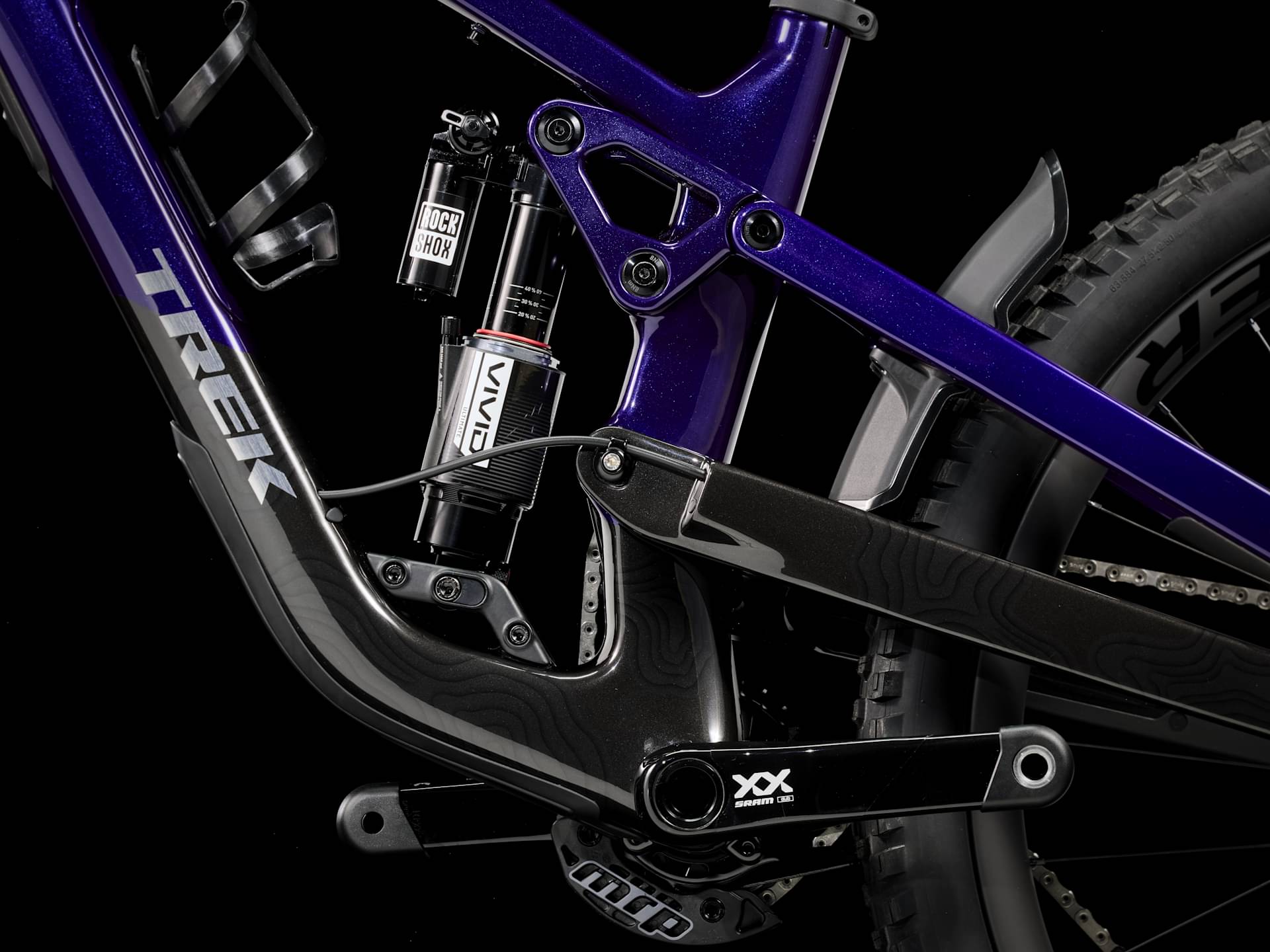

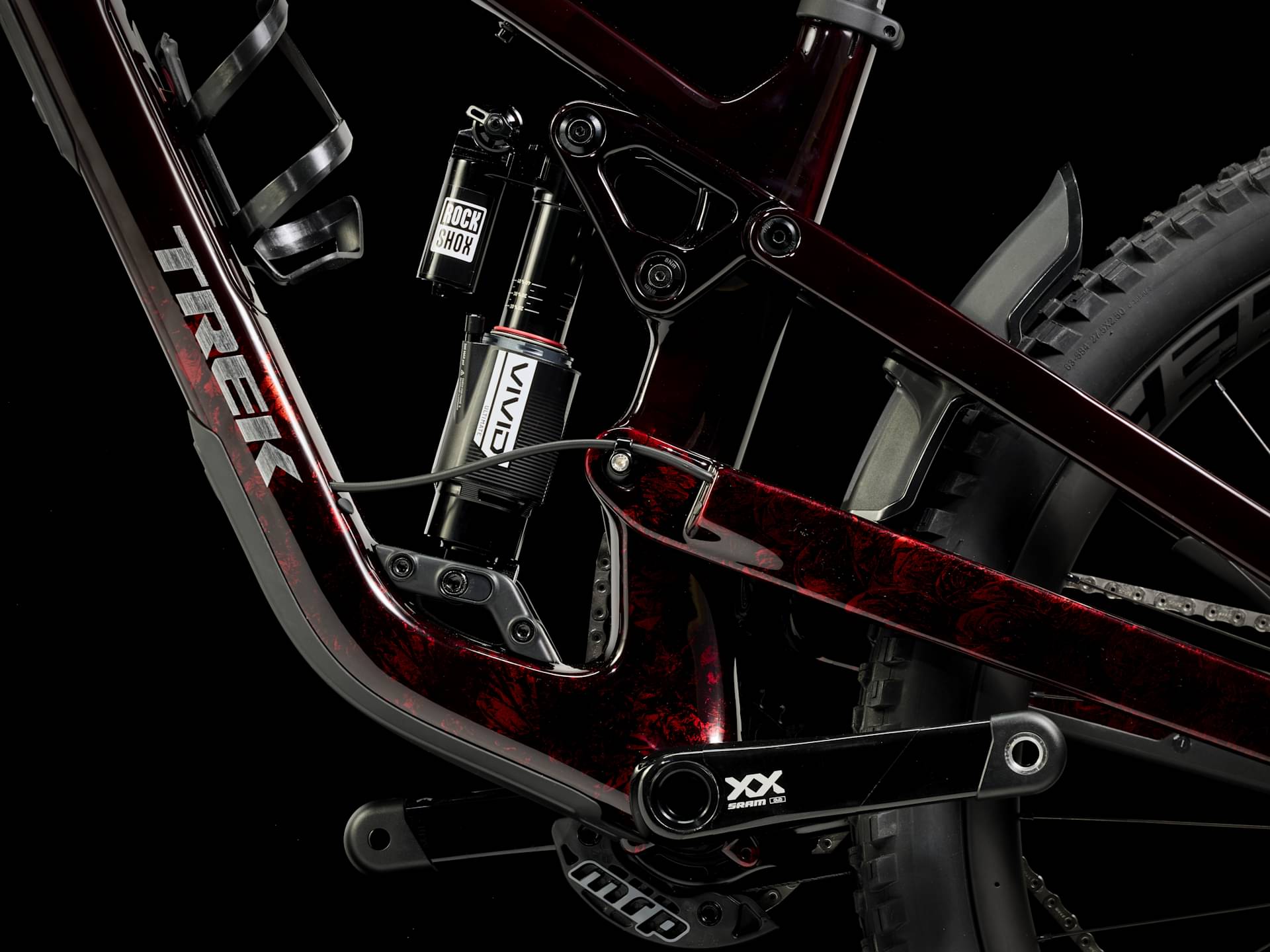

Rear Shock
RockShox Vivid Ultimate, 230mm x 65mm

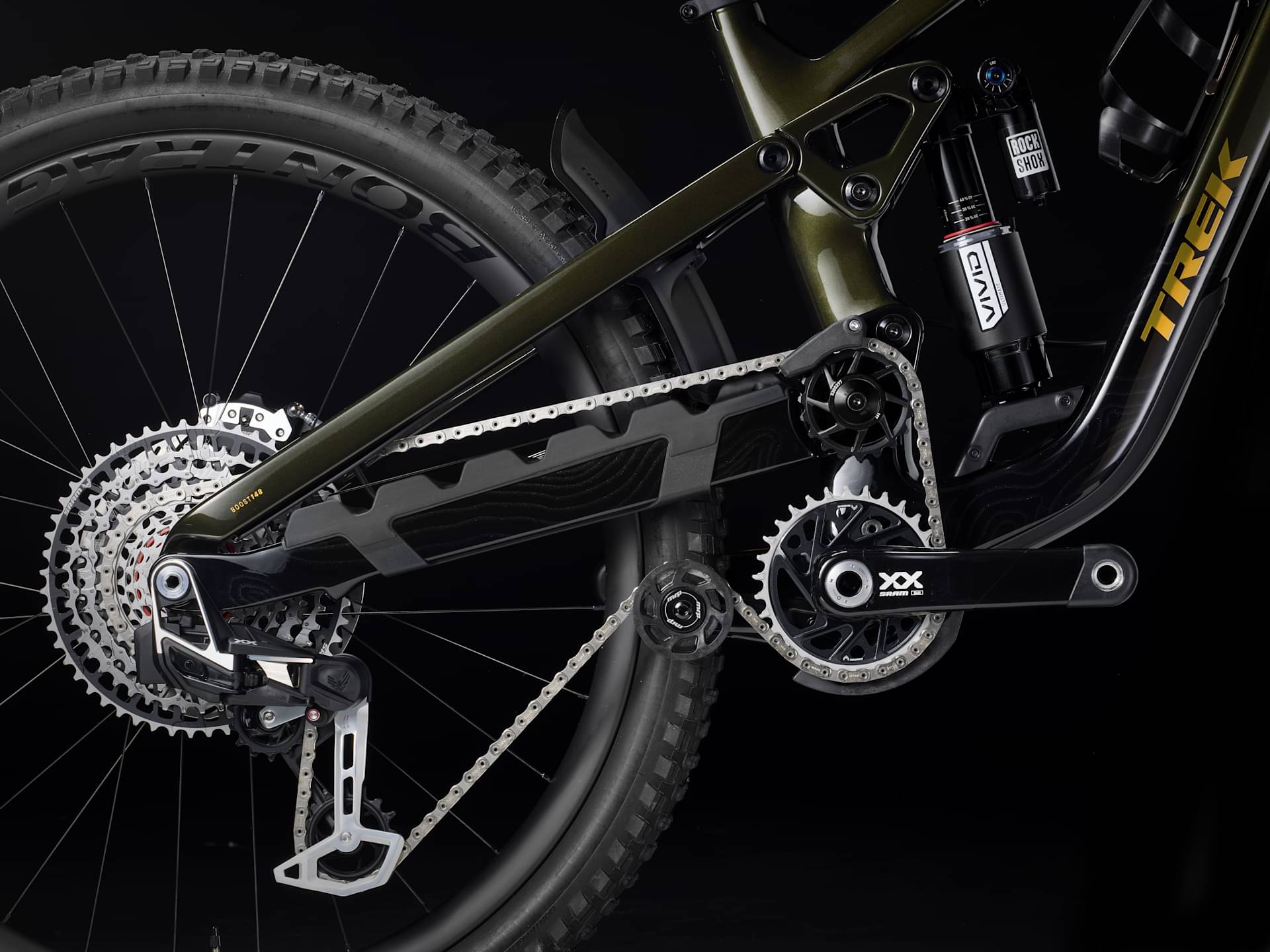

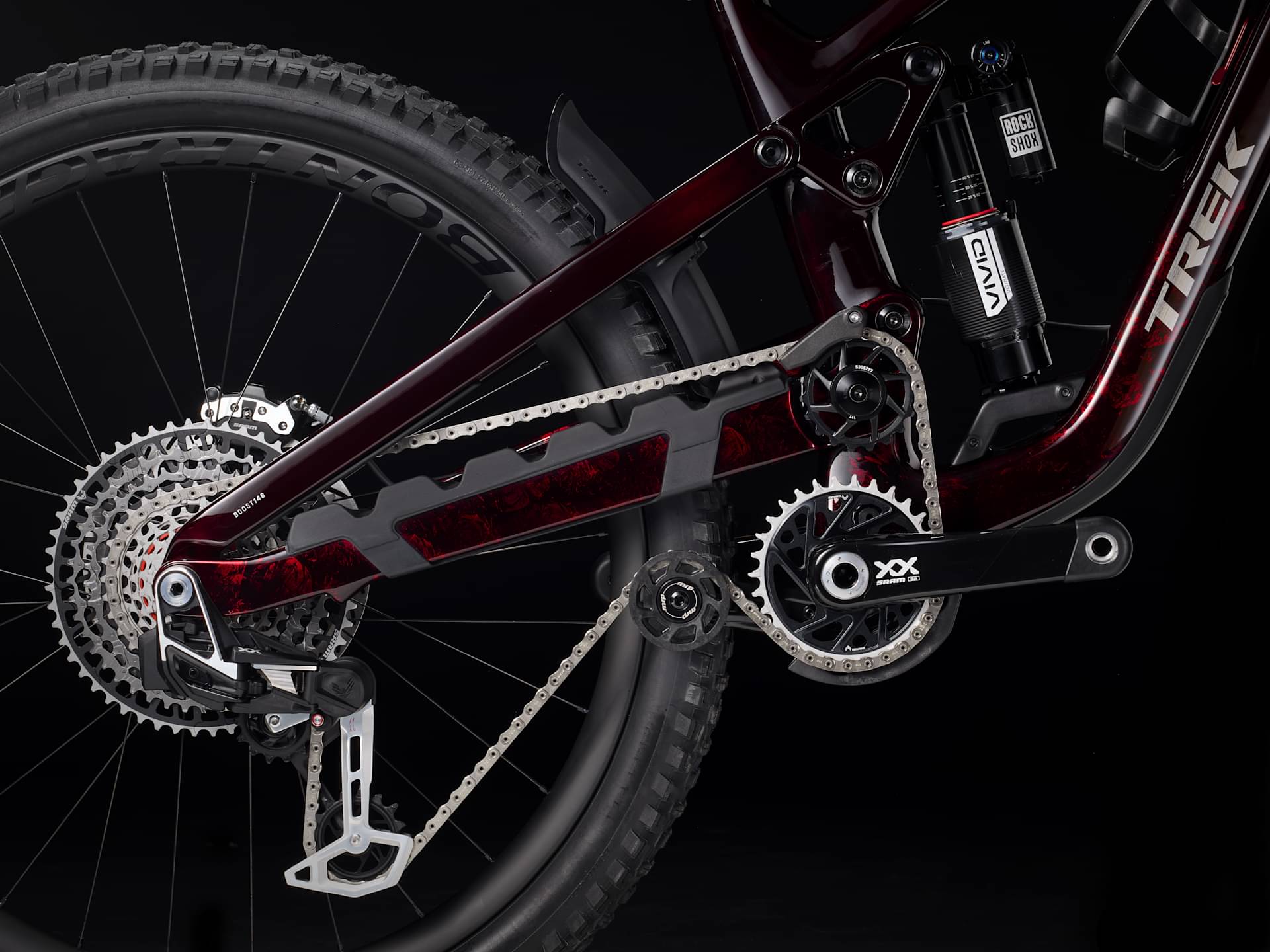

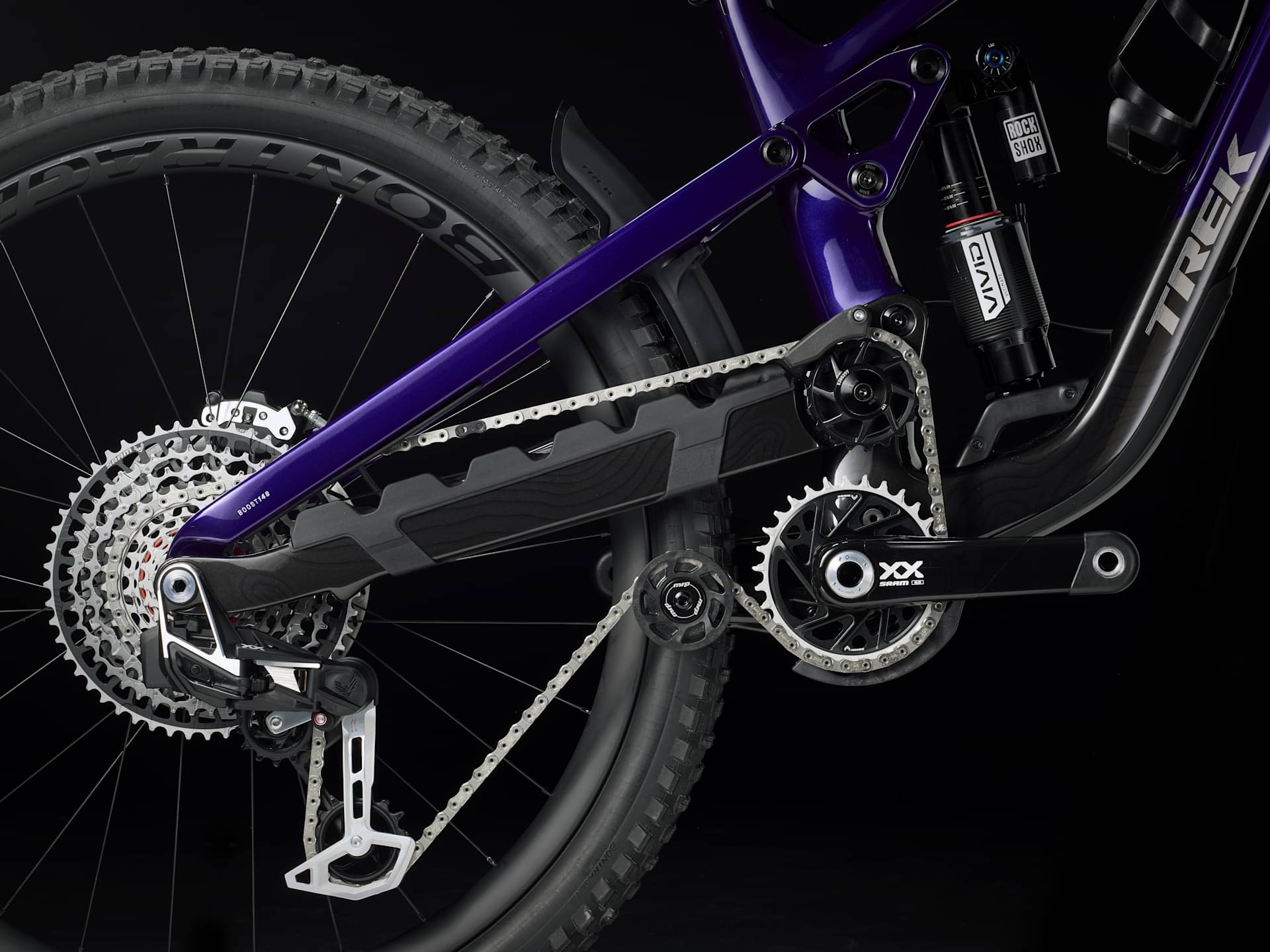

Drivetrain
Rear Derailleur
SRAM XX Eagle AXS, T-Type
Cassette
SRAM Eagle XS-1297, T-Type, 10-52, 12 speed
Crank
SRAM XX Eagle, T-Type, DUB, 30T ring, 55mm chainline, 165mm length
Bottom Bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Chain
SRAM XX Eagle, T-Type, 12 speed
Wheels
Rims
Front: Size: S, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''; Size: M, ML, L, XL, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5''
Tires
Size: S, M, ML, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50''; Size: M, ML, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes
Brakes
SRAM Maven Ultimate 4-piston hydraulic disc

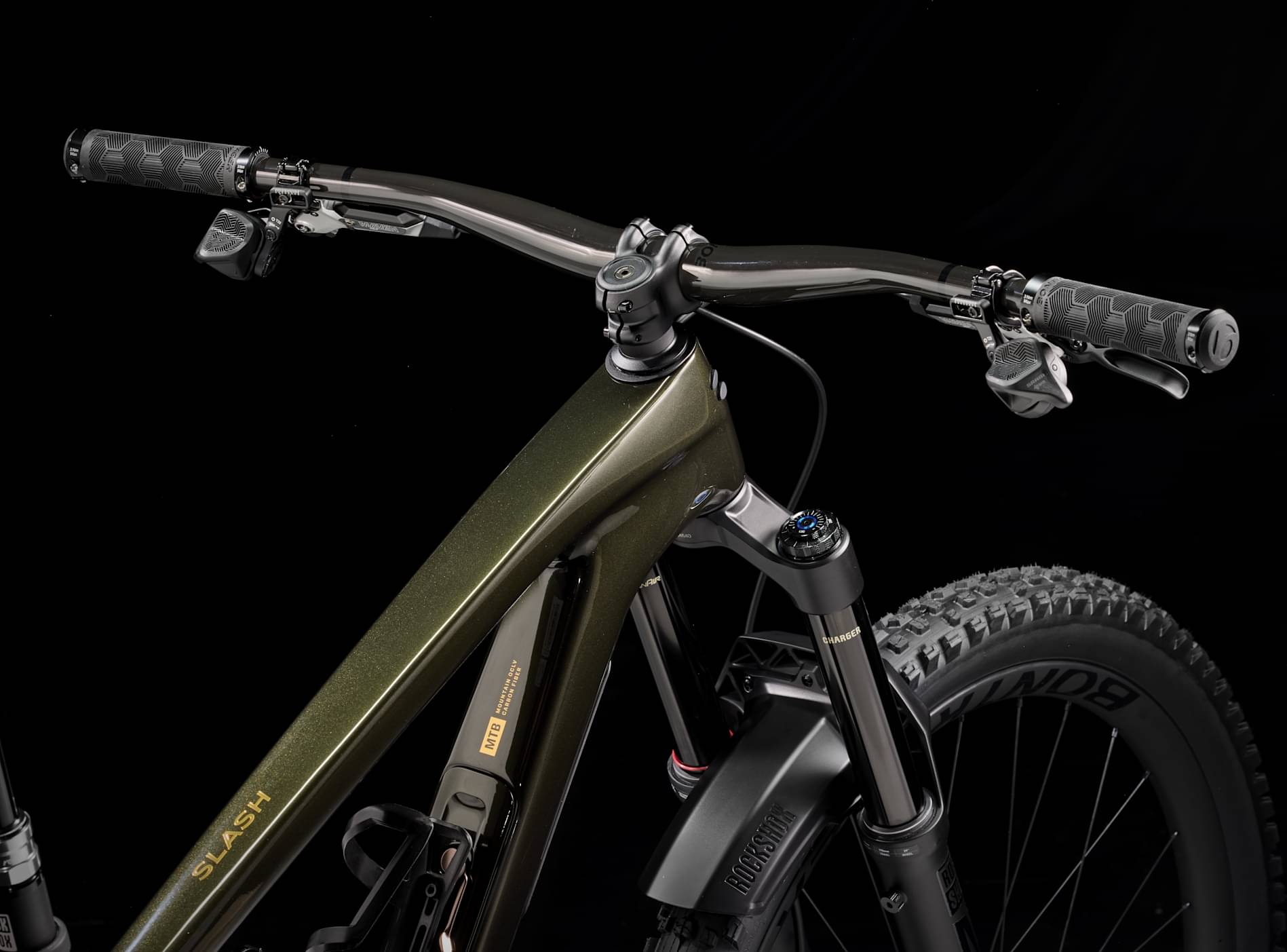

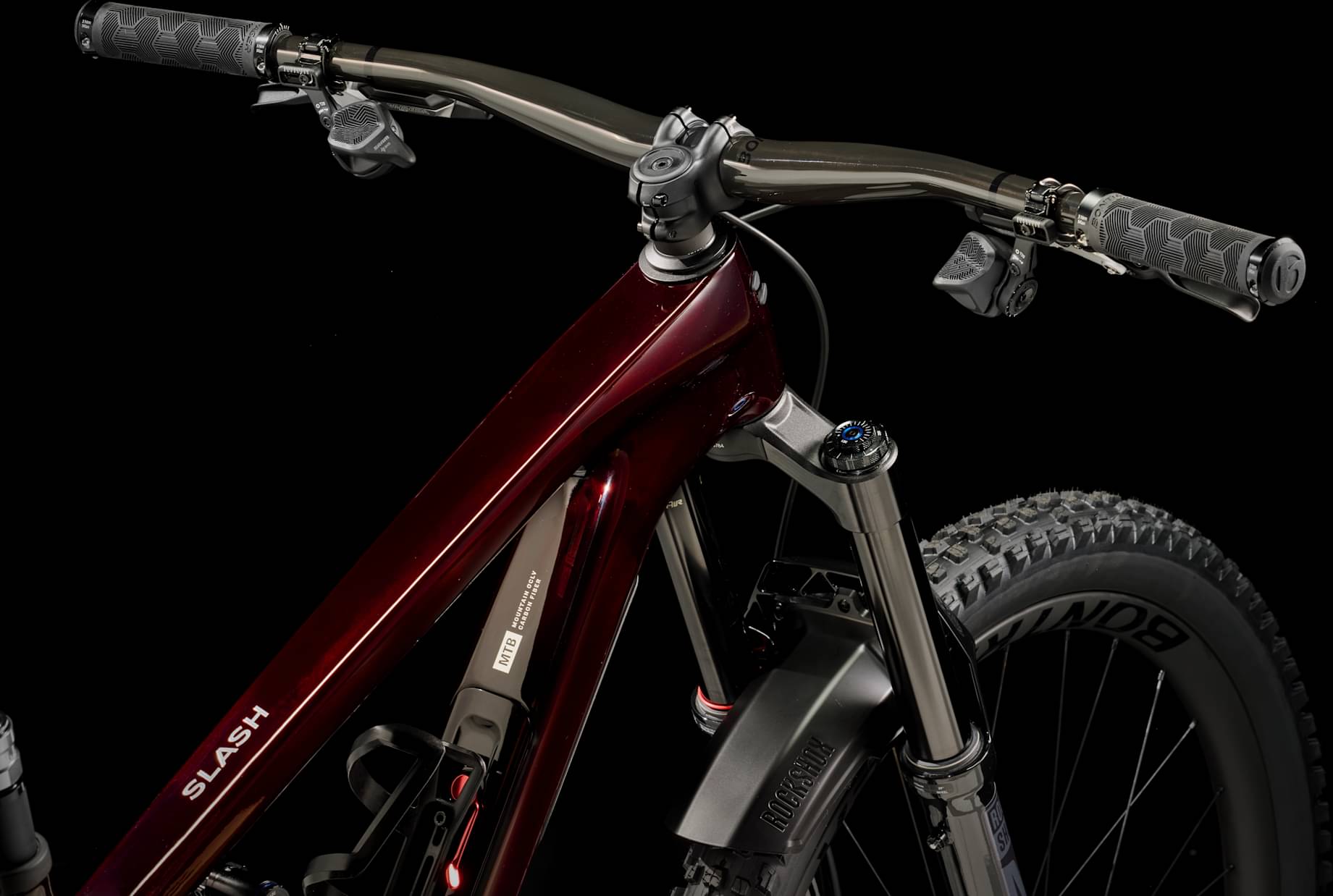

Cockpit
Stem
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length

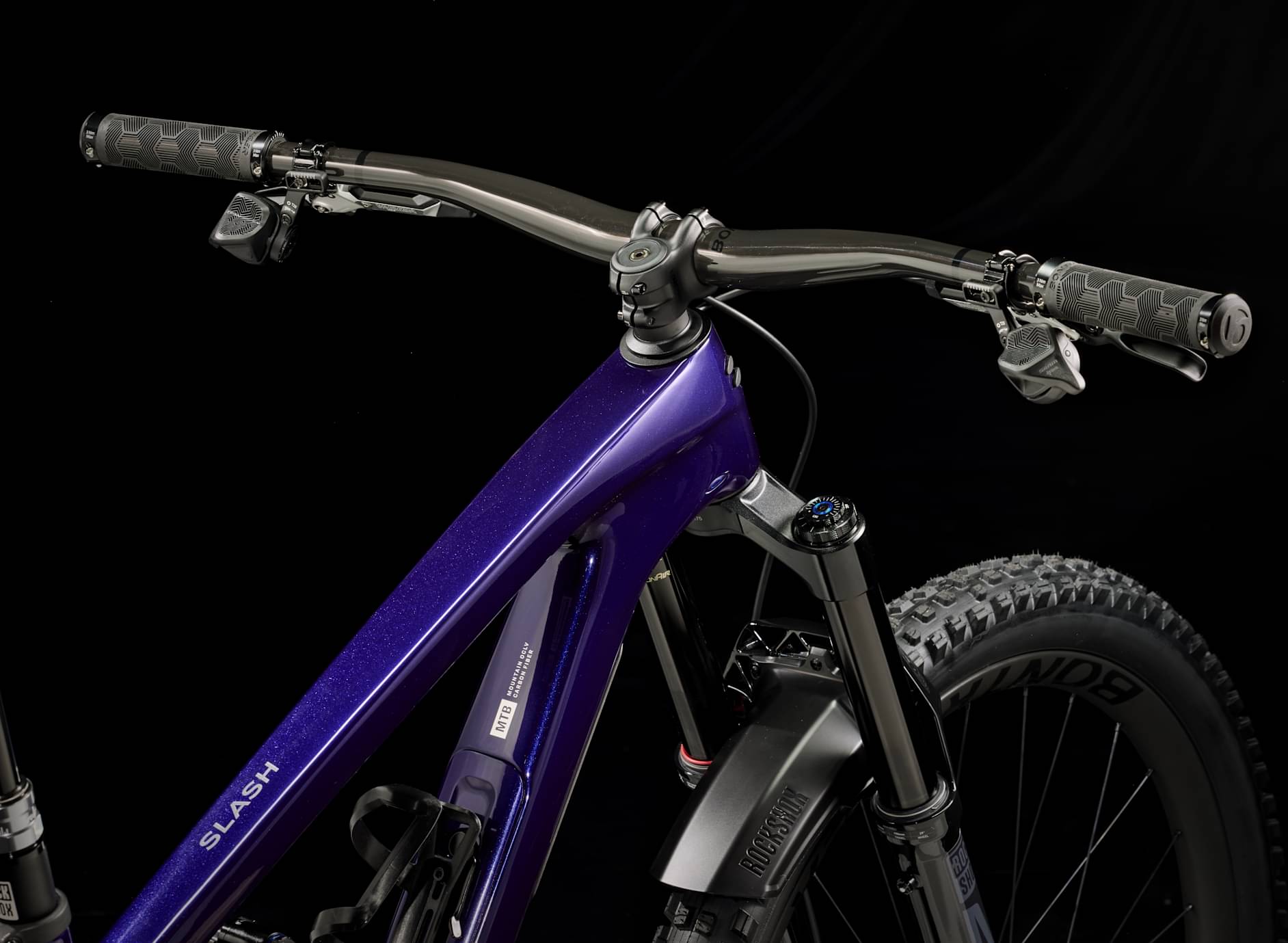

Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Grips
Bontrager XR Trail Pro, alloy lock-on
Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Seat
Saddle
Verse Short Pro, carbon rails, 145mm width
Seatpost
Size: S, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: M, ML, L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.367 mm | 1.391 mm | 1.35 mm | 1.314 mm | 1.285 mm |
| Bottom Bracket Height | 352 mm | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 766 mm | 796 mm | 820 mm | 845 mm | 874 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 38 mm |
| Trail | 132 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Stack | 588 mm | 623 mm | 632 mm | 641 mm | 659 mm |
| Reach | 430 mm | 448 mm | 468 mm | 488 mm | 513 mm |
| Top Tube Length | 548 mm | 578 mm | 605 mm | 628 mm | 658 mm |
| Seat Tube Angle | 78.1 ° | 77.8 ° | 77.3 ° | 77.1 ° | 76.7 ° |
| Seat Tube Length | 390 mm | 400 mm | 420 mm | 435 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.3 ° | 63.3 ° | 63.3 ° | 63.3 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 434 mm | 434 mm | 439 mm |
| Wheelbase | 1195 mm | 1224 mm | 1253 mm | 1278 mm | 1312 mm |
| Bottom Bracket Drop | 10 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 727 mm | 766 mm | 766 mm | 767 mm | 768 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 195 cm |
