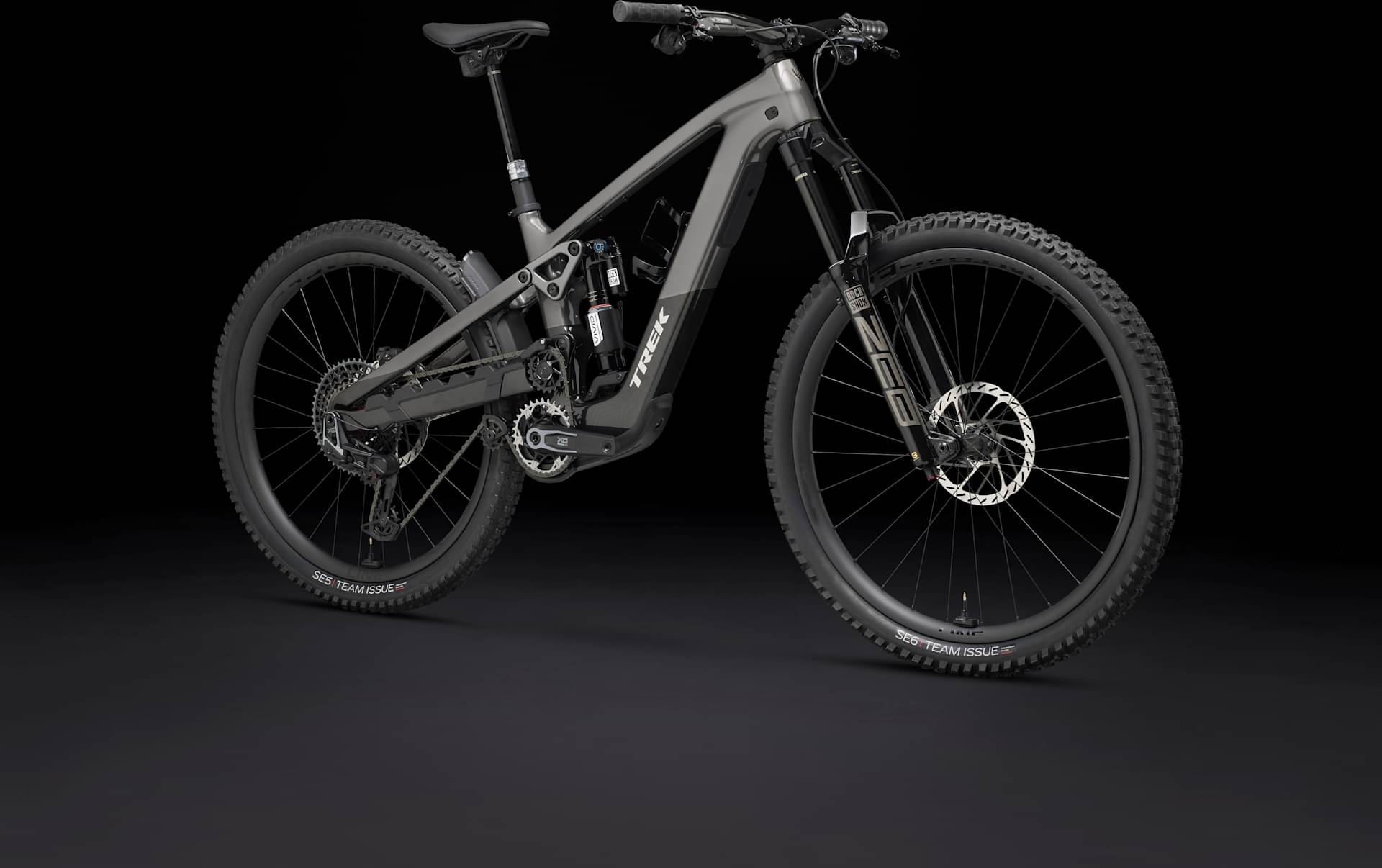

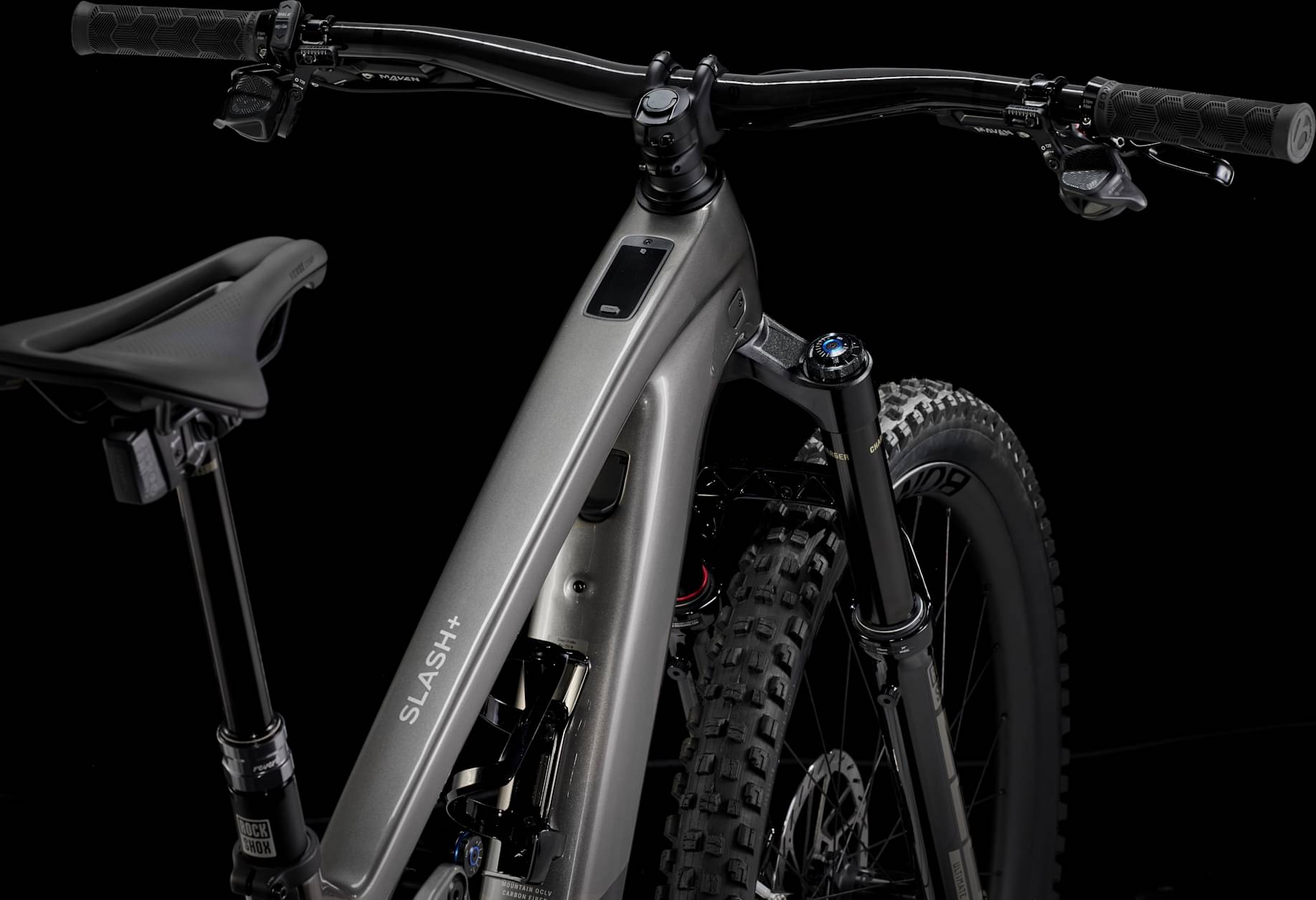

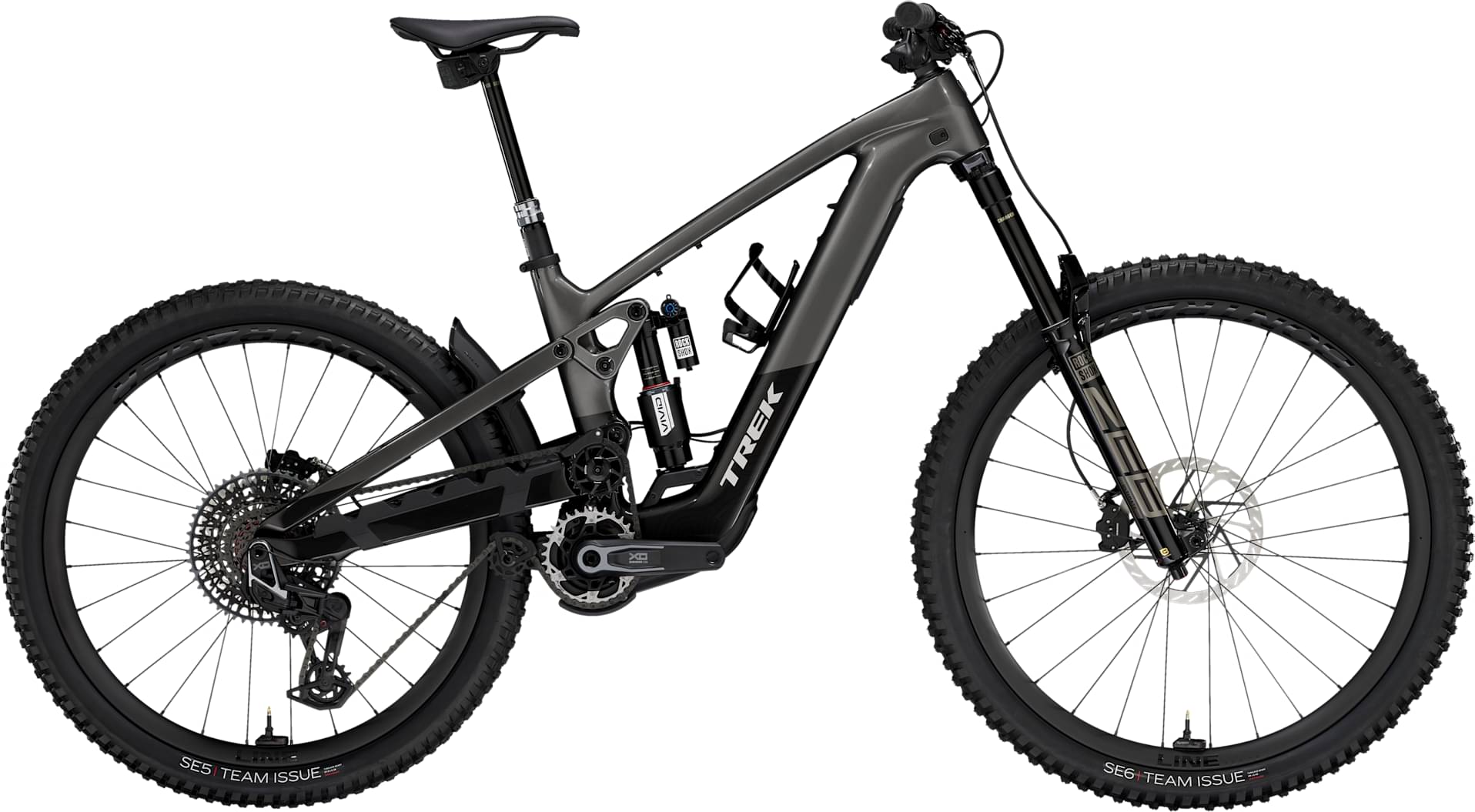

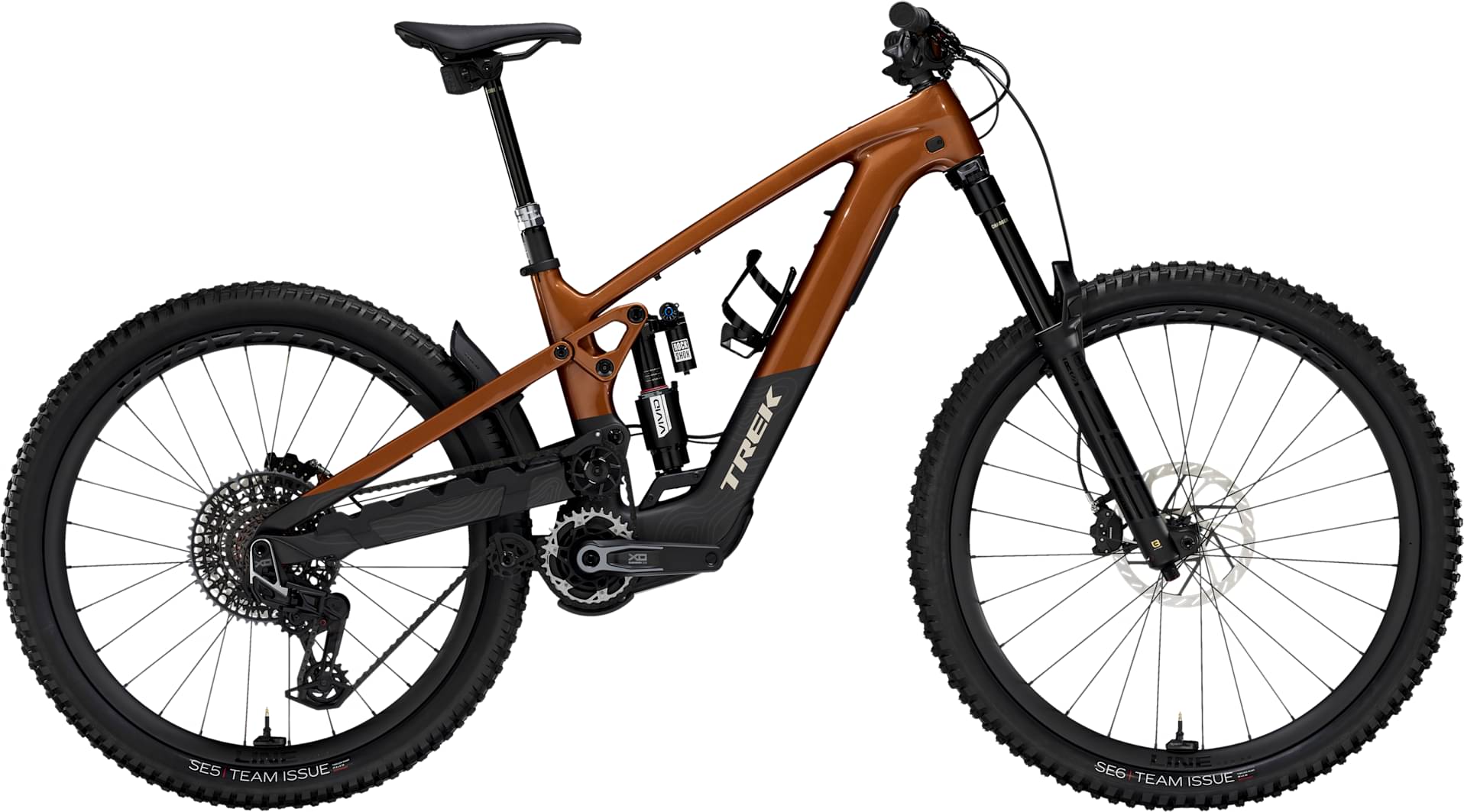

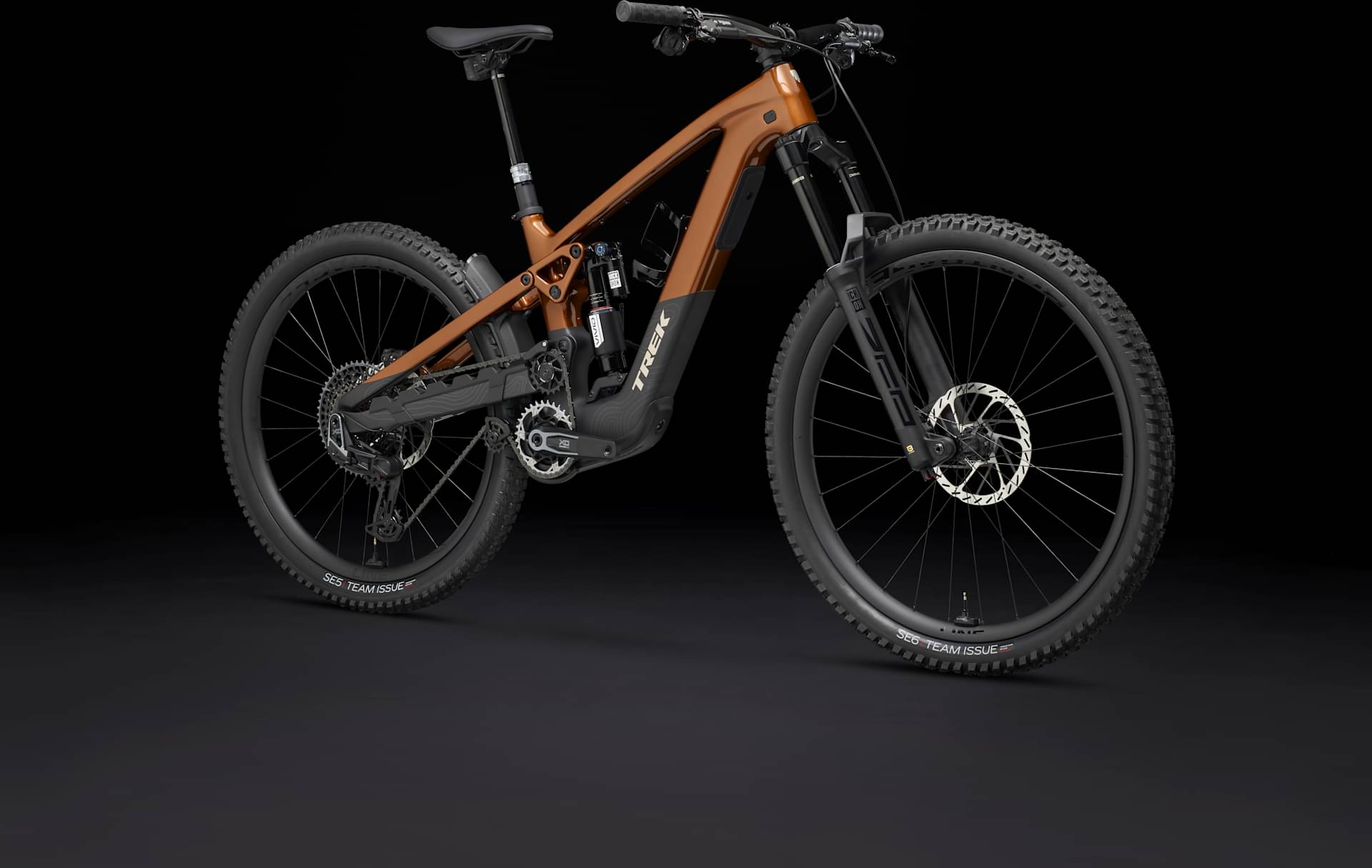

Trek Slash+ 9.9 X0 AXS T-Type 2025
2025 E-bike
Estimate price |
13,762$
Weight | 20.88 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset X0, X0 Eagle Transmission -
Suspension Full -
Motor TQ 250W 50Nm mid-drive -
Battery Size: S, M, L, XL, TQ 580Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
155cm - 166cm
17.5"
164cm - 178cm
19.5"
175cm - 189cm
21.5"
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, removable battery, high main pivot, idler pulley, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, upper chain guide mount, 55mm chainline, ABP, UDH, 148x12mm thru axle, 170mm travel
Suspension Fork
RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 170mm travel
Rear Shock

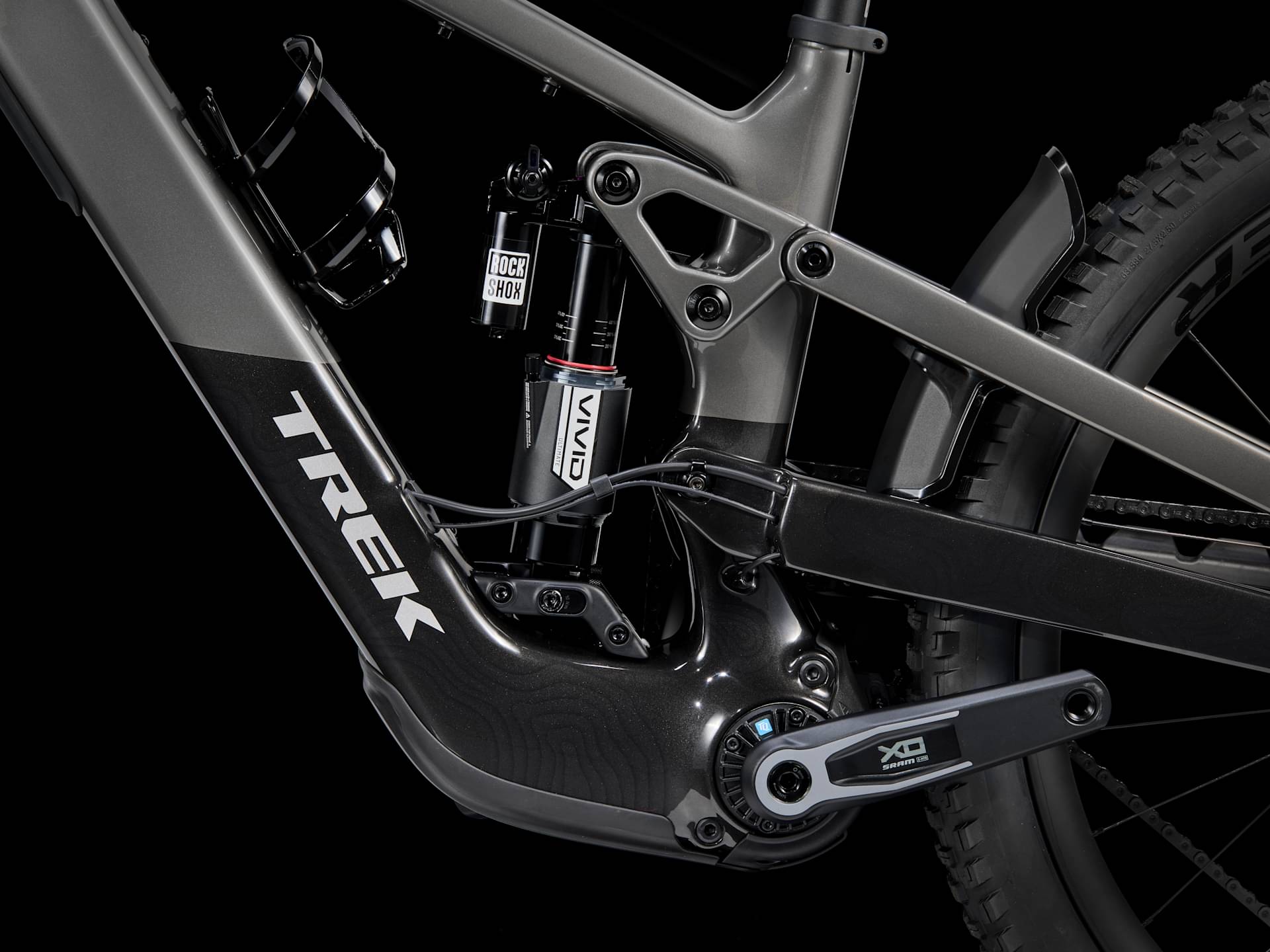

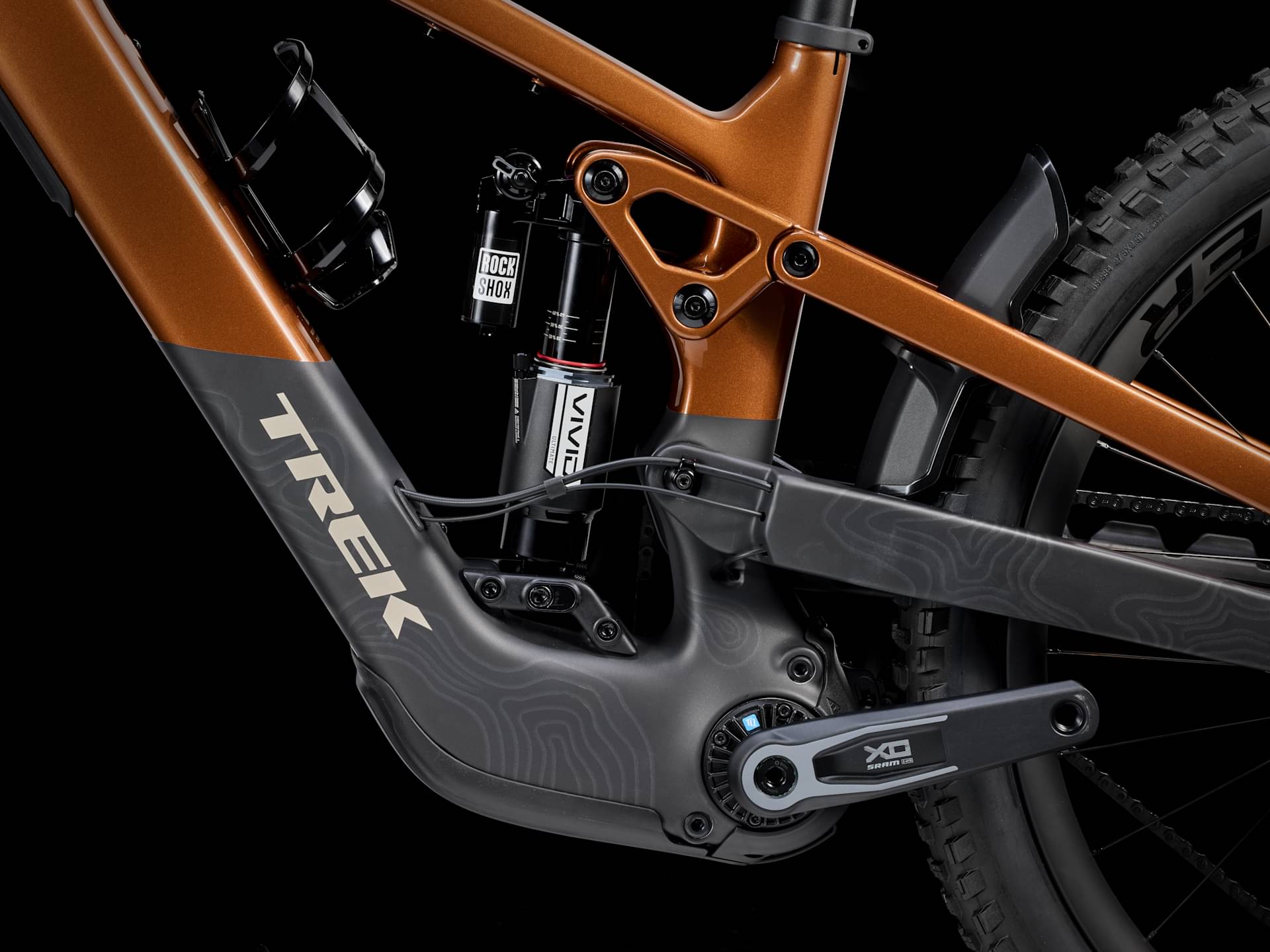

RockShox Vivid Ultimate, 230mm x 65mm

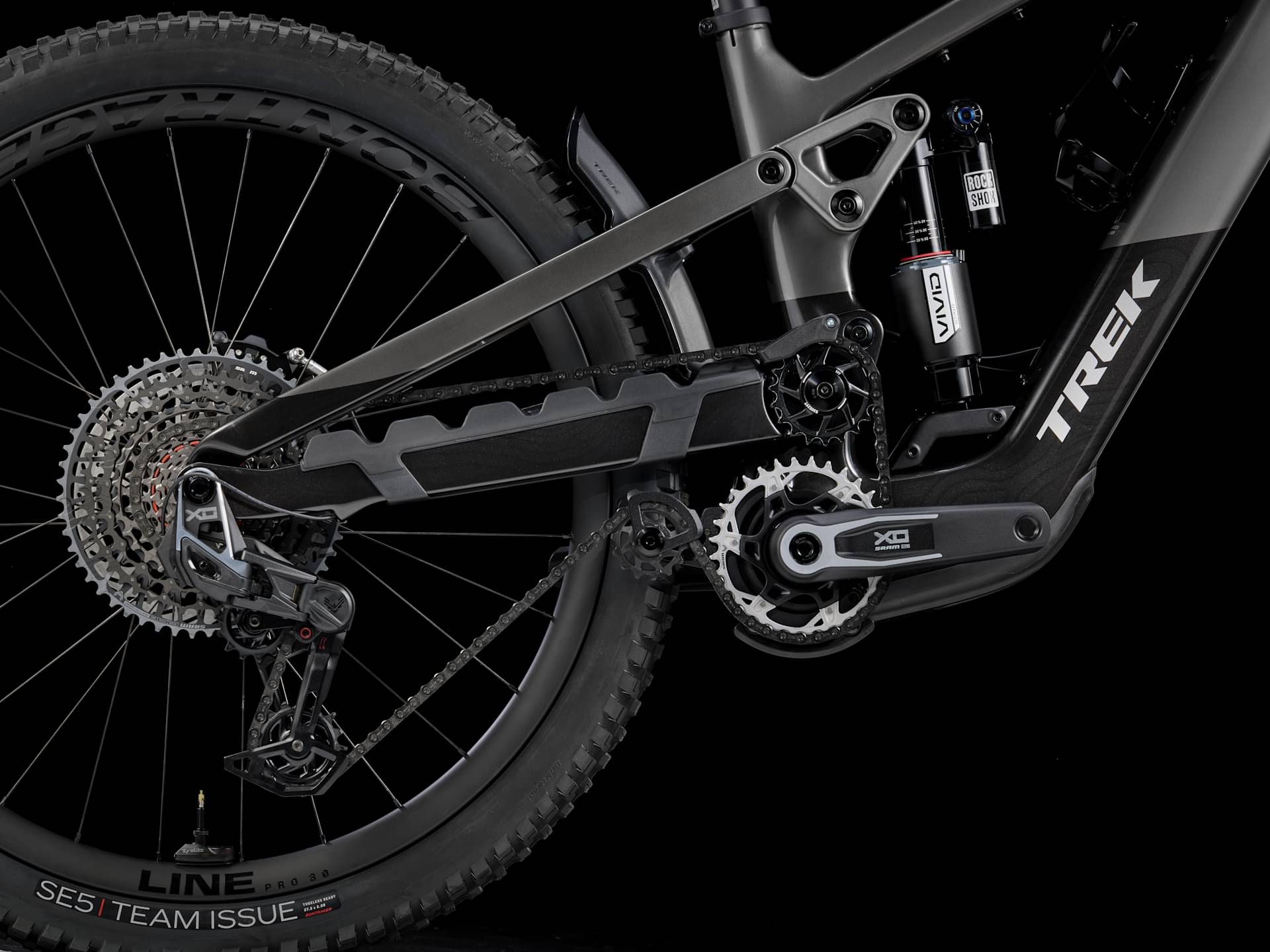

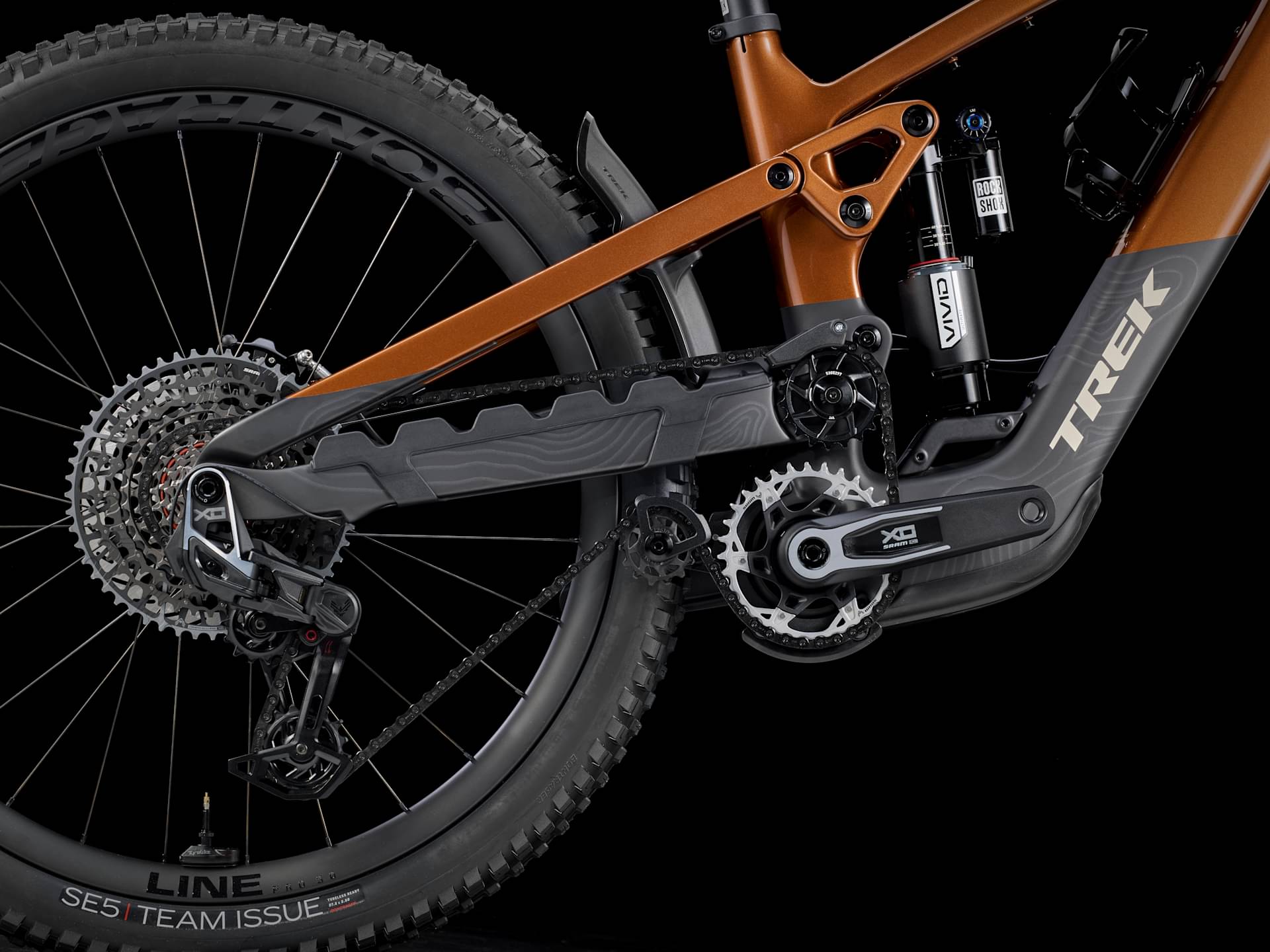

Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS, T-Type
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Crank
SRAM X0 Eagle, 160mm length
Chain
SRAM X0 Eagle, T-Type, 12 speed
Wheels
Rims
Front: Size: S, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''; Size: M, L, XL, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5''
Tires
Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50''; Size: M, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes
Brakes
SRAM Maven Silver 4-piston hydraulic disc
Cockpit
Stem
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Seat
Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
Size: S, RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length; Size: M, L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Motor & Battery
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
Size: S, M, L, XL, TQ 580Wh
Charger
TQ 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.388 mm | 1.405 mm | 1.334 mm | 1.268 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 765 mm | 800 mm | 834 mm | 879 mm |
| Rake | 38 mm | 43 mm | 43 mm | 39 mm |
| Trail | 132 mm | 142 mm | 142 mm | 142 mm |
| Stack | 597 mm | 631 mm | 639 mm | 658 mm |
| Reach | 430 mm | 449 mm | 479 mm | 519 mm |
| Top Tube Length | 561 mm | 588 mm | 625 mm | 669 mm |
| Seat Tube Angle | 77.6 ° | 77.5 ° | 77.2 ° | 76.7 ° |
| Seat Tube Length | 390 mm | 400 mm | 435 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.4 ° | 63.4 ° | 63.4 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 440 mm | 434 mm | 434 mm | 439 mm |
| Wheelbase | 1205 mm | 1233 mm | 1267 mm | 1317 mm |
| Bottom Bracket Drop | 10 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 771 mm | 776 mm | 770 mm | 769 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 166 cm | 178 cm | 189 cm | 195 cm |
