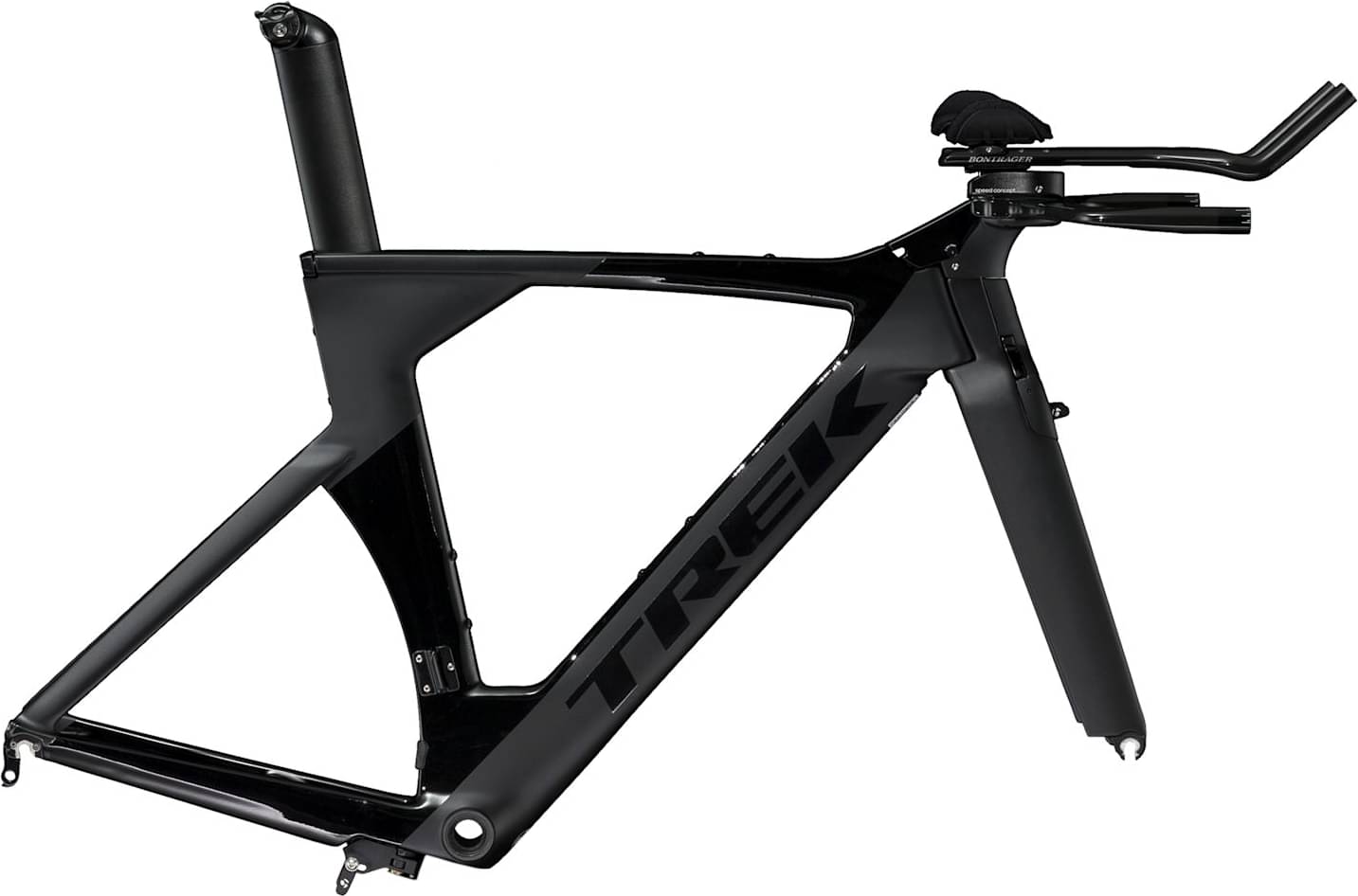

Trek Speed Concept Rim Frameset 2024
2024 Road
Estimate price |
4,587$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
SM
154cm - 168cm
MD
166cm - 176cm
LG
174cm - 187cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90, Speed Fin compatible, DuoTrap compatible, SC Draft Box 2 & SC Speed Box 2 compatible
Suspension Fork
SC full foil carbon, integrated brake & stem
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Tires
25mm
Brakes
Brakes
Bontrager Speed Limit integrated, Bontrager Race Lite aero levers
Cockpit
Stem
Size: S, Bontrager Speed Concept, direct mount, 69mm rise, 67mm reach; Size: M, L, XL, Bontrager Speed Concept, direct mount, 61mm rise, 110mm reach
Handlebar
Bontrager Speed Concept KVF aero bar, carbon, direct mount, UCI legal
Seat
Seatpost
Size: S, Bontrager Speed Concept Race Lite, alloy, +/-20mm offset, 275mm length; Size: M, L, XL, Bontrager Speed Concept Race Lite, alloy, +/-20mm offset, 335mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.262 mm | 1.267 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 575 mm | 598 mm | 623 mm | 650 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 492 mm | 517 mm | 541 mm | 565 mm |
| Reach | 390 mm | 408 mm | 426 mm | 445 mm |
| Top Tube Length | 495 mm | 518 mm | 541 mm | 565 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 503 mm | 529 mm | 553 mm | 578 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm | 140 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 961 mm | 985 mm | 1010 mm | 1037 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 750 mm | 775 mm | 799 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 166 cm | 174 cm | 185 cm |
| Rider Max Height | 168 cm | 176 cm | 187 cm | 198 cm |
