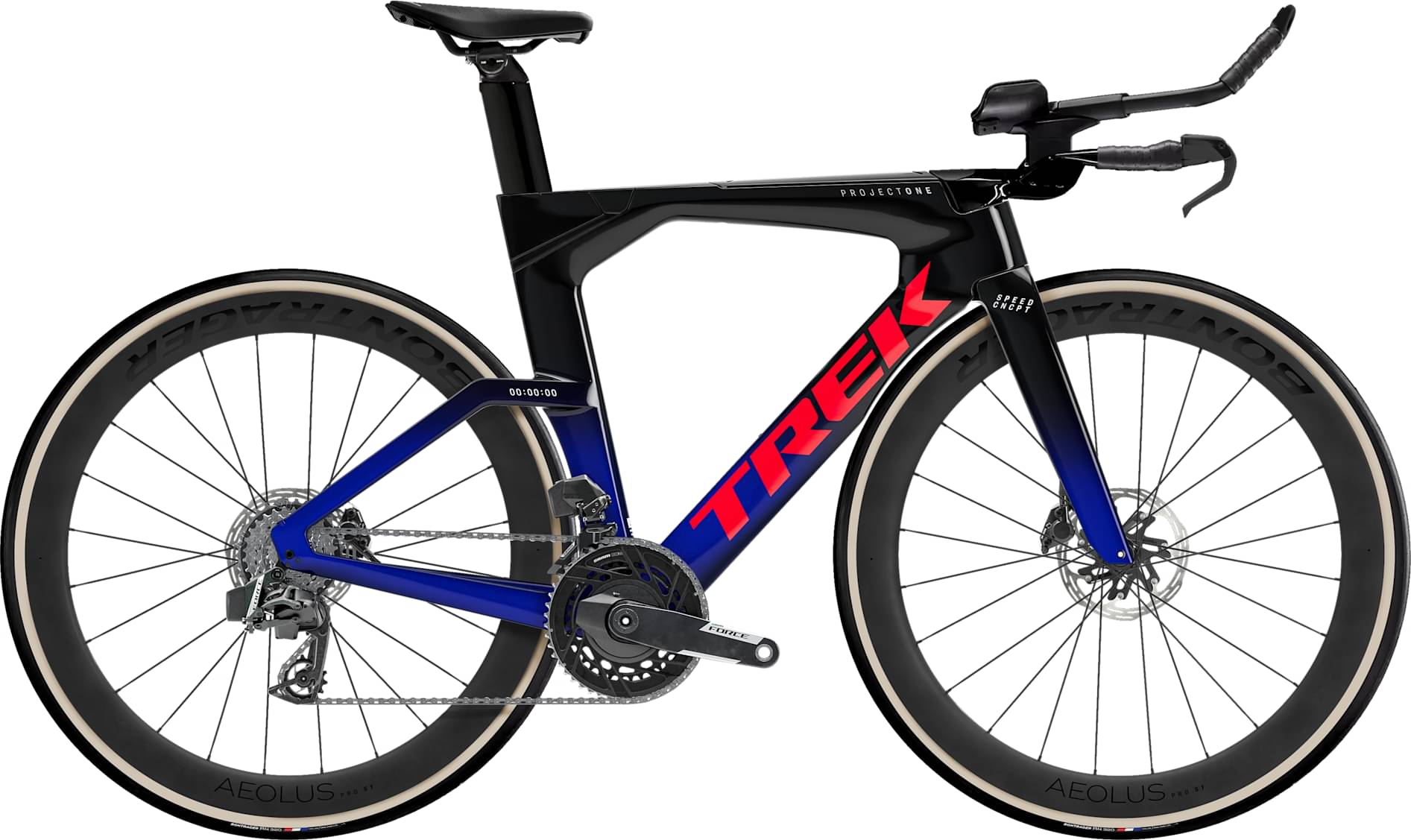

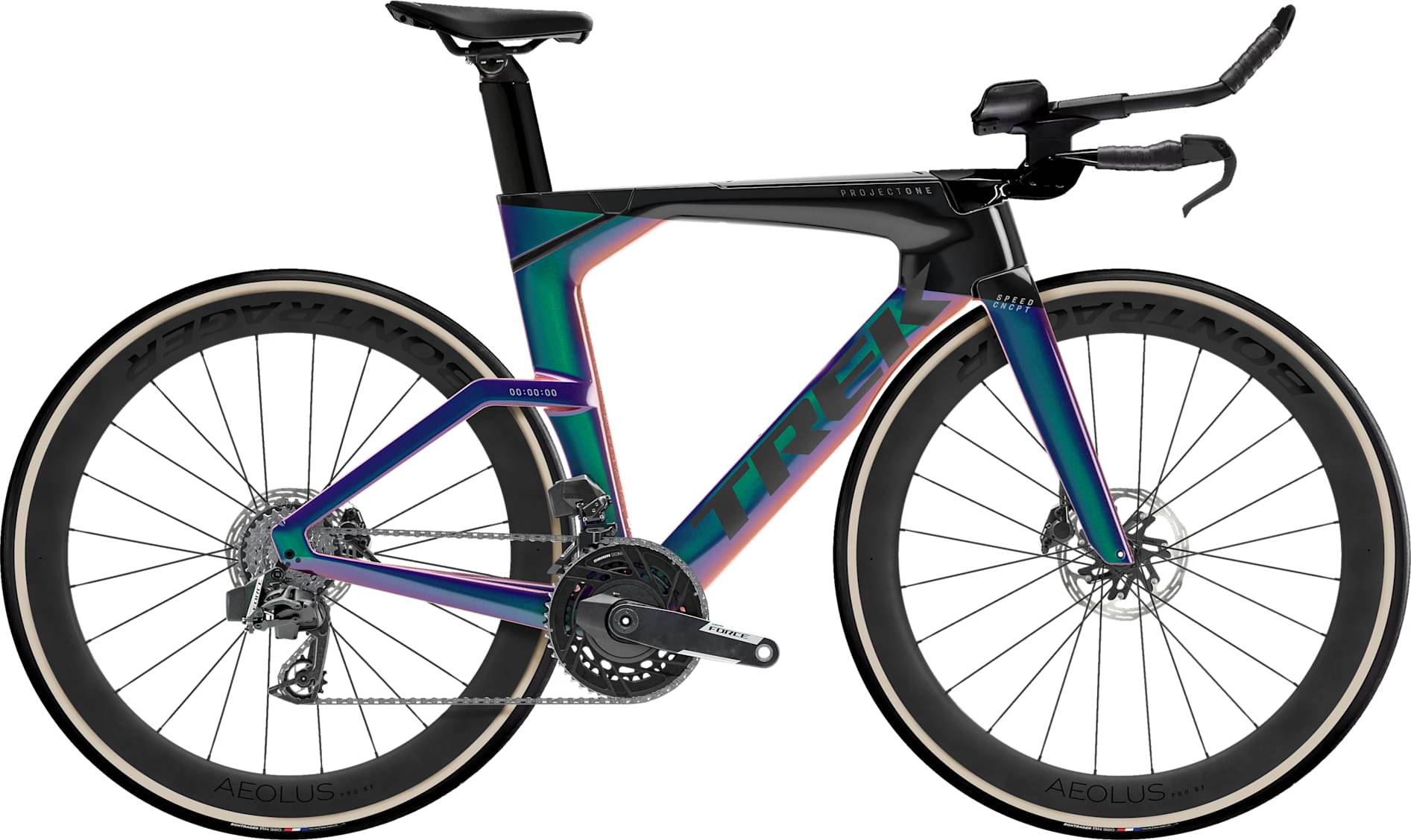

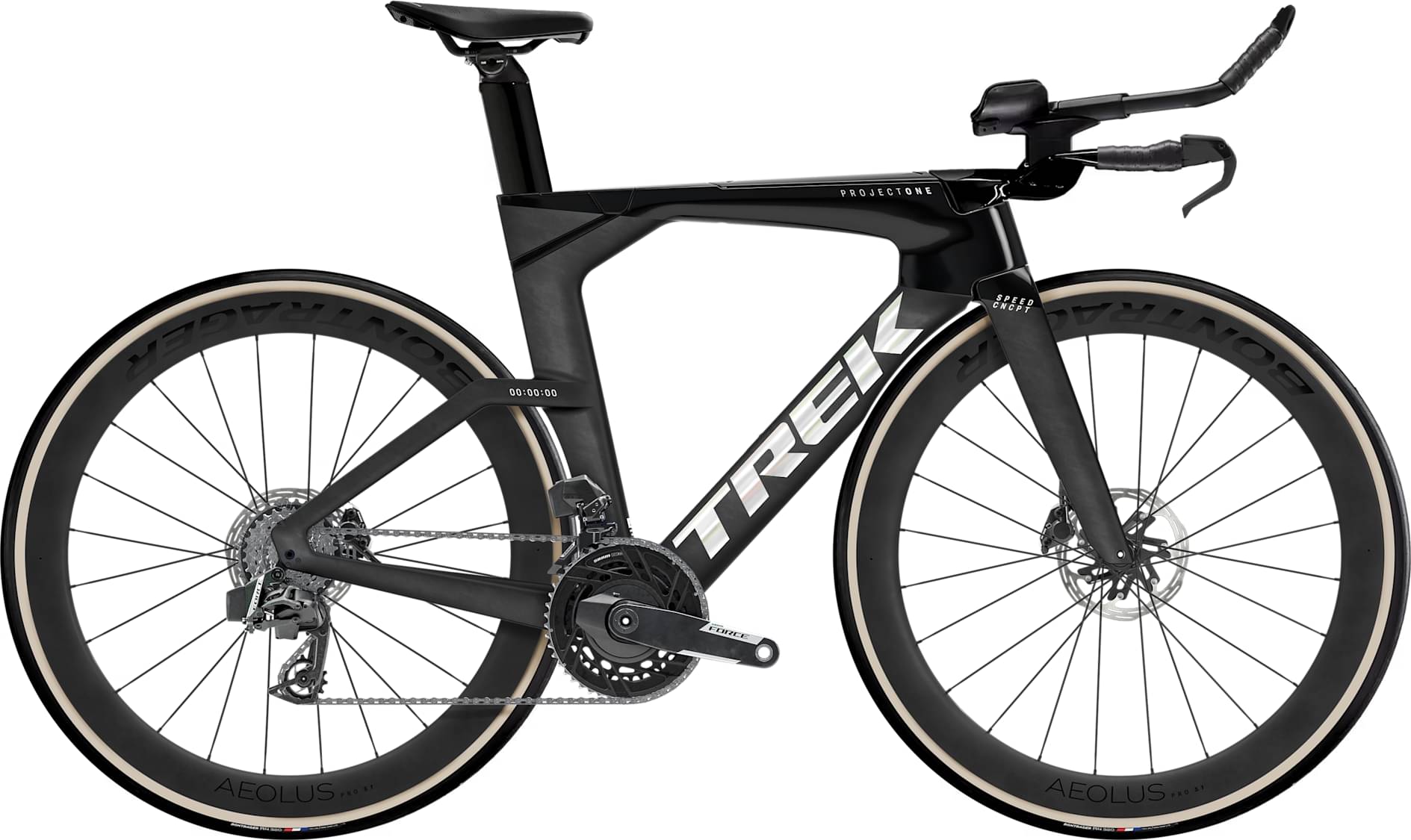

Trek Speed Concept SLR 7 AXS 2026
2026 Road
Estimate price |
11,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS, Force -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 168cm
MD
166cm - 176cm
LG
174cm - 187cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage
Suspension Fork
SC full foil carbon, integrated brake & stem
Drivetrain
Rear Derailleur
SRAM Force AXS, 36T max cog
Front Derailleur
SRAM Force AXS, braze-on
Shift Levers
SRAM AXS Wireless Blips, basebar and extension-mounted
Cassette
SRAM Force XG-1270, 10-33, 12 speed
Crank
Size: S, SRAM Force AXS with power meter, 48/35, DUB, 165mm length; Size: M, L, SRAM Force AXS with power meter, 48/35, DUB, 170mm length; Size: XL, SRAM Force AXS with power meter, 48/35, DUB, 172.5mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM Force E1, 12/13 speed
Wheels
Rims
Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
Tires
Bontrager R4 320, 700x25mm
Brakes
Brakes
SRAM Paceline X, rounded, centerlock, 160mm
Brake Levers
SRAM S-900 Aero
Seat
Saddle
Bontrager Hilo Pro Carbon
Seatpost
Size: S, Speed Concept SLR, 11.5mm or -20mm offset, short length; Size: M, L, XL, Speed Concept SLR, 11.5mm or -20mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.262 mm | 1.243 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 571 mm | 598 mm | 623 mm | 650 |
| Rake | 41 mm | 37 mm | 44 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 492 mm | 517 mm | 541 mm | 565 mm |
| Reach | 390 mm | 416 mm | 426 mm | 445 mm |
| Top Tube Length | 495 mm | 518 mm | 541 mm | 565 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 499 mm | 525 mm | 549 mm | 574 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm | 140 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 967 mm | 995 mm | 1020 mm | 1047 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 760 mm | 785 mm | 808 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 166 cm | 174 cm | 185 cm |
| Rider Max Height | 168 cm | 176 cm | 187 cm | 198 cm |
