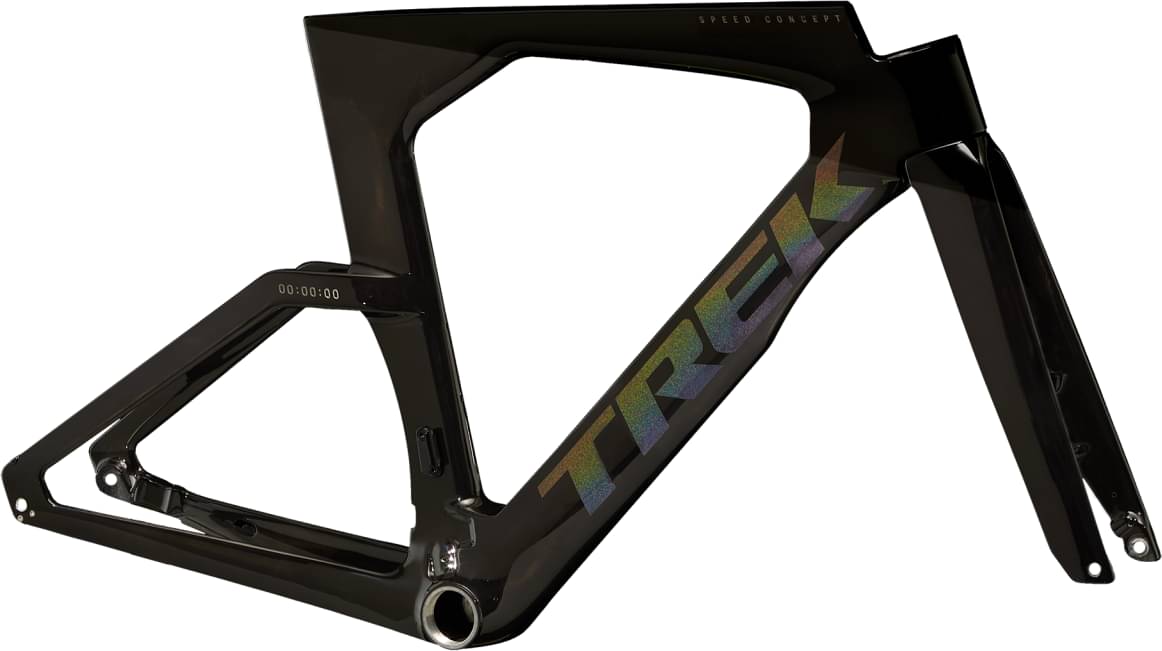

Trek Speed Concept TT Frameset 2025
2025 Road
Estimate price |
7,910$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
SM
154cm - 168cm
MD
166cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB
Suspension Fork
SC full foil carbon, integrated brake & stem
Drivetrain
Bottom Bracket
T47, threaded
Wheels
Tires
28mm rear, 25mm front
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.216 mm | 1.221 mm | 1.228 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm |
| Front Center | 583 mm | 611 mm | 634 mm |
| Rake | 44 mm | 45 mm | 44 mm |
| Trail | 63 mm | 63 mm | 63 mm |
| Stack | 484 mm | 509 mm | 533 mm |
| Reach | 398 mm | 417 mm | 434 mm |
| Top Tube Length | 518 mm | 544 mm | 566 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 499 mm | 525 mm | 549 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm |
| Wheelbase | 982 mm | 1010 mm | 1034 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Standover Height | 751 mm | 776 mm | 800 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 166 cm | 174 cm |
| Rider Max Height | 168 cm | 176 cm | 186 cm |
