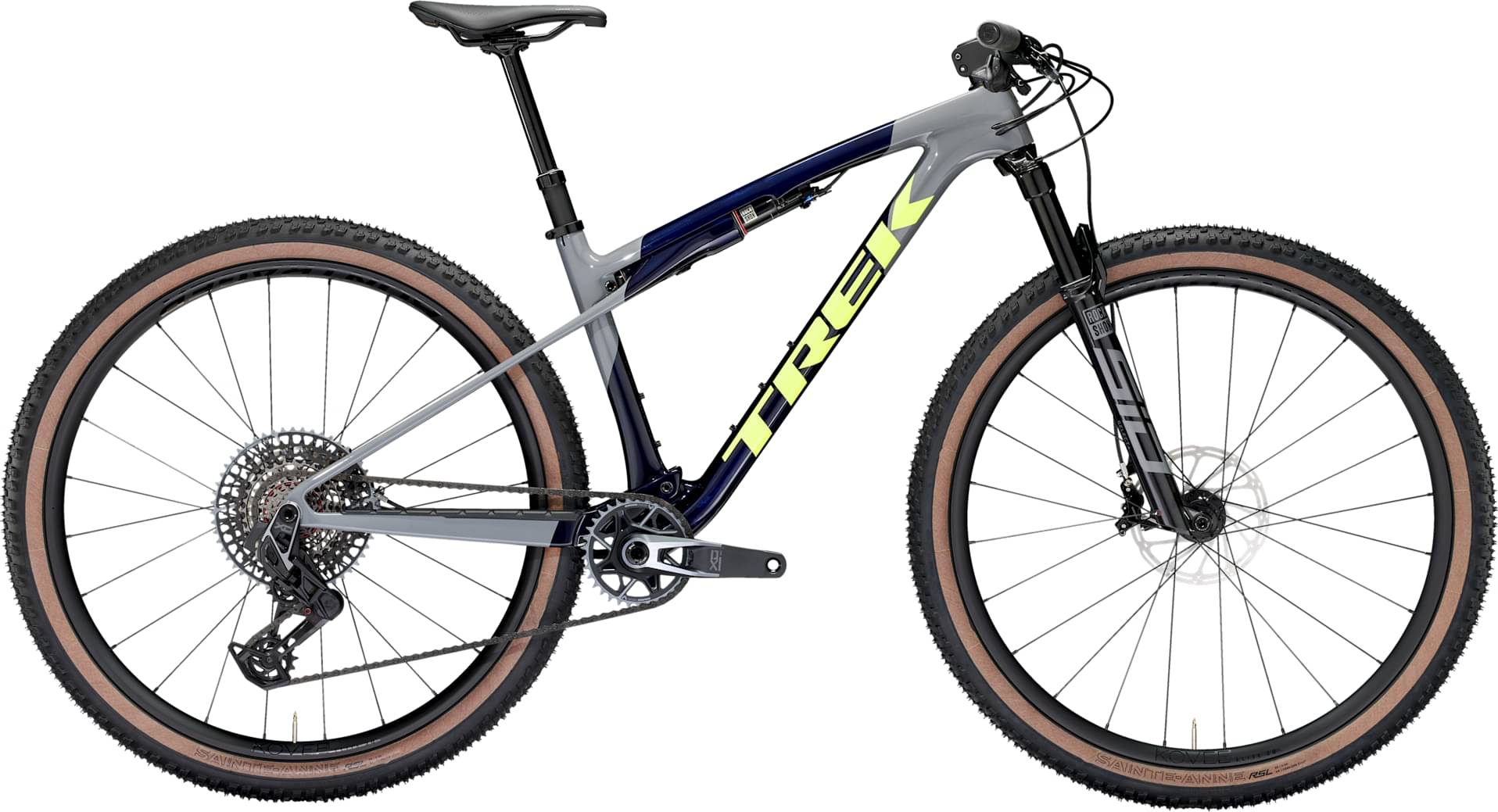

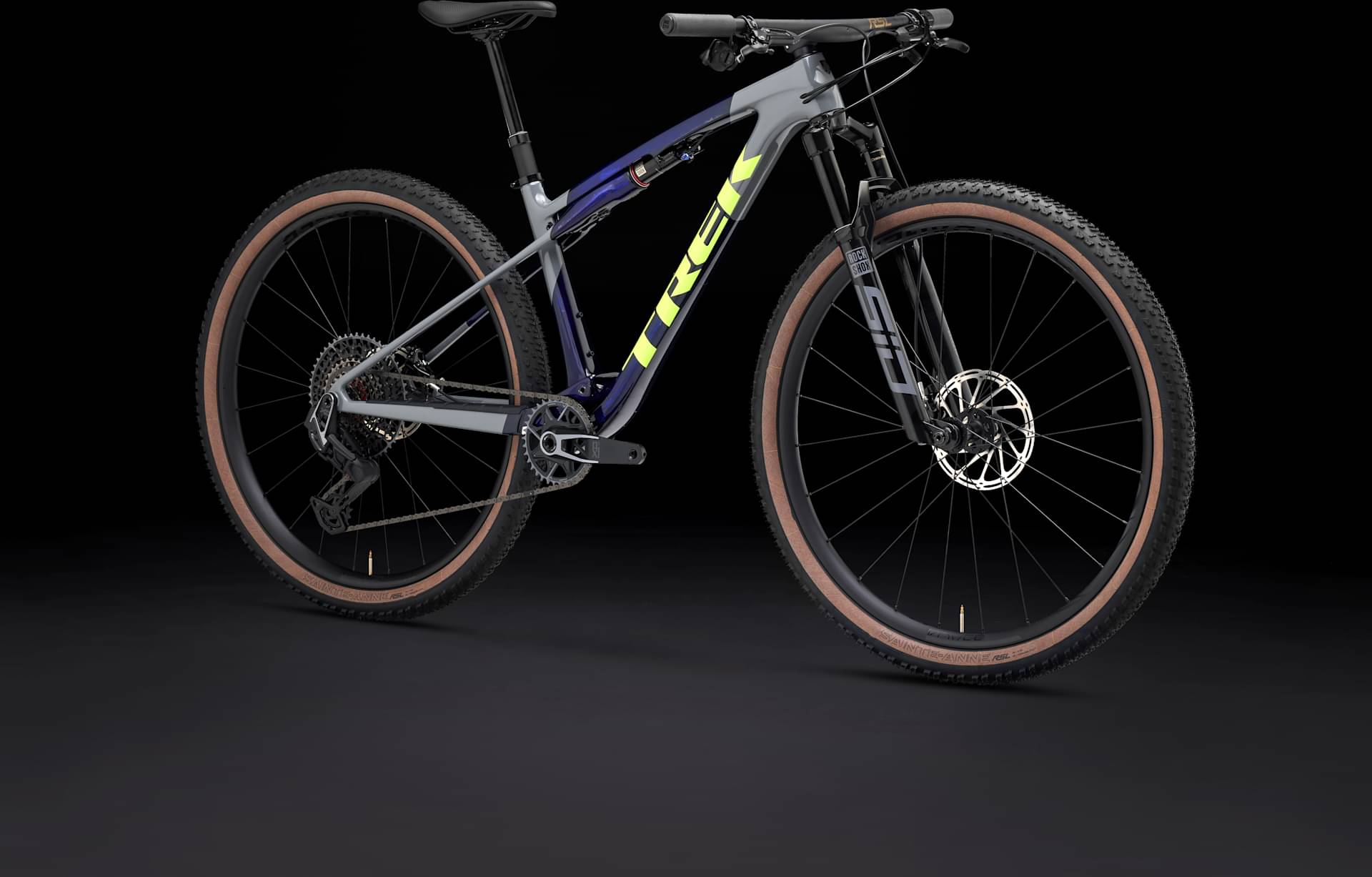

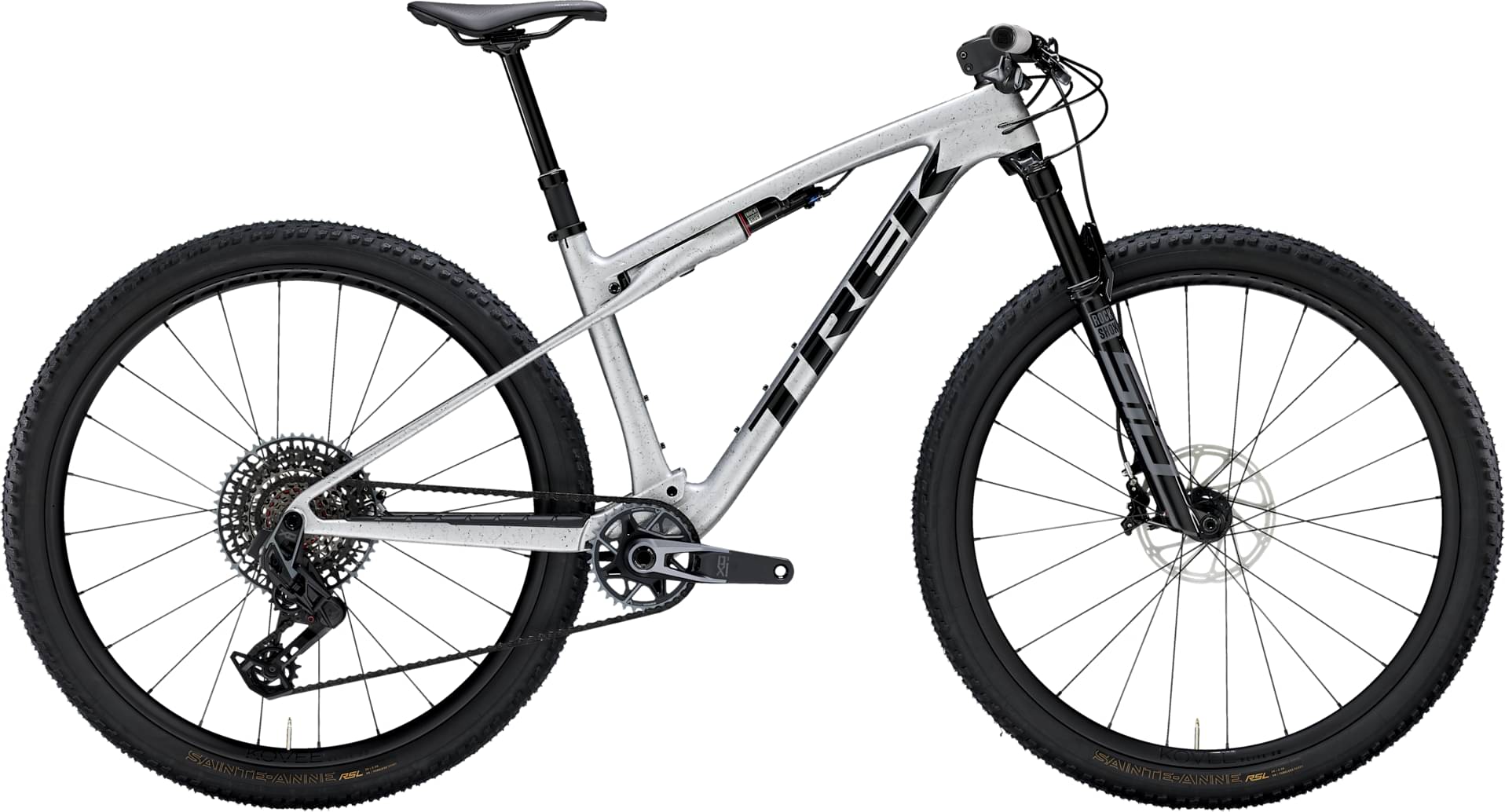

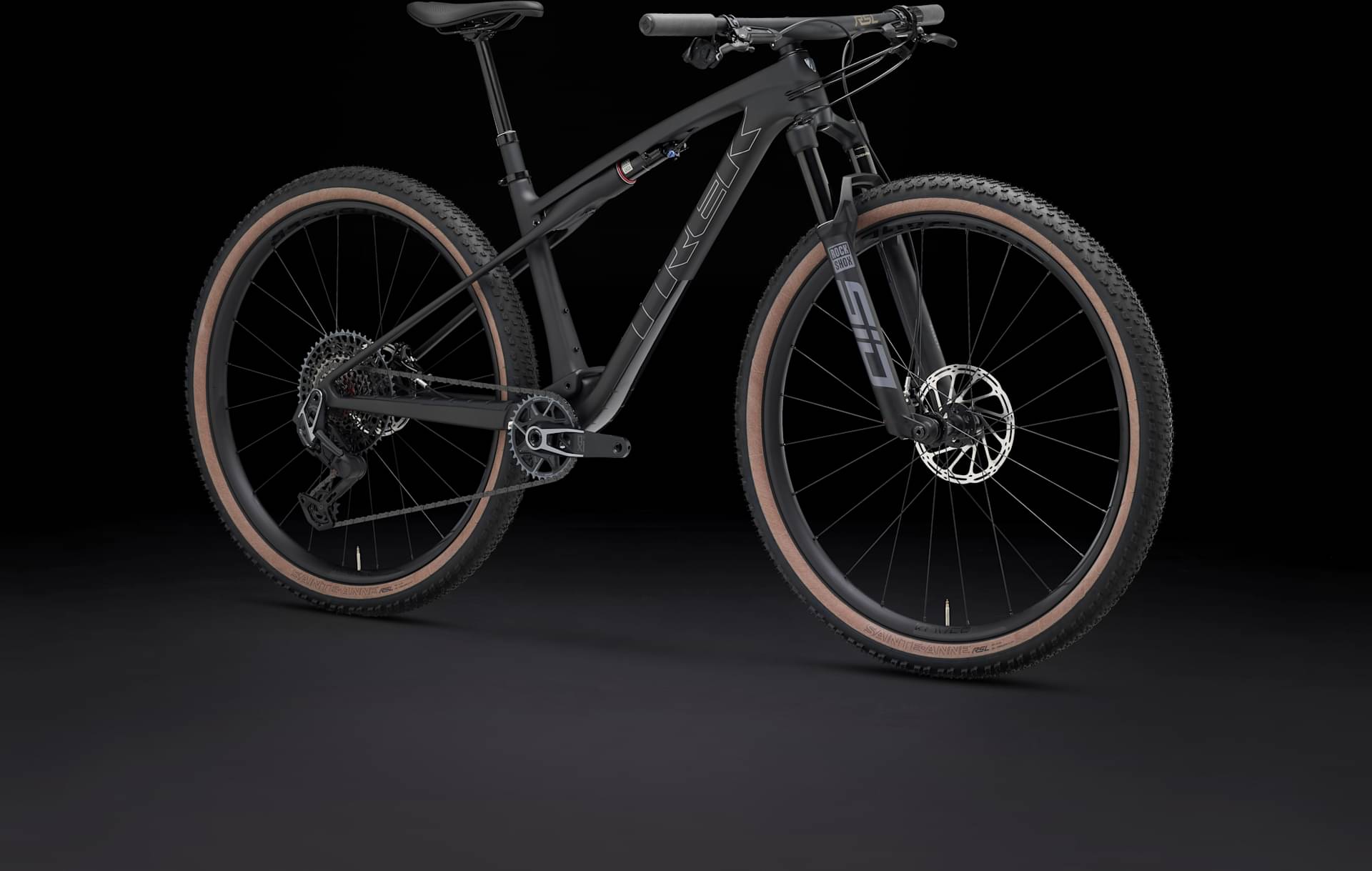

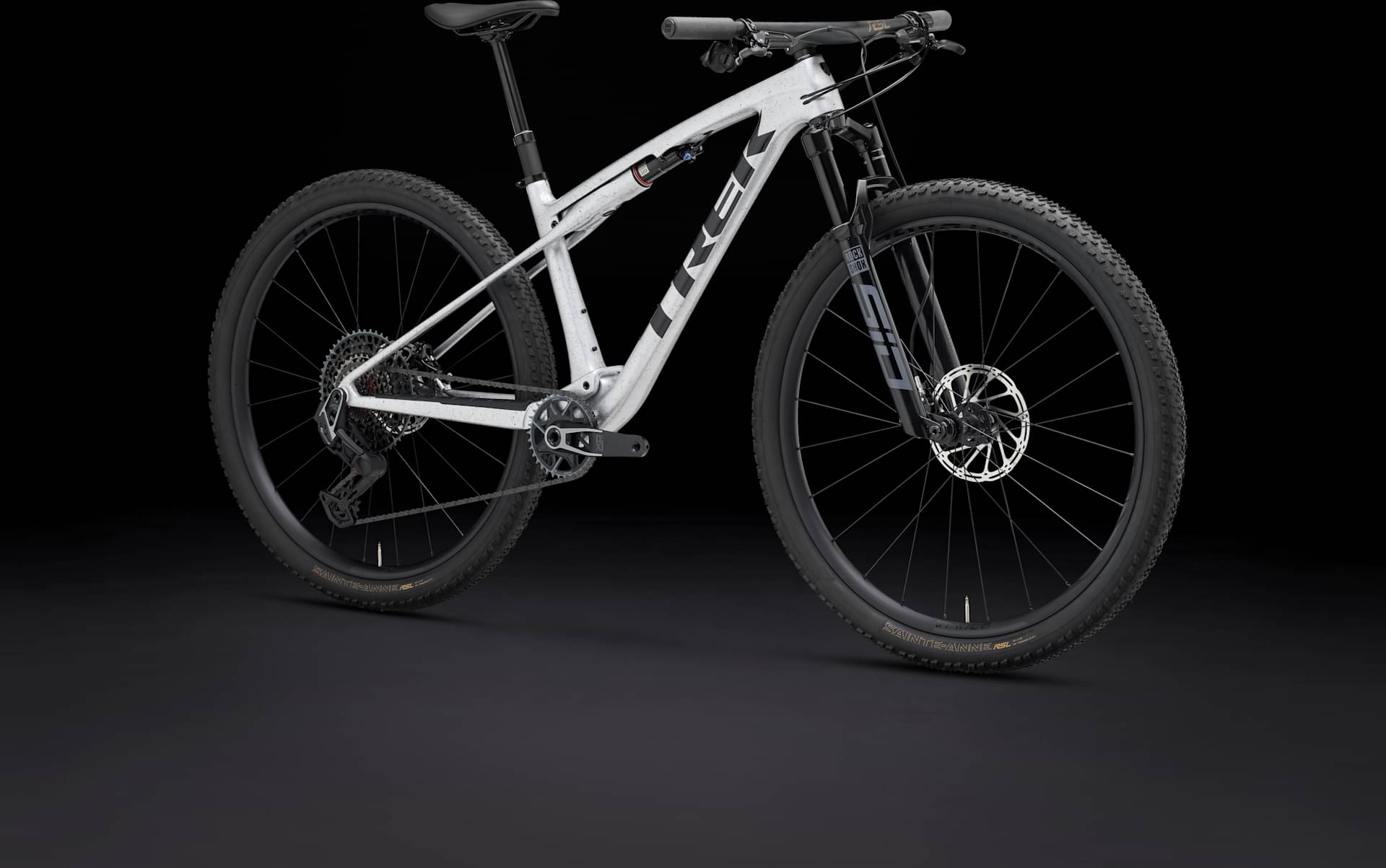

Trek Supercaliber SLR 9.8 X0 AXS T-Type Gen 2 2025
2025 Mountain
Estimate price |
8,724$
Weight | 11.28 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 80mm -
Fork RockShox SID Select+
-
Groupset X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
MD/LG
173cm - 180cm
LG
177cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
Suspension Fork
RockShox SID Select+, DebonAir spring, Charger Race Day damper, dual remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel

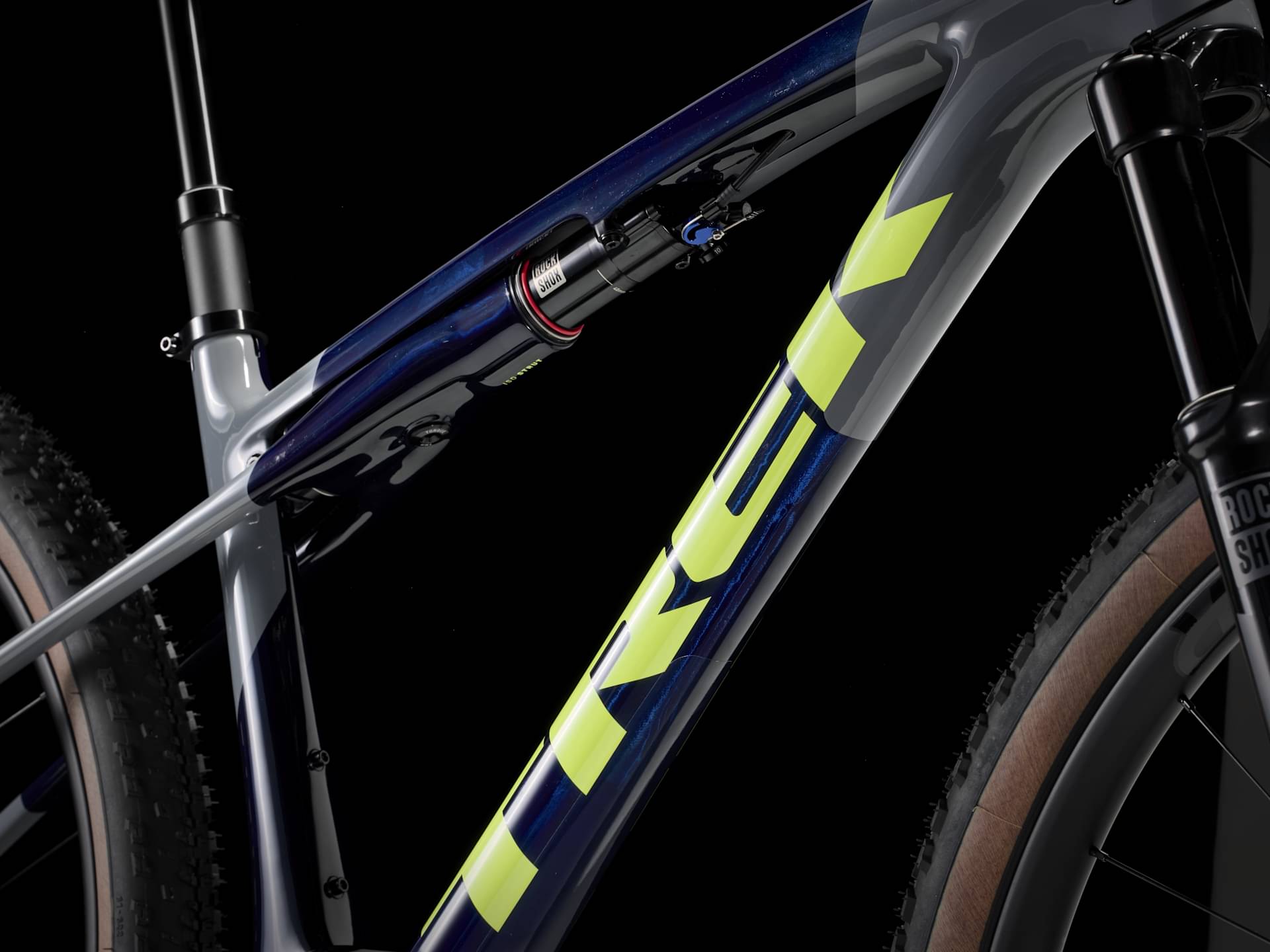

Rear Shock

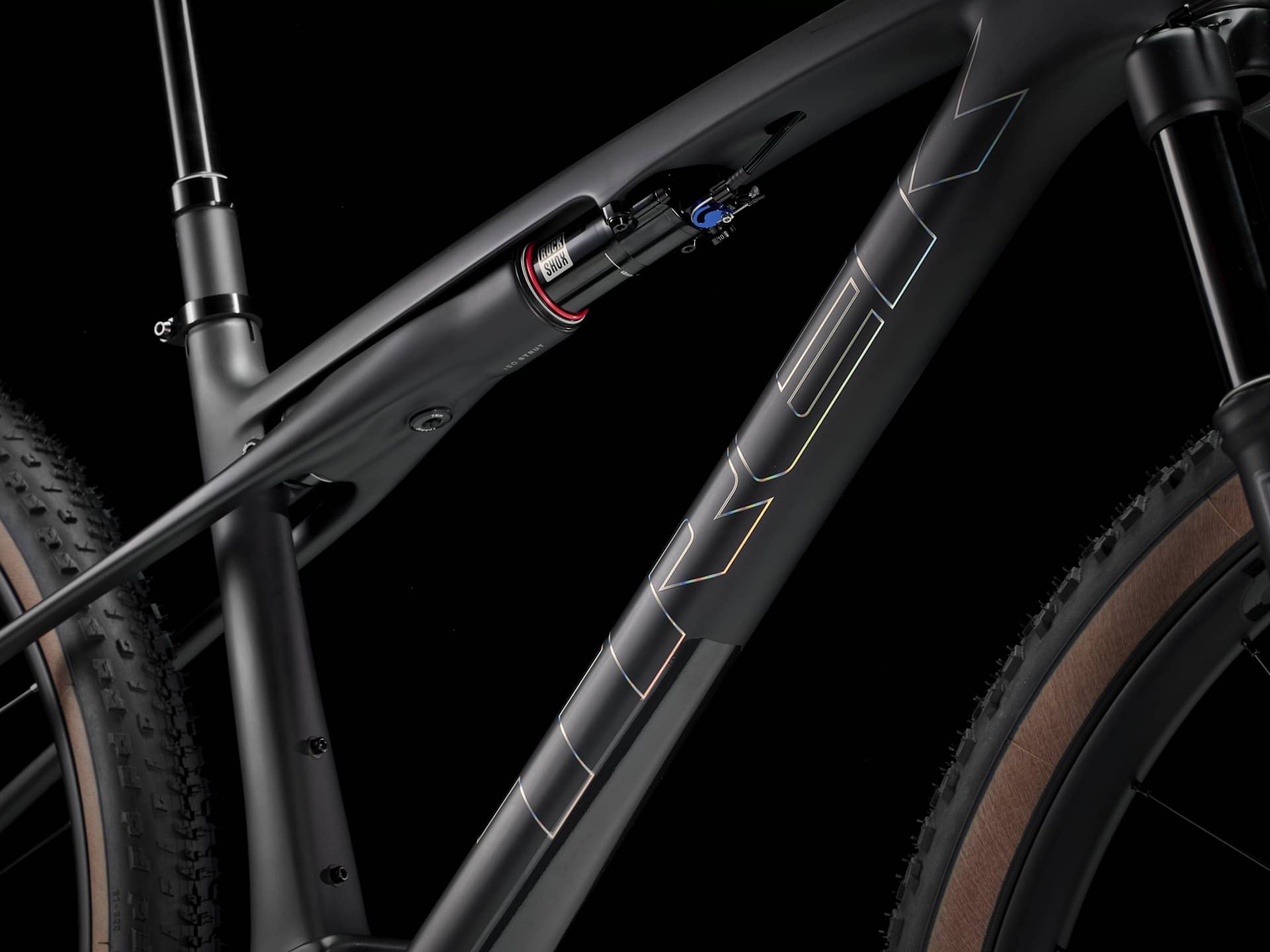

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper

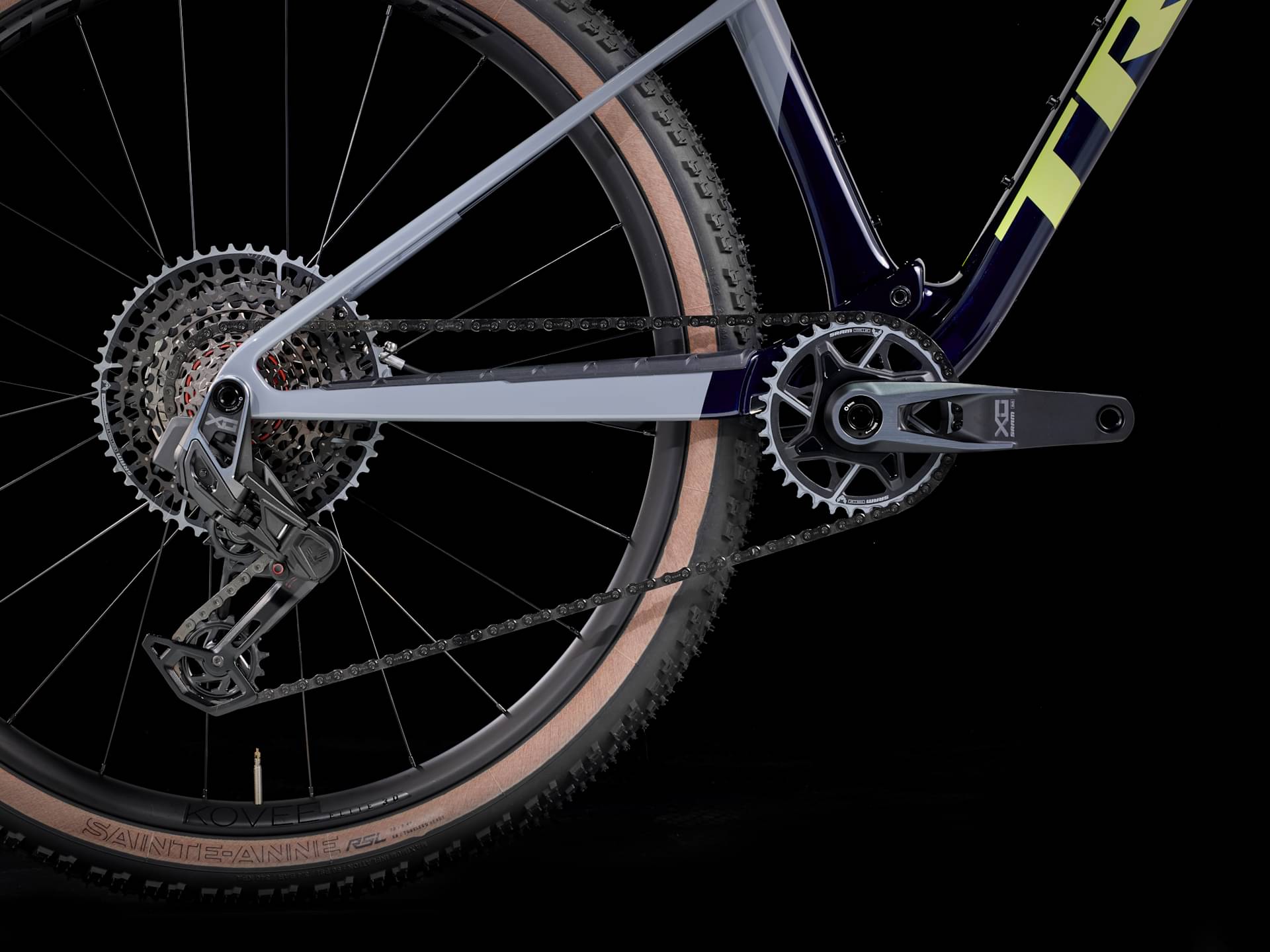

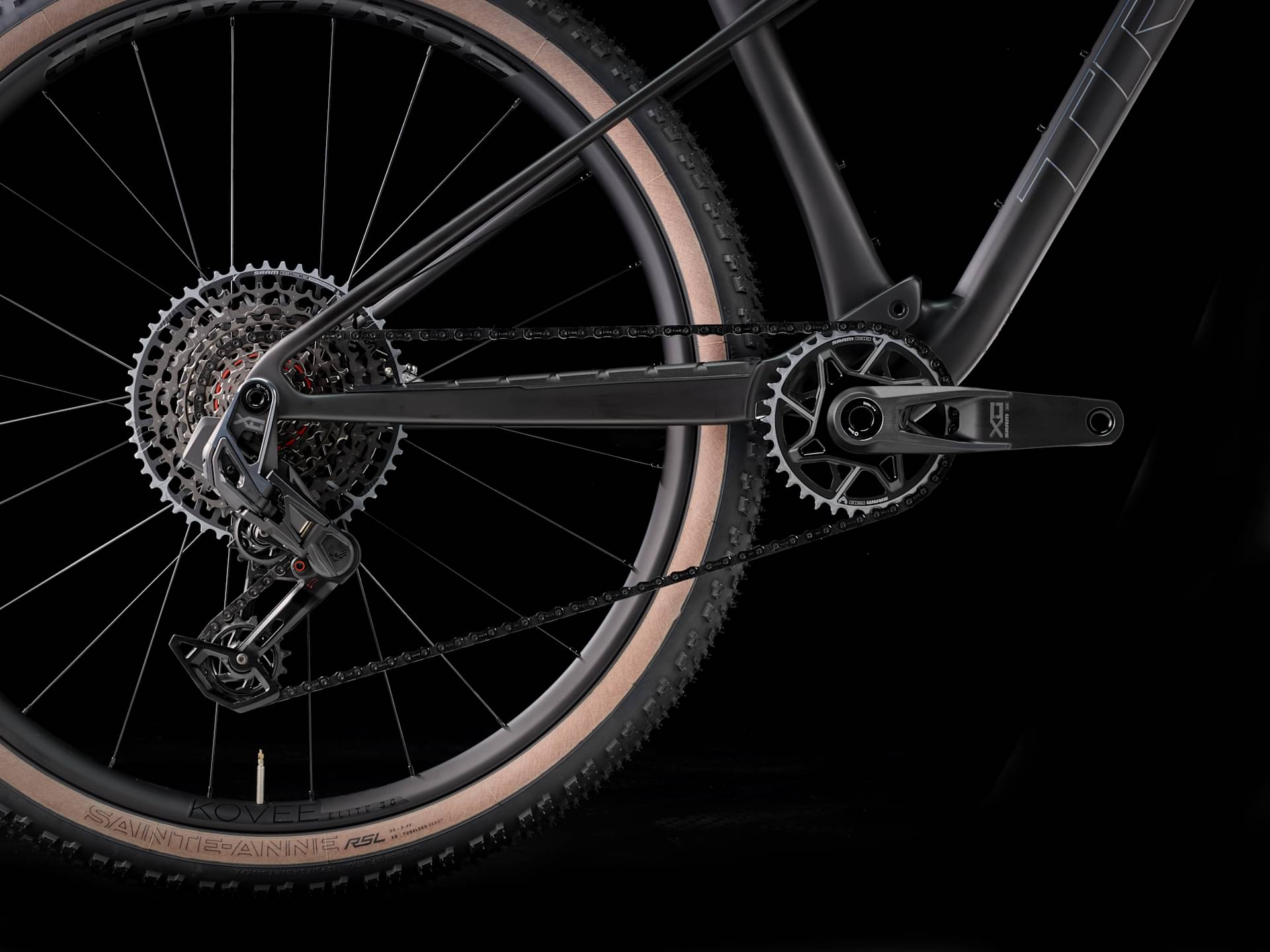

Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS, T-Type
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Crank
Size: S, M, ML, SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length; Size: L, XL, SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 175mm length
Bottom Bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM X0 Eagle, T-Type, 12 speed
Wheels
Rims
Front: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29''
Tires
Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40''
Brakes
Brakes
SRAM Level Silver 4-piston hydraulic disc

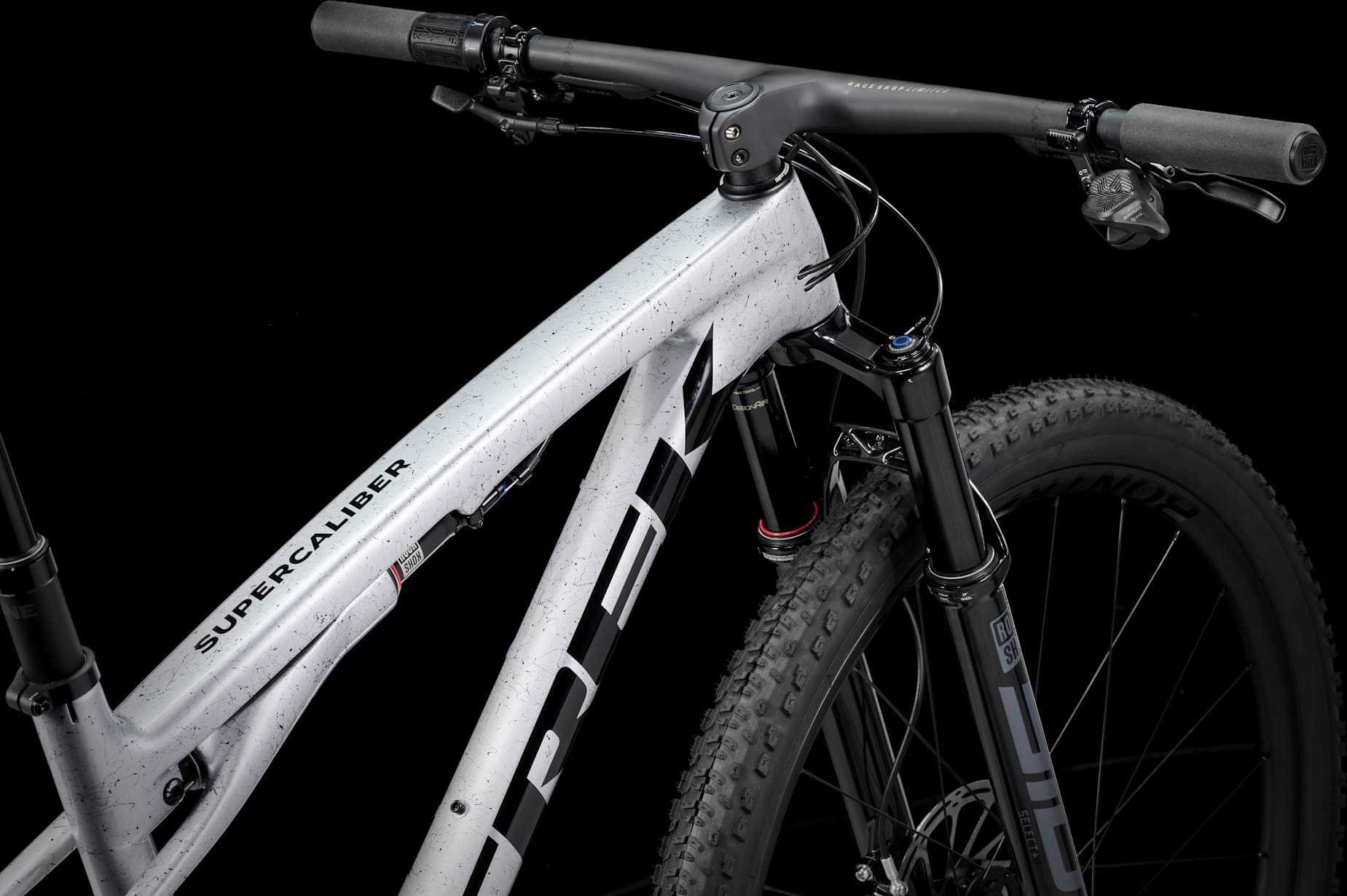

Cockpit
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Verse Short Elite, hollow magnesium rails, 145mm width
Seatpost
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: M, ML, L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length; Size: XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.356 mm | 1.311 mm | 1.288 mm | 1.244 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 682 mm | 707 mm | 722 mm | 741 mm | 786 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 590 mm | 590 mm | 590 mm | 599 mm | 622 mm |
| Reach | 410 mm | 435 mm | 450 mm | 465 mm | 500 mm |
| Top Tube Length | 571 mm | 592 mm | 605 mm | 622 mm | 663 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 440 mm | 460 mm | 525 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 100 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1113 mm | 1138 mm | 1153 mm | 1172 mm | 1217 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Standover Height | 760 mm | 772 mm | 772 mm | 772 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 195 cm |
