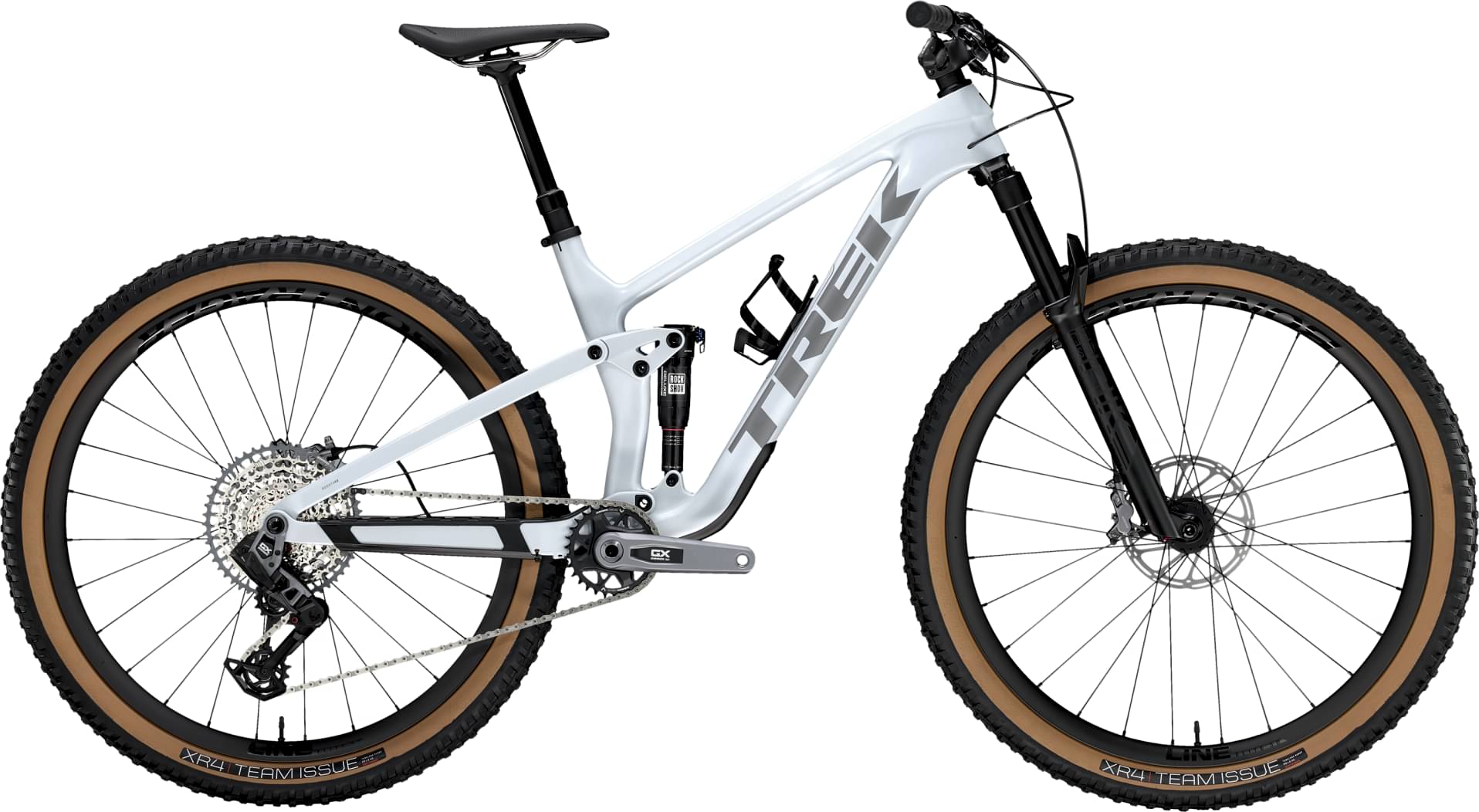

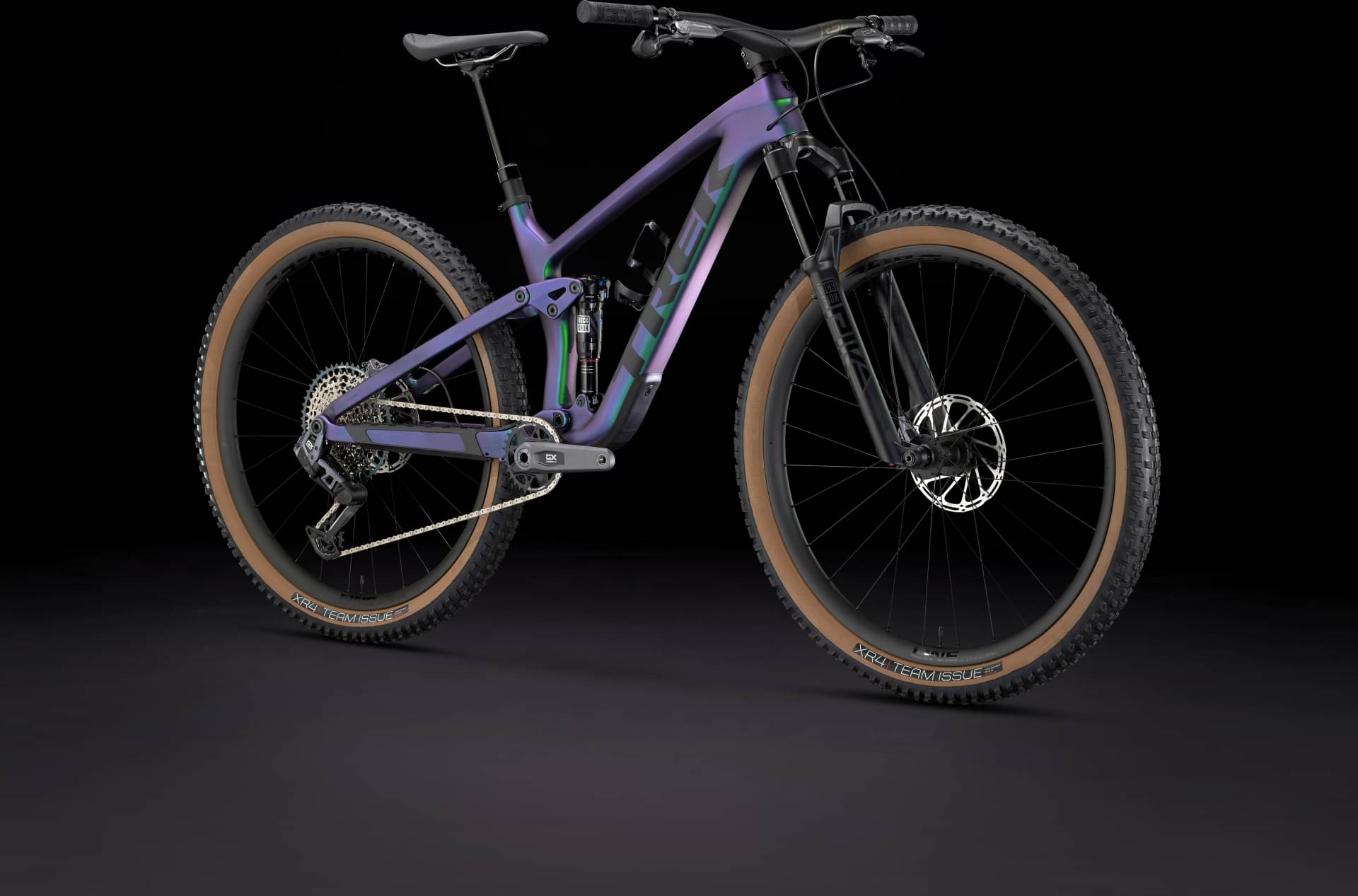

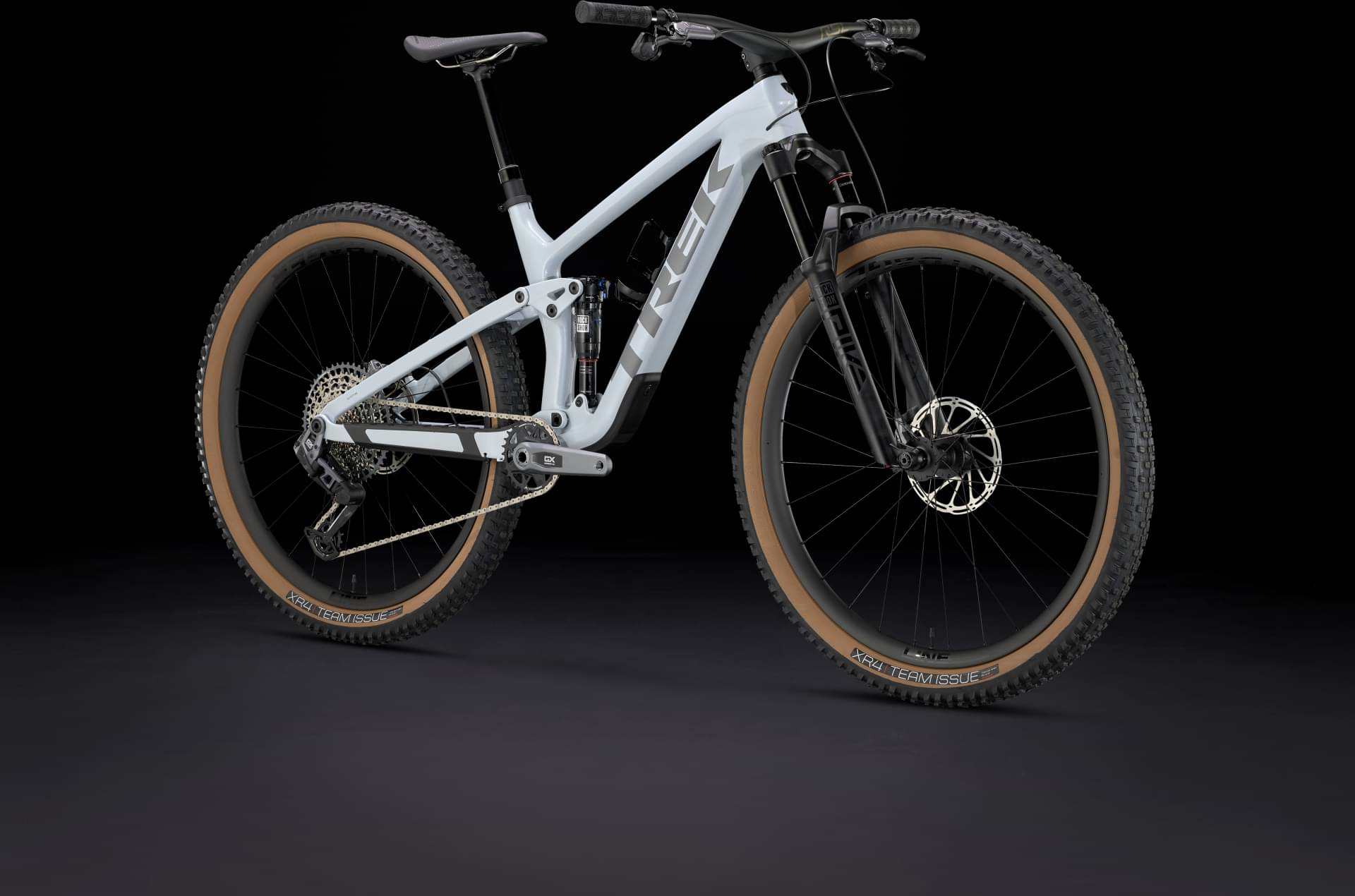

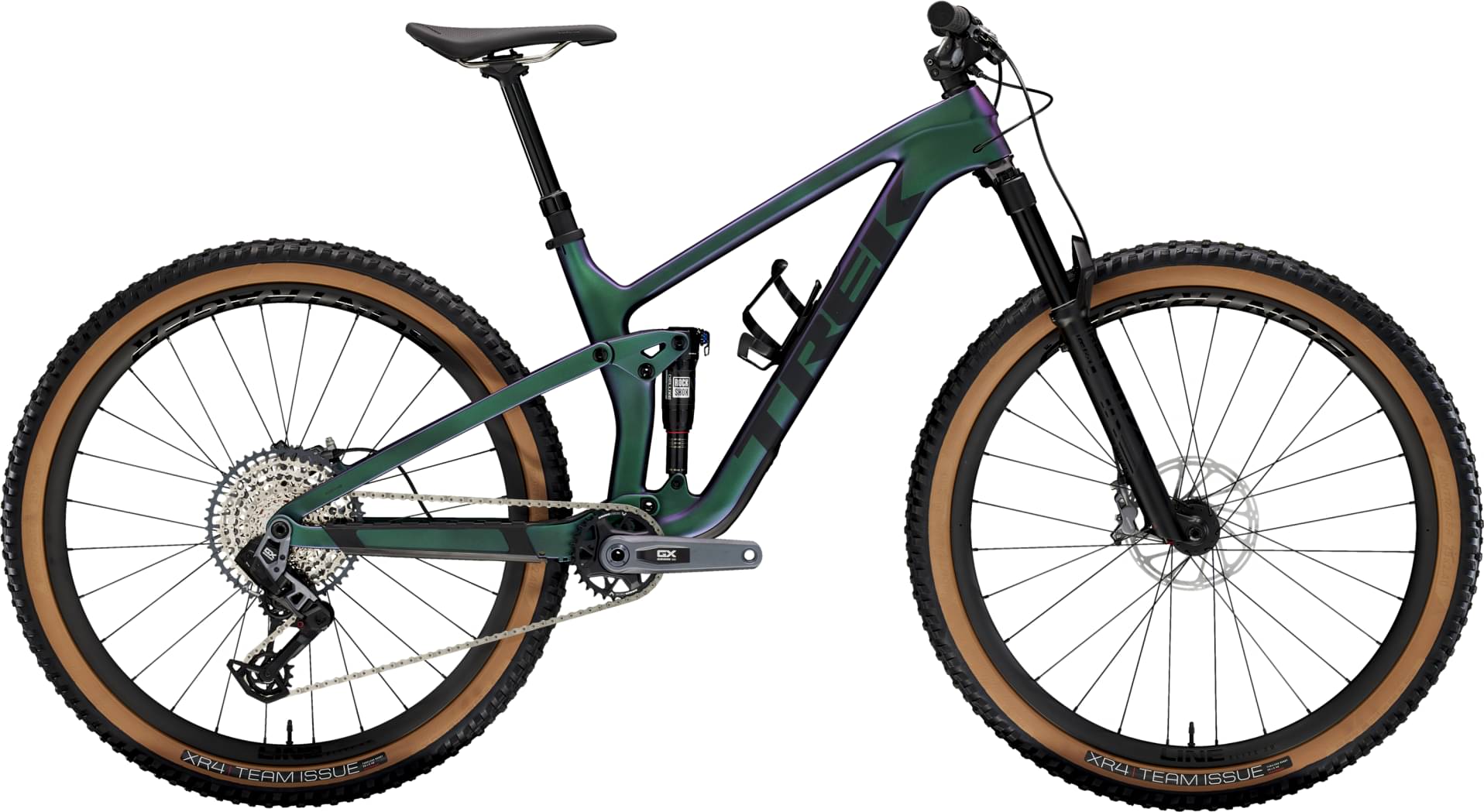

Trek Top Fuel 9.8 GX AXS T-Type Gen 3 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Mountain
- |
- Trail
Frame Carbon
Travel Front 130mm
Travel Rear 120mm
Fork RockShox Pike Select+
Groupset X01 Eagle AXS, GX Eagle Transmission
Suspension Full
Drivetrain 1 × 12 Electronic
Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

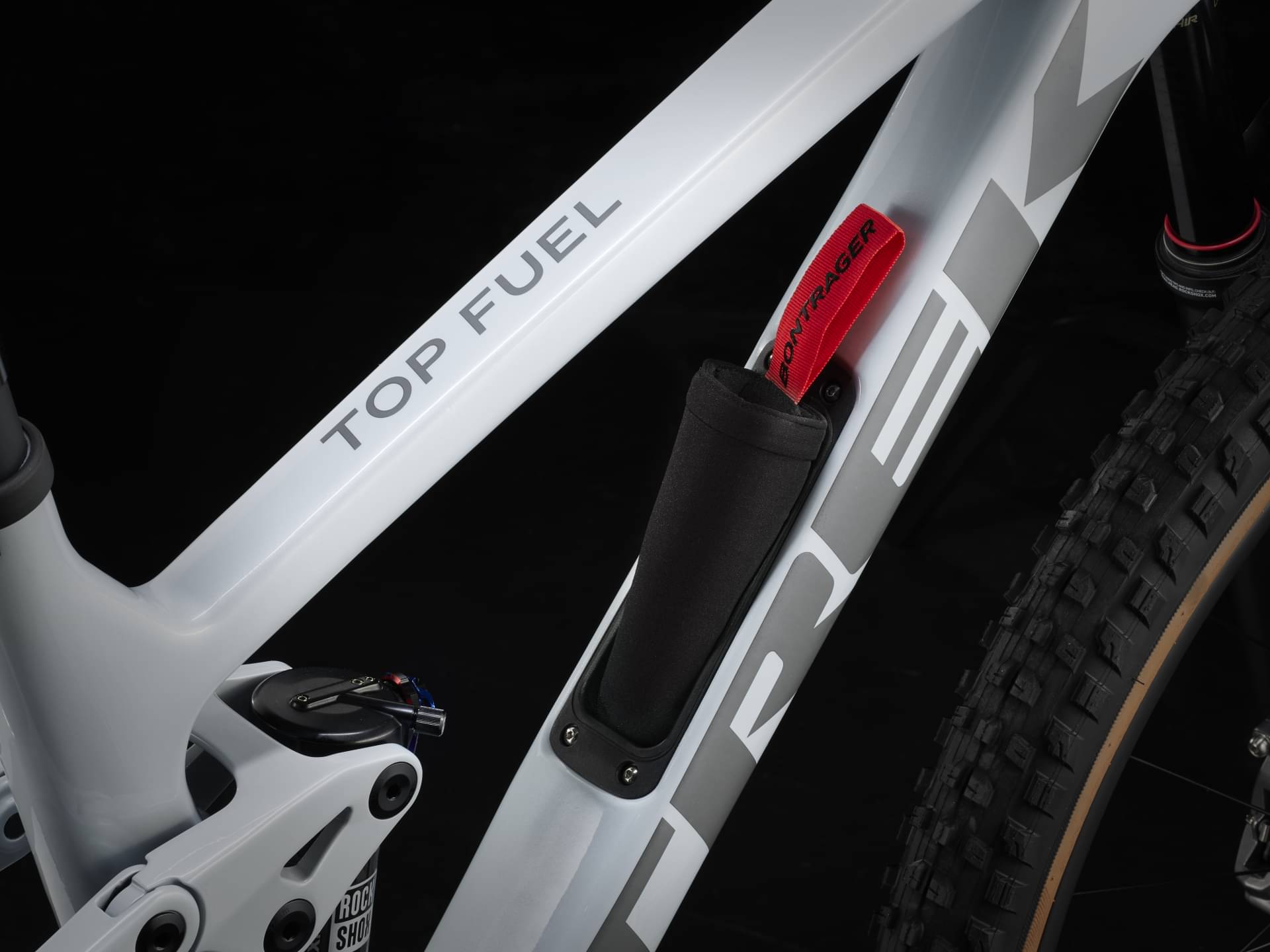

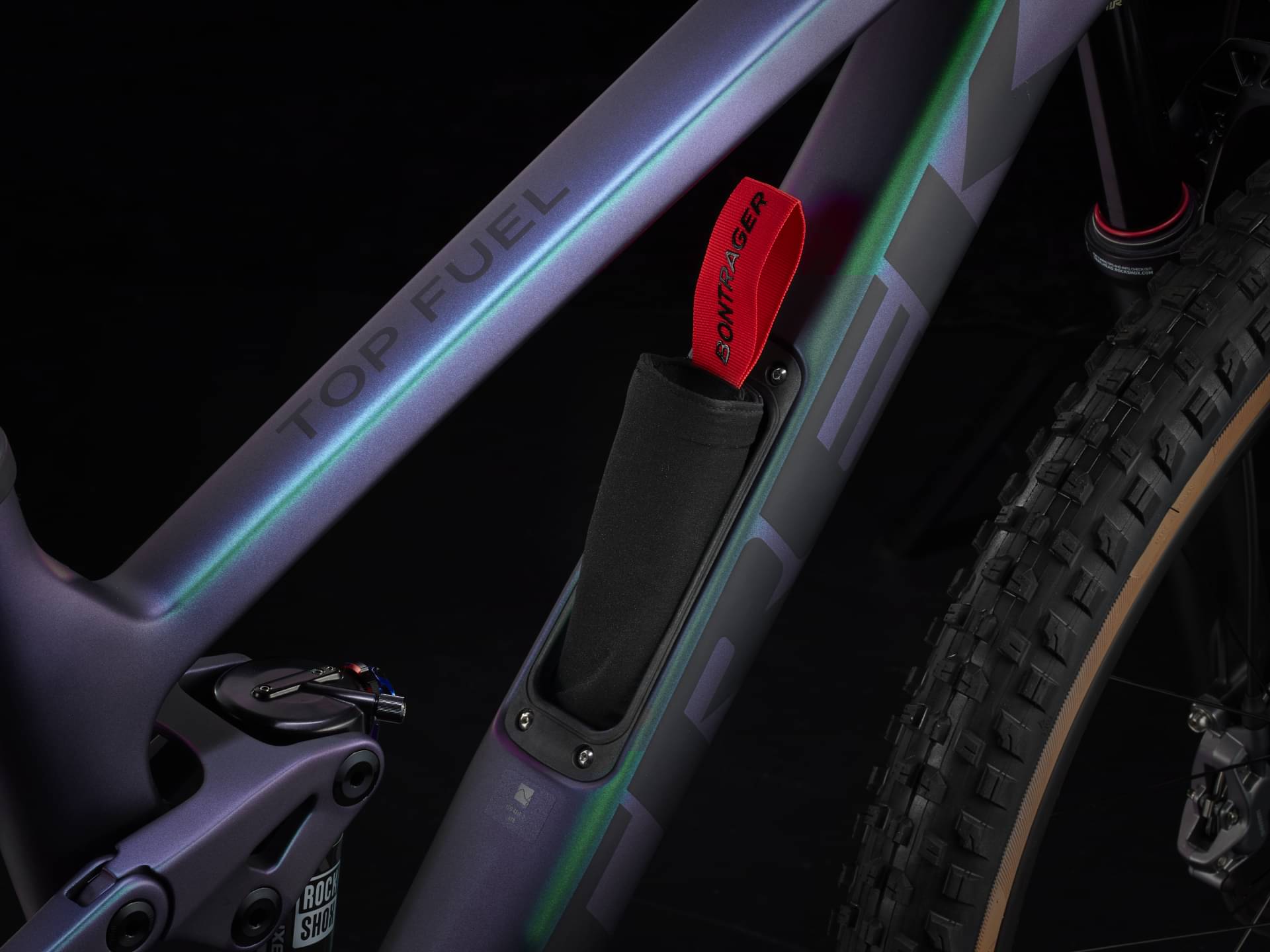

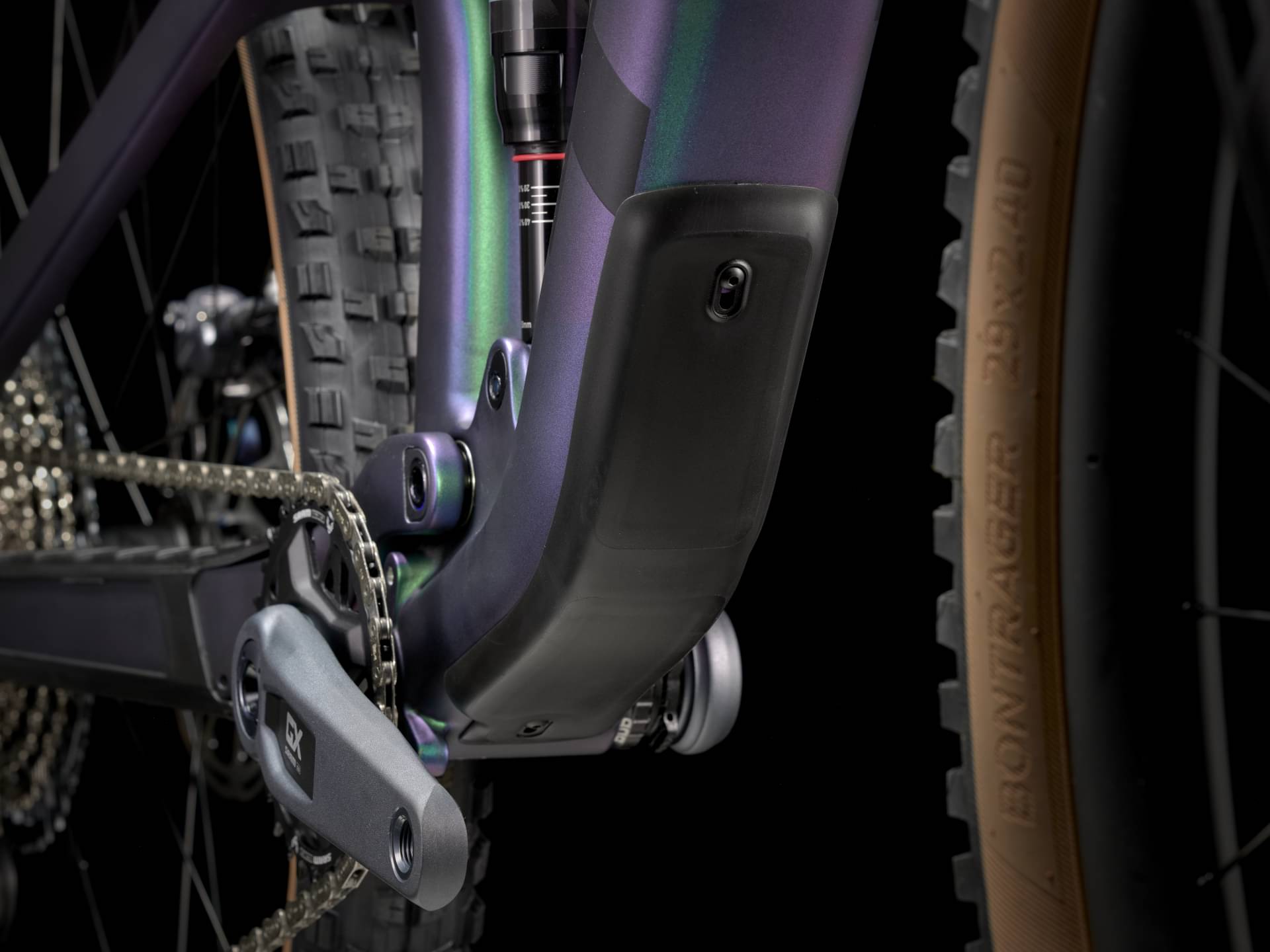

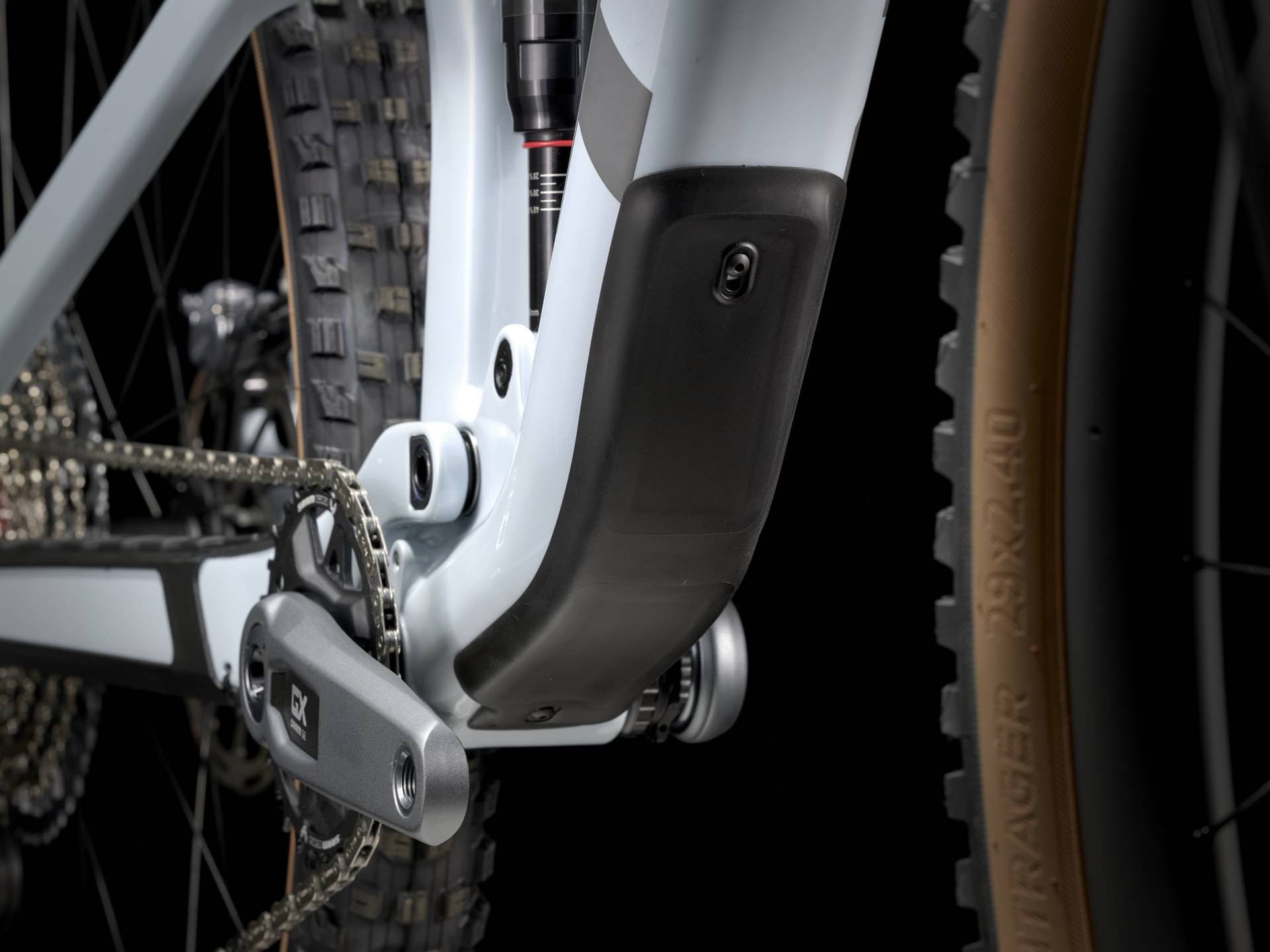

OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel

Suspension Fork

RockShox Pike Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel

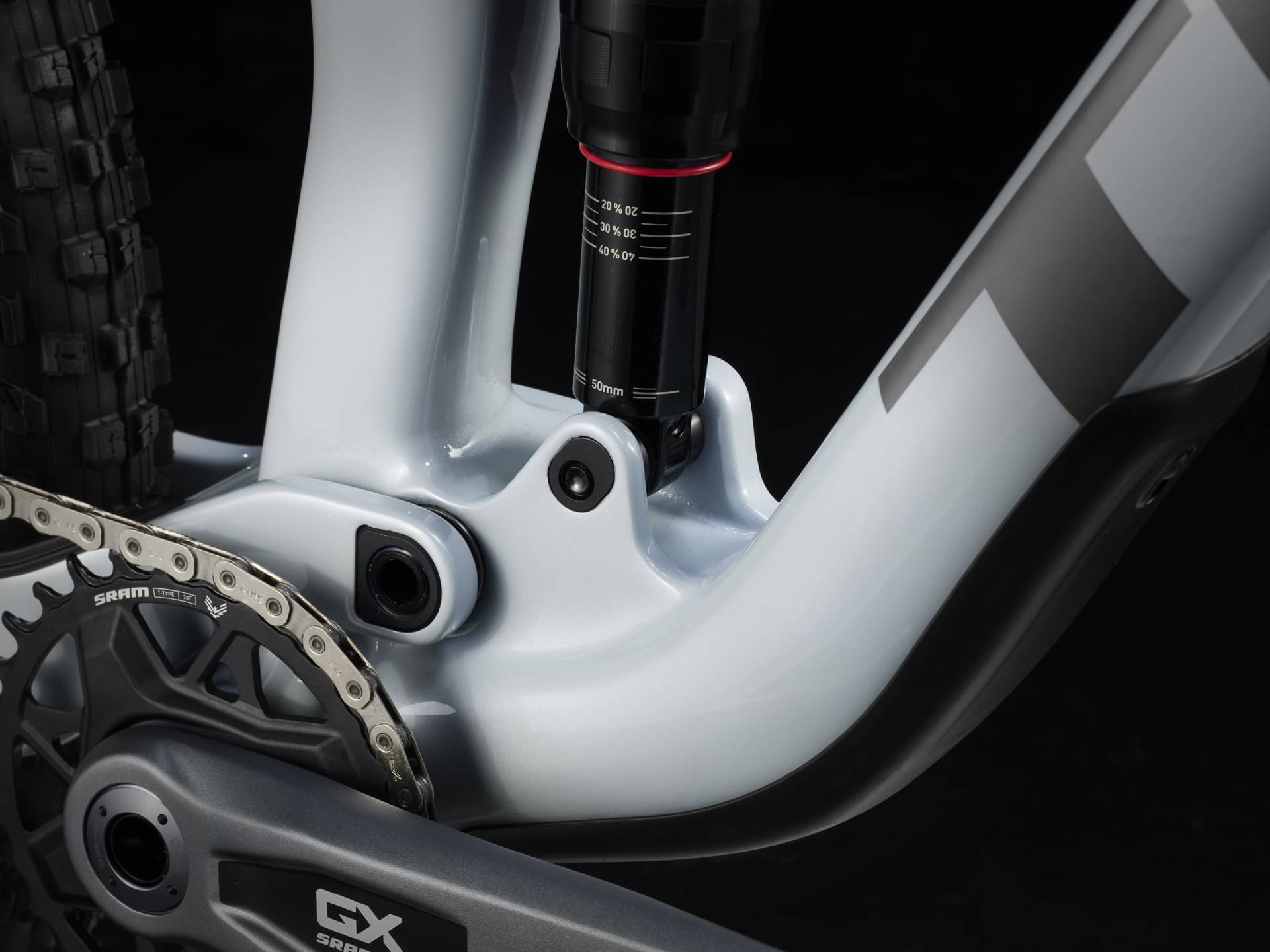

Rear Shock

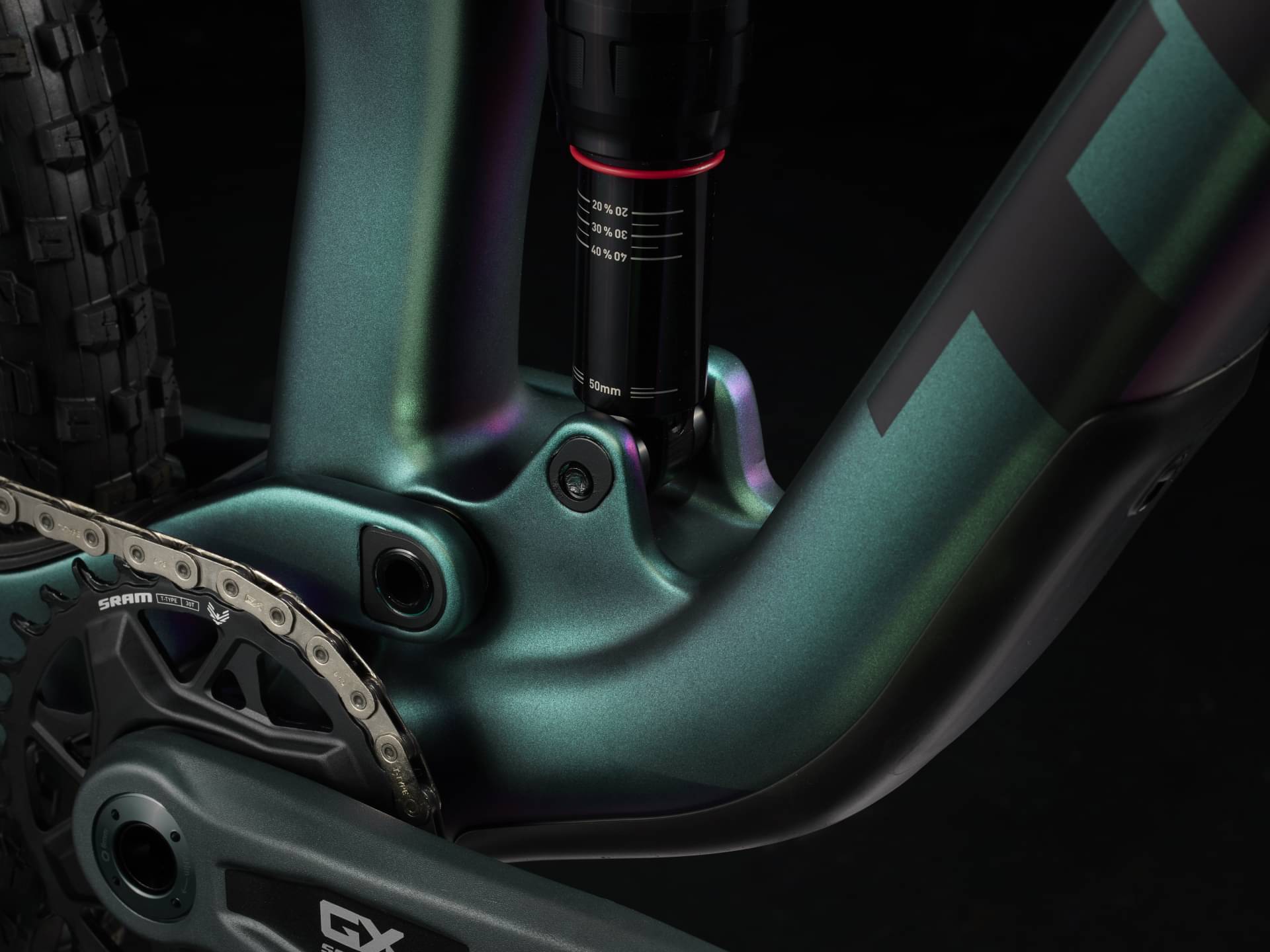

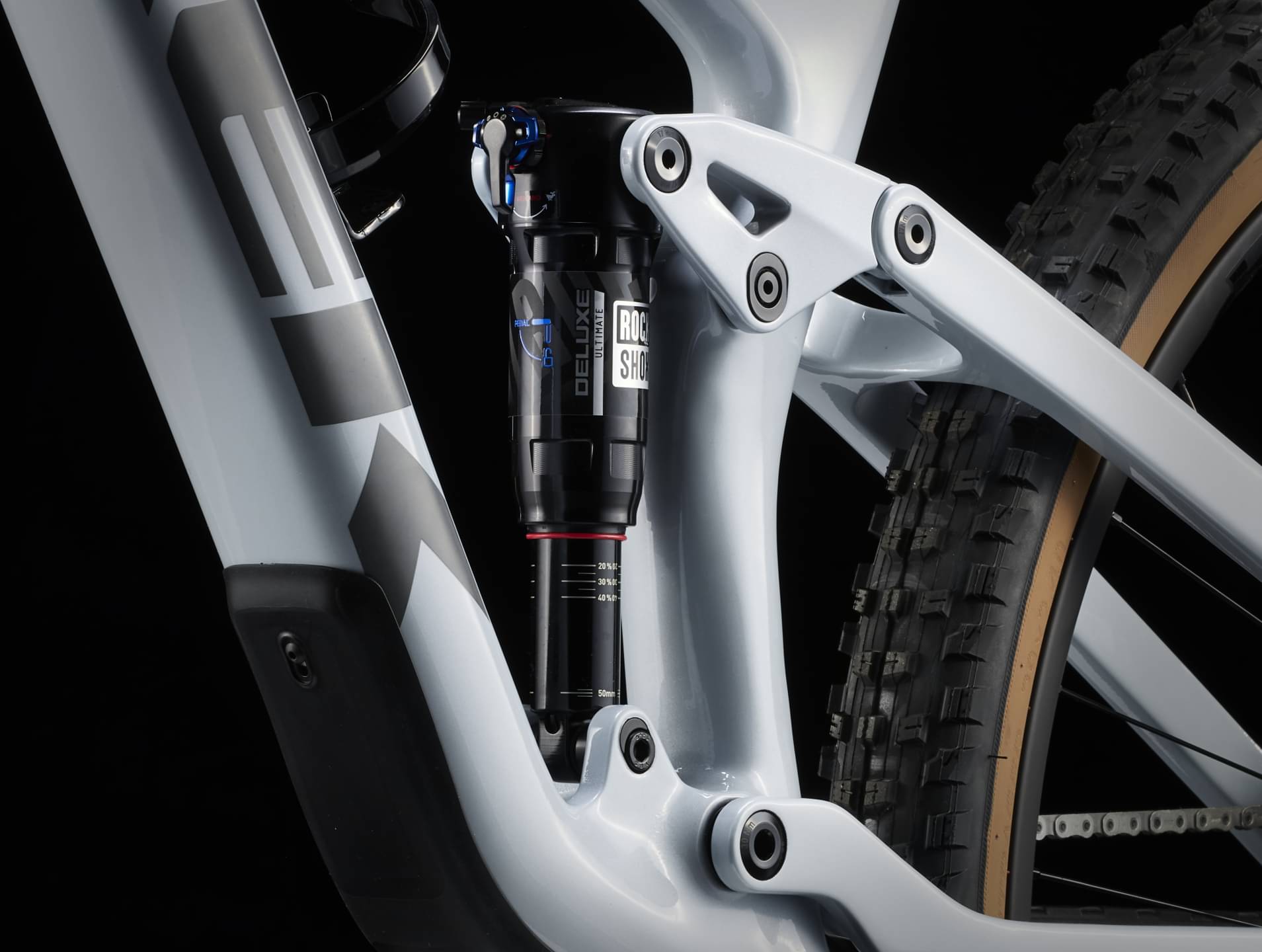

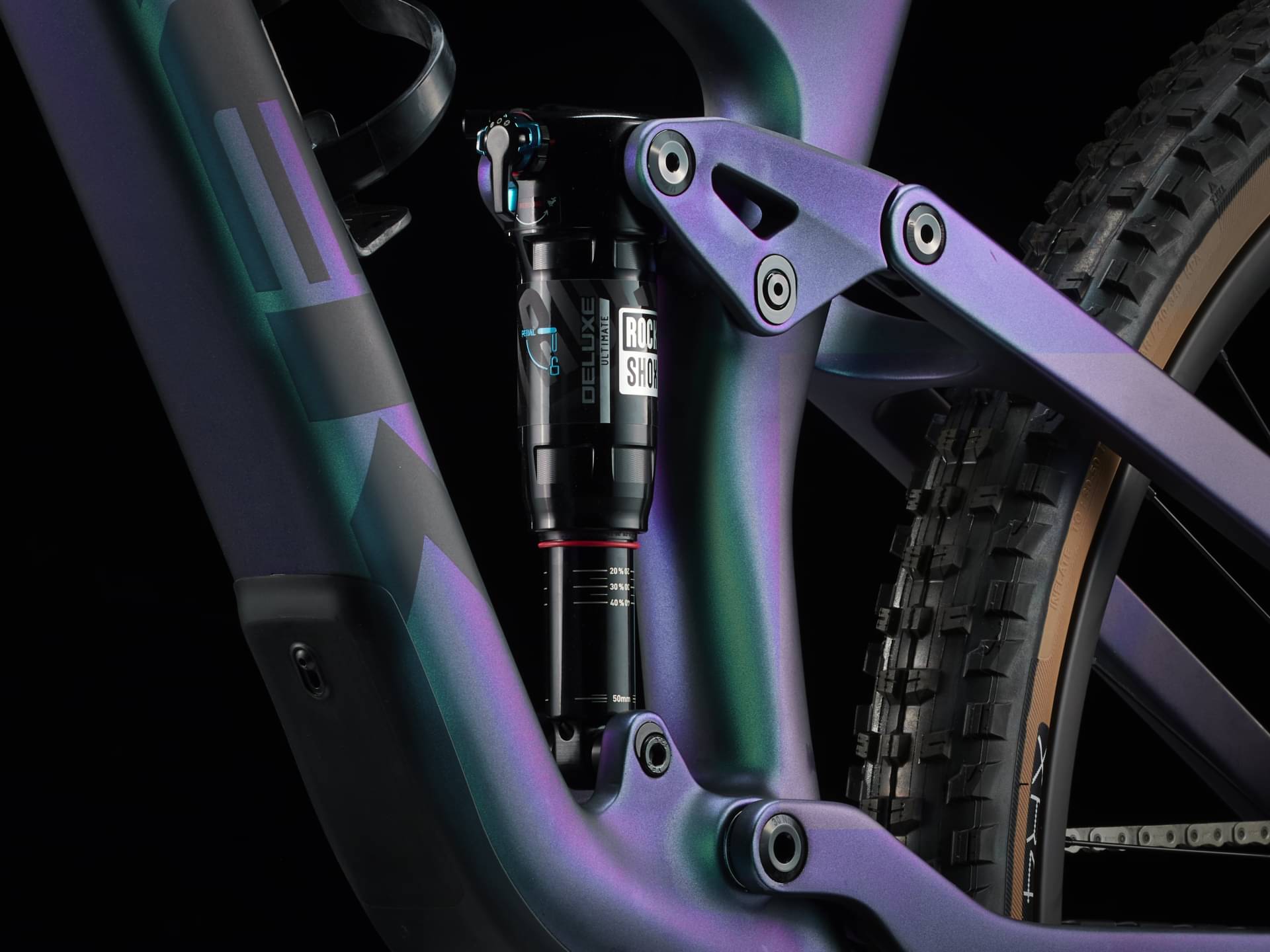

RockShox Deluxe Ultimate RCT, 185mm x 50mm

Drivetrain

Rear Derailleur

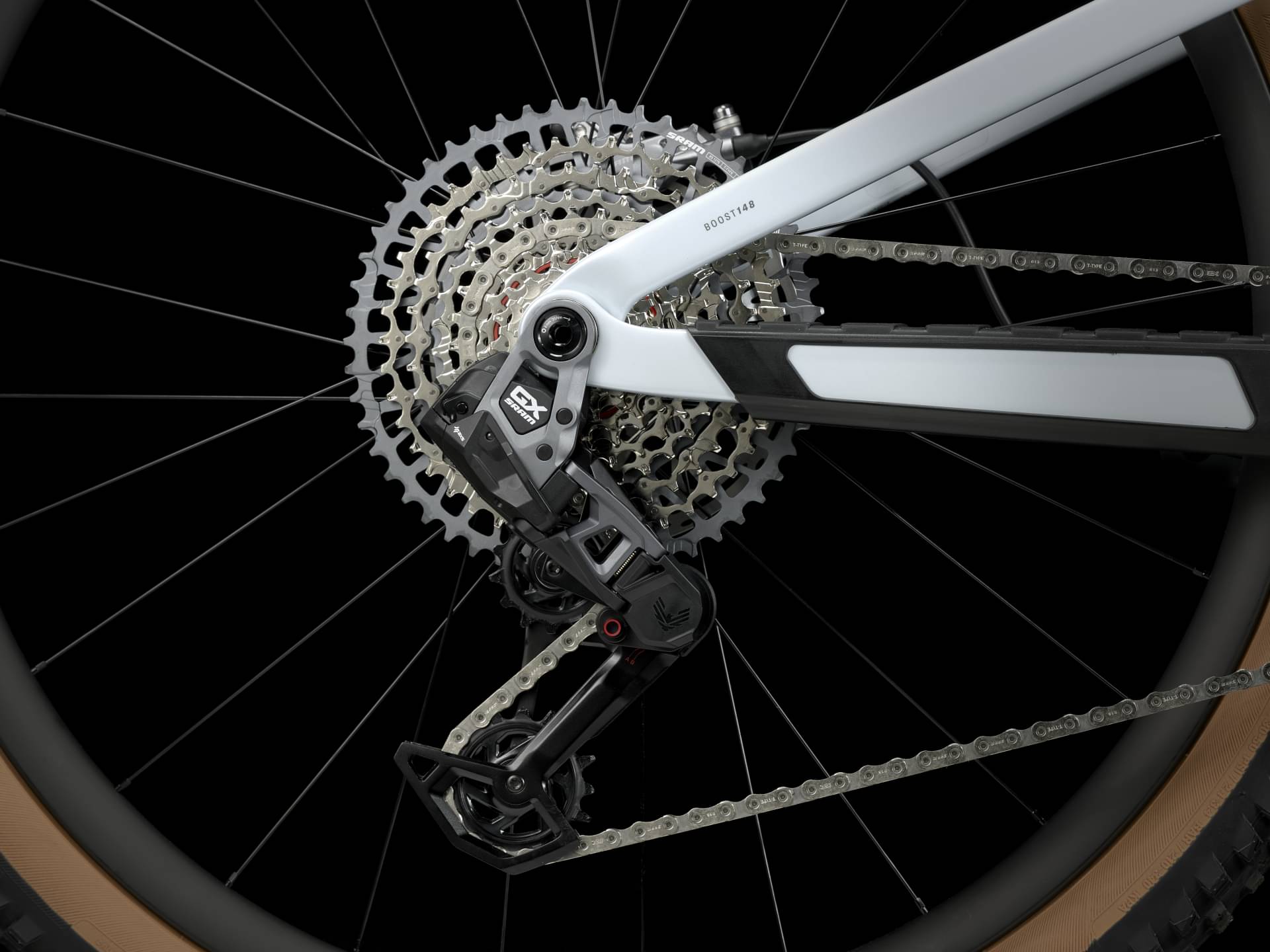

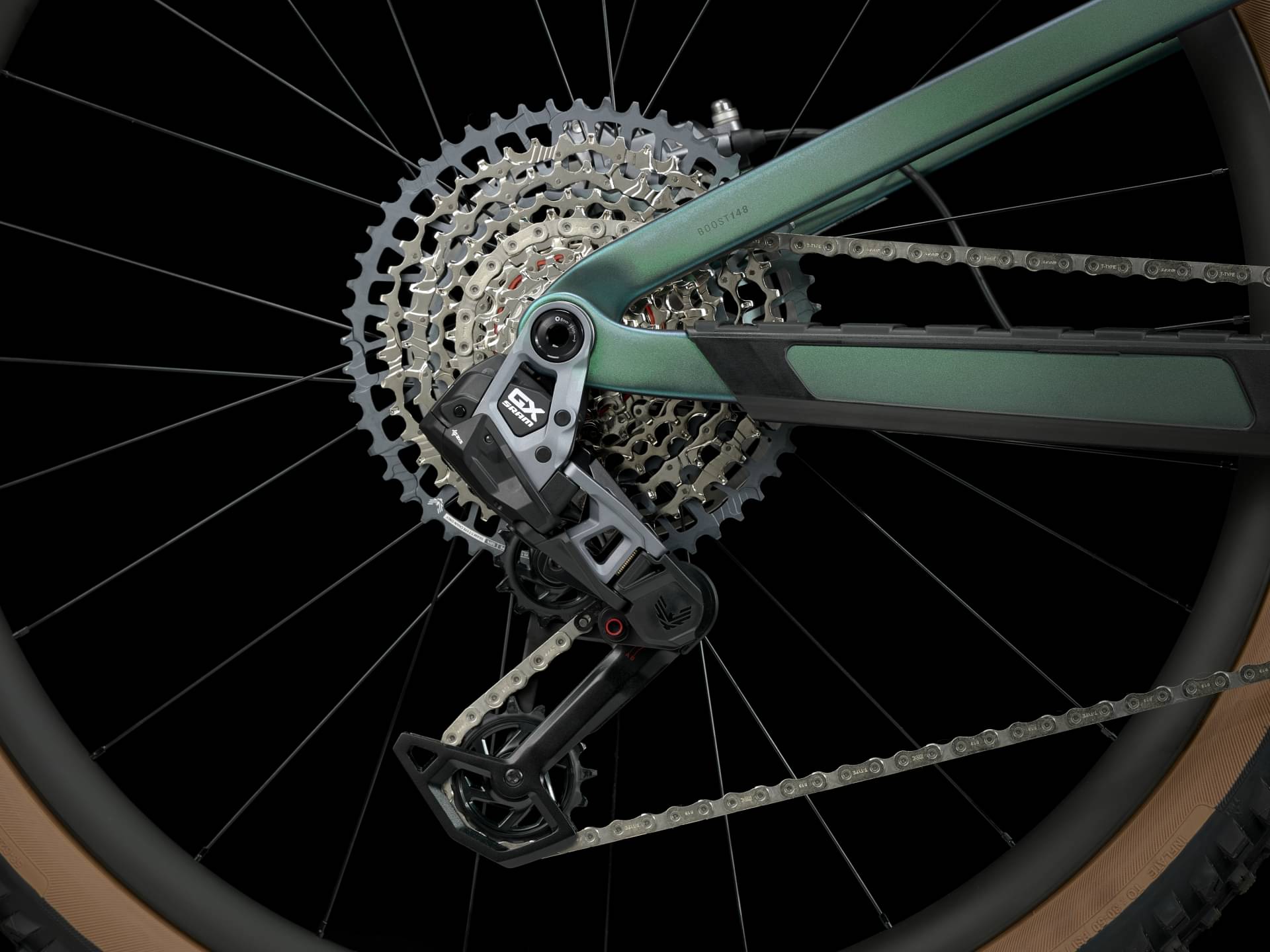

SRAM GX Eagle AXS, T-Type

Shift Levers

SRAM AXS POD

Cassette

SRAM Eagle XS-1275, T-Type,10-52, 12 speed

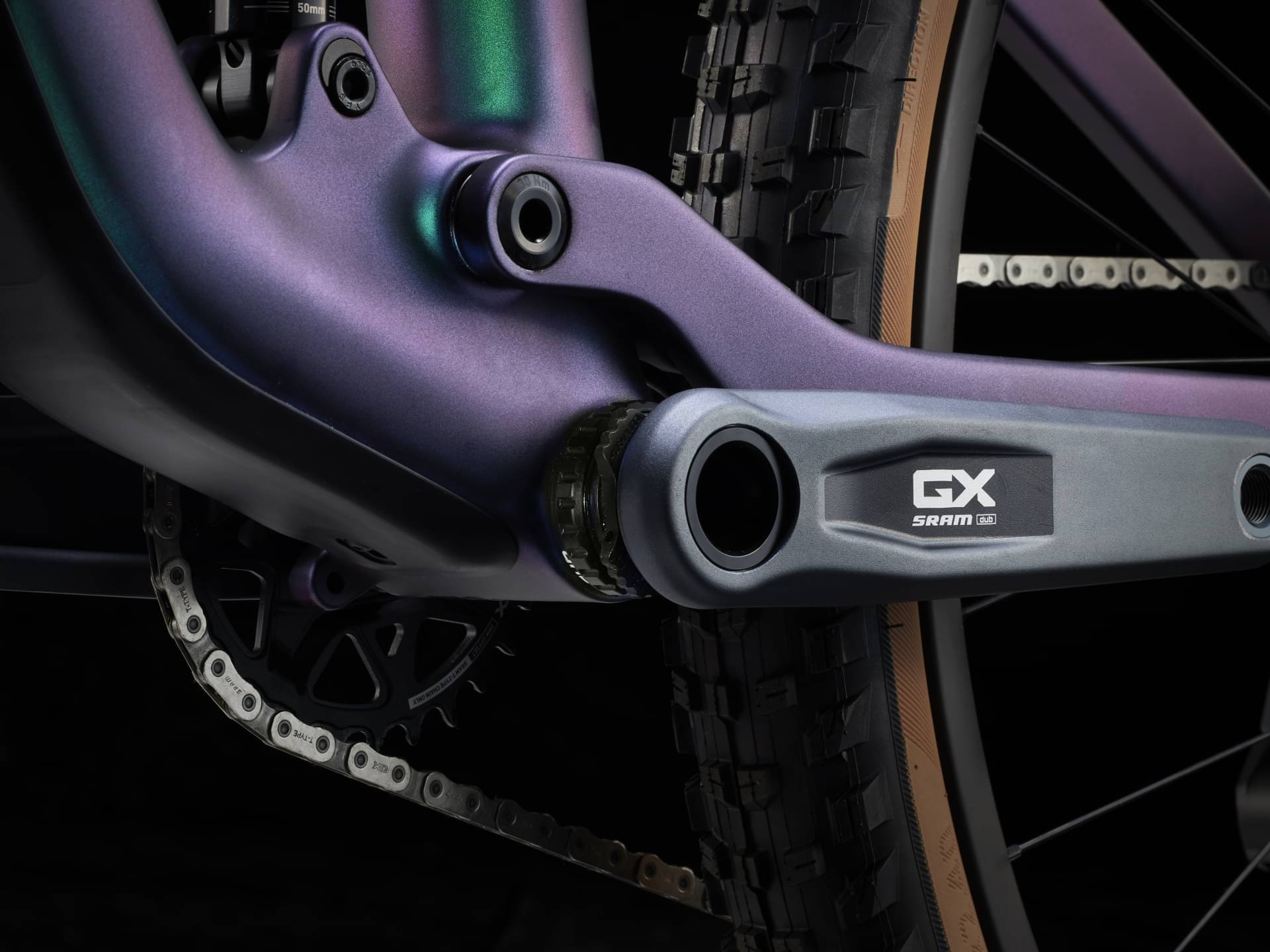

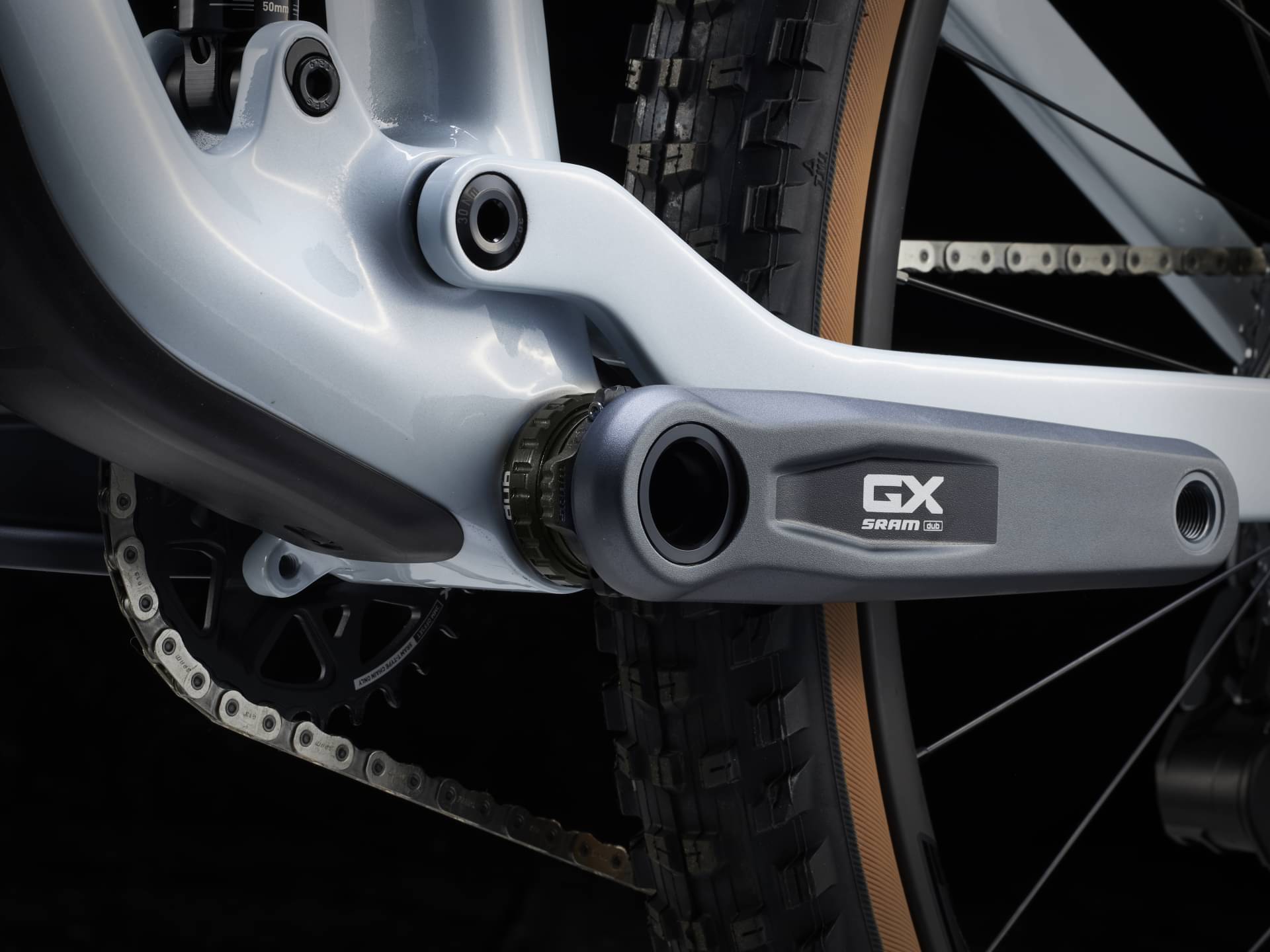

Crank

SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length

Bottom Bracket

SRAM DUB MTB Wide, 73mm, BSA threaded

Chain

SRAM GX Eagle, T-Type, 12 speed

Wheels

Rims

Front: Size: XS, Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''; Size: S, M, ML, L, XL, Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Size: XS, Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5''; Size: S, M, ML, L, XL, Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''

Tires

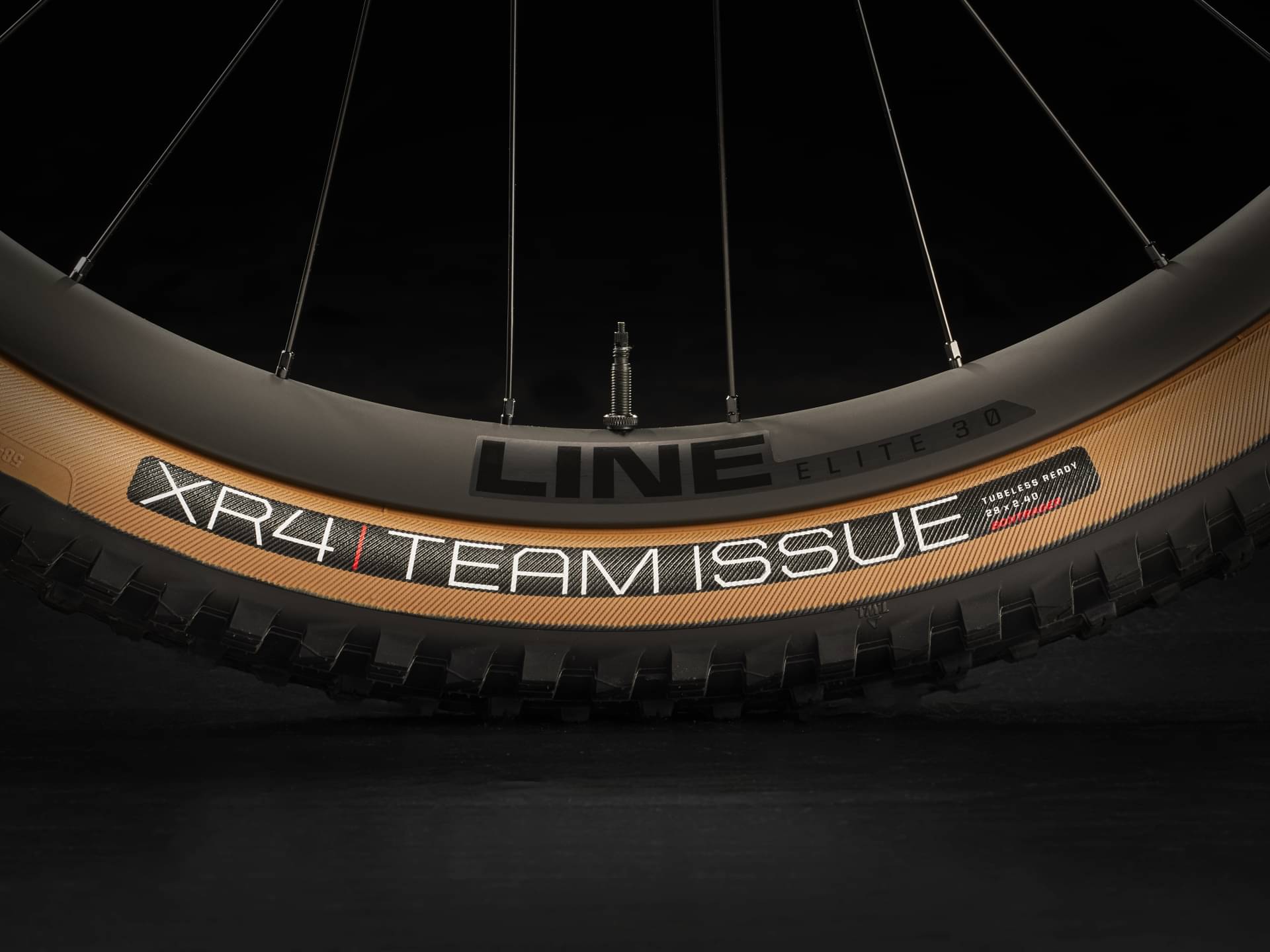

Size: XS, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 27.5x2.40''; Size: S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''

Brakes

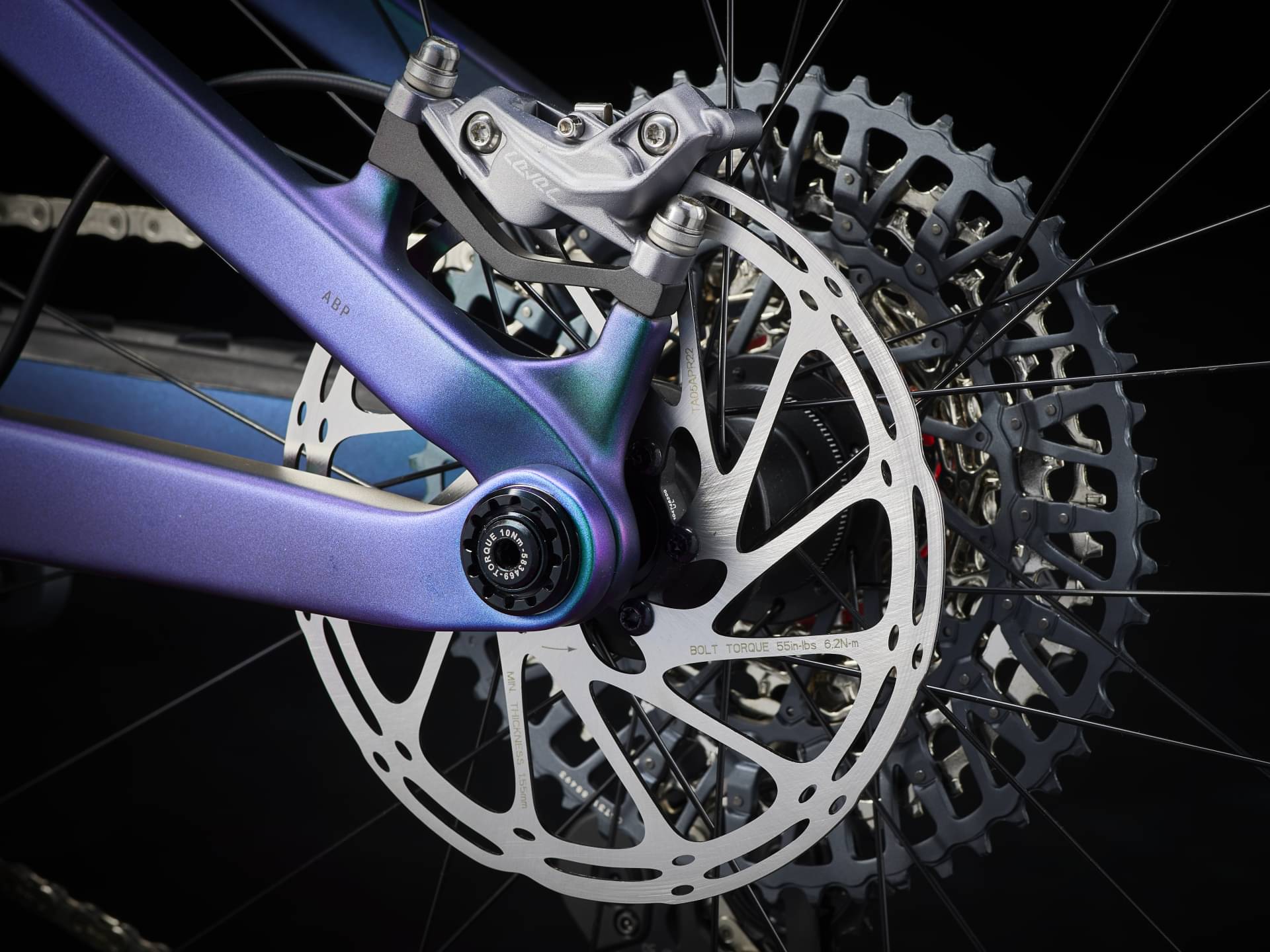

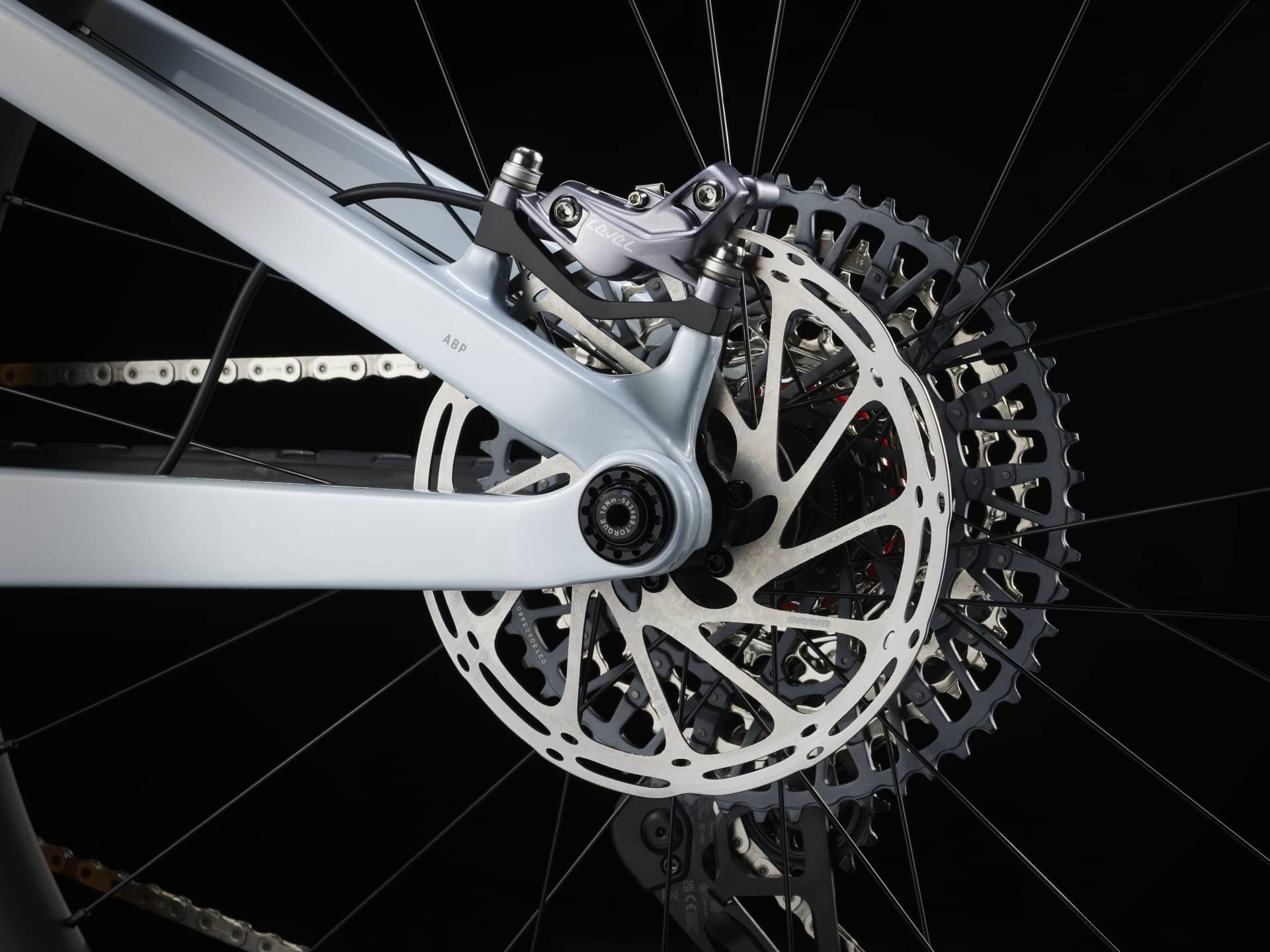

SRAM Level Bronze 4-piston hydraulic disc

Cockpit

Grips

Bontrager XR Trail Elite, nylon lock-on

Headset

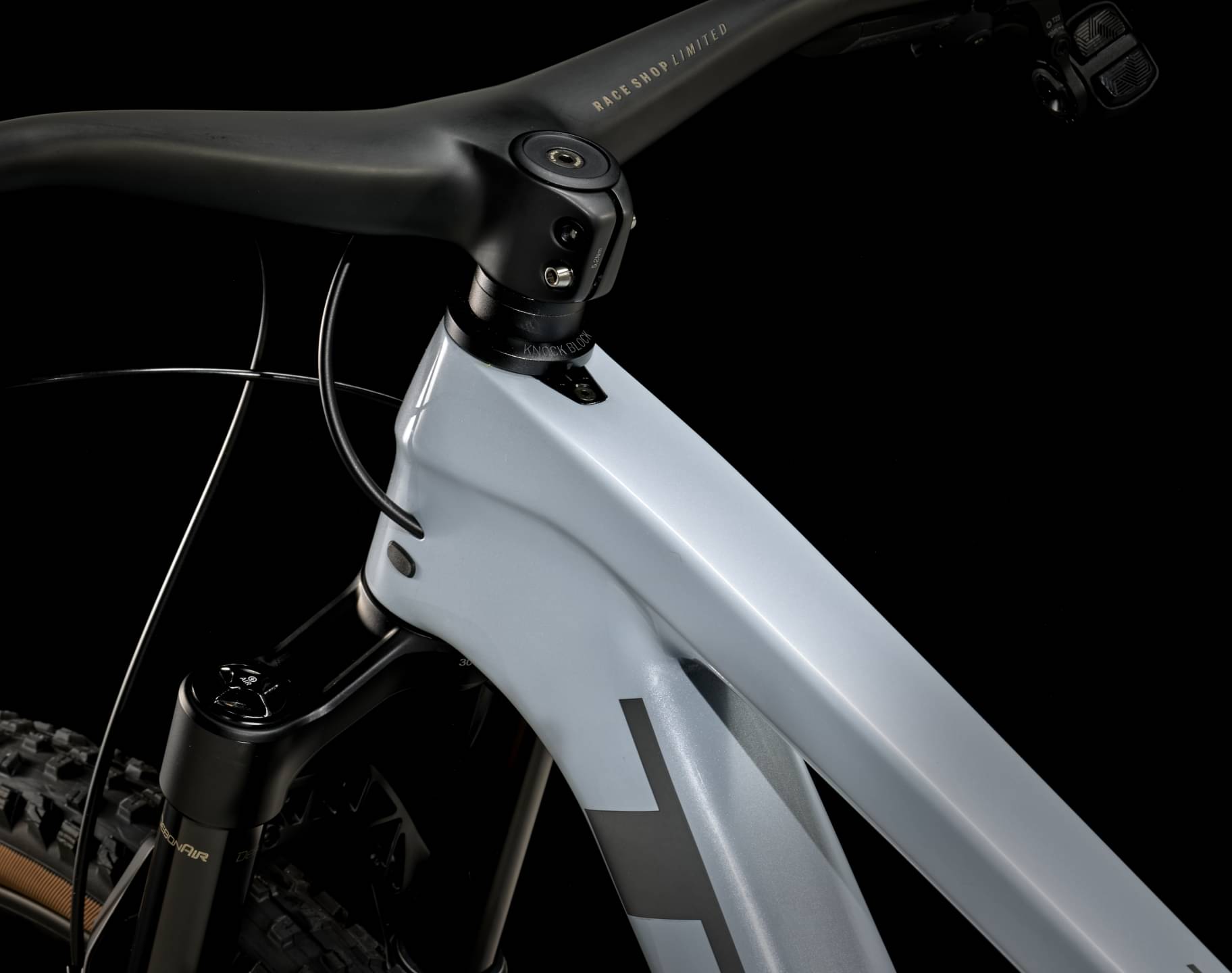

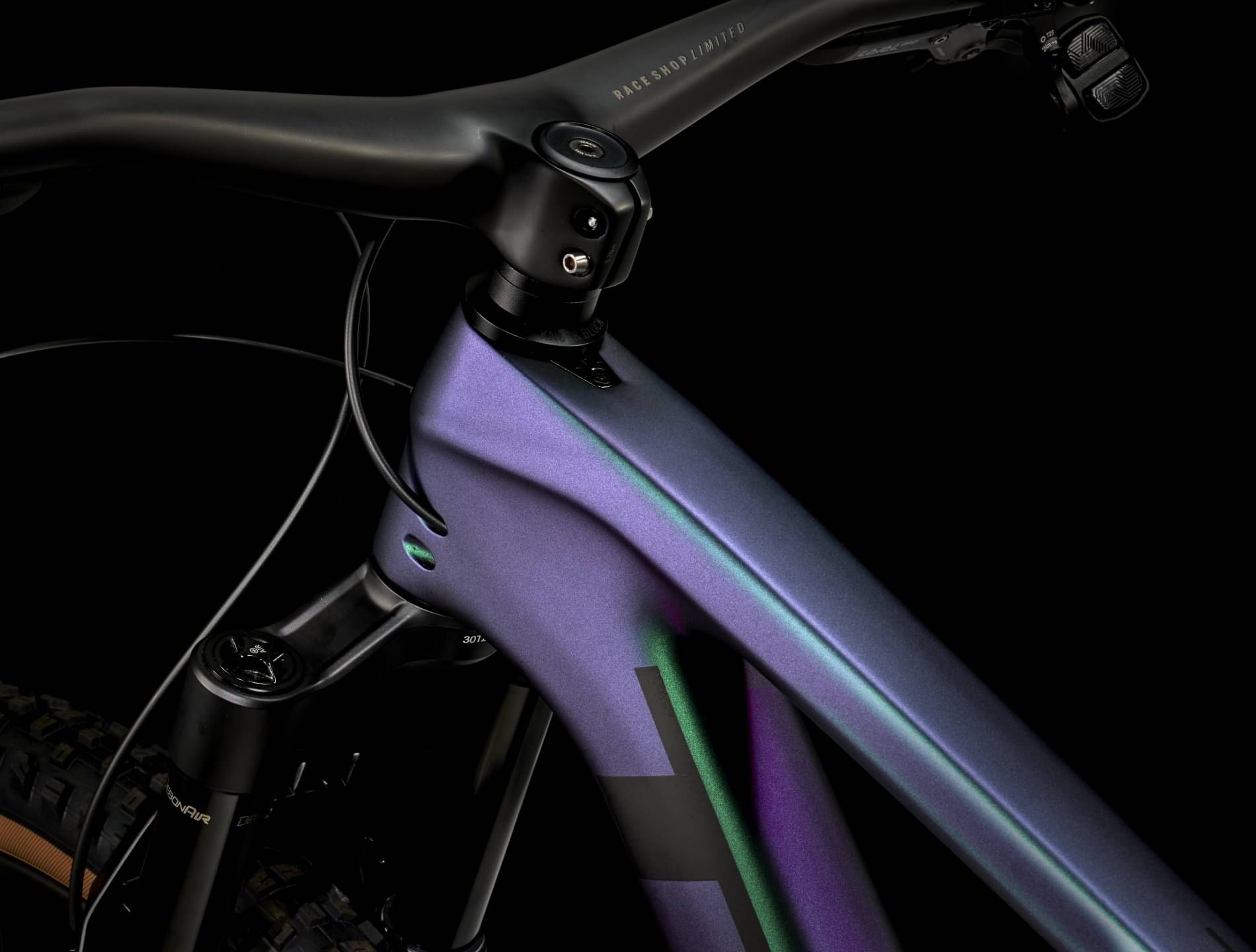

Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Seat

Saddle

Bontrager Arvada, austenite rails, 138mm width

Seatpost

Size: XS, S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, ML, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length

Fit data

Geometry

Numbers for sizing and ride feel.

Size	13.5" High	13.5" Low	15.5" High	15.5" Low	17.5" High	17.5" Low	18.5" High	18.5" Low	19.5" High	19.5" Low	21.5" High	21.5" Low
Stack Reach Ratio	1.398 mm	1.42 mm	1.422 mm	1.443 mm	1.327 mm	1.346 mm	1.293 mm	1.313 mm	1.263 mm	1.28 mm	1.24 mm	1.257 mm
Bottom Bracket Height	344 mm	339 mm	346 mm	341 mm	346 mm	341 mm	346 mm	341 mm	346 mm	341 mm	346 mm	341 mm
Front Center	691 mm	691 mm	720 mm	721 mm	750 mm	751 mm	767 mm	768 mm	784 mm	785 mm	811 mm	811 mm
Rake	44 mm	44 mm	42 mm	43 mm	42 mm	43 mm	42 mm	43 mm	42 mm	44 mm	43 mm	44 mm
Trail	111 mm	113 mm	120 mm	123 mm	120 mm	123 mm	120 mm	123 mm	120 mm	123 mm	120 mm	123 mm
Stack	558 mm	561 mm	596 mm	599 mm	596 mm	599 mm	600 mm	604 mm	605 mm	608 mm	619 mm	622 mm
Reach	399 mm	395 mm	419 mm	415 mm	449 mm	445 mm	464 mm	460 mm	479 mm	475 mm	499 mm	495 mm
Top Tube Length	539 mm	540 mm	569 mm	570 mm	599 mm	600 mm	615 mm	616 mm	631 mm	632 mm	654 mm	655 mm
Seat Tube Angle	75.9 °	75.5 °	75.9 °	75.5 °	75.9 °	75.5 °	75.9 °	75.5 °	75.9 °	75.6 °	75.9 °	75.6 °
Seat Tube Length	356 mm	356 mm	395 mm	395 mm	420 mm	420 mm	435 mm	435 mm	450 mm	450 mm	500 mm	500 mm
Head Tube Angle	65.9 °	65.5 °	65.9 °	65.5 °	65.9 °	65.5 °	65.9 °	65.5 °	65.9 °	65.6 °	65.9 °	65.6 °
Head Tube Length	95 mm	95 mm	100 mm	100 mm	100 mm	100 mm	105 mm	105 mm	110 mm	110 mm	125 mm	125 mm
Chainstay Length	434 mm	435 mm	434 mm	435 mm	434 mm	435 mm	434 mm	435 mm	434 mm	435 mm	434 mm	435 mm
Wheelbase	1125 mm	1126 mm	1153 mm	1154 mm	1183 mm	1184 mm	1200 mm	1201 mm	1217 mm	1218 mm	1244 mm	1244 mm
Bottom Bracket Drop	12 mm	16 mm	27 mm	32 mm	27 mm	33 mm	27 mm	33 mm	27 mm	33 mm	27 mm	33 mm
Standover Height	703 mm	699 mm	724 mm	719 mm	744 mm	739 mm	749 mm	744 mm	754 mm	749 mm	764 mm	759 mm
Wheels	27"	27"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"
