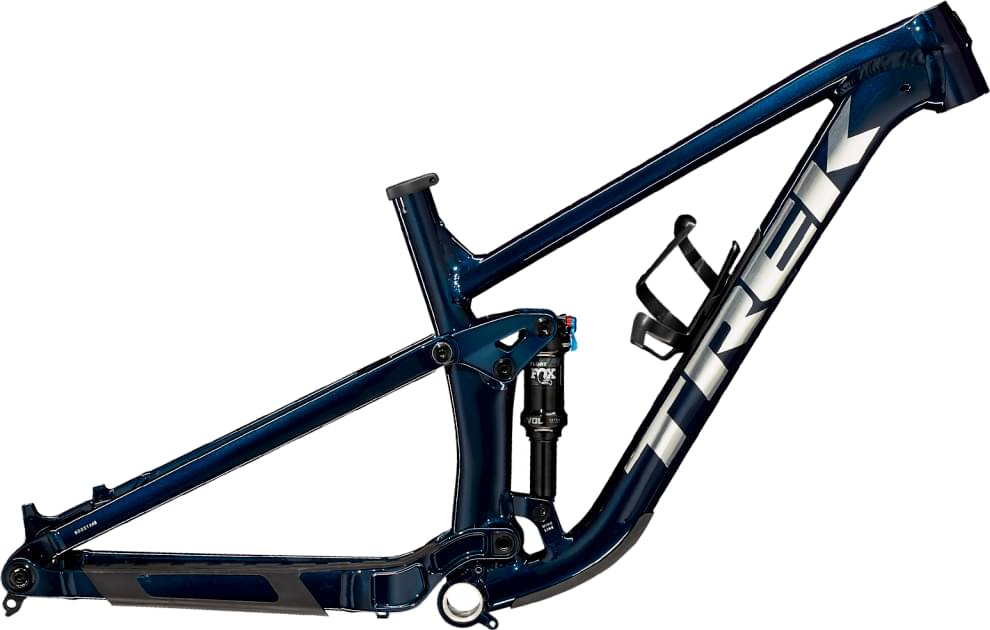

Trek Top Fuel AL Gen 3 Frameset 2024

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Mountain
- |
- Trail
Frame Aluminum
Travel Rear 120mm
Suspension Full

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel

Rear Shock

Fox Performance Float DPS, 3-position damper, 185mm x 50mm

Wheels

Tires

Frame: 29x2.50"

Cockpit

Stem

Bontrager Elite, 35mm, 0 degree, 45mm length

Headset

Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Fit data

Geometry

Numbers for sizing and ride feel.

Size	15.5" High	15.5" Low	17.5" High	17.5" Low	18.5" High	18.5" Low	19.5" High	19.5" Low	21.5" High	21.5" Low	23" High	23" Low
Stack Reach Ratio	1.422 mm	1.443 mm	1.327 mm	1.346 mm	1.293 mm	1.313 mm	1.263 mm	1.28 mm	1.24 mm	1.257 mm	1.214 mm	1.225 mm
Bottom Bracket Height	346 mm	341 mm	346 mm	341 mm	346 mm	341 mm	346 mm	341 mm	346 mm	341 mm	346 mm	341 mm
Front Center	720 mm	721 mm	750 mm	751 mm	767 mm	768 mm	784 mm	785 mm	811 mm	811 mm	835 mm	835 mm
Rake	42 mm	43 mm	42 mm	43 mm	42 mm	43 mm	42 mm	44 mm	43 mm	44 mm	42 mm	44 mm
Trail	120 mm	123 mm	120 mm	123 mm	120 mm	123 mm	120 mm	123 mm	120 mm	123 mm	112 mm	122 mm
Stack	596 mm	599 mm	596 mm	599 mm	600 mm	604 mm	605 mm	608 mm	619 mm	622 mm	630 mm	631 mm
Reach	419 mm	415 mm	449 mm	445 mm	464 mm	460 mm	479 mm	475 mm	499 mm	495 mm	519 mm	515 mm
Top Tube Length	569 mm	570 mm	599 mm	600 mm	615 mm	616 mm	631 mm	632 mm	654 mm	655 mm	677 mm	678 mm
Seat Tube Angle	75.9 °	75.5 °	75.9 °	75.5 °	75.9 °	75.5 °	75.9 °	75.6 °	75.9 °	75.6 °	69.9 °	69.6 °
Seat Tube Length	395 mm	395 mm	420 mm	420 mm	435 mm	435 mm	450 mm	450 mm	500 mm	500 mm	540 mm	540 mm
Head Tube Angle	65.9 °	65.5 °	65.9 °	65.5 °	65.9 °	65.5 °	65.9 °	65.6 °	65.9 °	65.6 °	65.9 °	65.6 °
Head Tube Length	100 mm	100 mm	100 mm	100 mm	105 mm	105 mm	110 mm	110 mm	125 mm	125 mm	135 mm	135 mm
Chainstay Length	434 mm	435 mm	434 mm	435 mm	434 mm	435 mm	434 mm	435 mm	434 mm	435 mm	434 mm	435 mm
Wheelbase	1153 mm	1154 mm	1183 mm	1184 mm	1200 mm	1201 mm	1217 mm	1218 mm	1244 mm	1244 mm	1268 mm	1268 mm
Bottom Bracket Drop	27 mm	32 mm	27 mm	33 mm	27 mm	33 mm	27 mm	33 mm	27 mm	33 mm	27 mm	33 mm
Standover Height	724 mm	719 mm	744 mm	739 mm	749 mm	744 mm	754 mm	749 mm	764 mm	759 mm	764 mm	759 mm
Wheels	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"
